Ryobi C2600 User manual

SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL
14 in. (356 mm) Abrasive Cut-Off
Machine – Model C2600
THANK YOU FOR BUYING A RYOBI ABRASIVE CUT-OFF MACHINE.
Your new cut-off machine has been engineered and manufactured to Ryobi's high standards for dependability, ease of
operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
CAUTION: Carefully read through this entire operator's manual before using your new machine.
Pay close attention to the Rules for Safe Operation, Warnings, and Cautions. If you use your machine properly and only for
what it is intended, you will enjoy years of safe, reliable service.
Please fill out and return the Warranty Registration Card so we can be of future service to you.
Thank you again for buying Ryobi tools.
a
a a
a a a a
aa a
aa
aa
a
a a a
a a
a
a aa a a
aa a a a
a
a aa
aa
a a
a a a

Page 2
TABLE OF CONTENTS
■Table Of Contents .......................................................................................................................................2
■Rules For Safe Operation ........................................................................................................................3-5
■Electrical......................................................................................................................................................6
•Extension Cords....................................................................................................................................................... 6
•Electrical Connection ............................................................................................................................................... 6

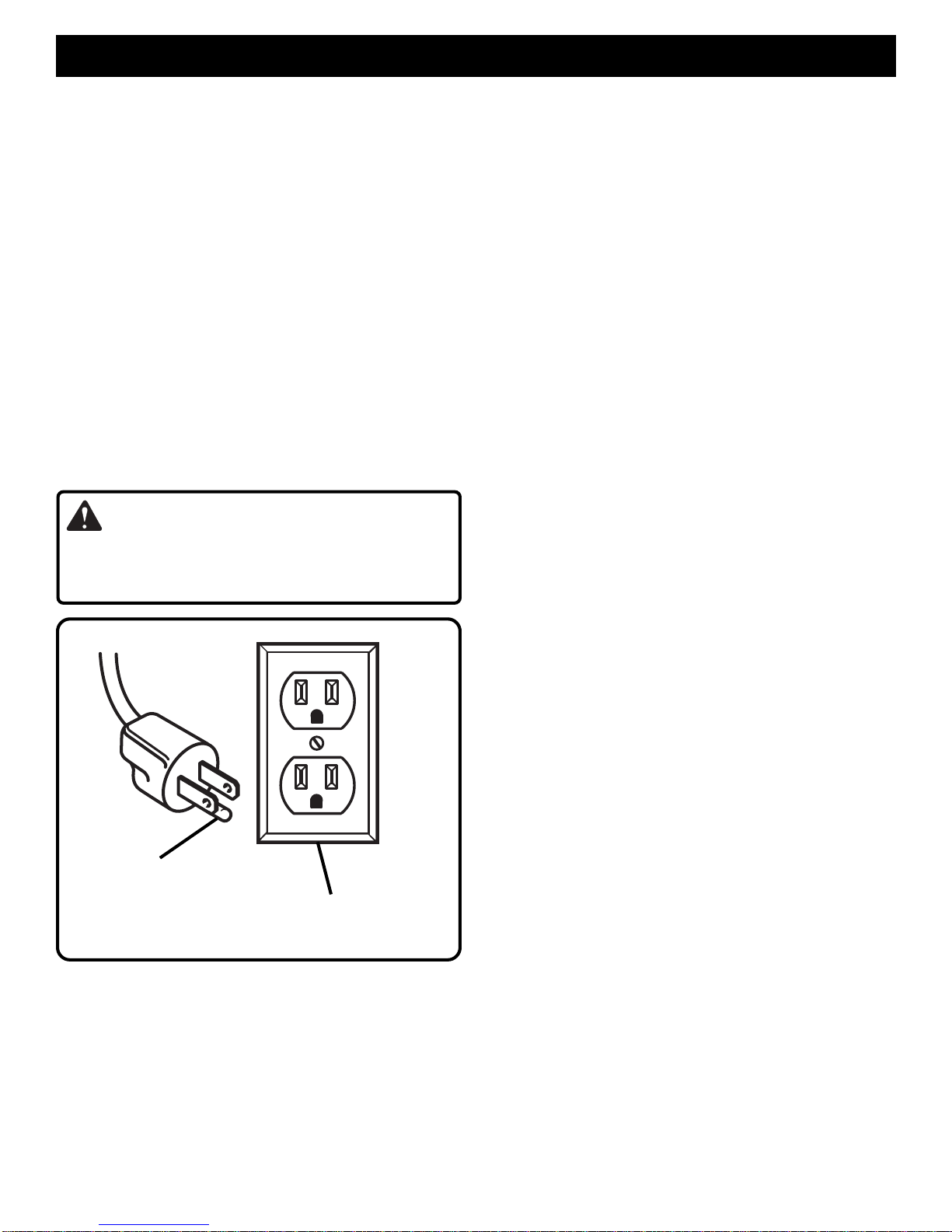

•Grounding Instructions............................................................................................................................................. 6
■Unpacking And Loose Parts........................................................................................................................7
•Loose Parts List ....................................................................................................................................................... 7
■Product Specifications ................................................................................................................................7
■Features ...................................................................................................................................................8-9

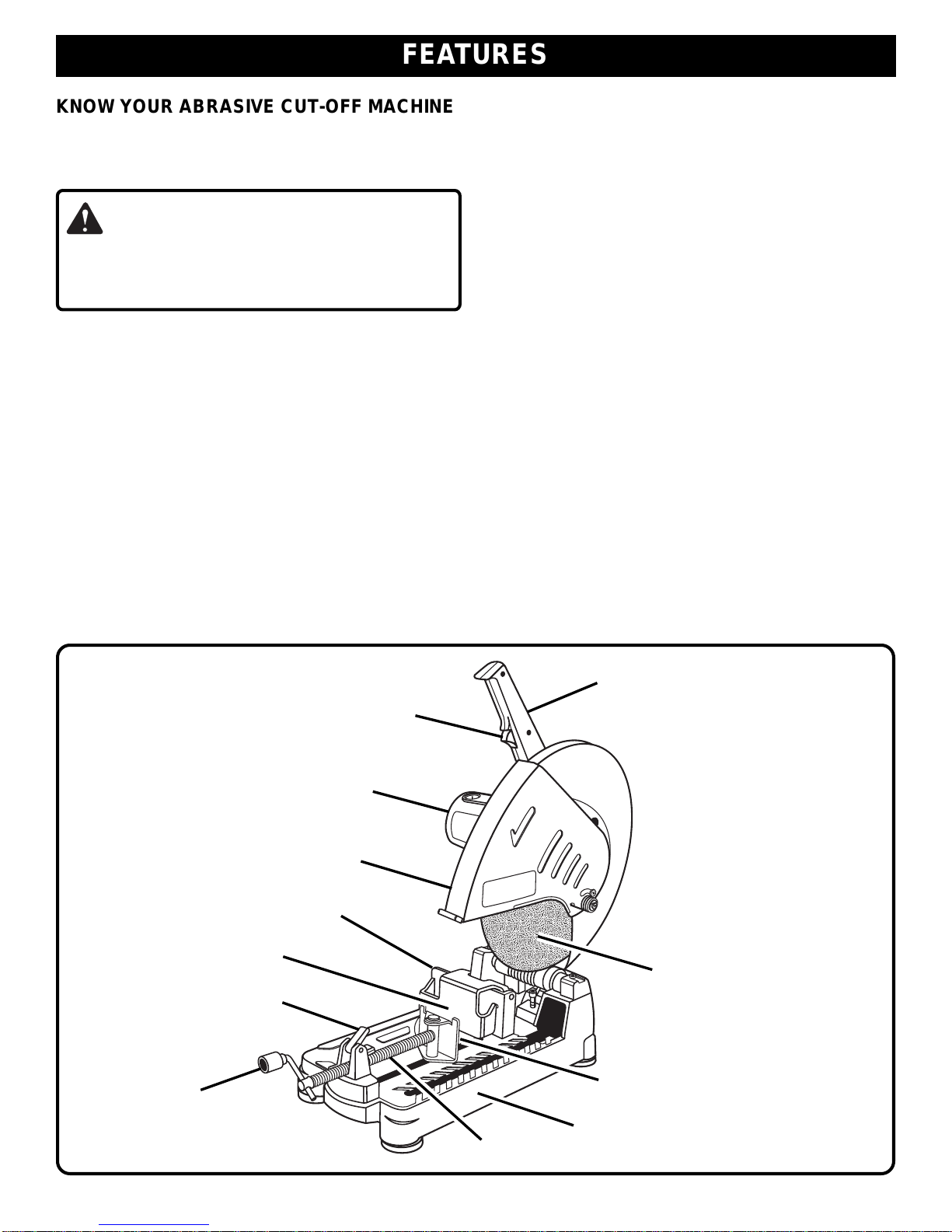

•Know Your Abrasive Cut-Off Machine...................................................................................................................... 8
•Motor ........................................................................................................................................................................ 8
•14 in. (356 mm) Abrasive Wheel.............................................................................................................................. 8
•Self-Retracting Lower Wheel Guard ........................................................................................................................ 8
•Vise Clamp ............................................................................................................................................................... 8
•Adjustable Flip Fence .............................................................................................................................................. 8
•Quick Lock-Release Lever....................................................................................................................................... 8

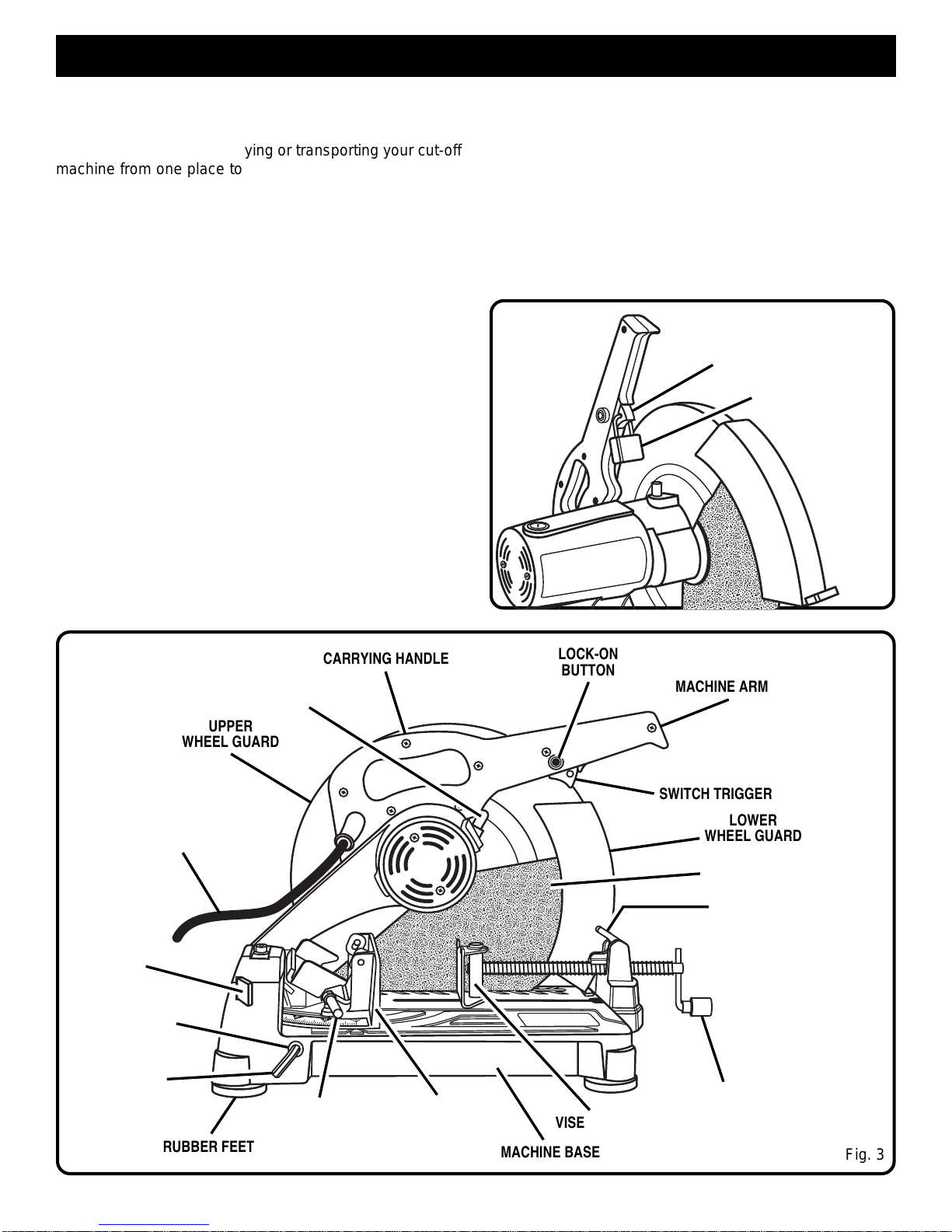

•Carrying Handle ....................................................................................................................................................... 9
•Lock-On Button ........................................................................................................................................................ 9
•Spindle Lock Button ................................................................................................................................................. 9
•Trigger Lock ............................................................................................................................................................. 9
■Adjustments .........................................................................................................................................10-13
•Removal And Installation Of Wheel ....................................................................................................................... 10
•To Remove ............................................................................................................................................................. 10
•To Install ................................................................................................................................................................. 10
•Adjustable Flip Fence .............................................................................................................................................11
•Cutting Angle Adjustment ....................................................................................................................................... 11
•Adjusting Width Of Cut........................................................................................................................................... 11
•Quick Lock-Release Lever..................................................................................................................................... 12
•Using The Quick Lock-Release Lever And Vise Clamp ........................................................................................ 12
a. To Loosen.......................................................................................................................................................... 12
b. To Tighten.......................................................................................................................................................... 12

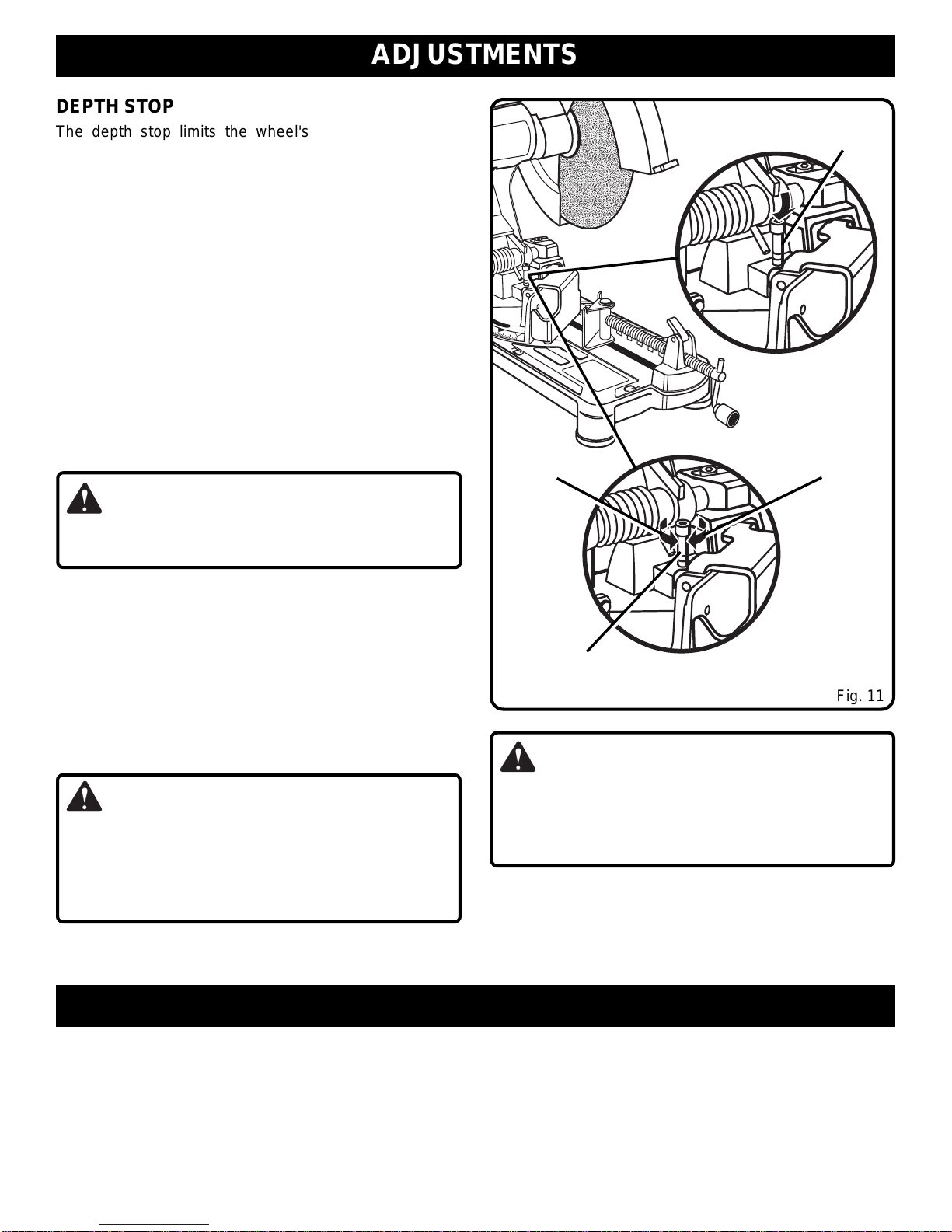

•Depth Stop ............................................................................................................................................................. 13
•Depth Stop Adjustments ........................................................................................................................................ 13
■Operation .............................................................................................................................................13-15
•Applications............................................................................................................................................................ 13
•Power Supply ......................................................................................................................................................... 14
•Switch..................................................................................................................................................................... 14
•Lock-On Button ...................................................................................................................................................... 14

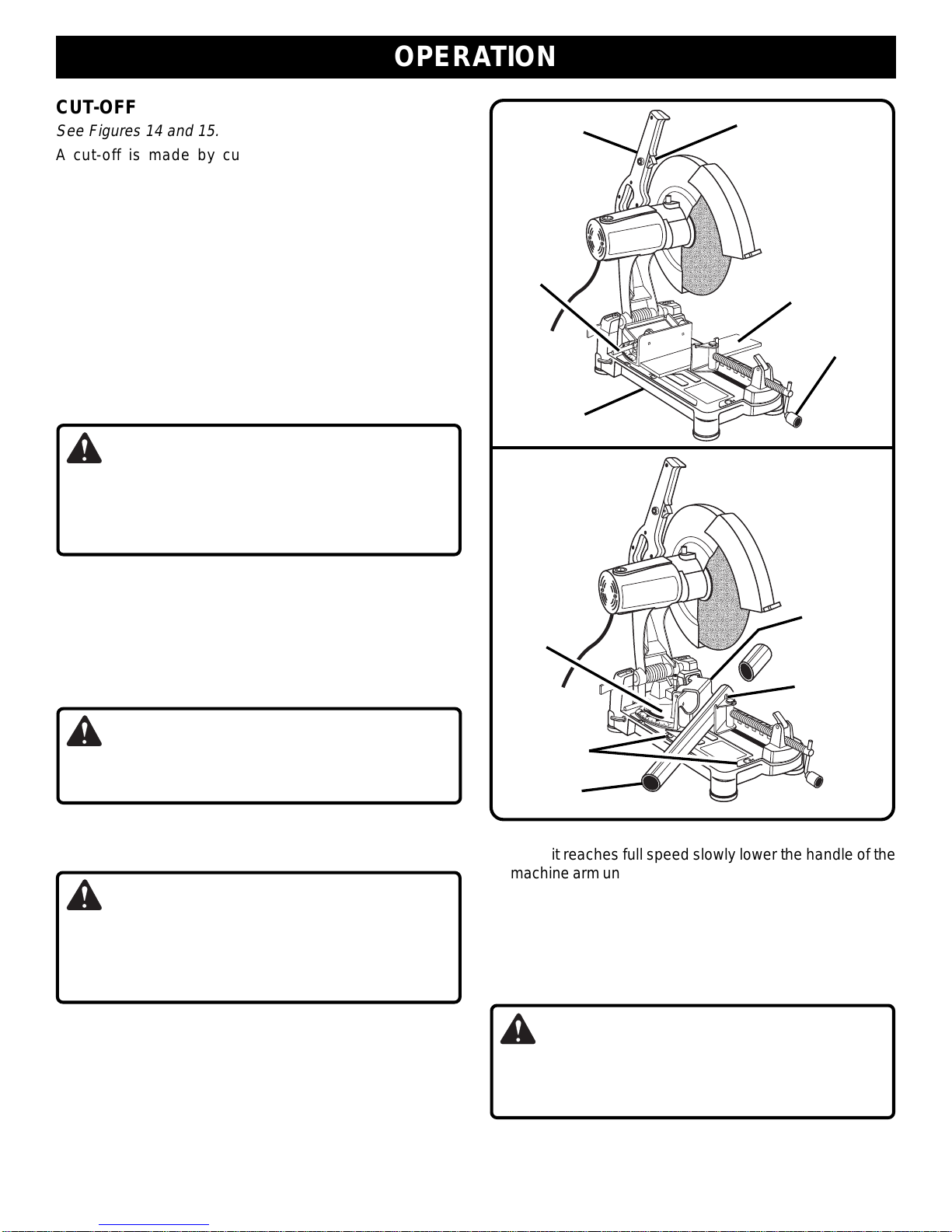

•Cutting With Your Cut-Off Machine ........................................................................................................................ 14
•Crosscutting ........................................................................................................................................................... 15
a. To crosscut with your cut-off machine............................................................................................................... 15

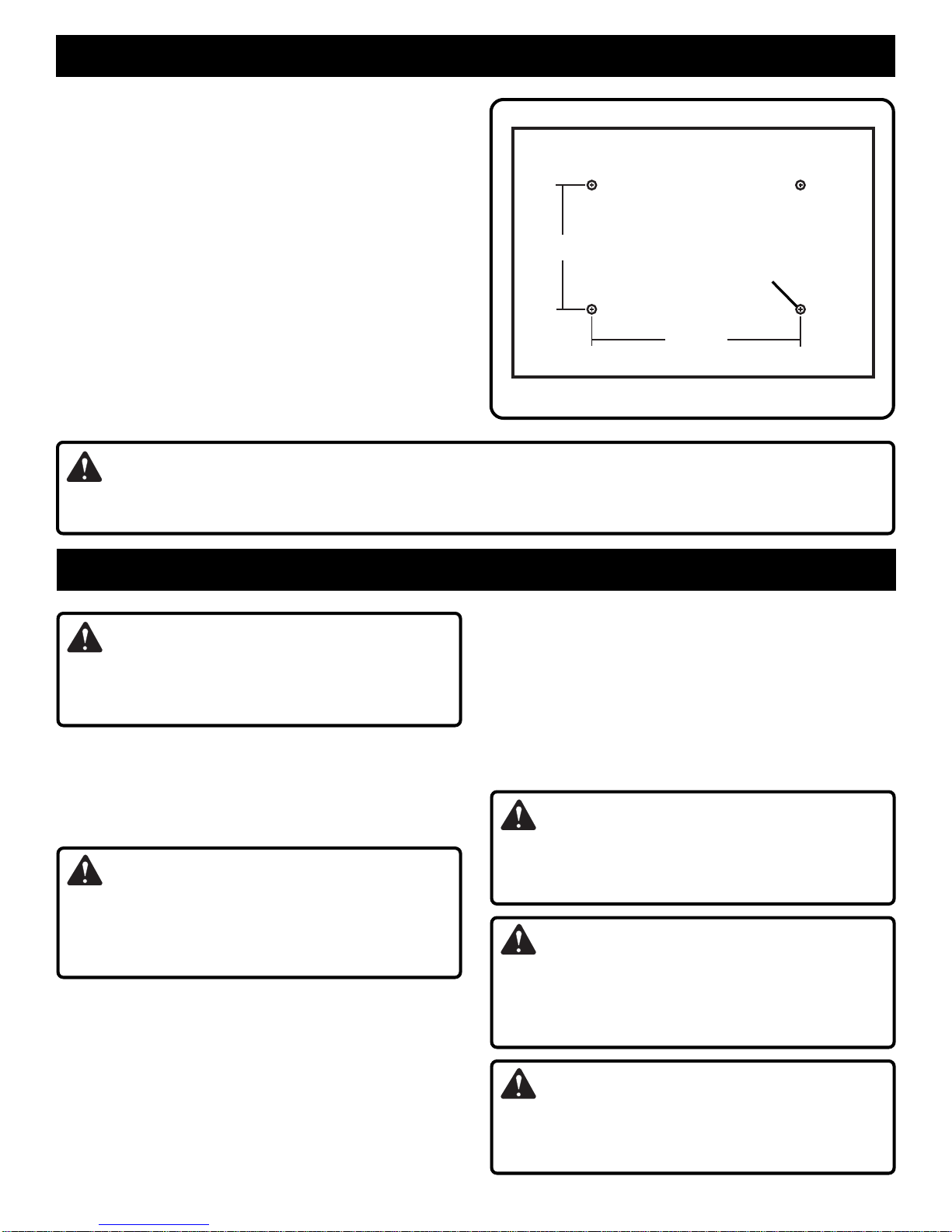

•Mounting Holes ...................................................................................................................................................... 16
■Maintenance.........................................................................................................................................16-17
•General................................................................................................................................................................... 16
•Lubrication.............................................................................................................................................................. 16
•Extension Cords..................................................................................................................................................... 16

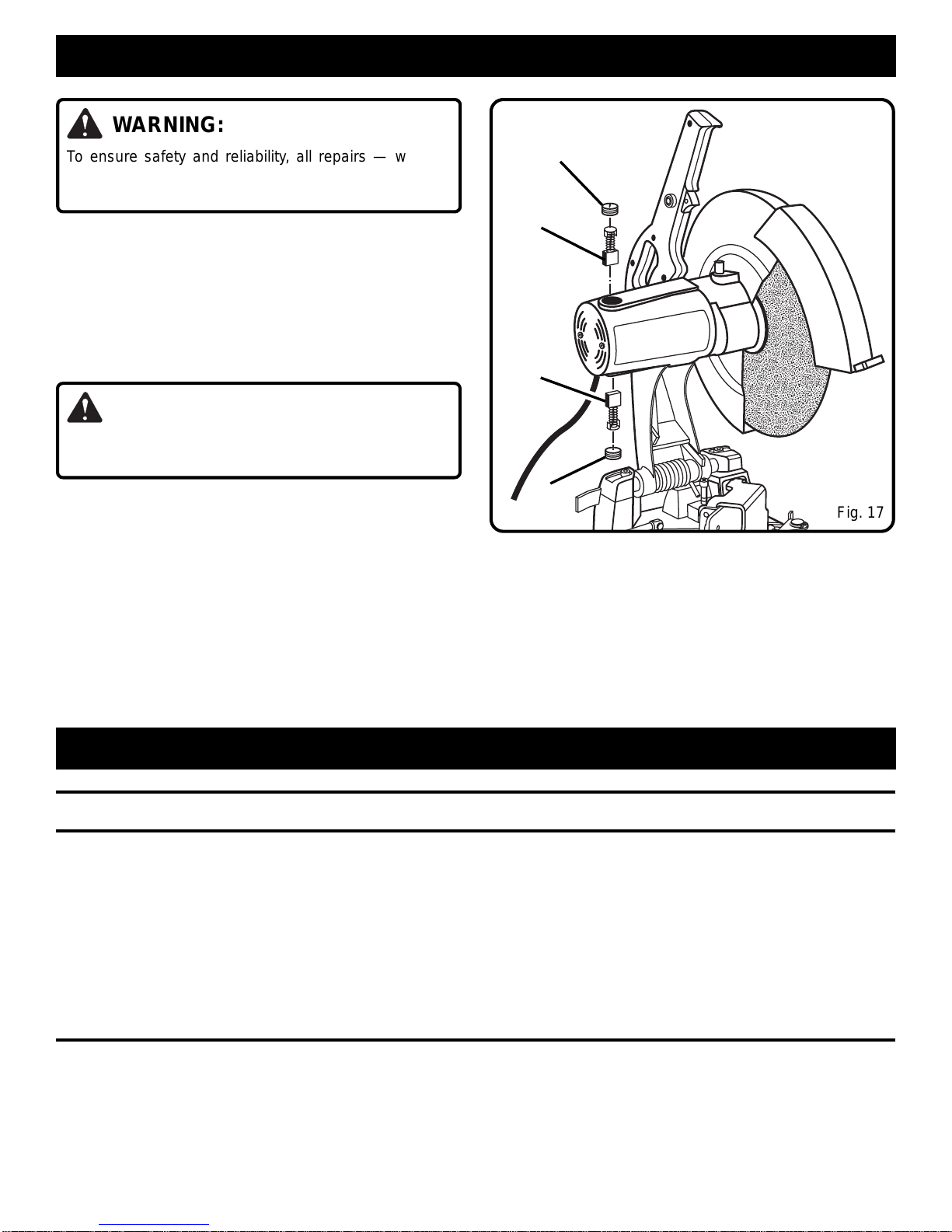

•Brush Replacement................................................................................................................................................ 17
■Troubleshooting ...................................................................................................................................17-18
■Exploded Views and Parts Lists..................................................................................................................?
■Parts Ordering / Service..............................................................................................................................?

Page 3
RULES FOR SAFE OPERATION
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the
explanations with them, deserve your careful attention and understanding. The safety warnings do not by
themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper
accident prevention measures.
SYMBOL MEANING
SAFETY ALERT SYMBOL:
Indicatescaution,warning,ordanger.Maybeusedinconjunctionwithothersymbolsorpictographs.
DANGER:Failuretoobeyasafety warningwillresultinseriousinjurytoyourselfor toothers.Always
follow the safety precautions to reduce the risk of fire, electric shock and personal injury.
WARNING:Failuretoobeyasafetywarningcanresultinseriousinjurytoyourselfortoothers.Always
follow the safety precautions to reduce the risk of fire, electric shock and personal injury.
CAUTION: Failure to obey a safety warning may result in property damage or personal injury to
yourselfortoothers.Alwaysfollowthesafetyprecautionstoreducetheriskoffire,electricshockand
personal injury.
NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.
IMPORTANT
Servicing requiresextreme careand knowledgeand should
be performed only by a qualified service technician. For
servicewe suggest youreturnthe tool toyournearest RYOBI
AUTHORIZED SERVICE CENTER for repair. When servic-
ing, use only identical Ryobi replacement parts.
WARNING:
Do not attempt to operate this tool until you have read
thoroughly and understand completely all instructions,
safety rules, etc. contained in this manual. Failure to
comply can result in accidents involving fire, electric
shock, or serious personal injury. Save this operator's
manual and review frequently for continuing safe
operation and instructing others who may use this tool.
Lookforthissymboltopointoutimportantsafetyprecautions.
It means attention!!! Your safety is involved.
GLASSES
SAFETY
WEAR YOUR
FORESIGHT IS BETTER
THAN NO SIGHT
The operation of any abrasive cut-off machine can result in foreign objects being thrown into
youreyes, whichcan resultin severeeye damage.Before beginningpower tool operation, always
wear safety goggles or safety glasses with side shields and a full face shield when needed. We
recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with
side shields.
WARNING:
IMPORTANT INFORMATION ON THE USE OF CUT-OFF WHEELS AND ANSI B 7.1 can be obtained by writing to:
GRINDING WHEEL INSTITUTE
30200 Detroit Road
Cleveland, OH 44145-1967

Page 4
RULES FOR SAFE OPERATION
Safe operation of this power tool requires that you read and
understand this operator's manual and all labels affixed to
the tool. Safety is a combination of common sense, staying
alert, and knowing how your cut-off machine works.
READ ALL INSTRUCTIONS
■KNOW YOUR POWER TOOL. Read the operator's
manualcarefully.Learn the cut-offmachine's applications
and limitations as well as the specific potential hazards
related to this tool.
■GUARD AGAINST ELECTRICAL SHOCK BY
PREVENTING BODY CONTACT WITH GROUNDED
SURFACES. For example; pipes, radiators, ranges,
refrigerator enclosures.
■KEEP GUARDS IN PLACE and in good working order.
■REMOVE ADJUSTING KEYS AND WRENCHES. Get
inthe habitof checking tosee thathexkeys andadjusting
wrenches are removed from tool before turning it on.
■KEEP THE WORK AREA CLEAN. Cluttered work areas
and work benches invite accidents. DO NOT leave tools
or pieces of work on the machine while it is in operation.
■DO NOT USE IN DANGEROUS ENVIRONMENTS. Do
not use power tools near gasoline or other flammable
liquids, in damp or wet locations, or expose them to rain.
Keep the work area well lit.
■KEEP CHILDREN AND VISITORS AWAY. All visitors
should wear safety glasses and be kept a safe distance
from work area. Do not let visitors contact tool or
extension cord while operating.
■MAKE WORKSHOP CHILD-PROOF with padlocks and
master switches, or by removing starter keys.
■DO NOT FORCE THE TOOL. It will do the job better and
safer at the rate for which it was designed.
■USE THE RIGHT TOOL. Do not force the tool or
attachment to do a job it was not designed for. Don't use
it for a purpose not intended.
■USE THE PROPER EXTENSION CORD. Makesure your
extension cord is in good condition. When using an
extensioncord, besure to useone heavyenough tocarry
the current your product will draw. An undersized cord
will cause a drop in line voltage resulting in loss of power
and overheating.Awire gage size (A.W.G.) of at least 14
is recommended for an extension cord 25 feet or less in
length.If indoubt, usethe next heavier gage.The smaller
the gage number, the heavier the cord.
■INSPECT EXTENSION CORDS PERIODICALLY and
replace if damaged.
■DRESS PROPERLY. Do not wear loose clothing, gloves,
neckties, rings, bracelets, or other jewelry. They can get
caught and draw you into moving parts. Rubber gloves
and nonslip footwear are recommended when working
outdoors. Also wear protective hair covering to contain
long hair.
■ALWAYS WEAR SAFETY GLASSES WITH SIDE
SHIELDS. Everyday eyeglasses have only impact-
resistant lenses; they are NOT safety glasses.
■PROTECT YOUR LUNGS. Wear a face or dust mask if
the cutting operation is dusty.
■PROTECT YOUR HEARING. Wear hearing protection
during extended periods of operation.
■SECURE WORK. Useclamps ora visetohold workwhen
practical. It's safer than using your hand and it frees both
hands to operate tool.
■DO NOTABUSE CORD. Never yank cord to disconnect
it from receptacle. Keep cord from heat, oil, and sharp
edges.
■DO NOT OVERREACH. Keepproperfooting andbalance
at all times.
■MAINTAIN TOOLS WITH CARE. Keep tools sharp and
clean for better and safer performance. Follow
instructions for lubricating and changing accessories.
■DISCONNECT ALL TOOLS. When not in use, before
servicing, or when changing attachments, wheels, bits,
cutters, etc., all tools should be disconnected.
■AVOID ACCIDENTAL STARTING. Be sure switch is off
when plugging in.
■USE RECOMMENDED ACCESSORIES. The use of
improper accessories may cause risk of injury.
■NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped or if the wheel is unintentionally
contacted.
■CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefullychecked todeterminethat itwilloperate properly
and perform its intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts,
mounting and any other conditions that may affect its
operation.Aguard or other part that is damaged must be
properly repaired or replaced by an authorized service
center to avoid risk of personal injury.
■NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
THE POWER OFF. Do not leave tool until it comes to a
complete stop.
■USE ONLY CORRECT WHEELS. Do not use wheels
with incorrect size holes. Never use wheel washers or
wheel screws that are defective or incorrect. The
maximum wheel capacity of your cut-off machine is 14 in.
(356 mm).
■DO NOT REMOVE THE MACHINE'S WHEEL GUARDS.
Never operate the machine with any guard or cover
removed. Make sure all guards are operating properly
before each use.
■KEEP HANDS AWAY FROM CUTTING AREA. Keep
hands away from wheel. Do not reach underneath work
or around or under the wheel while the wheel is rotating.
Do not attempt to remove cut material while wheel is
moving.

Page 5
RULES FOR SAFE OPERATION
WARNING: Wheel coasts after turn off.
■NEVER USE IN AN EXPLOSIVE ATMOSPHERE.
Normal sparking of the motor or sparking from cutting
metal could ignite fumes.
■INSPECT TOOL CORDS PERIODICALLY and if
damaged,haverepairedat your nearestRyobi Authorized
Service Center. Stay constantly aware of cord location
and keep it well away from the rotating wheel.
■USE OUTDOOR EXTENSION CORDS. When tool is
used outdoors, use only extension cords with approved
ground connection that are intended for use outdoors
and so marked.
■DO NOT USE TOOL IF SWITCH DOES NOT TURN IT
ON AND OFF. Have defective switches replaced by an
authorized service center.
■KEEP TOOL DRY, CLEAN,AND FREE FROM OIL AND
GREASE. Alwaysuseacleanclothwhencleaning. Never
use brake fluids, gasoline, petroleum-based products, or
any solvents to clean tool.
■ALWAYS SUPPORT LONG WORKPIECES. To minimize
risk of tipping machine, always support long workpieces.
■BEFORE MAKING A CUT, BE SURE ALL
ADJUSTMENTS ARE SECURE.
■ALWAYS USE THE VISE CLAMP to secure the
workpiece.
■NEVER TOUCH WHEEL or other moving parts during
use.
■NEVER START THE CUT-OFF MACHINE WHEN THE
WHEEL IS IN CONTACT WITH THE WORKPIECE.
■NEVER cut more than one workpiece at a time. DO NOT
STACK more than one workpiece on the machine base
at a time.
■NEVER PERFORM ANY OPERATION "FREEHAND".
Always secure the workpiece to be cut in the vise.
■NEVER hand hold a workpiece. Workpiece will become
very hot while being cut.
■NEVER reach behind, under, or within three inches of
the wheel and its cutting path with your hands and fin-
gers for any reason.
■NEVER reach to pick up a workpiece, a piece of scrap,
or anything else that is in or near the cutting path of the
wheel.
■AVOID AWKWARD OPERATIONS AND HAND POSI-
TIONS where a sudden slip could cause your hand to
move into the wheel. ALWAYS make sureyou havegood
balance.
■NEVER stand or have any part of your body in line with
the path of the wheel.
■ALWAYS release the power switch and allow the wheel
to stop rotating before raising it out of the workpiece.
■DO NOT TURN THE MOTOR SWITCH ON AND OFF
RAPIDLY. This couldcausethe wheel toloosenand could
create a hazard. Should this ever occur, stand clear and
allow the wheel to come to a complete stop. Disconnect
your cut-off machine from the power supply and securely
retighten the wheel arbor bolt.
■REPLACEMENT PARTS. All repairs, whether electrical
or mechanical, should be made at a Ryobi Authorized
Service Center.
WARNING:
When servicing use only identical Ryobi replacement
parts. Use of any other parts may create a hazard or
cause product damage.
■NEVER leave the cut-off machine unattended while con-
nected to a power source.
■IF ANY PART OF THIS CUT-OFF MACHINE IS MISS-
ING or should break, bend, or fail in any way, or should
any electrical component fail to perform properly, shut
off the power switch, remove the machine plug from the
powersource andhave damaged, missing,or failedparts
replaced before resuming operation.
■MAKE SURE THE CUT-OFF WHEEL IS SECURELY
MOUNTED as described in the operating instructions
before connecting the tool to a power supply. Do not
tighten wheel excessively, since this can cause cracks.
■CHECK THE WHEEL FOR FISSURES AND CRACKS,
and test for normal operation prior to use.
■ONLY USEA CUT-OFF WHEELRATED FOR 3300 RPM
OR GREATER and manufactured in compliance with
ANSI B 7.1.Always store wheels in a dry place with little
temperature variation.
■ALWAYS EASE THE ABRASIVE WHEEL AGAINST
THE WORK PIECE when starting to cut.Aharsh impact
can break the wheel.
■BEFORE CUTTING, press the trigger switch and allow
the cut-off wheel to reach full speed before cutting.
■MAKE SURE THE WORK AREA HAS AMPLE LIGHT-
ING to see the work and that no obstructions will inter-
fere with safe operation BEFORE performing any work
using your cut-off machine.
■DO NOT OPERATE THIS TOOL WHILE UNDER THE
INFLUENCE OF DRUGS, ALCOHOL, OR ANY
MEDICATION.
■ALWAYS STAYALERT! Do not allow familiarity (gained
from frequent use of your cut-off machine) to cause a
carelessmistake. ALWAYS REMEMBER that a careless
fraction of a second is sufficient to inflict severe injury.
■STAY ALERT AND EXERCISE CONTROL. Watch what
you are doing and use common sense. Do not operate
tool when you are tired. Do not rush.
■SAVE THESE INSTRUCTIONS. Referto themfrequently
anduse themto instruct otherusers. Ifyou loansomeone
this tool, loan them these instructions also.

Page 6
EXTENSION CORDS
Use only 3-wire extension cords that have 3-prong ground-
ing plugs and 3-pole receptacles that accept the tool's plug.
Whenusingapowertoolataconsiderabledistancefromthe
powersource, usean extension cordheavy enoughtocarry
the current that the tool will draw. An undersized extension
cord will cause a drop in line voltage, resulting in a loss of
power and causing the motor to overheat. Use the chart
providedbelowtodeterminetheminimumwiresizerequired
in an extension cord. Only round jacketed cords listed by
Underwriter's Laboratories (UL) should be used.
Length of Extension Cord Wire Size (A.W.G.)
Up to 25 feet 14
26-50 feet 12
Whenworking with the tool outdoors, use an extension cord
that is designed for outside use. This is indicated by the
letters WA on the cord's jacket.
Before using an extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
CAUTION:
Keep the cord away from the cutting area and position
the cord so that it will not be caught on material, tools, or
other objects during cutting.
ELECTRICAL CONNECTION
Your Ryobi Abrasive Wheel Cut-off Machine is powered by
a precision built electric motor. It should be connected to a
power supply that is 120 volts, 60 Hz, AC only (normal
household current). Do not operate this tool on direct
current (DC). A substantial voltage drop will cause a loss of
power and the motor will overheat. If the machine does not
operatewhenpluggedintoanoutlet,doublecheckthepower
supply.
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reducetheriskofelectricshock.Thistoolisequippedwithan
electriccordhavingan equipment-grounding conductor and
agrounding plug. Theplugmust bepluggedinto amatching
outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
Donotmodifytheplugprovided.Ifitwillnotfittheoutlet,have
theproperoutletinstalledbyaqualifiedelectrician.Improper
connectionoftheequipment-groundingconductorcanresult
in a risk of electric shock. The conductor with insulation
having an outer surface that is green with or without yellow
stripes is the equipment-grounding conductor. If repair or
replacement of the electric cord or plug is necessary, do not
connect the equipment-grounding conductor to a live termi-
nal.
Check with a qualified electrician or service personnel if the
groundinginstructionsarenotcompletelyunderstood,orifin
doubt as to whether the tool is properly grounded.
Repair or replace a damaged or worn cord immediately.
Thistoolisintendedforuseonacircuitthathasanoutletlike
theoneshownin Figure1. Italsohasagroundingpinlikethe
one shown.
Fig. 1
GROUNDING
PIN
COVER OF GROUNDED
OUTLET BOX
ELECTRICAL

Page 7
Your abrasive cut-off machine has been shipped completely
assembled.
■Remove all loose parts from the carton.
■Removethepacking materials fromaroundyour machine.
■Carefullylift thecut-offmachine fromthecarton andplace
it on a level work surface. This is a heavy tool. To avoid
back injury, get help when needed.
■Do not discard the packing materials until you have care-
fullyinspected themachine, identifiedall looseparts, and
satisfactorilyoperated your newabrasivecut-offmachine.
■Your cut-off machine has been shipped with the machine
armlocked inthe down position.To releasethe arm,push
down on top of the machine arm and pull the arm lock
lever. See Figure 3.
■Handpressure shouldremain onthe machine arm to pre-
vent sudden rise upon release of the arm lock lever.
■Examine all parts to make sure no breakage or damage
has occurred during shipping.
If any parts are damaged or missing, do not attempt to plug
in the power cord and turn the switch on until the damaged
or missing parts are obtained and are installed correctly.
Contact your nearest Ryobi dealer or call 1-800-525-2579
in the United States or 1-800-265-6778 in Canada for
assistance if any parts are missing or damaged.
WARNING:
If any parts are missing do not operate your cut-off
machineuntilthemissingpartsarereplaced.Failuretodo
so could result in possible serious injury.
LOOSE PARTS LIST
The following items are included with your C2600 Abrasive
Cut-off Machine:
■14in. (356mm) – Abrasive Wheel– Installedon Machine
■Wheel Wrench – 8 mm Hex Key – Stored on Machine
■Operator's Manual
■Warranty Registration
PRODUCT SPECIFICATIONS
Wheel Type Reinforced Abrasive Wheels
Wheel Diameter 14 in. (356 mm)
Wheel Thickness 1/8 in. (32 mm)
Wheel Arbor Hole 1.0 in. (254 mm)
Overall Wheel Size 14 in. x 1/8 in. x 1 in.
356 mm x 32 mm x 254 mm
No Load Speed 3300 RPM
Rating 120 Volts, 60 Hz-AC Only
Input 15 Amp
Net Weight 65 lbs. (30 kg.)
Fence Angle
Right 45°
Left 0°
Vise Clamp Angle
Right or Left 45°
Maximum Cutting Capacities:
Round Pipe 5 in. (127 mm) outside diameter
Angle Stock 6-1/2 in. wide x 3-5/16 in. tall
165 mm wide x 84 mm tall
Flat Metal Stock 8-1/16 in. wide x 2-5/16 in. tall
205 mm wide x 59 mm tall
UNPACKING AND LOOSE PARTS
WARNING:
Thiscut-offmachinehasbeendesignedforcuttingmetals,
using reinforced abrasive cut-off wheels only. Do not
removethewheel,installasteelblade,andattempttocut
other types of materials such as wood, masonry, etc.
Attempting to cut these other types of materials could
cause an accident resulting in possible serious personal
injury.
WARNING:
Do not attempt to modify this tool or create accessories
notrecommendedforusewiththistool.Anysuchalteration
ormodificationismisuseandcouldresultinaharzardous
condition leading to possible serious personal injury.

Page 8
a
a a
a a a a
aa a
aa
aa
a
a a a
a a
a
a aa a a
aa a a a
a
a aa
aa
a a
a a a
FEATURES
KNOW YOUR ABRASIVE CUT-OFF MACHINE
See Figures 2 and 3.
Before attempting to use your machine, familiarize yourself
with all operating features and safety requirements.
WARNING:
Do not allow familiarity with your machine to make you
careless. Remember that a careless fraction of a second
is sufficient to inflict severe injury.
MOTOR
See Figure 2.
This machine has a strong motor with sufficient power to
handle tough cutting jobs. It also has externally accessible
brushes for ease of servicing.
14 in. (356 mm) ABRASIVE WHEEL
See Figure 2.
A 14 in. (356 mm) abrasive wheel is included with your cut-
off machine. It will cut materials up to 5 in. (127 mm) thick or
8 in. (203 mm) wide, depending upon the thickness or width
ofthematerialandthesettingatwhichthecutisbeingmade.
SELF-RETRACTING LOWER WHEEL GUARD
See Figure 2.
Thelowerwheelguardprovidesprotectionfromeachsideof
Fig. 2
LOWER
WHEEL GUARD
ADJUSTABLE
FLIP FENCE
ASSEMBLY
VISE
CRANK HANDLE
MACHINE ARM
SWITCH TRIGGER
MACHINE BASE
QUICK LOCK-
RELEASE LEVER
MOTOR
the wheel. It retracts over the upper wheel guard as the
wheel is lowered into the workpiece.
VISE CLAMP
See Figure 2.
A vise clamp has been provided with your cut-off machine.
Itislocatedontheendofthevisescrewandprovidesgreater
control by clamping the workpiece to the fence. It also
prevents the workpiece from creeping toward the wheel
during a cutting operation.
ADJUSTABLE FLIP FENCE ASSEMBLY
See Figure 2.
The fence on your cut-off machine has been provided to
support the workpiece and provide clamping support to the
vise for holding your workpiece securely when making all
cuts. It is an adjustable flip fence assembly that has been
provided to make your cut-off machine more versatile. It
adjusts 45°to the right for making angled cuts. It has an
extension block that flips down when making cuts in tall or
thick stock, such as square stock or tube stock. The exten-
sion block flips up out of the way when making cuts in stock
that is thin or wide, such as angle stock.
QUICK LOCK-RELEASE LEVER
See Figure 2.
A quick lock-release lever has been provided on your cut-off
machine. This feature allows you to open and close the vise
clampquicklywithoutrepetitiveturningofthevisecrankhandle.
EXTENSION
BLOCK 14 in. (356 mm)
ABRASIVE WHEEL
VISE CLAMP
VISE SCREW

Page 9
a
aa
a
a
a
a a
a a
a a
aa a
a
a a
a a a a
aa a
aa
aaa
a a a
a a
a a aa
a a
aa
a a a
a
a aa
a
a
a a
a a aa
a a a a
a
a
a
a
a a a
a a
a a
aa
a
a
a a
a
a a
a
a a a
a
a
a a a
a a
a a a a a a
a
a aa
a
a a
a
a a
a a
a
a
a a a a
a a
a
a a a
0
15
30
Fig. 3
LOWER
WHEEL GUARD
UPPER
WHEEL GUARD
MACHINE ARM
LOCK-ON
BUTTON
RUBBER FEET
CARRYING HANDLE
MACHINE BASE
SWITCH TRIGGER
VISE CLAMP
POWER CORD
QUICK LOCK-
RELEASE LEVER
VISE CRANK
HANDLE
8 mm
HEX KEY
WRENCH
STORAGE
ADJUSTABLE
FLIP FENCE
ASSEMBLY
Fig. 4
aa a a
a
aa
a a a
a a
a a aa
a a
aa
a a
a
a
a aa
a
a
a a
a a a
a
a a a a
a
a
a
a
a a a
a a
a a
aa
a
a
a a
a
a
PADLOCK
SWITCH TRIGGER
14 in. (356 mm)
ABRASIVE WHEEL
ARM
LOCK
LEVER
FEATURES
CARRYING HANDLE
See Figure 3.
For convenience when carrying or transporting your cut-off
machine from one place to another, a carrying handle has
beenprovided ontop ofthe machinearm asshown figure3.
To transport, turn off and unplug your machine, then lower
machine arm and lock it in the down position. Lock machine
arm by pushing in arm lock lever.
LOCK-ON BUTTON
See Figure 3.
Your cut-off machine is equipped with a lock-on feature,
which is convenient when continuous cutting for extended
periods of time is required. To engage the lock-on feature,
depress switch trigger, push in and hold the lock-on button
locatedonthesideofthehandle,thenreleaseswitchtrigger.
Release lock-on button and machine will continue running.
Toreleaselock-onfeature,depressswitchtriggerandrelease.
Ifyou havethelock-onfeatureengagedduringuseandyour
machine becomes disconnected from power supply,
disengage the lock-on feature immediately.
SPINDLE LOCK BUTTON
A spindle lock button has been provided for locking the
spindlewhichkeepsthewheelinyourmachinefromrotating.
Depress and hold the spindle lock button while installing,
changing, or removing wheel only.
TRIGGER LOCK
See Figure 4.
To prevent unauthorized use of your cut-off machine, we
suggest that you disconnect it from the power supply and
lock the switch in the off position. To lock the switch, install
a padlock (not included) through the hole in the switch
trigger.Alockwithashackleupto13/64in.diametermaybe
used. When the lock is installed and locked, the switch is
inoperable. Store the padlock key in another location.
SPINDLE
LOCK BUTTON
FENCE
LOCK HANDLE

Page 10
a
a a
a a a a
aa a aa
aaa
a a a
a a a a aa a a
aa
a a
a
a
a aa
aa
a a
a
a aa
a a a a
a a
a
a
a a a
a a
a a
aa
a
a
a a
a
a a
a
a a
a
a
a
a a a
a a
a a
a a a a
a
a aa
a
a
a
a
a a
a a
a
a
a a
a a
a a
a
a a a a
a a
a
a
a a
a aa
a
a
a
a
a
a a a aaa
a
aa a a a a
aa
a
a
ADJUSTMENTS
WARNING:
To prevent accidental starting that could cause possible
serious personal injury, assemble all parts to your cut-off
machine before connecting it to power supply. Machine
should never be connected to power supply when you
are assembling parts, making adjustments, installing or
removing wheels, or when not in use.
As mentioned previously your cut-off machine has been
factory assembled and adjusted. After extended use and
wear, the wheel will need to be replaced with a new one.
WARNING:
A 14 in. (356 mm) wheel is the maximum wheel capacity
of your cut-off machine. Never use a wheel that is too
thick to allow outer flange to engage with the flats on the
spindle.Larger wheelswillcome incontactwith thewheel
guards, while thicker wheels will prevent the bolt from
securing the wheel on the spindle. Either of these
situationscouldresult ina seriousaccidentand can cause
serious personal injury.
REMOVAL AND INSTALLATION OF WHEEL
TO REMOVE
See Figure 5.
■Unplug your cut-off machine.
WARNING:
Failuretounplug cut-offmachine could resultinaccidental
starting causing possible serious personal injury.
■Push down on machine arm and pull out arm lock lever
to release machine arm.
■Raise machine arm to its full raised position. Be cautious
when raising, machine arm is spring loaded.
■Rotatelower wheelguard upward, exposing8 mmsocket
head bolt that secures abrasive wheel to wheel arbor.
■Depress the spindle lock button and rotate bolt until
spindle locks, preventing shaft from rotating.
■Using the 8 mm hex key provided, loosen and remove
bolt. Note: Bolt has right hand threads. Turn bolt
counterclockwise to loosen.
■Remove outer washer, outer flange, spacer, and wheel.
Do not remove inner flange or inner washer. Removal of
these two parts are not required for wheel changes.
WARNING:
Ifinner flange orinner washer hasbeen removed, replace
both before placing wheel on spacer and wheel arbor.
Failure to do so could cause an accident since wheel will
not tighten properly.
TO INSTALL
See Figure 5.
■Unplug your cut-off machine.
WARNING:
Failuretounplug cut-offmachine could resultinaccidental
starting causing possible serious personal injury.
■Inspectthe replacement wheelfordefects such ascracks,
chipping, and correct speed rating. If defects are found
or the speed rating is not greater than 3300 rpm, do not
use. Select another wheel.
■Clean debris from the inner washer and inner flange.
■Place new wheel over spacer, then place both on wheel
arbor against inner flange.
■Clean outer flange, then align flats with flats on wheel
arbor and slide it onto arbor until it is flush against wheel.
■Place recessed side of outer washer against arbor, then
insert socket head bolt into threaded end of wheel arbor.
■Start threads and turn bolt clockwise to snugly tighten.
■Depress the spindle lock button and rotate bolt until
spindle locks, preventing shaft from rotating.
■Usingthe 8mmhex keyprovided,securely tightensocket
head bolt. Note: Bolt has right hand threads. Turn bolt
clockwise to tighten.
WARNING:
Do not overtighten socket head bolt. Overtightening can
cause the new wheel to crack, resulting in premature
failure and possible serious personal injury.
Fig. 5
OUTER
WASHER
OUTER FLANGE
14 in. (356 mm)
ABRASIVE
WHEEL
SPACER
INNER
FLANGE
WHEEL BOLT
WHEEL ARBOR
INNER
WASHER

Page 11
0
15
30
45
a
a a
a a a
a
aa a
aa
aaa
a a a
a a
a a aa
a a
aa
a a
aa
aa
a a
aa
a a
a a
aa
a a a a
a
a a
a a a
a
aa a
aa
aaa
a a a
a a
a a aa
a a
aa
a a
a
a
a aa
a
a
a a
a a a
aa
a a
a a
aa
a a a a
15
45
0
ADJUSTMENTS
Fig. 6
ADJUSTABLE FLIP FENCE
See Figure 6.
The adjustable flip fence is located at the rear of your cut-off
machine. As mentioned previously, it is used along with the
vise clamp to provide a clamp for holding your workpiece
securely when making cuts. It also makes your cut-off
machine more versatile.
The fence can be rotated to obtain cutting angles from 0°to
45°. It also has an extension block that flips up to allow
greater cutting widths in thin stock, or down to allow greater
cutting depths in tall or thick stock.
CUTTING ANGLE ADJUSTMENT
See Figure 6.
■Unplug your cut-off machine.
WARNING:
Failuretounplug cut-offmachine could resultinaccidental
starting causing possible serious personal injury.
■Loosen the fence lock handle securing fence assembly.
■Rotate fence assembly until the desired angle of cut on
the scale is aligned with the indicator in machine base.
■For precise cuts, check the angle of cut for the fence
againsttheabrasive wheel withaprotractor, bevel square,
or other similar device.
■Using the fence lock handle, securely tighten the fence
in place at desired angle. See Figure 6.
ADJUSTING WIDTH OF CUT
See Figures 7 and 8.
■Unplug your cut-off machine.
WARNING:
Failuretounplug cut-offmachine could resultinaccidental
starting causing possible serious personal injury.
■To increase the width of cut of your cut-off machine, flip
the extension block up and back as shown in figure 7.
This position is good for cutting thin and wide pieces of
stock, such as flat or angled stock.
■To increase the height of cut of your cut-off machine, flip
the extension block down as shown in figure 8. This
position is good for cutting tall and thick pieces of stock,
such as square or tube stock.
Fig. 7
Fig. 8
ADJUSTABLE
FLIP FENCE
SCALE
INDICATOR
EXTENSION
BLOCK
a
a a
a a a a
aa a
aa
aa
a
a a a
a a
a
a aa a a
aa a a a
a
a aa
aa
a a
a a a
EXTENSION
BLOCK
ADJUSTABLE
FLIP FENCE
ADJUSTABLE
FLIP FENCE
FENCE LOCK
HANDLE
FENCE
SCALE
VISE
CLAMP

Page 12
ADJUSTMENTS
Fig. 9
QUICK LOCK-RELEASE LEVER
See Figures 9 and 10.
The quick lock-release lever engages the vise clamp to be
used along with the fence assembly to provide a vise for
securing the workpiece to be cut. It also allows you to open
and close the vise quickly without repetitive turning of the
vise crank handle.
USING THE QUICK LOCK-RELEASE LEVER
AND VISE CLAMP
TO LOOSEN
See Figure 9.
■Unplug your cut-off machine.
WARNING:
Failuretounplug cut-offmachine could resultinaccidental
starting causing possible serious personal injury.
■Release tension on the vise clamp by rotating the vise
crank handle 1/2 to 1 turn counterclockwise.
■Lift up the quick lock-release lever as shown in figure 9
and pull back on vise crank handle to slide open the vise.
TO TIGHTEN
See Figure 10.
■Unplug your cut-off machine.
WARNING:
Failuretounplug cut-offmachine could resultinaccidental
starting causing possible serious personal injury.
■Pushthe vise crankhandleforward toslidethe viseclamp
against the workpiece.
■Rotate the quick lock-release lever forward and push
down as shown in figure 10 to engage its threads with
the vise screw.
■Rotatethe visecrank handleclockwise totighten thevise
clamp against the workpiece. Fig. 10
QUICK LOCK-RELEASE LEVER
WITH THREADS NOT ENGAGED
VISE
CLAMP
VISE CRANK
HANDLE
VISE
SCREW
VISE
CLAMP
VISE CRANK
HANDLE
QUICK LOCK-RELEASE LEVER
WITH THREADS ENGAGED

Page 13
0
15
a
a a
a a a
a
aa a
aa
aaa
a a a
a a
a a aa
a a
aa
a a
a
a
a aa
a
a
a a
a a a
a
a a a a
a
a
a
a
a a a
a a aa
a a a a
ADJUSTMENTS
Fig. 11
DEPTH STOP
The depth stop limits the wheel's downward travel. It
allows the wheel to go below the machine base enough
to maintain full cutting capacities.
The adjustable depth stop is a nylok bolt threaded into the
base of the machine at the rear. To adjust the depth stop
use an 8 mm wrench to raise or lower the depth stop bolt.
The depth stop is factory set to provide maximum cutting
capacity for the 14 in. (356 mm) abrasive wheel provided
with your cut-off machine.
When the diameter of the wheel has been reduced due to
wear,it maybe necessaryto adjustthe depth stopto provide
maximum cutting capacity. When a new abrasive wheel is
installed, it is necessary to check the clearance of the wheel
to the machine base support.
DEPTH STOP ADJUSTMENTS
See Figure 11.
■Unplug your cut-off machine.
WARNING:
Failure to unplug cut-off machine could result in acci-
dental starting causing possible serious personal injury.
■Loosen the depth stop bolt that is against the machine
base.
■The depth stop is lowered by turning the depth stop bolt
clockwiseand raised byturningthe bolt counterclockwise.
■By pressing down on the machine arm, lower the wheel
and check clearance and maximum cutting distance
(distance from adjustable stationary vise where wheel
enters) to front of machine base slot.
■Adjust if necessary.
CAUTION:
Do not start your abrasive cut-off machine without
checking for interference between the wheel and the
machine base support. Damage may result to the wheel
if it strikes the machine base support during operation of
the machine.
■Tighten the depth stop bolt with the 8 mm hex key
provided.
DEPTH STOP
BOLT
DEPTH STOP
BOLT
OPERATION
APPLICATIONS
(Use only for the purposes listed below)
■Cutting all types of metals such as 2 in. x 6 in. steel
framing studs.
■Cutting hard metal iron stock such as square bar stock
and angle iron.
■Cutting metal tube and pipe stock.
TO RAISE TO LOWER
WARNING:
Cutting steel will cause sparks. Do not operate in the
presence of combustible or flammable materials. Failure
to heed this warning could result in a fire or serious per-
sonal injury.

Page 14
a
a a
a a a
a
aa a
aa
aaa
a a a
a a
a a aa
a a
aa
a a
a
a
a aa
a
a
a a
a a a
a
a a a a
a
a
a
a
a a a
a a
a a
aa
a
a
a a
a
a
15
45
0
MATERIAL
TO BE CUT

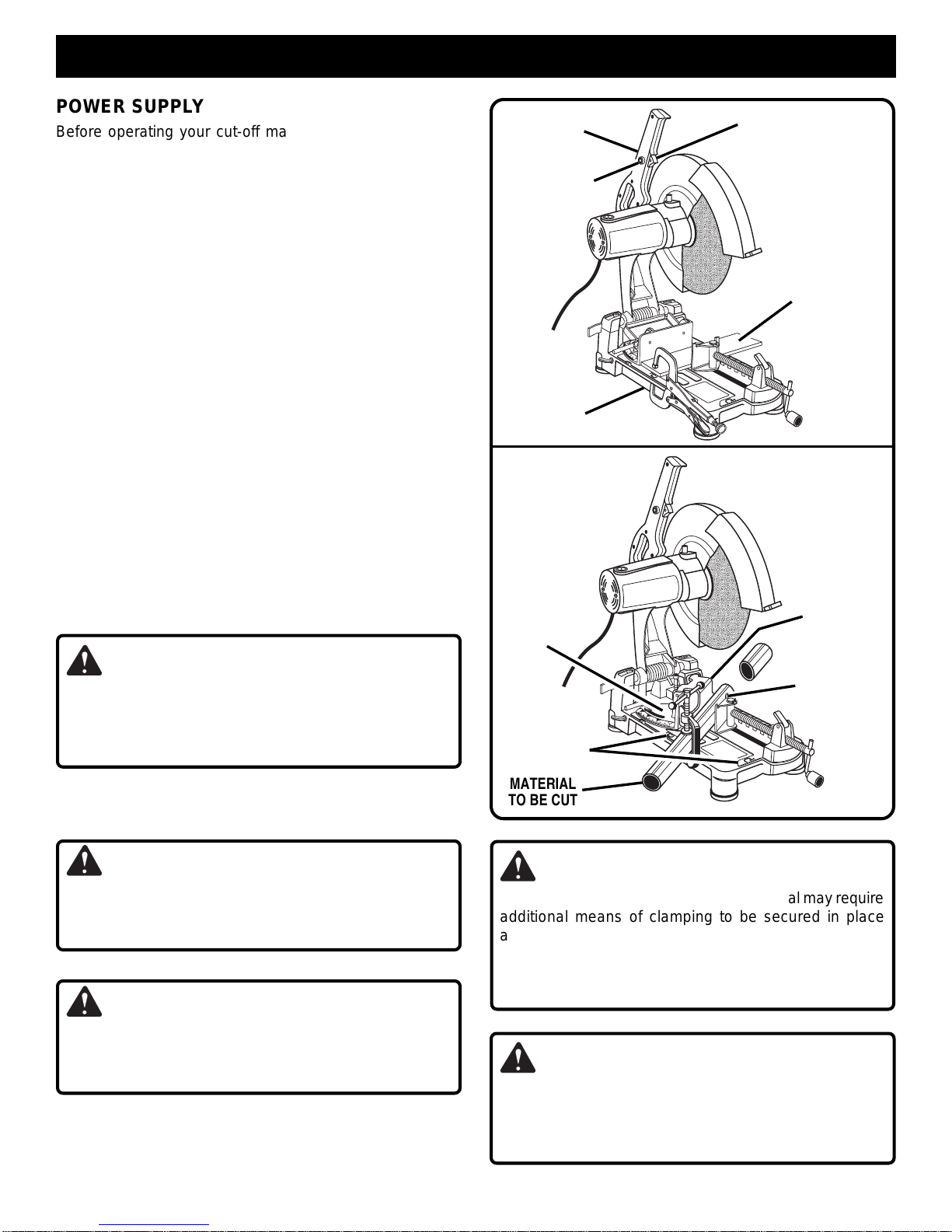

POWER SUPPLY
Before operating your cut-off machine, check your power
supply and make sure it meets the requirements listed on
the tool’s data plate.A substantial voltage drop will cause a
loss of power and machine overheating.
Common causes of power loss and machine overheating
are insufficient extension cord size and multiple tools
operating from the same power source.
SWITCH
To turn your cut-off machine ON, depress the switch trigger
located in the handle portion of the machine arm.
To turn it OFF, release the switch trigger.
LOCK-ON BUTTON
To engage the lock-on feature, depress the switch trigger,
pushinandholdthelock-onbuttonlocatedonthesideofthe
handle, then release switch trigger. Release lock-on button
and your machine will continue running.
To release the lock-on feature, depress the switch trigger
and release.
Ifyou havethelock-onfeatureengagedduringuseandyour
machinebecomesdisconnectedfrompowersupply,orinthe
event of a power failure, disengage the lock-on feature
immediately.
CUTTING WITH YOUR CUT-OFF MACHINE
See Figures 12 and 13.
WARNING:
Do not attempt to cut wood or masonry with this cut-off
machine. Never cut magnesium or magnesium alloy with
this machine. Failure to comply could result in serious
personal injury.
■To prevent machine movement or tipping during cutting
procedure, secure cut-off machine in place to a
workbench or work surface that is also secure.
WARNING:
Always use the vise on the cut-off machine to prevent
accidents that could result in possible serious personal
injury.
“C” CLAMP
AREA
OPERATION
Fig. 12
Fig. 13
MACHINE
BASE
MACHINE ARM
(HANDLE)
SWITCH
TRIGGER
MATERIAL
TO BE CUT
EXTENSION
BLOCK
ADJUSTABLE
FLIP FENCE
VISE
CLAMP
0
15
30
45
a
a a
a a a
a
aa a
aa
aaa
a a a
a a
a a aa
a a
aa
a a
a
a
a aa
a
a
a a
a a a
a
a a a a
a
a
a
a
a a a
a a
a a
aa
a
a
a a
a
a
LOCK-ON
BUTTON
WARNING:
Large,circular, orirregularly shapedmaterial may require
additional means of clamping to be secured in place
adequately for cutting. Use “C” clamps that can be
mountedalong the leftandfront side ofthemachine base.
Also use blocks to hold material securely. Failure to
comply could result in serious personal injury.
WARNING:
Never stand or have any part of your body in line with the
path of the wheel. Doing so may cause an accident
resulting in possible serious personal injury. WARNING:
To avoid accidental start up of your cut-off machine,
always make sure switch is off and “lock-on” feature is
disengaged before connecting to power source. Failure
toheedthis warning couldresultin serious personalinjury.

Page 15
a
a a
a a a
a
aa a
aa
aaa
a a a
a a
a a aa
a a
aa
a a
a
a
a aa
a
a
a a
a a a
a
a a a a
a
a
a
a
a a a
a a
a a
aa
a
a
a a
a
a
15
45
0
OPERATION
CUT-OFF
See Figures 14 and 15.
A cut-off is made by cutting across the width of the
workpiece.Astraight crosscut is made with the adjustable
flip fence set at the zero degree position. Angled cut-offs
are made with the adjustable flip fence set at some angle
other than zero.
To cut with your cut-off machine:
■Firmly secure the material to be cut using the machine’s
vise (adjustable flip fence, extension block, and vise
clamp).
■Using the fence lock handle, loosen the fence assembly.
See Figures 14 and 15.
■Rotate the adjustable fence to the angle needed.
■Retighten fence lock handle.
WARNING:
To avoid serious personal injury, always tighten fence
lock handle securely before making a cut. Failure to do
so could result in movement of the workpiece while
making a cut.
■Place the workpiece flat on the machine base with one
surface securely against the adjustable flip fence.
■Align cutting line on the workpiece with the edge of the
abrasive wheel.
■Pushinthe visecrank handletoset the viseclampagainst
the workpiece. Turn the vise crank handle 1/2 to 1 turn
clockwise to securely clamp the workpiece to the fence.
WARNING:
Toavoid serious personalinjury,keep your handsat least
3 in. (76.2 mm) from wheel.
■When cutting long pieces, support the opposite end of
the material with a roller stand or with a work surface
level with the machine base.
WARNING:
Never perform any cutting operation freehand (without
placingworkpiece in the vise). Material will get hot during
cutting operation. Keep hands off of metal being cut to
avoid serious personal injury.
■Beforeturningon machine, performadry run ofthe cutting
operation just to make sure that no problems will occur
when the cut is made.
■Start the machine by grasping the handle and fully
squeezing the switch trigger. Allow several seconds for
the wheel to build up to full speed before letting it come
into contact with the material to be cut.
Fig. 14
Fig. 15
MACHINE
BASE
MACHINE ARM
(HANDLE)
SWITCH
TRIGGER
MATERIAL
TO BE CUT
EXTENSION
BLOCK
ADJUSTABLE
FLIP FENCE
VISE
CLAMP
0
15
30
45
a
a a
a a a
a
aa a
aa
aaa
a a a
a a
a a aa
a a
aa
a a
a
a
a aa
a
a
a a
a a a
a
a a a a
a
a
a
a
a a a
a a
a a
aa
a
a
a a
a
a
FENCE
LOCK
HANDLE
MATERIAL
TO BE CUT
“C” CLAMP
AREA
VISE
CRANK
HANDLE
■Once it reaches full speed slowly lower the handle of the
machinearm untilthe cut-offwheel comes in contact with
the material being cut. Continue to use steady and even
pressure to obtain a uniform cut through the workpiece.
Never force the wheel into the material being cut.
■When the cut is complete, release the switch trigger and
allow the wheel to stop rotating before raising the wheel
out of workpiece.
WARNING:
Do not touch the cut material until it cools or you can be
burned.Failureto heed thiswarningcould result inserious
personal injury.

Page 16
MOUNTING HOLES
Your cut-off machine should be permanently mounted to a
firm supporting surface such as workbench. The four bolt
holes that secure the feet on the bottom of the base can be
used for this purpose. Using a 6 mm hex key, remove bolts,
washers, and feet from bottom of cut-off machine. The four
mounting holes should be bolted securely using 8 mm
machine bolts, lock washers, and flat washers (not in-
cluded).Boltsshouldbeofsufficientlengthtoaccommodate
lockwashers,flatwashers,thicknessofthe workbench, and
sufficiently engage bolt hole threads in bottom of the base.
Tighten all four bolts securely.
The hole pattern for mounting to a workbench is shown in
figure 16. Carefully check the workbench after mounting to
make sure that no movement can occur during use. If any
tipping,sliding, or walking is noted,secureworkbenchtothe
floor before operating.
EXTENSION CORDS
Theuse of anyextension cord willcause some lossof power.
To keep the loss to a minimum and to prevent tool
overheating, use an extension cord that is heavy enough to
carry the current the tool will draw.
Awire gage size (A.W.G.) of at least 14 is recommended for
an extension cord 25 feet or less in length. When working
outdoors, use an extension cord that is suitable for outdoor
use. The cord's jacket will be marked WA.
WARNING:
Keep extension cords away from the cutting area and
position the cord so that it will not get caught on materi-
als, tools, etc., during cutting operation.
WARNING:
Check extension cords before each use. If damaged,
replaceimmediately.Neveruse toolwith adamaged cord
since touching the damaged area could cause electrical
shock resulting in serious injury.
WARNING:
Always wear safety goggles or safety glasses with side
shieldsduring powertool operation orwhen blowingdust.
If operation is dusty, also wear a dust mask.
MAINTENANCE
WARNING:
When servicing, use only identical Ryobi replacement
parts.Use ofany other partmay createahazard orcause
product damage.
GENERAL
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use a clean cloth to remove dirt, carbon dust, etc.
CAUTION:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc. come in contact
with plastic parts. They contain chemicals that can
damage, weaken or destroy plastic.
LUBRICATION
All of the bearings in this tool are lubricated with a sufficient
amount of high grade lubricant for the life of the unit under
normal operating conditions. Therefore, no further lubrica-
tion is required.
OPERATION
Fig. 16
8 in.
17-1/8
7/16 in. DIA.
HOLE
HOLE PATTERN FOR MOUNTING SURFACE
WARNING:
Always make sure your cut-off machine is securely mounted to a workbench or an approved workstand. Failure to do so
could result in an accident resulting in possible serious personal injury.

Page 17
a
a a
a a a
a
aa a
aa
aaa
a a a
a a
a a aa
a a
aa
a a
a
a
a aa
a
a
a a
a a a
a
a a a a
a
a
a
a
a a a
a a
a a
aa
a
a
a a
a
a
Fig. 17
WARNING:
To ensure safety and reliability, all repairs — with the
exception of the externally accessible brushes — should
be performed by a Ryobi Authorized Service Center.
BRUSH REPLACEMENT
See Figure 17.
Your cut-off machine has externally accessible brush
assemblies that should be periodically checked for wear.
Proceed as follows when replacement is
required:
■Unplug your cut-off machine.
WARNING:
Failuretounplug cut-offmachine could resultinaccidental
starting causing possible serious personal injury.
■Remove brush cap with a screwdriver. Brush assembly
is spring loaded and will pop out when you remove
brush cap.
■Remove brush assembly.
■Check for wear. Replace both brushes when either has
less than 1/4 in. length of carbon remaining. Do not
replace one side without replacing the other.
■Reassemble using new brush assemblies. Make sure
curvature of brush matches curvature of motor and that
brush moves freely in brush tube.
BRUSH CAP
BRUSH
ASSEMBLY
MAINTENANCE
BRUSH
ASSEMBLY
BRUSH
CAP
■Make sure brush cap is oriented correctly (straight) and
replace.
■Tighten brush cap securely. Do not overtighten.
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Machine does not start 1. Power cord not plugged in. 1. Plug in cord.
2. Power cord is damaged. 2. Have the cord replaced at your
nearest authorized service center.
3. Circuit breaker is tripped. 3. Reset circuit breaker.
4. Circuit fuse is blown 4. Replace circuit fuse.
5. Switch is damaged or burned out. 5. Have the switch replaced at your
nearest authorized service center
and request a voltage check from
the power company.

Page 18
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Motor does not reach full speed or 1. Voltage from power source is low. 1. Request a voltage check from the
power. power company.
2. Circuit is overloaded. 2. Test on a different circuit or without
anything else on circuit.
3. Motor burned out. 3. Have tool serviced and request
a voltage check from the power
company.
4. Fuses or circuit breakers are 4. Have an electrician replace with a
wrong size. 15 amp fuse or circuit breaker.
5. Extension cord is too long. 5. Use a shorter extension cord.
6. Switch is defective. 6. Have the switch replaced at your
nearest authorized service center.
Motor stalls, blows fuses, or trips 1. Switch is defective. 1. Have the switch replaced at your
circuit breakers. nearest authorized service center.
2. Voltage from source is low. 2. Request a voltage check from the
power company.
3. Fuses or circuit breakers are 3. Have an electrician replace with a 15
wrong size or defective. amp fuse or circuit breaker.
Motor overheats. 1. Motor is overloaded. 1. Request a voltage check from the
power company.
2. Wheel is being fed into work too fast.2. Feed wheel into work slower.
Machine is noisy when running. 1. Motor needs attention. 1. Have the motor checked at your
nearest authorized service center.
Wheel hits table. 1. Wheel not properly installed. 1. See “Removal And Installation Of
Wheel” section.
2. Depth stop setting incorrect. 2. Adjust the depth stop. See “Depth
Stop” section.
Wheel does not cut through workpiece. 1. Depth stop setting incorrect. 1. Adjust the depth stop. See “Depth
Stop” section.
2. Wheel worn too much. 2. Replace with a new 14 inch abrasive
cut off wheel.
3. Incorrect cutting operation. 3. See “cut-off” section.
Machine vibrates or shakes excessively.1. Wheel is out-of-round. 1. Replace wheel.
2. Wheel is chipped 2. Replace wheel.
3. Wheel is loose. 3. Tighten wheel bolt on arbor.
4. Machine is not secure. 4. Check and tighten all hardware.
5. Work surface is uneven. 5. Relocate and secure on a flat
surface.

972000-683
6-00
RYOBI AMERICA CORPORATION
1424 Pearman Dairy Road Anderson SC 29625
Post Office Box 1207 Anderson SC 29622-1207
Phone [phone]
RYOBI CANADA INC.
P.O. Box 910
Cambridge, Ontario N1R 6K2
Phone [phone]
EXTENSION CORD CAUTION
Whenusing a power toolat a considerable distancefrom a power
source, be sure to use an extension cord that has the capacity
to handle the current the tool will draw. An undersized cord will
cause a drop in line voltage, resulting in overheating and loss of
power. Use the chart to determine the minimum wire size re-
quired in an extension cord. Only round jacketed cords should
be used.
When working with a tool outdoors, use an extension cord that
is designed for outside use. This is indicated by the letters "WA"
on the cord's jacket.
Before using any extension cord, inspect it for loose or exposed
wires and cut or worn insulation.
OPERATOR'S MANUAL
14 in. (356 mm) Abrasive Cut-Off
Model C2600
**Ampere rating
(on tool data plate) 0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25' 16 16 16 16 14 14
50' 16 16 16 14 14 12
100' 16 16 14 12 10 —
CAUTION: Keep the extension cord clear of the working
area. Position the cord so that it will not get caught on workpiece,
tools, or other obstructions while you are working with a power
tool.
**Used on 12 gauge - 20 amp circuit.
• SERVICE
Now that you have purchased your tool, should a need ever exist for repair parts or
service, simply contact your nearest Ryobi Authorized Service Center. Be sure to
provideallpertinentfactswhenyoucallorvisit.PleaserefertotheServiceCenterinsert
or call 1-800-525-2579 in the United States or 1-800-265-6778 in Canada for your
nearest Ryobi Authorized Service Center. You can also check our web site at
www.ryobi.com for a complete list of Authorized Service Centers.
• MODEL NO.
The model and serial numbers of your tool will be found on a plate attached to the motor
housing. Please record the serial number in the space provided below.
• MODEL NUMBER C2600
• SERIAL NUMBER
