Ryobi CXN180G Operation manual

CXN180G
CORDLESS XENON SPOTLIGHT
OWNER’S OPERATING MANUAL

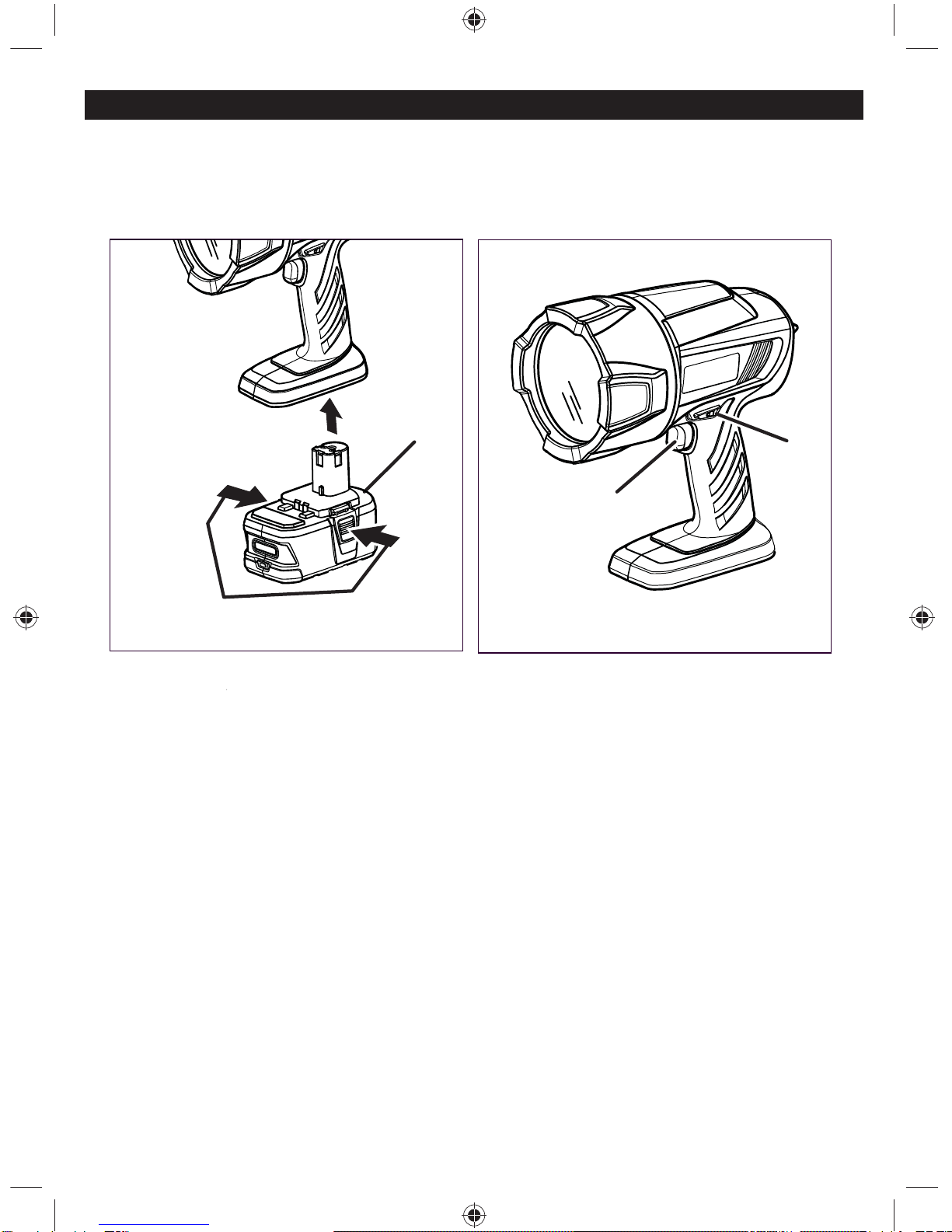

1. Battery pack
2. Depress both latches to release
3. Switch trigger
4. Lock-on button
DESCRIPTION
1
2
4
3
Fig. 1 Fig. 2

Important!
It is essential that you read the instructions in this manual before
operating this machine.
Subject to technical modifications.

1
English
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future reference.
The term “power tool’’ in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
1. WORK AREA SAFETY
a. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools
create sparks which may ignite dust or fumes.
c. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. ELECTRICAL SAFETY
a. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk
of electric shock.
f. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3. PERSONAL SAFETY
a. Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
c. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools
that have the switch on invites accidents.
d. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e. Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery
or long hair can be caught in moving parts.
g. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
4. POWER TOOL USE AND CARE
a. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b. Do not use the power tool if the switch does
not turn it on and off. Any power tool that can
not be controlled with the switch is dangerous and
must be repaired.
c. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.

2
English
e. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits
etc., in accordance with these instructions and
in the manner intended for the particular type
of power tool, taking into account the working
conditions and the work to be performed. Use
of the power tool for operations different from
intended could result in a hazardous situation.
5. BATTERY TOOL USE AND CARE
a. Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
b. Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws, or other small metal
objects that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
6. SERVICE
a. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
b. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety. Children
should be supervised to ensure that they do
not play with the appliance.
c. This appliance is not intended for use by young
children or infirm persons unless they have been
adequately supervised by a responsible person to
ensure that they do not play with the appliance.
d. Keep children and visitors away. Visitors should
wear safety glasses and be kept a safe distance
from work area. Do not let visitors contact tool or
extension cord.
SPECIFIC SAFETY RULES
■Know your tool. Read operator’s manual carefully.
Learn its applications and limitations, as well
as the specific potential hazards related to this
tool. Following this rule will reduce the risk of electric
shock, fire, or serious injury.
■Always wear safety glasses with side shields.
Everyday glasses have only impact resistant lenses.
They are NOT safety glasses. Following this rule will
reduce the risk of eye injury.
■Do not disassemble the product.
■Do not attempt to modify this product or create
accessories not recommended for use with this
product. Any such alteration or modification is misuse
and could result in a hazardous condition leading to
possible serious personal injury.
■Do not use this product if it is not completely
assembled or if any parts appear to be missing or
damaged. Use of a product that is not properly and
completely assembled could result in serious personal
injury.
■Do not use the product in contact with fabrics. The
lens can produce sufficient heat to melt fabrics and
cause serious personal injury.
■Do not leave the product unattended while in the
On position.
■Battery tools do not have to be plugged into
an electrical outlet; therefore, they are always
in operating condition. Be aware of possible
hazards when not using your battery tool or
when changing accessories. Following this rule
will reduce the risk of electric shock, fire, or serious
personal injury.
■Do not place battery tools or their batteries near
fire or heat. Following this rule will reduce the risk of
explosion and possibly injury.
■Never use a battery that has been dropped or
received a sharp blow. A damaged battery is subject
to explosion. Properly dispose of a dropped or
damaged battery immediately.
■Batteries can explode in the presence of a source
of ignition, such as a pilot light. To reduce the risk
of serious personal injury, never use any cordless

3
English
product in the presence of open flame. An exploded
battery can propel debris and chemicals. If exposed,
flush with water immediately.
■Do not charge battery tool in a damp or wet
location. Following this rule will reduce the risk of
electric shock.
■Do not expose the product to rain. Water entering
the product will increase the risk of electric shock or
malfunction.
■For best results, your battery tool should be
charged in a location where the temperature is
more than 50°F but less than 100°F. Do not store
outside or in vehicles.
■Under extreme usage or temperature conditions,
battery leakage may occur. If liquid comes in
contact with your skin, wash immediately with
soap and water, then neutralize with lemon juice
or vinegar. If liquid gets into your eyes, flush
them with clean water for at least 10 minutes,
then seek immediate medical attention. Following
this rule will reduce the risk of serious personal injury.
■Remove battery pack and allow the lens to cool before
performing any maintenance, cleaning or storing.
■Keep the product dry, clean and free from oil and
grease. Always use a clean cloth when cleaning.
■Save these instructions. Refer to them frequently
and use them to instruct others who may use this
tool. If you loan someone this tool, loan them these
instructions also to prevent misuse of the product and
possible injury.
SPECIFICATIONS
Model CXN180G
Bulb 4,300 K; 35 Watt HID Xenon
Life time (bulb) 3,000 hrs
Weight 1.13 kg
Light Output 2,800 Lumens
Compatible
Battery Pack
(not included)
BPL-1820
BPL-1815
ABP1801
ABP1802
ABP-1813
ABP-1815
Compatible
Charger
(not included)
BCL-1800
BCS618
BCL1418
BCL-1800
BCS618
BCL1418
ACR1800
260022029
This product will accept Ryobi One+ 18 V lithium-ion
battery packs and Ryobi One+ 18 V nickel-cadmium
battery packs.
APPLICATION
Use the product for the purposes listed below:
■To illuminate any areas requiring additional light
■To illuminate distant objects
REMOVING WARNING LABEL
The product has an attached warning label on the lens.
Read carefully and remove the label before use.
OPERATION
WARNING
The lens will be very hot during use. To
reduce the risk of burns, do not touch the lens.
To reduce the risk of fire, keep away from
combustible materials while in operation.
WARNING
Do not direct the light beam at persons or
animals and do not stare into the light beam
yourself (not even from a distance). Staring into
the light beam may result in serious injury or
vision loss.
TO INSTALL BATTERY PACK
See Figure 1.
Make sure the switch trigger is in Off position.
Place the battery pack in your spotlight.
Make sure the latches on the battery pack snap in
place and the battery pack is secured in the spotlight
before beginning operation.
TO REMOVE BATTERY PACK
See Figure 1.
Make sure the switch trigger is in Off position.
Locate latches on both sides of the battery pack and

4
English
depress them to release the battery pack.
Remove battery pack from your spotlight.
Note: If the light begins to flash, the battery needs to
be recharged.
WARNING
Battery tools are always in operating condition.
Therefore, switch should always be in Off
position when not in use or when carrying at
your side.
BATTERY PROTECTION FEATURES
RYOBI 18 V lithium-ion batteries are designed with
features that protect the lithium-ion cells and maximise
battery life.
SWITCH TRIGGER
See Figure 2.
To turn the spotlight on, depress and hold the switch
trigger. To turn the spotlight off, release the switch trigger.
LOCK-ON BUTTON
See Figure 2.
Your spotlight is equipped with a lock-on feature which
conveniently enables continuous use over an extended
period of time.
To lock on:
Depress and hold the switch trigger.
Push in and hold the lock-on button.
Release the switch trigger.
Release the lock-on button.
To release lock:
Depress and release the switch trigger.
THERMOSTAT PROTECTION
Internal thermostat will shut off the unit if the unit becomes
too hot. The unit can be turned on again if it reaches a safe
operating temperature.
Release the switch trigger when the unit shuts off. It will
cool down and the thermostat will reset after a 10-minute
rest.
Note: If the switch trigger is in lock-on position, the unit will
take several hours to cool. Make sure the switch trigger is
released for faster cooling.
MAINTENANCE
WARNING
The bulb is not intended to be repaired or
replaced by the customer. It should be repaired
or replaced at an Authorised Service Centre.
WARNING
When servicing, use only identical replacement
parts. Use of any other part may create a hazard
or cause product damage.
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING
Do not at any time let brake fluids, gasoline,
petroleum-based products, penetrating oils, etc.
come in contact with plastic parts.They contain
chemicals that can damage, weaken or destroy
plastic.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing as
waste. The machine, accessories and
packaging should be sorted for environmental-
friendly recycling.

5
English
SYMBOL
Safety Alert
V Volts
min-1 Revolutions or reciprocations per minute
Direct current
Please read the instructions carefully before
starting the machine.
Recycle unwanted
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.

TECHTRONIC INDUSTRIES (AUSTRALIA) PTY. LTD.
Level 1, 660 Doncaster Road,
Doncaster, Victoria 3108,
Australia
Tel: [phone] Fax: [phone]
TECHTRONIC INDUSTRIES N.Z. LIMITED
Auckland: 27 Clemow Drive, Mt Wellington, N.Z.
Tel: [phone] Free Call: 0800 279 624 Fax: [phone]
Contact during normal business hours.
Subject to the guarantee condition below, this Ryobi
tool (hereinafter called “the product”) is guaranteed by
TECHTRONIC INDUSTRIES AUSTRALIA PTY
LIMITED (hereinafter called “the Company”) to be free
from defects in material or workmanship for a period
of 24 months from the date of original purchase
covering both parts and labour. Under the terms of
this guarantee, the repair or replacement of any part
shall be the opinion of the Company or its authorised
service centre. Should service become necessary
during the warranty period, the owner should contact
the customer service HELPLINE 1300 361 505 or
contact the retailer from whom the product was
purchased.
In order to obtain guarantee service, the owner must
present the sales docket and Guarantee Certificate to
confirm date of purchase. This product is sold by the
dealer or service centre as principal and the dealer
has no authority from the Company’s behalf except as
herein contained or herein referred to.
Guarantee Conditions
This guarantee only applies provided that the product
has been used in accordance with the manufacturer’s
recommendations under normal use and reasonable
care (in the opinion of the Company) and such
guarantee does not cover damage, malfunction or
failure resulting from misuse, neglect, abuse, or used
for a purpose for which it was not designed or is not
suited and no repairs, alterations or modifications
have been attempted by other than an authorised
service centre. This guarantee will not apply if the tool
is damaged by accident or if repairs arise from normal
wear and tear. The Company accepts no additional
liability pursuant to this guarantee for the costs of
travelling or transportation of the product or parts to
and from the service dealer or service centre - such
costs are not included in this guarantee.
Certain legislation, including the Trade Practices Act,
1974 (as amended) and other state and territorial laws
give rights to the buyer and impose liability on the
seller in certain circumstances. Nothing herein shall
have the effect of excluding, restricting or modifying
any condition, guarantee, right or liability imposed, to
the extent only that such exclusion, restriction or
modification would render any term herein void.
