Ryobi OLT1825 User manual

OLT1825

2
Original Instructions
IMPORTANT!
It is essential that you read the instructions in this manual
before assembling, operating, and maintaining the
product.
Subject to technical modication.
Safety, performance, and dependability have been given top
priority in the design of your cordless line trimmer or edge
trimmer.
INTENDED USE
The cordless line trimmer or edge trimmer is intended to
be used only by adults who have read and understood
the instructions and warnings in this manual and can be
considered responsible for their actions.
The product is intended only for outdoor use in a well-
ventilated area. For safety reasons, the product must be
adequately controlled by a two-handed operation.
When tted with the line trimmer head (and appropriate
guard), the product is intended for cutting long grass, pulpy
weed, and similar vegetation at or about ground level.
The cutting plane should be approximately parallel to the
ground surface when trimming and approximately vertical
when edging.
The product should not be used to cut or trim hedges,
bushes, or other vegetation where the cutting plane is not
parallel to the ground surface.
Do not use the product for any other purpose.
GENERAL SAFETY WARNINGS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instructions
may result in electric shock, re, and /or serious injury.
■When using the product, the safety rules must be
followed. For your safety and that of bystanders, read
these instructions before operating the product. Keep
the instructions safe for later use.
■The product is not intended to be used by children or
persons with reduced physical, mental, or sensory
capabilities. Children should be adequately supervised
to ensure that they do not play with the product.
■Some regions have regulations that restrict the use of
the product. Check with your local authority for advice.
TRAINING
■Read the instructions carefully. Be familiar with all
controls and the proper use of the product.
■Never allow children or people who are unfamiliar with
these instructions to use the product. Local regulations
may restrict the age of the operator.
■Keep bystanders, children, and pets 15 m away from the
area of operation. Turn off the product if anyone enters
the area.
■Never use the product while tired, ill, or under the
influence of alcohol, drugs, or medication.
■Keep in mind that the operator or user is responsible for
accidents or hazards occurring to other people or their
property.
PREPARATION
■Wear full eye and hearing protection while operating the
product. If working in an area where there is a risk of
falling objects, head protection must be worn.
■The use of hearing protection may restrict the operator’s
ability to hear warning sounds. Pay particular attention
to potential hazards around and inside the working area.
■Wear heavy, long trousers, boots, and gloves. Do not
wear loose-fitting clothing, short trousers, or jewellery of
any kind. Do not use the product with bare feet.
■Secure long hair so that it is above shoulder level to
prevent entanglement in moving parts.
■Before use and after any impact, check that there are no
damaged parts on the product. A defective switch or any
part that is damaged or worn should be properly repaired
or replaced by an authorised service centre.
■Make sure that the cutting attachment is properly
installed and securely fastened.
■Never operate the product unless all guards, deflectors,
and handles are properly and securely attached.
■Consider the environment in which you are working.
Keep the working area free from wires, sticks, stones,
and debris, which if struck by the cutter, can become
thrown objects.
BATTERY TOOL USE AND CARE
■Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
■Use power tools only with specifically designated battery
packs. Use of any other battery packs may create a risk
of injury and fire.
■When the battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys, nails,
screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
■Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
irritation or burns.
CORDLESS LINE TRIMMER / EDGE TRIMMER
SAFETY WARNINGS
■Never allow children, persons with reduced physical,
sensory, or mental capabilities or lack of experience
and knowledge, or people who are unfamiliar with these
instructions to use the product.
■Use the product in daylight or with good artificial light.
■Avoid using the product on wet grass.
■Keep proper footing and balance at all times, and be
sure of proper footing on slopes.
■Do not walk backwards when using the product. Walk,
never run.
■Keep the head attachment below waist level.
■Never use the product with damaged guards or without
guards in place.
■Do not fit a metal replacement line.
■Keep hands and feet away from the cutting means at all
times, especially when turning on the motor.

3
Original Instructions
■Beware, the cutting means continue to rotate after the
motor is turned off.
■Beware of objects thrown by the cutting means. Clear
debris like small stones, gravel, and other foreign objects
from the work area before starting operation. Wires or
string may become entangled with the cutting means.
■To reduce the risk of injury associated with contacting
moving parts, always turn off the product, remove the
battery pack, and allow both to cool down. Make sure
that all moving parts have come to a complete stop:
●before servicing
●before clearing a blockage
●before checking, cleaning, and working on the
product
●before changing accessories
●after striking a foreign object
●whenever leaving the product unattended
●whenever performing maintenance
●whenever the product starts to vibrate abnormally
■Wear full eye and hearing protection while operating the
product. If working in an area where there is a risk of
falling objects, head protection must be worn.
■The use of hearing protection may restrict the operator’s
ability to hear warning sounds. Pay particular attention
to potential hazards around and inside the working area.
■Wear heavy, long trousers, boots, and gloves. Do not
wear loose-fitting clothing, short trousers, or jewellery of
any kind, and do not use the product with bare feet.
■Secure long hair so that it is above shoulder level to
prevent entanglement in moving parts.
■The small blade fitted to the safety guard is designed
to trim the new extended line to the correct length for
safe and optimum performance. The blade is very sharp.
Do not touch the blade, particularly when cleaning the
product.
■Always ensure that ventilation openings are kept clear
of debris.
■Before use and after any impact, check that there are no
damaged parts on the product. A defective switch or any
part that is damaged or worn should be properly repaired
or replaced by an authorised service centre.
■Make sure that the cutting head attachment is properly
installed and securely fastened.
■Make sure that all guards, deflectors, and handles are
properly and securely attached.
■Do not modify the product in any way. This may increase
the risk of injury to yourself or others.
■Use only the manufacturer’s replacement cutting line.
Do not use any other cutting attachment.
■Immediately turn off the product and remove the battery
pack in the event of accident or breakdown. Do not
operate the product again until it has been fully checked
by an authorised service centre.
■Ensure that the line cut-off blade in the guard is properly
positioned and secured before each use.
ADDITIONAL BATTERY SAFETY WARNINGS
To reduce the risk of re, personal injury, and product
damage due to a short circuit, never immerse the product,
battery pack, or charger in uid or allow uid to ow inside
them. Corrosive or conductive uids, such as seawater,
certain industrial chemicals, and bleach or bleach-containing
products, etc., can cause a short circuit.

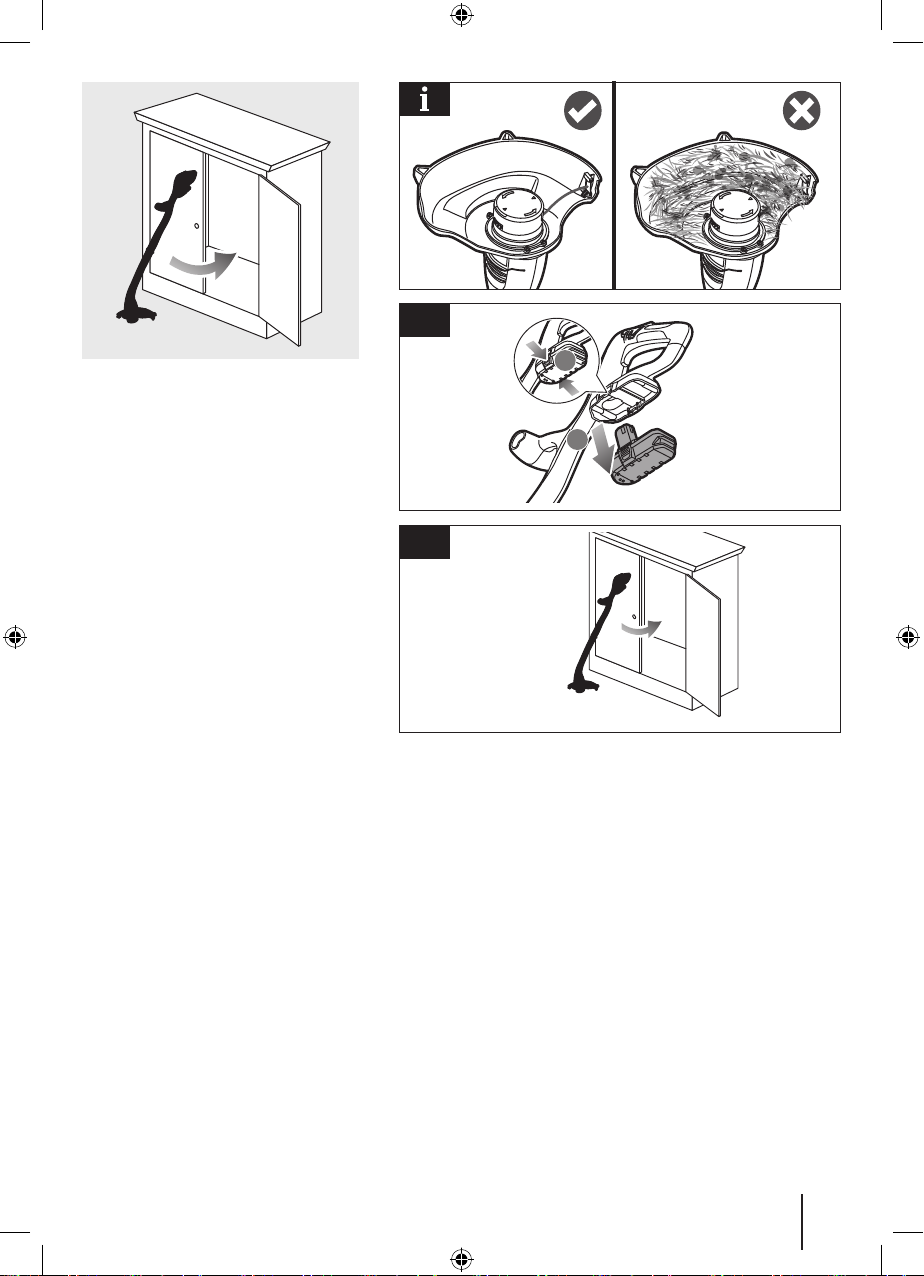

TRANSPORTATION AND STORAGE
■Turn off the product, remove the battery pack, and allow
the product to cool down before storing or transporting.
■Remove all foreign materials from the product.
■Do not store or transport the product with the battery
pack fitted. Remove the battery pack and secure it
separately. Store the product in a cool, dry, and well-
ventilated place that is inaccessible to children. Keep
the product away from corrosive agents, such as garden
chemicals and de-icing salts. Do not store the product
outdoors.
■For transportation in vehicles, secure the product
against movement or falling to prevent injury to persons
or damage to the product.
TRANSPORTING LITHIUM BATTERIES
Transport the battery pack in accordance with local and
national provisions and regulations.
Follow all special requirements on packaging and labelling
when transporting batteries by a third party.
Ensure that no batteries can come in contact with other
batteries or conductive materials while in transport
by protecting exposed connectors with insulating,
nonconductive caps or tape. Do not transport batteries that
are cracked or leak.
MAINTENANCE
■Use only original manufacturer’s replacement parts,
accessories, and attachments. Failure to do so can cause
possible injury, can contribute to poor performance, and
may void your warranty.
■Servicing requires extreme care and knowledge
and should be performed only by a qualified service
technician. Have the product serviced by an authorised
service centre only. When servicing, use only original
replacement parts.
■Turn off the product and remove the battery pack before
conducting any maintenance or cleaning work.
■You may only make adjustments or repairs described
in this manual. For other repairs, contact an authorized
service agent.
■For the replacement line, use only a nylon filament line
of the diameter described in the specifications table of
this manual.
■After extending the new cutter line, always return the
product to its normal operating position before starting.
■After each use, clean the product with a soft, dry cloth.
Any part that is damaged should be properly repaired or
replaced by an authorised service centre.
■Check all nuts, bolts, and screws before each use and
at frequent intervals for proper tightness to ensure that
the product is in safe working condition. Any part that is
damaged should be properly repaired or replaced by an
authorised service centre.
■Bring the product to an authorised service centre to
replace damaged or unreadable labels.

4
Original Instructions
SYMBOLS ON THE PRODUCT
Read and understand all instructions
before operating the product. Follow all
warnings and safety instructions.
Wear eye protection.
Wear ear protection.
Wear non-slip, safety footwear when
using the product.
Do not use metal blade(s) on the
product.
Do not expose the product to rain or
damp condition.
Adjust the shaft to the preferred length.
Guaranteed sound power level
Beware of thrown or ying objects.
Keep all bystanders, especially
children and pets, at least 15 m away
from the operating area.
Keep hands away from the cut-o
blade.
Regulatory Compliance Mark (RCM).
This product meets applicable
regulatory requirements.
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or
retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Note
Warning

5
Know your product
Operator's manual
Screw
Cut-off blade
Battery pack
Charger
OLT1825
R18LTR415
RLT1825Li13
x 4
Lock-out trigger
Switch trigger
Cutting line
Front handle
Upper shaft
Lower shaft
Spool cover
Spool
Eyelet
Safety guard

6
Getting started
1
2
1
3
x4
2
1
4
2
5
3
4
Insert the battery pack until the latches
click into place.
Push the lock-out trigger, and squeeze
the switch trigger to operate the
product.
Always wear safety goggles or safety
glasses with side shields when
operating the product. Wear non-slip,
heavy-duty protective gloves. Wear
non-skid, protective footwear that will
protect your feet and improve your
footing on slippery surfaces.
Insert the upper shaft into the lower
shaft until the latch clicks into place.
Install the safety guard onto the trimmer
head. Secure the safety guard into
place with screws. Remove the cut-off
blade cover.

7
4
p.13
p.8
p.12p.11
p.10
Operating the
trimmer
Operating the
edger
Replacing the
spool
Cleaning the
product Storing the product

8
Operation
1
2
1
3
2
1
2
3
OPERATING THE TRIMMER
WARNING: Always use two hands to operate
the product. Hold the product with one hand
on the trigger handle and the other hand on
the front handle.
WARNING: Keep hands and feet away from
the cutting means at all times, especially
when turning on the motor.
1. Insert the battery pack until the latches
click into place.
2. Push the lock-out trigger, and squeeze
the switch trigger to operate the product.
3. Squeeze and release the lock-out and
switch triggers to advance the cutting
line. A quarter inch (6.35 mm) of line is
automatically released when the triggers
are squeezed and released.

9
Operation
1
2
3
NOTE: The small blade fitted to the trimmer
guard is designed to trim the new extended
line to the correct length for safe and optimum
performance. The blade is very sharp. Do not
touch the blade, particularly when cleaning
the product.
NOTE: Cut tall grass from the top down. This
prevents grass from wrapping around the
shaft housing and bump head, which may
cause damage from overheating.
NOTE: Cut the grass from the right side to
the left side for cutting ease and safety.

10
Operation
2
1
1
1
2
2
3
2
1
3
4
OPERATING THE EDGER
1. Press the latches on the battery pack.
Remove the battery pack from the
product.
2. Push the button on the lower shaft. Turn
the upper shaft counterclockwise until the
button on the lower shaft clicks into place.
3. Insert the battery pack. Push the lock-out
trigger, and squeeze the switch trigger to
operate the product.
4. Use the product for edging sidewalks and
walkways.

11
Maintenance
2
1
1
2
1
2
3
12
4
3
4
5
REPLACING THE SPOOL
1. Press the latches on the battery pack.
Remove the battery pack from the
product.
2. Push the tabs on the side of the spool
retainer. Remove the spool cover.
3. Remove the old spool.
4. To install the new spool, make sure that
the line is captured in the slot on the new
spool. Thread the line of the new spool
into the eyelet. Attach the new spool.
Press the tab on the side of the spool
retainer. Pull the line extending from the
string head.
5. Insert the tabs of the spool cover into the
slots. Push down the spool cover until it
clicks into place.

12
Maintenance
2
1
1
2
CLEANING THE PRODUCT
1. Press the latches on the battery pack.
Remove the battery pack from the
product.
2. Remove all foreign materials from the
product with a soft brush.
WARNING: Keep the product away from
corrosive agents, such as garden chemicals
and de-icing salts.
WARNING: The small blade fitted to the
cutting attachment guard is designed to trim
the new extended line to the correct length
for safe and optimum performance. The
blade is very sharp. Do not touch the blade,
particularly when cleaning the product.
20210728v3

13
Storage
20210728v3
2
1
1
2
STORING THE PRODUCT
NOTE: Remove all foreign materials from the
product.
1. Press the latches on the battery pack.
Remove the battery pack from the
product.
2. Store the product in a cool, dry, and
well-ventilated place that is inaccessible
to children. Do not store the product
outdoors.

PRODUCT SPECIFICATIONS
Cordless line trimmer / edge trimmer
Model R18LTR415 / RLT1825Li13 / OLT1825
Voltage 18 V d.c.
No-load speed 9,500/min
Cutting capacity 25 cm
Cutting line diameter 1.65 mm
Weight (without battery) 1.5 kg
Max weight with heaviest pack
and accessory
2.3 kg
Vibration level (in accordance with EN 50636-2-91 Annex BB)
Front handle 4.0 m/s
2
Rear handle 4.0 m/s
2
Uncertainty 1.5 dB
Noise emission level (in accordance with EN 50636-2-91 Annex CC)
A-weighted sound pressure
level at the operator’s position
84.7 dB(A)
Uncertainty 2.5 dB
A-weighted sound power level 91.6 dB(A)
Uncertainty 2.5 dB
Guaranteed sound power level 96 dB
BATTERY AND CHARGER
Model R18LTR415 RLT1825Li13 OLT1825
Battery pack RB18L15B RB18L13 -
Weight 0.43 kg 0.43 kg -
Charger RC18115 RC18115 -
Compatible battery packs BPL-1815, BPL-1820, RB18L13, RB18L15,
RB18L15A, RB18L15B, RB18L40, RB18L26,
RB18L20, RB18L25, RB18L50
Compatible chargers
RC18115, BCL-1800, BCL-1800G, BCL1418,
BCL14181H, BCL14183H, BCS618, RC18120,
RC18150U, RC18627U, BCL1418IV*
*For vehicles with 12 V DC outlets.
REPLACEMENT PARTS
1.65 mm cutting line PTL1615M / PTL1650M
Complete spool RAC1204
Spool (3 pcs) RAC1211
WARNING! The declared vibration total values and the
declared noise emission values given in this instruction
manual have been measured in accordance with a
standardised test and may be used to compare one tool with
another. They may be used for a preliminary assessment
of exposure.
The declared vibration and noise emission values represent
the main applications of the tool. However, if the tool is used
for dierent applications, used with dierent accessories,
or poorly maintained, the vibration and noise emission
may dier. These conditions may signicantly increase the
exposure levels over the total working period. An estimation
of the level of exposure to vibration and noise should take
into account the times when the tool is turned o or when
it is running idle. These conditions may signicantly reduce
the exposure level over the total working period.
Identify additional safety measures to protect the operator
from the eects of vibration and noise, such as maintaining
the tool and the accessories, keeping the hands warm (in
case of vibration), and organising work patterns.


Imported by:
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
RYOBI is a trade mark of Ryobi Limited, and is used under license.
961478266-02
Other manuals for OLT1825
2
Table of contents
Other Ryobi Trimmer manuals

Ryobi
Ryobi RBC52FSBB User manual

Ryobi
Ryobi RHT-600R User manual

Ryobi
Ryobi 765r User manual

Ryobi
Ryobi P20019 User manual

Ryobi
Ryobi RLT26CDY User manual

Ryobi
Ryobi RHT2660RN User manual

Ryobi
Ryobi 767r User manual

Ryobi
Ryobi RY28020 Quick setup guide

Ryobi
Ryobi RLT3626DE User manual

Ryobi
Ryobi RLT1238 User manual

Ryobi
Ryobi RLT5027 User manual

Ryobi
Ryobi RY52002 User manual

Ryobi
Ryobi PLT3043E, RY70103 User manual

Ryobi
Ryobi RBC52FSB User manual

Ryobi
Ryobi RGT2500 Operation manual

Ryobi
Ryobi RBC30SESB User manual

Ryobi
Ryobi RLT430CESB User manual

Ryobi
Ryobi 790r User manual

Ryobi
Ryobi RLT1825M13 User manual

Ryobi
Ryobi RLT-6038EX User manual
