Ryobi RY29550 Application guide

987000-311
8-14-08 (REV:04)
30cc String Trimmer
Model No. RY29550
Replacement Parts List
Taille-bordure de 30 cc
No. de Modèle RY29550
Liste des pièces de rechange
Recortadoras de Hilo 30 cc
Modelo No. RY29550
Lista de piezas de repuesto
TECHTRONIC INDUSTRIES NORTH AMERICA, INC.
1428 Pearman Dairy Road, Anderson, SC 29625
Phone [phone]
www.ryobitools.com

2
1
3
2
14
4
13
16
15
19
20
24
17
18
6
7
9
26 27
10
11
12
35
25
23
34
21
30
5
33
822
32
31
28
29

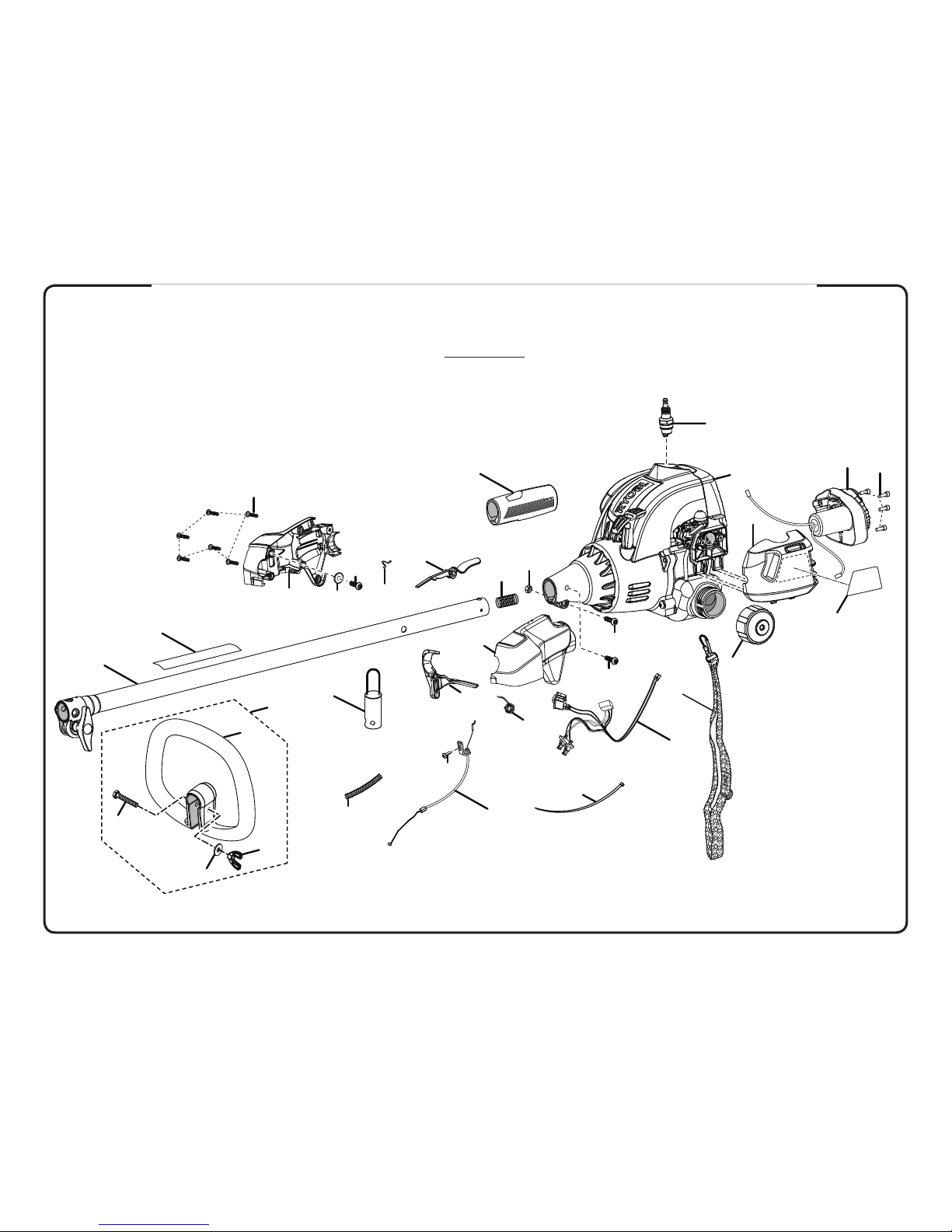

FIGURE A
RYOBI 30cc STRING TRIMMER MODEL NUMBER – RY29550 / RECORTADORAS DE HILO 30 CC
MODELO NO. RY29550 / RECORTADORAS DE HILO 30 CC MODELO NO. RY29550

3
Key P/N Description Qty
1 660563001 * Screw (M4 x 18 mm) ...........6
2 518797001 Left Handle..........................1
3 518695001 Trigger Lock ........................1
4 638431001 Strap Hanger.......................1
5 308925001 Wire Harness.......................1
6 570234003 Rear Handle ........................1
7 870174002 * Spark Plug
(Champion RCJ6Y)..............1
8 518366001 Hanger Cap.........................1
9 518777001 Air Box Cover......................1
10 300758006 Fuel Cap Assembly .............1
11 940686033 Label....................................1
12 660697002 * Bolt (M6 x 20 mm)...............1
13 308470006 Upper Boom Assembly.......1
14 940230132 Warning Decal .....................1
15 308991001 Front Handle Assembly.......1
16 518738001 Front Handle........................1
17 660643008 * Bolt (1/4-20 x 40 mm) .........1
18 678008001 Washer ................................1
19 518949001 * Wing Nut (1/4-20)................1
20 518696001 Throttle Trigger ....................1
21 660616001 * Screw (10-24 x 7/8 in.) ........1
22 308487001 Shoulder Strap ....................1
23 678029002 * Hex Nut (M6) .......................1
24 690694002 Spring..................................1
25 660634001 * Bolt
(8-16 x 5/16 in. Torx T.F.).....1
26 310568001 Electrical Start Assembly ....1
27 660527001 * Screw (M5 x 14 mm) ...........4
28 309800001 Power Head Assembly........1
29 308439012 Throttle Cable......................1
30 518798001 Right Handle .......................1
31 690969001 Washer ................................1
32 660870001 Screw ..................................1
33 900333010 Cable Tie .............................3
34 690140011 Spring..................................1
35 518036006 Tube.....................................1
NOT SHOWN:
987000310 Operator’s Manual...............1
130269012 Battery Pack........................1
140295003 Charger................................1
PARTS LIST LISTE DES PIÈCES LISTA DE PIEZAS
1 660563001 * Vis (M4 x 18 mm).................6
2 518797001 Poignée gauche ..................1
3 518695001 Verrouillage de gâchette......1
4 638431001 Dispositif d’accrochage ......1
5 308925001 Connecteur l’harnais ...........1
6 570234003 Poignée arrière ....................1
7 870174002 * Bougie (Champion RCJ6Y) .1
8 518366001 Capuchon de suspension ...1
9 518777001 Couvercle de filtre à air .......1
10 300758006 Bouchon de carburant ........1
11 940686033 Étiquette..............................1
12 660697002 * Boulon (M6 x 20 mm)..........1
13 308470006 Arbre, partie supérieure.......1
14 940230132 Autocollant d’avertissement1
15 308991001 Assemblage de poignée......1
16 518738001 Manchon .............................1
17 660643008 * Boulon (1/4-20 x 40 mm) ....1
18 678008001 Rondelle ..............................1
19 518949001 * Écrou à oreilles (1/4-20) ......1
20 518696001 Gâchette d’accélérateur......1
21 660616001 * Vis (10-24 x 7/8 in.) .............1
22 308487001 Bandoulière .........................1
23 678029002 * Écrou hexagonal (M6) .........1
24 690694002 Ressort................................1
25 660634001 * Boulon
(8-16 x 5/16 po Torx T.F.).....1
26 310568001 Démarrage électrique..........1
27 660527001 * Vis (M5 x 14 mm).................4
28 309800001 Bloc moteur.........................1
29 308439012 Câble d’accélérateur...........1
30 518798001 Poignée droit.......................1
31 690969001 Rondelle ..............................1
32 660870001 Vis........................................1
33 900333010 Attache................................3
34 690140011 Ressort................................1
35 518036006 Tube.....................................1
PAS ILLUSTRÉ :
987000310 Manuel d’utilisation .............1
130269012 Bloc de batteries.................1
140295003 Chargeur..............................1
Ref. N/P Descripción Cant.
1 660563001 * Tornillo (M4 x 18 mm)..........6
2 518797001 Mango izquierda..................1
3 518695001 Seguro del gatillo ................1
4 638431001 Colgador para la correa ......1
5 308925001 Alambre arreos....................1
6 570234003 Mango trasero.....................1
7 870174002 * Bujía (Champion RCJ6Y).....1
8 518366001 Tapa de suspensión ............1
9 518777001 Tapa de la caja de aire........ 1
10 300758006 Arandela ondulada ..............1
11 940686033 Etiqueta ...............................1
12 660697002 * Perno (M6 x 20 mm)............1
13 308470006 Conjunto del brazo
superior ...............................1
14 940230132 Calcomanía de advertencia 1
15 308991001 Conjunto del mango............1
16 518738001 Manga .................................1
17 660643008 * Perno (1/4-20 x 40 mm) ......1
18 678008001 Arandela ..............................1
19 518949001 * Tuerca de mariposa (1/4-20)1
20 518696001 Gatillo del acelerador ..........1
21 660616001 * Tornillo (10-24 x 7/8 in.).......1
22 308487001 Correa para el hombro ........1
23 678029002 * Tuerca hexagonal (M6)........1
24 690694002 Resorte................................1
25 660634001 * Perno
(8-16 x 5/16 pulg. Torx T.F.).1
26 310568001 Conjunto del arranque
eléctrico...............................1
27 660527001 * Tornillo (M5 x 14 mm)..........4
28 309800001 Conjunto del del
cabezal motor .....................1
29 308439012 Cable del acelerador...........1
30 518798001 Mango derecha ...................1
31 690969001 Arandela ..............................1
32 660870001 Tornillo.................................1
33 900333010 Amarra del cable .................3
34 690140011 Resorte................................1
35 518036006 Tubo ....................................1
NO SE ILUSTRA:
987000310 Manual del operador...........1
130269012 Paquete de baterías............1
140295003 Cargador .............................1
Pièce Réf. Description Qté
* Standard Hardware Item — May Be Purchased Locally * Article de quincaillerie standard – en vente dans les
magasins locaux
* Artículo estándar de ferretería — puede adquirirse en la
localidad
RYOBI 30cc STRING TRIMMER MODEL NUMBER – RY29550 / RECORTADORAS DE HILO 30 CC
MODELO NO. RY29550 / RECORTADORAS DE HILO 30 CC MODELO NO. RY29550
FIGURE A

4
6
5
4
7
811
9
12
2
1
10
14
13
3
16
17
18
19
20
21
22
15
RYOBI 30cc STRING TRIMMER MODEL NUMBER – RY29550 / RECORTADORAS DE HILO 30 CC
MODELO NO. RY29550 / RECORTADORAS DE HILO 30 CC MODELO NO. RY29550
FIGURE B

5
Key P/N Description Qty
1 940627024 Expand-it Label...................1
2 940230132 Warning Decal .....................1
3 308035011 Straight Shaft Assembly......1
4 660736001 * Screw (10-24 x 5/8 in.) ........1
5 638125001 Clamp..................................1
6 518367001 Spacer.................................1
7 660642001 * Screw (1/4-20 x 1-1/4 in.)....1
8 308210002 Gear Head...........................1
9 678011002 Flanged Washer ..................1
10 678019002 Arbor ...................................1
11 660886001 * Wing Screw
(1/4-20 x 1-1/4 in.)...............1
12 308473001 Grass Deflector Assembly...1
13 308925001 Pro Cut II String Head.........1
14 308042003 Spool Retainer (Red) ...........1
15 120950011 Pro Cut II String
Head Assembly
(Inc. Key Nos. 13-14)...........1
16 308827002 Housing...............................1
17 678749001 Spring..................................1
18 308924001 Spool...................................1
19 660649001 * Bolt (5/16-18 x 1/2 in. LH)...1
20 518803001 Knob....................................1
21 518804001 Cover...................................1
22 120950010 Reel Easy String Head
Assembly (Inc. Key Nos.
16-21)..................................1
PARTS LIST LISTE DES PIÈCES LISTA DE PIEZAS
1 940627024 Autocollant Expand-it..........1
2 940230132 Autocollant
d’avertissement...................1
3 308035011 Arbre droit ...........................1
4 660736001 * Vis (10-24 x 5/8 po).............1
5 638125001 Bride....................................1
6 518367001 Pièce d’écartement .............1
7 660642001 * Vis (1/4-20 x 1-1/4 po) ........1
8 308210002 Carter d’engrenages ..........1
9 678011002 Rondelle à épaulement .......1
10 678019002 Axe ......................................1
11 660886001 * Vis à oreilles
(1/4-20 x 1-1/4 po) ..............1
12 308473001 Déflecteur d’herbe...............1
13 308925001 Tête de coupe Pro Cut II.....1
14 308042003 Retenue de bobine (rouge)..1
15 120950011 Ensemble de tête de coupe
Pro Cut II (Incl. pièces no.
13 à 14) ...............................1
16 308827002 Boîtier..................................1
17 678749001 Ressort................................1
18 308924001 Bobine.................................1
19 660649001 * Boulon
(5/16-18 x 1/2 po LH)..........1
20 518803001 Bouton.................................1
21 518804001 Couvercle ............................1
22 120950010 Ensemble de tête de coupe
Reel Easy (Incl. pièces no.
16 à 21) ...............................1
Ref. N/P Descripción Cant.
1 940627024 Etiqueta Expand-it ..............1
2 940230132 Calcomanía de
advertencia..........................1
3 308035011 Conjunto del eje recto.........1
4 660736001 * Tornillo (10-24 x 5/8 pulg.)...1
5 638125001 Abrazadera..........................1
6 518367001 Separador ...........................1
7 660642001 * Tornillo
(1/4-20 x 1-1/4 pulg.) ..........1
8 308210002 Cabezal de engranajes........1
9 678011002 Arandela de brida................1
10 678019002 Árbol....................................1
11 660886001 * Tornillo de mariposa
(1/4-20 x 1-1/4 pulg.) ..........1
12 308473001 Conjunto del deflector de
pasto ...................................1
13 308925001 Carrete e hilo Pro Cut II.......1
14 308042003 Retén del carrete (rojo)........1
15 120950011 Conj. del cabezal del hilo
Pro Cut II (Incl. pzas. núms.
ref. 13 a 14) .........................1
16 308827002 Alojamiento .........................1
17 678749001 Resorte................................1
18 308924001 Carrete ................................1
19 660649001 * Perno
(5/16-18 x 1/2 pulg. LH) ......1
20 518803001 Perilla...................................1
21 518804001 Cubierta...............................1
22 120950010 Conj. del cabezal del hilo
Reel Easy (Incl. pzas. núms.
ref. 16 à 21) .........................1
Pièce Réf. Description Qté
RYOBI 30cc STRING TRIMMER MODEL NUMBER – RY29550 / RECORTADORAS DE HILO 30 CC
MODELO NO. RY29550 / RECORTADORAS DE HILO 30 CC MODELO NO. RY29550
* Standard Hardware Item — May Be Purchased Locally * Article de quincaillerie standard – en vente dans les
magasins locaux
* Artículo estándar de ferretería — puede adquirirse en la
localidad
FIGURE B

TECHTRONIC INDUSTRIES NORTH AMERICA, INC.
1428 Pearman Dairy Road, Anderson, SC 29625
Phone [phone]
www.ryobitools.com
