Ryobi RHT6060RS User manual

ORIGINAL INSTRUCTIONS
Electric Hedge
Trimmer
RHT6060RS

Important!
It is essential that you read the instructions in this manual before assembling,
maintaining and operating this machine.
Subject to technical modification.

1
GENERAL SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instruction for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
WORK AREA SAFETY
ŶKeep work area clean and well lit. Cluttered or dark
areas invite accidents.
ŶDo not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
ŶKeep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
ŶPower tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
ŶAvoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded
ŶDo not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
ŶDo not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
ŶWhen operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock
ŶIf operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
ŶStay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
ŶUse personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injury.
ŶPrevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
ŶRemove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
ŶDo not overreach. Keep proper footing and balance
at all times. This enables better control of the power in
unexpected situations.
ŶDress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
ŶIf devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
ŶDo not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
ŶDo not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with switch is dangerous and must be repaired.
ŶDisconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
ŶStore idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
ŶMaintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
ŶKeep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
ŶUse the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.

2
SERVICE
ŶHave your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that safety of the power tool is maintained.
HEDGE TRIMMER SAFETY WARNINGS
ŶKeep all parts of the body away from the cutter
blade. Do not remove cut material or hold material
to be cut when blades are moving. Make sure the
switch is off when clearing jammed materials.
A moment of inattention while operating the hedge
trimmer may result in serious personal injury.
ŶCarry the hedge trimmer by the handle with cutter
blade stopped. When transporting or storing the
hedge trimmer always fit the cutting device cover.
Proper handling of the hedge trimmer will reduce
possible personal injury from the cutter blades.
ŶHold the power tool by insulated gripping surface
only, because the cutter blade may contact hidden
wiring or its own cord. Cutter Blades contacting a
“live” wire may make exposed metal parts of the power
tool “live” and could give the operator an electric shock.
ŶKeep cable away from cutting area. During operation
the cable may be hidden in shrubs and can be
accidentally cut by the blade.
ADDITIONAL SAFETY RULES
ŶThis appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with the
appliance.
ŶClear the work area before each use. Remove all
objects such as cords, lights, wire, or string which can
be thrown or become entangled in the cutting means.
ŶElectrical power should be supplied via a residual
current device (RCD) with a tripping current of not more
than 30 mA.
ŶIf the power cable becomes damaged, you must return
the tool to an approved service centre for repair or
replacement.
ŶBeware of thrown objects; keep all bystanders, children,
and pets at least 15m away from work area.
ŶDo not operate in poor lighting. The operator requires a
clear view of the work area to identify potential hazards.
ŶInspect the machine before each use. Check for loose
fasteners, fuel leaks, etc. Make sure all guards, and
handles are properly and securely attached. Replace
any damaged parts before use.
ŶDo not modify the machine in any way.
ŶDo not allow children or untrained individuals to use this
unit.

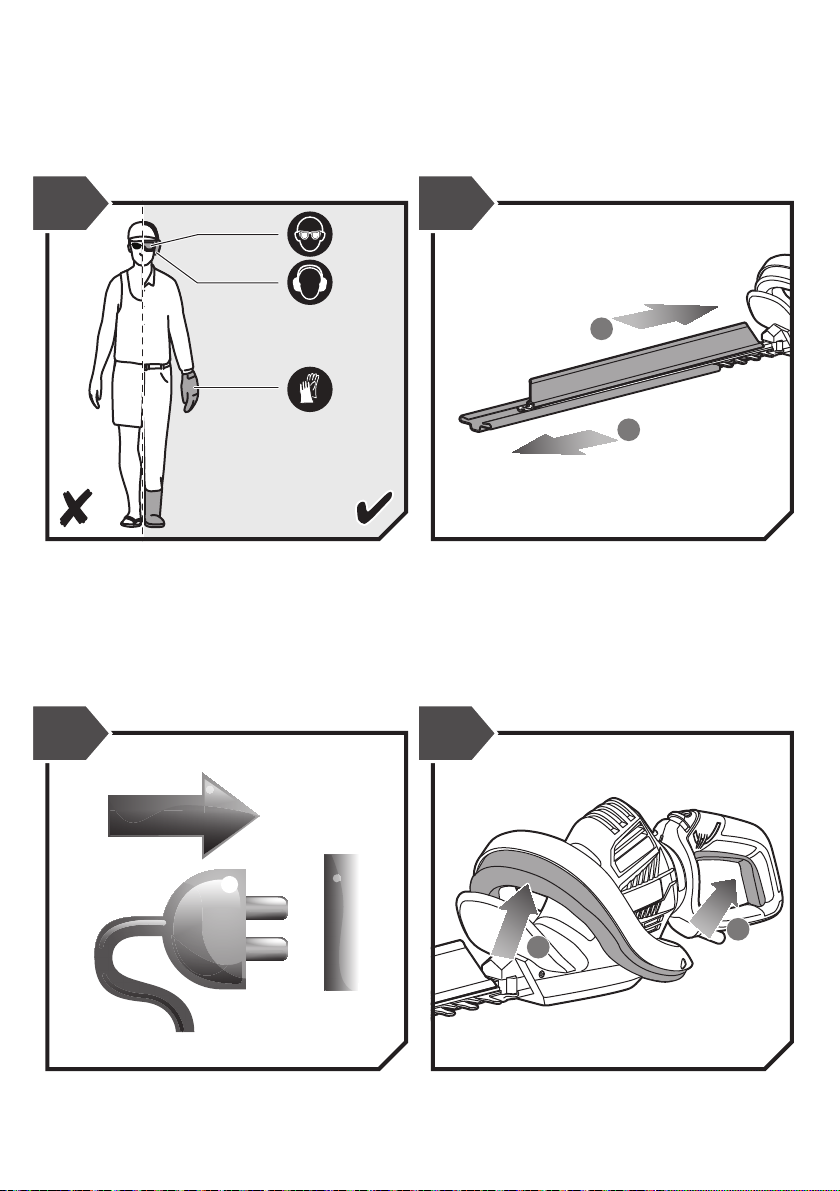

ŶWear full eye and hearing protection while operating the
product. If working in an area where there is a risk of
falling objects, head protection must be worn.
ŶWear heavy long trousers, boots, and gloves. Do not
wear loose fitting clothing, short trousers, jewellery of
any kind, or use with bare feet.
ŶSecure long hair so it is above shoulder level to prevent
entanglement in moving parts.
ŶDo not use this machine when you are tired, ill, or under
the influence of alcohol, drugs, or medication.
ŶKeep firm footing and balance. Do not overreach.
Overreaching can result in loss of balance and can
result in serious injury.
ŶBefore starting the machine, make sure the cutting
blades will not come in contact with anything.
ŶWhile operating the hedge trimmer, always hold it firmly
with both hands by the two handles and ensure that the
operating position is safe and secure. The manufacturer
does not recommend the use of steps or ladders. If
higher trimming is required use an extended reach tool.
ŶBlades are sharp. When handling the blade assembly,
wear non-slip, heavy-duty protective gloves. Do not
place your hand or fingers between blades or in any
position where they could get pinched or cut. NEVER
touch blade or service unit with the power cord
connected to the supply.
ŶSwitch off and disconnect from the power supply before:
Ɣadjusting the working position of the cutting device
Ɣcleaning or clearing a blockage
Ɣleaving the product unattended
Ɣchecking, maintenance or working on the machine.
ŶDo not force the hedge trimmer through heavy
shrubbery. This can cause the blades to bind and slow
down. If the blades slow down, reduce the pace.
ŶDo not attempt to cut stems or twigs that are larger than
28 mm thick, or those obviously too large to feed into
the cutting blade.
ŶUse of hearing protection reduces the ability to hear
warnings (shouts or alarms). The operator must pay
extra attention to what is going on in the working area.
WARNING
If the machine is dropped, suffers heavy impact or begins
to vibrate abnormally, immediately stop the machine and
inspect for damage or identify the cause of the vibration.
Any damage should be properly repaired or replaced by
an authorized service centre.
TRANSPORTATION AND STORAGE
ŶStop the machine, disconnect from the mains and allow
it to cool before storing or transporting.
ŶClean all foreign material from the product. Store it in a
cool dry and well-ventilated place that is inaccessible
to children. Keep away from corrosive agents such
as garden chemicals and de-icing salts. Do not store
outdoors.
ŶCover the blade with the blade protector before storing
the unit, or during transportation.
ŶFor transportation, secure the machine against
movement or falling to prevent injury to persons or
damage to the machine.

3
MAINTENANCE
WARNING
Use only original manufacturer’s replacement parts,
accessories and attachments. Failure to do so can
cause possible injury, poor performance and may void
your warranty.
WARNING
Servicing requires extreme care and knowledge
and should be performed only by a qualified service
technician. For service we suggest you return the
product to your nearest authorized service center for
repair. When servicing, use only identical replacement
parts
WARNING
The blades are extremely sharp. To prevent personal
injury, exercise extreme caution when cleaning,
lubricating and fitting or removing the blade protector.
ŶDisconnect the power cord before adjusting, maintaining
or cleaning.
ŶYou may make adjustments and repairs described
here. For other repairs, contact the authorized service
agent.
ŶAfter each use, clean the body and handles of the
product with a soft dry cloth.
ŶAfter each use, clean the debris from the blades
with a stiff brush, and then carefully apply a rust
preventative lubricant before refitting the blade
protector. The manufacturer recommends you to use a
rust preventative and lubricant spray to apply an even
distribution and reduce the risk of personal injury from
contact with the blades. For information about suitable
spray product check with your local authorised service
centre.
ŶYou may wish to lubricate the blades lightly before use
if necessary using the above method.
ŶCheck all nuts, bolts and screws at frequent intervals
for proper tightness to ensure the product is in safe
working condition. Any part that is damaged should be
properly repaired or replaced by an authorized service
centre.
INTENDED USE
The product is only intended for use outdoors. For safety
reasons the product MUST be adequately controlled by
using two handed operation.
The product is designed for home or domestic use. It
is intended to cut and trim hedges, shrubs and similar
vegetation.
It should be used in dry, well illuminated conditions.
It is NOT intended to cut grass, trees or branches. It should
not be used for any other purpose than hedge trimming.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still
impossible to completely eliminate certain residual risk
factors. The following hazards may arise in use and the
operator should pay special attention to avoid the following:
ŶThe blades cannot be guarded whilst cutting. Contact
with the blades can cause serious injury. Keep the
blade away from yourself and others. Cover it with the
blade protector whenever you are not cutting.
ŶInjury caused by vibration. Always use the right tool for
the job, use designated handles and restrict working
time and exposure.
ŶExposure to noise can cause hearing injury. Wear ear
protection and limit exposure
RISK REDUCTION
It has been reported that vibrations from hand-held tools
may contribute to a condition called Raynaud’s Syndrome
in certain individuals. Symptoms may include tingling,
QXPEQHVV DQG EODQFKLQJ RI WKH ¿QJHUV XVXDOO\ DSSDUHQW
upon exposure to cold. Hereditary factors, exposure to
cold and dampness, diet, smoking and work practices are
all thought to contribute to the development of the these
symptoms. There are measures that can be taken by the
operator to possibly reduce the effects of vibration:
ŶKeep your body warm in cold weather. When operating
the unit wear gloves to keep the hands and wrists
warm. It is reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
ŶAfter each period of operation, exercise to increase
blood circulation.
ŶTake frequent work breaks. Limit the amount of
exposure per day.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your doctor about
these symptoms.
WARNING
Injuries may be caused, or aggravated, by prolonged
use of a tool. When using any tool for prolonged periods,
ensure you take regular breaks.
DESCRIPTION
See page 6
PARTS
1. Rear handle
2. Trigger
3. Lock button of rotating handle
4. Front handle
5. Operator presence switch
6. Guard
7. Blade
8. HedgeSweepTM debris sweeper
9. Blade cover

4
SYMBOL ON THE PRODUCT
Safety alert
Read and understand all instructions
before operating the product, follow all
warnings and safety instructions.
Wear ear protection.
Wear eye protection.
Always hold the hedge trimmer with
both hands when operating.
Wear non-slip, heavy duty gloves.
Remove plug from the mains
immediately before maintenance or if
cable is damaged or cut.
Sharp cutting blades. To prevent
serious injury, do not touch cutting
blades.
Do not expose to rain or damp condition.
%HZDUHRIWKURZQRUÀ\LQJREMHFWV
Keep all bystanders, especially children
and pets, at least 15m away from the
operating area.
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or retailer
for recycling advice.
Regulatory Compliance Mark (RCM).
This product meets applicable regulatory
requirements.
101
81
The guaranteed sound pressure level
is shown on this label by 81 dB. The
guaranteed sound power level is shown
on this label by 101 dB.
Class II tool, double insulation
The following signal words and meanings are intended to
explain the levels of risk associated with this product:
DANGER
Indicates an imminently hazardous
situation, which, if not avoided, will
result in death or serious injury.
WARNING
Indicates a potentially hazardous
situation, which, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a potentially hazardous
situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION
(Without Safety Alert Symbol)
Indicates a situation that may result
in property damage.
SYMBOLS IN THIS MANUAL
Connect to power outlet.
Disconnect from power outlet.
Parts or accessories sold separately
Note
Warning

5
x 1
x 1
x 1
x 1

6
34567
8
9
12

7
1
2
2
1
1
3
2
4

8
p.9 p.10
p.12p.9 p.13

9
3
2
1
1
2
1
2

10
21
90°90°
45°45°
3
2
1
1
2
3

11
1
2
3
4

12
20140117v1
1
2
1
2
3

PRODUCT SPECIFICATIONS
Rated power 600 W
Rated voltage 220-240 V ~ 50 Hz
No-load speed 1,500 min-1
Stroke rate at no load 3,000 spm
Blade length 600 mm
Cutting capacity 28 mm
Weight (without cord) 4.2 kg
Vibration level (in accordance with EN 60745-1 and EN 60745-
2-15)
Vibration total value 5.1 m/s2
Uncertainty of measurement 1.5 m/s2
Noise emission level (in accordance with EN 60745-1 and EN
60745-2-15)
A-weighted sound pressure level 78.0 dB(A)
Uncertainty of measurement 3dB
A-weighted sound power level 98.0 dB(A)
Uncertainty of measurement 3dB
VIBRATION LEVEL
WARNING
The declared vibration value has been measured with a
standard test method and may be used to compare one
tool with another.
The declared vibration value may be used in a
preliminary assessment of exposure.
The vibration emission during actual use of power tool
can differ from the declared total value depending on the
ways in which the tool is used.
Identify safety measures to protect yourself based on an
estimation of exposure in the actual conditions of use,
taking account of all parts of the operating cycle such
as the times when the tool is switched off and when it is
running idle in addition to the trigger time.

Techtronic Industries (Australia) Pty. Ltd.
Level 1, 660 Doncaster Road
Doncaster, VIC 3108, Australia
Techtronic Industries New Zealand Ltd.
18-26 Amelia Earhart Avenue
Mangere, Auckland 2022, New Zealand
