SA Blue Box BB35 User manual

Blue Box BB35
User Manual
Version 1.0
Self Powered Loudspeaker Cabinet
stage accompany
R
BB35 USER MANUAL

Published by:
Stage Accompany
Training & Documentation
Haven 28
2984 BR Ridderkerk, The Netherlands
Copyright © 2017 by Stage Accompany
All rights reserved. No part of this manual may be reproduced or transmitted in any form or by
any means, electronically or mechanical, without written permission from Stage Accompany,
except for the inclusion of brief quotations in a review.
First printing, December 2017
Printed in The Netherlands
This manual is intended to provide information about the Stage Accompany BB35. Every effort
has been made to make this manual complete and as accurate as possible. However no
warranty of suitability, purpose, or fitness is implied. The information is provided on an “as-is”
basis. Stage Accompany shall have neither liability nor responsibility to any person or identity
with respect to any loss or damages in connection with or arising from the information
contained in this manual.
Stage Accompany reserves the right to alter specifications without prior notice.
stage accompany
R
BB35 USER MANUAL

stage accompany
R
BB35 USER MANUAL
Table of Contents
Quick Introduction to the BB35
Introduction
Connections
Operation
Stage Control
Recommendations
Technical Specifications
Warranty
Overview

Table Of Contents
1 Quick Introduction to the BB35 ................................. 1-1
2 Introduction ................................................. 2-1
3 Connection of the BB35 ....................................... 3-1
3.1 Mains Power Connection ................................... 3-1
3.2 Audio Connections ........................................ 3-2
4 Operation ................................................... 4-1
4.1 System check ............................................ 4-1
4.2 Input Setup
4.3 Output Setup
.............................................. 4-1
............................................ 4-5
4.2.1
4.3.1
4.2.2
4.3.2
4.2.3
4.3.3
4.2.4
4.3.4
4.2.5
4.3.5
4.2.6
4.3.6
4.2.7
4.3.7
4.2.8
4.3.8
4.2.9
4.3.9
Gain
Gain
Input Selection
Delay
Delay
Low Pass Filter
Low Pass Filter
High Pass Filter
High Pass Filter
Parametric Equalizer (PEQ)
Parametric Equalizer (PEQ)
Compressor
Compressor
Limiter
Limiter
Channel Link
Phase Inverse
Channel Link
................................................ 4-2
................................................ 4-5
........................................ 4-2
............................................... 4-2
............................................... 4-5
........................................ 4-2
........................................ 4-5
....................................... 4-3
....................................... 4-6
.............................. 4-3
.............................. 4-6
.......................................... 4-4
.......................................... 4-7
.............................................. 4-4
.............................................. 4-7
......................................... 4-4
......................................... 4-7
......................................... 4-8
TABLE OF CONTENTS
stage accompany
R
BB35 USER MANUAL

TABLE OF CONTENTS
stage accompany
R
BB35 USER MANUAL
4.4 System Menu
4.5 Indicators
5.1 Getting started

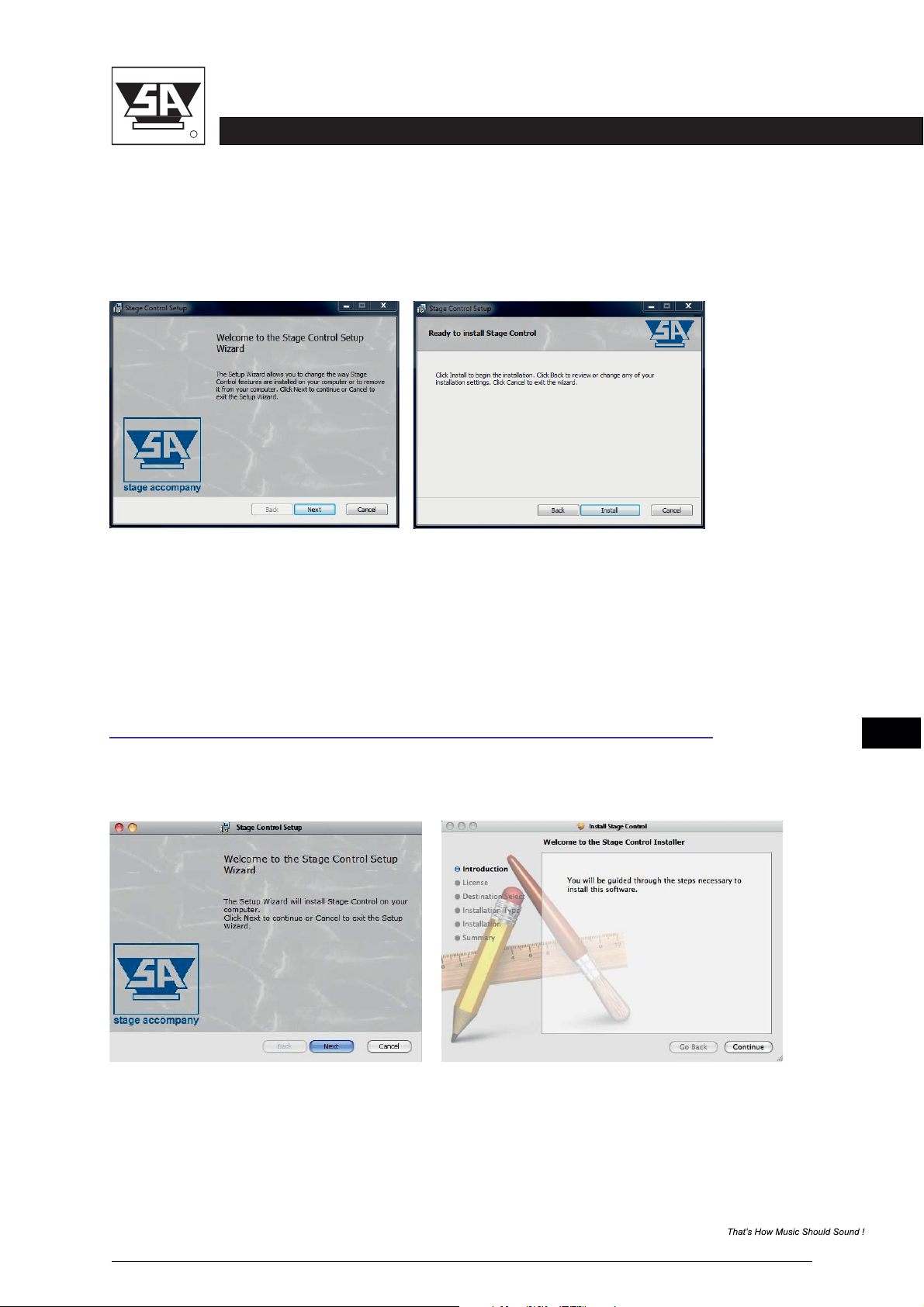

5.2 Installation instructions
5.3 Start communication
5.4 Quick configuration
5.5 Main Window
5.6 X-over window
5.7 Input Window
5.8 Output window
5.9 Compressor window
............................................ 4-8
............................................ 4-9
........................................... 5-1
..................................... 5-1
....................................... 5-3
........................................ 5-4
............................................ 5-4
........................................... 5-
............................................ 5-
........................................... 5-
...................................... 5-
4.4.1
4.4.2
4.4.3
4.4.4
5.5.1
5.5.2
5.5.3
5.5.4
5.5.5
Load Preset
Preset selection
Preset information
Input selection
Power amp standby
Dimming “ power amp On“ front LED-sign and LCD display.
Save Preset
Access Level
Version information
.......................................... 4-8
..................................... 5-5
..................................... 5-6
........................................ 5-7
.................................... 5-8
..... 5-9
.......................................... 4-8
......................................... 4-9
.................................... 4-9
5 Stage Control ................................................ 5-1
6 Recommendations for Optimum Use............................. 6-1
7 Technical Specifications ....................................... 7-1
8 Warranty .................................................... 8-1
9 Overview.................................................... 9-1
13
12
10
11

Quick Introduction to the BB35
Thank you for choosing a Stage Accompany Blue Box. Making this choice has guaranteed
1
you many years of troublefree high quality sound reproduction.
If you have to start using the BB35 straight awayand do
not have the time to read the complete
manual, make sure that you at least read the following:
•
•
•
•
•
•
Ensure that you have a reliable, well earthed power source. The required current for
the BB35 can be found in the table in paragraph 3.1.
Connect the BB35 to your signal sources via the <INPUT> connectors. Connect this
Blue Box to other units via the <LINK> outputs using short signal leads.
N
Connect if desired all the Blue Boxes to each other and a Stage Control PC by the
ever make connections to the Blue Box to any preceding equipment with the ampli-
fier
<switched 10/100 Base -TX> connectors.
switched on!
Switch the BB35 on using the <POWER ON/OFF> switch.
Select the desired preset and input sensitivity by means of the <SELECT ROTATOR >.
The Blue Box is now ready for use.
QUICK INTRODUCTION
stage accompany
R
BB35 USER MANUAL
1-1

2 Introduction
The Stage Accompany Blue Box (type BB35) is a two way, self-powered loudspeakersystem
and compromises the following components:
•
•
•
•
•
•
•
•
•
•
•
•
•
Cabinet
PMS6000 Programmable Monitor System
SA8535C High frequency Ribbon Compact Driver including waveguide
SA1513 low frequency loudspeaker
64-bit 96kHz signature quality DSP controller
Optional flyer eyebolts (3pcs./unit)
The audio inputs and link outputs are connected internally without electronics. This is done to
The functioning of the Blue Box is controlled and monitored by the built-in DSP. Via the ethernet
interface, the system can be controlled by a Windows or MAC OS supported PC.
prevent any loss of sound quality. With an input impedance of 25 kohms, it is posible to connect
a maximum of 30 BB35 units to a 600 ohms source like a mixing console. If more than 30
units need to be connected to a single source, a seperate signal driver must be used.
The Programmable Monitor System (PMS6000) has a number of features, including:
Dual channel Class D operating amplifier.
Switched mode power supply.
Dual auto-negotiation RJ45 ports.
Two channel AES/EBU input + buffered link.
Single channel analog input + link
Soft start to reduce power on inrush current.
Temperature, DC, HF and short circuit protection.
INTRODUCTION
stage accompany
R
BB35 USER MANUAL
2-1

Soft Start
The soft start circuit is active when the BB35 is turned on. The mains inrush current, which
normally is in excess of 60 A is limited to a safe value. However, take care not to switch on
too many DS20 amplifiers at the same time, or you risk that the main fuses of your distribution
may trip.
Temperature, DC, HF and Short Circuit Protection
The amplifier and the loudspeakers are protected against all possible damages.
INTRODUCTION
stage accompany
R
BB35 USER MANUAL
2-2
DSP processing
Switched mode power supply
Class D operation
Two channel AES/EBU input
Dual auto-negotiation RJ45 ports
The built in DSP module is a high quality four input, two output DSP processor with all the
The amplifier stages are powered by a low weight high efficiency high power audio SMPS,
The high performance class D output stages features a flat frequency response irrespective
Two XLR-3 AES/EBU connectors are supported for input and buffered output.
An internal high performance 10/100Mbps Ethernet switch module provides a simple network
neccessary features for a professional amplifier. The unit features two analogue and one two
optimized from the first phase of design to final impletation to realize the low EMI signature required
of load impedance, nearly frequency-independent distortion behaviour and very low radiated and
connection to your workgroup or a server.
channel AES/EBU inputs with full configuration and real-time monitoring via PC controlled by
Ethernet and USB interface. Please note that input channel 2 has no function in the Blue Box.
of the most demanding audio applications.
conducted EMI.

3 Connections of the BB35
extremely simple.Only two connections need to be made; mains power and audio signal.
A Stage Control connection is not neccesary for the functioning of the Blue box
Because all the components of a Blue Box are contained in a single cabinet, connection is
3.1 Mains Power Connection
voltage is configured at the factory according to standard used in the country of destination. The
The BB35 is internally selectable for 110-120/220-240V 50/60Hz mains voltage. The mains
exact voltages are stated at the frontpanel of the PMS6000. Switching between mains voltages
needs to done by selecting a jumper between position X1 and X3 on PCB BB3501.
Connecting to the wrong voltage is dangerous and may damage the PMS6000. Always ensure
that you use a correctly grounded power supply.
It is advisable to connect each unit seperately to the nearest main power supply socket.
The maximum advice for linked Blue Boxes using the AC out link on a 16A mains supply is 2
units.
stage accompany
R
BB35 USER MANUAL
3-1
CONNECTIONS
3.2 Audio Connections
The XLR connectors (analog audio, AES/EBU in and link) of the BB35 are wired as follows:
Pin 1 = shield
Pin 2 = normal phase (signal+ or “hot”)
Pin 3 = inverted phase (signal- or “cold”)
Always use high quality XLR connectors and shielded signal cables. Using the signal link
connectors, up to 30 BB35s can be linked without a problem. If more than 30 BB35s need to
be interconnected, a separate signal driver should be used.
The input stages are electronically balanced. To make optimum use of the balanced input stages
even in unbalanced situations, use balanced signal cables and connect pin 3 to pin 1 at the
output of the preceding equipment. If this is not possible, connect pin 3 to pin 1 at the input of
the BB35.
NEUTRIK
+
+
12
3
The digital input of the BB35 offers two input channels on one electronically balanced XLR-
connector and will accept AES/EBU and S/PDIF input signals of 16 to 24 bit 44.1, 48, 88.2 or
96kHz. Use the control panel or Stage Control to select reproducing left or right channel.

4 Operation
Before plugging the BB35 in, always make sure that the power supply matches the product
Press the MENU button to load the dedicated preset of the currently used loudspeaker
or lock the BB35 please refer to chapter 4.4.3 (page 4-9).
To enable operation of the control panel you first need to unlock the BB35. To unlock
After connection to the correct mains voltage, the BB35 can be switched on using the <POWER
Now the right preset has been loaded you are free to make your own settings.
You are free to save your presets to the next available location after the factory presets.
Factory presets are not rewritable.
specification voltage. Install this device on a flat, stable surface, not bend or curved.
system. Rotate the encoder (SELECT button) to search for the desired preset and push the
ON/OFF> switch.
Press the SELECT button to select the input channel you wish to edit. To toggle through the
After a start-up period of a few seconds the LCD display will show the last used preset.
different items, press the SELECT button and rotate the encoder.
The DSP (loudspeaker management) part of the BB35 offers a wide range of tools for sound
system design and setup. These tools can make your system more efficient and better sounding,
but to get the best possible sound it is important to use these tools properly. The following
section explains the various functions of the BB35.
Please note that if your Blue Box is incorrectlly setup you will not be using your
system to its fullest potential and could be harming your speakers.
Always select the right Stage Accompany preset for your SA-system! (see 4.4)
We encourage you to configure the device via PC or MAC program for maximum ease.
Working from the device is possible though.
4
4
.
.
1
2
System check
Input setup
Do not supply power before all components of the system are set up and connected properly.
encoder to select.Load preset by rotating the encoder to YES and pushing the encoder.
OPERATION
stage accompany
R
BB35 USER MANUAL
4-1
EXIT
EXIT EXIT
MENU
MENU MENU
SELECT
SELECT SELECT
Bluebox
Load: 1 Load Preset ?
BB35
BB35 NO/yes

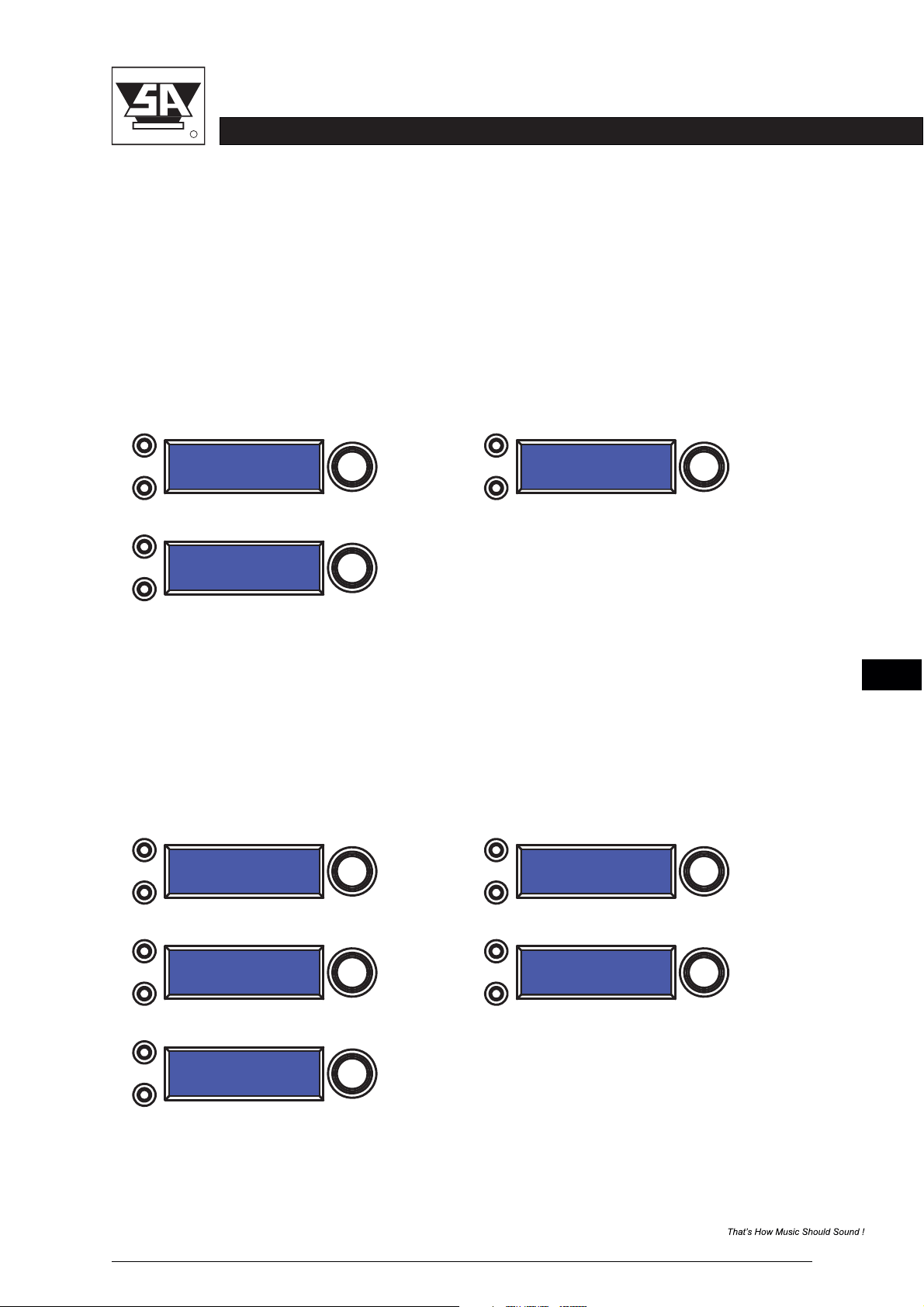

Adjust the gain by dialing the rotary encoder. The gain is adjusted in steps of 0.25dB.
The BB35 inputs are fixed. Input 1 is routed from the analog XLR-input / link at the
Smaller steps (0.01dB) can be set via the PC or MAC interface.
PMS6000 front. Analog input channel 2 is not connected, channel 3 and 4 are routed
from the digital AES/EBU XLR-input at the front of the PMS6000.
4
4
4
4
.
.
.
.
2.
2.
2.
2.
1
2
3
4
Gain
Input Selection
Delay
Low Pass Filter
OPERATION
stage accompany
R
BB35 USER MANUAL
4-2
EXIT
EXIT
EXIT
EXIT
EXIT
MENU
MENU
MENU
MENU
MENU
SELECT
SELECT
SELECT
SELECT
SELECT
In 1 Gain
In 1 Delay
In 1 LowPass
In 1 LowPass
In 1 LowPass
0dB
1.020ms
Freq: 14500Hz
Enabled: On
Type: BUT 24dB
Set the delay time by turning the encoder. The delay time on the front will be shown in ms, by
Adjust the Low Pass Filter frequency by turning the rotary encoder. You can switch the low
pass filter off by turning the rotary encoder up (clockwise) until the frequency passes 20kHz.
Press the rotary encoder to change the filter type. Selct the type by turning the rotary encoder.
You can choose from: Butterworth 6dB, Bessel 6dB, Butterworth 12dB, Bessel 12dB, Linkwitz
Riley 12dB, Butterworth 18dB, Bessel 18dB, Butterworth 24dB, Bessel 24dB. Higher order
filters may be set by adding filter sections in the PEQ blocks (see below).
Enable or disable the Low Pass filter by rotating the encoder between on and off.
controlling the BB35 with Stage Control the displayed unit can be changed between ms or s,
mm or m, feet, inches, or mils.

4
4
.
.
2.
2.
5
6
High Pass Filter
Parametric Equalizer (PEQ)
OPERATION
stage accompany
R
BB35 USER MANUAL
4-3
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
MENU
MENU
MENU
MENU
MENU
MENU
MENU
MENU
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
In 1 HighPass
In 1 HighPass
In 1 PEQ 5
In 1 PEQ 5
In 1 PEQ 5
In 1 HighPass
In 1 PEQ 5
In 1 PEQ 5
Freq: 35Hz
Enabled: Off
Freq: 14500Hz
Q: 1.5
Enabled: On
Type: BES 12dB
Gain: -7.75dB
Type: BEll
Adjust the High Pass Filter frequency by turning the rotary encoder. You can switch the high
There are 10 bands of parametric equalization. Each band can be adjusted freely over the
pass filter off by turning the rotary encoder down (counterclockwise) until the frequency passes 20Hz.
complete frequency range of 20Hz to 20kHz. Adjust the frequency by dialing the rotary encoder.
Press the rotary encoder to change the filter type. Select the type by turning the rotary encoder.
Press the rotary encoder to select the parameters. The available parameters are: Frequency
You can choose from: Butterworth 6dB, Bessel 6dB, Butterworth 12dB, Bessel 12dB, Linkwitz
(20Hz to 20kHz), Gain (-12dB to +12dB), Q (0.2 to 25), Enabled (on or Off), Type (Bell, High
Riley 12dB, Butterworth 18dB, Bessel 18dB, Butterworth 24dB, Bessel 24dB. Higher order
Shelff, Low Shelf, Notch, All Pass, Band Pass, High Pass, Low Pass). For the Shelving filters,
Enable or disable the High Pass filter by rotating the encoder between on and off.
filters may be set by adding filter sections in the PEQ blocks (see below).
the Q value sets the steepness of the filter in dB/Oct.

4
4
4
.
.
.
2.
2.
2.
7
8
9
Compressor
Limiter
Channel Link
OPERATION
stage accompany
R
BB35 USER MANUAL
4-4
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
MENU
MENU
MENU
MENU
MENU
MENU
MENU
MENU
MENU
MENU
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
In 1 Compr.:
In 1 Limiter
In 12 Link:
In 1 Compr.:
In 1 Compr.:
In 1 Compr.:
In 1 Limiter
In 1 Link
In 1 Compr.:
In 1 Compr.:
Thr.: 23.00dBu
Thr.: 23.00dBu
On
Hold: 100ms
Ratio: 5.00:1
Att.: 50ms
Rel.: 50dB/s
Off
Rel.: 500ms
Gain: 0dB

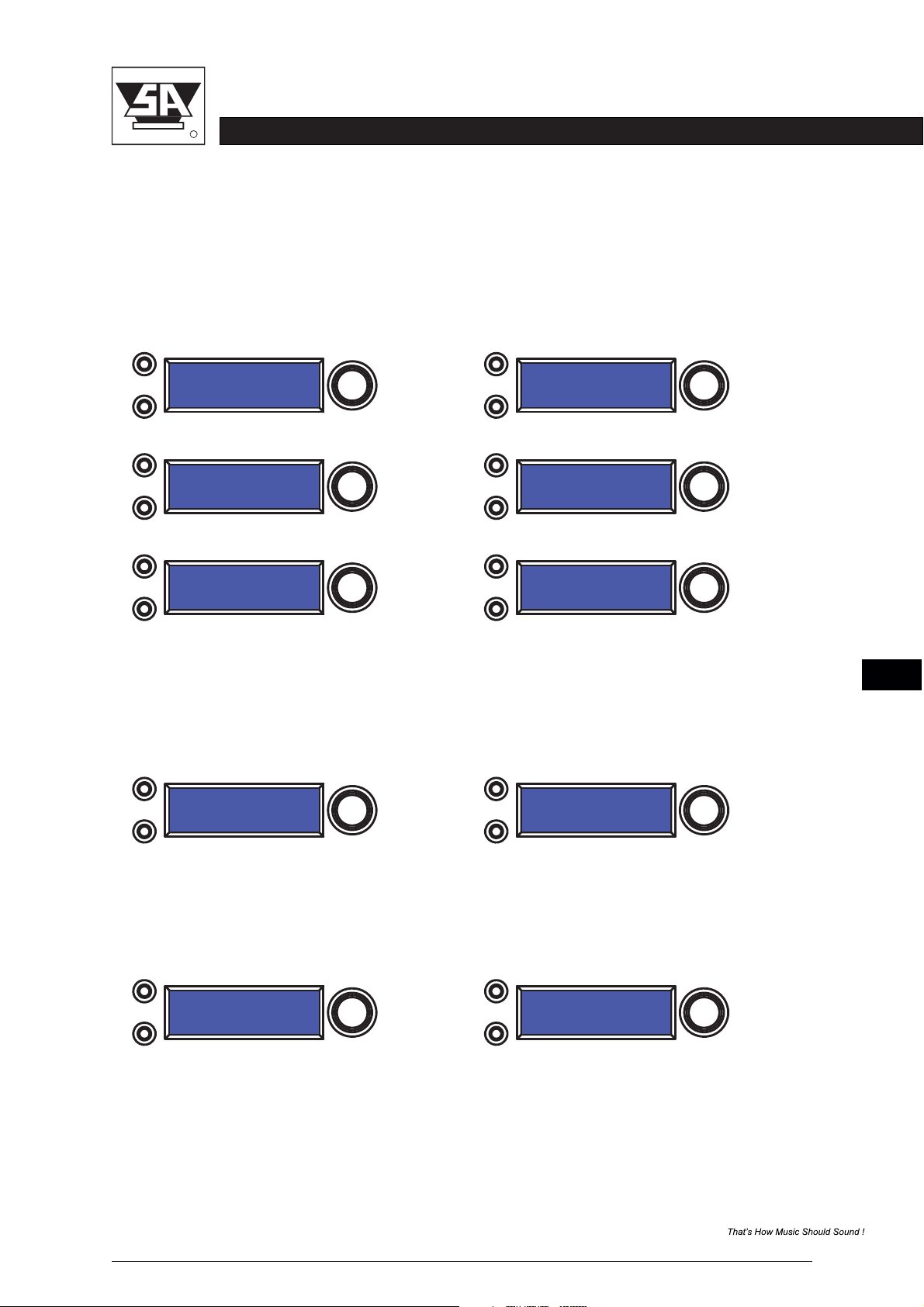

The Compressor is a true RMS compressor. Turn the rotary encoder to set the threshold.
The limiter is a zero-attack peak limiter. Only the treshold and release can be set. Press the
By linking 2 channels, the settings are guaranteed to be identical for both channels, except
Press the rotary encoder to select the parameters. The available parameters are: Threshold,
rotary encoder to select the parameters. The release value is displayed in dB per second.
for mixer and mute. Turn the encoder to set the Channel link on or off.
Attack, Hold, Release, Ratio and Makeup Gain.

4.3 Output Setup
OPERATION
stage accompany
R
BB35 USER MANUAL
4-5
Press the SELECT button to select the output channel you wish to edit. To toggle through
the different items, press the SELECT button and rotate the encoder.
Adjust the gain by dialing the rotary encoder. The gain is adjusted in steps of 0.25dB.
Smaller steps (0.01dB) can be set via the PC or MAC interface.
4
4
4
.
.
.
3.
3.
3.
1
2
3
Gain
Delay
Low Pass Filter
EXIT
EXIT
EXIT
EXIT
EXIT
MENU
MENU
MENU
MENU
MENU
SELECT
SELECT
SELECT
SELECT
SELECT
Out 1 Gain
Out 1 Delay
Out 1 LowPass
Out 1 LowPass
Out 1 LowPass
0dB
0.050ms
Freq: 14500Hz
Enabled: On
Type: BUT 24dB
Adjust the Low Pass Filter frequency by turning the rotary encoder. You can switch the low
pass filter off by turning the rotary encoder up (clockwise) until the frequency passes 20kHz.
Press the rotary encoder to change the filter type. Selct the type by turning the rotary encoder.
You can choose from: Butterworth 6dB, Bessel 6dB, Butterworth 12dB, Bessel 12dB, Linkwitz
Riley12dB, Butterworth 18dB, Bessel 18dB, Butterworth 24dB, Bessel 24dB. Higher order
filters may be set by adding filter sections in the PEQ blocks (see below).
Enable or disable the Low Pass filter by rotating the encoder between on and off.
Set the delay time by turning the encoder. The delay time on the front will be shown in ms, by
controlling the BB35 with Stage Control the displayed unit can be changed between ms or s,
mm or m, feet, inches, or mils.

OPERATION
stage accompany
R
BB35 USER MANUAL
4-6
4
4
.
.
3.
3.
4
5
High Pass Filter
Parametric Equalizer (PEQ)
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
MENU
MENU
MENU
MENU
MENU
MENU
MENU
MENU
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
Out 1 HighPass
Out 1 HighPass
Out 1 PEQ 5
Out 1 PEQ 5
Out 1 PEQ 5
Out 1 HighPass
Out 1 PEQ 5
Out 1 PEQ 5
Freq: 35Hz
Enabled: Off
Freq: 14500Hz
Q: 1.5
Enabled: On
Type: BES 12dB
Gain: -7.75dB
Type: BEll
Adjust the High Pass Filter frequency by turning the rotary encoder. You can switch the high
There are 10 bands of parametric equalization. Each band can be adjusted freely over the
pass filter off by turning the rotary encoder down (counterclockwise) until the frequency passes 20Hz.
complete frequency range of 20Hz to 20kHz. Adjust the frequency by dialing the rotary encoder.
Press the rotary encoder to change the filter type. Select the type by turning the rotary encoder.
Press the rotary encoder to select the parameters. The available parameters are: Frequency
You can choose from: Butterworth 6dB, Bessel 6dB, Butterworth 12dB, Bessel 12dB, Linkwitz
(20Hz to 20kHz), Gain (-12dB to +12dB), Q (0.2 to 25), Enabled (on or Off), Type (Bell, High
Riley12dB, Butterworth 18dB, Bessel 18dB, Butterworth 24dB, Bessel 24dB. Higher order
Shelff, Low Shelf, Notch, All Pass, Band Pass, High Pass, Low Pass). For the Shelving filters,
filters may be set by adding filter sections in the PEQ blocks (see below).
Enable or disable the High Pass filter by rotating the encoder between on and off.
the Q value sets the steepness of the filter in dB/Oct.

OPERATION
stage accompany
R
BB35 USER MANUAL
4-7
4
4
4
.
.
.
3.
3.
3.
6
7
8
Compressor
Limiter
Phase Inversion
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
EXIT
MENU
MENU
MENU
MENU
MENU
MENU
MENU
MENU
MENU
MENU
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
SELECT
Out 1 Compr.:
Out 1 Limiter
Out 1 Phase:
Out 1 Compr.:
Out 1 Compr.:
Out 1 Compr.:
Out 1 Limiter
Out 1 Phase:
Out 1 Compr.:
Out 1 Compr.:
Thr.: 23.00dBu
Thr.: 12.00dBu
Normal
Hold: 100ms
Ratio: 5.00:1
Att.: 50ms
Rel.: 50dB/s
Inverted
Rel.: 500ms
Gain: 0dB
The Compressor is a true RMS compressor. Turn the rotary encoder to set the threshold.
The limiter is a zero-attack peak limiter. Only the treshold and release can be set. Press the
Turn the rotary encoder to switch phase inversion on or off.
Press the rotary encoder to select the parameters. The available parameters are: Threshold,
rotary encoder to select the parameters. The release value is displayed in dB per second.
Attack, Hold, Release, Ratio and Makeup Gain.

OPERATION
stage accompany
R
BB35 USER MANUAL
4-8
4
4
4
4
.
.
.
.
3.
4
4.
4.
9
1
2
Channel Link
System Menu
Load Preset
Save Preset
EXIT EXIT
MENU MENU
SELECT SELECT
Out 12 Link: Out 1 Link
On Off

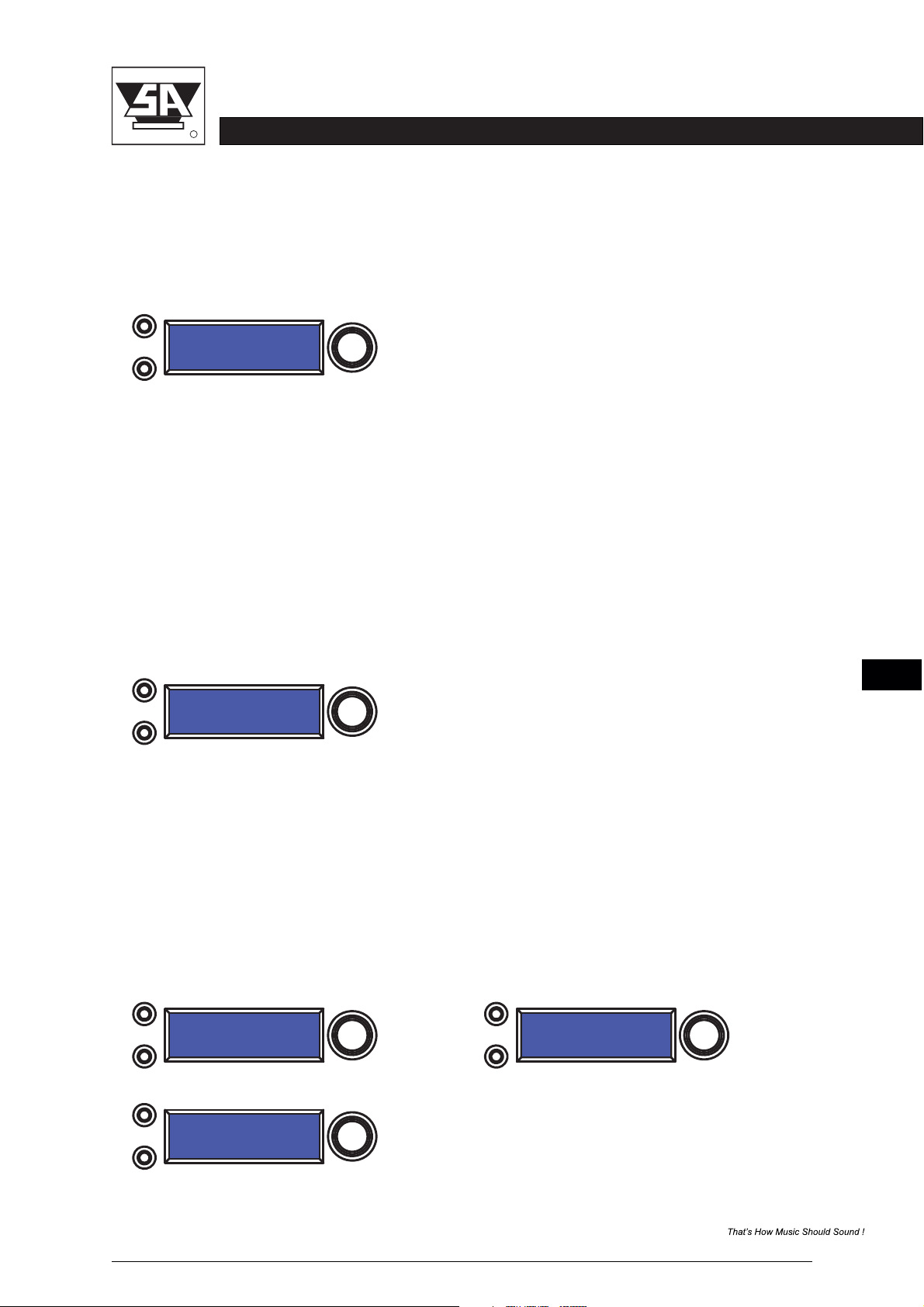

By linking 2 channels, the settings are guaranteed to be identical for both channels, except
Push the Menu button to enter the system menu. Push the Menu button again to toggle
Turn the rotary encoder to select the preset you wish to load. Push the rotary encoder to
Turn the rotary encoder to select the location of the preset. If that location is not empty, the
select it, then turn it again to select "YES" and confirm again by pushing the rotary encoder
preset in that location will be overwritten. This action can not be undone!!
knob. The preset is loaded and all settings are applied immediately. All settings that were
The system will ask you to give a name to the preset name. Select a character in the cursor
in the unit prior to loading the preset will be erased. This action can not be undone!!
position by turning the rotary encoder; pushing the rotary encoder confirms the character
The presets contain all filter, dynamics, gain settings etc; in other words, everything that
selected and moves the cursor to the next character to edit. Pushing the exit/ESC button
makes out a loudspeaker configuration. Presets do NOT contain the name of the unit,
erases the last confirmed character. Once the name is set up, push the menu button again.
network configuration, automatic standby delay, user access rights and passwords.
If you want to continue storing the preset, select Yes by turning the rotary encoder and
confirm by pushing it. To cancel, push the exit button. Now your preset is saved in the
selected location. The presets contain all filter, dynamics, gain settings etc; in other words,
everything that makes out a loudspeaker configuration. Presets do NOT contain the name of
the unit, network configuration, automatic standby delay, user access rights and passwords.
through the menu items. The available menu items are:
for mixer and mute. Turn the encoder to set the Channel link on or off.
You are free to save your presets to the next available location after the factory presets.
Factory presets are not rewritable.

OPERATION
stage accompany
R
BB35 USER MANUAL
4-9
4.4.4 Version Information
ATTENTION: Make sure to remember the password! When the unit is locked and you forgot
rotary encoder, the display toggles through some version information about the unit as well
Press the MENU button four times to enter the version information menu. By pushing the
as some parameters like IP address, MAC address etc.
the password, it is not possible to unlock it without contacting your local service representative.
4.5 Indicators
The PMS6000 is equipped with the following indicators:
PEAK : Input stage DSP detects peak level.
LIMIT : Input stage DSP limits input signal.
SIGNAL : Input stage DSP detects signal present.
IO : Input board detects input overload.
LIM : Input board limits signal.
SP : Input board detects signal present.
NA : Network activity.
AL : AES/EBU lock
ON : Power On
4.4.3 Access Level
The BB35 has the option of locking away the front panel controls to avoid tampering of
settings by unauthorized persons. When switching on the BB35 for the first time the
user level functions are unlocked.
counterclockwise until the display shows Unlocked. Press the SELECT button and the
To unlock the BB35 control panel Press the MENU button, rotate the SELECT button
To enable operation of the control panel when locked you need to unlock the BB35.
system will ask you to enter a password. Select a character in the cursor position by
the rotary encoder: pushing the rotary encoder confirms the character selected and moves
the cursor to the next character to edit. Pushing the exit/ESC button erases the last confirmed
character. The Password is automatically checked after each entered character, and will exit
the system menu when the right password has been entered. The default password is “ “.SA
To lock the BB35 control panel Press the MENU button for 3 times, and the display wil
show Acces level: Unlocked. Rotate the SELECT button (encoder) clockwise to Locked and
press the SELECT button. The system will show you the last used password. (default “ “)SA
You are free to use this or change it to another password by rotating and pressing the SELECT
button. Press MENU twice to confirm and set the password.

STAGE CONTROL
stage accompany
R
BB35 USER MANUAL
5-1
Getting started
Supported operating systems
Installation instructions
Start communication
Quick configuration
5.1 Getting started
This document describes how to install and use the Stage Control software on your computer
for the Stage Accompany Digital Series amps. Installing Stage Control gives you the possibility
to remotely setup, monitor and update (firmware) your SA amp(s) from the Digital Series through
USB or internet.
Supported operating systems:
The following operating systems are supported:
Microsoft Windows XP with Service Pack 2 (32-bit and 64-bit)
Microsoft Windows Vista (32-bit and 64-bit)
Microsoft Windows 7 (32-bit and 64-bit)
Microsoft Windows 8 (32-bit and 64-bit)
Microsoft Windows 10 (32-bit and 64-bit)
MAC OS X 10.5.8 or higher
5.2 Installation instructions:
Microsoft Windows:
Download the installation package from our website and open it.
Microsoft Windows 32-bit:
http://www.stageaccompany.com/support/downloadnew/stage_control_32bit.msi
Microsoft Windows 64-bit:
http://www.stageaccompany.com/support/downloadnew/stage_control_64bit.msi
5 Stage Control
BB35
BB35
BB35

STAGE CONTROL
stage accompany
R
BB35 USER MANUAL
5-2
The installer will guide you through the installation procedure. It is not necessary to remove
any older version; it will be removed automatically, unless the previous version is older than 1.9.93.
In this case, you must uninstall the previous version manually.
Apart from the main application, also the binary firmware files for all supported SA Digital
Series amps will be installed, as well as factory preset files (if applicable).
After installation start the software by double-clicking the desktop icon, or by selecting:
Start – Programs – Stage Accompany – Stage Control.
MAC OS X:
Download the installation package from our website and open it.
http://www.stageaccompany.com/support/downloadnew/stage_control.mpkg.zip
The installer will guide you through the installation procedure. It is notnecessary to remove
any older version; it will be removed automatically.
After installation start the application by double-clicking in yourStage Control.app Applications
folder.
Note:
It's not possible to upgrade the firmware of your SA Digital Series amp(s) if you are using MAC OS X,
this is by design. Upgrading the Digital Series amps hardware can only be done from a PC
with the Windows version of Stage Control.
