SACKit WOOFit User manual

1

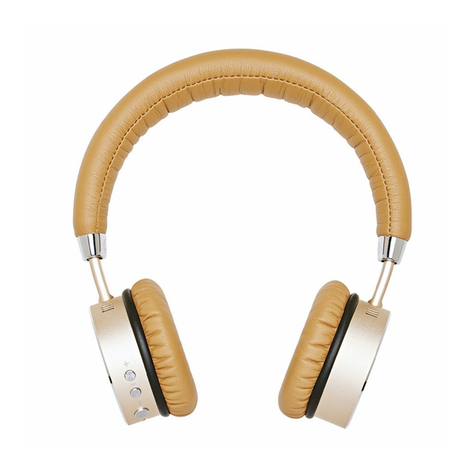

WOOFit HEADPHONES
User Manual
UK
DK
DE

2 3
Thank you!
Thank you for purchasing this WOOFit Bluetooth & Noise
Cancellation headphone from SACKit. Please read the entire
instruction manual before using the product and save it for future
reference. We reserve the right for any errors in text or images and
any necessary changes made to technical data. If you have any
questions regarding technical problems please contact our customer
services. We hope you will enjoy your new WOOFit headphone.
Box contents
1. WOOFit headphone
2. User manual
3. USB charging cable
4. 3.5mm audio cable
Quick start guide
1. Charge the WOOFit Headphone using the included USB charging
cable for no less than 4 hours
2. Long press the MFB Button for 10 seconds until LED light is
ashing red and blue (this will turn on your WOOFit Headphone, and
afterwards put it in pairing mode)
3. Turn on Bluetooth on your device
4. Choose WOOFit Headphones in the Bluetooth settings on your
device
5. Start playing music on your device
6. Nod your head and dance
1. Go to www.sackit.eu/reg
2. Enter name, e-mail, and product
3. Be a winner!*
Register your new SACKit product and get the chance to WIN! Every
three months we pick a winner among the registries. The winner
receives a gift certicate worth €700,-
*When you register your product, you agree to receive email newsletters from SACKit. The winners will be
contacted directly via e-mail. The gift certicate can be used for all items on the web shop.
CONGRATULATIONS on your new SACKit product!

4 5
Battery charging
• Battery: rechargeable Polymer Lithium-Ion Battery, DC:
3.7V/290mAh
• Power: USB DC5V, Please use the USB cable sealed with our
headphone for charging
• Charging Time: For rst time use please be sure the battery has
been charged fully before use. It needs more than 4 hours of
charging the rst time, then 2-3 hours for recharging
• When the red light is on, the headphone is in charge mode.
The red light will turn off when the battery is fully charged.
How to use the Noise Cancellation function
When you slide the NC button to the On side (On side=the RED
mark will be hidden and the light indicator will turn green), then
you can enjoy the headphone in Noise cancellation mode. When
you don’t need the Noise cancellation function, please slide the NC
button to the OFF side.
How to pair WOOFit Headphone with Bluetooth devices
First time pairing:
• Long press the MFB button for 10 seconds until LED light is
ashing red and blue (ashing red and blue LED light indicates
successful entering pairing mode). After the rst 5 seconds, you
will hear the ON sound. Keep pressing the button for another 5
seconds to turn on pairing mode
• Please keep the headphone and Bluetooth device in range of 1
meter when pairing and make sure your headphone is on
• Go into the Bluetooth settings on your device and search for
new Bluetooth devices and select WOOFit Headphones
• Long press MFB button to turn off your WOOFit Headphone
Description of the appliance
3.5MM SOCKET
Head Cup
NC Button
Cushion
Volume up
Volume down
MFB Button
Charging Port
Indicator
Headband

67
Operation instructions for use after rst pairing:
• After rst time pairing your WOOFit Headphone and your
Bluetooth device will automatically stay connected
• Turn the headphone on by holding down the MFB button until
you hear the ON sound
• Long press MFB button to turn off you WOOFit Headphone
The LED light will blink blue once the headphone is successfully
paired.
Notes: If the pairing is not successful, please turn the headphone off and
on and then try to pair again.
Making calls with the headset
Functions Status of head-
phone
Operation
Redial Last
number
Standby mode Short press MFB twice
quickly
Volume up Conversation mode Short press Volume +
button
Volume down Conversation mode Short press Volume -
button
Answering calling Ringing Short press MFB
button
End call Conversation mode Short press MFB
button
Reject calling Ringing Press and hold MFB
button for one second,
and release until you
hear indication sound
Transfer the
calling between
headset and Blue-
tooth devices
Conversation mode Press and hold the MFB
button for 3 seconds
can transfer the con-
versation from headset
to mobile phone. Then
press and hold the MFB
button for 3 seconds to
transfer the conversa-
tion back from mobile
phone to headphone.

89
Notes:
Not all the mobile phones support all the functions listed above. Please
refer to the instruction of your mobile phone.
Some functions and indication tones may vary with mobile phones
Playing Music
When the headphone connects with the mobile phone or Bluetooth
transmitter, you can enjoy music through headphone wirelessly.
Function Status of headset Operation
Pause Playing music Short Press MFB
button
Play Pausing Short Press MFB
button
Next track Playing music Short press volume
+ button
Previous track Playing music Short press volume
–button
Volume + Playing music Long press volume
+button
Volume - Playing music Long press volume –
button
Notes:
• For some mobile phones, the music will transmit to the speaker
of mobile phone instead of the headphone, If that is the case, you
have to choose TRANSMIT THE SOUND THROUGH BLUETOOTH
in the SETTINGS of the music play interface on your mobile phone
and then choose model name in the device list, so the music will be
transmitted to the headphone. Please refer to the instruction of your
mobile phone for further information.
• In order to use the on-headphone controls, your mobile phone or
Bluetooth transmitter must support AVRCP

10 11
Operation instructions for in-line use:
Use the wire when you do not wish to use Bluetooth connection or
when the battery needs recharging. In-line use is also possible when
the battery is empty.
• Connect the 3.5mm plug into your WOOFit Headphone 3.5mm
jack, then connect the other 3.5mm plug to your mobile phone
3.5mm jack. Please connect the wire the same way as shown in
the picture for successful connection.
• Adjust the volume using the controls on your mobile phone. The
in-line control button on the headset does not control the
volume.
In-line button function as below.
Android, BlackBerry, WindowsPhone
Number of button
presses
Hands-free function Music mode
Short press button Answer/End call Play/Pause
iPhone/iPad/iTouch
Number of button
presses
Hands-free function Music mode
Short press button
once
Answer/End call Play/Pause
Short press button
twice
End call Next track
Short press button
three times
End call Next track
Remark: Some mobile phones may not compatible with the
headphone due to different settings.

12 13
Trouble shooting
1. There is no sound coming from the earphones
Please check volume on your audio device to make sure it is
outputting sound. Please make sure that the 3.5mm plug is fully in-
serted into your audio device. Sometimes a case or protective cover
can prevent a good connection. Please make sure the earphone plug
and audio device’s jack is clean.
2. I’m hearing a beep-sound. When your WOOFit Headphones
makes a beep-sound, they need recharging. Please charge your
headphones fully.
3. The headphone are not tting comfortably.
Please adjust the length of the band by pull/push the pole as below.
4. If you are having trouble with using the hands-free microphone
and play settings controller.
Please refer to the table in this manual that describes the various
function of the hands-free microphone and play settings controller.
If you are still having trouble, or if your device platform is not listed
in this manual, please consult your mobile device’s instruction
manual.
Caution
• Please recharge your battery if you can’t turn on the headphone
• Please turn off your headphone after your usage to get a longer
battery life
• Please use the charging USB packaging together
with headphone
• Please don’t change any other battery
• Keep the headphone in a safe place free from dust, liquids, and
extreme temperatures
• Do not exposure or toss headphone into re. It will probably
cause an accident
• Please don’t try to disassemble the headphone if you are not an
expert
• Please don’t use chemicals to clean the product

14 15
Specications
Bluetooth Solution: CSR
Bluetoothversion: V4.0
Supportagreement: A2DP,AVRCP,HFP,HSP
Operatingdistance: 10M
Battery: 290MAH
Chargingtime:about3hours
Chargingcurrent: 170MA
Playingtime:12hours
DriverUnit:Ø40mm
Sensitivity:105dB/1mW(S.P.Lat1KHz)
Impedance:32Ω
FrequencyRange:20Hz-20KHz
RatedPower:10mw
Max.Power:20mw
Complaints
If you have any complaints or have a defect WOOFit Headphone
please contact our customer service. When you have a defect you
need to inform your serial number. You will nd the serial number on
the back of the packaging - please note this number if you dispose of
the packaging.
Complaints
Please contact our customer service if you have a complaint or a pair
of broken WOOFit Headphones. If your headphones has a defect,
please inform your serial number, when you contact us. You will
nd the serial number on the back of the packaging. Please note the
serial number for future use if you dispose of the packaging.

16 17
WOOFit HEADPHONES
Brugermanual

18 19
Tak!
Tak fordi du valgte WOOFit Headphone med Bluetooth og Active
Noice Cancellation fra SACKit. Vi beder dig læse hele denne
brugermanual grundigt, før du tager WOOFit Headphone i brug.
Gem venligst brugermanualen, så du altid kan slå op i den. Vi tager
forbehold for fejl i tekst eller billeder og nødvendige ændringer i de
tekniske specikationer. Hvis du oplever tekniske problemer, beder
vi dig kontakte vores kundeservice. Vi håber, du får stor glæde af din
nye WOOFit Headphone.
1. Gå til www.sackit.dk/reg
2. Indtast navn, e-mail og produkt
3. Vær en vinder!*
Registrer dit nye SACKit produkt og få chancen for at vinde! Hver
tredje måned trækker vi en vinder mellem alle registrerede.
Vinderen får et gavekort til webshoppen på 5000,- kr.
*Når du registrerer dit produkt, giver du samtykke til at modtage nyhedsbreve fra SACKit. Vinderne bliver
kontaktet direkte på email. Gavekortet kan anvendes til alle produkter på webshoppen.
TILLYKKE med dit nye SACKit produkt!
Indhold i æsken
1. WOOFit headphone
2. User manual
3. USB charging cable
4. 3.5mm audio cable
Quick start guide
1. Oplad WOOFit Headphone med vedlagte USB kabel i minimum 4
timer
2. Hold MFB knappen i bund i 10 sekunder, indtil LED lyset blinker
skiftevis rødt og blåt (dette tænder WOOFit Headphone og bringer
den efterfølgende i pairing tilstand)
3. Tænd Bluetooth på den enhed, du vil tilslutte
4. Vælg WOOFit Headphones under Bluetooth indstillingerne på din
enhed
5. Start afspilning af musik på din enhed
6. Følg rytmen og dans
