Owner’s Manual
DB-100SH1 Bolt-On Drawbar
Installation, Operation and Maintenance Procedures
For on/off-road applications
Weight: (approx.) 38 lbs. (17.2 kg)
XL-DB20020UM-en-US Rev A
For Load Ratings, Refer to Section 3

2XL-DB20020UM-en-US Rev A · 2019-06-05 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF,
and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.
Contents
Contents Page
Introduction..............................................2
Warranty................................................... 2
Notes, Cautions, and Warnings .................. 2
Section 1 –General Safety Instructions .....3
Exploded View and Parts List.....................4
Section 2 –Drawbar Eye Dimensions.........5
Section 3 –Load Ratings...........................6
Contents Page
Section 4 –Towing Applications ................ 6
Section 5 –General Information ................ 6
Section 6 –General Safety Information .....6
Section 7 –Mounting Instructions............. 7
Section 8 – Operating Instructions ............ 7
Section 9 – Maintenance........................... 8
Introduction
This manual provides information necessary
for the proper operation, maintenance, and
inspection of the SAF-HOLLAND®drawbar.
NOTE: For HOLLAND®replacement
components contact
SAF-HOLLAND Customer
Service at 1-888-396-6501.
Warranty
Refer to the complete warranty for the
country in which the product will be used.
A copy of the written warranty can be
downloaded from our SAF-HOLLAND®
website (www.safholland.com).
Notes, Cautions, and Warnings
Read and understand all of the procedures
presented in this manual before starting
any work on the pintle hook.
NOTE: In the United States, work shop
safety requirements are defined by
federal and/or state Occupational
Safety and Health Act. Equivalent
laws could exist in other countries.
This manual is written based
on the assumption that OSHA or
other applicable employee safety
regulations are followed by the
location where work is performed.
Proper tools MUST be used to perform the
mounting and maintenance procedures
described in this manual.
This manual contains the terms “NOTE”,
“IMPORTANT”, “CAUTION”, and “WARNING”
followed by important product information.
These terms are defined as follows:
NOTE: Includes additional information
to enable accurate and easy
performance of procedures.
IMPORTANT: Includes additional
information that if
NOT followed could
lead to hindered
product performance.
Used without the safety alert
symbol, indicates a potentially
hazardous situation which,
if not avoided, could result
in property damage.
Indicates a potentially
hazardous situation which,
if not avoided, could result
in minor or moderate injury.
Indicates a potentially
hazardous situation which,
if not avoided, could result
in death or serious injury.

3
XL-DB20020UM-en-US Rev A · 2019-06-05 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF,
and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.
General Safety Instructions
1. General Safety Instructions
IMPORTANT: Read this manual before
using this product.
Keep this manual in
a safe location for
future reference.
Failure to follow the
instructions and safety
precautions in this manual
can result in equipment
failure which, if not
avoided, could result in
death or serious injury.
Read and observe all warning and caution
hazard alert messages in this publication.
The information provided can help prevent
death, serious injury and/or damage
to components.
NOTE: In this manual, all descriptions
of orientation are relative to
the vehicle.
FRONT
REAR
Orientation

4XL-DB20020UM-en-US Rev A · 2019-06-05 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF,
and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.

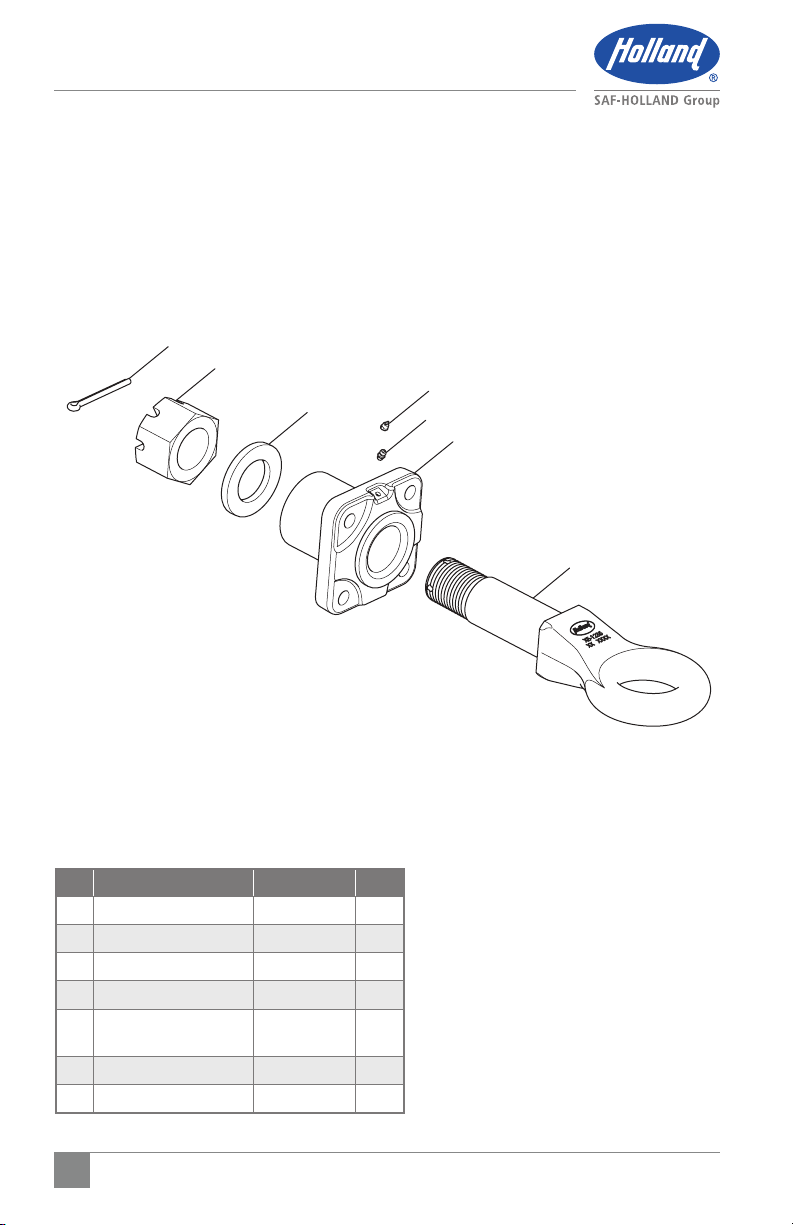

Exploded View and Parts List
1
2
3
7
4
5
6
ITEM DESCRIPTION PART NUMBER QTY.
1Drawbar, 3" I.D. XA-12017 1
2Housing XA-12018 1
3Fitting, Lube XB-767 1
4Washer XA-10538-1 1
5Heavy Hex Nut, Slotted,
2 1/4"- 4 1/2" XB-780-1 1
6Pin, Cotter 5/16"x 3 1/2" XB-781-1 1
7Cap, Grease Fitting XB-06677 1

5
XL-DB20020UM-en-US Rev A · 2019-06-05 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF,
and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.

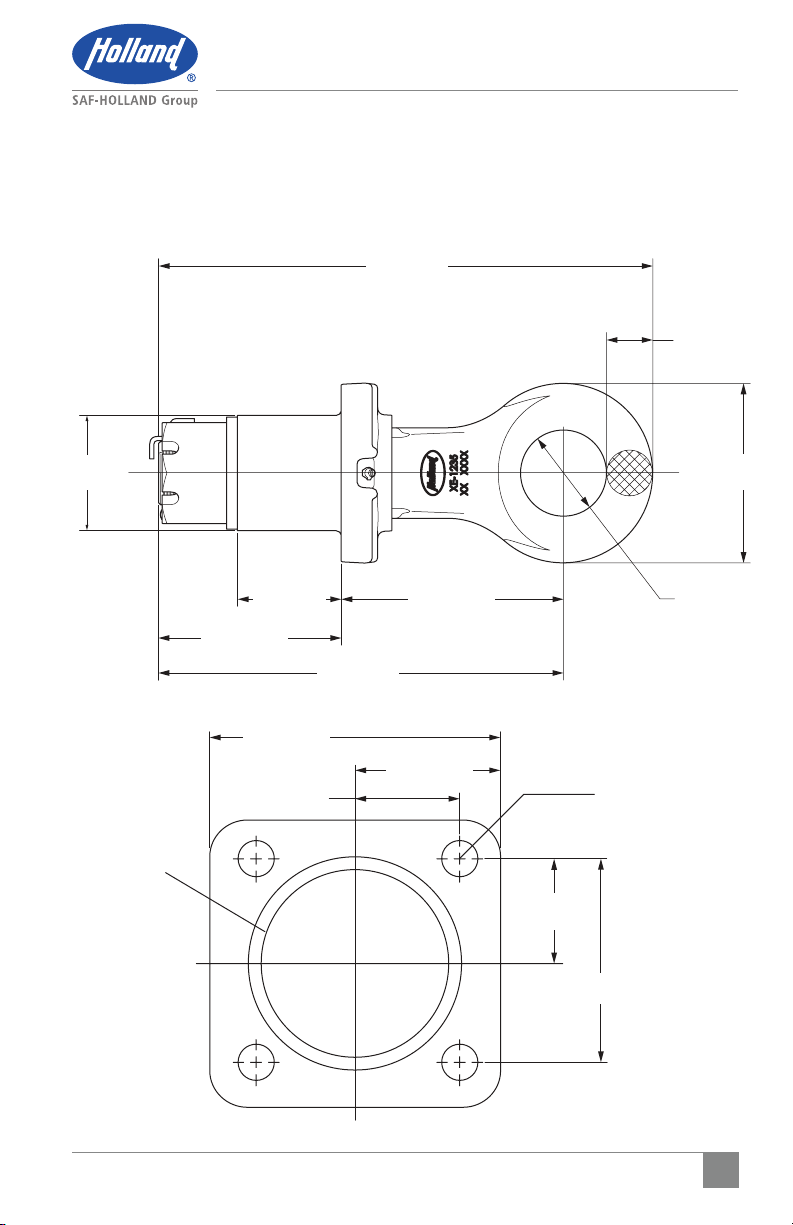

Dimensions
1.63"
(41.3 mm)
7.75"
(196.9 mm)
Ø 3.00"
(76.2 mm)
Ø .78" TYP.
(19.8 mm)
Ø 4.03"
(102.4 mm)
THRU WITH
.25" x 45°
CHAMFER GAP
Ø 4.00"
(101.5 mm)
14.13"
(358.8 mm)
17.25"
(438.2 mm)
6.38"
(161.9 mm)
3.63"
(92.1 mm)
2. Drawbar Eye Dimensions
3.0" (76.2 mm) I.D. with 1.63" (41.3 mm)
cross section.
6.25"
(158.8 mm)
6.25"
(158.8 mm)
3.12"
(79.4 mm)
C
C
L
L
2 x 2.19"
(55.6 mm)
2 x 2.19"
(55.6 mm)
2 x 4.38"
(111.1 mm)

6XL-DB20020UM-en-US Rev A · 2019-06-05 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF,
and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.
Ratings and General Information
3. Load Ratings
Maximum GTW: 100,000 lb. (45,359 kg)
Maximum Vert. Load: 20,000 lb. (9,072 kg)
4. Towing Applications
For general on/off road towing. For severe
off-road applications, reduce the above
capacities by 25%.
IMPORTANT: Off-road refers to terrain
on which a tow/towed
vehicle will operate
that is ungraded, rough
or undulating, with no
maintained travel surface,
generally considered to
NOT be part of the public
road system. Examples
include agricultural fields,
construction sites, utility
right-of-way, temporary
logging roads, and what is
commonly referred to as
'two-track' roads.
5. General Information
1. DO NOT modify or add to the product.
2. This product is covered by
SAF-HOLLAND’s Commercial
Warranty. SAF-HOLLAND reserves
the right, without giving prior notice,
to change specifications and dimensions
as designs are altered or improved.
3. Inspect the coupling device on the tow
vehicle and trailer for proper operation.
DO NOT use any coupling device that
DOES NOT operate properly.
4. It is the responsibility of the user to
become familiar with coupling and
uncoupling procedures that are provided
by various governments, industry
associations and mating component
manufacturers instructions.
6. General Safety Information
This equipment MUST NOT be used in a
careless manner.
During Operation:
1. Maintain adequate vertical (tongue)
load to properly control the towed unit
(generally 10% of maximum GTW) but
DO NOT exceed the rated capacities.
2. DO NOT damage the coupling
components. Be particularly careful
during coupling and uncoupling.
3. NEVER strike any part of the item with
a steel hammer.

7
XL-DB20020UM-en-US Rev A · 2019-06-05 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF,
and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.
Mounting and Operating Instructions

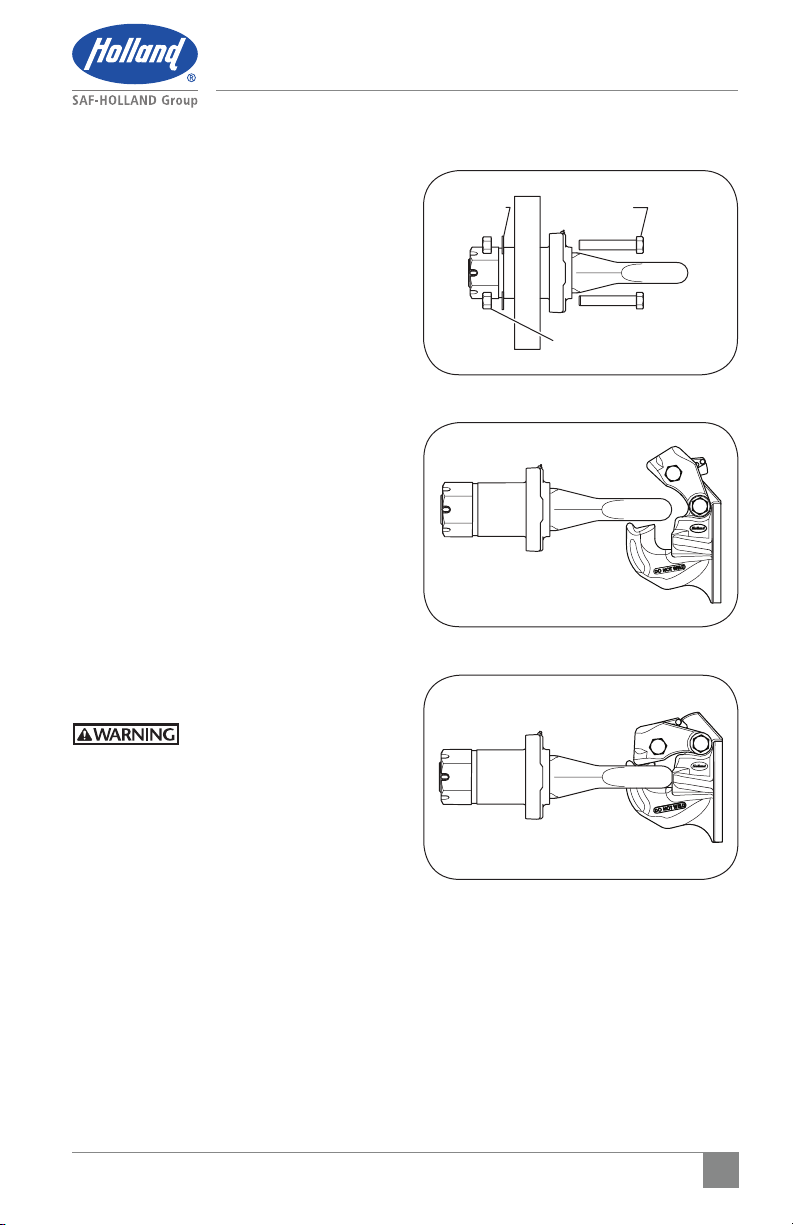

Figure 1
FOUR (4) GRADE
8 BOLTS
FOUR (4)
WASHERS
FOUR (4) GRADE
C LOCK NUTS
7. Mounting Instructions
1. Use a mounting structure of sufficient
strength to support the rated capacity
of the pintle hook in accordance with
SAE J849 and SAE J847.
2. Use the hole pattern described in
Section 2.
3. Insert and tighten all four (4) new 3/4"
diameter Grade 8 bolts, ASTM Grade C
lock nuts and hardened 3/4" washers.
The recommended minimum torque is
300 ft.-lbs. when using a nut and bolt
and 350 ft.-lbs. when using bolts only
(Figure 1).
8. Operating Instructions
1. Before operating, inspect for wear,
damage, missing parts, and secure
mounting. Correct as required before use.
2. Position the drawbar eye over the
horn of the pintle and lower into place
(Figure 2 and 3).
3. Engage the drawbar with the
coupling device per the manufacturer's
instructions.
Failure to correctly secure
the drawbar can result in
separation of the pintle
hook and drawbar, which,
if not avoided, could result
in death or serious injury.
Figure 2
Figure 3

8XL-DB20020UM-en-US Rev A · 2019-06-05 · Amendments and Errors Reserved · © SAF-HOLLAND, Inc., SAF-HOLLAND, HOLLAND, SAF,
and logos are trademarks of SAF-HOLLAND S.A., SAF-HOLLAND GmbH, and SAF-HOLLAND, Inc.
Maintenance
9. Maintenance
For proper performance, the following
maintenance steps should be performed
every 30,000 miles (48,280 km) or three
(3) months, whichever comes first.
Failure to inspect and
maintain the drawbar could
result in separation of the
pintle hook and drawbar,
which, if not avoided,
could result in death or
serious injury.
1. Clean and check for wear, damaged,
or missing parts, and a secure mount.
Inspect for worn, damaged or missing
parts. Replace as required using only
Genuine SAF-HOLLAND parts.
2. Inspect, in particular, the coupling
contact area of the drawbar. Inspect
for any nicks, gouges and deformation,
which could interfere with or affect the
safe use of the drawbar. If cracks are
visible, replace.
3. Using calipers or the SAF-HOLLAND
drawbar gauges TF-11887, measure
the cross section of the drawbar eye.
Replace the complete product when
wear exceeds 0.125" (3.18 mm) from
the original surface profile. For original
profile dimension, refer to Section 2.
4. Inspect the drawbar fasteners. For bolted
connections refer to proper torque in
Section 7. In addition to being a safety
hazard, a loose drawbar will cause
excessive "chucking" and rapid wear.
Reinstall or replace any drawbar which
is NOT securely mounted.

9
