Safa Media SMCD-100R User manual

Thank you for your purchasing a MP3 CD Player.
Please read this User’s manual before you use your MP3 CD Player.
SAFA MEDIA Co., Ltd.
www.safa.co.kr
19F DongWon Securities B/D, Karakbon-Dong, Songpa-Ku, Seoul, Korea
TEL.[phone] / FAX.[phone]
E-mail. [email protected]
www.safa.co.kr
SF69-00233A
MEDIA Co., Ltd.

Table of Contents
1
2
Player Outside 3
Player Inside 4
Remote controller 5
Remote controller LCD 6
Basic operating 7
Searching a music 10
Directory mode & File mode 10
Program mode 11
+10/-10 mode 13
ESP(Electronic Shock Protection) 14
Repeat 14
Intro 15
Resume 15
Random 16
Search/Scan 16
Basic operating for FM radio 17
Memory 18
Volume Up/Down 19
EQ mode 19
Scroll/Shift 19
Sleep mode 20
Initialize mode 20

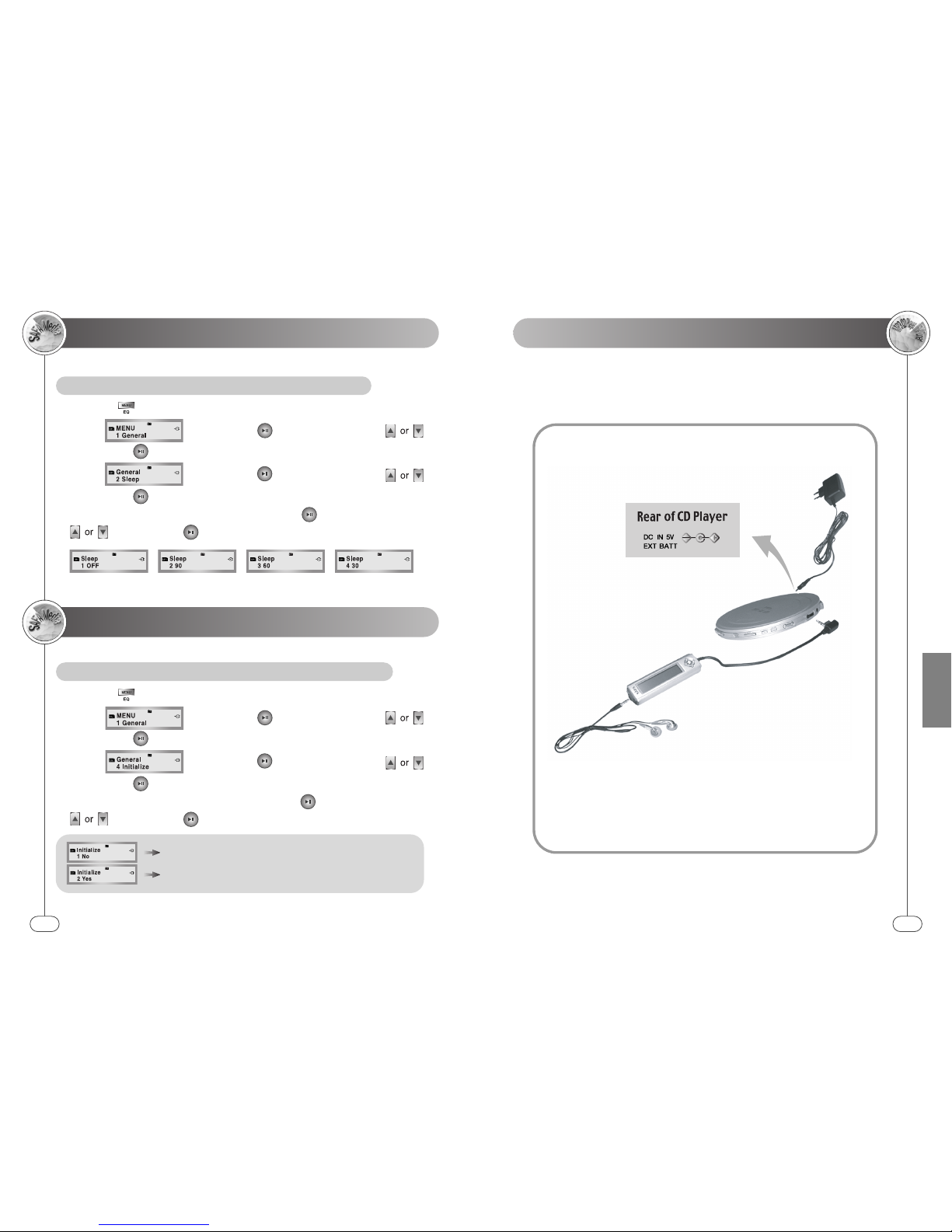

Ac adapter 21
Rechargeable Battery 22
External Battery Pack 23
Troubleshooting 24
Caution 26
Notes 28
Check the components 29
Specifications 30
2. Name of Parts
1. Feature
3. Use for CD
4. Use for FM radio
5. Other function
6. Power
7. Other

English
1. Ultra-Slim Design : Thickness 15.5 mm
2. Multi-Codec CD Player
Support various format up to MP3, WMA as well as Audio-CD.
3. Packet Write Disc Play
Packet Write is the supporting method so that RW-Disc can be used like a
external hard drive. This product is able to read RW-Disc written as Packet Write
Method, so it’s very convenient to use.
4. Internal Charging Battery
Internal charging battery inside the player prevents inconvenience of frequent
exchange of a flashlight battery.
5. ESP (Electronic Shock Protection)
The outer Shock to the product during Disc operation may pause the music, or
even stops the operation itself in case of general players. But this product imports
ESP function that makes it possible to play even under the continuous shock of
180 seconds at max.
6. FM Radio Reception Function
Auto-Scan & Frequency memory function will make it convenient to listen to FM.
※But, there’s no function for FM Radio reception in ‘SMCD-100’, so FM related
function cannot be used.
Feature Player Outside
2
1. Feature 2. Name of Parts
3
MP3 implies Audio Data Compressed Technology of MPEG layer 3 format.
The file of MP3 format can be played through this product by recording
CD-R or CD-RW Disc using CD-Writer. The Extension is *.mp3 and even if
file capacity is no more than 1/4~1/20 of general Audio CD, the quality of
sound can be appreciated in the level of CD.
■What’s MP3 ? ■
OPEN
Play / Pause
Next / Back
Stop
+10
Volume Up / Down
·Volume
Remote controller / Earphone port
Line Out
·Aux. connection port
·It is convenient to listen loudly by conneting to
other Amplifier.
❶❷❸❹❺❻ ❼❽
❶
❷
❸
❹
❺
❻
❼
❽
·CD : Play/Pause
·FM : Stored channel
·Long pressed : Power On
·Door open
·During CD playback :
+10 mode
·During FM radio reception: Stored channel searching
·Long pressed : CD/FM conversion
·During CD playback : Stop
·During FM radio reception : Stereo/Mono conversion
·Long pressed : Power Off
·During CD playback : Next track /Previous track
·During FM radio reception : Frequency Down/Up

Remote controller
2. Name of Parts
5
English
Player Inside
4
2. Name of Parts
AC adaptor port/External battery port
HOLD Switch (Player Rear)
Internal charging battery cover
❶❷❸❹❺❻
❶
❷
❸
❹
❺
❻
LCD Screen
VOLUME Up/Down
MENU
STOP
Multi Function Switch
HOLD Switch
·Long pressed : Menu Function
·Short pressed : EQ mode selection
·During CD playback : Stop
·During FM radio reception : Stereo/Mono conversion
·Long pressed : Power Off
·Volume
Function
Button
Remote controller(Rear)
-Long pressed:On
-CD :Playback/Pause
-FM:Channel/Store
-Long pressed:CD/FM conversion
-MP3/WMA:Upper track selection
-FM:Stored channel searching
-CD:Long pressed(ESP On/Off)
-MP3/WMA:Lower track selection
-FM:Stored channel searching
-CD:Previous track, Fast REW
-MP3/WMA:Move to upper folder
-FM:Frequency Down
-CD:Next track, Fast FF
-MP3/WMA:Move to lower folder
-FM:Frequency Up

1. Open the door by pushing button of the player to the
right, put the desired Disc on the turntable with print side
upward, then close the door.
The manipulation on Remote controller is firstly described in this
manual.We attached the manipulation on the main unit in the
(brackets), so please don’t take it wrong during manipulation.
2. Connect Remote controller and Earphone as the picture below.
Remote controller LCD Basic operating
6
2. Name of Parts 3. Use for CD
7
English
【】
Push the button in the
direction of the arrow. CD print side.

English
3. Place the HOLD switch on the bottom of the player and remote
controller in the released position.
※If turning power on the player with the HOLD switch in the LOCK mode, the
power will be automatically off in 10 seconds. (If releasing the HOLD switch
within 10 seconds, then it will be normally operating.)
7. Previous Track (Fast REW) / Next Track (Fast FF)
Push the button in the direction of , then the Previous
track (Fast REW)/Next track (Fast FF) will be played as the picture below.
Track will be changed
Time will be fast changed.
6. To Stop
During playback, press the button. then the
music in playing will be stopped with the LCD screen appeared as shown in the
picture.
[ If press the button longer during playback, it will be switched to
]
4. To Playback
Press the button then the
first track will be played with the LCD screen appeared as shown in the picture.
※If there’s no input for 3 minutes in the PAUSE mode, the power will be
automatically off.
※If there’s no input for 3 minutes in the STOP mode, the power will be
automatically off.
Basic operating
8
3. Use for CD 3. Use for CD
9

5. To Pause
Press the button during playback then playing
time will be flickering on the LCD screen and the music in playing will be paused.
Press the MEMORY button again to return to playback.


Remote controller(Rear)
HOLD switch
Player(Rear) HOLD switch
Basic operating
※Press the REW/FF button longer for speed search.
Remote controller LCD Screen Display according to the kind of a file recorded on Disc
※This product is supported only by English. In case of including
characters except English, it will be displayed as the picture
above.
Sorting a Folder and a File in case of MP3, WMA format for the file recorded on Disc
LCD Screen Inscription in case of including characters except English as a folder name or a file name

2. Select by pushing the button in the direction of ,
and then press the button.
1. Push the button in the direction of (Push the button):
folder or file movement
2. Push the button in the direction of : Folder(upper/lower) or File
Search.
3. Push the button: Playback of selected music.
Program mode
3. Use for CD
11
English
Program Mode is convenient to listen to the desired music and Max. 99 songs can
be selected.
1. Press the button longer.
Program Memory (Initial state)
3. Select by pushing the button in the direction of ,
and then press the button.
4. List of music in CD will be displayed.
(Music in playing will be automatically stopped.)
5. Select the desired music or folder by pushing the button in the direction of
10
3. Use for CD
Searching a music
※Operating only on Disc manufactured by MP3, WMA format.
To search a music on Disc manufactured by MP3, WMA format recorded
with various music under each folder in several folders, use as follows.
Directory mode & File mode
※Operating only on Disc manufactured by MP3, WMA format
There’re both directory mode and file mode for displaying the List of music in CD.
This product is based on the Directory Mode, but if you want to use it in a File
Mode, convert it as follows.
※In the direction of : In case there’s another folder in a folder, it’ll move
to “lower folder”
List programmed will be displayed after exit by pressing the
button three times.
The music (01.Baby one more time) will be registered on the
Program 01.
※It will be changed to original file name after displaying for
2 seconds with programming. Set up the desired music in turn
as the same way above.
Select the file (01.Baby one more time) by pressing the
button.
<ex: In case of a file>
Display of Remote controller
LCD during playback after
program setup
Conversion (In the STOP mode)
1. Press the button shortly.
•Directory mode: Display in turn binding folder and file recorded on Disc in a
folder.
•File mode: Display only file in turn without sorting folder.
move to other folder by pushing the
button in the direction of .
Method for Search (In the STOP mode)
The music will be played in the order of programmed
music by pressing the button.

English
Exit by pressing the button three times. The List of
programmed songs will be displayed.
1. Select the “ADD” in the bottom by pushing the button in the direction of
in the STOP mode.
1. Press the button after selecting the file to be deleted by pushing
button in the direction of in the STOP mode. Then the file will be
deleted one by one as the picture below.
1. Select “Delete All” in the bottom by pushing button in the direction of
in the mode.
Program mode
+10/-10 mode
3. Use for CD
13
Program mode
12
3. Use for CD
The music after 10 songs will be played by pushing(pressing) the button in the
direction of during playback.
To Delete programmed music one by one (In the STOP mode)
2. If the desired file name (song name) to be repeatedly registered is programmed
as described in No.5 of page 11, it’ll be added.
To Add Music (In the STOP mode)
+10 mode
The music before 10 songs will be played by pushing(pressing) the button in the
direction of during playback.
※Operating only in the general music CD
- 10 mode (Remote controller only)
To Delete all programmed music (In the STOP mode)
※Search only the music in the Program List when Back/Next during Program
playback.
※Intro the music in the Program List when Intro in the Program Mode.
※Retreat the music in the Program List when Repeat in the Program Mode.
※Shuffle the music in the Program List when Shuffle in the Program Mode.
※Keep the Program Mode if it goes to Menu →Play Mode →Program in the
Program Mode.
18 songs in the folder of ‘Jessica’ will be programmed.
※It will be changed to original folder name after displaying for 2
seconds with programming. Set up the desired music in turn as
the same way above.
Select the Folder of ‘Jessica’ by pressing the button.
<ex: In case of Folder>
The music will be played in the order of programmed
music by pressing the button.

2. Press the button longer.
3. Select by pushing the button in the direction of ,
then push the button.
4. Select one from the following modes by pushing the button in the direction of
, then push the button.
2. Select by pushing the button in the direction of ,
then push the button.
1. Release the function by pushing the button fully in the direction of
during playback. Push the button fully in the direction of for operating
function again.
1. Press the button longer during playback.
Intro
3. Use for CD
15
English
ESP(Electronic Shock Protection)
Repeat
14
3. Use for CD
It is the convenient function that plays the music in CD for 10 seconds, which
makes it possible to search the music with listening to it.
1. Insert the desired CD.
Intro Setting
Release the Intro Mode.
Playback for 10 seconds from the
beginning of each track.
Playback for 10 seconds from one
minute for each track.
※If pressing the button in the Intro mode, corresponding track will
be keep played and Intro mode will be released.
※In case that the Intro mode is released.
▶When turning power off or opening the cover during playback
▶When converting to FM during playback.
▶When pressing the button
▶When completing the Intro mode to the end.
Only desired music can be played repeatedly.
Repeat Setting
※Turn power off or open the cover to release the Repeat mode.
Release the Repeat Mode
To listen to one track only
repeatedly.
To listen to all tracks stored in the
directory repeatedly
To listen to all tracks stored in
CD repeatedly.
Outer shock to the player may cause sound bouncing or stop playing.
is the function that makes it normally play even if there’s outer shock.
ESP Setting
※Operating only in the general music CD.
※function will be recovered by turning power off or opening the
cover.
※The sound will be stopped about for 3 seconds when function is
converted during playback.
4. Select by pushing the button in the direction of ,
then push the button.
5. Select one from the following modes by pushing the button in the direction of
, then push the button.
3. Select by pushing the button in the direction of ,
then push the button.
※
CD playback time is not maintained when you open the door and close it again.
The following functions preserve the previous operation status after you turn off
and on again, or switch CD/FM.
Resume
Function Operation
CD playback time It plays automatically at the last playback time.
It maintains the previous setup status.
It maintains the previous frequency.
It turns on at the last adjusted point.
Program function
FM frequency
EQ /Volume

English
The stored channel will be searched Down/Up by pushing the button in the
direction of .
The stored channel will be searched Up by pressing the button on the
CD player.
Method 3.
Random Basic operating for FM radio
16
3. Use for CD 4. Use for FM radio
17
Search/Scan
CD manufactured in the MP3, WMA format can store max. 999 songs. Therefore it
may take long time for search.
When pushing the button in the direction of longer
(press longer), it will work with Search Mode (fast FF / fast REW), but when
pushing it before the playing time is “00:01”, Scan Mode (Speed search for
Next/Previous track) will be operated, so fast search will be available.
2. Select the desired channel.
1. When listening to CD ...
Convert to FM Mode by pushing the button longer (press longer) in the
direction of .
[It will be converted to CD by pressing the button longer again]
Method 1.
Method 2.
Frequency will be Down/Up by pushing the button in the direction of
, and Auto Scan will be operated Down/Up by pushing
the button longer (press longer), then it will stop at the channel found.
※Refer to the next page for storing channels.
※Not operating in case that channel is not stored.
To play the music in CD in random order.
1. Insert the desired CD.
Setting Random
Release the random mode
Stop after playing all the music in
the directory in random order.
Stop after playing all the music in
CD in random order.
※If turning power off or opening the cover during playback, Random
mode will be released.
2. Press the button longer.
4. Select by pushing the button in the direction of ,
then push the button.
5. Select one from the following modes by pushing the button in the direction of
, then push the button.
3. Select by pushing the button in the direction of ,
then push the button.

English
1. Whenever pressing button, it will be converted as follows.
2. Press the button longer: Volume will be Up/Down fast.
1. Press the button shortly: Volume will be Up/Down by one
level.
Basic operating for FM radio
Memory
Volume Up/Down
EQ mode
Scroll/Shift
18
4. Use for FM radio 5. Other function
19
1. Push the button after selecting the desired channel by pushing the button
in the direction of .
Manual Memory
2. Select the address to be stored using the button.
3. Selected channel will be stored by clicking the button.
1. Receivable Channels will be automatically stored by pushing the button
longer.
※Note that this function will delete all stored channels, then store new
ones again.
※Channels may partly not be stored in the area of poor reception.
※The desired channel will be stored up to max. 20 by repeating the No. 1, 2
above.
Automatic Memory
3. Button
Stereo/Mono will be converted each other by pressing the above button.
When the reception condition is poor, Mono will be the right choice for better
condition.
EQ Mode Selection: Can be controlled only by Remote Controller
Scroll Speed: Can be controlled only by Remote Controller
When the number of characters displayed on the LCD is over 12 characters
(including spacing words), character will be scrolled or shifted to the left for
displaying the characters after 13th character.
Characters will be moved
to the left slowly as if
sliding.
Characters will be moved
to the left by one space.
1. Press the button longer.
3. Select by pushing the button in the direction of ,
then push the button.
4. Select one from the following modes by pushing the button in the direction of
, then push the button.
2. Select by pushing the button in the direction of ,
then push the button.

AC adapter
6. Power
21
English
Sleep mode
Initialize mode
20
5. Other function
1. Attached AC adapter should be used for the safety in use.
2. Attached AC adapter can be used at 110 ~ 220 V.
3. Connect adapter as shown in the picture.
Initialize Setting: Can be controlled only by Remote Controller
This Mode will return all modes to the state of shipping the product.
Exit from the MENU Mode
All the Modes will be “Initialized” and Power OFF.
※Disconnect AC adapter when not in use.
Time Setting: Can be controlled only by Remote Controller
(Sleep MODE OFF) (Auto-OFF after 90 minutes) (Auto-OFF after 60 minutes) (Auto-OFF after 30 minutes)
This Mode will automatically turn Power Off if a certain time is passed during operation.
1. Press the button longer.
3. Select by pushing the button in the direction of ,
then push the button.
4. Select one from the following modes by pushing the button in the direction of
, then push the button.
2. Select by pushing the button in the direction of ,
then push the button.
1. Press the button longer.
3. Select by pushing the button in the direction of ,
then push the button.
4. Select one from the following modes by pushing the button in the direction of
, then push the button.
2. Select by pushing the button in the direction of ,
then push the button.

Rechargeable Battery
6. Power
23
English
Rechargeable Battery
22
6. Power
Charge/Discharge (Operating only when AC adapter is connected and Rechargeable Battery is inserted)
Charge/Discharge Mode Release
Takes about 6 hours (Based on a full “Discharge” condition)
Takes about 7 hours (Based on a full “Charge” condition)
If “Discharge” is completed, it will automatically begin to recharge,
and if “Charge” is completed, the mode will be released.
1. Open the cover of the player, and then open the battery cover.
2. Insert the attached two rechargeable batteries in the correct position of the polarity
+, - , then close the battery cover.
※Note that if the polarity is placed incorrectly, rechargeable battery can be
damaged.
3. Connect AC adapter, and use it after charging.
※If you press the power switch to turn off when charging/discharging
function is adjusted, it does not power off immediately and displays as
below;
If you press the power switch to turn off while charging : “Charge”
message will blink.
If you press the power switch to turn off while discharging : “Discharge”
message will blink.
※When the charging process is completed, the power will be turned off
automatically. To turn off the power when “Charge” or “Discharge” is
displayed, turn on the power, cancel charging/discharging function, and
then turn off the power.
1. Equip the attached battery pack as shown in the picture.
2. Two Batteries will be used in the “AA” type.
⊖
⊕
External Battery Pack
※Caution
▶Manganese battery has a shorter life than Alkaline, so it is recommended to use
Alkaline battery if possible.
▶Don’t use together with used battery and new one.
▶Don’t use together with different kinds of battery.
▶Keep the battery separately from the player if not in use long time.
▶If there’s a leak from the battery, wipe the point of contact to the battery, and then
replace it with a new battery.
Two batteries in AA type
1. Press the button longer.
3. Select by pushing the button in the direction of ,
then push the button.
4. Select one from the following modes by pushing the button in the direction of
, then push the button.
2. Select by pushing the button in the direction of ,
then push the button.

Symptom
Troubleshooting
7. Other
25
English
Troubleshooting
24
7. Other
No Power On
Suggested Action
▶Incorrect Polarity
▶HOLD switch of the player or remote controller
turned ON
▶Door Unclosed
▶Battery Uncharged.
No play or
“NO DISC”
displayed on the
LCD
▶Format not supported
→This product supported only by CD-DA,
MP3, WMA format.
▶CD scratched or dirty
→Wipe CD with a soft cloth
▶Print side of CD not upward.
▶Lens stained with alien substances
→Wipe Lens with a soft cloth carefully
(Wipe strongly can peel the coating of lens)
▶Moisture on Lens (When moving from cold to
warm place)
→Wait a minute for use
▶Deflection between CD-RW Recorder and CD
→Record in the low speed again
▶Whole format needed for Packet Write Disc
No Sound or
Noisy Response
▶Volume set to “0”
→Set the Volume properly
▶Terminal of earphone, remote controller not
well contacted, or alien substances adhered to
the terminal.
→Wipe it cleanly
▶Data damaged in case of MP3, WMA format.
▶Constant shock to the player
→Use it in no vibration place
※If there are any abnormal conditions, check the following first.
Symptom
AC adapter not
working
Suggested Action
▶Voltage should be at 110-220V
→Confirm if input voltage is correct.
▶DC terminal connected incorrectly, not to input
terminal
Remote Controller
not working
▶HOLD switch of remote controller turned ON
▶Remote controller terminal not properly
connected
Abnormal
Characters on the
LCD
▶In case that the character recorded on Disc is
not English
(This product supported only by English)
Radio
Reception,
Noisy and
broadcasting
not well
received
▶Electric appliance around the player
→Keep it away from the player for better
reception
▶Try to change the location of the player and
remote controller here and there till the
receiving condition is found better.
▶Remote controller not connected
→It should be connected to play as an
antenna during radio listening
▶A blanket area (In the region of poor
reception)
Short time for
Battery use
▶Not fully charged
▶Not recharged after discharged more than
once a month
Unable to
Charge
▶adapter not plugged correctly
※If there are any abnormal conditions, check the following first.

Caution
7. Other
27
English
Caution
26
7. Other
▶ Hold the Disc to be untouched on the playing side.
Silver side (with no characters) is the playing side.
▶ Disc Cleaning
Don’t clean the Disc if possible.
But if it’s inevitable, wipe it with a soft cloth in the
direction of the arrow as indicated in the picture.
▶
Don’t attach paper, etc on the playing side.
Be careful not to scribble or scratch also on the rear
(with characters).
▶
Don’t use any chemicals such as Cleaner for LP Disc
including Benzene, or static electricity preventer,
etc to wipe the Disc.
▶When spilling some materials or liquids into the player, stop using and unplug for
check by engineer.
▶Don’t put any alien substances into DC IN 5V(External Power input) jack.
▶Use the AC Power adapter followed by the player for the electric safety.
▶The CD Player should be kept so that it is isolated from hot place, direct light,
dust, sand, humidity, rain, vibration and slope, or should not leave it in a car
with windows closed.
▶Don’t touch the lens of the player to get dirty.
The player with scratch on lens may not be normally operated.
▶Don’t put heavy materials on the player.
It may damage the product and CD.
▶The product should not be wrapped with a cloth or a blanket since it may
cause breakdown or serious accident.
▶
For Safety in Transportation
Don't use headphone or earphone during on a bicycle, car, motorcycle, etc.
This may be illegal in some areas as well as dangerous.
Also, it will be dangerous when using it in a pedestrian crossing even during
walking.
▶ For Protection of Hearing
Don't use headphone/earphone in a large volume. Specialists indicate the
dangerous point when hearing in a large volume for a long time.
If there's an echo sound inside ear, turn the volume down or stop using.
Caution with Disc Main unit of CD Player
Headphone / Earphone
For Safety

Check the components
7. Other
29
English
Notes
28
7. Other
In case that there’s a damage from dust, scratch on CD, the sound may be
bouncing or ceased.
In case that it’s impossible to read due to the damage of a file, the relevant part
will be skipped, and if it’s continuously impossible to read, then it will go over to
the next track.
Only in case that the extension of general music CD & a file is MP3, WMA, ASF
(Provided “.ASF” format is partly supported.), it’s available for playback.
Files in each folder are arranged in Alphabetical order or in Ga, Na, Da... order,
the number is assigned as the order arranged. The desired music can be simply
searched by using Intro mode.
It may not read unsupported format disc and poor recorded disc.
Music information indicated during playback is the information in a file name
or on ID3 Tag.
In case of CD-TEXT Disc, only the music title in TOC area will be displayed.
When equipping External battery, playback standard for MP3/WMA is max.
23 hours.
The indication of Battery Capacity depends on the kind of battery or motion
mode (CD/FM/charge).
Rechargeable Battery
User’s Manual
Portable Bag
Remote controller
Earphone
AC adapter
External Battery Pack

Specifications
30
7. Other
Category Item Specifications
Stereo (L, R)
NO. of Channels
20Hz 〜20KHz±3dB (Lineout)
Frequency Range
Audio
Audio
(FM TUNER)
CD
Support
File
Support
Power
Supply
General
L 10mW + R 10mW : (16Ω Max Volume )
Headphone Output
0.4V rms : (47KΩ)
Lineout Level
Over 90dB
S/N Ratio
L 10mW + R 10mW : (16Ω Max Volume )
Headphone Output
87.5MHz 〜108MHz
Frequency Range
0.4V rms : (47KΩ)
Lineout Level
Over 55dB
S/N Ratio
MPEG 1/2/2.5 Layer 2/3, WMA, ASF
File type
CD-DA (8cm/12cm)
CD-ROM Mode 1, Mode 2 From 1
Enhanced CD, CD-Plus
CD Type
Packet-Write, ISO9660, Joliet
Mult-Session
CD-R/W Readability
8Kbps 〜320Kbps Supported
Bit Rate
ID3 V1 Tag, ID3 V2 2.0, ID3 V2 3.0, ID3 V2 4.0
Tag
DC 5V(Constant Voltage Type)
AC adapter
Ni-MH(1.2V) Rechargeable Battery 2EA
Rechargeable Battery
1.5V AA Battery 2EA
External Battery Pack
128(W) ×143(L) ×15.5(H)mm
Dimension
149g (Excluding Battery)
Weight
0℃〜40℃
Operational Temperature
