Safeguard Supply ERA-PIR-SPK User manual

Note: When motion is detected & the battery is weak, 2 seconds
after the alert tone plays, the unit will emit a "Beep Beep" every 5
seconds, repeating 5 times. This is notice that the battery should
be changed.
•Do not mount the speaker to the wall or door frame until you
have successfully setup and tested the device.
•Volume control: 4 levels & set to highest volume level at the
factory.
•Each unit is programmed to the "ding-dong" sound from the
factory. User may change this melody.
•If you are happy with the preset volume & tone, you can skip
the step titled "Setting the Tone and Setting Volume Level"
section of this manual.
•When battery is low a special tone is emitted. See "Note" in
battery installation section of manual below.
•The unit resets every 5 seconds after each activation.
ERA-PIR-SPK
Owner’s Manual
Introduction
The ERA-PIR-SPK is a passive infrared (PIR) sensor with an internal
speaker that is activated when a combination of heat &
movement is detected in the monitored zone. When the sensor
is activated, the internal speaker will play one (1) of three (3)
different tones. The unit was designed so you can mount the
bracket on the door frame or wall and easily pivot the lens to
optimize the desired monitored zone.
Helpful Tips:
1. Remove the screw located on the
backside of the case using a phillips
head screwdriver (see figure 1). Once
the screw is removed, open the case.
2. Remove top half of case from lower half
of the case to find the battery holder
(see figure 2).
3. Install a fresh 9-volt alkaline battery.
4. Follow the instructions for
"Setting the Tone and Volume Level"
prior to reassembly.
ERA-PIR-SPK Battery Installation:
The sensor is powered by a 9V alkaline battery. Follow the steps below to
remove the cover and install the battery. Note: Program the tone and
volume level prior to reassembling the unit.
figure 1.
figure 2.
Setting the Tone and Setting Volume Level
Setting the Tone:
By default, each zone is programmed by the factory to play the
ding-dong sound at the highest volume level. You can skip this
step if you are OK with this tone and volume level.
1. Hold down the "volume control and tone selector" button for
approximately 3 seconds until the RED LED on the board is
lighted (see figure 2). The solid red light lets you know the unit
is in program mode. When the LED is red, release the button.
2. Press the "volume control and tone selector" button to scroll
through the 3 available tones, stopping at the one you like.
3. Hold down the "Volume control and tone selector" button
until the red LED goes off. No red LED means the unit IS NOT
in programming mode.
Note: Unit will exit programming mode automatically after 5
seconds with no activity.

TECHNICAL SUPPORT
If you encounter any difficulty in the operation of this product after
reading the manual, please contact us. You can reach us by phone at
904-245-1184 from 8:00 AM to 5:00 PM Monday through Friday (Eastern
Standard Time). We will be happy to answer your questions and help you
in any way we can.
WARRANTY
Safeguard Supply warrants this product to be free of defects in material and
workmanship for a period of one year from the date of purchase. This warranty
does not cover damage resulting from accident, abuse, act of God or improper
operation. If this product does become defective, simply return it to Safeguard
Supply. Please include a note describing the troubles along with your name and
return address as well as the original sales receipt. If the product is covered under
warranty it will be repaired or replaced at no charge. If it is not covered by
warranty, you will be notified of any charges before work is done.
Safeguard Supply - www.safeguardsupply.com
2260 Moon Station Ct. NW #110 , Kennesaw, GA 30144
Phone: [phone]
Mounting the Transmitter:
•The PIR sensor (transmitter) may be mounted in a variety of
locations such as; on the ceiling, directly above the door, or
side mounted. The most common mounting location is above
the door.
•For best results, mount the transmitter above the door frame
slightly canted in towards the door. You may cant (tilt) the unit
to ensure the monitored zone is covering the area you want it
to cover.
•Avoid placing the transmitter near heating & A/C ducts, or in
direct sunlight to help eliminate false signals.
•The mounting height of the sensor (see table 1) changes the
size of the monitored zone.
WARNING: Cancer and Reproductive Harm. Go to www.P65Warnings.ca.gov
for more information.
Volume Adjustment:
The volume is also controlled by the "volume control and
tone selector button." To change the volume level, make
sure the unit is not in program mode. Ensure the RED LED IS
NOT lighted (Lighted RED LED means the unit is in
programming mode.)
1. The sensor has four volume levels. By default the unit is set
to volume 4, the highest volume level.
2. To adjust the volume, press the "volume control and tone
selector" button until the desired volume level is reached
(see figure 2).
3. After adjusting the volume, reassemble the unit.
1. Use included screw to mount the metallic bracket. We
recommend mounting the bracket so that the openings on each
end of the bracket are facing up (shaped liked a "U").
2. Each side of the transmitter has a screw protruding. That screw
slides into the u-shaped openings of the bracket.
3. Insert the unit into the bracket. Each screw on the sides of the
sensor should rest on open ends of the u-shaped bracket.
4. Tighten the screws on the side of the case just enough to keep it in
place (do not let it fall out).

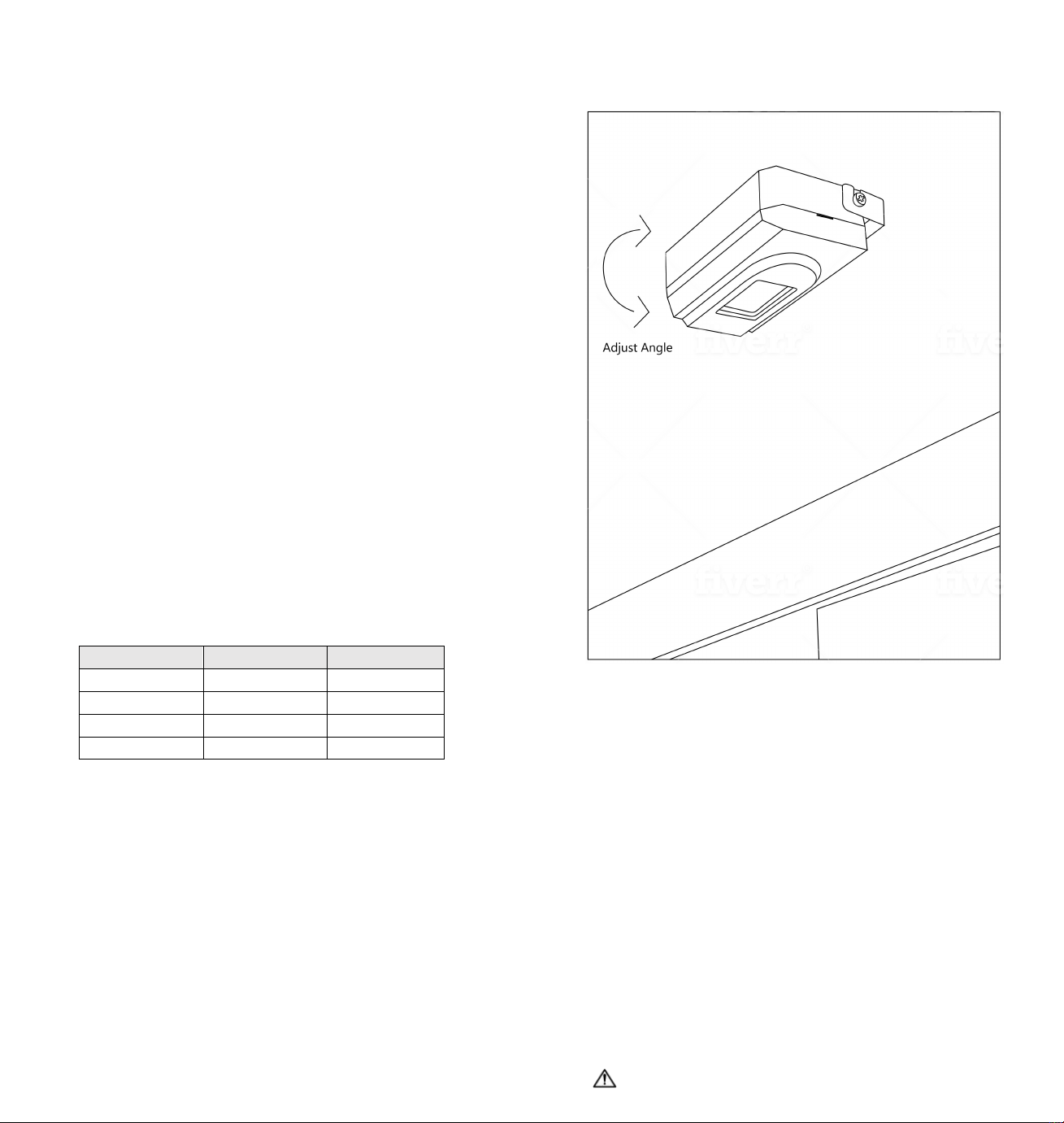

5. Tilt sensor in bracket to create desired monitored zone and test.
6. Tighten the screws on each side of the case to secure it to the
bracket.
Table 1
*Height of Sensor (in feet) Changes the Width and Depth of
Monitored Zone.
Height Width Depth
8’ 9.20’ 0.60’
10’ 11.5’ 0.75’
13’ 14.95’ 0.98’
16’ 18.40’ 1.20’
