Sagem DTR94 HD FREESAT User manual

USER MANUAL
ENGLISH
FREESAT HD
DIGITAL SATELLITE
TV RECEIVER / RECORDER
DTR94 HD Freesat
UG 253271393-A DTR94 HD Freesat UK.book Page 1 Mardi, 6. octobre 2009 10:03 10

CONGRATULATIONS!
This Receiver is a new generation of Sagem Communications SAS (here after referred to as Sagem
Communications) receiver dedicated to Digital Satellite Television and equipped with a hard disk. With
this technological advantage, you can make digital audio/video recordings.
Once you have connected your receiver and performed the initial installation, you will be able to watch
and enjoy freesat HD and SD channels. You can update your receiver if new functions or services become
available.
The Sagem Communications Receiver follows a continuous development strategy. Therefore, we reserve
the right to make changes and improvements to the product described in this user manual without any
prior notice.
This product complies with EMC directive 89/336/EEC.
CE marking:
The CE marking certifies that the product complies with the essential requirements of the Directive
1999/5/EC concerning radio equipment and telecommunication equipment, and of Directives 2006/95/EC
concerning safety and 2004/108/EC concerning electromagnetic compatibility, defined by the European
Parliament and Council to reduce electromagnetic interferences and protect the health and safety of
users.
The CE marking also certifies that the product complies with the following harmonised standards:
EN60065, EN55013, EN55020, EN61000-3-2, EN61000-3-3.
The CE declaration of conformity can be viewed in the support section of the Sagem Communications site
www.sagem-communications.com, or it can be obtained from the following address:
Sagem Communications SAS - Customer relations department
250, route de l'Empereur
92500 RUEIL MALMAISON - FRANCE
Copyright © Sagem Communications SAS
All rights reserved
SAGEM is a registered trademark of the Group SAFRAN.
"freesat" is a registered trade mark and the "freesat" logo is a trademark of Freesat (UK) Ltd.
This "HD TV" Television Receiver complies with the "HD TV" Minimum Requirements. The "HD TV" Logo is a
trademark of EICTA. HDMI, HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC. Dolby Digital and AC-3 are registered trademarks of Dolby Laboratories Inc.
DTS is a registered trademark of Digital Theater Systems, Inc.
Telephone number for your local store is on your till receipt.
Should your Store be unable to help, please check the following Website Link for reception:
http://www.freesat.co.uk
IMPORTANT NOTICE
Before unpacking this product further
Have you or your local store checked your Postcode for reception?
UG 253271393-A DTR94 HD Freesat UK.book Page 1 Mardi, 6. octobre 2009 10:03 10

- I -
CONTENTS
1. PRODUCT OVERVIEW.........................................................................................................1
1-1. FRONT PANEL OF THE RECEIVER ......................................................................................... 1
1-2. REAR PANEL OF THE RECEIVER ............................................................................................ 2
1-3. REMOTE CONTROL .................................................................................................................. 3
2. SAFETY RECOMMENDATIONS ..........................................................................................4
2-1. WHERE TO PUT YOUR RECEIVER? ........................................................................................ 4
2-2. WARNINGS AND SAFETY INSTRUCTIONS ............................................................................. 4
2-3. BATTERIES ................................................................................................................................ 5
2-4. INTERFERENCE ........................................................................................................................ 5
2-5. HARD DISK ................................................................................................................................ 5
2-6. CLEANING THE RECEIVER ...................................................................................................... 5
3. ENVIRONMENT ....................................................................................................................6
3-1. MEANING OF LOGOS PRESENT ON THE PRODUCT OR ITS PACKAGING ......................... 6
3-2. PRODUCT RECYCLING AND DISPOSAL ................................................................................. 6
3-3. EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE) ................................................................................................................ 7
3-4. DIRECTIVE ON THE RESTRICTION OF USE OF CERTAIN HAZARDOUS
SUBSTANCES IN ELECTRONIC EQUIPMENT (ROHS) .......................................................... 7
3-5. ELECTRICAL CONSUMPTION OF THE RECEIVER ................................................................ 7
4. CONNECTIONS ....................................................................................................................8
4-1. CONNECTION TO THE SATELLITE DISH ................................................................................ 8
4-2. CONNECTION TO THE TV SET ................................................................................................ 9
4-3. CONNECTION TO THE VCR/DVD RECORDER ..................................................................... 11
4-4. CONNECTION TO A HOME CINEMA AMPLIFIER .................................................................. 12
4-5. CONNECTION TO A HI-FI UNIT .............................................................................................. 12
5. FIRST INSTALLATION .......................................................................................................13
6. INSTALLATION MENUS.....................................................................................................15

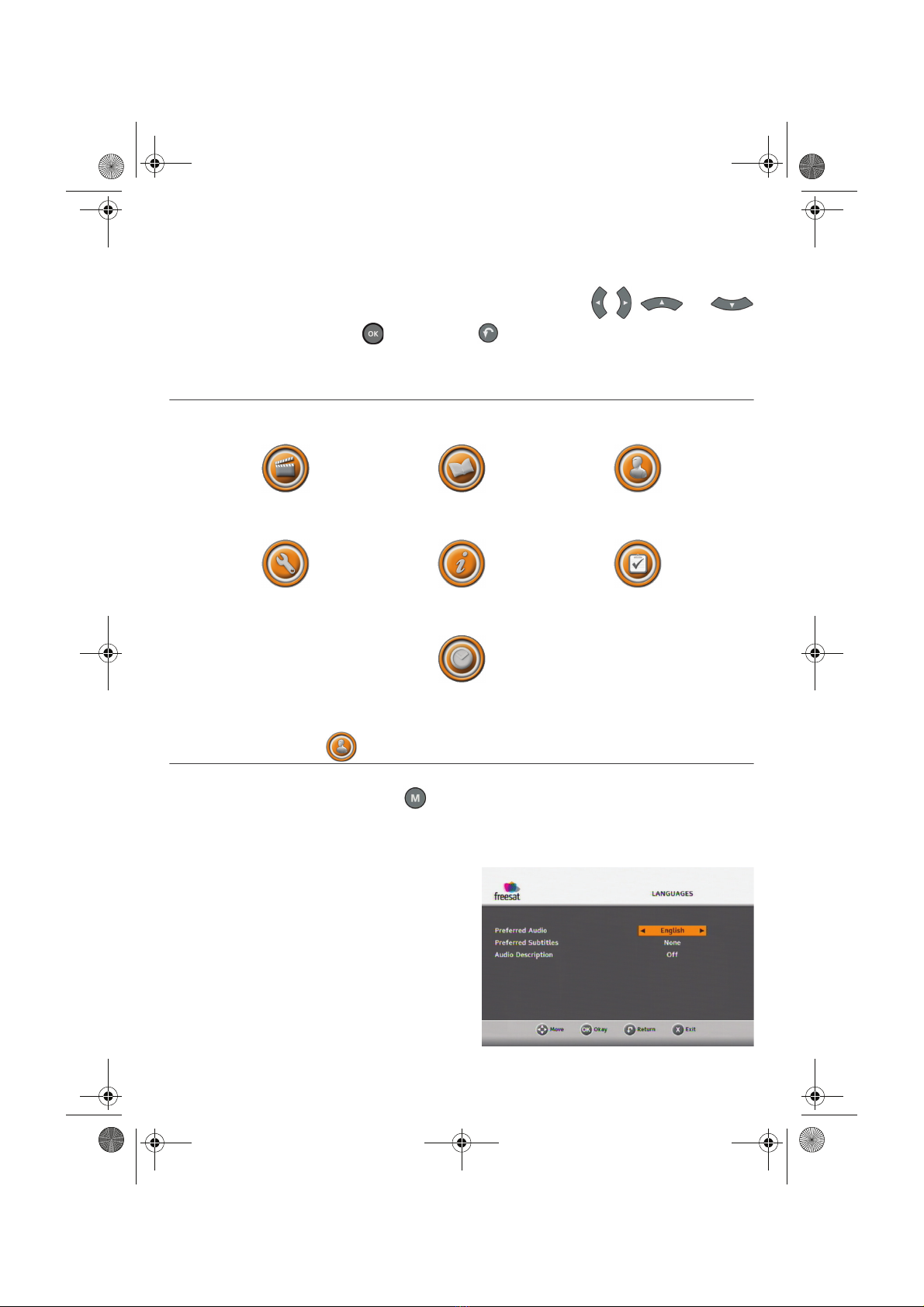

6-1. ICONS ....................................................................................................................................... 15
6-2. USER SETTINGS .................................................................................................................... 15
6-3. MANAGING CHANNELS AND FAVOURITE LISTS ................................................................ 17
6-4. RECEIVER SETTINGS ............................................................................................................ 18
7. INFORMATION MENU........................................................................................................23
7-1. SIGNAL INFORMATION ........................................................................................................... 23
UG 253271393-A DTR94 HD Freesat UK.book Page I Mardi, 6. octobre 2009 10:03 10

- II -
7-2. RECEIVER INFORMATION ..................................................................................................... 23
7-3. HARD DISK INFORMATION .................................................................................................... 23
8. EVERYDAY USE.................................................................................................................24
8-1. SELECTING A CHANNEL ........................................................................................................ 24
8-2. ADJUSTING THE AUDIO VOLUME ......................................................................................... 25
8-3. CHANGING THE FAVOURITES LIST ...................................................................................... 25
8-4. TEMPORARILY SELECTING AUDIO LANGUAGES AND SUBTITLES .................................. 26
8-5. TELETEXT AND INTERACTIVE SERVICES ........................................................................... 26
8-6. ELECTRONIC PROGRAMME GUIDE .................................................................................... 26
8-7. LIVE MODE/DEFERRED MODE .............................................................................................. 28
9. VIDEO RECORDINGS ........................................................................................................29
9-1. IMMEDIATE RECORDING (LIVE OR DEFERRED PROGRAMME) ........................................ 29
9-2. RECORDING PROGRAMMES FROM THE MENU ................................................................. 30
9-3. RECORDING PROGRAMMES FROM THE ELECTRONIC PROGRAMME GUIDE ............... 31
9-4. RECORDING LIBRARY ........................................................................................................... 32
9-5. MANAGING THE RECORDING LIST ....................................................................................... 33
10. SOFTWARE UPDATE.......................................................................................................35
11. TROUBLESHOOTING ......................................................................................................36
12. SPECIFICATIONS.............................................................................................................38
13. CUSTOMER SUPPORT....................................................................................................40
14. GUARANTEE TERMS.......................................................................................................41
UG 253271393-A DTR94 HD Freesat UK.book Page II Mardi, 6. octobre 2009 10:03 10

- 1 -
1. PRODUCT OVERVIEW
Your Receiver is a digital receiver that lets you watch and record freesat HD and SD channels.
YOUR NEW EQUIPMENT INCLUDES:
- 1 remote control with 2 batteries (AAA)
- 1 power supply unit (power adapter and power cord)
- 1 HDMI lead for connection to the HD TV set
- 1 installation guide
- 1 freesat+ presentation leaflet
- this user manual
1-1 FRONT PANEL OF THE RECEIVER
1. Digital display
• Shows the current time when the receiver is
in standby.
• Shows the programme number when the
receiver is on.
• Shows hard disk activity (recording in
progress, programme playback, ...)
3. USB port (for future use)
4. Change channels
2. Status indicator 5. Standby button
• Put the receiver in standby mode/Wake up the
receiver from standby mode (press and let go)
• Restart the receiver (press and hold for 5 sec.)
UG 253271393-A DTR94 HD Freesat UK.book Page 1 Mardi, 6. octobre 2009 10:03 10

- 2 -
1-2 REAR PANEL OF THE RECEIVER
6. Satellite dish input 2 11. Analog component video (Y Pb Pr)
7. Satellite dish input 1 12. Digital audio connector (S/PDIF)
8. Ethernet port (for future use) 13. Scart connector (to VCR or DVD recorder)
9. HDMI Digital video audio connector 14. Scart connector (to TV)
10. Analogue audio connectors (to hi-fi unit) 15. Power supply unit connector
To fully enjoy the features of your receiver, make sure that you connect the
2 satellite tuners (see “Connection to the satellite dish”, page 8).
UG 253271393-A DTR94 HD Freesat UK.book Page 2 Mardi, 6. octobre 2009 10:03 10

- 3 -
1-3 REMOTE CONTROL
Batteries: the remote control needs two batteries (AAA) to operate. The drawing in the battery compartment
indicates how to install them. The batteries provided are not rechargeable.
Key Functions
1Put the receiver in standby mode/Wake up the receiver
from standby mode.
2Access channels and various on-screen options
3Display programme information and options
4Turn the volume up or down
5Turn the sound off or on
6Move in a page, a menu…
7Go back to the previous screen or mode
8Launch immediate recording, Schedule a recording from
the electronic programme guide (EPG)
9On-screen options (MHEG, Teletext pages and menu)
10 Access the recording library
11 Select audio tracks and activate/deactivate audio
description
12 Select subtitles
13 Display the electronic programme guide (EPG)
14 Change channels
15 Access menus
16 Display the channel list, confirm a selection
17 Exit a screen, a mode
18 Skip backward / forward
19 Rewind / fast forward
20 Stop / Play / Pause
21 Display Teletext pages when available
Note : undocumented keys are not used on this product.
UG 253271393-A DTR94 HD Freesat UK.book Page 3 Mardi, 6. octobre 2009 10:03 10

- 4 -
2. SAFETY RECOMMENDATIONS
Use of the receiver is subject to safety measures designed to protect users and their environment.
2-1 WHERE TO PUT YOUR RECEIVER?
In order to guarantee the correct operation of your receiver, you must:
• place it indoors to protect it from lightning, rain, and
sun rays,
• place it in a dry and well ventilated area,
• keep it away from heat sources such as radiators,
candles, lamps, etc.
• protect it from dampness, place it on a flat surface from
where it will not fall and is out of reach of the children,
• do not place anything on top of your receiver (as it
would restrict ventilation): the ventilation slots located
on the casing prevent your receiver from overheating.
If you place the receiver in a compartment, leave a
space of at least 10 cm on each side and 20 cm on the
front and back of the receiver,
• connect it directly to the mains with the provided cords,
the socket must be near the receiver and easy to
access. The use of an extension cable (with multi-points) is not recommended.
2-2 WARNINGS AND SAFETY INSTRUCTIONS
NEVER OPEN THE RECEIVER OR THE POWER SUPPLY UNIT! YOU RISK GETTING AN ELECTRIC SHOCK.
• Use only the power supply unit supplied with the receiver to connect it to the mains. Other
practice may be dangerous.
• As a precaution, in case of danger, the power supply unit acts as a disconnecting mecha-
nism for the 230V power supply. That is why it is imperative that you connect the receiver to a
power outlet located nearby and easily accessible.
• You must imperatively connect the power supply unit to the receiver before connecting the power
supply unit to the power socket.
• To avoid short-circuits (fire or electrocution hazard), do not expose your receiver to dampness. Do
not place any object containing liquid (vase for example) on the appliance. The receiver must not be
splashed with liquid. If liquid is spilt onto the receiver, unplug it immediately from the mains and con-
sult your supplier.
• Take care not to allow liquids or metal objects to enter the receiver through the ventilation slots.
• Avoid reconnecting the receiver after it has been subjected to large changes in temperature.
UG 253271393-A DTR94 HD Freesat UK.book Page 4 Mardi, 6. octobre 2009 10:03 10

- 5 -
• The receiver must be disconnected from mains supply (from the power outlet or rear panel) before
any modification of connection between TV, VCR or dish.
• In the event of a storm, it is advisable to unplug the dish. Even if the receiver and the television set
are disconnected from the power supply, lightning can still damage them.
Only personnel approved by the manufacturer can repair the receiver. Failure to comply with these safety
precautions will invalidate the guarantee.
2-3 BATTERIES
Batteries are easily swallowed by young children. Do not allow young children to play with the remote
control.
To avoid damaging the remote control, only use identical batteries or batteries of an equivalent type. The
batteries provided are not rechargeable.
2-4 INTERFERENCE
Do not place the receiver near appliances that may cause electromagnetic interferences (for example
loudspeakers). This could affect receiver operation and distort the picture or sound.
2-5 HARD DISK
This unit contains a hard disk. Please wait for the unit to go into standby mode before unplugging and
moving it.
2-6 CLEANING THE RECEIVER
The outer casing of the receiver can be cleaned with a soft and dry cloth. Do not use any type of abrasive
pad, scouring powder or solvents, such as alcohol or turpentine, as they could damage the surface of the
receiver.
UG 253271393-A DTR94 HD Freesat UK.book Page 5 Mardi, 6. octobre 2009 10:03 10

- 6 -
3. ENVIRONMENT
Preservation of the environment is an essential concern of the manufacturer. The desire of the
manufacturer is to operate systems observing the environment and consequently it has decided to
integrate environmental performances in the life cycle of its products, from manufacturing to
commissioning, use and elimination.
3-1 MEANING OF LOGOS PRESENT ON THE PRODUCT OR ITS PACKAGING
The crossed-out dustbin sign stuck on the product or its accessories means that at the end of its
life, the product is subject to selective collection and must not be thrown away in unsorted
household waste.
The looped arrow sign means that the packaging may be recycled and must not be disposed of
with household waste.
The green logo means that a financial contribution is paid to an approved national organisation
to improve packaging recovery and recycling infrastructures.
The logo with three arrows shown on the plastic parts means that they may be recycled and that
they must not be disposed of with household waste.
3-2 PRODUCT RECYCLING AND DISPOSAL
To facilitate recycling, please respect the sorting rules set up locally for this kind of waste.
If your product contains batteries, they must be disposed of at appropriate collection points.
European regulations ask you to dispose of products belonging to the family of electrical and electronic
equipments ( ) selectively:
- At the collection points made available to you locally (drop-off centre, selective collection, etc.),
- At sales points in the event of the purchase of similar equipment.
In this way you can participate in the re-use and upgrading of Electrical and Electronic Equipment Waste,
which can have an effect on the environment and human health.
UG 253271393-A DTR94 HD Freesat UK.book Page 6 Mardi, 6. octobre 2009 10:03 10

- 7 -
3-3 EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE)
In the context of sustainable development, the reduction of wastes to be eliminated by reusing, recycling,
composting and energy recovery is strongly advised.
In order to comply with this directive which is applicable to EEEs sold after 13/08/2005, your receiver will
be taken back free of charge and recycled by the distributor of the EEE within the limits of the quantity and
types of equipment bought from them. These appliances which contain substances potentially dangerous
to human health and the environment will be recycled.
3-4 DIRECTIVE ON THE RESTRICTION OF USE OF CERTAIN HAZARDOUS
SUBSTANCES IN ELECTRONIC EQUIPMENT (ROHS)
Your receiver along with the batteries supplied comply with the directive relating to the RoHS – dangerous
materials such as lead, mercury or cadmium are not used. This avoids environmental hazards and any
risks to the health of personnel at the recycling centres. The batteries of the remote control can be
removed simply.
Note: When the batteries of the remote control are worn out, please dispose of them at a collection point
and not with household waste.
3-5 ELECTRICAL CONSUMPTION OF THE RECEIVER
To reduce the consumption of your receiver, you are recommended to place it in standby mode when not
in use. We recommend that you turn off the receiver or unplug it from the mains if you will not be using it
for a prolonged period of time.
UG 253271393-A DTR94 HD Freesat UK.book Page 7 Mardi, 6. octobre 2009 10:03 10

- 8 -
4. CONNECTIONS
Before installing your receiver, please check that the delivery is complete (see “Product Overview”,
page 1).
Please ensure that the appliances to be connected together (receiver, TV, VCR…) are unplugged before
making any connections.
4-1 CONNECTION TO THE SATELLITE DISH
To get all the freesat HD and SD channels, make sure that your satellite dish is oriented towards
ASTRA 2, facing 28.2° East.
To fully enjoy the recording and timeshifting features of your receiver, you must connect the 2 satellite
tuners, making sure that:
• your 2 satellite signal inputs are fully independent. This implies that you use 2 distinct LNB heads
(i.e. twin LNB-head aerial). The use of a splitter is excluded.
• your 2 LNB heads are both directed towards ASTRA 2, facing 28.2° East.
Contact your satellite installer/dealer for more information on your satellite dish installation and alignment.
1. Plug the first satellite dish cable into the IN 1 input connector on your receiver.
2. Plug the second satellite dish cable into the IN 2 input connector on your receiver.
UG 253271393-A DTR94 HD Freesat UK.book Page 8 Mardi, 6. octobre 2009 10:03 10

- 9 -
4-2 CONNECTION TO THE TV SET
4-2-1 Connection to a High-Definition television using a HDMI lead
1. To take advantage of HD high-quality definition, you must connect the HDMI connector of your
digital receiver to the HDMI connector on your television set.
2. To connect other devices to the receiver (VCR, home cinema...), refer to the following pages.
3. Connect the power adapter to the power cable. Then, connect the power cable into the 12V
connector on the receiver.
4. Plug the power cord into the wall socket.
UG 253271393-A DTR94 HD Freesat UK.book Page 9 Mardi, 6. octobre 2009 10:03 10

- 10 -
4-2-2 Connection to a High-Definition television using the component video link (Y Pb Pr)
1. Connect the YPbPr connectors (red, blue and green) of your receiver to the YPbPr connectors on
your television set, respecting the connectors colour (cable not supplied).
2. Connect the right and left audio outputs of your receiver to the audio inputs on your television set
or your Hi-Fi system (cable not supplied).
3. To connect other devices to the receiver (VCR, home cinema...), refer to the following pages.
4. Connect the power adapter to the power cable. Then, connect the power cable into the 12V
connector on the receiver.
5. Plug the power cord into the wall socket.
Make sure to connect an audio device (TV set or Hi-Fi) otherwise there will
be no sound output.
UG 253271393-A DTR94 HD Freesat UK.book Page 10 Mardi, 6. octobre 2009 10:03 10

- 11 -
4-2-3 Connection to a Standard-Definition television
1. You must connect the television set to your receiver using a Scart connector (not supplied). For
optimal quality, preferably connect the Scart lead to the TV Scart socket with 3 dots (RGB).
2. To connect other devices to the receiver (VCR, home cinema...), refer to the following sections.
3. Connect the power adapter to the power cable. Then, connect the power cable into the 12V
connector on the receiver.
4. Plug the power cord into the wall socket.
4-3 CONNECTION TO THE VCR/DVD RECORDER
• See the diagram below to connect your receiver to a VCR/DVD recorder.
Note: If your VCR/DVD recorder has more than one Scart connector, choose the TV or EXT1 socket.
UG 253271393-A DTR94 HD Freesat UK.book Page 11 Mardi, 6. octobre 2009 10:03 10

- 12 -
4-4 CONNECTION TO A HOME CINEMA AMPLIFIER
Some digital channels are shown in DTS or DOLBY DIGITAL quality sound. To fully enjoy this sound
quality, it is best to connect your receiver to a home cinema with a coaxial input.
Use a coaxial cable (not supplied) to connect the DIGITAL audio output on the receiver to the input of your
home cinema amplifier.
4-5 CONNECTION TO A HI-FI UNIT
To make the most of the digital quality sound and listen to radio channels with the TV turned off, just
connect the right and left audio outputs of the receiver to the auxiliary input of your hi-fi system (cable not
supplied).
UG 253271393-A DTR94 HD Freesat UK.book Page 12 Mardi, 6. octobre 2009 10:03 10

- 13 -
5. FIRST INSTALLATION
Once the receiver is physically connected, you need to go through the setup procedure to get your
freesat HD and SD channels.
1. Switch on your TV.
2. Press the Standby button on your remote control to wake the receiver up from standby mode.
3. The first installation screen should appear.
Freesat Settings
4. Press to start the installation.
The receiver searches for the freesat satellite
signal. Please wait until the receiver
successfully detects it.
5. If the detection fails, press to view the
reception strength and quality of the satellite
signal(s). Check the dish cable connections.
When the signal level is satisfactory,
press to resume the installation.
If the level and quality of reception remain
insufficient, contact your satellite installer.
6. Enter your full postcode (without space) using
the alphanumeric keys on the remote control.
Example: to enter the letter S, press 4 times
key 7.
Use the key to delete an incorrect
character.
Press to continue.
Note : the postcode is used to install local TV
and radio channels.
UG 253271393-A DTR94 HD Freesat UK.book Page 13 Mardi, 6. octobre 2009 10:03 10

- 14 -
Main Settings
7. Select the settings better suited to your
needs.
Use the up and down keys to highlight a
setting, use the left and right arrows to select
a value.
Preferred Audio: programmes will be
broadcast in the selected audio language
provided it is available.
TV Screen Size: 16:9 (widescreen) or 4:3
(standard TV).
HDMI Resolution: 1080i, 720p or 576p,
depending on your HD TV Set. If you have a standard TV set, set the resolution at 576p.
Parental code: enter a parental four-digit code using the remote control (0000 is not accepted).
Enter the same code to confirm it.
Press to continue.
Channel Search
8. The receiver automatically searches for
available freesat TV and radio channels.
You receiver is now set. You can start watching and enjoying all your freesat HD and SD channels.
Should any problem that prevents you from completing the installation arise, please contact your retailer
or the Sagem Communications SAS Hotline.
UK Hotline: [phone]*
* 3.95 pence per minute from all fixed lines, tariff cost effective from 01/09/2009
The parental code is used to lock access to the receiver. Make sure you
remember it for future use. You can change the code at any time (see
“Changing your Parental code”, page 16).
UG 253271393-A DTR94 HD Freesat UK.book Page 14 Mardi, 6. octobre 2009 10:03 10

- 15 -
6. INSTALLATION MENUS
To move around the screens and change various settings, just use the keys , , and
to highlight your selections, press to confirm, and to leave a screen.
6-1 ICONS
6-2 USER SETTINGS
To access the user settings screen, press . Once you are in the main menu, select USER SETTINGS.
6-2-1 Selecting your language
In USER SETTINGS, select LANGUAGES.
Select the audio and subtitle language you want.
Programmes will be broadcast in the selected audio
language, provided it is available. Your choice of
subtitle language will be applied if available.
You can also activate the audio description feature.
Programmes providing this service will be broadcast
in the selected audio preferred language if available.
Library Guide User settings
Receiver settings Information Channels
Timer
UG 253271393-A DTR94 HD Freesat UK.book Page 15 Mardi, 6. octobre 2009 10:03 10

- 16 -
6-2-2 Hiding Adult channels
In USER SETTINGS, select ADULT GENRE.
This feature lets you hide adult genre channels.
If you activate this function, all adult genre channels
will be hidden : you will not be able to switch to an
adult genre channel, or browse this category in the
electronic programme guide.
Use this feature to protect your children from this type
of exposure.
6-2-3 Receiver locking
In the USER SETTING menu, select INSTALLATION
LOCK.
You can lock access to the receiver installation
settings.
If you activate the installation lock, you will need to
enter the parental code every time you want to access
the receiver menus (Receiver settings, Channels,
etc.).
6-2-4 Changing your Parental code
In USER SETTINGS, select CHANGE PARENTAL
CODE.
The parental code is initially defined during the first
installation, and is used to lock the installation
(access to receiver settings).
To change your parental code, enter the current four-
digit code using the remote control.
Then enter your new parental code and confirm it
(0000 is not accepted).
UG 253271393-A DTR94 HD Freesat UK.book Page 16 Mardi, 6. octobre 2009 10:03 10
