2019 Sailfish 325 DC
04/24/2019

1
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/31/2018
Table of Contents
04/24/2019
2. BoatSpecications
3. BoatTrailerMeasurement
4. BoatLayout
5. BoatSafety&WarningLabels
7. BoatSafety&WarningLabelLocations
9. BoardingLadder&UnassistedBoardedSituations
10. BatterySelectorPanelandWiring
11. BreakerPanelSchematic
12. SwitchPanelSchematic
13. DistributionHarnessSchematic
14. AdapterHarnessSchematic
15. ShorePowerPanelWiringDiagram
16. FuelSystemLayout
17. DrainPlumbingDiagram
18. PumpPlumbingDiagram
19. HelmArea
20. UFLEXSteeringSystem
21. IgnitionSwitches,EngineShut-O󰀨Cord/Lanyard
22. PlugandPlayWiring
22. Fuel-WaterSeparator
23. Console/HeadArea
24. VSRBatterySystem
25. BilgeAccessandExplanation
26. BilgePumps
27. RawWaterWashdownSystem
28. FreshwaterWashdownandShowerSystem
29. LivewellOperation
30. FishboxPump
31. EntertainmentCenter
32. IsothermCruise42StainlessSteel
MarineFridge
33. ElectricGrillOption
34. ProMarinerInverter
35. ElectricGrill&InverterWiringDiagram
36. TrimTabMaintenance
37. OptionalLewmarV-700Windlass
38. LewmarV-700WindlassTroubleshootingChart
39. OptionalMarineHeadWithWasteTank(TypeIIIMSD
WasteManagementSystem)
45. VinylCareandCleaning
46. AluminumCosmeticCorrosion(Pitting)
47. CaringforAluminum
48. CaringforStainlessSteel
49. Windshield,WindowandHatchCare
Instructions
50. GelCoat
1

FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/31/2018
2019 Sailfish 325 DC
04/24/2019
2
SPECIFICATIONS
LOA Hull Only.............................................31’ 6”
Length Rigged..............................................34’
Beam ....................................................... 10’ 0”
Fuel Capacity ...................................... 297 GAL
Fresh Water ...........................................21 GAL
Weight .............................................11,066 LBS
Cockpit Depth Rear ...................................... 31’
Max. HP ..................................................700HP
Draft - Hull................................................... 22”
Deadrise (Multi-angle) ..........................22°-24°
Battery Capacity ............................................ 3
Rod Holders .................................................. 15
Bridge Clearance (Hard Top)........................8’9”
Person Capacity ........................Yacht Certied
STANDARD FEATURES
Boat
• Boarding Ladder (4 step with grab handle)
• Built In Rigging Tubes (From Bilge to Helm
with pull tapes)
• Carbon Fiber & Kevlar ® Reinforced Deck & Hull
• Closed Cell Foam Flotation
• Cockpit Bolster Pads
• Corian Counter Tops
• Exclusive Dot Matrix Non-Skid
• Exclusive VDS Hull Design (Variable Deadrise
Stepped Hull)
• Mercury Verado Fuel Filter / Water Separator
• Passenger Pod w/ Top Mounted Built-In
Storage Box
• Powder Coated hard Top w/4 Rod Holders,
Docking Lights, Spreader Lights, Overhead
Lighting, PFD Storage & 2 Speakers
• Powder Coated Walk Thru Windshield w/
Tempered Glass
• Power Assist Hydraulic Steering w/ Tilt
Stainless Steering Wheel (Evo Pro w/
Leather Grips & Power Knob)
• Recessed SST Cup Holders (20)
• SailTech Composite Full Length Transom
• SailTech Foam Filled Fiberglass Stringer
System
• SST Port Light (Head Compartment)
• Starboard Cockpit entry Step / Mid-Ship
• Towel Rack and Net Storage In the
Starboard Storage Compartment Door
• Trim Tabs / High Performance Dual Ram /
Heavy Duty With Indicator Switch & Built In
Auto Retract Feature
• Walk Thru Transom Door with Wave Guard & Step
• Windshield Wiper (Captain’s Side w/
Freshwater)
• Yamaha 10 Micron Fuel Filter / Water
Separator w / SST Base
Bow
• Bow Block Off Door
• Bow Bottom and Backrest Cushions
• Powder Coated Built in Low Prole Bow
Rails
Cockpit Galley
• 12 Volt DC Accessory Plug (4)
• Corian Counter Top w/ Sink with Faucet,
Fridge, Trash Can w/ Filler and Cutting Board
• LED Strip Lighting
• SST Soap Dispenser
Electrical
• 12 Volt DC Accessory Plug
• Accessory Switch Panel w/Circuit Breakers
• Compass
• Electric Horn
• Electronically Actuated Bilge Access
• Full Digital Instrumentationw/ Yamaha
CommandLink or Mercury Vessel View
• Fusion/Wet Sounds Stereo System w/ AMP,
Sub-Woofer, Transom Remote Control &
USB Port
• LED Interior Cockpit & Bilge Lighting
• LED Navigational Pop Up Bow & Anchor Light
• VSR Battery Charging System
Fishing
• 8 SST Deck Mounted Rod Holders
• Aft In-Floor Fish Box
• Baitwell w/ LED Lighting
• Insulated Bow Fish Boxes with Overboard Drains
Hardware
• 8” Stainless Steel Flush Mount Pull-Up
Cleats (6)
• Anchor Locker w/ Polished SST Thru The
Hull Windlass
• Fender Cleats Aft (2)
• Finished Fiberglass Head
• Flush Mount Hinges and Latches & Deck Plates
• Galley / Head Compartment Lighting
• Heavy Duty Stainless Steel Bow & Stern Eyes
• Heavy Duty Stainless Steel Rub Rail
• Lockable Galley / Head Door
• Mirror Galley / Head Compartment
• Sailsh Engraved Transom Plates
• Stainless Steel & Bronze Thru Hull Fittings
• Stainless Steel Marine Grade Hardware
• Stainless Steel Propellers
• Stainless Steel Retractable Ski Tow Bar
Head
• SeaDek® Flooring
• SST Soap Dispenser In The Galley / Head
Compartment
Helm
• Large Dash Area For Flush Mounting 12”
Electronics
Plumbing
• 21 gal. Freshwater Tank
• 4 - 2” Drains w/Collector Boxes for Self
Bailing Cockpit
• Automatic Bilge Pumps (Aft 2 - 2000 GPH &
Forward 1 - 750 GPH)
• Freshwater Stations (3) (Galley / Head
Cockpit Galley & Transom)
• High Speed Livewell Pickup
• Pull Out Shower in Galley / Head
• Pull Out Transom Shower
• Raw Water Wash Down
• Sink with Faucet In The Galley / Head &
Cockpit Galley
Seating
• Aft Fold Down Seat 48”
• Deluxe Double Wide Captain’s Chair with Flip
Up Bolster & Arm Rest
• Fold Out Port Mid-Ship Passenger Seat 27”
• Passenger Seat w/ Storage, Cup Holders
& Cooler
• Port Aft Fold Down Seat 52”
Storage
• Battery Storage (Bilge Compartment)
• Built-In Bow Cooler, Drains Overboard 25 QT.
• Galley / Head with Net Storage and Cabinet
• In Floor Ski Locker (Mid-Ship)
• In Floor Storage Box in the Bow
• Recessed Rod Storage Starboard Side Aft
• SST Facing Storage Center w/ Pull Out Drawers
• Starboard Closet with Organizer Shelving
• Starboard Helm Storage with Nets
OPTIONS
Boat Options
• Bow Shade (Bow Rod Holders Included)
• Bow Thruster
• Cockpit & Bow Covers
• Grand Slam Outriggers w/ 15’ Poles
• Hard Top Enclosure (3 Piece)
• In-Floor Rod Storage
• Optimus 360 Joystick Steering
• Removable Table (Bow)
• Removable Table (Stern)
• Sureshade ATF™
• Sureshade MTF™
• Two Tone Hard Top
• Underwater Led Lights (3)
Electronics & Sound System Options
• Built-In 3 Bank Battery Charger w/ LED
Readout
• Built-In Solar House Battery Charger (Hard
Top Only)
• Garmin GPSMap 1042xsv w/o Transducer
• Garmin GPSMap 7612xsv w/o Transducer
• Garmin Radar & Power Cable
• Garmin Thru Hull Transducer Airmar B60
(50/200Khz)
• Garmin Thru Hull Transducer Airmar B75m
(80/133Khz)
• Garmin GMR Fantom™ Radar Cable & Power
Cable
• Garmin GMR Fantom™ 56 Radar
• Garmin VHF Radio & Antenna
• Remote Spot Light on Hard Top
• Wet Sounds LED Lighted Speakers Upgrade
Hardware Options
• Mid-Ship Fender Cleats (2)
Plumbing Options
• Bow Shower
• Misting System For Hard Top
• Motor Flushing System
Seating Options
• 36” Wide Starboard Aft Folding Seat
Optional Packages
• Galley Package
Shore Power, Electric Grill w/ Inverter/
Battery Charger, Microwave & Built-In 3
Bank Battery Charger w/ LED Readout
• Galley Pack Grill w/ Inverter/Battery
Charger Delete
Engine Options
Yamaha
• Twin F300UCA
• White Motor Upgrade
Mercury
• Twin 250XXL Verado
• Twin 300XXL Verado
• Twin 350XXL Verado
• White Motor Upgrade

3
SAILFISH BOAT TRAILER
MEASUREMENT CHART:
Boat Models B C D E F G H I
208CC 78 in. 53 in. 28 in. 11 in. 82 in. 218 in. 235 in. 27 in.
1900BB 88 in. 66 in. 37 in. 10.5 in. 99.5 in. 198 in. 217 in. 24 in.
2100BB 88 in. 66 in. 37 in. 10.5 in. 99.5 in. 220 in. 240 in. 24 in.
220CC & 220WAC 87 in. 59 in. 31 in. 14.5 in. 102.5 in. 216.5 in. 243 in. 32 in.
236CC & 241CC & 245DC 91 in. 57.5 in 30 in. 14 in. 103 in. 250 in. 273 in. 36 in.
240CC & 240WAC & 242CC 92 in. 59 in. 31 in. 15 in. 107 in. 241 in. 272 in. 30 in.
270CC & 270WAC & 275DC 94 in. 59 in. 31 in. 15 in. 107 in. 268 in. 302 in. 30 in.
290CC 94.5 in. 61 in. 32 in. 15.5 in. 107 in. 301 in. 336 in. 30 in.
320CC & 320EXP & 325DC 105 in. 65 in. 33 in. 16.5 in. 115 in. 315 in. 349 in. 38 in.
360CC 119 in. 72 in. 36 in. 20.1 in. 135 in. 383.34 in. 417.49 in. 48.19 in.
3

4
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/31/2018

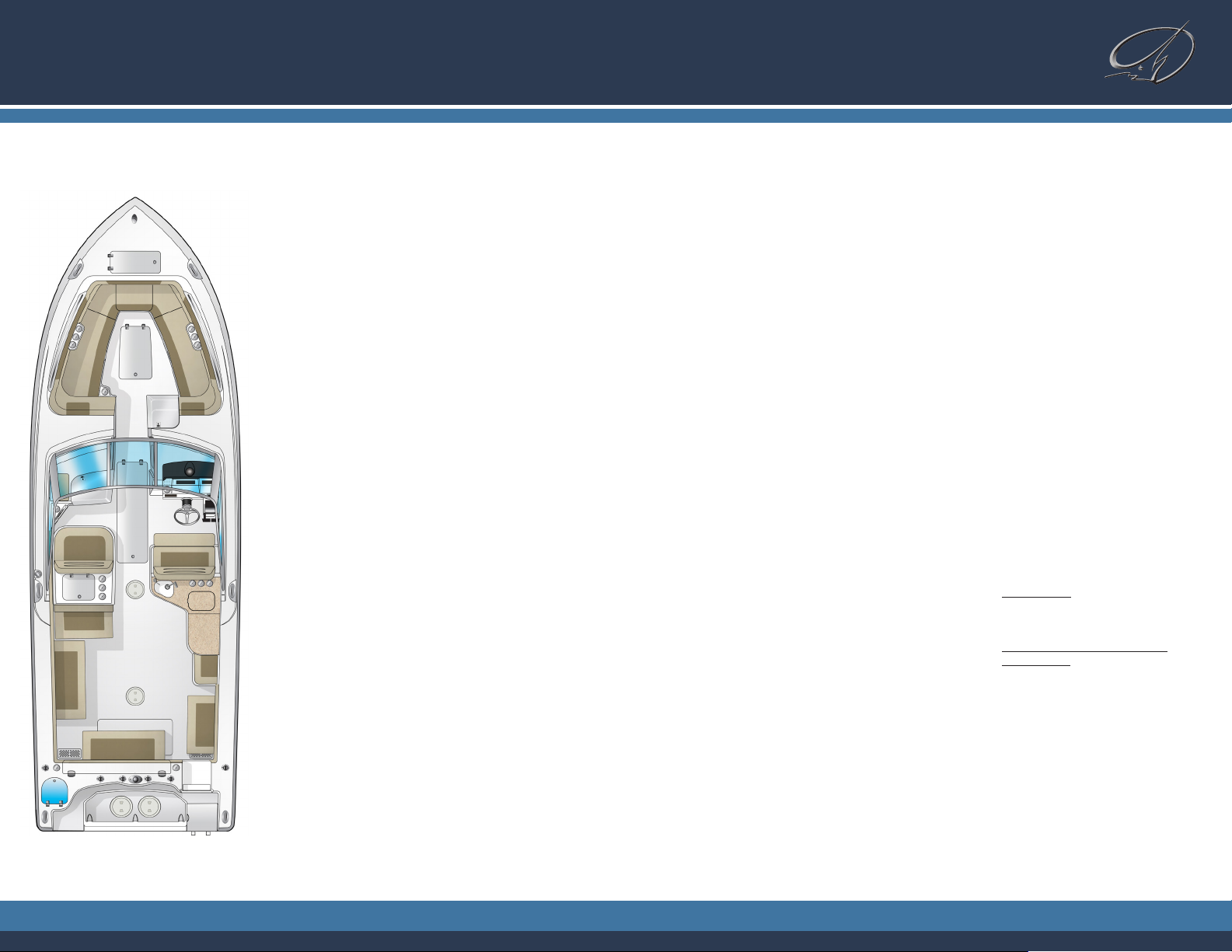

Sailfish 325 DC Boat Layout
