Sailfish 360 CC User manual

10/15/2014 Sailsh290CCOwner’sManual|sailshboats.com 1
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Sailfish 360 CC Owner’s Manual

FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Table of Contents
2. BoatSpecications
3. TrailerMeasurementChart
4. BoatLayout
5. BoatSafety&WarningLabels
7. BoatSafety&WarningLabelLocations
9. BoardingLadder&UnassistedBoardingSituations
10. BatterySelectorPanelandWiring
11. WiringDiagrams
12. FuelSystemLayout
13. Head&WastePlumbingDiagram
14. RawWaterPlumbingDiagram
15. FreshWaterPlumbingDiagram
16. AirConditionerPlumbingDiagram
17. HelmArea
18. UFLEXSteeringSystem
19. IgnitionSwitches,EngineShut-O󰀨Cord/Lanyard
20. PlugandPlayWiring
 Fuel-WaterSeparator
21. Console/HeadArea
22. VSRBatterySystem
23. BilgeAccessandExplanation
24. BilgePumps
25. RawWaterWashdownSystem
26. FreshwaterWashdownandShowerSystem
27. LivewellOperation
28. FishboxPump
29. ConsoleTopOrganizer
30. TrimTabMaintenance
31. OptionalLewmarV-700Windlass
32. LewmarWindlassTroubleshootingChart
33. Hard Top
34. OptionalMarineHeadWithWasteTank(TypeIIIMSDWaste
ManagementSystem)
40. OptionalUtilityLeaningPost
41. ElectricGrill&Refrigerator
42. ProMarinerInverter/Charger
43. OptionalRearFacingBottomUnit
44. OptionalA/C&Heat
46. OptionalBowShade&RearShadeExtension
47. OptionalRearFacingCamera
48. GoLightStrykerLEDSearchlight
49. ElectronicActuatedBowTable&BowFiller
50. WindshieldWipers,Reservoir&WindshieldVent
51. AdjustableHelmSeat&DrivingPlatform
52. OptionalSeakeeperSystem
53. DiveDoor&BoardingLadder
54. ReversoEngineFlushSystem
55. BatteryCharger
56. OptionalBowThruster
57. SeaChestBaitwellPumpSystem60.
58. Pilot’sBerth
59. VinylCareandCleaning
60. AluminumCosmeticCorrosion(Pitting)
61. CaringforAluminum
62. CaringforStainlessSteel
63. Windshield,WindowandHatchCareInstructions
64. GelCoat
1

FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Sailfish 360 CC Specifications
SPECIFICATIONS
LOA Hull Only ................................................ 36’
Length Rigged ...........................................38’ 6”
Beam..........................................................11’ 2”
Fuel Capacity.................................. 400 Gallons
Fresh Water.......................................42 Gallons
Dry Weight........................................ 12,700 lbs.
Cockpit Depth Rear.......................................30”
Cockpit Depth Front .....................................40”
Max Horsepower....................................1050 hp
Draft (Hull Only).............................................28”
Dead Rise (Multiangle)............................22°-24°
Battery Capacity..............................................5
Rod Holders (Standard)..................................34
Bridge Clearance with Hard Top................. 9’ 10”
Person Capacity ........................ Yacht Certified
STANDARD FEATURES
Boat
• 3 Piece Construction w/ Cored Hull Sides
• Boarding Ladder (4 step with grab handle)
• Built In Rigging Tubes (From Bilge to Helm with
pull tapes)
• Carbon Fiber & Kevlar® Reinforced Deck & Hull
• Closed Cell Foam Flotation
• Cockpit Toe Rails
• Dive Door w/ 4 Step Folding Ladder
• Easy Access Electronics and Rigging Area
• Edson Black Ops Steering Wheel w/ Deluxe Grip
& Power Knob
• Exclusive Dot Matrix Non-Skid Flooring
• Exclusive VDS Hull Design (Variable Deadrise
Stepped Hull)
• Hard Top w/ Vented Sun Roof, Articulating Rear
Shade
• Insulated Locking Con Box Storage
• Integrated D Channel Hard Top Frame
• Oversized Bilge Access
• Power Assist Steering
• Recessed SST Cup Holders (6 - 32 oz.)
• Recessed SST Cup Holders (14)
• SailTech Composite Full Length Transom
• SailTech Foam Filled Fiberglass Stringer System
• Thru Hull Windlass System
• Trim Tabs / High Performance Dual Ram / Heavy
Duty With Indicator & Built In Auto Retract
Feature
• Walk Thru Transom Door with Wave Guard Step
Bow
• 12 Volt DC Accessory Plug
• Bow Shower
• Fully Upholstered Convertable Bow Seating
and Lounge Area w/ Power Adjustable Table/
Bow Filler and Fold-Away Forward Facing
Backrests
• SST Low Prole Bow Rail
• Twin insulated 80qt. Storage Boxes
Electrical
• 8 Spreader Lights w/ Four Way Control
• Accessory Switch Panel w/Circuit Breakers
• Built-In 4 Bank Battery Charger w/ LED Readout
• Compass
• Dock Side Power
• Fully NEMA Compliant
• Fusion Transom & Bow Remote Control
• Fusion/Wet Sounds Stereo System & USB Port
• LED Anchor Light
• LED Interior Cockpit & Bilge Lighting
• LED Navigational Flip Up Bow Light
• Lumitec Underwater LED Lighting
• Multiple 12 Volt DC Accessory Plugs
• Push To Start Engines
• SST Refrigerator
• VSR Battery Charging System
Fishing
• 42 & 32 Gallon Pressurized Circulating
Baitwells
• Built-In Tackle Storage
• In-Floor Fish Boxes (w/ Advanced Vacuum Pump)
• Sea Chest Baitwell Pump System
• Tuna/Dive Door
Hardware
• Fender Cleats (Aft (2), Mid-Ship (2))
• Flush Mount Hinges, Latches & Deck Plates
• Heavy Duty SST Bow & Stern Eyes
• Heavy Duty SST Rub Rail
Head/Berth
• Corian Counter Tops
• Fresh Water SS Sink
• Pilot’s Berth
• SST Port Light
• Stand-up Shower w/ Curtain
• Wood Framed Mirror, Wood Steps & Cabinetry
• Yacht Style Flooring
Helm
• Adjustable Height Standing Driving Position
• Comfort Zone Anti-Fatigue Pad
• Console Footrest
• Deluxe Walk In Console Berth (Lockable) w/
SST Port Light
• Glass Enclosure w/Vent, Wiper & Windshield
Washer
• Large Dash Area (Capable of ush mounting
Twin 16” Screen or Triple 12” Screens)
• Overhead Engine Monitor
Plumbing
• Automated Motor Flushing System
• Automatic Bilge Pump (2 - 2000 GPH Aft - 750
GPH Forward)
• Concealed Freshwater Electric Marine Head
w/ Overboard Discharge
• Freshwater Stations (4) - (Transom, Leaning
Post, Bow and Berth)
• High Speed Live well Pickup
• On Deck Water Management System
• Retractable Raw Water Wash Down
• Self Bailing Cockpit (w/2 6” Oval Scupper
Drains with Collector Box)
Seating
• 60” Hide-a-way Rear Seating
• Bow Bottom and Backrest Cushions
• Chase Lounge Seating w/ Fold Down Arm Rests
• Leaning Post w/ 3 person Helm Seating and 3
Person Aft Facing Seat w/ Flip Down Armrest
& Cup Holders, Cooler, Fridge, Storage,
Powered Driver’s Seat Slide and Landing for
rear Facing Bottom Machine
• Console Top Tackle Organizer (CTO)
• Dash Storage Pocket
• Engel 80qt. Carry-On Cooler
• Insulated Locking Con Box Storage
• LP Glove Box w/ Charging Station
• Recessed Rod Storage - Port & Starboard
• Tackle Storage Port & Starboard
• Twin 260 qt. Insulated Aft Fish Boxes
• Twin Hard Top Storage Boxes
• Under Gunwale Storage
Storage
• Console Top Tackle Organizer (CTO)
• Dash Storage Pocket
• Engel 80qt. Carry-On Cooler
• Insulated Locking Con Box Storage
• LP Glove Box w/ Charging Station
• Recessed Rod Storage - Port & Starboard
• Tackle Storage Port & Starboard
• Twin 260 qt. Insulated Aft Fish Boxes
• Twin Hard Top Storage Boxes
• Under Gunwale Storage
OPTIONS
Boat Options
• Bow Shade
• Bow Thruster
• Chase Lounge/Con Box Seat Cover
• Console & Leaning Post Covers
• Dash Misting System
• Grand Slam 380 Outriggers w/ 15’ Poles
• Optimus 360 Joystick Steering
• Powder Coating (Black)
• Rear Shade Extension
• Rod Holders, Extra Pair (2)
• SeaKeeper Stabilization
• Two Tone Hard Top
• Yamaha Helm Master
Electrical Options
• A/C / Heat in Berth and Helm
• Batteries for Twins (4) - 27 Series
• Batteries for Triples (5) - 27 Series
• Batteries for Inverter (3) - 31 Series
• Garmin Auto Pilot
• Garmin B75M Airmar Thru Hull Transducer
w/ CHIRP
• Garmin B175M Airmar Thru Hull Transducer
w/ CHIRP
• Garmin GMR Fantom™ 56 Radar
• Garmin GMR Fantom™ Radar Cable & Power Cable
• Garmin GMR™ 18 x HD Radome
• Garmin GPSMap 8612xsv w/o Transducer
• Garmin GPSMap 8616xsv w/o Transducer
• Garmin GPSMap Triple - (1) 8612xsv w/o
Transducer, (2) 8612
• Garmin GPSMap Twin - (1) 8612xsv w/o
Transducer, (1) 8612
• Garmin GPSMap Twin - (1) 8616xsv w/o
Transducer, (1) 8616
• Garmin Radar Cable & Power Cable
• Garmin 210 VHF Radio & Antenna
• Offshore Inverter System
• Garmin GC-200 Rear Facing Camera for Hard Top
• Rear Facing Garmin GPSMap 942xsv w/o
Transducer
• Remote Spot Light For Hard Top
Seating Options
• Aft Starboard 36” Folding Side Seat In Place
of Storage Cabinet
• Utility Leaning Post w/ Fridge, Electric
Grill, Corian Counter Top, Livewell, Drivers
Platform & Landing for Rear Facing Bottom
Machine
Engine Options
Yamaha
• Triple F350
• Twin F425
• Triple F300
• White Motor Upgrade
Mercury
• Triple 300 Verado
• Triple 350 Verado
• White Motor Upgrade
2

07/01/2019
SAILFISH BOAT TRAILER
MEASUREMENT CHART:
Boat Models B C D E F G H I
208CC 78 in. 53 in. 28 in. 11 in. 82 in. 218 in. 235 in. 27 in.
1900BB 88 in. 66 in. 37 in. 10.5 in. 99.5 in. 198 in. 217 in. 24 in.
2100BB 88 in. 66 in. 37 in. 10.5 in. 99.5 in. 220 in. 240 in. 24 in.
220CC & 220WAC 87 in. 59 in. 31 in. 14.5 in. 102.5 in. 216.5 in. 243 in. 32 in.
236CC & 241CC & 245DC 91 in. 57.5 in 30 in. 14 in. 103 in. 250 in. 273 in. 36 in.
240CC & 240WAC & 242CC 92 in. 59 in. 31 in. 15 in. 107 in. 241 in. 272 in. 30 in.
270CC & 270WAC & 272CC & 275DC 94 in. 59 in. 31 in. 15 in. 107 in. 268 in. 302 in. 30 in.
290CC 94.5 in. 61 in. 32 in. 15.5 in. 107 in. 301 in. 336 in. 30 in.
320CC & 320EXP & 325DC 105 in. 65 in. 33 in. 16.5 in. 115 in. 315 in. 349 in. 38 in.
360CC 119 in. 72 in. 36 in. 20.1 in. 135 in. 383.34 in. 417.49 in. 48.19 in.
3

FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019

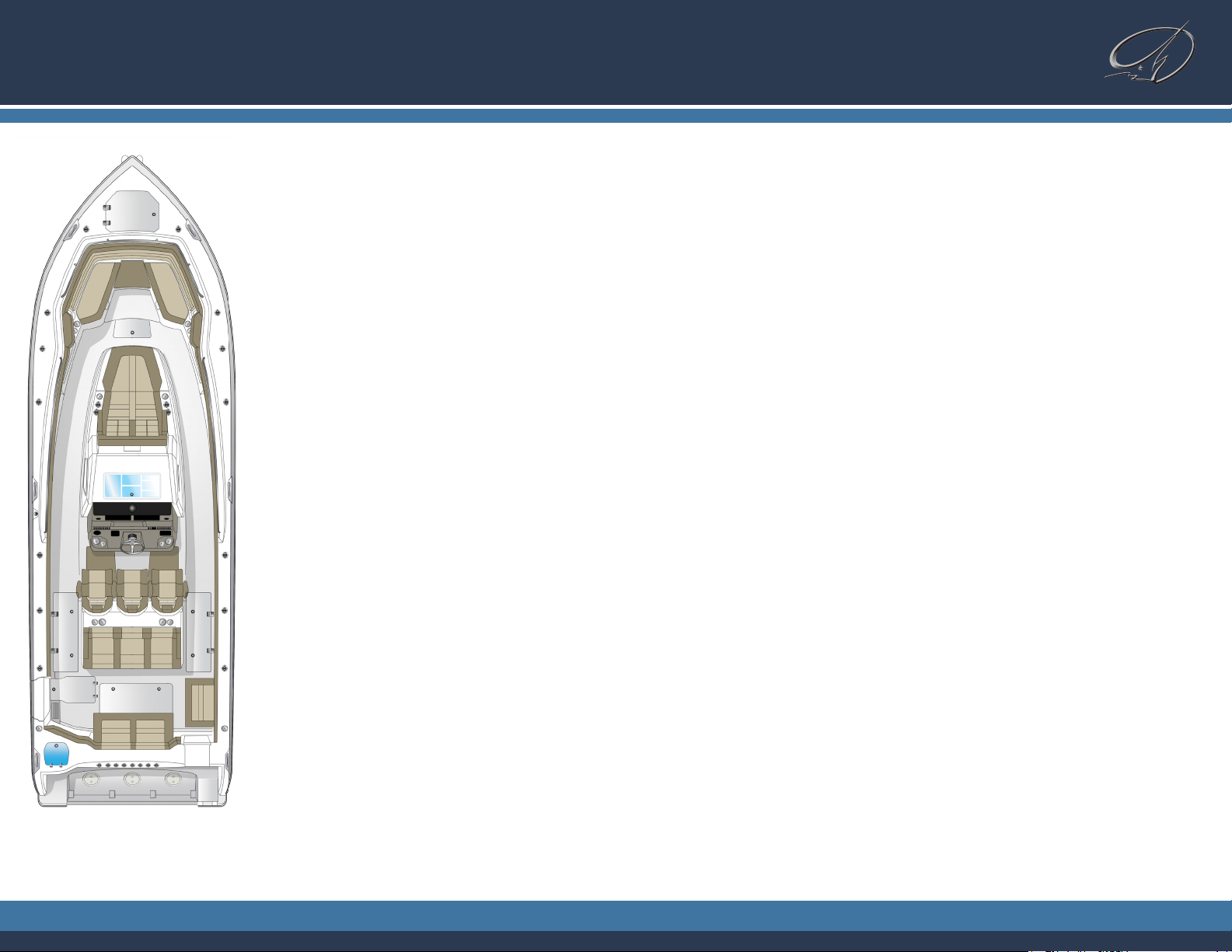

Sailfish 360 CC Boat Layout
Key Description
1ThruHullWindlassSystem
2RemovableSeatforWalkupBow
3PowerActuatedBowTableandLounge
Filler
4ForwardFacingBackrests
5Co󰀩nBox/Storage
6WindshieldWiper/Washer
7UnderGunwaleStorage
8AdjustableHeightStandingArea
9PowerAdjustableDriver’sSeat
Key Description
10 RearFacingBottomMachine
11 In-FloorFishBoxesw/Pump-outPumps
12 SecondaryLivewell
13 Built-InDiveLadder
14 MechanicalRoom
15 OptionalFold-OutSideSeat
16 60”Fold-AwaySeat
17 Livewell
18 BoardingLadder
q
f
go
u
u
e
r
r
i
d
a yw jt
s
gh
k
ls
4

Sailfish 360 CC
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Boat Safety & Warning Labels
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
04/12/2020
Warning Labels
The safety for you and everyone on board, as a boat owner, you need to become familiar with and the locations of the Caution,
Warning and Danger Labels found on your boat.
Below are images of the labels to help you maintain and operate your boat safely.
5

Sailfish 360 CC
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Boat Safety & Warning Labels
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
04/12/2020
Warning Labels Continued
The safety for you and everyone on board, as a boat owner, you need to become familiar with and the locations of the Caution,
Warning and Danger Labels found on your boat.
Below are images of the labels to help you maintain and operate your boat safely.
6

Sailfish 360 CC
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Boat Safety & Warning Label Locations
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
04/12/2020
Inside Battery Switch Doors
7

Sailfish 360 CC
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Boat Safety & Warning Labels
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
04/12/2020
Replacement Warning Labels
If any of your Boating Safety or Warning Labels become damaged, please call Sailsh Boats’
parts department for replacement stickers at 229-377-2125
8

Sailfish 360 CC
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Boarding Ladder & Unassisted
Boarding Situations
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
04/12/2020
Unassisted Boarding Instruction
When using the ladder in an unassisted boarding situation, reach over the transom and open the covering board lid that is covering the
ladder, pull ladder towards you, by picking up the ladder by the steps, release the strap, deploy the four step ladder by rotating it to the
down position. Use your hand or foot to fully extend the ladder in the down position. Use the grab handle and ladder to board your boat.
When fully onboard, be sure to place the ladder back in the storage position by reversing the deployment process.
9

FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Battery Selector Panel and Wiring
Back View With Wiring
Front View
10

FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Wiring Diagrams
Amerishade Weathertight Switch Box Wiring
Amerishade Switch Box Programming Instructions
Bow Table Actuator Wiring
120V 60Hz Breaker Panel
220V 50Hz Breaker Panel (Overseas Boats)
Aft Hull Harness
Battery Switch Diagram
DC Breaker Panel Diagram
Forward Hull Harness
Hard Top Switch Panel Diagram
Hard Top Wiring Harness Diagram
Head Light Switch
Head Liner Harness
Helm Ground Block Assembly
Helm Switch Panel Diagram
Leaning Post Harness
Leaning Post Switch
Seat Slide Switch
Table Lift Switch
The wiring diagrams are available for download as individual .jpg les, or in a combined PDF le from
the Seminole Marine Public Google Drive.
11

FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Fuel System Layout
q
y
y
e
e
e
e
Key Description
1FuelFilterAccess
2FuelFill
3FuelTankLocation
4FuelPickups
5FuelSender
6PrimerBulbs
r
r
r t
w
12

FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Head & Waste Plumbing Diagram
Download Hi Resolution Diagram
13

FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Raw Water Plumbing Diagram
Download Hi Resolution Diagram
14

FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Fresh Water Plumbing Diagram
Download Hi Resolution Diagram
15

FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Air Conditioner Plumbing Diagram
Download Hi Resolution Diagram
16

FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Helm Area
Key Description
1Compass
2OptionalGarmin
3SwitchPanels
4FusionStereo
5TrimTabActuator
Switches
6Binnacle
7Driver’sPowerSeat
SlideSwitch
8WindlassSwitch
9OptionalA/CDashVents
10 UexTiltHelm
11 OptionalRemoteSpot
LightControl
12 IgnitionPanel
13 OptionalGarminVHF
Radio
14 OptionalOptimus360
JoystickSteering
q
o
i
a
s
d
f
g
w
e
r
t
y
u
w w
e
o
17

Sailfish 360 CC
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
UFLEX Steering
System
UFLEXhasbeenthechoiceforsteering
forSailshboatsforthelastthreeyears
becauseofthequalityoftheUSAbuilt
products.
Everyhelmcomes standardwith afull
stainlesssteelshaft;cylindersarebuilt
withcarbonsteelpistons,coupledwith
extra-largeendcapstopreventleakage.
All of their connection materials are
304stainlesssteelthathasbeenelec-
tro-polishedandpassivated.
Formoreinformationontheserviceand
maintenance of your UFLEX system
please refer to your UFLEX owner’s
manualorviewitelectronicallyathttp://
uexusa.ultraexgroup.com/public/File/
UFLEX2013_USA.pdf
18

Sailfish 360 CC
FISHING FOCUSED. FAMILY FRIENDLY.™ | www.SailfishBoats.com
07/01/2019
Ignition Switches, Engine
Shut-off Cord/Lanyard
EachSailshboatwillbeequippedwithaYama-
haorMercuryignitionswitchwithanemergency
engineshuto󰀨cord/lanyard.
This lanyard should be worn at all times while
operatingthevessel,ifthevesseloperatorfalls
ormovesaunsafedistanceawayfromthehelm
controlsthelanyardwillpulloutcausingtheen-
ginetoshutdown.
Makesurethelanyardisnotattachedtoapartof
yourclothingthatcouldbeeasilytornfreecaus-
ingtheswitchnottopull.SeeyourYAMAHAor
MERCURYowner’smanualformoreinformation
onthissafetyfeature.
Engine Break-In Period
Eachnewoutboardmotorwillneedtogothrough
abreakinperiodtomakesurealloftheinternal
movingpartsandcomponentshaveachanceto
correctlymate.
Formoreinformationonthebreakinperiodspe-
cictoyourenginepleaserefertoyourYAMAHA
orMERCURYOwner’smanual.
19
