SAINT-FUN Street Basketball Deluxe LED User manual

STREET BASKETBALL
Instruction Manual
●To be able to safely use this machine, please be sure to carefully read this instruction
manual before use.
● Please carefully keep this manual in a manner that the users can look for it at any time.
The specifications of the machine and the contents of this manual are subject to change without notice.
There is a slight difference between the illustrations and the actual product.
20151013
街
頭
籃
球
(
尚
瑩
共
用
版
) CXXACXX0(
英
)
20180327
Warning

- 2 -
Table of Contents
Special note .....................................................................................................3
Maintenance and Inspection ............................................................................3
I.Inspection.......................................................................................................3
1.Parts list..............................................................................................4
2.Half-Assembly type parts list ..............................................................5
II.Machine view/size and power rating..............................................................6
III.Component description ................................................................................6
IV.Assembly and disassembly..........................................................................7
1. Assembly and disassembly for Disassembly type .............................7
2. Assembly and disassembly for Half-Assembly type.........................17
3.【SET-UP Position & maintenance】...............................................25
V.Adjustment and Inspection..........................................................................25
1.Link adjustment ................................................................................26
【Cable link SET-UP】....................................................................26
【Link main board adjustment】...................................................... 27
2.Adjustment........................................................................................ 28
【SET-UP 1】SET-UP the coin entry price for each game.............. 28
【SET-UP 2】Additional tickets.......................................................29
【SET-UP 3】Multiple of tickets......................................................29
【SET-UP 4】Game Time SET-UP.................................................30
【SET-UP 5】Basket motor AUTO test...........................................31
【SET-UP 6】Ball holder motor AUTO test..................................... 31
【SET-UP 7】Reset the top score 250 or keep the record..............31
【SET-UP 8】SET-UP DEMO music（ON or OFF）......................31
【SET-UP 9】Clear credit ...............................................................32
3.LED Monitor inspection.....................................................................32
4.AUDIT...............................................................................................33
5.Error code......................................................................................... 34
VI.How to play................................................................................................35
1.There are 4 Stages in total ............................................................... 35
2. 2 play types available ...................................................................... 35
VII.Screw and Nut list.....................................................................................36

- 3 -
Special note
We want to thank you for choosing our Street basketball machine, and hope you read
these instructions first to insure the security of the user before this product is used.
This Manual contains the characteristics, special notes, and a Simple breakdown of
the product.
Maintenance and Inspection
■ Please keep the machine clean. The exterior is touched by players, resulting in it
getting dirty, so please use neutral cleaners on surface.
■ Please regularly clean the machine to maintain appearance.
■ Machine Exterior: Use stain removers or detergents to clean and remove stains.
■ Acrylic Parts: Use glass-cleaning detergent to clean.
■ Do not use water to clean the machine.
※Machine position regulation
The power must be turned off before any movement.
The brake must be released, before the machine is moved.
Do not put the machine under the direct sunlight, it will damage the inside parts.
I.Inspection
Before product use, please confirm the product content first, if anything is missing, please
contact us right away.
NO
Items
Specification
Total quantity
1
Chassis items
Packing
1 unit
2
Street basketball
No.5 Basketball
10 unit
3
Key
Maintenance door
1 pc
4
key
Cash box
1 pc
5
AC cable line
1 unit
6
Operation manual
A4
1 set
7
Accessories
Packing
1 set
8
List of Street Basketball Spare Parts
A4
1 set

- 4 -
1.Parts list
1A Sensor for basket
1B Basket kits
2A Basket board
2BR Back right net
stander kit
2BL Back left net
stander kit
2C Front net stander
bridge(short) x2
2E Front net stander
bridge(long) x2
3A Front right net
stander kit
3B Front left net
stander kit
4A Base holder BF
4B Base holder FB
4C Base holder FF
4D Base holder BB
4E Base holder FF
(Bottom)
5AWooden base
A type
5B Ball holder kit
5C Ball guide kits
6A Ball net holder kit
6B Main part
Top cover(optional)
6E Rubber pad x2
Basketball
Metal Shelf (optional)
Lower Side Net
(Frame Included)×4
(optional)
Wiring cover plate x2

- 5 -
2.Half-Assembly type parts list
Main frame
4B Base holder FB
4C Base holder FF
Top cover(optional)
5B Ball holder kit
5C Ball guide kits
6A Ball net holder kit
6B Main part
Metal Shelf (optional)
Basketball
Wiring cover plate x2
Lower Side Net
(Frame Included)×4 (optional)

- 6 -
II.Machine view/size and power rating
Machine Dimensions：W1030×D2500×Top cover H2643mm
Weight：260 kg / 558.4 lbs (Accessories not Included )
(Top cover 6.6kg、Metal Shelf 3.4kg、Lower Side Net 4.2kg×4)
Voltage：AC110V~120V/AC220V~240V(50/60Hz) Use Electrical
plug display as a glide Located behind the machine.
Power Consumption：200W
Fuse：2A(AC220V~240V )/ 5A(AC110V~120V )
Token size：Ø 22mm~27mm
III.Component description
【Front】【Top】【Base】
【Back】【Side】
Top cover(optional)
Light board display
LED display(2 figures)
LED display(3 figures)
LED display(2 figures)
Coin selector
Ticket dispenser
Ticket box(inside)
Cash box(inside)
Bass speaker
Basket board
Basket kit
Metal Shelf
(optional)
IC Board
Power.
Test.Audit
Fuse
Ball
holder kit
Board cover
Basket cover
Light cover
AC Cable line
Electrical plug display
I/O control Board
Main part
Position direction
Lower Side Net
(Frame Included)×4(optional)

- 7 -
IV.Assembly and disassembly
1. Assembly and disassembly for Disassembly type

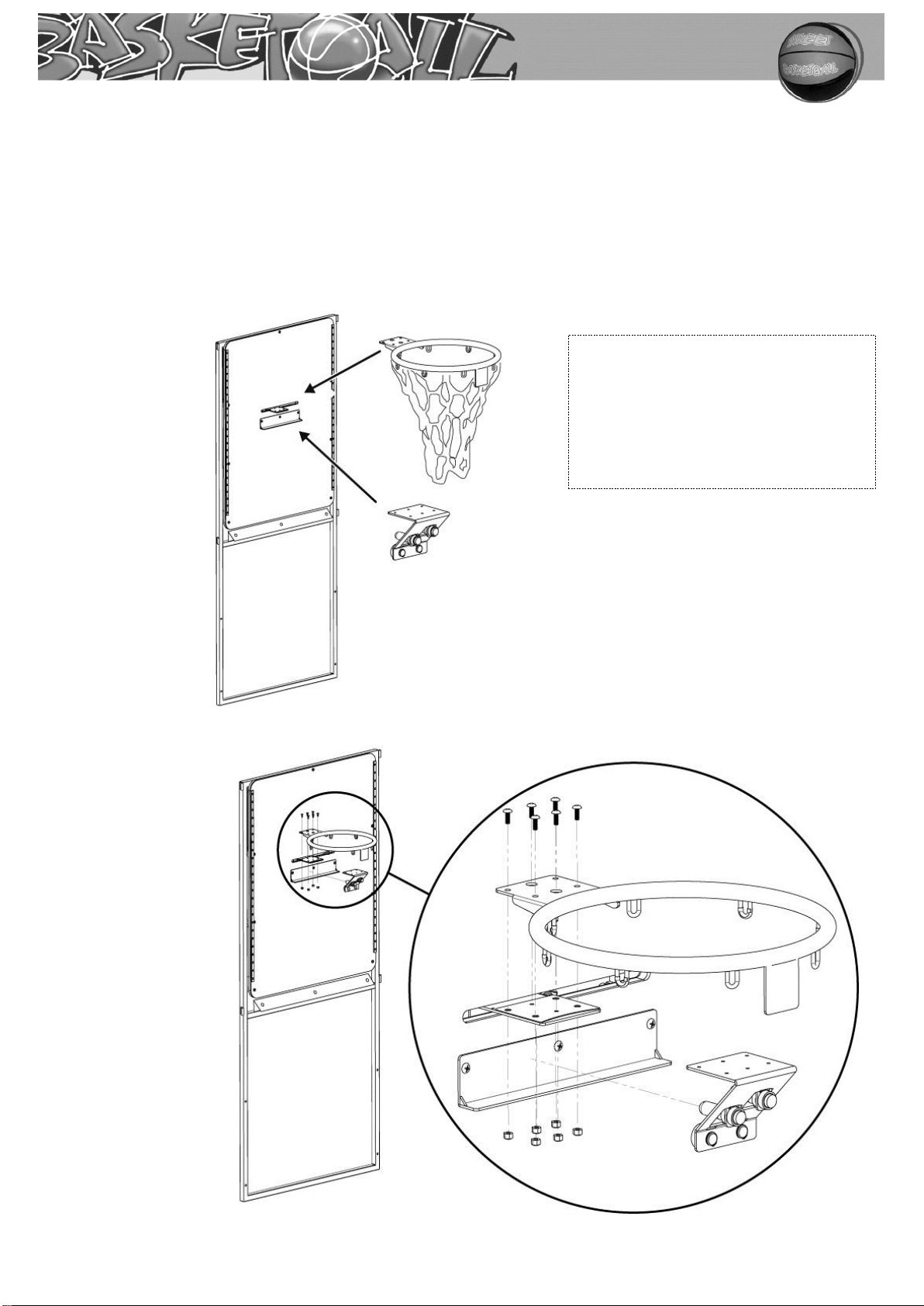

Step 1 :
Screw【1B Basket kits】on the basket board front.
screw(M5×15)×6
nut(M5)×6
Assembly parts
1A Sensor for basket
1B Basket kits
2A Basket board

- 8 -
Step 2：
1. Screw【2BR、2BL Back left & right net stander kits】on basket board left and right.
2. Screw【2C Front net stander bridge(short)】on Back left & Right net stander kits.
Assembly parts
2A Basket board
2BR Back right net stander kit
2BL Back left net stander kit
2C Front net stander
bridge(short)
Insert position
screw (M8×70)×4
nut (M8)×4
screw (M6×48)×2
nut (M6)×2

- 9 -

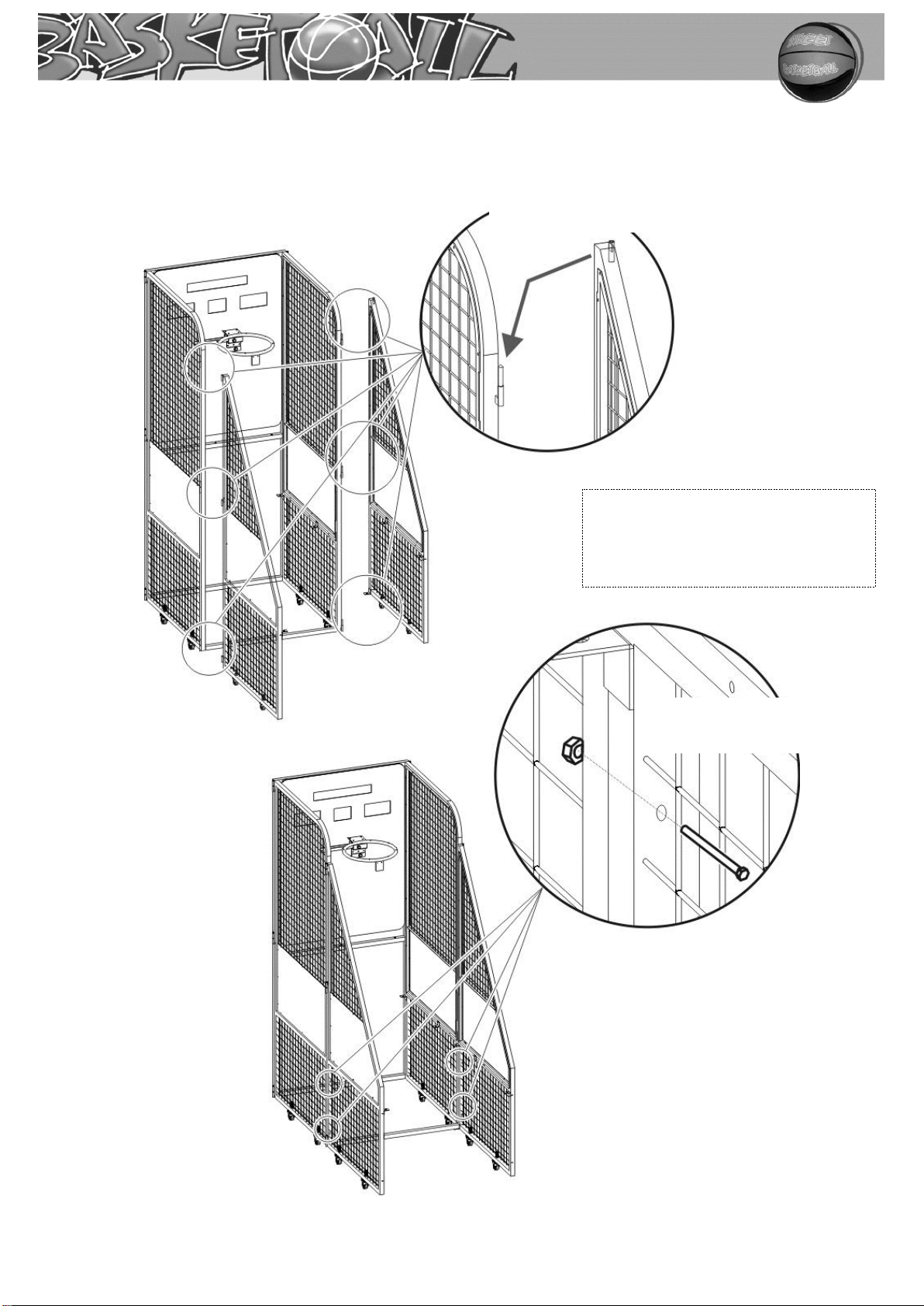

Step 3：
Assemble【3A、3B Front right & left net stander kit】on basket board left and right,
connect with screw & fixed it as drawing.
Assembly parts
3A Front right net stander kit
3B Front left net stander kit
Insert position
screw (M8×70)×4
nut (M8)×4

- 10 -

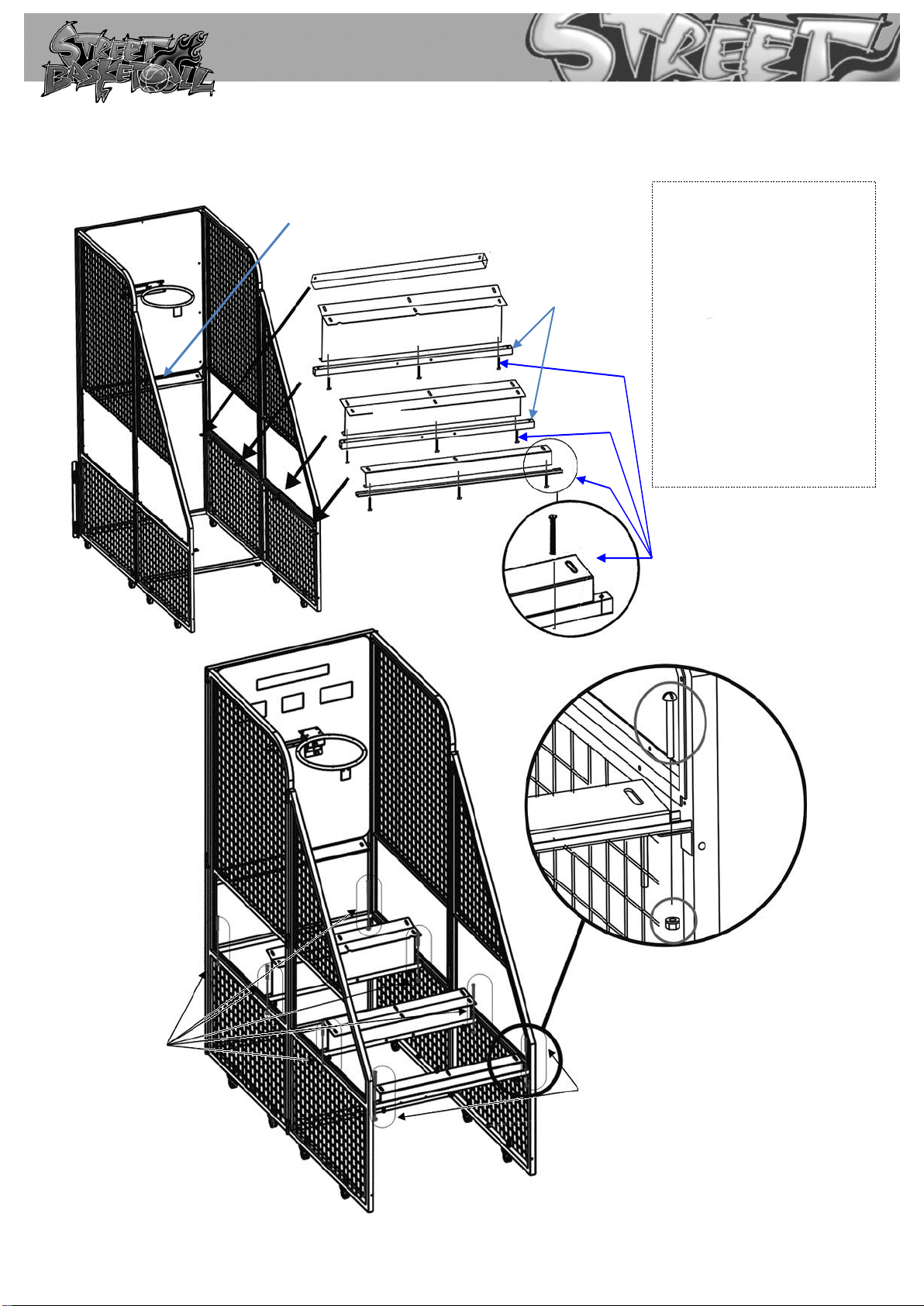

Step 4：
Screw the【BB、BF、FB、FF Base holders & Front net stander bridge(short)】step
by step as drawing.
Assembly parts
2C Front net stander
bridge(short)
2E Front net stander
bridge(long)
x2
4A Base holder BF
4B Base holder FB
4C Base holder FF
4D Base holder BB
4E Base holder FF
(Bottom)
BF
FB
screw (M6×26)×2
nut (M6)×2
screw (M6×48)×6
nut (M6)×6
(short)
screw (M6×48)×9
nut (M6)×9
washer(M6.5×13.5)×9
FF
(long)
BB

- 11 -

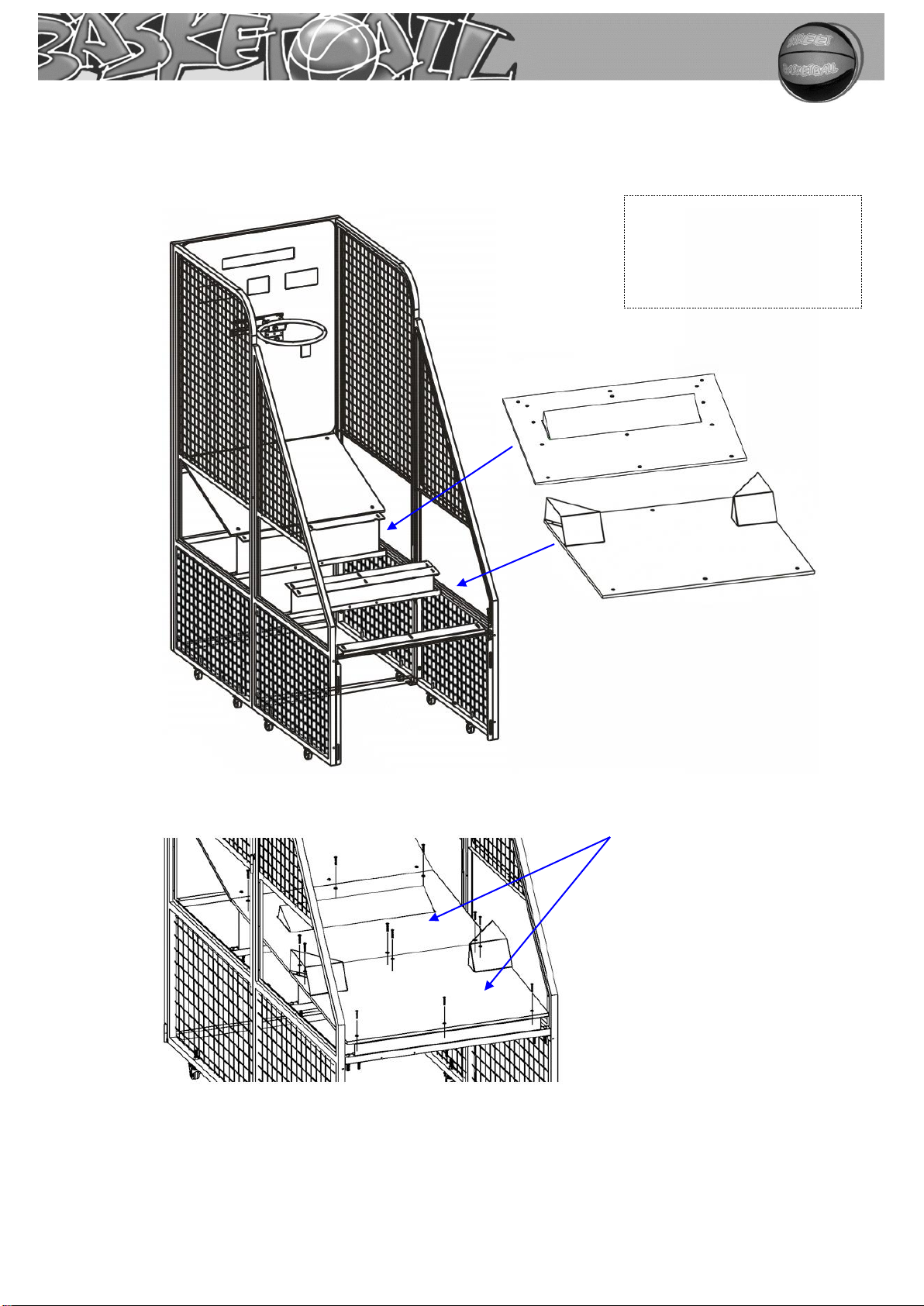

Step 5：
Screw the【5AWooden base A type、5B Ball holder kit、5C Ball guide kits、6E Rubber pad】
step by step as drawing.
Assembly parts
5A Wooden base A type
5B Ball holder kit
5C Ball guide kits
6E Rubber pad x2
Wooden base A type
Ball holder kit
Ball guide kits
screw (M6×26)×12
nut (M6)×12
washer(M6.5×13.5) ×12
screw (M6×48) ×6
nut(M6) ×6
washer(M6.5×13.5) ×6
Rubber pad
Rubber pad

- 12 -

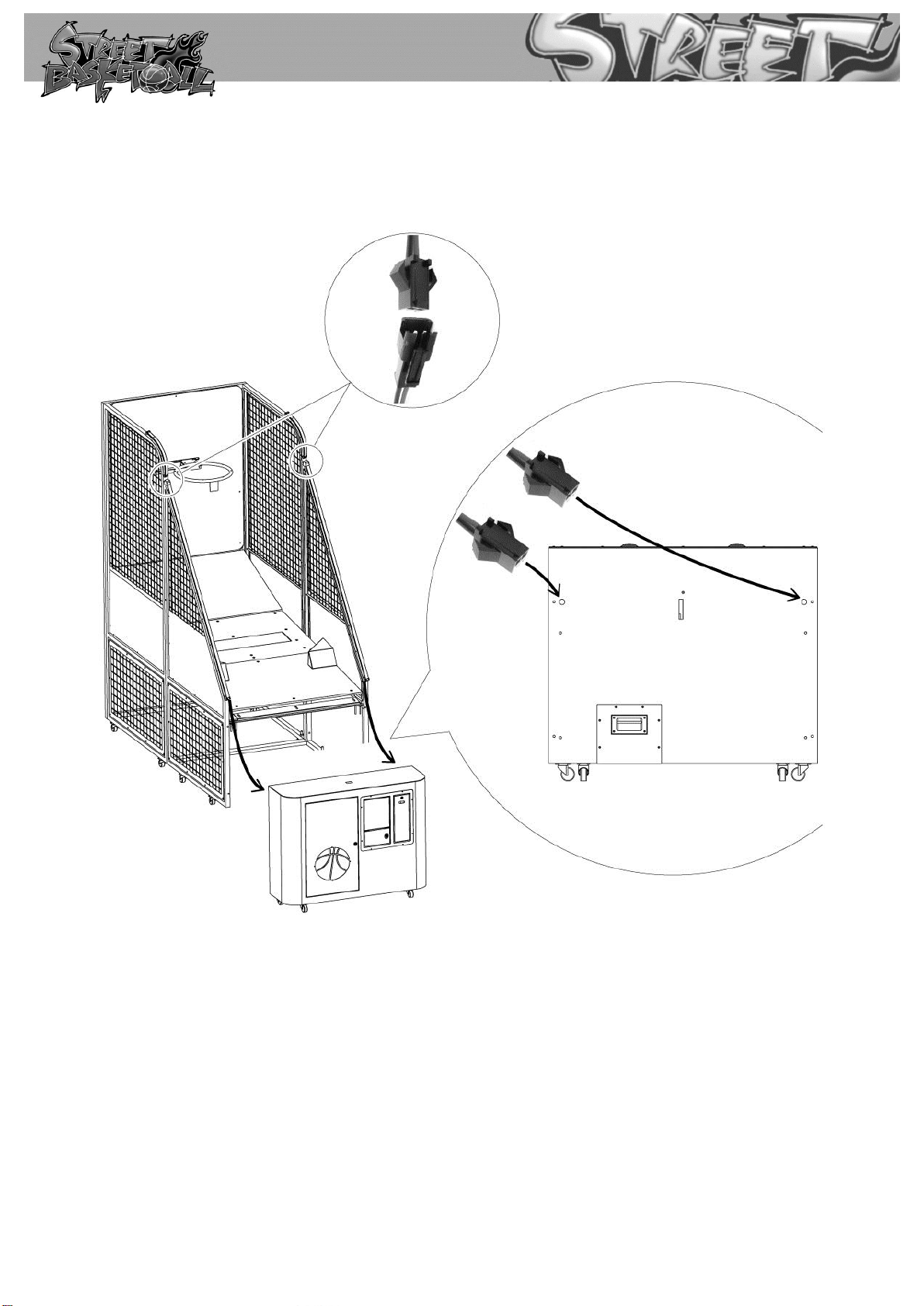

Step 6 :
Connect the connectors on both sides, and pull the connectors of the bottom of side LED
into main case.

- 13 -
Step 7：
1. Screw【6A Ball net holder kit】.
2. Screw【6B Main part】、【Metal Shelf (optional)】.
Assembly parts
6A Ball net holder kit
6B Main part
Metal Shelf (optional)
Ball net holder kit
Metal Shelf (optional)
Main part
screw (M8×90)×4
nut(M8)×4
sleeve(Ø
15×43)×4
screw (M8×16)×4
nut (M8)×4
washer(M10×20)×4
Hexagonal Phillips
screw with 2
Washers included 2
on each side.
Tighten the screws
through the metal
shelf against the side
panel until the shelf
cannot be easily
moved.

- 14 -
Step 8：
1.Fix the 3 main cords as the following drawing.
2.Run the IC board plug and the ball holder kit plug located underneath the front of
the ball net holder, through the hole in back of the main part.
3.Now connect plugs as shown in drawing.
Ball holder kit
Ball holder kit plug
IC board plug
Power plug
Main cords

- 15 -

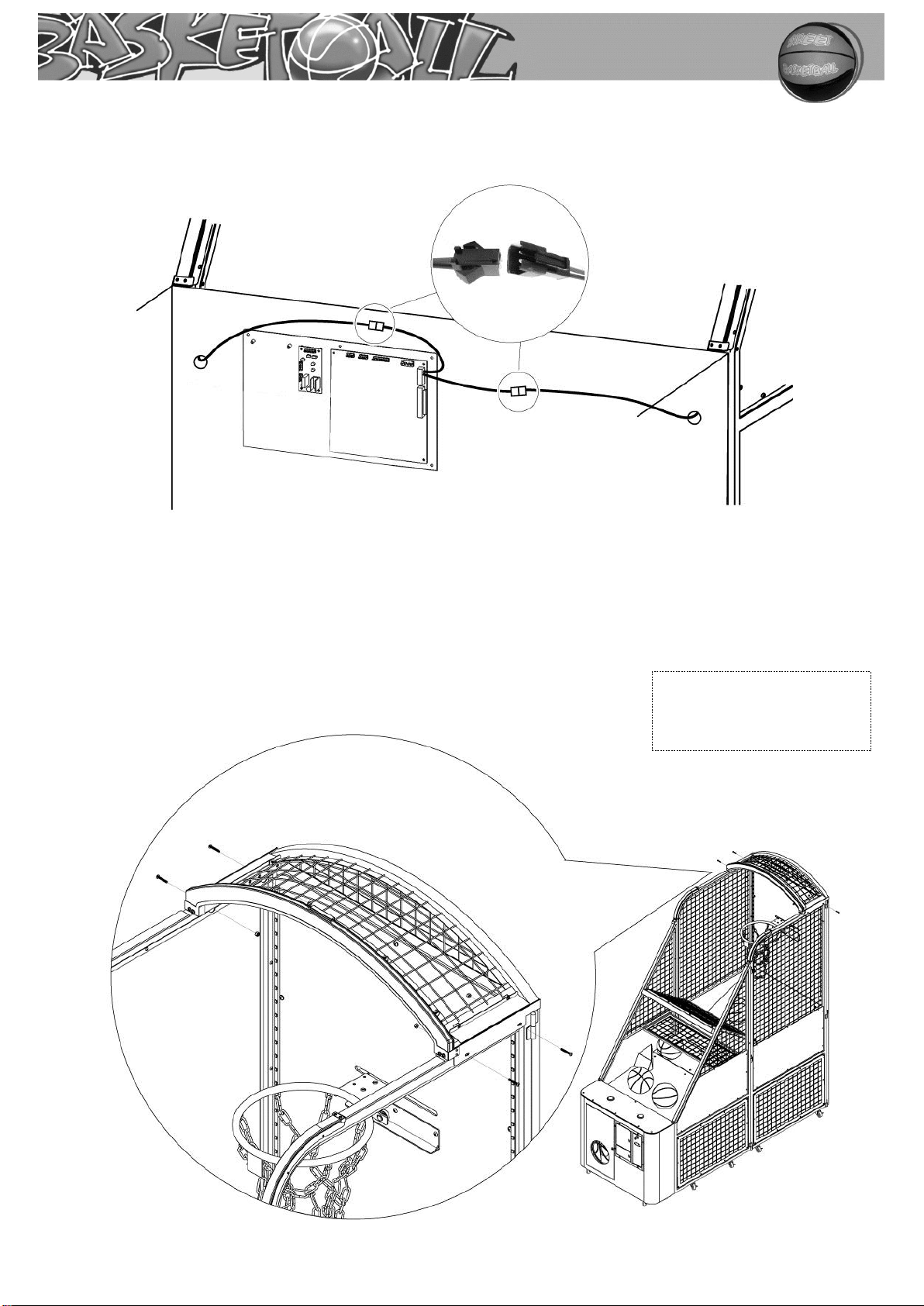

Step 9 :
Combine the connectors with the harness on main board.
Step 10 :
Screw【Top cover(optional)】step by step as drawing.
Assembly parts
Top cover(optional)
screw (M5×38)×4
nut(M5)×4

- 16 -

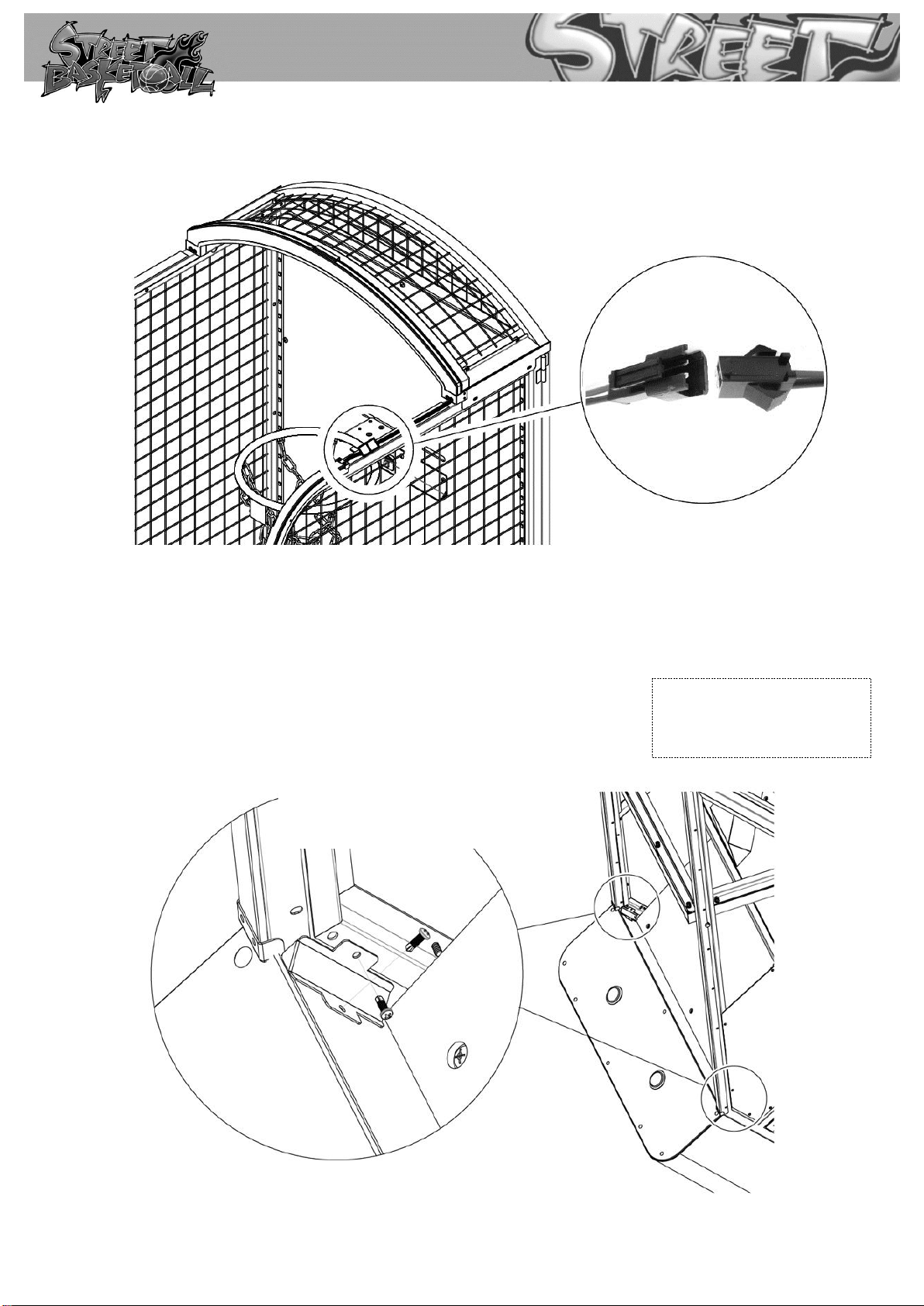

Step 11 :
Connect the connectors of top cover and side LED.
Step 12 :
Cover the harness exposed and gap by wiring cover plate.
screw (M4×12)×4
wiring cover plate ×2
Assembly parts
Wiring cover plate x2

- 17 -
2. Assembly and disassembly for Half-Assembly type

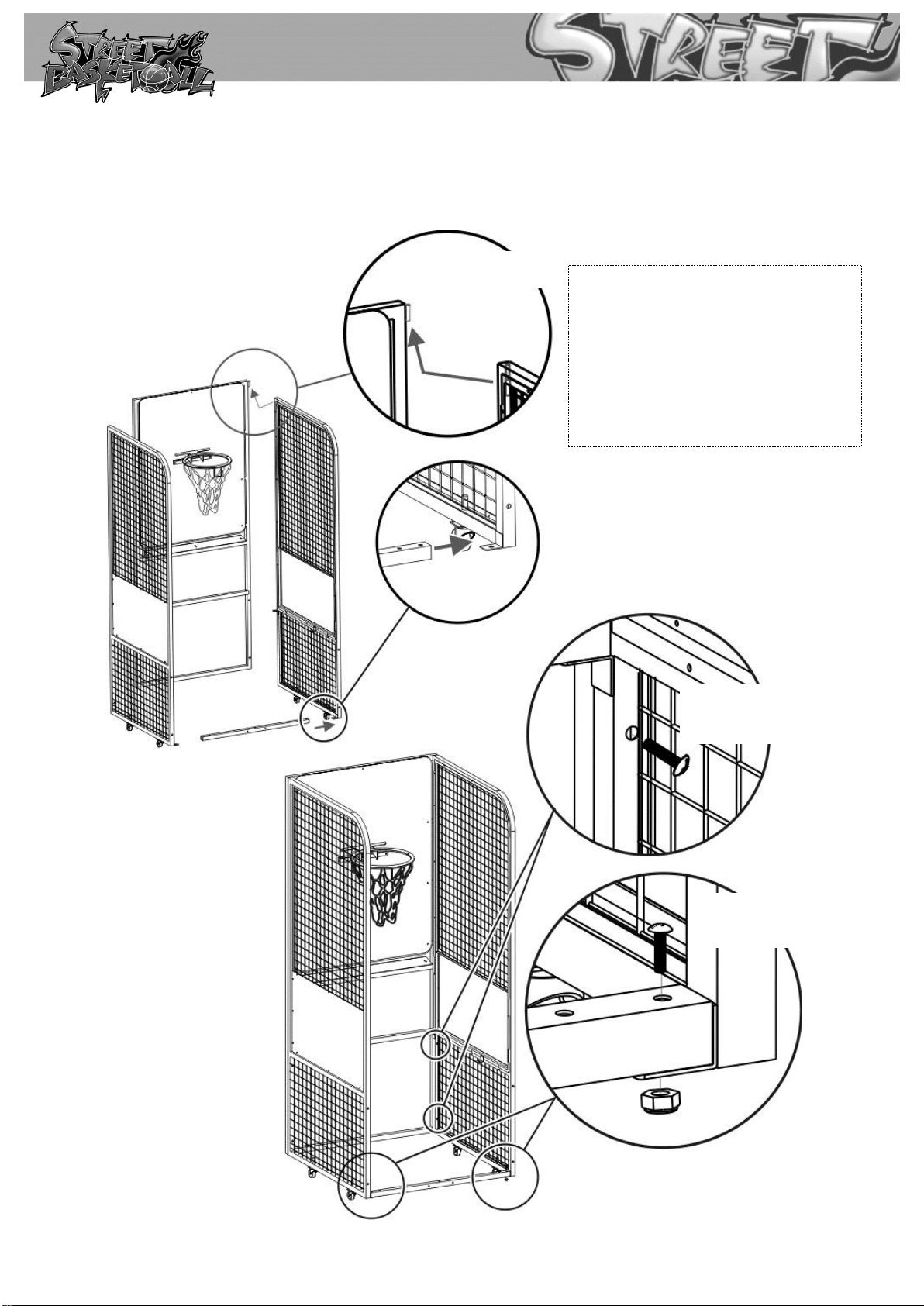

Step 1：
Turn the left and right frame180°to the position as drawing picture . Connect with
screw & fixed it as drawing.
screw (M8×70)×4
nut (M8)×4

- 18 -
Step 2：
Screw the base frame FB and base frame FF as drawing picture.
Assembly parts
4B Base holder FB
4C Base holder FF
FB
FF
screw (M6×26)×2
nut (M6)×2
washer(M6.5×13.5)×2
screw (M6×48)×2
nut (M6)×2
washer(M6.5×13.5)×2

- 19 -

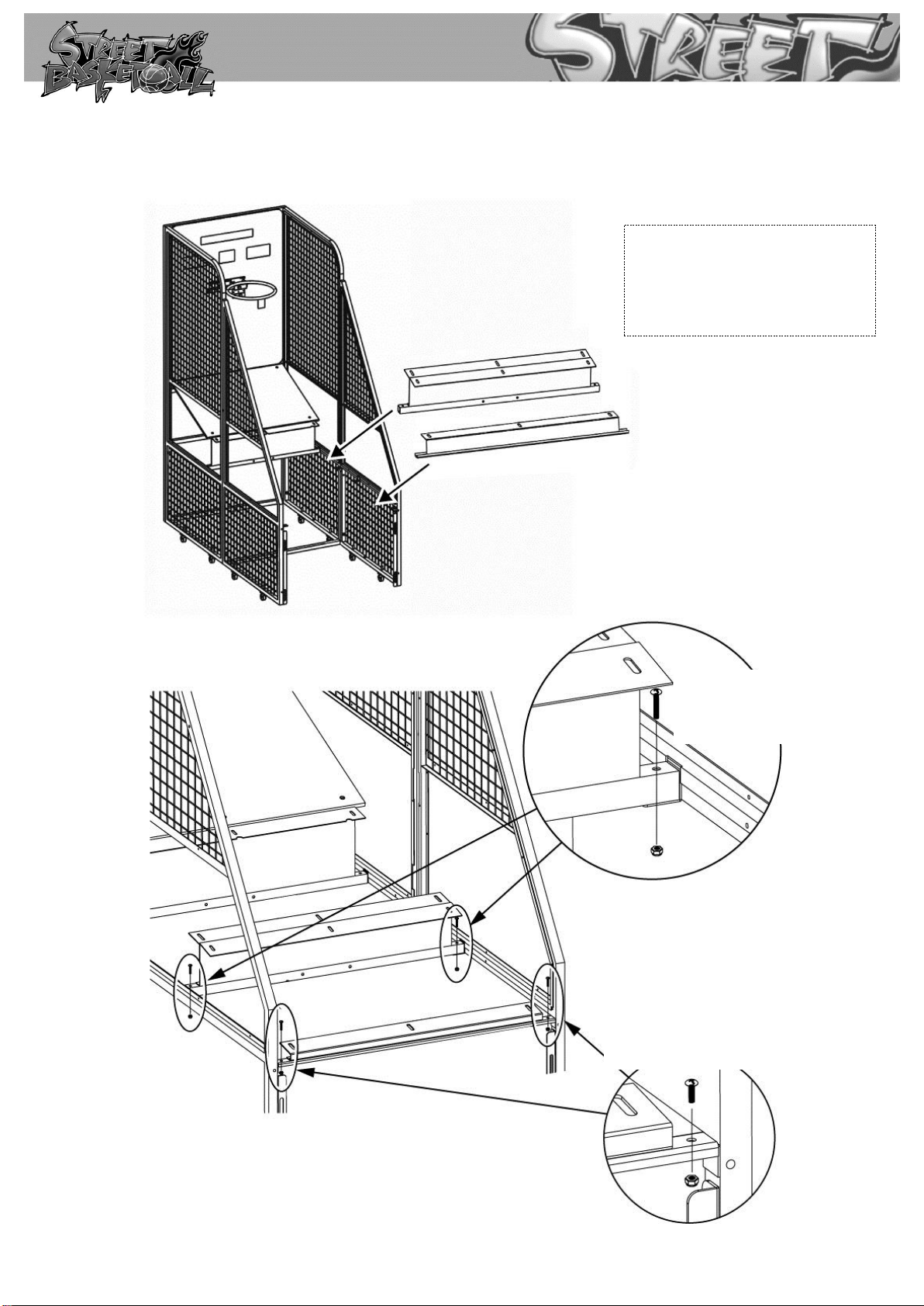

Step 3：
Screw the 5B Ball holder kit and 5C Ball guide kits as drawing picture.
Assembly parts
5B Ball holder kit
5C Ball guide kits
Ball holder kit
Ball guide kits
screw (M6×26)×12
nut (M6)×12
washer(M6.5×13.5)×12

- 20 -

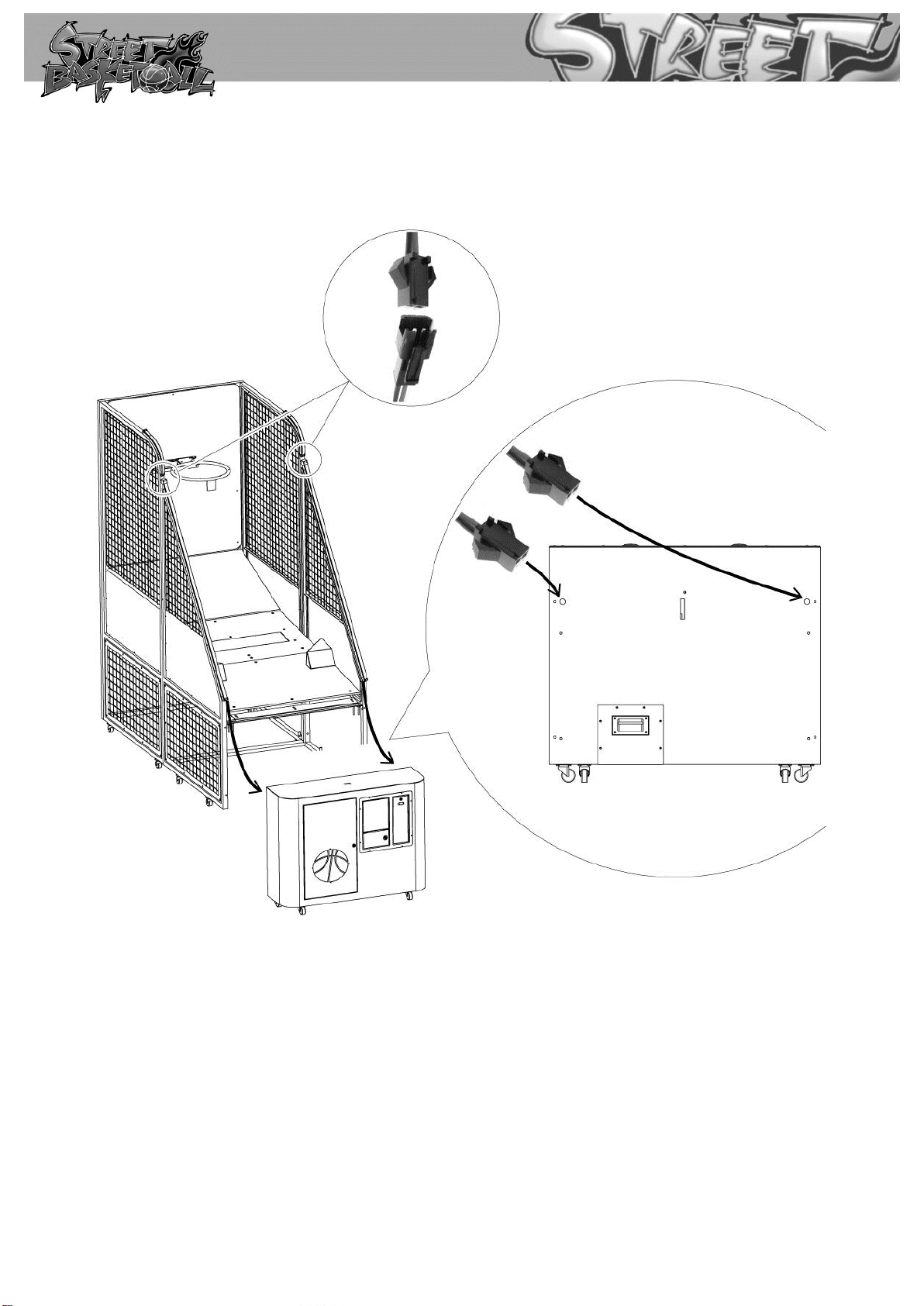

Step 4 :
Connect the connectors on both sides, and pull the connectors of the bottom of side LED
into main case.
