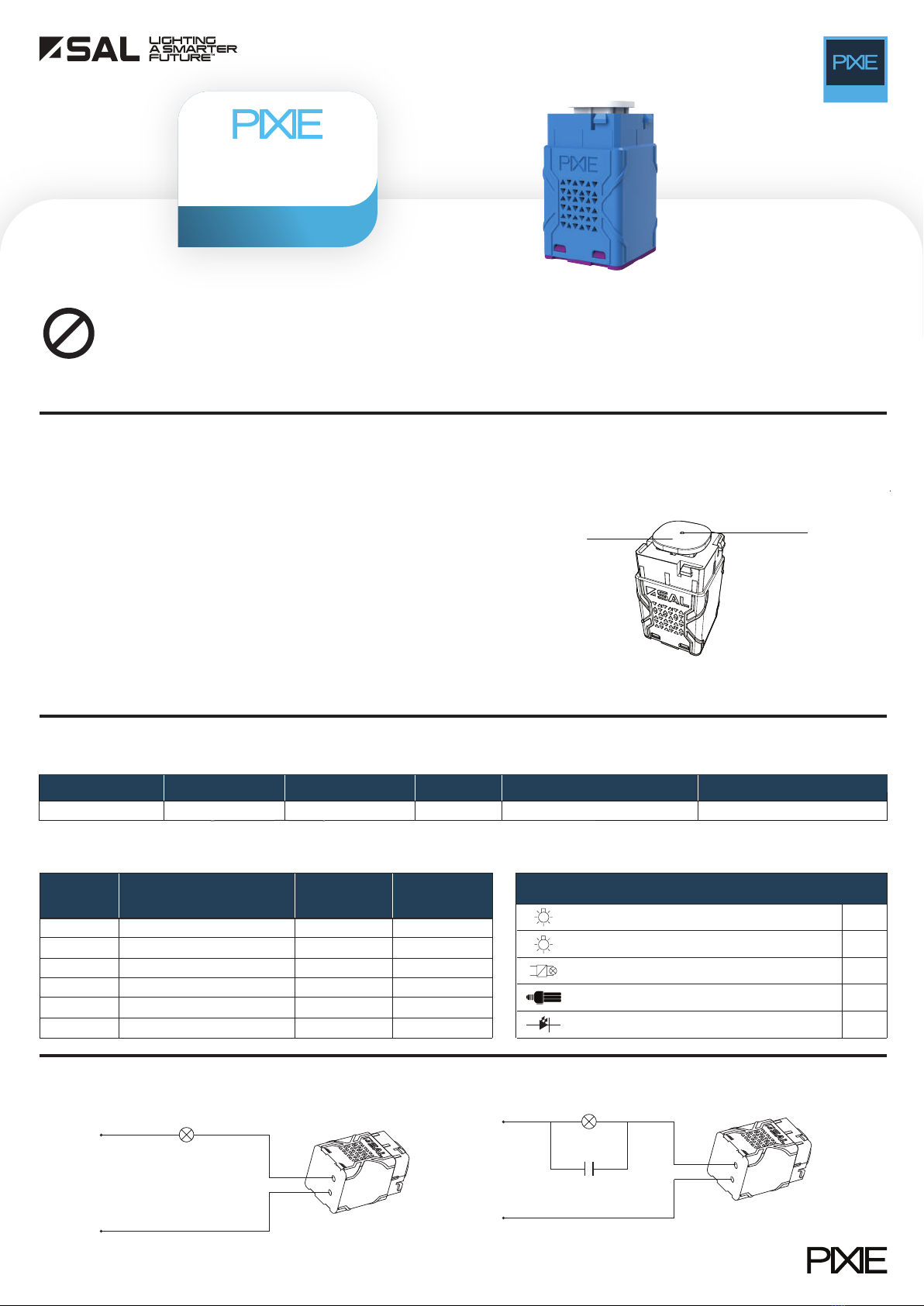

STS600BTAM

Smart Timer

Switch G3

Quick Start Guide

Version

Date

1.0

09/12/2022

1. Foreword

IMPORTANT: IN THE INTEREST OF PRODUCT PERFORMANCE AND SAFETY PLEASE READ THESE GUIDE AND WARRANTY INSTRUCTIONS BEFORE INSTALLING THE PRODUCT.

2. Product Introduction

PIXIE Smart Switch G3 is the third generation smart time delay switch, that

permits the supply of electricity to the load for a predetermined time duration

after being triggered.

2.1 Product Features

• Fits most branded switch plates

• Fits 1 to 6 gang wall plate installation

• Over temperature protection, overload protection, short circuit protection

• Automatically turns off after a predetermined time duration

• Time duration can be programmed manually and via the App. When

programming manually, only hourly timer functions can be set, the period is

from 1 hour to 24 hours. When programming via the App, the time duration

can be set from 1 minute to 24 hours

• Manual override function available

• Multiway control - When pairing multiple PIXIE multifunction control device

(e.g. SMF/BTAS) with the same smart Timer Switch, multiway timer control is

achieved

• LED indicator can be enabled and disabled in the App

• In the last 1 minute of timer mode, the LED indicator flashes quickly indicating

imminent time out

2.2 The package includes

• PIXIE Smart Timer Switch G3 * 1

• Extra key caps * 2

• Silicon spacer * 1

• Load correction capacitor * 1

• Quick Start Guide * 1

2.3 Product illustration*

3. Specifications

3.1 Basic specifications

3.2 Load rating 3.3 Load compatibility

4. Wiring and Installation

DIY

*All drawings shown are for illustration purpose only, actual product may vary due

to product enhancement.

LED indicator

Default key cap

(Interchangeable)

STS600BTAM - Standard wiring diagram

NEUTRAL

ACTIVE

Light fitting

(Load)

STS600BTAM

STS600BTAM - Optional wiring diagram

NEUTRAL

ACTIVE

Light fitting

(Load)

Optional - load correction capacitor

in parallel with the load if required

STS600BTAM

The complimentary capacitor given in the carton operates as a load

correction device to assist improving compatibility performances.

Compatible Loads

240V halogen lamp

CFL

Incandescent lamp Yes

Yes

Low voltage halogen with electronic transformer

LED fixture

No. of switch Resistive load

(Incandescent/High voltage

halogen lamp)

Capacitive load

(e.g. LED, CFL)

Inductive load

(e.g. exhaust

fan)

1600W 400VA

250VA

200VA

120VA

100VA

80VA

2500W

3500W

4300W 150VA

150VA

100VA

80VA

60VA

5300W

6200W

*Subject to the load’s electrical characteristics, the load may require the inclusion of a load correction capacitor given in the product carton

Model No. Input (V)/(Hz)

Dimension L x W x H (mm) Wireless

Bluetooth Mesh Technology

STS600BTAM 240/50 9*/600W Blue 42 x 24 x 24

ColourMin / Max loads

MASTER

NSW | ACT

QLD

VICT | TAS | SA | NT

SAL National Pty Ltd, 40 Biloela Street Villawood NSW 2163

SAL National Pty Ltd, 36 Whitelaw Place Richlands QLD 4077

SAL National Pty Ltd, 46-48 Keys Road Moorabbin Victoria 3189

SAL National Pty Ltd, 29 Beringarra Av Malaga WA 6090

| P # 02 9723 3099

| P # 07 3879 5999

| P # 03 9532 3168

| P # 08 9248 7458

Installation process

• Make sure the key cap compatibility (pry and replace the default key

cap if necessary)

• Check and confirm the load compatibility

• Turn OFF the mains electricity supply before commencing installation

• Connect the switch according to the wiring diagram

• Turn ON the mains electricity supply, wait for 10 seconds, then test the

switch operation by pressing the switch button.

5. Operation

6. How to download App

Scan QR code or go to App store (IOS) or Google Play (Android) to download the free PIXIE app

to your smart phone.

• IOS: Requires IOS 6.0 or later. Compatible with iPhone, iPad and iPad touch

• Android: Requires Android 4.4 or above, devices must support Bluetooth 4.0 Specifications

above are for reference only and may vary without prior notice.

7. Warranty

In accordance with SAL’s standard terms and conditions of sale, SAL warrant this product to be free from defects in materials and or workmanship for a period as stated

below for goods not subject to incorrect installation, maintenance, operation, mishandling, environmental, unauthorised modifications or electrical operating conditions

outside the nominated product specification as detailed in these installation instructions. The benefits to you given by this warranty are in addition to other rights and

remedies you have under law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund

for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail

to be of acceptable quality and the failure does not amount to a major failure.

Warranty term – Residential usage (12) months, Commercial usage (12) months

8. Scan QR code to get full

installation instruction

Step #3 - Upon review of your claim and if the product is required to be returned to SAL for technical evaluation, then at the owners expense the product must be

returned to SAL as per the above nominated locations.

Step #4 - Pending the evaluation, the claim will be validated resulting in the product being repaired or replaced with the same or best equivalent product at the

discretion of SAL, or rejected if the product fault was found to be caused by conditions beyond the responsibility of SAL warranty obligations. Consideration of installation,

product removal, return freight and or testing fees are not the responsibility of SAL.

The smart timer switch can work under two modes,

Timer Mode: The switch is expected to automatically disconnect the electricity to

the load after being turned on for a predetermined time duration.

Manual override mode: The swtich supplies electricity permanently until further

operation to switch off or exit this mode

Manual setting time duration (optional, programming in the App is more recom-

mended)

1, Turn off the switch

2, Push and hold the button for 10 seconds, the LED indicator will start to slowly

cycle indicating the programming mode has launched

3, To program, press the button between 1 and 24 times according to the desired

delay in hours. E.g, 8 presses will result in a delay of 8 hours. Pressing more than 24

times will result in a time duration of 24 hours. Programming mode expires 10

seconds after the last button press. At this time the new timer duration is saved.

(Note: If no button press is detected in programming mode, the time duration will

be unchanged.)

Manual setting time pairing (optional, for multi-way time delay control)

1, Turn off the switch

2, Quickly press the button of STS600BTAM 4 times, make sure the LED indicator is

flashing in blue and white

3, Quickly press the button of SMF/BTAS or SMRM/BTAS 4 times within 30s. When their

LED indicator flashe twice and then remain lit for 2s, the pairing is successful.

Note: If the STS600BTAM changes HOME setup in the App or reset to factory, the

pairing process will need to be repeated.

MASTER

Operation

1 Click Turn on the switch and start timer mode Quickly flash for 5s then

flash every 3s

Enter pairing mode, this mode stays 30s Quickly flash in blue and

white for 30s

Flash in blue and white

3s then stay lit for 2s

Turn on the switch in an untimed

manner (manual override mode)

Reset all the settings to factory

Static high brightness

4 Clicks

Long press for 2

seconds then release

9 Click

Function Description LED Indicator

Operation

1 Click Turn off the switch and cancel timer Static low brightness

Keep switch on, timer will count again Quickly flash for 5s then

flash every 3s

Enter manual override mode, the

switch stays on in an untimed manner Static high brightness

2 Clicks

Long press for 2

seconds then release

Function Description LED Indicator

Operation

1 Click Exit manual override mode, start timer Quickly flash for 5s then

flash every 3s

Turn off the switch, exit manual override

mode Static low brightness

Long press for 2

seconds then release

Function Description LED Indicator

When in off state

When in timer mode

When in manual override mode
