Salda VKS 400-200-4 L1 Guide

VKS
EN MOUNTING AND INSTALLATION INSTRUCTION

2 | EN VKS v2019.04
SYMBOLS AND MARKING
Product name
Nominal voltage frequency
Max.current
Max.power consumption
Protection class
/ 000 0VAC
00.00 A
0.00 kW
IP 00
/0 /Hz
Made in Šiauliai, Lithuania
SKU000000
LN: LN000000 2019.01.01
1
4
5
2
6
3

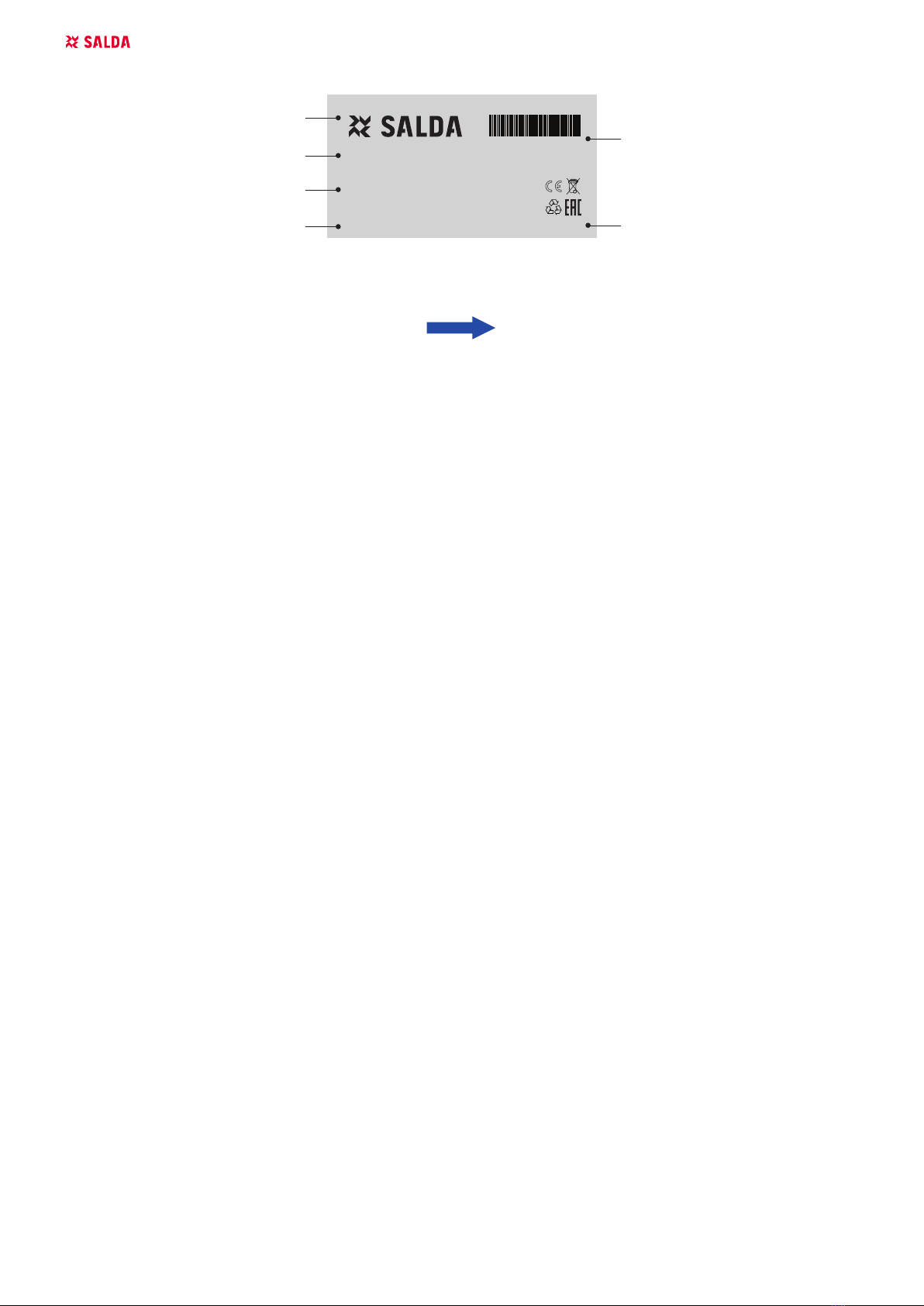

Figure 1.1 - Technical label
1 - Logo; 2 - Product code (SKU); 3 - Product name; 4 - Technical data; 5 - Production place; 6 - Lot number and production date.
Figure 1.2 - Indication for air ow direction.
GENERAL INFORMATION
Before installing the unit read the entire information provided in this document.
Installation of the unit shall only be performed by trained and qualied personnel aware of installation of such type of units, inspection, mainte-
nance and tools required for installation works.
While installing the unit, observe the international and national mechanical and electrotechnical safety requirements of the country in which the
product is installed and used.
If the provided information is unclear or any doubts arise regarding safe installation and operation, please contact the manufacturer or represent-
ative.
The unit shall be operated only under the below listed conditions.
It is strictly forbidden to use the unit for non-designed purposes or in contradiction to the specied working conditions without written permission
of manufacturer or representative.
The manufacturer or representative shall be notied about any fault, including description of the fault and data specied on the product’s label.
Any repair or dismantle of the unit in case of fault is forbidden without previous written permission of manufacturer or representative.
Dismantling, repair or modication of the unit shall be performed only upon previous written consent from manufacturer or representative.
The end user shall ensure that the unit is suitable for environmental conditions before ordering and installing the unit.
TRANSPORTATION AND STORAGE
All units are packed in the factory to withstand regular conditions of transportation.
Upon unpacking, check the unit for any damages caused during transportation. It is forbidden to install damaged units!!!
The package is only a protection means!
At unloading and storing the units, use suitable lifting equipment to avoid damages and injuries. Do not lift units by holding on power supply ca-
bles, connection boxes, air intake or discharge anges. Avoid hits and shock overloads. Before installation units shall be stored in a dry room with
the relative air humidity not exceeding 70% (at +20°C) and with the average ambient temperature ranging between 0°C and +30°C. The place of
storage shall be protected against dirt and water.
During transportation and storage of the units, the connection anges must be in horizontal position.
The storage is not recommended for a period longer than one year. In case of storage longer than one year, it is necessary to check free rotation
of bearings before installation (turn the impeller by hand).
PURPOSE OF THE DEVICE
Unit is designed for ventilation and conditioning systems to supply/extract to/from a room only clean air (free of chemical compounds causing metal
corrosion, of substances aggressive to zinc, plastic and rubber, and of particles of solid, adhesive and bred materials).
DESCRIPTION
Fan rotation speed is controlled by changing the voltage.
Maintenance-free bearings.
Motor has integrated thermo-contact protection.
OPERATING CONDITIONS
Unit is designed for indoor use only in temperature between -20°C and +40°C and relative humidity must not exceed 70%.
It is forbidden to use the units in potentially explosive environment.
Unit is designed for ventilation and conditioning systems to supply/extract only clean air (free of chemical compounds causing metal corrosion, of
substances aggressive to zinc, plastic and rubber, and of particles of solid, adhesive and bred materials) to/from a room.
Only frequency converter with sinusoidal lters, which is mounted between the frequency converter and motor, can be used for these units.
The unit can be operated only indoors.
Observe the minimum/maximum allowable ambient air temperature.

EN | 3VKS v2019.04
Minimum allowable supply air temperature is -20°C.
Maximum supply air humidity is 90%.
SAFETY MEASURES
Do not use this unit for purposes other than those provided in its design.
Do not dismantle and modify the unit. Such actions can cause mechanical fault or even injury.
Use special working clothes when installing and maintaining the unit. Be careful – angles and edges of the unit and its components are sharp and
can cause injuries.
Being near the unit, do not wear free streaming clothes that could be sucked into the operating fan.
All products packed in the factory are not prepared for eventual operation. The units can be used only after connecting them to air ducts or after
installing protection grating in air intake and discharge openings.
Do not put ngers or any other objects into protection grating of air intake and discharge or into connected air duct. In case any foreign body gets
into the unit, disconnect the power supply source immediately. Before removal of foreign body, make sure that any mechanical movement in the
unit has stopped. In addition, make sure that the accidental switching-on of the unit is impossible.
Avoid direct contact with the ow of supplied and extracted air.
Do not connect the unit to the mains other than indicated in the product label on the casing of the unit.
Never use a damaged power supply cable.
Never touch with wet hands the power supply cables connected to the mains.
Never dip extension cords and plugs in water.
Do not install and use the unit on uneven surfaces or other unstable planes.
Never use this unit in the environment conducive to explosion and containing any aggressive material.
INSTALLATION
MECHANICAL CONNECTION
Installation works shall be performed only by trained and qualied personnel.
Unit shall be installed rmly and tightly to ensure safe operation.
Protection from contact with impeller of the operating fan shall be ensured (special accessories are used or the air duct of required length is se-
lected).
Do not connect the elbows in vicinity of the connection anges of the unit. The minimum distance of the straight air duct between the unit and the
rst branch of the air duct in the suction air duct must be 1xD, in air exhaust duct 3xD, where D is diameter of the air duct. For rectangular air ducts:
where B – width of the air duct and H – height of the air duct.
When connecting air ducts, consider the direction of air ow indicated on the casing of the unit.
When connecting fan to the air duct system, it is recommended to use the accessories/exible connections (g. 1). This will reduce vibration
transmitted by the unit to the air duct system and environment.
If installed ventilation unit adjoins the wall, the noise vibrations can be transmitted to the room despite the fact that the noise level is acceptable.
The recommended distance to the nearest wall is 400 mm. If this is not possible, we recommend installing to the wall of the room where the noise
is not signicant.
Vibrations may also be transmitted through the oor. If possible, the oor shall be additionally insulated in order to suppress the noise.
We recommend using air lters, which reduce accumulation of dirt on the fan impeller. Accumulated dirt changes the balance of the impeller and
causes vibration. This can cause the failure of fan motor.
If there is a possibility for condensate or water to access the motor, external protective measures shall be tted.
Fan can be installed vertically or horizontally (g. 2).
Fan is connected to the air ducts using bolts and C prole (g. 3).
Installation shall be performed in such manner that the weight of the air duct system and its components would not overload the ventilation unit.
If the air duct system becomes unstable because of fan weight, the fan must be additionally xed to the oor, wall or ceiling (g. 4).
If exible connections are used, fan must be additionally xed to the oor, wall or ceiling by using additional air duct (g. 5).
During installation, enough space must be retained for opening and cleaning the impeller.
When fan is connected to the circular duct system, we recommend using special accessories – adaptors (g. 7).
1 2
3 4 5

4 | EN VKS v2019.04
6 7
ELECTRIC INSTALLATION
Units contain rotating parts and are connected to the mains. It may cause risk to people health and life. Therefore, it is necessary to follow safety
requirements when performing installation works. In case of any doubts regarding safe installation and operation of the unit, please contact the
manufacturer or representative.
Installation works shall be performed only by trained and qualied personnel.
Make sure that specications of the connected mains correspond to the specications indicated in the product label on casing of the unit.
Selected power supply cable must correspond to the power of the unit.
The fan must be connected according the designed electric connection diagram as in this document and as shown under the electric connection
box cover (g. 8).
External protection device (automatic switch or fuse) must be connected. The operative current is selected 1.5 times greater than the unit maxi-
mum current (indicated on the product label).
IMPORTANT. When revolutions are adjusted by decreasing the voltage, the motor current can exceed the rated current under the low motor
voltages.
Adequate grounding cable must be provided for the unit.
Connect the TK contact group to the external thermal protection device of the motor.
If fan motor speed controller is used, ensure that it provides safe operation of the motor.
Ensure the minimum fan speed at which the back draft dampers open (if installed).
WIRING DIAGRAM
#1:
1~230V
U1U2Z1Z2TK
brown blue black orange white
#2:
Δ - 3~230V Y - 3~400V
U1U2V1V2W1W2TK
brown red blue grey black orange white
START-UP
Operation start-up of the unit shall be performed only by trained and qualied personnel.
Before start-up, make sure that power supply circuit corresponds to the specications indicated on the label.
Before start-up, make sure that the unit is connected to the mains in accordance with the wiring diagram shown in this document and under the
electric connection box cover.
Before start up of the fan, make sure that TC contacts are connected to the eternal thermal protection devices of the motor.
Before start-up of the fan, make sure that the above instructions of safety and installation are applied.
Upon start-up of the unit, make sure that the motor rotates evenly, without vibration and outside noise.
Upon start-up of the unit, make sure that the air ow generated by the unit matches the direction(s) of air indicated on the casing.
The current used by the motor shall be tested for compliance with the maximum allowed current (indicated on the product label).
The motor must be inspected for overheating.
It is forbidden to switch on/o󰀨 the fan so often that it would cause the overheating of the motor windings or damage of the insulation.

EN | 5VKS v2019.04
MAINTENANCE
Fan bearings are maintenance-free.
If there is no fan before the air lter, the only fan maintenance requirement is to clean the impeller. It is recommended to clean the impeller at least
every six months.
Before cleaning, disconnect the supply voltage and block the switch to avoid accidental switching on.
Wait until any mechanical movement stops, the motor cools down and connected capacitors discharge.
Ensure that the fan and installed parts and accessories are rmly and tightly installed.
Carefully clean the impeller to avoid changing the balance of impeller.
It is strictly forbidden to use mechanical cleaners, chemical agents, detergents, compressed air stream and any liquid for cleaning the impeller.
It is forbidden to wash the fan with any liquid.
After the maintenance works and when installing back to the air duct system, perform the same actions described in Installation and Start-up
sections and follow the other requirements of this document.
IMPROPER OPERATION AND REPAIR
Fault removal works shall be performed only by trained and qualied personnel.
Before start of repair works, ENSURE THAT the unit is disconnected from the supply voltage and wait unit the fan motor stops and the heating
elements cool down.
Follow the above safety requirements.
The unit switches-o󰀨:
Check if voltage and current of the mains correspond to the requirements indicated on the product label.
Check for power availability to the unit.
Upon elimination of power supply faults, switch-on the unit again.
The fan motor stops because of overheating and external protection is activated:
Allow the motor to cool down for 15–20 minutes.
Correct the cause for motor overheating.
Switch the fan again.
The motor does not switch on again:
Disconnect the supply voltage.
Wait unit any mechanical movement stops, the motor cools down and the connected capacitors discharge.
Ensure that the impeller is not blocked.
Inspect the capacitor (for single-phase fans – according the connection diagram). If faults repeat, change the capacitor.
If the fault can not be removed, please contact the supplier.
DIMENSIONS AND WEIGHT
VKS
B B1 B2 H H1 H2 L1 m
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
400-200-4 L1 400 420 440 200 220 240 445 14
400-200-4 L3 400 420 440 200 220 240 445 14
500-250-4 L1 500 520 540 250 270 290 530 16
500-250-4 L3 500 520 540 250 270 290 530 16
500-300-4 L1 500 520 540 300 320 340 560 21
500-300-4 L3 500 520 540 300 320 340 560 21
600-300-4 L1 600 620 640 300 320 340 640 29
600-300-4 L3 600 620 640 300 320 340 640 31
600-350-4 L1 600 620 640 350 370 390 700 36
600-350-4 L3 600 620 640 350 370 390 700 37
700-400-4 L3 700 720 740 400 420 440 780 60
800-500-4 L3 800 820 840 500 520 540 880 85

6 | EN VKS v2019.04
800-500-6 L3 800 820 840 500 520 540 880 72
1000-500-4 L3 1000 1020 1040 500 520 540 980 88
TECHNICAL DATA
VKS 400-200-4
L1
400-200-4
L3
500-250-4
L1
500-250-4
L3
500-300-4
L1
500-300-4
L3
- phase/voltage [50 Hz/VAC] ~1, 230 ~3, 400 ~1, 230 ~3, 400 ~1, 230 ~3, 400
- power [kW] 0,36 0,31 0,51 0,56 0,69 0,93
- current [A] 1,8 0,51 2,3 0,95 3,0 1,9
- speed [min-1]1180 1230 1250 1270 1190 1380
- capacitor [µF] 5-8-10 -
- max. ambient temperature [Co]+40 +70 +40 +40 +40 +50
- min. ambient temperature [Co]-20 -20 -20 -20 -20 -20
- motor protection class IP54 IP54 IP54 IP54 IP54 IP54
wiring diagram #1 #2 #1 #2 #1 #2
VKS 600-300-4
L1
600-300-4
L3
600-350-4
L1
600-350-4
L3
700-400-4
L3
800-500-4
L3
800-500-6
L3
1000-500-
4 L3
- phase/voltage [50 Hz/VAC] ~1, 230 ~3, 400 ~1, 230 ~3, 400 ~3, 400 ~3, 400 ~3, 400 ~3, 400
- power [kW] 1,15 1,50 2,4 2,50 3,70 5,0 2,70 5,0
- current [A] 5,1 2,60 11,0 4,10 6,00 8,1 4,90 8,1
- speed [min-1]1210 1310 1340 1300 1320 1330 830 1330
- capacitor [µF] 16 -35 -----
- max. ambient temperature [Co]+40 +40 +40 +40 +40 +40 +50 +40
- min. ambient temperature [Co]-20 -20 -20 -20 -20 -20 -20 -20
- motor protection class IP54 IP-54 IP54 IP-54 IP-54 IP-54 IP-54 IP-54
wiring diagram #1 #2 #1 #2 #2 #2 #2 #2

EN | 7VKS v2019.04
ECODESIGN DATA TABLE
VKS 600-300-4 L3 600-350-4 L3 700-400-4 L3 800-500-6 L3
Declared typology Unidirectional Unidirectional Unidirectional Unidirectional
Type of drive External MSD or
VSD
External MSD or
VSD
External MSD or
VSD
External MSD or
VSD
Type of HRS N/A N/A N/A N/A
Nominal NRVU ow rate [ m3/s ] 0,41 0,49 0,59 0,9
E󰀨ective electric power input [ kW ] 0,53 0,76 1,05 1,01
SFPint [ W/(m3/s) ] N/A N/A
Face velocity [ m/s ] 0 0 0 0
Normal external pressure [ Pa ] 490 642 781 490
Internal pressure drop of ventilation compo-
nents
[ Pa ] N/A N/A N/A N/A
Static e󰀩ciency of fans used in accordance
with Regulation No 327/2011
[ % ] 38,1 40,4 44,1 43,8
Declared maximum external leakage [ % ] <1 <1 <1 <1
Casing sound power level (Lwa) [ dB(A) ] 54 54 59 69
ErP Compliance 2018 2018 2018 2018
Internet address for disassembly instructions www.salda lt

8 | EN VKS v2019.04
DECLARATION OF CONFOMITY
Manufacturer
SALDA, UAB
Ragainės g. 100
LT-78109 Šiauliai, Lithuania
Tel.: [phone]
www.salda.lt
Hereby conrms that the following products - Air handling units:
Fan*
(where by “*” indicates possible unit installation type and modication)
Provided it was delivered and installed in the facility in accordance with the included installation instructions, comply
with all applicable requirements in the following directives:
Machinery Directive 2006/42/EC
Low Voltage Directive 2006/95/EC
EMC Directive 2014/30/EU
The following regulations are applied in applicable parts:
Ecodesign requirements for ventilation units Nr. 1253/2014;
Energy labeling of residential units Nr. 1254/2014.
The following harmonized standards are applied in applicable parts:
LST EN ISO 12100 - Safety of machinery - General principles for design - Risk assessment and risk reduction.
LST EN 60204-1 - Safety of machinery - Electrical equipment of machines - Part 1: General requirements.
LST EN 60335-1 - Household and similar electrical appliances. Safety. Part 1: General requirements.
LST EN 60529 - Degrees of protection provided by enclosures (IP code).
LST EN 60034-5 - Rotating electrical machines. Part 5: Degrees of protection provided by the integral design of rotating electrical machines (IP
code)
LST EN 61000-6-2 - Electromagnetic compatibility (EMC) -- Part 6-2: Generic standards - Immunity for industrial environments.
LST EN 61000-6-3 - Electromagnetic compatibility (EMC) -- Part 6-3: Generic standards - Emission standard for residential, commercial and
light-industrial environments.
Should any alterations be made in the products, this declaration will no longer apply.
Notied body: VšĮ Technikos priežiūros tarnyba, Naugarduko g. 41, LT – 03227 Vilnius, Lithuania, identication number 1399.
Quality: Salda UAB activities are in line with the international quality management system standard ISO 9001:2015.
Date 2019-02-01
Giedrius Taujenis
Director product development

EN | 9VKS v2019.04
WARRANTY
1. All equipment manufactured in our factory is checked in operating conditions and tested befor delivery. Test protocol is supplied together with
the unit. The equipment is shipped in good working order and condition to the direct client. The unit is warrantied for the period of two years from
the invoice date.
2. If equipment is found to have been damaged during transportation, a claim should be made against carrier, as we assume no responsibility for
such damage.
3. This warranty does not apply:
3.1. when transportation, storage, installation and maintenance instructions of the unit are violated;
3.2. when the equipment is improperly maintained, mounted - inadequate maintenance;
3.3. when the equipment without our knowledge and permission has been upgraded or unskilled repairs were made;
3.4. when the unit was used not for its original purpose.
3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where AHU is manufactured without a con-
trol system and the control system will be installed by the client or third parties. The manufacturer’s warranty does not cover devices that will be
damaged by installing the control system.
4. This warranty does not apply at these malfunction cases:
4.1. mechanical damage;
4.2. damage caused by entering outside objects, materials, liquids;
4.3. damage caused by natural disaster, accident (voltage change in the electricity network, lightning, etc..).
5. The company assumes no liability for its products either directly or indirectly damage, if the damage is caused by failure to comply with instal-
lation and mounting regulations, deliberate or careless users or third-party behavior.
These conditions are readily discernable when the equipment is returned to our factory for inspection.
If the direct client determines that equipment is found to be faulty, or a breakdown occurred, he should inform the manufacturer within ve working
days and deliver the equipment to manufacturer. Delivery costs should be covered by customer.
Manufacturer reserves the right to change this technical passport any time without prior notice, if some typographic
errors or inaccurate information is found, as well as after improving the apps and/or the devices. Such changes will be
included in the new issues of the technical passport. All illustrations are just for information and thus may di󰀨er from the
original device.
20.1. LIMITED WARRANTY COUPON
Warranty term
24 months*
I received complete package and technical manual of the product ready for usage. I have read warranty terms and conditions and agree with them:
..........................................................................................................................................................................
Customer’s signature
*refer to WARRANTY CONDITIONS
Dear User, we appreciate your choice and do hereby guarantee that all ventilation equipment manufactured by our Company is inspected and
thoroughly tested. An operational and high-quality product is sold to the direct buyer and shipped from the territory of the factory. It is provided with
a 24-month warranty since invoice issue date.
Your opinion is important to us, thus we always look forward to hearing your comments, feedback, or suggestions regarding technical and opera-
tional characteristics of the Products.
In order to avoid any misunderstandings, please read the instructions for installation and operation of the product as well as other technical docu-
ments of the product carefully. The number of the Limited Warranty Coupon and serial number of the product specied on the silver identication
sticker attached to the housing must match.
The Limited Warranty Coupon shall be valid provided that the seller’s stamps and records are clear. It is prohibited to change, delete, or rewrite
the data specied on it in any manner – such a coupon shall be invalid.
With this Limited Warranty Coupon the manufacturer conrms one’s obligations to implement the imperative requirements established by eective
laws on protection of consumer rights in the event of identication of any defects of the products.
The manufacturer reserves the right to refuse provision of free warranty servicing in cases when the warranty conditions listed below are disre-
garded.

10 | VKS v2019.04

| 11VKS v2019.04

Ragainės g. 100
Šiauliai LT-78109, LITHUANIA
[phone]
offi[email protected]
MAN000148
MAN000148
UNIT’S MAINTENANCE TABLE
Product name*
lot number*
Instalation Interval Date
Fan cleaning Once a year**
Heat exchanger cleaning Once a year**
Filter replacement Every 3-4
months**
* - Look at the product label.
** - At least.
NOTE. The purchaser is required to ll in the “Product maintenance table”.
