Salda RIRS ECO 3.0 Series Guide

RIRS 1200-5500 V EKO 3.0
EN MOUNTING AND INSTALLATION INSTRUCTION

2 | EN RIRS 1200-5500 V EKO 3.0 v2019.06
CONTENT
2.SYMBOLS AND MARKING 3
3.SAFETY INSTRUCTIONS AND PRECAUTIONS 3
4.DIMENSIONS AND WEIGHT 4
5.ELECTRICAL DATA 5
6.CONSTRUCTION 6
7.OPERATING CONDITIONS 7
8. PACKAGE 7
9.TRANSPORTATION 8
10. UNPACKING 8
11. STANDART PACKAGE OF COMPONENTS 8
12. PLACE REQUIREMENTS 9
13. MOUNTING 9
14.CONNECTION OF THE AIR DUCT 10
15.CONNECTION DIAGRAM 10
16.CONNECTION OF THE UNIT TO ELECTRIC NETWORK 11
17.START-UP RECOMMENDATIONS 12
17.1.RECOMMENDATIONS BEFORE THE START OF THE UNIT (BEFORE THE FINAL USER) 12
17.2.POSSIBLE FAULTS AND TROUBLESHOOTING 12

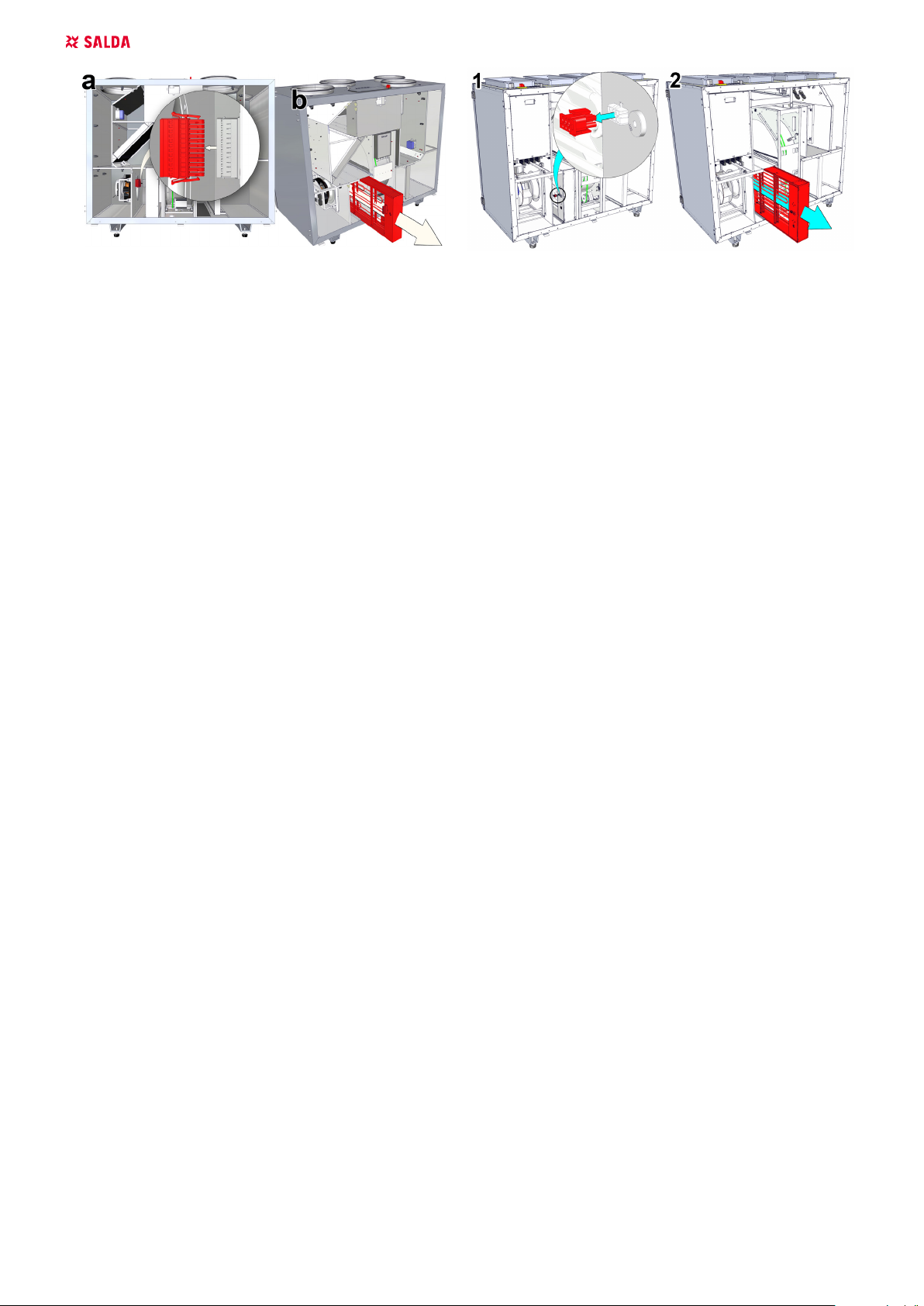

18.MAINTENANCE 12
18.1. FILTERS 12
18.2. FAN 12
18.3. HEAT EXCHANGER 13
18.4. ELECTRICAL HEATER 13
19.AUTOMATIC CONTROL 14
19.1. SYSTEM PROTECTION 15
19.2. USING THE UNIT IN BMS NETWORK 15
19.3. MODBUS ADRESSES 16
19.4.ELECTRICAL CONNECTION OF THE HVAC UNIT 17
19.5. SYSTEM ADJUSTMENT GUIDELINES 17
20.CONTROL BOARD RG1 19
20.1.LABELING, CHARACTERISTICS OF THE CONTROLLER AND THE SYSTEM COMPONENTS 20
20.2. REGULAR SYSTEM CHECK-UP 21
21.ELECTRICAL CONNECTION DIAGRAM 22
21.1. RIRS 1200 VE EKO 3.0 22
21.2. RIRS 1200 VW EKO 3.0 23
21.3. RIRS 1900 VE EKO 3.0 24
21.4. RIRS 1900 VW EKO 3.0 25
21.5. RIRS 2500-3500 VE-V2.4-RHX-0K 26
21.6. RIRS 5500 VE V2.4-RHX-0K 29
21.7. SVR 2500VE-9-3F-V2,4-2K 32
21.8. SVR 3500VE-9-ESKM-0K-3X230 33
21.9. SVR 5500VE-18-3F-ESKM-0K 34
21.10. RIRS 2500VE-V2,4-RHX-0K 35
21.11. RIRS 3500VE-V2,4-0K-RHX-3X230 37
21.12. RIRS 5500VE-V2,4-RHX-0K 39
21.13. RIRS 2500-3500 VW-V2,4-RHX-0K 41
21.14. RIRS 5500 VW-V2,4-RHX-0K 45
21.15. RIRS 2500 VW-V2,4-RHX-0K 48
21.16. RIRS 3500 VW- V2,4-RHX-0K 50
21.17. RIRS 5500 VW-V2,4-RHX-0K 52
21.18. RIRS 2500 VW (R3G280-AU06-B1) 53
21.19. RIRS 3500 VW (RH35C-ZID.DC 1R) 54
21.20. RIRS 5500 VW (R3G 400-AY87-01) 54
22.ECODESIGN DATA TABLE 55
23.DECLARATION OF CONFIMITY 57
24. WARRANTY 58
24.1. LIMITED WARRANTY COUPON 58

EN | 3RIRS 1200-5500 V EKO 3.0 v2019.06
2. SYMBOLS AND MARKING
LN: XX000000
2019.01.01
Figure. 2.1. Technical label
1 - Logo; 2 - Product code (SKU); 3 - Product name; 4 - Technical data; 5 - Production place; 6 - Lot number and production date; 7 - Serial
number.
SERIAL
2514523357
XXXGAMINIOPAVADINIMAS
Nominalvoltagefrequency
Max.current
Max.powerconsumption
Protectionclass
Weight
/ xxx/xx VAC/Hz
x.xxA
x.xxkW
IPxx
xxkg
MadeinŠiauliai, Lithuania
AHU000000
BN:xxxxxx
2019/01/01
SERIAL
2514523357
XXXGAMINIOPAVADINIMAS
Nominalvoltagefrequency
Max.current
Max.powerconsumption
Protectionclass
Weight
/xxx/xxVAC/Hz
x.xxA
x.xxkW
IPxx
xxkg
MadeinŠiauliai, Lithuania
AHU000000
BN:xxxxxx
2019/01/01
SERIAL
2514523357
XXXGAMINIOPAVADINIMAS
Nominalvoltagefrequency
Max.current
Max.powerconsumption
Protectionclass
Weight
/ xxx/xx VAC/Hz
x.xxA
x.xxkW
IPxx
xxkg
MadeinŠiauliai, Lithuania
AHU000000
BN:xxxxxx
2019/01/01
SERIAL
2514523357
XXXGAMINIOPAVADINIMAS
Nominalvoltagefrequency
Max.current
Max.powerconsumption
Protectionclass
Weight
/ xxx/xx VAC/Hz
x.xxA
x.xxkW
IPxx
xxkg
MadeinŠiauliai, Lithuania
AHU000000
BN:xxxxxx
2019/01/01
SERIAL
2514523357
XXX GAMINIO PAVADINIMAS
Nominal voltage frequency
Max.current
Max.power consumption
Protection class
Weight
/ xxx/xxVAC/Hz
x.xxA
x.xx kW
IP xx
xx kg
Made in Šiauliai, Lithuania
AHU000000
BN:xxxxxx
2019/01/01
SERIAL
2514523357
XXX GAMINIO PAVADINIMAS
Nominal voltage frequency
Max.current
Max.power consumption
Protection class
Weight
/ xxx/xxVAC/Hz
x.xxA
x.xx kW
IP xx
xx kg
Made in Šiauliai, Lithuania
AHU000000
BN:xxxxxx
2019/01/01
SERIAL
2514523357
XXX GAMINIO PAVADINIMAS
Nominal voltage frequency
Max.current
Max.power consumption
Protection class
Weight
/ xxx/xxVAC/Hz
x.xxA
x.xx kW
IP xx
xx kg
Made in Šiauliai, Lithuania
AHU000000
BN:xxxxxx
2019/01/01
SERIAL
2514523357
XXX GAMINIO PAVADINIMAS
Nominal voltage frequency
Max.current
Max.power consumption
Protection class
Weight
/ xxx/xxVAC/Hz
x.xxA
x.xx kW
IP xx
xx kg
Made in Šiauliai, Lithuania
AHU000000
BN:xxxxxx
2019/01/01
Figure. 2.2. Technical label place
Figure. 2.3. Indication for duct connection.
ODA - outdoor air; SUP - supply air; ETA - extract air; EHA - exhaust air.
3. SAFETY INSTRUCTIONS AND PRECAUTIONS
Read this instruction very carefully before installing and using this equipment. Installation, connection and maintenance should be carried out by
a qualifed technician and in accordance with the local rules and legal acts.
The company shall take no responsibility for the injuries su󰀨ered by the people or for the damaged property, if the safety requirements are not
followed or the device is modifed without the permission of the manufacturer.
Warning – pay attention Additional information
Main safety rules
Danger
•Before performing any electricity or maintenance tasks make sure, that the device is disconnected from the mains, that all moving parts
of the device have stopped.
• Make sure that the fans can not be entered through air ducts or branch openings.
• If you notice liquids on electric parts or connections that bear voltage, stop the operation of the appliance.
•Do not plug the device into the mains, that di󰀨ers from the one indicated on the label or on the housing.
• Voltage of the mains should comply with the electrotechnical parameters indicated on the label.
• The device should be earthed in accordance with the rules of installation of electric appliances. It is forbidden to turn on and use un-
earthed device. Follow the requirements of the device’s labels that indicate Danger.

4 | EN RIRS 1200-5500 V EKO 3.0 v2019.06
Warnings
•Connection of electricity and maintenance of the device should be performed only by a qualied personnel, in accordance with the
manufacturer’s instructions and valid safety requirements.
• In order to reduce the risk during installation and maintenance, suitable protective clothes should be worn.
• Beware of sharp angles while performing installation and maintenance tasks.
• Do not touch heating elements until they haven’t cooled down.
• Some devices are heavy, thus one should be very careful while transporting and installing. Use suitable lifting equipment.
• While connecting electricity to the mains a circuit breaker of suitable size is necessary.
Warning!
• If the device is installed in a cold environment, make sure that all connections and tubes are properly isolated. Intake and discharge air
ducts should be isolated in all cases.
• Openings of the ducts should be covered during transportation and installation.
• Make sure not to damage the heater when connecting the piping of the water heater. For tightening up, use a wrench/spanner.
Before starting the equipment
• make sure, that there are no strange objects inside;
• manually check whether fans are not stuck or blocked;
• if rotary heat exchanger is installed in the device, make sure that it is not stuck or blocked;
• check the grounding;
• make sure that all components and accessories are connected in accordance with the project or provided instructions.
Danger: Fumes
Salda Antifrost system uses dis-balancing of the air ow and it may cause negative pressure in premises. Great care should be taken
when using at the same time in premises as another heating appliance what depend on the air in premises. Such appliances include
gas, oil, wood or coal-red boilers and heaters, replaces, continuous ow or other water heaters, gas hobs, cookers or ovens which
draw air in from the room and duct exhaust gases out through a chimney or extraction ducting. The heating appliance can be starved
of oxygen, impairing combustion. In exceptional cases harmful gases could be drawn out of the chimney or extraction ducting back
into the room. In this case we strictly recommend to turn o󰀨 Salda Antifrost and use an external preheater for heat exchanger anti-frost
protection (see Salda Antifrost function on the Remote controller manual).
4. DIMENSIONS AND WEIGHT
L
W
H
D*
W1
H1
L1
H
H2*
W2*
H3*
L
W
H
D*
W1
L2*
H2
H1
H4*
H3
L1
d*
W2*
H
W2*
H5*
W3*
W2
W3
L1 L2
L3 L4
D*
W
H1
W1*
L
L5*
H
H2*
L6*
W4*
L3
L1 L2 L4
W
H
W1
L1
L2
H1
L3
L4*
L
d
H2
L5
L3*
RIRS V EKO 3.0
[mm] 1200 1900 2500 3500 5500
L 1500 1500 1600 1930 2115
L1 635 635 200 240 215
L2 230 230 390 410 405
L3 240 240 390 590 850
L4 430 430 390 425 405
L5-----
L6* - - 250 300 300
H 1150 1150 1300 1355 1400
H1 1190 1190 1350 1405 1450
H2* 70 70 70 140 140
W 855 855 900 1000 1310
W1* - - - - -
W2* 260 260 445 500 650
W3* 315 315 445 500 650

EN | 5RIRS 1200-5500 V EKO 3.0 v2019.06
W4* - - 500 600 900
øD* 315 315 - - -
ød* - - - - -
* - depend on the unit.
m
RIRS EKO 3.0
1200
VER
1200
VEL
1200
VWR
1200
VWL
1900
VER
1900
VEL
1900
VWR
1900
VWL
2500
VE
2500
VW
3500
VE
3500
VW
5500
VE
5500
VW
[kg] 192 192 192 192 180 180 178 178 280 270 380 370 580 580
* - depend on the unit.
5. ELECTRICAL DATA
RIRS EKO 3.0 1200 VEL 1200 VER 1200 VWL 1200 VWR
Heater phase/voltage [50 Hz/VAC] ~2 ~2 AVS 315 AVS 315
power consumption [kW] 4,0 4,0
Fans
phase/voltage [50 Hz/VAC] ~1,230 ~1,230 ~1,230 ~1,230
exhaust power/current [kW/A] 0,408/2,71 0,408/2,71 0,408/2,71 0,408/2,71
speed [min-1] 3400 3400 3400 3400
supply power/current [kW/A] 0,415/2,81 0,415/2,81 0,415/2,81 0,415/2,81
speed [min-1] 3400 3400 3400 3400
control input [VDC] 0-10 0-10 0-10 0-10
protection class IP54 IP54 IP54 IP54
Total power consumption power/current [kW/A] 4,84/15,69 4,84/15,69 0,84/5,69 0,84/5,69
Automatic control integrated + + + +
Thermal e󰀩ciency 75% 75% 75% 75%
Insulation of walls [mm] 50 50 50 50
Cross-section of the power supply cable [mm²] 4x2,5 4x2,5 3x1,5 3x1,5
Circuit breaker* Poles 2 2 1 1
I [A] B16 B16 B10 B10
Filter class and dimensions exhaust [mm] 745x350x46 745x350x46 745x350x46 745x350x46
supply [mm] 745x350x46 745x350x46 745x350x46 745x350x46
RIRS EKO 3.0 1900 VEL 1900 VER 1900 VWL 1900 VWR
Heater
phase/voltage [50 Hz/VAC] ~3 ~3
AVS 315 AVS 315
power consumption [kW] 9 9
Fans
phase/voltage [50 Hz/VAC] ~1,230 ~1,230 ~1,230 ~1,230
exhaust power/current [kW/A] 0,47/ 3,1 0,47/ 3,1 0,47/ 3,1 0,47/ 3,1
speed [min-1] 2540 2540 2540 2540
supply power/current [kW/A] 0,47/ 3,1 0,47/ 3,1 0,47/ 3,1 0,47/ 3,1
speed [min-1] 2540 2540 2540 2540
control input [VDC] 0-10 0-10 0-10 0-10
protection class IP54 IP54 IP54 IP54
Total power consumption power/current [kW/A] 9,96 / 19,37 9,96 / 19,37 0,96 / 6,37 0,96 / 6,37
Automatic control integrated + + + +
Thermal e󰀩ciency 75% 75% 75% 75%
Insulation of walls [mm] 50 50 50 50
Cross-section of the power supply cable [mm²] 5x2,5 5x2,5 3x1,5 3x1,5
Circuit breaker* Poles 3 3 1 1
I [A] B25 B25 B10 B10
Filter class and dimensions exhaust [mm] 745x350x46 745x350x46 745x350x46 745x350x46
supply [mm] 745x350x46 745x350x46 745x350x46 745x350x46

6 | EN RIRS 1200-5500 V EKO 3.0 v2019.06
RIS EKO 3.0 2500 VE 2500 VW 3500 VE 3500 VW
Heater phase/voltage [50 Hz/VAC] ~3 SVS ~3 SVS
power consumption [kW] 9 12
Fans
phase/voltage [50 Hz/VAC] ~1,230 ~1,230 ~1, 230 ~1, 230
exhaust power/current [kW/A] 0,715 / 3,10,715 / 3,11,3 / 6,41,3 / 6,4
speed [min-1] 2800 2800 2390 2390
supply power/current [kW/A] 0,715 / 3,10,715 / 3,11,3 / 6,4 1,3 / 6,4
speed [min-1] 2800 2800 2390 2390
control input [VDC] 0-10 0-10 0-10 0-10
protection class IP54 IP54 IP-54 IP-54
Total power consumption power/current [kW/A] 10,48 / 19,40 1,48 / 6,40 14,65 / 30,34 2,65 / 13,00
Automatic control integrated + + + +
Thermal e󰀩ciency 73% 73% 72% 72%
Insulation of walls [mm] 50 50 50 50
Cross-section of the power supply cable [mm²] 3x2,5 3x1,5
Circuit breaker* Poles 3 1 3 1
I [A] B20 B10 B20 B10
Filter class and dimensions exhaust [mm] 790x400x46 790x400x46 900x455x90 900x455x90
supply [mm] 790x400x46 790x400x46 900x455x90 900x455x90
RIS EKO 3.0 5500 VE 5500 VW
Heater phase/voltage [50 Hz/VAC] ~3 SVS
power consumption [kW] 18
Fans
phase/voltage [50 Hz/VAC] ~3, 400 ~3, 400
exhaust power/current [kW/A] 1,85 / 2,9 1,85 /2,9
speed [min-1] 2180 2180
supply power/current [kW/A] 1,85 / 2,9 1,85 / 2,9
speed [min-1] 2180 2180
control input [VDC] 0-10 0-10
protection class IP54 IP54
Total power consumption power/current [kW/A] 21,74 / 32,15 3,74 / 6,15
Automatic control integrated + +
Thermal e󰀩ciency 71,3% 71,3%
Insulation of walls [mm] 50 50
Cross-section of the power supply cable [mm²] 5x10 5x2,5
Circuit breaker* Poles 1 1
I [A] B40 B16
Filter class and dimensions exhaust [mm] 597x578x90 597x578x90
supply [mm] 597x578x90 597x578x90
6. CONSTRUCTION
8
6
7
1
3
4
5
2
5
3
4
2
8
6
1
7
6
7
2
5
1
2
8
9
7
6
2
5
1
3
8
9
6
7
2
5
1
3
8
9
8
6
7
1
3
4
5
2
5
3
4
2
8
6
1
7
6
7
2
5
1
2
8
9
7
6
2
5
1
3
8
9
6
7
2
5
1
3
8
9
Figure. 6.1. RIRS 1200-1900 V EKO 3.0 Figure. 6.2. RIRS 3500-5500V EKO 3.0

EN | 7RIRS 1200-5500 V EKO 3.0 v2019.06
8
6
7
1
3
4
5
2
5
3
4
2
8
6
1
7
6
7
2
5
1
2
8
9
7
6
2
5
1
3
8
9
6
7
2
5
1
3
8
9
Figure. 6.3. RIRS 2500 V EKO 3.0
1 - Plate/rotor heat exchanger; 2 - Supply fan; 3 - Exhaust fan; 5 - Electrical/water heater/pre-heater; 6 - Control board; 7 - Extract air lters
(panel/pocket); 8 - Supply air lter (panel/pocket); 9 - Rotor engine.
7. OPERATING CONDITIONS
+5 C
o
+40 C
o
-40 C
o
+40 C
o
+15C
o
+40C
o
-3 C
o
+40 C
o
+5 C
o
+40 C
o
-23 C
o
+40 C
o
+15C
o
+40C
o
+40 C
-23 C
o
O
+40 C
+15 C
O
O
RH <60%
+40 C
-23
o
C
O
Ex
+40 C
-5 C
O
O
+40 C
+15 C
O
O
RH <60%
+40 C
-40 C
O
O
Ex
+40 C
-40 C
O
O
+0 C
o
+40 C
o
-23 C
o
+40 C
o
Figure. 7.1. RIRS 1200-1900 V EKO 3.0 operating conditions
+5 C
o
+40 C
o
-40 C
o
+40 C
o
+15C
o
+40C
o
-3 C
o
+40 C
o
+5 C
o
+40 C
o
-23 C
o
+40 C
o
+15C
o
+40C
o
+40 C
-23 C
o
O
+40 C
+15 C
O
O
RH <60%
+40 C
-23
o
C
O
Ex
+40 C
-5 C
O
O
+40 C
+15 C
O
O
RH <60%
+40 C
-40 C
O
O
Ex
+40 C
-40 C
O
O
+0 C
o
+40 C
o
-23 C
o
+40 C
o
Figure. 7.2. RIRS 2500-5500 V EKO 3.0 operating conditions
8. PACKAGE
H
L
W

8 | EN RIRS 1200-5500 V EKO 3.0 v2019.06
RIRS V EKO 3.0
H W L QUANTITY ON THE
PALLET
[mm] [mm] [mm] [units]
1200 1405 975 1620 1
1900 1405 975 1620 1
2200 1705 1020 1770 1
3500 1820 1130 2090 1
5500 1900 1440 2230 1
9. TRANSPORTATION
Figure. 9.1. Lifting with forklift.
Only a product placed on a pallet may be lifted in order to prevent damage to the casing.
10. UNPACKING
Accessories may be packed together with the product. Prior to transporting the unit, rst unpack the accessories.
• Remove the lm from the unit.
• Remove the bracing packaging tape which keeps the protective proles.
• Remove the protective proles.
•After unpacking the unit, examine it to make sure that it it has not been damaged during transportation. The installation of damaged units is
prohibited!
• Verify that all ordered equipment are delivered before starting the installation. Any deviation from the ordered equipment must be reported to the
supplier of products.
11. STANDART PACKAGE OF COMPONENTS
RIRS EKO 3.0 HANDLES SET SUPPORT LEG WITH STANDARD RODS
1200 VER 1 -
1200 VEL 1 -
1200 VWR 1 -
1200 VWL 1 -
1900 VER 1 -

EN | 9RIRS 1200-5500 V EKO 3.0 v2019.06
1900 VEL 1 -
1900 VWR 1 -
1900 VWL 1 -
2200 VE 2 4
2200 VW 2 4
3500 VE 2 8
3500 VW 2 8
5500 VE 2 12
5500 VW 2 12
12. PLACE REQUIREMENTS
L
1,5xL
L
1,5xL
H
H
Min. distance to open the door - 1,5xL; Min. distance to open control box door - H > 400 mm.
13.MOUNTING
The protective lm is intended to protect the unit during transportation. It is recommended to remove the lm because other-
wise oxidation signs may occur.
Before every heating season the condensate tube shall be lled with water as indicated during the rst startup!
400mm

10 | EN RIRS 1200-5500 V EKO 3.0 v2019.06
14.CONNECTION OF THE AIR DUCT
Figure. 14.1. Circular air duct conection
Figure. 14.2. Rectangular air duct conection
D2 dimensions depend on unit.
15.CONNECTION DIAGRAM
PS
PS
PS
PS
PS
PS
PS
PS
PS
2
2
2
2
2
Figure. 15.1. RIRS 1200-1900 VE EKO 3.0 (* Placement of the component depends on model)
PS
PS
PS
PS
PS
PS
PS
PS
PS
2
2
2
2
2
Figure. 15.2. RIRS 1200-1900 VW EKO 3.0
PS
PS
PS
PS
PS
PS
PS
PS
PS
2
2
2
2
2
Figure. 15.3. RIRS 2500-5500 VE EKO 3.0
