Salton SDF35 Installation guide

INSTRUCTIONS AND WARRANTY
MODEL NO. SDF35
SALTON 3.0L DEEP FRYER

2
Congratulations on purchasing the Salton 3.0L Deep Fryer. Each unit is
manufactured to ensure safety and reliability. Before using this appliance for the first
time, please read the instruction manual carefully and keep it for future reference.
FEATURES OF THE SALTON 3.0L DEEP FRYER
•Ideal for vetkoek, chips, samosa’s, koeksisters, fritters, crab cakes,
dumplings, egg rolls, fried finger foods, canapés and more!
•3.0L oil capacity with viewing window
•Dishwasher safe cooking basket and enamel cooking pot
•Power indicator and thermostat lights
•Variable thermostat: 115℃- 190℃
•Disassembles easily for convenient cleaning
•Stylish stainless steel and black finish
•Overheat protection technology
•Convenient cord storage
•Immersion heating element makes direct contact with oil for ultra-fast heating
•Cool-touch handles
•2000W
•Recipes included
•For domestic use only
•1 year warranty
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should always be
followed including the following:
1. Please read the instructions carefully before using any appliance.
2. Always ensure that the voltage on the rating label corresponds to the mains
voltage in your home.
3. Incorrect operation and improper use can damage the appliance and cause
injury to the user.

3
4. The appliance is intended for household use only. Commercial use invalids the
warranty and the supplier cannot be held responsible for injury or damage
caused when using the appliance for any other purpose than that intended.
5. Avoid any contact with moving parts.
6. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
7. Children should be supervised to ensure that they do not play with the
appliance.
8. Check the power cord and plug regularly for any damage. If the cord or the
plug is damaged, the manufacturer or a qualified person must replace it in
order to avoid an electrical hazard.
9. Do not allow this appliance to touch curtains, wall coverings, clothing,
dishtowels or other flammable materials during use. Caution is required on
surfaces where heat may cause damage -an insulated heat pad is
recommended. Never place the appliance on a plastic, fabric or carpeted
surface while cooking.
10.The appliance is not intended to be operated by means of an external timer or
separate remote-control system.
11.Do not touch hot surfaces –use handles.
12.Always lift the lid away from your face as escaping steam or oil may cause
injury or scalding.
13.Keep hands, arms, face etc clear from the escaping steam or oil when opening
the lid.
14.DO NOT place the product near flammable materials.
15.Let the deep fryer cool down completely before you clean it or put it away.
16.Extreme caution must be used when moving a deep fryer containing hot
liquids. It is recommended that you do not move the appliance when it is full,
when switched on or before it has cooled down.

4
17.Do not use the appliance if it has been dropped or damaged in any way. In
case of damage, take the unit in for examination and/or repair by an
authorised service agent.
18.Do not use harsh abrasives, caustic cleaners or oven cleaners when cleaning
this appliance.
19.To reduce the risk of electric shock, do not immerse or expose the appliance,
plug or the power cord to water or any other liquid.
20.Never immerse the unit in water or any other liquid for cleaning purposes.
21.The appliance cannot be partially or fully immersed in water for cleaning.
22.Remove the plug from the socket by gripping the plug. Do not pull on the cord
to disconnect the appliance from the mains. Always unplug the unit when not
in use, before cleaning or when adding or removing parts.
23.The use of accessory attachments that are not recommended or supplied by
the manufacturer may result in injuries, fire or electric shock.
24.A short cord is provided to reduce the hazards resulting from becoming
entangled in or tripping over a longer cord.
25.Do not let the cord hang over the edge of a table or counter. Ensure that the
cord is not in a position where it can be pulled on inadvertently.
26.Do not allow the cord to touch hot surfaces and do not place on or near a hot
gas or electric burner or in a heated oven.
27.Do not use the appliance on a gas or electric cooking top or over or near an
open flame.
28.Use of an extension cord with the appliance is not recommended. However, if
it is necessary to use an extension lead, ensure that the lead is suited to the
power consumption of the appliance to avoid overheating of the extension
cord, appliance or plug point. Do not place the extension cord in a position
where it can be pulled on by children or animals, or tripped over.
29.This appliance is not suitable for outdoor use. For household use only. Do not
use this appliance for anything other than its intended use.
30.DO NOT carry the appliance by the power cord.
31.Do not leave the appliance unattended during use. Always unplug the unit
when not in use or before cleaning.

5
32.Always operate the appliance on a smooth, even, stable surface. Do not place
the unit on a hot surface.
33.Ensure that the switch is in the “Off” or “0” position after each use.
34.Do not let the deep fryer heat without oil in it, or with the oil below the Min
level. This will cause the thermal cut-off to switch the unit off, and may
damage the unit.
35.Do not connect the deep fryer to the power supply without oil in the unit. The
manufacturer does not accept responsibility for any damage or injury caused
by improper or incorrect use, or for repairs carried out by unauthorised
personnel.
36.In case of technical problems, switch off the appliance and do not attempt to
repair it yourself. Return the appliance to an authorised service facility for
examination, adjustment or repair. Always insist on the use of original spare
parts. Failure to comply with the above mentioned pre-cautions and
instructions, could affect the safe operation of this appliance.

6

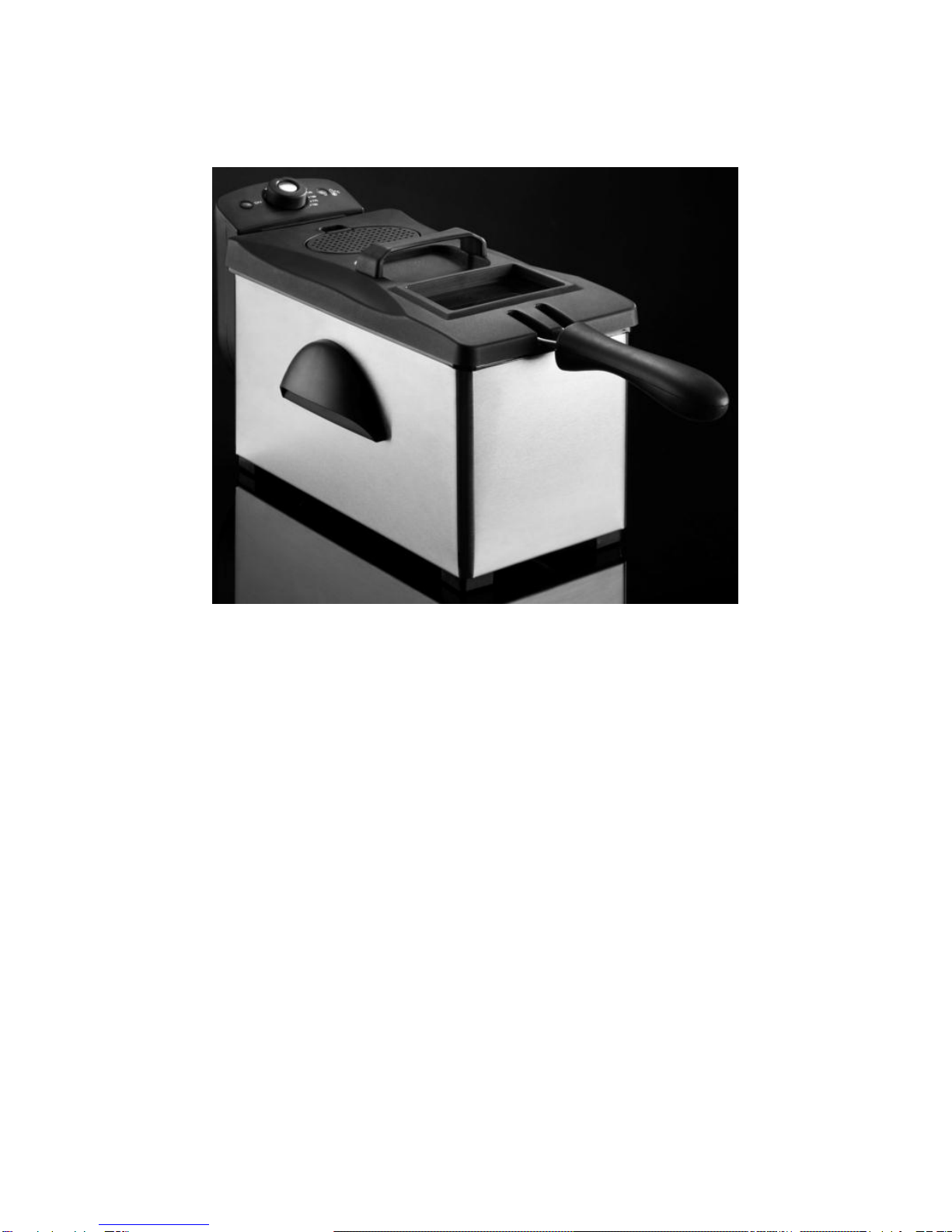

PARTS DIAGRAM
A: Lid Handle
G: Power Indicator Light
B: Viewing window
H: Heating Indicator Light
C: Lid
I: Control Box with Fixed Element
D: Basket Handle
J: Side Handle
E: Outer Housing
F: Temperature Control Dial
OPERATING INSTRUCTIONS
NOTE: Do not use this product to heat water. Never plug the control panel into
a wall socket if it is not installed in the outer housing.
1. Place the deep fryer on a dry, stable surface.
2. Remove the lid from the deep fryer and take out the accessories.
3. Fill the deep fryer with the required amount of oil or fat. The level of the oil or fat
should be above the minimum mark and below the maximum mark. Do not mix
different kinds of oil and / or fat.
A
B
C
D
E
F
G
H
I
J

7
4. Select the temperature using the dial, as per the food you are cooking. The
cooking temperature guide below can be used for guidelines. Wait for the
selected temperature to be reached, the ‘Heating’ light will go off when the
temperature is reached.
5. Place the food for frying in the basket, and slowly lower the basket into the deep
fryer. It is best to use dry foods, as moist foods will make the oil splash out of the
deep fryer, which is hazardous.
6. Place the basket into the deep fryer using the basket handle only. The deep fryer
will maintain the selected temperature, and thus the ‘Heating’ light will go on and
off (cycle ON and OFF) as the product reheats the oil.
7. When the correct frying time has elapsed, slowly raise the basket out of the deep
fryer, allowing excess oil to drain off the food.
8. Switch/ turn the appliance to the “0” or “OFF” position.
9. Unplug the appliance from the electrical outlet.
COOKING TEMPERATURE GUIDE
TYPE OF FOOD
FRYING TEMPERATURE (oC)
Cheese croquettes
170
Cheese fritters
180
Chicken
160
Doughnuts
190
Fish
170
Fish sticks
180

8
Fondue parmesan
170
Meat croquettes
190
Meat/fish/potato croquettes
190
Potato chips
190
Pre-fry chips
170
Scampi fritters
180
FRYING TIPS
Use a maximum of 200grams of food per each litre of oil.
With frozen products, use only 100grams of food per each litre of oil, as the
food will cool the oil. Always remove excess ice from frozen foods before
frying.
Oil or fat can be reused after deep frying. Drain the oil to remove any food
particles and store in an airtight container. When the oil starts to discolour and
turn brown, it is time to throw it away and use fresh oil. The oil can last up to
10 uses, depending on the type and quality of oil.
Do not mix old and new oil.

9
RECIPES
Old Fashioned Jam Doughnuts
Makes about 12
Kids and adults alike love these tasty treats!
30g compressed yeast
¼ cup lukewarm water
60g butter or margarine
1 cup milk
¼ cup castor sugar
2 eggs, beaten
3 ¾ cups flour
1 egg white
Raspberry jam
Oil for deep frying
Icing sugar
Dissolve yeast in the water.
Melt the butter into milk in a small saucepan, stirring occasionally.
Cool to lukewarm, then stir together the yeast mixture, butter/milk mixture,
sugar and eggs in a large bowl.
Beat well. All flour and beat in.
Cover lightly and allow to rise in a warm place for about 45 minutes or until
doubled in size.
Turn onto floured board and knead lightly.
Wrap in plastic and chill for 15 minutes.
Roll dough to 1cm thickness and cut into 5cm rounds using a floured cutter.
Brush half the rounds with lightly beaten egg white, and press jam into the
centre of the other rounds.

10
Placed ‘jammed’ halves onto egg white brushed halves and pinch together
well around the edges to join.
Cover loosely and allow to rise for a further 20 minutes or until almost
doubled in size.
Deep fry doughnuts in small batches at 170°C/ 190°C for 5-7 minutes or until
golden brown, turning once, drain in wire basket, then on a paper towel.
Dust with icing sugar and serve hot.
Savoury Cheese Balls
Makes about 12
These delectable morsels may be prepared in advance and chilled until ready to
cook.
125g Swiss cheese, grated, 1 egg yolk (optional)
2 egg whites, dry breadcrumbs
1/3 teaspoon cayenne pepper, pinch salt
Oil for frying
Fried parsley sprigs
Mix grated cheese with salt and pepper as well as egg yolk, if using. (Egg
yolk gives a firmer texture).
Beat egg whites stiffly and fold in cheese mixture.
Form into balls and roll in bread crumbs.
Fry at 190°C in the Salton Deep Fryer for about 2 minutes or until golden and
crisp.
Remove from basket.
Fry parsley sprigs at 190°C for 1 minute until well crisped.
Serve with the cheese balls and enjoy.
