Salton SCGK60E Installation guide

INSTRUCTIONS AND WARRANTY
MODEL NO. SCGK60E
SALTON ILLUMINATING GLASS KETTLE

1
Congratulations on purchasing our Salton Illuminating Glass Kettle. Each unit is manufactured to
ensure safety and reliability. Before using this appliance for the first time, please read the instruction
manual carefully and keep it for future reference
FEATURES OF THE SALTON ILLUMINATING GLASS KETTLE
•2200W
•1,7L Capacity
•Illuminates while boiling
•360 Degree cordless base with cord storage
•Concealed stainless steel heating element
•Large spout with removable and washable scale filter
•Automatic switch-off
•Boil dry and overheat protection
•Safety lock lid
•For domestic use only
•1 year warranty
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should always be followed including the
following:
1. 1.Please read the instructions carefully before using any appliance.
2. Always ensure that the voltage on the rating label corresponds to the mains voltage in your home.
3. Incorrect operation and improper use can damage the appliance and cause injury to the user.
4. The appliance is intended for household use only. Commercial use invalidates the warranty and the
supplier cannot be held responsible for injury or damage caused when using the appliance for any other
purpose than that intended.
5. Avoid any contact with moving parts.
6. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
7. Children should be supervised to ensure that they do not play with the appliance.
8. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it
must be replaced by the manufacturer or a qualified person in order to avoid an electrical hazard.
9. Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take
the unit in for examination and/or repair by an authorised service agent.

2
10. Do not open the lid while the kettle is in use.
11. Only fill the kettle with cold water.
12. Do not fill the kettle above the MAX level (1.7L). Boiling water may overflow.
13. Unplug from outlet when not in use and before cleaning. Allow it to cool down completely before
cleaning the appliance.
14. Do not insert any objects into holes or slots in this appliance.
15. To reduce the risk of electric shock, do not immerse or expose the motor assembly, plug or the
power cord to water or any other liquid.
16. Never immerse the unit in water or any other liquid for cleaning purposes. Do not allow liquid to
penetrate into the electrical parts of this kettle.
17. Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the
appliance from the mains.
18. The use of accessory attachments that are not recommended or supplied by the manufacturer may
result in injuries, fire or electric shock. The kettle is to be used only with the base provided.
19. A short cord is provided to reduce the hazards resulting from becoming entangled in or tripping
over a longer cord.
20. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a
position where it can be pulled on inadvertently.
21. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner
or in a heated oven.
22. Children younger than 8 years of age should NOT be allowed to clean or maintain the kettle. If
children of 8 years and older operate/clean/maintain the kettle, they should do so under supervision.
23. Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges, etc.
24. Do not use the appliance on a gas or electric cooking top or over or near an open flame.
25. Use of an extension cord with this appliance is not recommended. However, if it is necessary to
use an extension cord, ensure that the cord is suited to the power consumption of the appliance to
avoid overheating of the extension cord, appliance or plug point. The extension cord should not be
placed in a position where it can be pulled on by children or animals or tripped over.
26. This appliance is not suitable for outdoor use. Do not use this appliance for anything other than its
intended use.
27. DO NOT carry the appliance by the power cord.
28. Do not leave this appliance unattended during use. Always unplug the unit when not in use, before
cleaning, or when adding/removing parts.
29. Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot

3
surface.
30. Ensure that the switch is in the “Off” position after each use.
31. The manufacturer does not accept responsibility for any damage or injury caused by improper or
incorrect use, or for repairs carried out by unauthorised personnel.
32. In case of technical problems, switch off the appliance and do not attempt to repair it yourself.
Return the appliance to an authorised service facility for examination, adjustment or repair. Always
insist on the use of original spare parts. Failure to comply with the above mentioned pre-cautions and
instructions, could affect the safe operation of this appliance.
33. Take care when pouring –pour slowly, and don’t over-tilt the kettle.
34. Wind excess cable beneath the base.
35. Check that the lid is fully closed before switching the kettle on - otherwise it may not switch off.
36. Check if the kettle is properly located on the base before switching on.
37. Do not switch on unless the kettle contains at least 2 cups of water.
38. Remove the kettle from its base before filling or pouring.
39. This appliance must not be operated by an external timer or remote control system.
40. Do not put the kettle or its base on a wet place/surface or in water –do not operate it with wet
hands.
41. Don’t boil any tea directly in this water kettle.
BEFORE FIRST USE
Carefully remove your kettle from the box. You may wish to retain the packaging for further use.
Before first use, fill the kettle with cold water to the MAX water level mark, bring to boil and discard the
boiling water –do this twice. This will ensure that any residues left over from the manufacturing process
are completely removed.
How to use your kettle:
•Ensure the power switch is in the OFF position.
•Fill the kettle with water to your desired level. Make sure not to fill above the MAX level mark as
water may eject while it boils.
•Still in the OFF position, connect the power supply cord to a power outlet of the same voltage
and frequency as outlined on the rating label.
•Switch the kettle ON –the power indicator light will light up.
•The blue lamp lights up to indicate that the kettle is on. When the water has boiled, the kettle will
switch off automatically and the blue lamp will shut off.
Caution: Ensure that the kettle is switched off before taking it off the power base.
•After the water has come to a boil, wait a moment until the water has stopped simmering.

4
•Remove the kettle from the water base.
•Pour the water out slowly to avoid splashing. Do not open the lid while pouring out the water.
Please beware of escaping steam from the lid of the kettle when in use.
•You may interrupt/cancel boiling at any time by simply switching OFF.
•Important: Always switch the power outlet off before disconnecting the plug.
•Do not use hot water to fill the kettle as this will quickly damage the interior and heating
element. Use only cold water.
BOIL DRY HEATING PROTECTION
If you have forgotten to add water or the water inside is below the minimum accepted level, the metal
sheet for dry heating protection of the temperature controller will disconnect automatically when the
kettle is switched on in order to protect the kettle from being damaged by dry heating.
If the above situation happens, please turn off the power supply, unplug the kettle and wait 10 minutes
for it to cool down. Once this is done, the temperature controller connects and the kettle will operate
normally again.
Note: Do not add cold water in the kettle in an attempt to cool it down quicker –this will
decrease the life span of the kettle’s heating plate.
GENERAL
•Always remove the kettle from the base before pouring.
•To avoid the risk of splashing, pour slowly and do not over-tilt the kettle.
•Do not tilt the kettle backwards - water might get on to the control area. If this happens, let the
kettle dry thoroughly before use –place it somewhere warm for 12 hours.
•When you lift the kettle, you may see moisture on the base. Do not worry –it’s the steam used to
switch the kettle off automatically, which then condenses and escapes via vents under the kettle.
•You may see some discolouration on the floor of the kettle. Again, do not worry –it is due to the
bonding of the element to the kettle floor.
CLEANING AND MAINTENANCE
•This appliance is for household use only and is not user-serviceable.
•Do not open or change any parts by yourself. Please refer to a qualified electrical service
department or return to the supplier if servicing is necessary.
•Always remember to unplug the unit from the electrical outlet when not in use and before
cleaning. Ensure that the control is set to “0” or “Off”.
•It is much easier to clean the accessories directly after they have been used. Wipe them with a
warm cloth and dry well.

5
•The body of the appliance and the stand should be cleaned with a damp cloth. Do not let water
enter the electrical parts of the appliance or the stand.
•Do not use bleach or other abrasive substance or solvents to clean your appliance as it can be
damaging to the finish.
•To remove stubborn spots/marks, wipe the surfaces with a cloth slightly dampened in soapy
water or mild non-abrasive cleaner. Dry with a clean, soft cloth.
Descaling
The kettle should be cleaned regularly to remove scale. Particular attention should also be paid to
the following:
•Only boil as much water as you need. This reduces scale formation and coffee and tea will
taste better with fresh water.
•Brushing the heating element with a normal washing-up brush once a week for example will
slow the formation of scale on the heating element.
•In the event of visible signs of scale formation or at least once a month, the kettle should be
descaled. One indication that the kettle should be descaled is that the heating time becomes
longer or the kettle switches off too soon.
•Hard scale on the heating element should be removed with a solution of citric acid crystals. It
is very important that the user instructions for the citric acid crystals are followed carefully,
that the agent is poured out of the kettle after the specified period of time and that the water
from the first couple of uses after descaling are discarded.
•Never switch off the kettle by pulling the plug out of the socket and never touch the switch
with wet hands.
•If after descaling a lot of scale remains on the heating element, the kettle should be
descaled again. Descaling should then be carried out more frequently in future.
•The kettle cannot be washed in a dishwasher.
•Do not use sharp objects when descaling/cleaning the heating element on the bottom of the
kettle.
Failure to remove the scale regularly could damage the kettle beyond repair. Damage caused in
this way is not covered by the guarantee.
Water filter:
•Scale particles suspended in the water may give it a cloudy or greasy appearance.
•The filter will prevent these particles going into your drink. If you see deposits on the filter, clean it,
otherwise the performance of your kettle will drop, your drinks may contain scale, and the water inside
the kettle may look cloudy.

6
Cleaning the filter:
•The filter is located inside the kettle behind the spout.
•With the lid open, gently pull the filter out of its retaining slot.
•Lift the filter out of the kettle.
•Rinse the filter in warm water and gently remove any scale with a soft brush.
•To replace the filter, slide it down into its slot until it clicks into place.
STORING THE APPLIANCE
•Unplug the unit from the wall outlet and clean all the parts as instructed above. Ensure that all
parts are dry before storing.
•Store the appliance in its box or in a clean, dry place.
•Never store the appliance while it is still wet or dirty.
•Never wrap the power cord around the appliance.
SERVICING THE APPLIANCE
There are no user serviceable parts in this appliance. If the unit is not operating correctly, please check
the following:
•You have followed the instructions correctly
•That the unit has been wired correctly and that the wall socket is switched on.
•That the mains power supply is ON.
•That the plug is firmly in the mains socket.
If the appliance still does not work after checking the above:
- Consult the retailer for possible repair or replacement. If the retailer fails to resolve the problem and
you need to return the appliance, make sure that:
•The unit is packed carefully back into its original packaging.
•Proof of purchase is attached.
•A reason is provided for why it is being returned.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised service agent,
in order to avoid any hazard. If service becomes necessary within the warranty period, the appliance
should be returned to an approved Tedelex Trading (Pty) Limited service centre. Servicing outside the
warranty period is still available, but will, however, be chargeable.

7

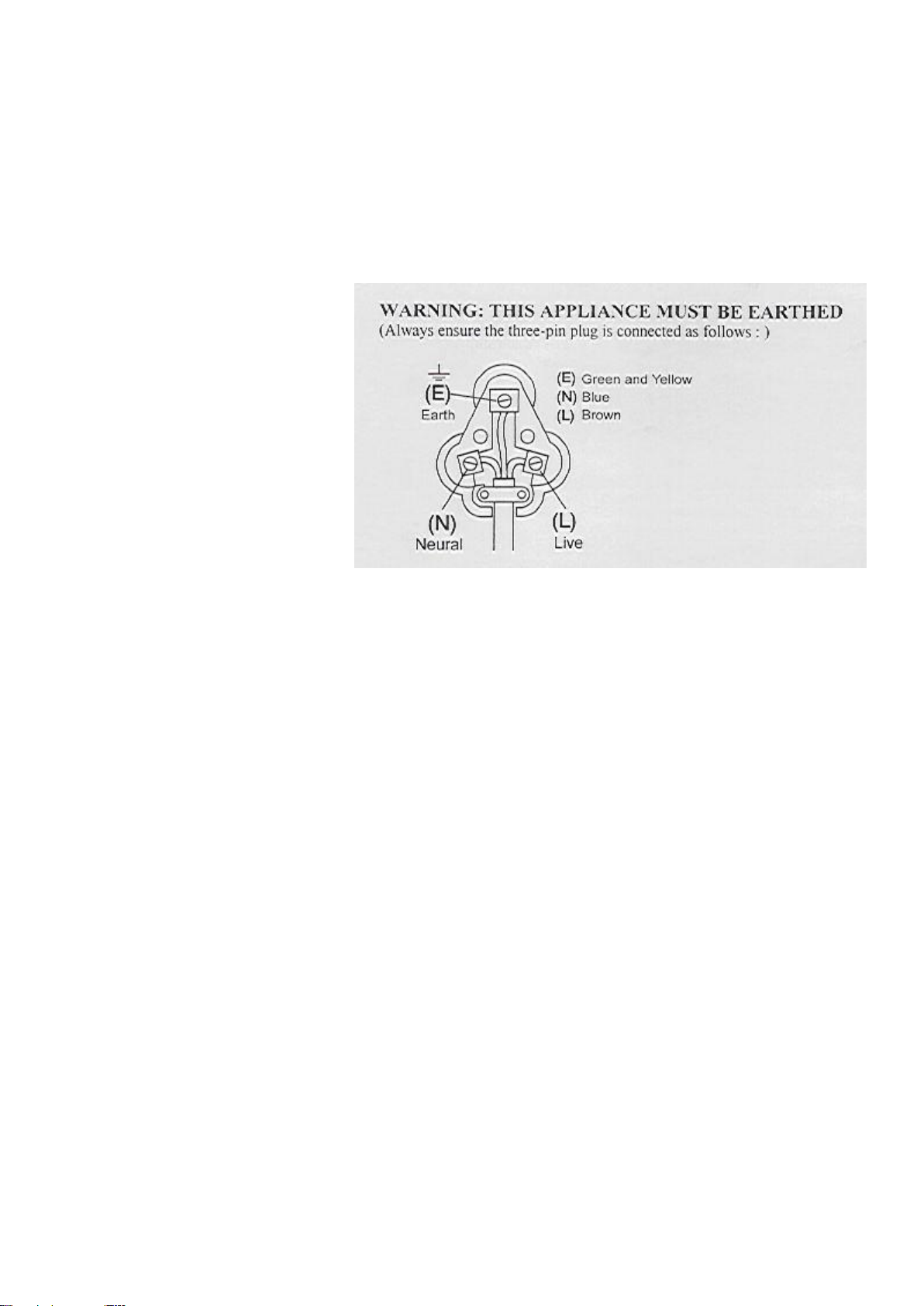

CHANGING THE PLUG
Should the need arise to change the fitted plug, follow the instructions below.
This unit is designed to operate on the stated current only. Connecting to other power sources may
damage the appliance. Connect a three-pin plug as follows:
The wires in this mains lead are coloured in accordance with the following code:
Green/Yellow = Earth
Blue = Neutral
Brown = Live

8
PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE
IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED.
W A R R A N T Y
1. Home of Living Brands (Pty) Limited (“Home of Living Brands”) warrants to the original
purchaser of this product (“the customer”) that this product will be free of defects in quality and
workmanship which under normal personal, family or household use and purpose may manifest
within a period of 1 (one) year from the date of purchase (“warranty period”).
2. Where the customer has purchased a product and it breaks, is defective or does not work
properly for the intended purpose, the customer must notify the supplier from whom the
customer bought the product (“the supplier”) thereof within the warranty period. Any claim in
terms of this warranty must be supported by a proof of purchase. If proof of purchase is not
available, then repair, and/or service charges may be payable by the customer to the supplier.
3. The faulty product must be taken to the supplier's service centre to exercise the warranty.
4. The supplier will refund, repair or exchange the product in terms of this warranty subject to
legislative requirements. This warranty shall be valid only where the customer has not broken
the product himself, or used the product for something that it is not supposed to be used for. The
warranty does not include and will not be construed to cover products damaged as a result of
disaster, misuse, tamper, abuse or any unauthorised modification or repair of the product.
5. This warranty will extend only to the product provided at the date of the purchase and not to any
expendables attached or installed by the customer.
6. If the customer requests that the supplier repairs the product and the product breaks or fails to
work properly within 3 (three) months of the repair and not as a result of misuse, tampering or
modification by or on behalf of the customer, then the supplier may replace the product or pay a
refund to the customer.
7. The customer may be responsible for certain costs where products returned are not in the
original packaging, or if the packaging is damaged. This will be deducted from any refund paid
to the customer.
HOME OF LIVING BRANDS (PTY) LTD (JOHANNESBURG)
JOHANNESBURG TEL NO. [phone]
CAPE TOWN TEL NO. [phone]
DURBAN TEL NO. [phone]
www.homeoflivingbrands.com
www.salton.co.za
www.facebook.com/SaltonSA
