INSTRUCTIONS AND WARRANTY
MODEL NO. SSBM11
SALTON 3L STAND BOWL MIXER

2
Congratulations on purchasing our Salton 3L Stand Bowl Mixer. Each unit is manufactured
to ensure safety and reliability. Before using this appliance for the first time, please read
the instruction manual carefully and keep it for future reference.
FEATURES OF THE SALTON 3L STAND BOWL MIXER
•250W
•5 speed settings
•Includes twin steel beaters and dough hooks
•Safe eject button to release beaters
•Large capacity 3L plastic bowl
•Detachable hand mixer gives you added flexibility
•Blends, mixes, creams and whips all your family favourites
•Ideal for all sorts of baked delights, marinades and sauces, soup, delicious dips and
so much more
•Tilting head and rotary bowl
•Non-slip feet for added stability
•Ergonomically designed
•For domestic use only
•1 year warranty
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should always be followed
including the following:
1. Please read the instructions carefully before using any hand mixer.
2. Always ensure that the voltage on the rating label corresponds to the mains voltage
in your home.
3. Incorrect operation and improper use can damage the hand mixer and cause injury
to the user.
4. This appliance is intended for household use only. Commercial use invalids the
warranty and the supplier cannot be held responsible for injury or damage caused
when using the hand mixer for any other purpose than that intended.

3
5. Avoid any contact with moving parts.
6. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
7. Children should be supervised to ensure that they do not play with the appliance.
8. Check the power cord and plug regularly for any damage. If the cord or the plug is
damaged, the manufacturer or a qualified person must replace it in order to avoid
an electrical hazard.
9. Do not use the stand bowl mixer if it has been dropped or damaged in any way. In
case of damage, take the unit in for examination and/or repair by an authorized
service agent
10.To reduce the risk of electric shock, do not immerse or expose the motor assembly,
plug or the power cord to water or any other liquid. Do not use it with wet hands.
11.Never immerse the unit in water or any other liquid for cleaning purposes.
12.Remove the plug from the socket by gripping the plug. Do not pull on the cord to
disconnect the hand mixer from the mains. Always unplug the unit when not in use,
before cleaning or when adding or removing parts.
13.Insert only original parts. The use of accessory attachments that are not
recommended or supplied by the manufacturer may result in injuries, fire or electric
shock.
14.Use this mixer only with the stand provided.
15.A short cord is provided to reduce the hazards resulting from becoming entangled in
or tripping over a longer cord.
16.Do not let the cord hang over the edge of a table or counter. Ensure that the cord is
not in a position where it can be pulled on inadvertently.
17.Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or
electric burner or in a heated oven.
18.Keep the appliance and cord away from direct radiant heat from the sun, from damp,
from sharp edges and other dangers.
19.Do not use the stand bowl mixer on a gas or electric cooking top or over or near an
open flame.
20.Use of an extension cord with this appliance is not recommended. However, if it is
necessary to use an extension lead, ensure that the lead is suited to the power

4
consumption of the appliance to avoid overheating of the extension cord, the
appliance or plug point. Do not place the extension cord in a position where it can
be pulled on by children or animals or tripped over.
21.This appliance is not suitable for outdoor use. Do not use this appliance for anything
other than its intended use.
22.Do not operate this appliance by means of an external timer or remote control
system.
23.DO NOT carry any appliance by the power cord.
24.Do not leave this appliance unattended during use. Always unplug the unit when not
in use or before cleaning.
25.Always operate the stand bowl mixer on a smooth, even, stable surface. Do not
place the unit on a hot surface.
26.Ensure both beaters/dough hooks are fitted to the stand bowl mixer before use.
27.Never attempt to eject the beaters/dough hooks when the appliance is in operation.
28.Never touch the rotating tools while still in motion; always wait for them to come to a
complete stop.
29.Keep hands, clothing, as well as spatulas and other utensils away from the
beaters/dough hooks during operation to reduce the risk of injury to persons and/or
damage to the mixer.
30.It is absolutely necessary to keep this appliance clean at all times as it comes into
direct contact with food.
31.To avoid splashes, always put the beaters/dough hooks right/ deep into the mixture
before running. Begin mixing at a low speed.
32.Be careful when mixing hot liquids or food preparation.
33.Ensure that the switch is in the “0” / “Off” position after each use.
34.To avoid the danger of fire and/or explosion, do not use this mixer to stir paints or
solvents.
35.The manufacturer does not accept responsibility for any damage or injury caused
by improper or incorrect use, or for repairs carried out by unauthorised personnel.
36.In case of technical problems, switch off the machine and do not attempt to repair it
yourself. Return the hand mixer to an authorised service facility for examination,
adjustment or repair. Always insist on the use of original spare parts. Failure to
comply with the above mentioned pre-cautions and instructions, could affect the
safe operation of this machine.

5
NOTICE: This appliance is not for professional use. You should follow the requested
breaks. Failure to follow this instruction carefully may result in damage to the motor. When
using the stand bowl mixer, the unit must not be used for longer than 5 minute cycles, as
this puts pressure on the motor which could lead to overheating and product malfunction. It
is recommended to allow the stand bowl mixer a 20 minute break after each cycle. This
will also help to prolong the life of your appliance.

6
PARTS DIAGRAM
1. 3L Plastic bowl
2. 5 Speed switch button
3. Pulse button
4. Tilt button
5. Beaters/ Dough hooks
6. Stand
7. Release button
7

7
BEFORE FIRST USE
REMOVE PACKAGING
Before using your appliance for the first time take it out of the box and take off any
protective wrappings. REMEMBER: DO NOT LEAVE PROTECTIVE PACKAGING LYING
AROUND, AS IT COULD BE DANGEROUS AROUND INFANTS. Wash the beaters/
dough hooks and bowl in warm soapy water, rinse well and dry. Wipe the mixer body
with a slightly dampened cloth.
1. Before assembling the stand bowl mixer, be sure the power cord is unplugged from
the power outlet and the speed selector is in the “0” / “OFF” position.
2. Select the twin beaters/dough hooks for whisking, mixing and beating tasks.
3. Properly assemble the beaters/dough hooks in the hand mixer.
Note: The beaters/dough hooks can be inserted into either socket as the
beaters/dough hooks are identical.
4. Place the plastic mixing bowl in position.

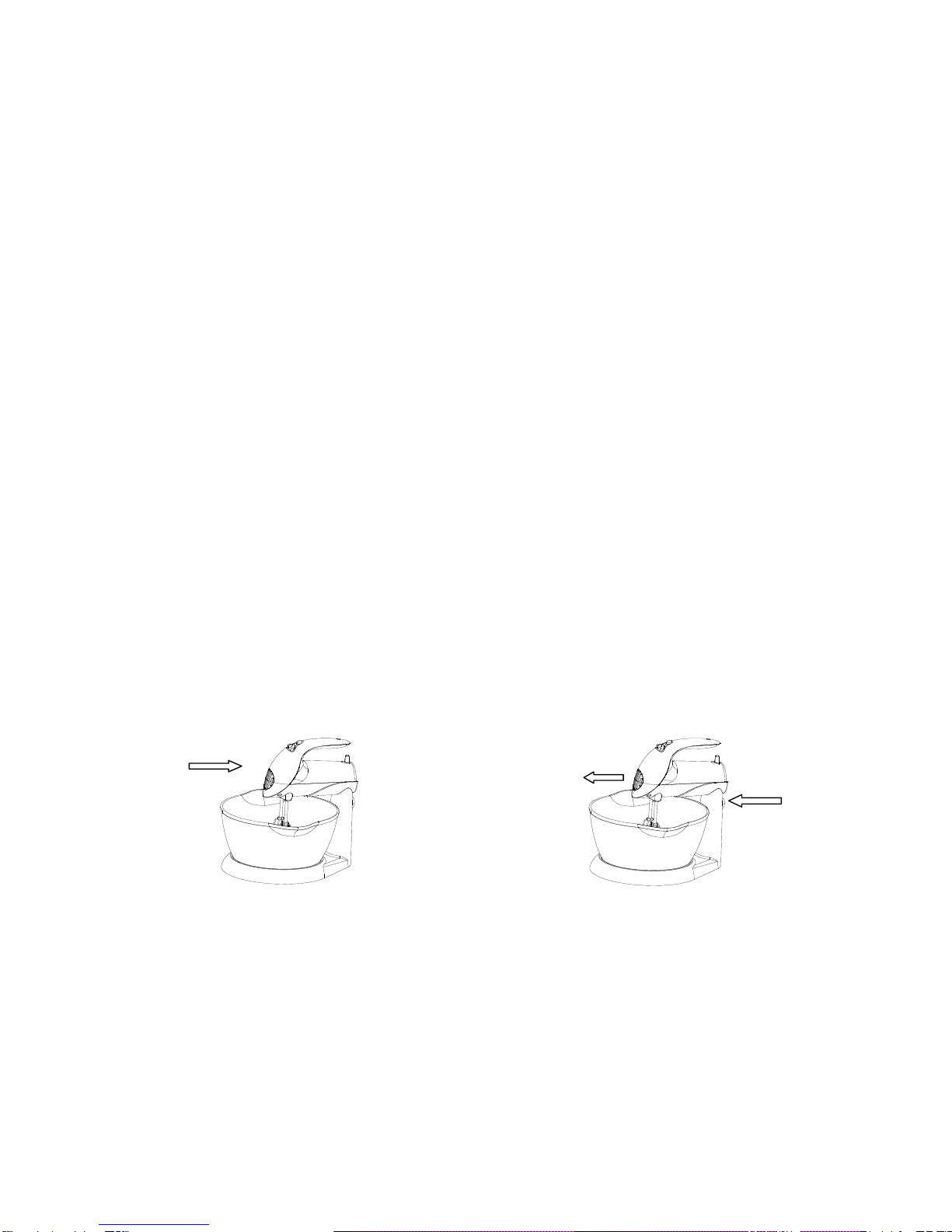

5. Attach the hand mixer to the base as illustrated in Fig.1. If it is properly assembled,
you will hear a click. For detaching the hand mixer, press the base lock button and
pull the hand mixer in the direction as indicated by the arrow (see Fig.2).
OPERATING INSTRUCTIONS
1. Ensure that the unit is off at the “0”position.
2. Plug into the power source.
3. Turn the speed selector to your desired setting. Note that the appliance will start to
operate. There are 5 speed settings to choose from.
Fig.1
Fig.2

8
Warning: Do not stick a knife, metal spoon, fork and so on into the bowl when
operating.
4. When mixing is completed, turn the speed selector to the “0” / “OFF” position and
unplug the cord from the power outlet.
5. Press the base lock button and ease the head of the mixer back until the mixer
head is locked into the tilt position.
6. If necessary you can scrape the excess food preparation from the beaters/dough
hooks by rubber or wooden spatula.
7. To remove the beaters, hold the beaters/dough hooks with one hand and firmly
press the eject button down with the other hand.
Caution: The speed selector must be at the “0” / “OFF” position before pressing the
eject button down to remove accessories. Never press the eject button when the
appliance is operating.
8. The hand mixer can be used separately without the stand in position.
SPEED AND FUNCTION GUIDE
Speed Function Use
1 Low Combine/ fold To combine liquids, fold in dry ingredients, egg
whites, whipped cream.
2 Stir To prepare sauces, gravies, puddings and muffin
mix.
3 Medium Mix To prepare batters and mixes.
4 To cream butter and sugar, make biscuit mix,
cake mixes and icing.
5 High Whip/ To whip light and fluffy mixture, cream, beat
Beat/ Mash eggs, whole and mash potatoes.
SUGGESTIONS FOR USE
Refrigerated ingredients, i.e. Butter and eggs should be at room temperature
before mixing begins. Set these ingredients out ahead of time.

9
To eliminate the possibility of shells or rotten eggs in your recipe, break the eggs
into a separate container first, check them and then add them to the mixture.
Do not over-beat. Be careful that you only mix/ blend mixtures until recommended
in your recipe. Fold into dry ingredients only until they are “just” combined. Always
use a low speed.
Climatic conditions. Seasonal temperature changes, temperature of ingredients and
their texture variation from area to area all play a part in the required mixing time
and the results achieved.
Always start mixing at slow speeds. Gradually increase to the recommended speed
as stated in the recipe.
Move the beaters gently around the mixture to ensure uniform results.
If you want to clean the sides and base of the mixing bowl/ container with a hand-
held utensil, first switch the machine to “0” / “OFF”.
To avoid unnecessary splashing, immerse the beaters into the mixture before
switching the appliance ON.
Unplug the appliance when not in use, before fitting or removing the beaters and
before cleaning it.
Avoid coming into contact with moving parts. Keep hands, hair, clothes, as well as
spatulas and other utensils away during operation to prevent injury and/or damage
to the appliance.
The speed can be adjusted at any time. Starting from “0” / “OFF” and then adjusting
the speed to the food type being mixed. For thicker mixtures, a low speed is
recommended. For fine consistency, use the high-speed settings.
Hints for beating egg whites:-
Be sure that the bowl and beaters are clean.
Be sure that there is no egg yolk in the egg white.
Egg whites should be at room temperature for maximum volume.
Use a high setting.
Beating time will vary according to the freshness of the eggs.

10
Hints for whipping cream:-
Use heavy cream.
Chill cream before whipping.
Use a deep bowl.
For best results, chill both beaters and bowl.
Start beating at a low speed to prevent spatter, increase to high as cream thickens.
Beating time will vary according to the fat content, age and temperature of the
cream.
CLEANING AND MAINTENANCE
This stand bowl mixer is for household use only and is not user-serviceable.
Do not open or change any parts by yourself. Please refer to a qualified electrical
service department or return to the supplier if servicing is necessary.
Always remember to unplug the unit from the electrical outlet when not in use and
before cleaning. Ensure that the speed control is set to “0” / “OFF”.
It is much easier to clean the beaters/dough hooks and bowl directly after they have
been used. Wash them in warm, soapy water, rinse and dry well.
The body of the hand mixer should be cleaned with a damp cloth. Do not let water
enter the hand mixer.
Do not use bleach or other abrasive substance or solvents to clean your hand mixer
as it can be damaging to the finish.
Do not immerse the mixer in water or any other liquid, or hold it under a running tap
to clean.
To remove stubborn spots/marks, wipe the surfaces with a cloth slightly dampened
in soapy water or mild non-abrasive cleaner. Rinse and dry with a clean, dry soft
cloth.
CAUTION: The stand bowl mixer should never be submerged in water or held under a
running tap. To clean, simply wipe with a damp cloth.

11
STORING THE APPLIANCE
Unplug the unit from the wall outlet and clean all the parts as instructed above.
Ensure that all parts are dry before storing.
Store the appliance in its box or in a clean, dry place.
Never store the appliance while it is still wet or dirty.
Never wrap the power cord around the appliance.
RECIPES
Grand Marnier Delight
Ingredients
-2 tablespoons orange rind
-½ cup Grand Marnier
-150g dark chocolate
-3 eggs separated
-100ml thickened cream
Decoration
-½ cup whipped cream
-2 teaspoons caster sugar
-Orange segments
Method
Marinate orange rind overnight in Grand Marnier. Drain and reserve marinade. Melt
chocolate over hot water, do not boil water. Beat egg yolks on Speed 5 until thick and
creamy, pour onto warm chocolate. Beat well to blend mixture together, adding one
tablespoon of marinated orange rind. Allow to cool, beat cream on speed 3 until soft peaks
form. Fold cream into chocolate mixture. Whip egg whites on speed 5 until stiff. Fold in

12
chocolate mixture, adding half the reserved marinade. Pour into small pots, refrigerate for
5 hours. Serve with whipped cream.
Chocolate Pecan Pudding
Ingredients
-100g dark chocolate
-75g pecan nits, finely chopped
-2 slices white bread, crumbed
-60g plain flour
-100g unsalted butter, softened
-4eggs, separated
-100g sugar
Method
Grease a large pudding bowl and dust with caster sugar.
Melt the chocolate in a small bowl over a saucepan of hot water. Combine pecan nuts,
breadcrumbs and flour. Beat butter on Speed 5 until fluffy, add chocolate, yolks and half
the sugar, continue to beat on speed 3 until smooth. Clean beaters thoroughly-whisk egg
whites until stiff, gradually adding remaining sugar. Fold the egg mixture into the butter
mixture, also add the flour mixture and fold lightly to combine.
Place mixture in prepared bowl. Cover with foil and secure. Lower into a saucepan of
boiling water-half way up sides of bowl and steam for 45-50 minutes.
Almond fingers
Ingredients
-225g butter
-2 cups caster sugar
-1 teaspoon almond essence
-1 egg

13
-3 cups plain flour
-1 teaspoon baking powder
Topping
-1 egg white, beaten with 2 tablespoons caster sugar
-1/2 cup chopped almonds
Method
Cream butter and sugar on speed 5 for 5 minutes, or until light and fluffy. Add essence and
egg, beating until combined.
Add sifted flour and baking powder and working with your hands form a smooth dough.
Roll out to 5mm thick, cut into finger shapes. Place on an oven tray. Bake at 150ºC for 15
minutes. Remove from oven. Brush with beaten egg white and sugar and sprinkle with
almonds. Return to oven for 5 minutes. Allow to cool on tray.
Cold Lemon Soufflé
Ingredients
-5 eggs, separated
-1 cup caster sugar
-2 teaspoons grated lemon rind
¾ cup strained lemon juice
-1 tablespoon gelatine
-1/4 cup cold water
-300ml thickened cream lightly whipped
Method
Cut a piece of foil 5cm longer than circumference of a deep 16cm soufflé dish. Fold foil in
half and wrap around the outside of dish. Secure foil with string. Beat egg yolks, sugar and
lemon rind on Speed 3 until the sugar has dissolved, and the mixture is pale and thick.
Heat lemon juice and gradually add to yolk mixture while beating. Combine gelatine with

14
water in a small bowl. Stand bowl in hot water and stir until gelatine dissolves. Add
gradually to lemon mixture- continuing on speed 1.
Transfer mixture to a large bowl, cover and refrigerate for 15 minutes. Using a metal
spoon, fold cream into the lemon mixture. Beat egg whites on Speed 5 until soft peaks
form. Fold whites quickly and lightly into the lemon mixture. Pour gently into the prepared
dish and chill until set. Serve with whipped cream.
Tropical Treat
Ingredients
-125g butter, softened
-1 cup firmly packed brown sugar
-1 egg
-1 cup crushed pineapple, drained
-1 1/2 cups self-raising flour
-1 cup milk
Method
Cream the butter and sugar on Speed 4 until creamed. Add egg and continue to beat until
light and fluffy. Reduce to Speed 2: add pineapple, flour and milk, mixing only until
combined. Place mixture in a greased pudding bowl and cover with 2 thicknesses of
greaseproof paper and secure with a string. Place in a dish of water. Bake in a pre-heated
180ºC oven for 45-50minutes. Serve with vanilla ice cream garnished with toasted
shredded coconut.

15
SERVICING THE APPLIANCE
There are no user serviceable parts in this appliance. If the unit is not operating correctly,
please check the following:
You have followed the instructions correctly
That the unit has been wired correctly and that the wall socket is switched on.
That the mains power supply is ON.
That the plug is firmly in the mains socket.
If the appliance still does not work after checking the above:
- Consult the retailer for possible repair or replacement. If the retailer fails to resolve the
problem and you need to return the appliance, make sure that:
The unit is packed carefully back into its original packaging.
Proof of purchase is attached.
A reason is provided for why it is being returned.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorized
service agent, in order to avoid any hazard. If service becomes necessary within the
warranty period, the appliance should be returned to an approved Home Of Living Brands
(Pty) Limited service centre. Servicing outside the warranty period is still available, but will,
however, be chargeable.
CHANGING THE PLUG
Should the need arise to change the fitted plug, follow the instructions below.
This unit is designed to operate on the stated current only. Connecting to other
power sources may damage the appliance. Connect a three-pin plug as follows:
The wires in this mains lead are coloured in accordance with the following code:
Green/Yellow = Earth
Blue = Neutral
Brown = Live

16
IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE
PRODUCED.
W A R R A N T Y
1. Home Of Living Brands (Pty) Limited warrants to the original purchaser of this product (“the customer”)
that this product will be free of defects in quality and workmanship which under normal personal,
family or household use and purpose may manifest within a period of 1 (one) year from the date of
purchase (“warranty period”).
2. Where the customer has purchased a product and it breaks, is defective or does not work properly for
the intended purpose, the customer must notify the supplier from whom the customer bought the
product (“the supplier”) thereof within the warranty period. Any claim in terms of this warranty must be
supported by a proof of purchase. If proof of purchase is not available, then repair, and/or service
charges may be payable by the customer to the supplier.
3. The faulty product must be taken to the supplier's service centre to exercise the warranty.
4. The supplier will refund, repair or exchange the product in terms of this warranty subject to legislative
requirements. This warranty shall be valid only where the customer has not broken the product
himself, or used the product for something that it is not supposed to be used for. The warranty does
not include and will not be construed to cover products damaged as a result of disaster, misuse,
tamper, abuse or any unauthorized modification or repair of the product.
5. This warranty will extend only to the product provided at the date of the purchase and not to any
expendables attached or installed by the customer.
6. If the customer requests that the supplier repairs the product and the product breaks or fails to work
properly within 3 (three) months of the repair and not as a result of misuse, tampering or modification
by or on behalf of the customer, then the supplier may replace the product or pay a refund to the
customer.
7. The customer may be responsible for certain costs where products returned are not in the original
packaging, or if the packaging is damaged. This will be deducted from any refund paid to the
customer.
HOME OF LIVING BRANDS (PTY) LTD
www.homeoflivingbrands.co.za
011 490-9600 (JHB)
031 792-6000 (DBN)
021 552-5161 (CT)
www.salton.co.za
www.facebook.com/SaltonAppliances
