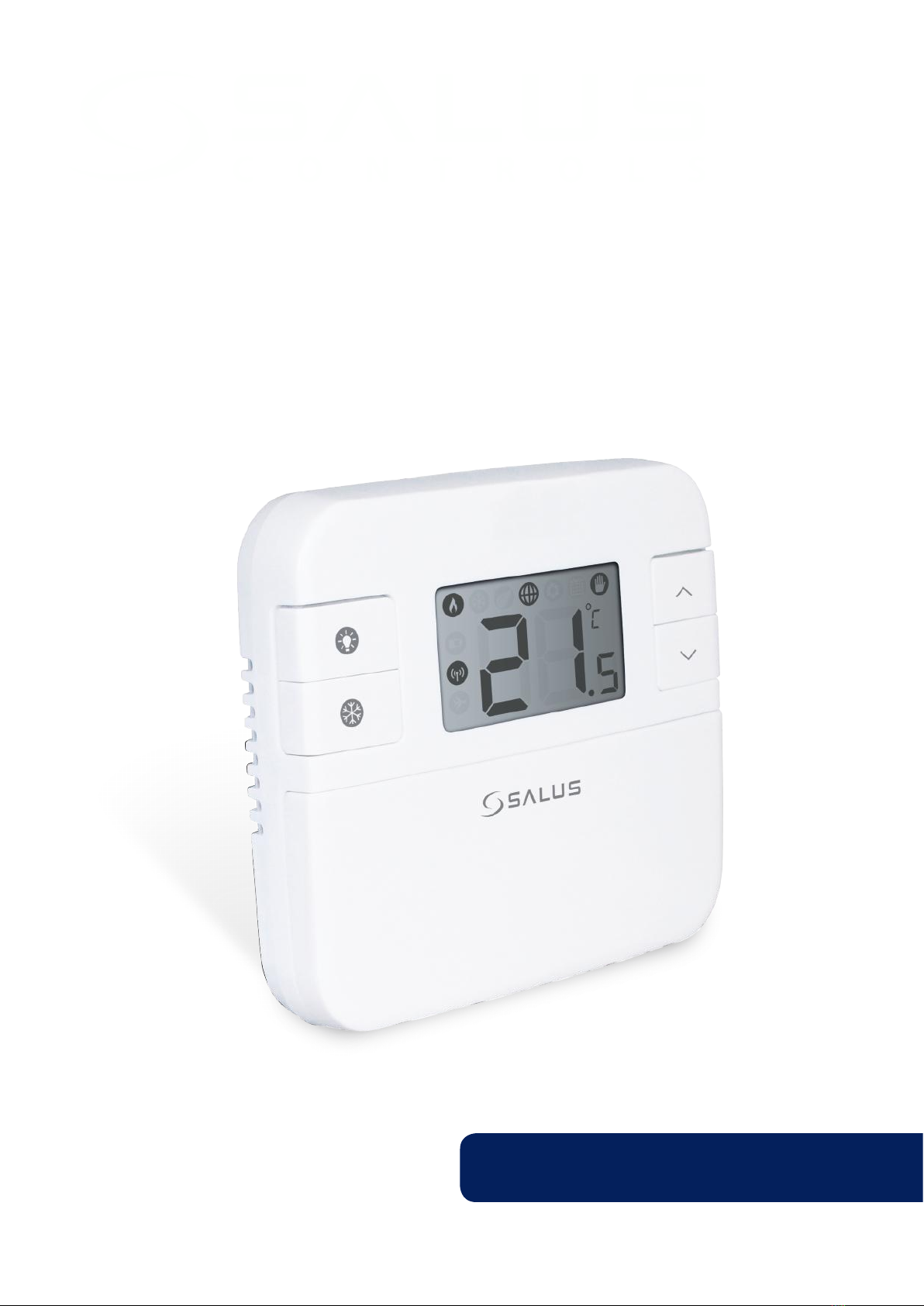

Salus RT310iSPE User manual

Installation Manual
Model: RT310i
Smartphone Controlled Thermostat

Product Compliance ................................................................................................ 3
Safety Information .................................................................................................... 3
Introduction .................................................................................................................. 4
Overview ........................................................................................................................ 5
Box contents ................................................................................................................. 5
Features ........................................................................................................................... 5
Connecting the RXRT510 receiver .................................................................. 6
Installation ..................................................................................................................... 6
RT310i thermostat ..................................................................................................... 7
Connecting the iTG310 Gateway .................................................................... 7
Test Pairing Function ............................................................................................... 7
Registration ................................................................................................................... 8
Button functions and keys ................................................................................... 9
LCD and App icons ................................................................................................... 10
Operations ..................................................................................................................... 11
Temperature, clock, time format ...................................................................... 11
Heat/Cool Mode ........................................................................................................ 12
Setting schedules ...................................................................................................... 14
Temporary or Permanent Override program mode ............................ 15
Frost Protection ........................................................................................................... 16
Holiday Mode .............................................................................................................. 17
Distance alerts ............................................................................................................. 17
Other functions .......................................................................................................... 18
LCD backlight .............................................................................................................. 18
Low battery detection ............................................................................................ 18
Temperatures outside operating range ...................................................... 18
Operating in Offline Mode .................................................................................. 19
Reviewing Setpoint Temperature via device ........................................... 19
Adjusting setpoint via device ............................................................................ 19
Factory reset ................................................................................................................. 20
Technical info ............................................................................................................... 21
Warranty ......................................................................................................................... 22
Contents
02 RT310i Installation Manual

Product Compliance
Safety Information
This product complies with the essential requirements and other relevant provisions of the following EU
Directives: 2014/30/EU, 2014/35/EU, 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of
Conformity is available at the following internet address: www.saluslegal.com.
Use in accordance with the EU and national regulations. For indoor use only. Keep your device completely dry.
Thisproductmust be installed by a competent person andin accordancewithall the EU and nationalregulations.
Always isolate the AC Mains supply before installing or working on any components that
require 230 VAC 50Hz supply.
RT310i Installation Manual 03

Introduction
A room thermostat simply switches the heating system on and off as necessary. It works by sensing the air
temperature, switching on the heating when the air temperature falls below the thermostat setting, and
switching it off once this set temperature has been reached.
The SALUS RT310i is a Smart phone controlled programmable thermostat. The RT310i thermostat will switch
your heating system on or off, as needed, in accordance with the temperature set by you, locally on the device
or remotely using the dedicated app.
Turning a room thermostat to a higher setting will not make the room heat up any faster. How quickly the room
heats up depends on the design of the heating system, for example, the size of boiler and radiators. Neither
does the setting affect how quickly the room cools down. Turning a room thermostat to a lower setting will
result in the room being controlled at a lower temperature, and saves energy.
The heating system will not work if a time switch or programmer has switched it off.
The way to set and use your room thermostat is to find the lowest temperature setting that you are comfortable
with, and then leave it alone to do its job. The best way to do this is to set the room thermostat to a low
temperature – say 18⁰C – and then turn it up by one degree each day until you are comfortable with the
temperature.
Room thermostats need a free flow of air to sense the temperature, so they must not be covered by curtains
or blocked by furniture. Nearby electric fires, televisions, wall or table lamps may prevent the thermostat from
working properly.
04 RT310i Installation Manual

iTG310
Overview
The RT310i is a stylish thermostat with easy readable LCD and a user-friendly interface. The Receiver is used
for wiring connections and heat on/off control. The thermostat provides the user interface and temperature
sensing / control. The two units are linked together by a Radio Frequency (RF) signal. The Gateway has a
futuristic design and helps connect your devices to the Internet, so that they can be controlled over the
RT310i App on your smart-phone.
Box contents
Features
• Remote control via App
• 5/2 days or 24hrs programming flexibility via App
• Built-in start up programming for quick installation
• Frost protection
• Eco Mode
• Holiday Mode
• Large, easy to read LCD with blue backlight
• User friendly
• Stylish casing
• Geo Location
• Pre-paired from Factory
• RF Test Mode
RT310i thermostat 4x screws and plugs 2xAA batteries
ADSL Cable Quick Guide
RXRT510 receiver
Gateway Adaptor suitable
for UK and EU
RT310i Installation Manual 05

Connecting the RXRT510 receiver
ON
AUTO
OFF
MANUAL
Wall mounting
COMNO L N
Terminal Description Receiver Terminals
NO
COM
L
N
Switch Terminal
Common Switch
Terminal
Mains Live (230VAC)
Mains Neutral
Wiring
Fit the front housing.
Press lightly
Fix the backplate to the wall Align the front housing
at the top edge.
NO COM L N
L N
Electrical diagram
COMNO L N
Unscrew the backplate of the RXRT510 receiver in order to do the wiring connections. After that please switch
the receiver ON.
06 RT310i Installation Manual

Before inserting the batteries, please make a note of your SRT number and register your device on the App.
RT310i thermostat
Connecting the iTG310 Gateway
S R T
SRT00000000 - 00
Plug in your gateway and attach the Ethernet cable and plug in into your router. The Led on the gateway will
flash red 3 times, then it should be steady green.
Gateway is ready
for pairing
Test Pairing Function
ON
AUTO
OFF
MANUAL
TEST/PAIRING TEST/PAIRING
ON
AUTO
OFF
MANUAL
TEST/PAIRING TEST/PAIRING
Press the button once to test the connection between the thermostat and the receiver. If the devices are paired
the ON and AUTO LEDs will both flash. You can wait 9 minutes for the process to end or can press the button
again to stop.
1 2
RT310i Installation Manual 07

Tap register to create
a new account
Enter email and
password, tap Next
Enter the code you
received via email
Enter the SRT device
code. Read and accept
the terms. Tap Submit
Your device appears
on the screen. Tap Edit
to rename it.
Name the device
and tap Save
Tap anywhere on
tile to enter the
thermostat interface
Thermostat interface in
schedule mode
When the thermostat is connected to the App, the icon will appear on the App screen and the icon
will appear on the thermostat screen. Also, the hand icon will show on the thermostat LCD.
Registration
Download the RT310i App and create
an account to start controlling your
thermostat via the App. Please follow
the steps below.
Enter name and
address and tap Next
1
67 8 9
2 3 4 5
08 RT310i Installation Manual

Button functions and keys
Key Function
Turn on the LCD backlight
Turn On/Off the Frost Mode
Press to increase setpoint temperature, press and hold
to enter fast advance.
Press to decrease setpoint temperature, press and hold
to enter fast advance.
1. Press once to enter/exit in RF Test Mode
2. Press for 3 seconds to enter/exit Pairing Mode
ON
AUTO
OFF
MANUAL
Key/LED Function
AUTO System receiver output will switch on and off in
relation to the command from the RT310i transmitter.
Manual System receiver output is controlled by the On/Off
slide switch.
ON When in Manual Mode, ON will turn on the boiler.
OFF When in Manual Mode, OFF will turn off the boiler.
Red Led Receiver On, paired.
Green Led Command from thermostat received.
There are few user controls for the RT310i, making this thermostat very easy to operate. These controls are
shown below, along with a description of each of their functions. The temperature displayed on the LCD is the
current room temperature. All the buttons on the thermostat and receiver with a description are shown below.
Thermostat
Receiver
RT310i Installation Manual 09

LCD and App icons
Thermostat name
Temperature increase/decrease
RF Signal Strength
Menu button
Setpoint temperature
Heating/Cooling Mode
Room temperature
Schedule/Manual Mode
Frost Protection Mode
Heating Mode On
Cooling Mode On
ON when thermostat is connected
to the ITG310 gateway
Frost Protection On
Schedule Mode On
Manual Override
(Permanent/Temporary override)
ON when battery is weak
before battery life end
ON during RF signal
transmission to RX boiler
Holiday Mode On
Temperature display
10 RT310i Installation Manual

Operations
When you first enter the application, your home screen will display the
room temperature, the set temperature (it will operate based on the default
set schedule). the thermostat will be operating in schedule mode. You
can easily control your thermostat using the application. By default, the
thermostat operates in heating mode, that’s why you will have the flame
icon on the screen. You can now start setting the time zone, changing
modes, and adding schedules
Features available only on the App:
- Temperature format
- Clock format
- Time zone
- Daylight Saving Time
- Heating or Cooling Mode
- Schedule/Manual/Off Mode
- Holiday Mode
- Frost Mode*
* Also available on the device
Note: Time and date will be automatically added once you connected to the internet, based on your
geo-location. What you have to do manually, though, is to select your temperature format, clock format and
time zone. This can be easily done by following these steps:
Tap menu icon Go to settings Select temperature
format
Select clock format
Select time zone DST on/off Tap Save
After you adjust all
of your settings, tap
Save. The app will
then return to the
home screen where
you can start adding
programs.
Temperature, clock, time format
1
5 6 7
2 33 4
RT310i Installation Manual 11

Heat/Cool Mode
You can ONLY shuffle between heat/cool mode from the App. If you want to choose a temperature that is
higher than the current room temperature, make sure the thermostat is running in heat mode. If you want to
set a temperature that is lower than the current room temperature, make sure you switch to cool mode.
Tap menu icon Go to settings Select Cool Mode Tap Save
Changing to Cool Mode
Using the cursor, set the
temperature
The frost icon will turn
blue and animated
meaning thermostat
is calling for cooling.
TESTING/PAIRING
The antenna icon appears
on the LCD - command
received
The cool mode icon
will appear on the LCD,
meaning thermostat is
calling for cooling.
ON
AUTO
OFF
MANUAL After the thermostat is calling for cooling, the green light on the RXRT510 receiver
will go on steady green.
1
5 6
2 3 4
12 RT310i Installation Manual

Changing to Heat Mode
Tap menu icon Go to settings Select Heat Mode Tap Save
Using the cursor, set
the temperature
The Flame icon will
turn orange and
animated meaning
the thermostat
is calling for heat.
TESTING/PAIRING
The antenna icon appears
on the LCD - command
received
The heat mode icon
will appear on the LCD,
meaning thermostat
is calling for heat.
Note: You can ONLY shuffle between heat/cool mode from the App. When the Internet connection is lost
and the thermostat is not communicating to the gateway and App it switches to Local mode. RT310i can still
run temperature control, auto program, manual override, and control RXRT510 directly. You can still change
the setpoint directly from the thermostat, by pressing the or keys directly from the thermostat.
ON
AUTO
OFF
MANUAL
After the thermostat is calling for heat, the green light on the RXRT510 receiver will
go on steady green.
1
5
2 3
6
4
TESTING/PAIRING
RT310i Installation Manual 13

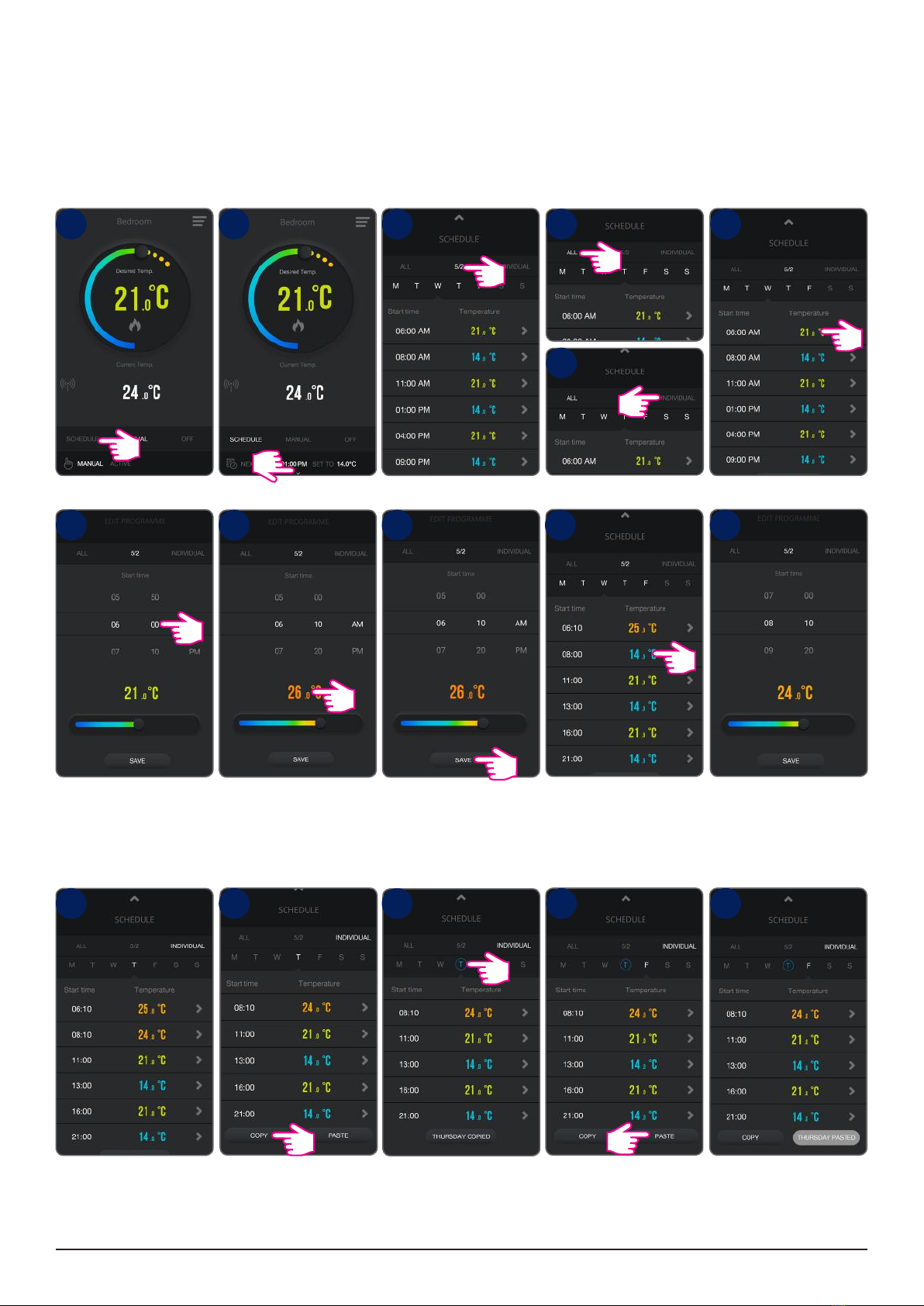

Setting schedules
You can switch from Manual Mode to Schedule Mode and start adjusting programs. That’s very easy to do
and you need to follow the next steps. Note that there are 3 types of scheduling available, with 6 time intervals per day.
• 5+2 (Mon-Fri same, Sat-Sun same)
• Each day individual
• All week the same
Tap schedule Tap Arrow Select Type: 5+2 All/Individual Tap first interval
Adjust temperature Tap Save Tap next time interval.Adjust time Follow the same procedure
You need to follow the same steps for all intervals and all days in order to set schedules for the weekend days. Also, you
can copy the schedules from one day to another, which comes very handy if you are setting your days individually. Please
see below to see how to copy the schedules from one day to another.
Select day Tap Copy Selected day will be
marked with blue. Tap
the day you want to
paste into
Tap Paste Schedule is saved
1
1
5 6 7 8 9
2
2
3
3
3a
3a
3b
4
4
14 RT310i Installation Manual

Temporary or Permanent Override program mode
Temporary Override
Normally thermostat is running in schedule mode.
Manual and schedule mode can only be changed in the App
In schedule mode , pressing UP or DOWN on the thermostat changes setpoint. This is Temporary Override.
You can also change the temperature directly from the App.
During Temporary Override, manually override setpoint will expire by next program P1-P6
During Temporary Override, Calendar & HAND icons are turned ON.
Via App Via device
Via deviceVia App
Temporary override mode Temporary override mode
Permanent Override
In manual mode, pressing UP or DOWN changes setpoint. This is Permanent Override.
You can also change the temperature directly from the App.
During Permanent Override, manually override setpoint will run forever, until schedule model is selected from
App again, or another temperature is set.
During Permanent Override, HAND icon is turned ON
Permanent override mode
Permanent override mode
TESTING/PAIRING
TESTING/PAIRING
TESTING/PAIRING
TESTING/PAIRING
RT310i Installation Manual 15

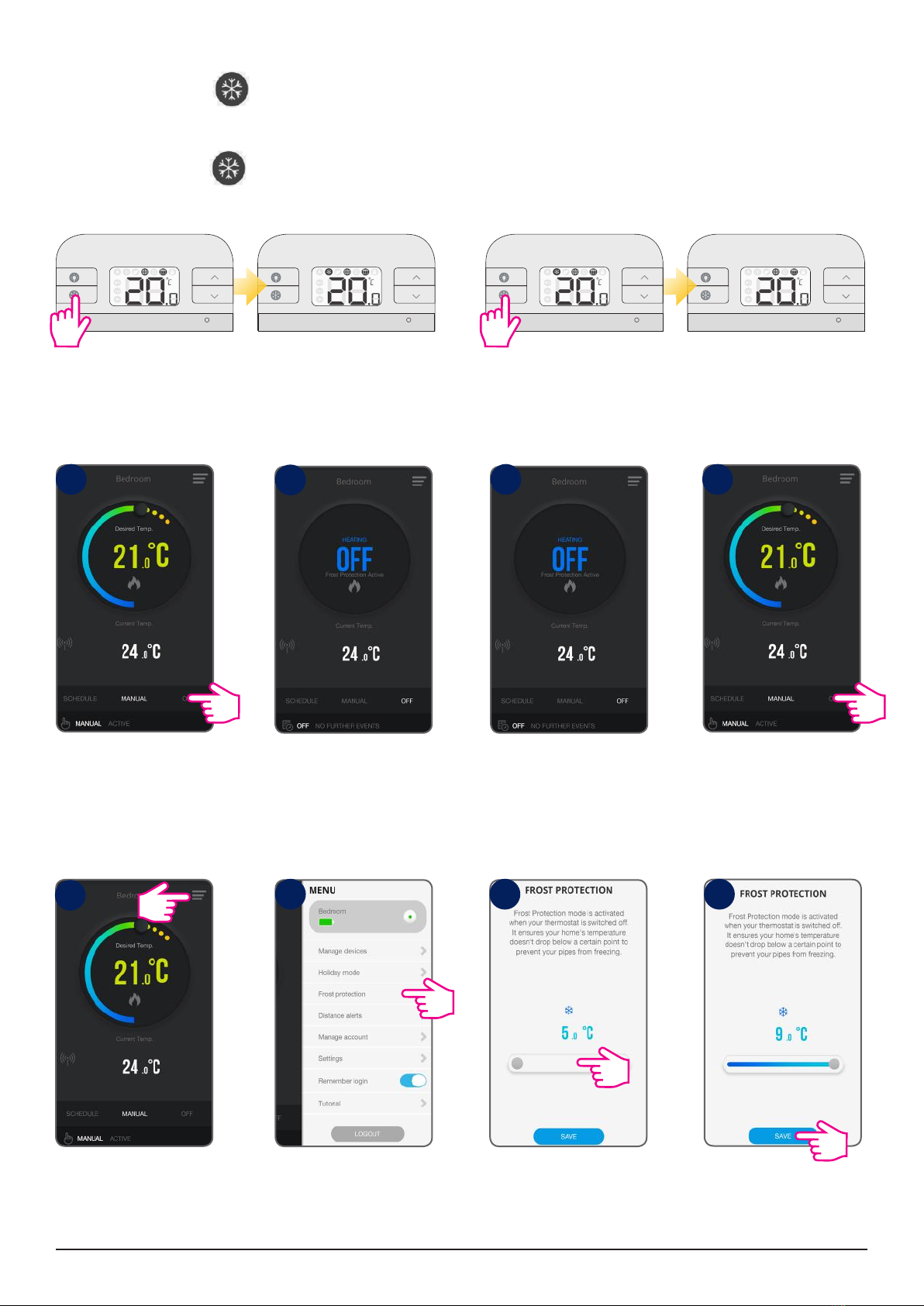

Frost Protection
Press FROST button to activate Frost Protection.
The Setpoint temperature is automatically set to frost setpoint to prevent pipes from frosting. If the room
temperature is lower than the frost setpoint, frost protection will be enabled.
Press FROST button again to de-activate Frost Protection.
Via App
Tap menu icon Go to settings Select temperature
format
Select clock format
Frost Protection ON Frost Protection OFF
Frost Protection Setpoint
Tap menu icon Go to Frost Protection Adjust temperature
Default 5⁰C
Tap Save
You can adjust the Frost Protection setpoint using the App. The setpoint range is between 5-9 ⁰C
TESTING/PAIRINGTESTING/PAIRING
Actual room temperature Actual room temperature
Frost Mode activated
TESTING/PAIRINGTESTING/PAIRING
Frost Mode deactivated
Frost Protection ON Frost Protection OFF
1 1
2
12 3 4
2
16 RT310i Installation Manual

Holiday Mode
You can set your RT310i to holiday mode. Thermostat will be turned OFF during this mode and no commands
will be sent to the heating unit. During this mode, the thermostat will run like in Frost Protection Mode. When
activated, an airplane icon appears on the display of your device You can set Holiday mode from the App
only. It can be set for maximum 31 days.
Tap menu icon Go to Holiday Mode Enter holiday dates Tap Save
Distance Alerts
You can set your RT310i to notify you whenever you are a certain distance away from your home.
Choose miles/km and
set a distance
Tap Save
Tap menu icon Go to Distance Alerts
You can also choose to deactivate Distance Alerts in one easy step.
12 3 4
12 3 4
RT310i Installation Manual 17

Other functions
LCD backlight
• LCD backlight is activated when or any key is pressed. The backlight will be turned off in 15 seconds
after all keys are released.
• LCD backlight will not operate when battery is low.
Low battery detection
Battery voltage is checked every minute. When the battery voltage drops to a certain level, the Low-Battery
warning indicator appears.
• The thermostat functions normally during low battery. However, user must change the batteries as soon
as possible before the battery is too weak for the normal operation to be assured.
• When you change the batteries, you have about 30 seconds to to do so without losing your settings.
Temperatures outside operating range
Temperatures below 10 °C are displayed without the leading‘0’. Temperatures exceeding the measurable range
will be indicated by‘HI’for temperatures above the upper limit, and‘LO’for temperatures below the lower limit,
as shown in the images.
18 RT310i Installation Manual

Reviewing Setpoint Temperature via device
Press or to review Setpoint temperature. The flame icon won’t be turned on.
When operating in Frost protection mode, the LCD will show frost setpoint with the Frost Protection
indicator displayed.
Press Backlight or wait 2 seconds without key press to return to normal operation, room temperature will be
displayed.
Actual room temperature Setpoint temperature
By changing the Setpoint temperature, you are permanently altering your temperature. You can change the
set point temperature very easily while you are reviewing the set point temperature. Press the UP or DOWN
keys repeatedly to change the temperature setting. The set point temperature will flash to indicate that it can
be changed: the temperature will be changed in 0.5°C steps per key press.
The RT310i will return to Normal mode if no keys are pressed for more than 2 seconds. Once the new Setpoint
has been implemented, the change is permanently overridden until a new Setpoint is set again. Setpoint
temperature cannot be changed if Frost Protection mode is enabled.
Adjusting setpoint via device
Operating in O-line Mode
If the Internet connection is lost and the thermostat is not communicating with the App or with the gateway,
it can still be operable in off-line mode. When in off-line mode:
• The thermostat will follow the last set schedule
• Setpoint can be changed and reviewed via device
TESTING/PAIRINGTESTING/PAIRING
TESTING/PAIRING
TESTING/PAIRING
TESTING/PAIRINGTESTING/PAIRING
Actual room temperature Setpoint temperature 2 seconds timeout Actual room temperature
RT310i Installation Manual 19

Factory reset
Remove the batteries without pressing any button. Wait 2 minutes and insert the batteries again.
Via App
Tap menu icon Go to Manage devices Tap delete Tap Yes
After that you will need to add and set your thermostat all over again.
12 3 4
20 RT310i Installation Manual
