Salus ERT 52 User manual

Instruction Manual
Model no. ERT 52
EN Programmable room-thermostat
Menu
Select Cancel
All manuals and user guides at all-guides.com
all-guides.com

2GB

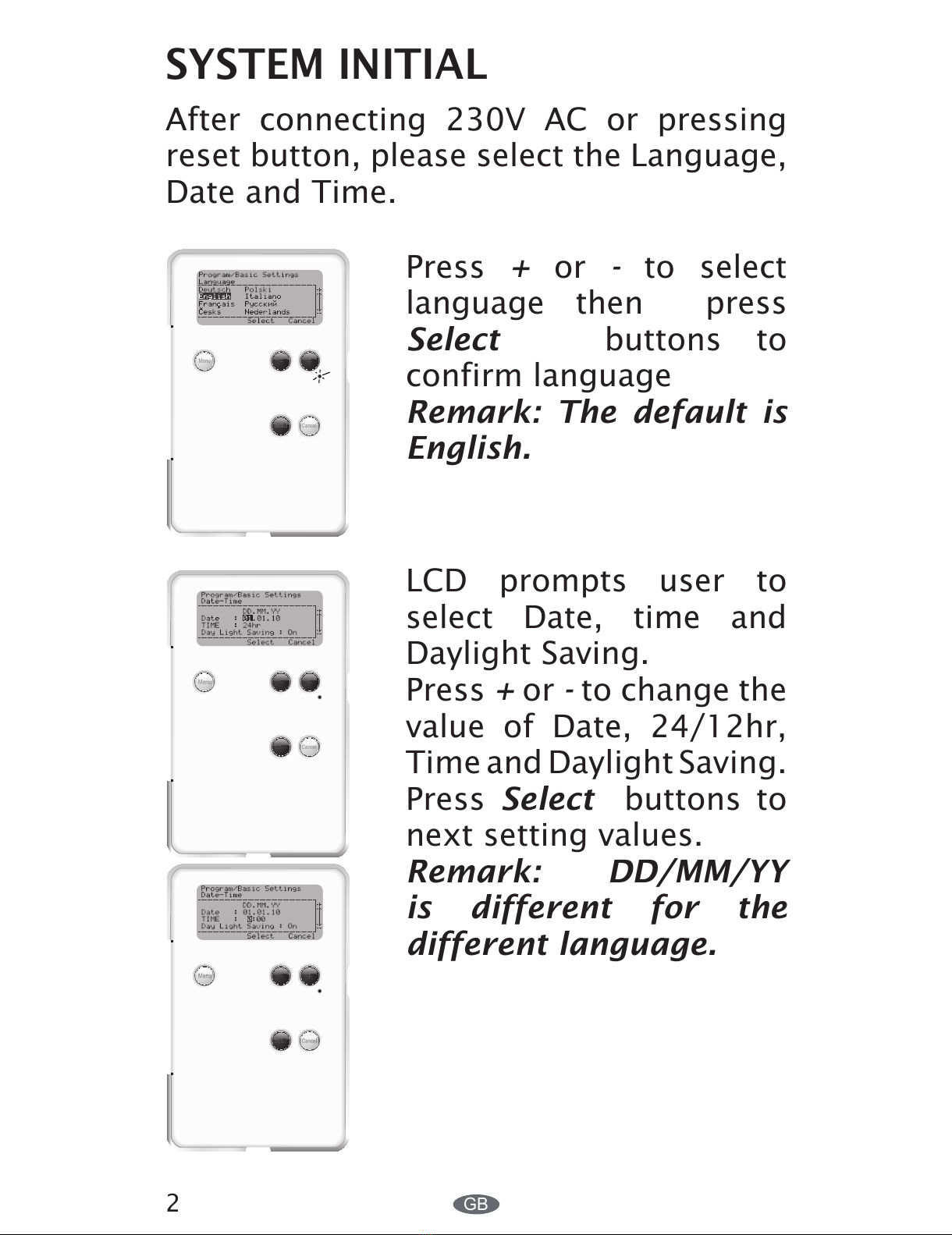

SYSTEM INITIAL
After connecting 230V AC or pressing
reset button, please select the Language,
Date and Time.
Cancel
Menu
Select
Cancel
Menu
Select
Press +or -to select
language then press
Select buttons to
confirm language
Remark: The default is
English.
LCD prompts user to
select Date, time and
Daylight Saving.
Press +or -to change the
value of Date, 24/12hr,
Time and Daylight Saving.
Press Select buttons to
next setting values.
Remark: DD/MM/YY
is different for the
different language.
All manuals and user guides at all-guides.com

3
GB
1
2
3

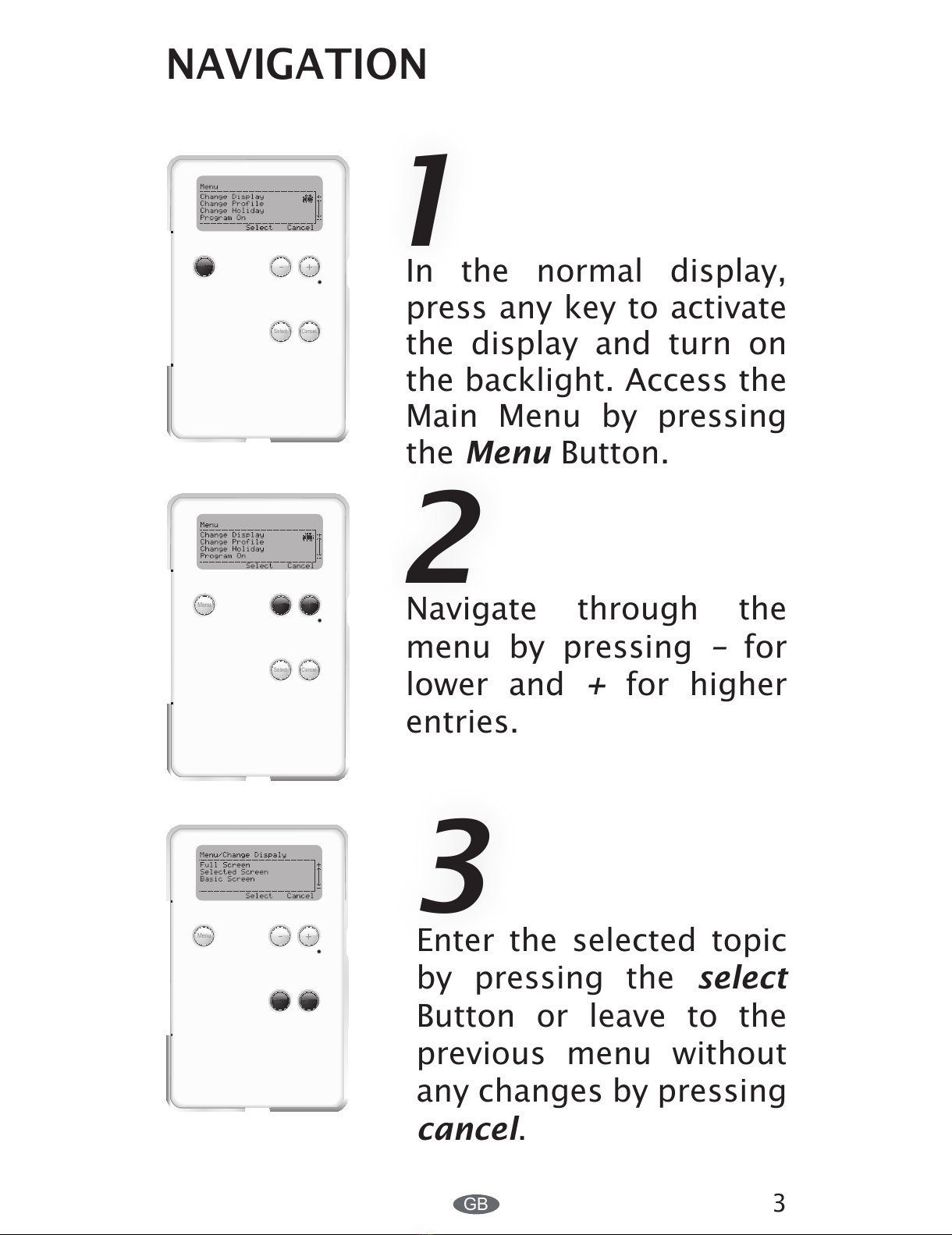

NAVIGATION
In the normal display,
press any key to activate
the display and turn on
the backlight. Access the
Main Menu by pressing
the Menu Button.
Navigate through the
menu by pressing –for
lower and +for higher
entries.
Enter the selected topic
by pressing the select
Button or leave to the
previous menu without
any changes by pressing
cancel.
Select Cancel
Menu
Menu
Select Cancel
Select Cancel
Menu
All manuals and user guides at all-guides.com

4GB

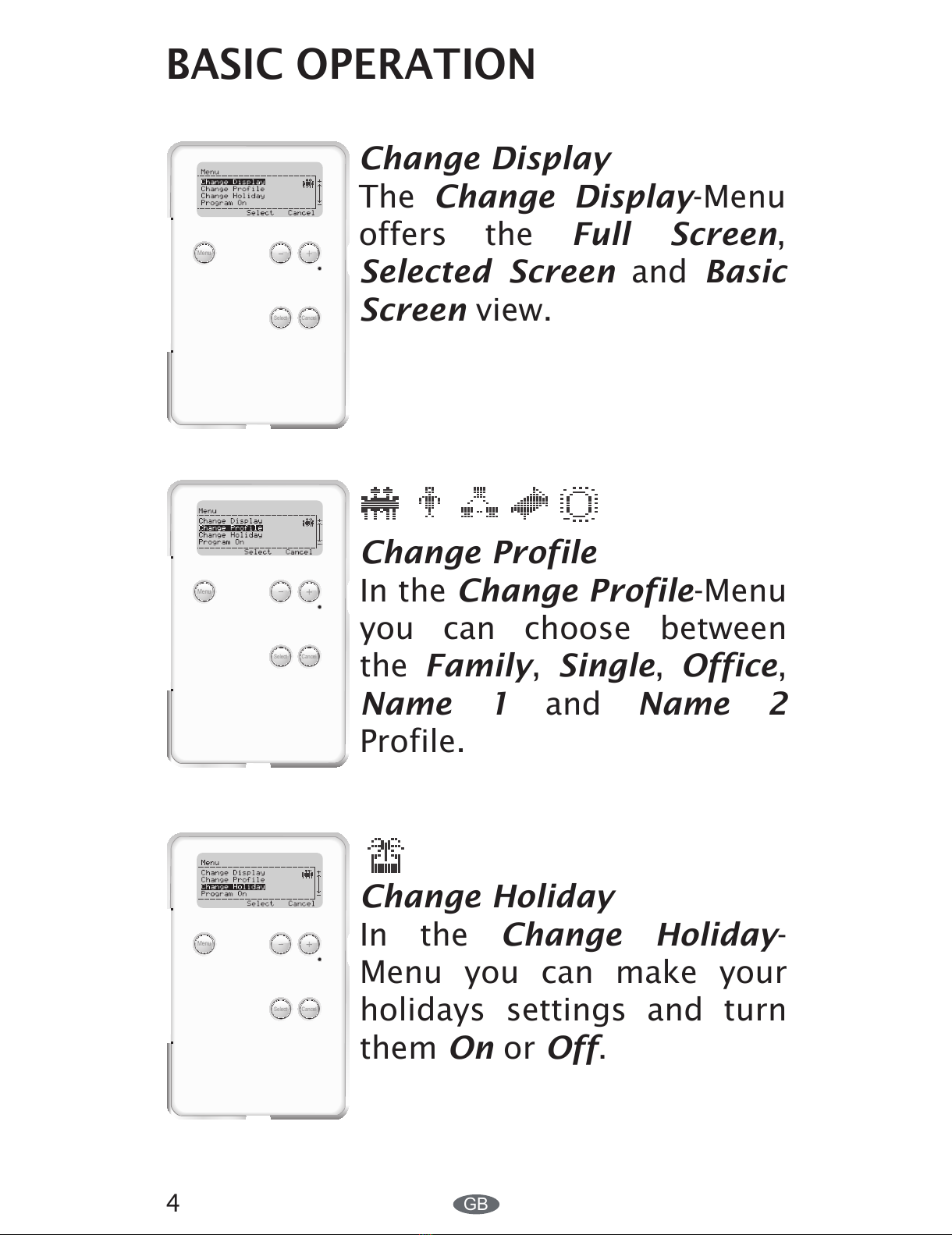

BASIC OPERATION
Change Display
The Change Display-Menu
offers the Full Screen,
Selected Screen and Basic
Screen view.
Change Profile
In the Change Profile-Menu
you can choose between
the Family, Single, Office,
Name 1 and Name 2
Profile.
Change Holiday
In the Change Holiday-
Menu you can make your
holidays settings and turn
them On or Off.
Menu
Select Cancel
Menu
Select Cancel
Menu
Select Cancel
All manuals and user guides at all-guides.com

5
GB

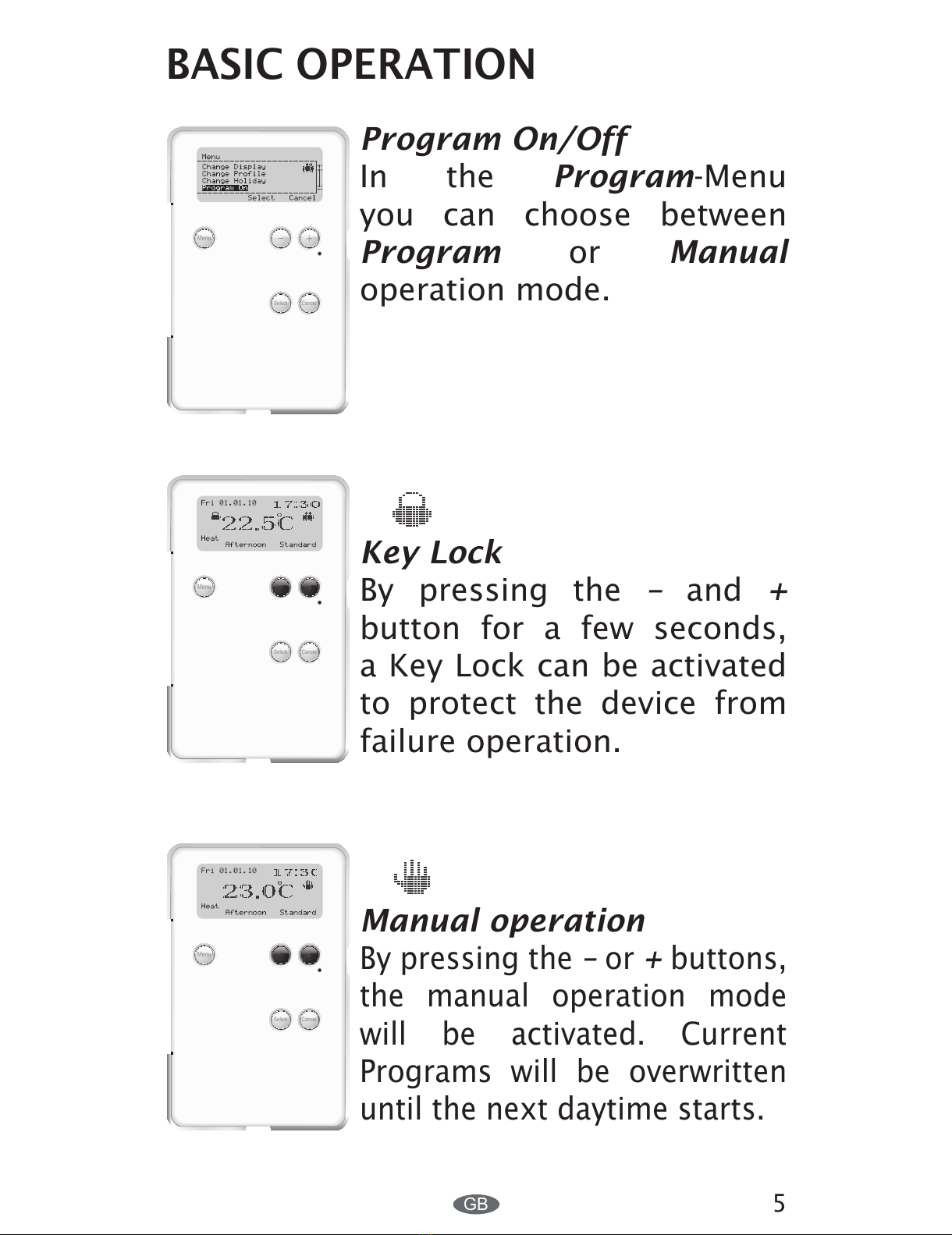

BASIC OPERATION
Program On/Off
In the Program-Menu
you can choose between
Program or Manual
operation mode.
Key Lock
By pressing the –and +
button for a few seconds,
a Key Lock can be activated
to protect the device from
failure operation.
Manual operation
By pressing the –or +buttons,
the manual operation mode
will be activated. Current
Programs will be overwritten
until the next daytime starts.
Menu
Select Cancel
Menu
Select Cancel
Menu
Select Cancel
All manuals and user guides at all-guides.com

6GB
PROGRAM-MENU
Program Menu
To access the program-
menu, open the hatch
and press –button twice
and then press select and
cancel at the same time for
a few seconds.
Basic Settings
Enter the Basic Settings-
Menu to adjust Date/Time
(24, 12 hrs), Language and
Maintenance settings.
Temp. Zones
Enter the Temp. Zones-
Menu to adjust the
temperatures of the
Comfort, Standard and
Reduced zones.
Select Cancel
Menu
Menu
Select Cancel
Menu
Select Cancel
All manuals and user guides at all-guides.com
all-guides.com

7
GB
Profile
Enter the Profile-Menu to
adjust the detailed settings
of the Family, Single,
Office, Name 1 and Name
2Profiles.
The three temperature zones can be
allocated to the six day times. If you modify
a temperature zone, the temperature-
settings within the profiles will change
as well. The zones are preinstalled with
these temeratures:
Comfort 24°C Standard 20°C Reduced 16°C
Menu
Select Cancel
Daytimes Time Family Single Office Name 1 Name 2
Early Morning 06:00 - 08:00 Comfort Comfort Comfort Comfort Comfort
Morning 08:00 - 12:00 Standard Standard Standard Standard Standard
Noon 12:00 - 14:00 Comfort Comfort Comfort Comfort Comfort
Afternoon 14:00 - 18:00 Standard Standard Standard Standard Standard
Evening 18:00 - 23:00 Comfort Comfort Comfort Comfort Comfort
Night 23:00 - 06:00 Reduced Reduced Reduced Reduced Reduced
Early Morning 06:00 - 08:00 Comfort Comfort Comfort Comfort Comfort
Morning 08:00 - 12:00 Standard Standard Standard Standard Standard
Noon 12:00 - 14:00 Comfort Comfort Comfort Comfort Comfort
Afternoon 14:00 - 18:00 Standard Standard Standard Standard Standard
Evening 18:00 - 23:00 Comfort Comfort Comfort Comfort Comfort
Night 23:00 - 06:00 Reduced Reduced Reduced Reduced Reduced
Mon - Fri
Sat - Sun
All manuals and user guides at all-guides.com

8GB

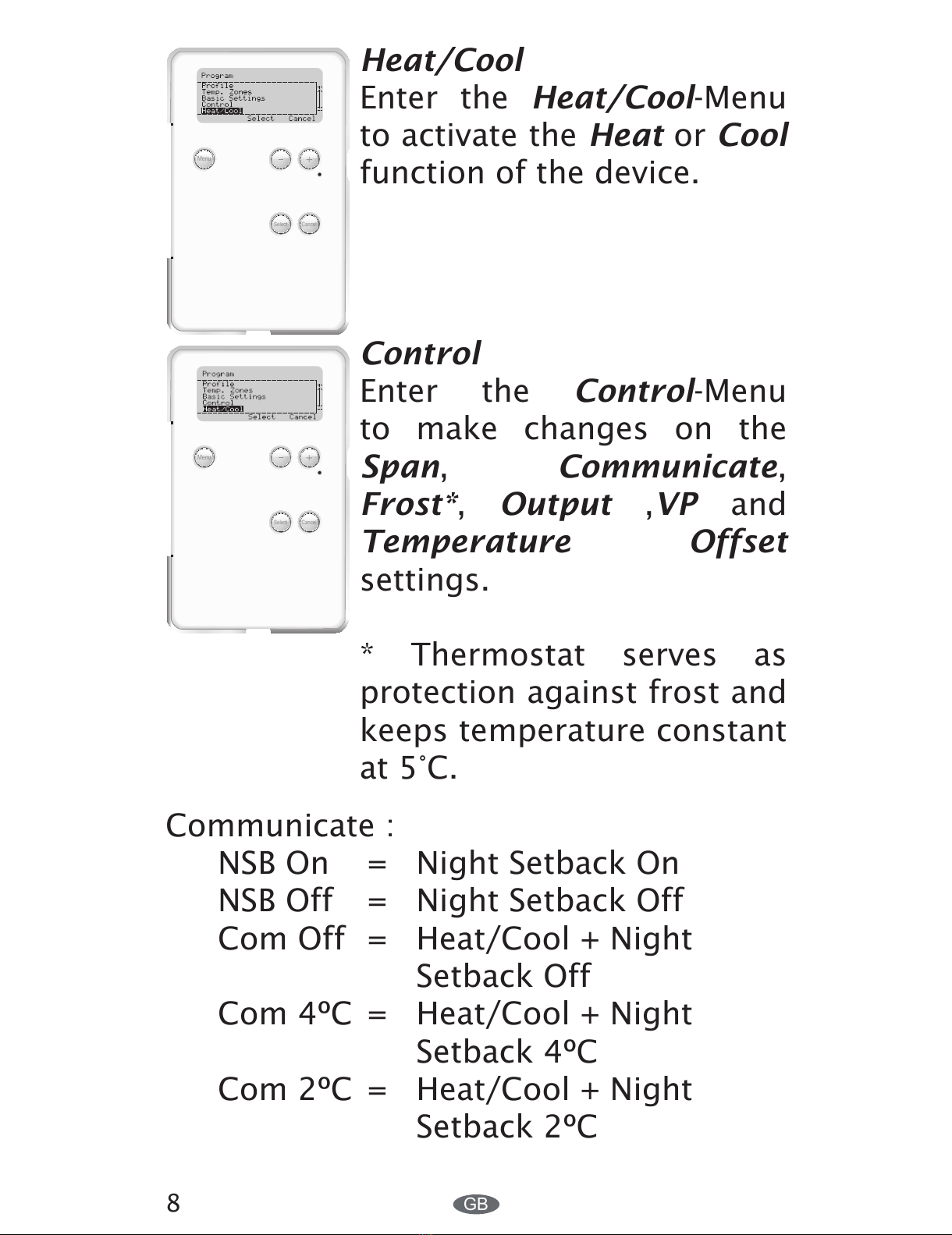

Heat/Cool
Enter the Heat/Cool-Menu
to activate the Heat or Cool
function of the device.
Control
Enter the Control-Menu
to make changes on the
Span, Communicate,
Frost*, Output ,VP and
Temperature Offset
settings.
* Thermostat serves as
protection against frost and
keeps temperature constant
at 5°C.
Menu
Select Cancel
Menu
Select Cancel
Communicate :
NSB On = Night Setback On
NSB Off = Night Setback Off
Com Off = Heat/Cool + Night
Setback Off
Com 4ºC = Heat/Cool + Night
Setback 4ºC
Com 2ºC = Heat/Cool + Night
Setback 2ºC
All manuals and user guides at all-guides.com

9
GB

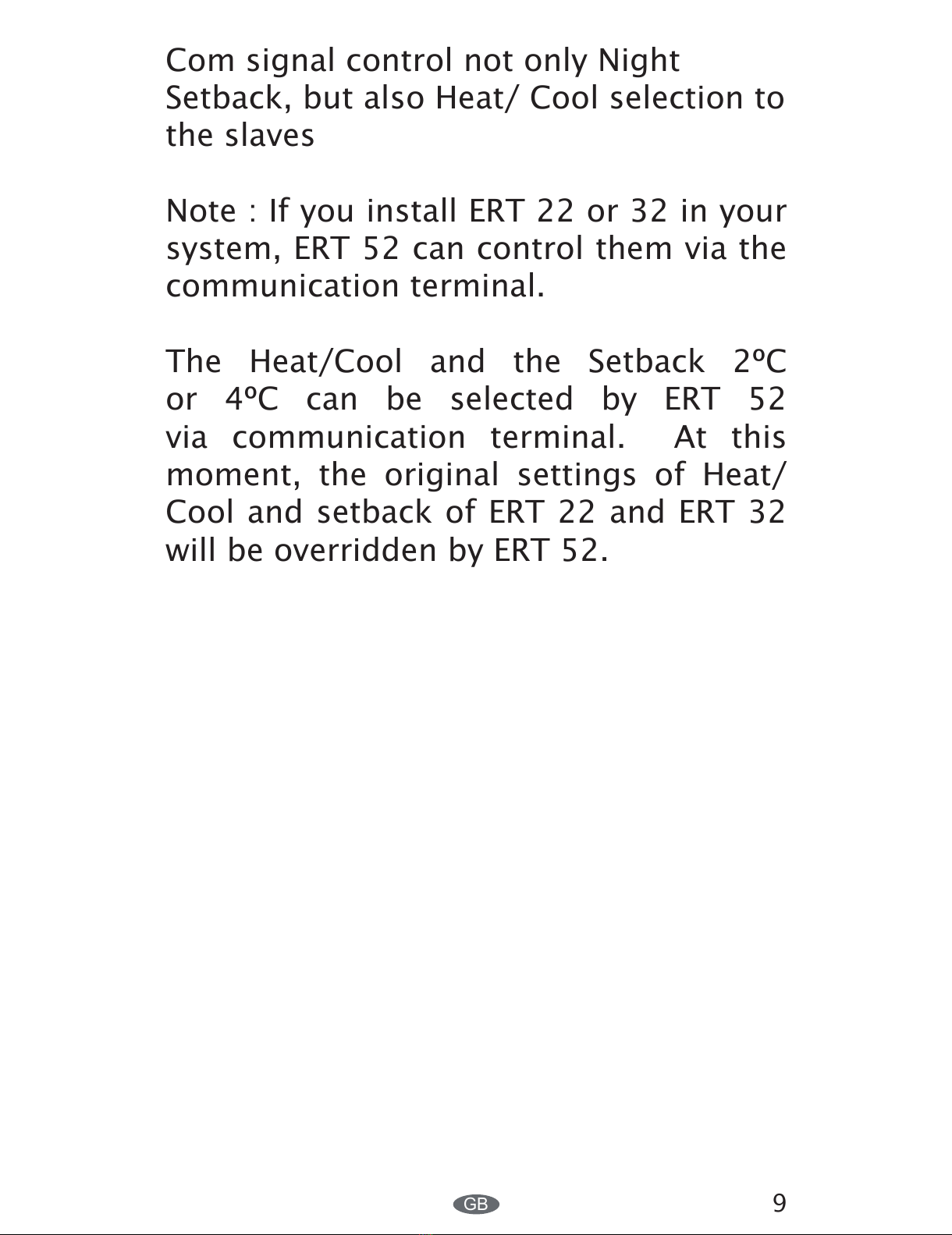

Com signal control not only Night
Setback, but also Heat/ Cool selection to
the slaves
Note : If you install ERT 22 or 32 in your
system, ERT 52 can control them via the
communication terminal.
The Heat/Cool and the Setback 2ºC
or 4ºC can be selected by ERT 52
via communication terminal. At this
moment, the original settings of Heat/
Cool and setback of ERT 22 and ERT 32
will be overridden by ERT 52.
All manuals and user guides at all-guides.com

10 GB

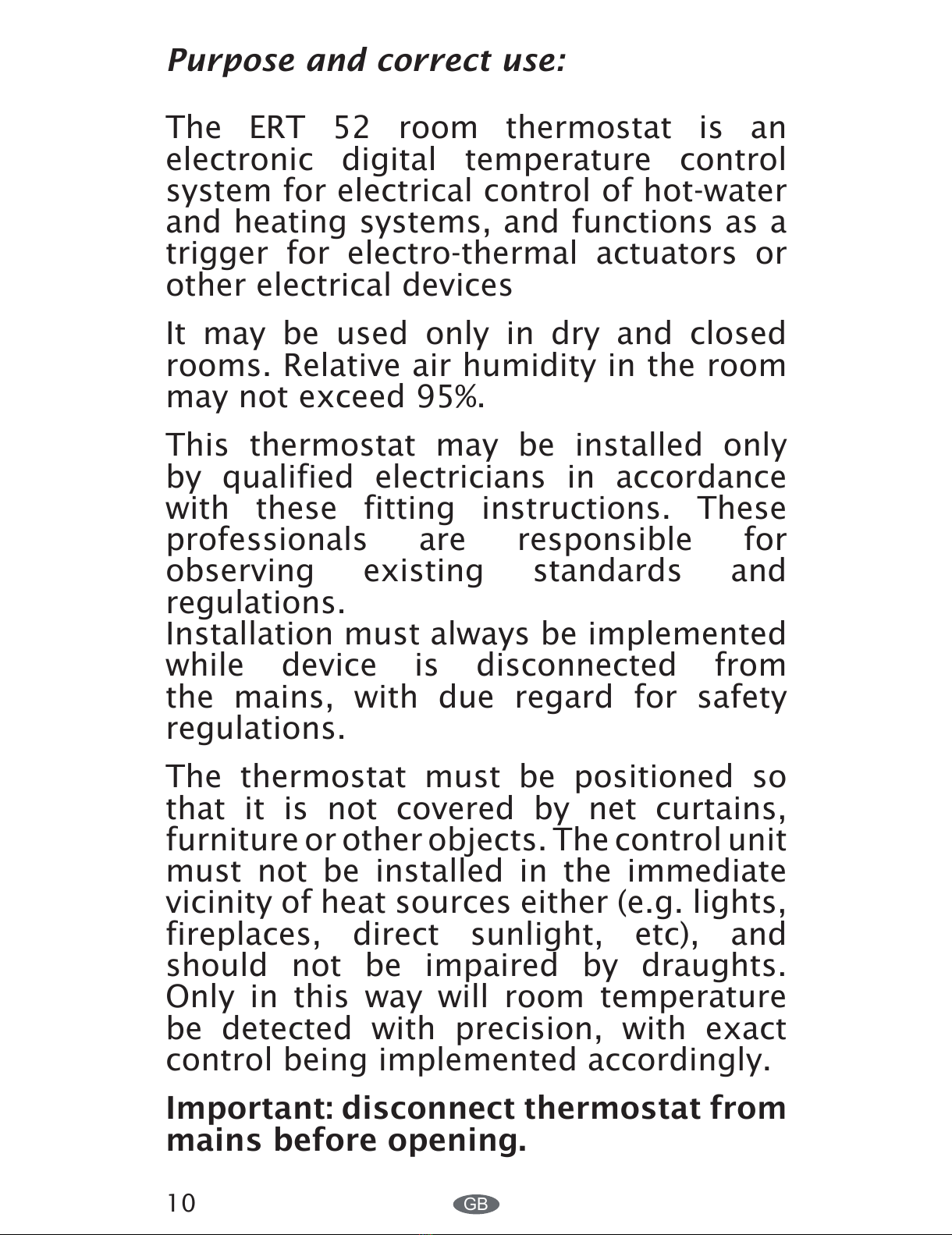

Purpose and correct use:
The ERT 52 room thermostat is an
electronic digital temperature control
system for electrical control of hot-water
and heating systems, and functions as a
trigger for electro-thermal actuators or
other electrical devices
It may be used only in dry and closed
rooms. Relative air humidity in the room
may not exceed 95%.
This thermostat may be installed only
by qualified electricians in accordance
with these fitting instructions. These
professionals are responsible for
observing existing standards and
regulations.
Installation must always be implemented
while device is disconnected from
the mains, with due regard for safety
regulations.
The thermostat must be positioned so
that it is not covered by net curtains,
furniture or other objects. The control unit
must not be installed in the immediate
vicinity of heat sources either (e.g. lights,
fireplaces, direct sunlight, etc), and
should not be impaired by draughts.
Only in this way will room temperature
be detected with precision, with exact
control being implemented accordingly.
Important: disconnect thermostat from
mains before opening.
All manuals and user guides at all-guides.com

11
GB

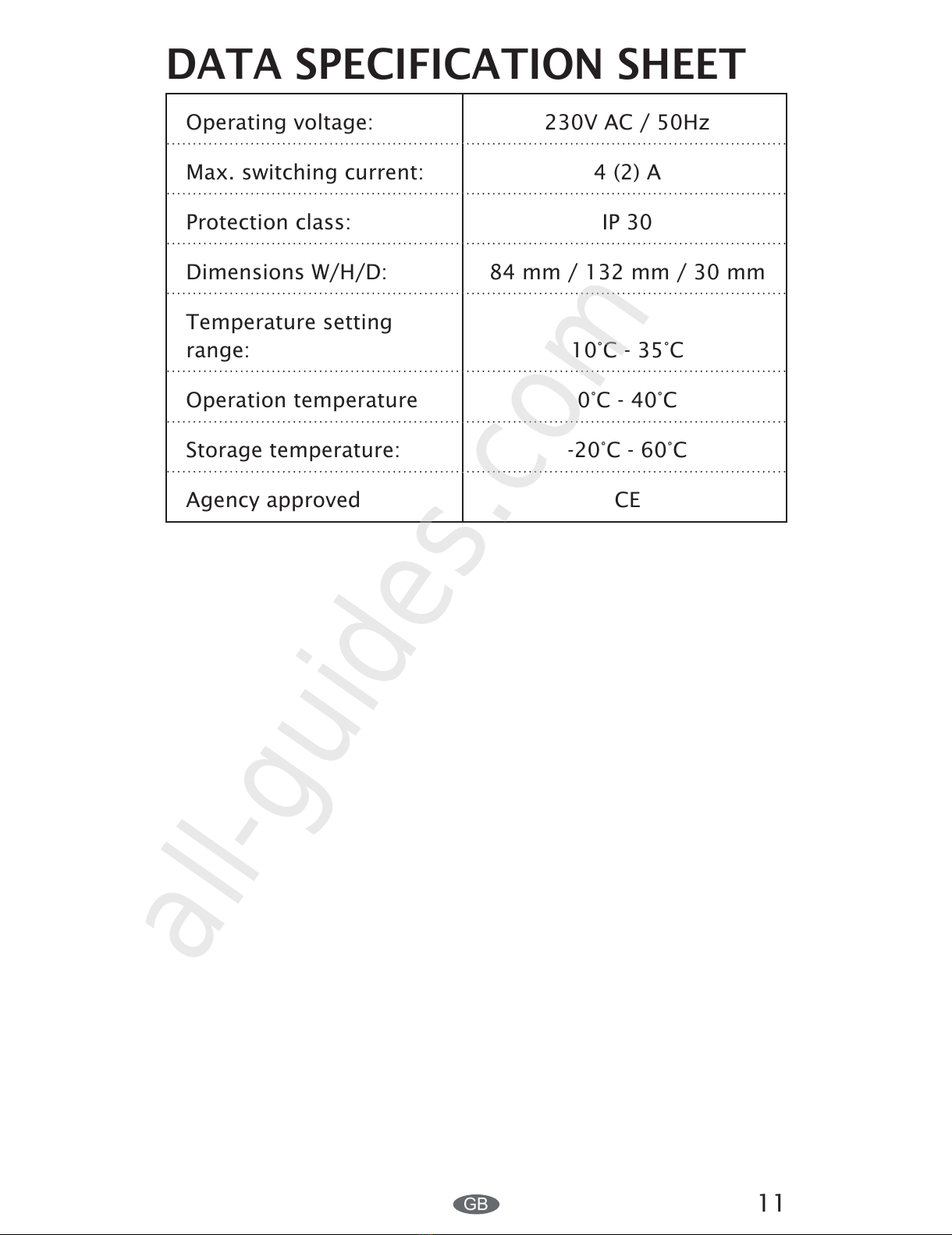

DATA SPECIFICATION SHEET
Operating voltage: 230V AC / 50Hz
Max. switching current: 4 (2) A
Protection class: IP 30
Dimensions W/H/D: 84 mm / 132 mm / 30 mm
Temperature setting
range: 10°C - 35°C
Operation temperature 0°C - 40°C
Storage temperature: -20°C - 60°C
Agency approved CE
All manuals and user guides at all-guides.com
all-guides.com

12 GB
WALL MOUNTING
Before mounting,
separate housing
cover from base plate.
Proceed as follows:
- Loosen screw located on lower side.
- Open the housing by pulling off the
housing cover on the lower side, then
lift off.
- Now mount the base plate with the
supplied screws firmly to the wall, or
onto the flush-mounting container.
Do not mount the thermostat ERT52 on
electricaly conductive surfaces.
N
All manuals and user guides at all-guides.com

13
GB
WIRING PLAN
Wire the thermostat only in accordance with
the wiring plan below:
N
N
Version 230 V
Terminal
N Neutral wire
L 230 VAC supply
çSwitch output (actuator, terminal
strip)
ºSupply for Setback / communication
terminal output
All manuals and user guides at all-guides.com

14 GB
German Office
SALUS Controls GmbH
Deutschland
Dieselstr. 34
D-63165 Mühlheim am Main
Tel. [phone]
www.salus-controls.de
Email: [email protected]
UK Office
Salus Controls plc, Salus House,
Dodworth Business Park South,
Whinby Road, Dodworth,
Barnsley S75 3SP
Tel: [phone]
www.salus-tech.com
Email: [email protected]
All manuals and user guides at all-guides.com

Bedienungsanleitung
Modellnr. ERT 52
DE Programmierbarer Raumthermostat
Menu
Select Cancel
All manuals and user guides at all-guides.com

2 DE
Systeminitialisierung
Nach dem erstmaligen Einschalten oder
nach dem betätigen des Resets, können
Sie Sprache, Datum und Zeit einstellen.
Cancel
Menu
Select
Cancel
Menu
Select
Mit den Tasten + und
- gelangen Sie zu der
gewünschten Sprache.
Mit Select übernehmen
Sie die ausgewählte
Sprache.
Anschließend werden
Datum und Uhrzeit
mit Hilfe der - und +
Tasten ausgewählt und
mit der Select-Taste
übernommen.
Im Menü Sommerzeit
können Sie die
Sommerzeit aktivieren/
deaktivieren.
All manuals and user guides at all-guides.com
all-guides.com

3
DE
1
2
3
NAVIGATION
Drücken Sie bei normaler
Display-Anzeige eine
beliebige Taste, um das
Display zu aktivieren und
die Hintergrundbeleuchtung
einzuschalten. Rufen Sie das
Hauptmenü auf, indem Sie
die Menu -Taste drücken.
„Navigieren Sie mit den
Tasten plus(+) und minus(-)
durch das Menü.
Wählen Sie den gewünschten
Menüpunkt mit der
Select-Taste aus. Mit der
Cancel-Taste gelangen
Sie zum vorherigen
Menü zurück ohne die
geänderten Eistellungen zu
übernehmen.
Geben Sie den gewählten
Inhalt ein, indem Sie die
Select-Taste drücken,
oder kehren Sie zum
vorherigen Menü zurück,
ohne Veränderungen
vorzunehmen, indem Sie
Cancel drücken.
Select Cancel
Menu
Menu
Select Cancel
Select Cancel
Menu
All manuals and user guides at all-guides.com

4 DE

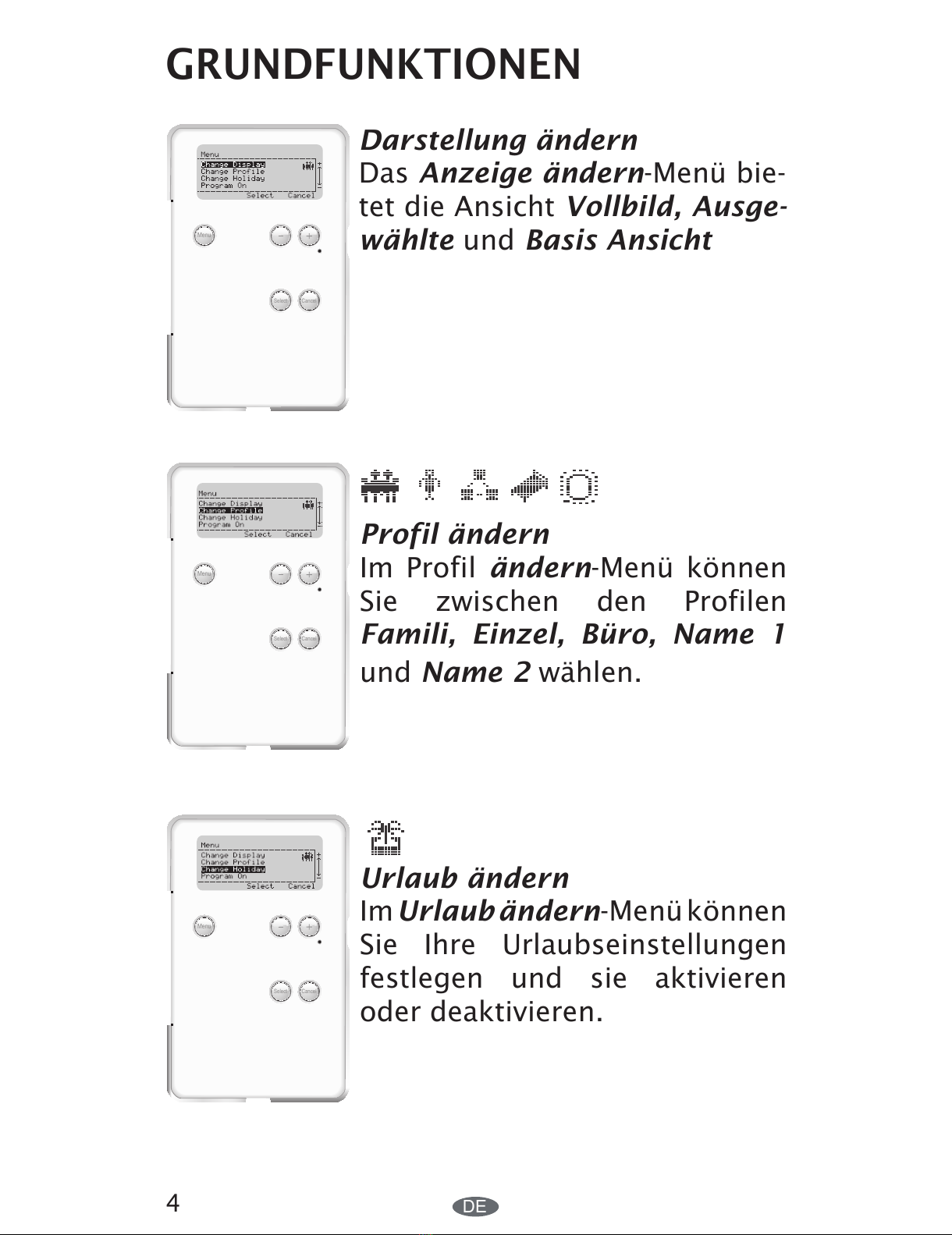

GRUNDFUNKTIONEN
Darstellung ändern
Das Anzeige ändern-Menü bie-
tet die Ansicht Vollbild, Ausge-
wählte und Basis Ansicht
Profil ändern
Im Profil ändern-Menü können
Sie zwischen den Profilen
Famili, Einzel, Büro, Name 1
und Name 2 wählen.
Urlaub ändern
ImUrlaub ändern-Menükönnen
Sie Ihre Urlaubseinstellungen
festlegen und sie aktivieren
oder deaktivieren.
Menu
Select Cancel
Menu
Select Cancel
Menu
Select Cancel
All manuals and user guides at all-guides.com

5
DE

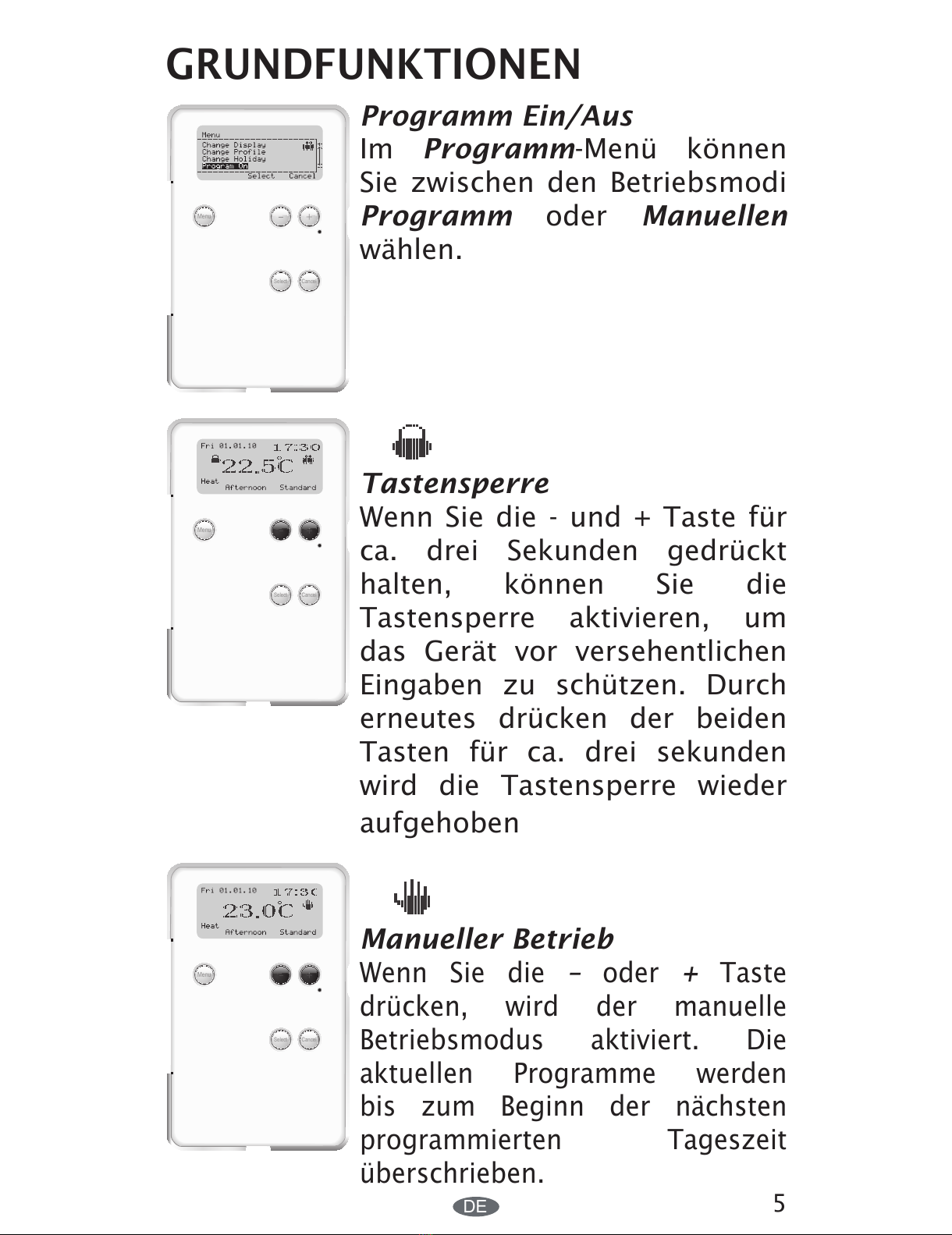

GRUNDFUNKTIONEN
Programm Ein/Aus
Im Programm-Menü können
Sie zwischen den Betriebsmodi
Programm oder Manuellen
wählen.
Tastensperre
Wenn Sie die - und + Taste für
ca. drei Sekunden gedrückt
halten, können Sie die
Tastensperre aktivieren, um
das Gerät vor versehentlichen
Eingaben zu schützen. Durch
erneutes drücken der beiden
Tasten für ca. drei sekunden
wird die Tastensperre wieder
aufgehoben
Manueller Betrieb
Wenn Sie die –oder +Taste
drücken, wird der manuelle
Betriebsmodus aktiviert. Die
aktuellen Programme werden
bis zum Beginn der nächsten
programmierten Tageszeit
überschrieben.
Menu
Select Cancel
Menu
Select Cancel
Menu
Select Cancel
All manuals and user guides at all-guides.com

6 DE
PROGRAMM-MENÜ
Programm-Menü
Um das Programm-Menü
aufzurufen, öffnen Sie die
Klappe und drücken Sie
zweimal die – Taste. Halten
Sie anschließend Select und
Cancel für etwa drei Sekunden
gleichzeitig gedrückt.
Grundeinstellungen
Öffnen Sie das
Grundeinstellungen-Menü,
um Tag - Uhrzeit (12, 24
Stunden), Sprache und
Wartung einzustellen.
Temp.- Zonen
Öffnen Sie das Temp.- Bereich-
Menü, um die Temperaturen für
die Zonen Komfort, Standard
und Reduz einzustellen.
Select Cancel
Menu
Menu
Select Cancel
Menu
Select Cancel
All manuals and user guides at all-guides.com
