Sami WEARABLE WS-2373 User manual

WEARABLE
User Manual
WS-2373
Thank you for purchasing the Sami wearable WS-2373. Read
the instructions carefully to obtain optimum results and
preserve it for future reference. Sami has developed
wearable devices since 2015 and we use the best
components possible for the product.
DESCRIPTION OF THE WEARABLE.
CONTENTS
Wearable, USB Magnetic charging cable, instruction manual.

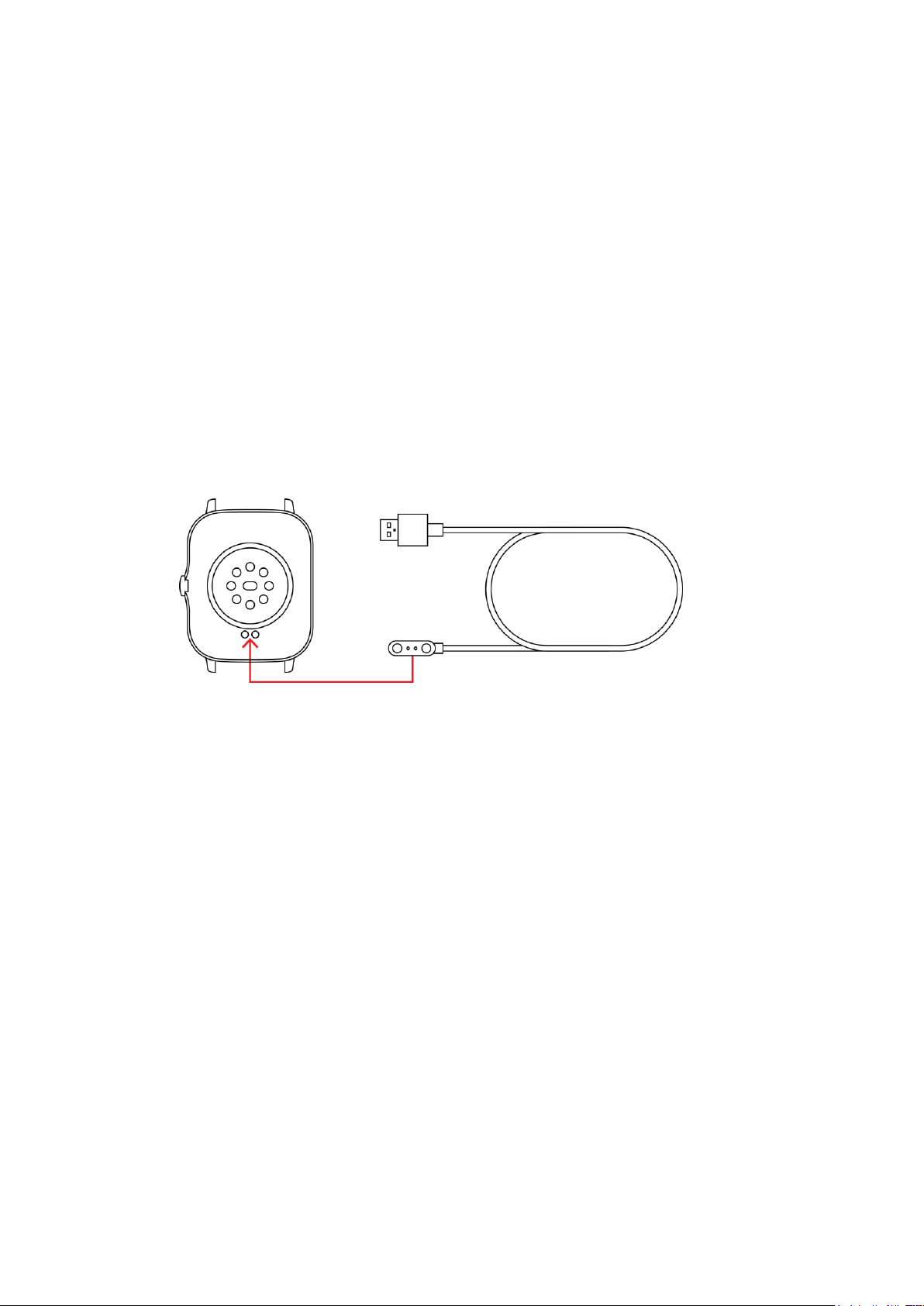

CHARGING
Connect the device to a computer or laptop with the USB
Magnetic cable for charging. Put in contact the magnetic
charging cable with the charging points positioned in the
back of your device. Kindly use only the USB cable included
with the wearable. If you use a power adapter for charging,
the output of the power adapter should be 5V, 1A. Charging
time: 1:30 - 2 hours. Please charge the device fully before
using it. Take care with the magnet side of the cable, if you
connect to the AC and you have contact with a metal
surface, you may damage the charging cable.
NOTE: Do not have the charger connected to AC and the
magnets touching any metallic surface, this will create a high
heating of the cable and will damage it.
HOW TO POWER ON / POWER OFF?
1)To turn ON the smart band, long press the Power On/Off
button for few seconds to make it Power On.
2)To turn OFF the smart band, long press the Power On/Off
button for few seconds until the Power OFF icon displays,
then select “Yes”to make it Power Off; or on the home
screen of your smart band , tap and slide from top to
bottom to enter in the shortcut menu; tap in the settings
icon and scroll down to find the power off icon, tap on it
and then select “Yes” to make it Power Off

HOW TO CONTROL?
1)On the display screen(touchscreen), short tap the
touchscreen to select; tap and slide left/ right/ up/ down to
change between the different menu pages.
2)Short press the Power On/Off button to return. Long press
the Power On/Off Button to make it Power On/Off.
GETTING STARTED:
- For Android
1) How to obtain the BT Connection APK (DA FIT)
Search for the DA FIT APP in the Play Store; download it and
install it in your Android smartphone, or go to our website
www.sami.es and download the application.
2) Installation of the DA FIT APK.
When installing the DA FIT application on your Android, you
must allow all the Application Permissions, allow this DA FIT
app auto run.
The first time you run this DA FIT, it will ask you to Enable
Notifications, please tap OK and tap the DA FIT and confirm
OK. You must tap OK/Allow/Pair/Yes/Confirm for any pop-up
request. On your Android permission management, allow all
application permissions.
3) How to make the wearable pair with your Android smart
phone
*First, turn on the Bluetooth of your Phone.
*Second, run the DA FIT app on your Phone, on the home
page of DA FIT, select “ADD A DEVICE”, the APP will search for
new Bluetooth device(s), when the available Bluetooth
device displays, please select WS-2373(the BT name of this
device) to make it pair. The pairing will be finished in a few
seconds. When you pair for the first time, the app DA FIT will

ask you to fill some personal information such as
gender/age/height/weight. When you finish select
OK/Confirm/Allow for any pop-up request.
* Now you can start using your desired functions of the smart
band.
Important: To enable all notifications of different softwares
such as WhatsAPP, Facebook, Skype, Twitter, you may need
to turn on the notifications on the APP manually. On the DA FIT
homepage, select the Settings icon (middle icon situated at
the bottom of the interface) then select notifications, and
turn on all the APP notifications you want to active.
- For iPhone
1) How to obtain the BT Connection APP? (DA FIT)
On iPhone, please go to APP Store and search DA FIT and
install the app.
2) How to make the wearable pair with your iPhone
*First, turn on the Bluetooth of iPhone
* Run the DA FIT app on the iPhone, on the home page of DA
FIT, tap “ADD A DEVICE” the APP will search for new Bluetooth
device(s), when the available Bluetooth device displays,
please tap WS-2373 (the BT name of this device) to make it
pair. The pairing will be finished in few seconds. When you pair
for the first time, the app DA FIT will ask you to fill some
personal information such as gender/age/height/weight.
When you finish select OK/Confirm/Allow for any pop-up
request.
*Now you can start using your desired functions of the smart
band.
Important: To enable all notifications of different softwares
such as WhatsAPP, Facebook, Skype, Twitter, you may need
to turn on the notifications on the APP manually. On the DA FIT

homepage, select the Settings icon (middle icon situated at
the bottom of the interface) then select notifications, and
turn on all the APP notifications you want to active.
On your phone you must allow the pop up window of DAFIT to
access your location. This is important for reconnection
between the wearable and the phone.
PRODUCT FEATURES
BLUETOOTH (V 5.0)
FULL TOUCH SCREEN. Capacitive touch screen 1.69"
BUILT IN VIBRATING MOTOR
BUILD IN HEART RATE SENSOR
BUILD IN GRAVITY SENSOR
GESTURE CONTROL TO LIGHT UP THE DISPLAY SCREEN (Quick
View)
DISPLAY SCREEN INTERFACE
1) Time/Date/Battery
2) Steps (Pedometer) –including Steps, Distance, Calories
3) Sleep monitor
4) Hear Rate - tap to start testing

5) Training (Sports) –including Walking/ Running/ Cycling/
Skipping/ Badminton/ Basketball/ Football
6) Blood Pressure - tap to start testing
7) SpO2 - tap to start testing
8) Weather
NOTE: If the weather does not appear on the smart device
after the Bluetooth pairing, please set your weather city at the
Da Fit APP, then restart the smart device. The location service
on your phone should be activated also.
9)Shutter(remote camera)
10) Music Player control
11)
Data can be sync from the wearable to the smart phone on
the DA FIT APK/APP. Your smart phone will synchronized when
the Bluetooth is paired with this device.

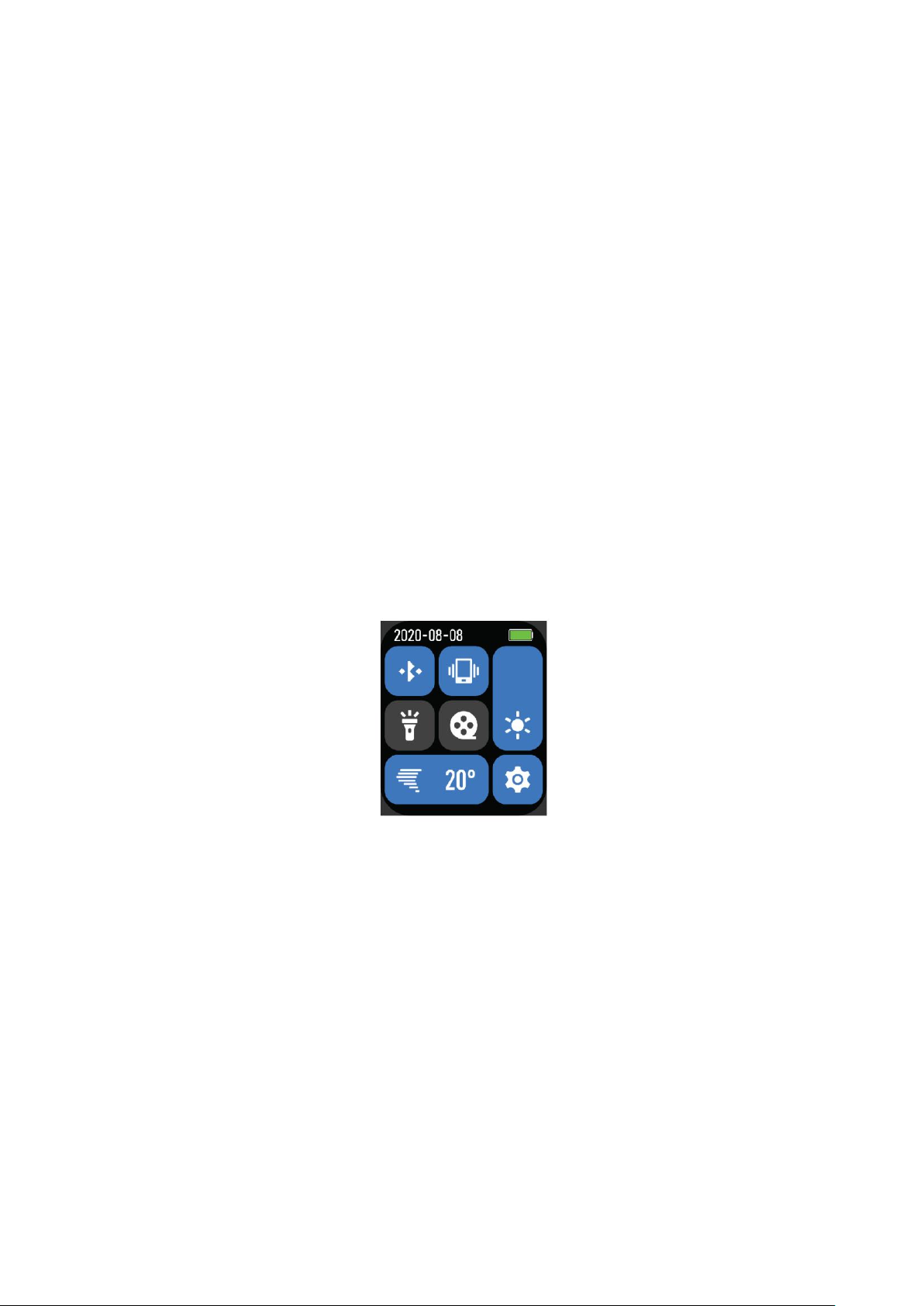

**SLIDE FROM UP TO DOWN
1.BT connection status
2.Vibration on/off
3.Torch
4.Theatre mode
5.Brightness
6.Weather
7.Setting shortcut

**SLIDE FROM DOWN TO UP
Messages large preview
**2 DIFFERENT MENÚ STYLES

FUNCTIONS
PHONE CALL NOTIFICATION - vibrating reminder for incoming
phone calls
MESSAGE NOTIFICATION - vibrating reminder for incoming
messages, including SMS, WhatsApp, Facebook, Twitter,
Skype messages, etc.
CLOCK SCREENS (Different home digital clocks) –More Clocks
can be downloaded at the DA FIT APK/APP. You can select a
picture from your mobile to set it as your clock screen. In the
app go to the Settings menu, select “Watch Dials”, then select
de dial number 4, tap on the “edit” icon, tap on “select
picture”, and select your desire picture. You should allow the
picture settings permissions on your mobile.
SLEEP MONITOR - built in.
ALARM CLOCK - 3 built in alarm clocks supported on the DA FIT
APK/APP
RELAX FUNCTION - built in
STOPWATCH- built in
TIMER - built in
SEDENTARY REMIDER(REMIND TO MOVE) - supported on the DA
FIT APK/APP
FIND THE DEVICE (Looking for the SMART BAND) - supported on
the DA FIT APK/APP. Find it at the OTHERS at Da Fit.
GESTURE CONTROL (Quick View) (Raise your hand to light up
the screen. Before using this function, you need to make the
adjustment on the smart phone APP)
GPS MAP TRACE (view it on the BT APP/APK DA Fit). On the
home page of the Da Fit, scroll down and select Outdoor
running, tap Start, select the Map icon (this icon is on the right
bottom of the screen), to view the map. On the home page
of the Da Fit, scroll down and select Outdoor running, tap the
history record icon(this icon is situated on the right top of the
screen) to view the GPS trace history.
DRINK WATER REMINDER- supported on the DA FIT APK/APP
GOAL TRACKING- supported on the DA FIT APK/APP

**** THIS IS NOT A MEDICAL INSTRUMENT, SO THE VALUES ARE
APPROXIMATE
CLEANING:
In order to avoid any damage on the plating or printing of
your wearable please do not use any chemical product for
cleaning such as alcohol 96º. We recommend you to use a
slightly wet cloth.
TECHNICAL SPECIFICATIONS:
Display screen: 3D curved full screen capacitive touch screen
1.69".
Screen resolution: 240 x 280 pixels.
Internal Memory: 64mb ROM
System: Nucleus
CPU: GR5515
Charge I/O port : USB magnetic charging cable
Battery: Built in Li-Polymer 190 mAh
Stand by time: 10-12 DAYS
Working time: 5-8 DAYS
G-Sensor: Bosch three-axis gravity sensor
Health Sensor: HS3300
Bluetooth: v5.0
Water-resist Rating: IP68 (raindrop resistance. This device is not
waterproof; do not drown it into water)
Weight: 43 g

Declaration of Conformity
Hereby we,
Name of manufacturer:
SANTOSHI SL
Address:
CALLE FELIPE ASENJO N.56
Zip code & City:
28947 - FUENLABRADA( MADRID )
Country:
SPAIN
declare that this DoC is issued under our sole responsibility and that this product:
Product description:
Smart Band
Type designation(s):
WS-2373
Trademark:
SAMI WEARABLE
is in conformity with the relevant Union harmonization legislation:
DIRECTIVE EMC 2014/30/EU
DIRECTIVE LVD 2014/35/EU
Standard CE (RED): DIRECTIVE 2014/53/EU
Standard RoHS: 2011/65/EU: (RoHS) Restriction of Hazardous Substance.
with reference to the following standards applied:
EN 60950-1: 2006+A11:2009+A1:2010+A12:2011+A2:2013
EN 62479:2010
EN 301 489-1 V2.1.1 (2017-02)
EN 301 489-17 V3.1.1 (2017-02)
EN 300 328 V2.1.1 (2016-11)
Signature
Full name: VISHAL MIRPURI
Position:ADMINISTRATOR
Date: 11 / 11 / 2022
