Samlexpower SA-1000K Series User manual

SA-1000K & SA-3000K Series
Pure Sine Wave Inverter
User’s Manual

Table of Contents
1. Important Safety Information.……………………………………………… 1
1-1 General Safety Precautions…………………………………………… 1
1-2 Battery Precautions………………………..………………………….. 1
2. Features………………………………………………………………………...2
2-1 Application………………………………………………………………. 2
2-2 Electrical Performance…………………………………………………3~4
2-3 Mechanical Drawings………………………………………………….. 5~6
3. Introduction……………………………………………………………………7
3-1 Front Panel operation….……………………………………………... 7~10
3-2 Rear Panel operation.………………………………………………… 11~12
3-3 Protections Features…………………………………………………… 12
3-4 Installation………………………………………………………………. 13
3-5 Making DC Wiring Connections ……………………………………... 14~16
3-6 AC Safety Grounding………………………………………………….. 17
3-7 Inverter Operation……………………………………………………… 18
4. Troubleshooting guide………………………………………………………19
5. Maintenance…………………………………………………………………… 20
6. Warranty……………………………………………………………………….. 20

1. Important Safety Instructions
1-1. General Safety Precautions
1-1-1. Do not expose the Inverter to rain, snow, spray, bilge or dust.
To reduce risk of hazard, do not cover or obstruct the ventilation
openings. Do not install the Inverter in a zero-clearance compartment.
Overheating may result.
1-1-2. To avoid a risk of fire and electronic shock, make sure that existing
wiring is in good electrical condition and not undersized.
Do not operate the Inverter with damaged or substandard Wiring.
1-1-3. There are some components in the inverter can cause arcs and sparks.
To prevent from fire or explosion, do not put batteries, flammable
materials, or anything should be ignition–protected around the inverter.
1-2. Precautions When Working with Batteries
1-2-1. If battery acid contacts skin or clothing, you shall wash it out with soap
and water immediately. If battery acid contacts your eyes, you shall
wash it out with cold running water for at least 20 minutes and get
medical attention immediately.
1-2-2. Never smoke or make a spark or flame in the vicinity of the battery or
the engine.
1-2-3. Do not drop a metal tool on the battery. The resulting spark or
short-circuit on the battery of other electrical part may cause an
explosion.
1-2-4. Remove personal metal items such as rings, bracelets, necklaces,
and watches when operating with a lead-acid batteries.
Doing so may cause short circuit and very high temperature, which can
melt metal items and even burn you.
WARNING!
Before using the Inverter, read and save the safety
instructions.
1
1

2. Features
Pure sine wave output (THD < 3%)
Output frequency：50 / 60Hz switch selections
Input & output fully isolated design
Power Saving Mode to conserve energy
High efficiency 89~94%
Driving highly reactive & capacitive loads at start moment
Tri-Color indicators show input voltage & output load level
Loading controlled cooling fan
Advanced microprocessor
Protection：Input low voltage Overload Short circuit
Low battery alarm Input over voltage Over temperature
2-1. Application
2-1-1. Power tools – circular saws, drills, grinders, sanders, buffers, weed
and hedge trimmers, air compressors, etc.
2-1-2. Office equipment – computers, printers, monitors, facsimile machines,
scanner, etc.
2-1-3. Household appliances – vacuum cleaners, fans, fluorescent and
incandescent lights, shavers, sewing machines.
2-1-4. Kitchen appliances – coffee makers, blenders, ice markers, toasters,
etc.
2-1-5. Industrial equipment – metal halide lamp, high – pressure sodium lamp,
etc.
2-1-6. Home entertainment electronics – television, VCRs, video games,
stereos, musical instruments, satellite equipment, etc.
2

2-2. Electrical Performance
Specification Model No.
Item SA-1000K-112 SA-1000K-124
Continuous Output Power 1000W
Maximum Output Power 1100W
Surge Rating (Max) 2000W
Input voltage 12V 24V
OutputVoltage 100 / 110 / 120V +/- 5%
Frequency
(Switch Selectable) 50 / 60Hz +/-0.05%
OutputWaveform Pure Sine Wave (THD < 3% )
Efficiency (full load) Max. *1 89.0% 92.0%
No Load Current Draw (Max.) 1.43A 0.75A
Stand-By Current Draw (Max.) 0.25A 0.15A
Input Voltage Regulation 10.5-15
VDC
21.0-30
VDC
InputLevel Indicator
Red / Orange / Green LED
Load Level Indicator
Failure Indicator Red LED
Protection Overload, Short Circuit, Reverse Polarity(Fuse),
Over / Under Input Voltage, Over Temperature.
Remote Control Unit S-R8, S-R6-12, S-R6-24 Optional
Safety Certification UL458 EN60950-1
EMC FCC Class A
EN55022: 1997
EN55024: 1997
EN61000-3-2:
1998
EN61000-3-3:
1995
e-mark
e13 022694
Operating Temperature Range 0 - 40 ℃
Storage Temperature Range -30℃to 70℃
CoolingLoading controlled cooling fan
Dimensions 383(L)*182(W)*88(H)mm / 15.08(L)*7.17(W)*3.46(H) Inch
Weight 4 kg / 8.8 Lbs.
Note: The specifications are subject to change without notice.
3

SpecificationModel No.
Item SA-3000K-112 SA-3000K-124
Continuous Output Power 3000W
Maximum Output Power 3300W
Surge Rating (Max) 6000W
Input voltage 12V 24V
OutputVoltage 100 / 110 / 120V +/- 5%
Frequency
(Switch Selectable) 50 / 60Hz +/-0.05%
OutputWaveform Pure Sine Wave (THD < 3% )
Efficiency (full load) Max. *1 88.0% 91.0%
No Load Current Draw (Max) 3.0A 1.6A
Stand-By Current Draw (Max) 0.55A 0.35A
Input Voltage Regulation 10.5-15
VDC
21.0-30
VDC
InputLevel Indicator
Red / Orange / Green LED
Load Level Indicator
Failure Indicator Red LED
Protection Overload, Short Circuit, Reverse Polarity(Fuse),
Over / Under Input Voltage, Over Temperature.
Remote Control Unit S-R8, S-R6-12, S-R6-24 Optional
Safety Cert. Meet UL458 EN60950-1
EMC FCC Class A
EN55022: 1997
EN55024: 1997
EN61000-3-2: 1998
EN61000-3-3: 1995
e-mark
e13 22845
Operating Temperature Range 0 - 40 ℃
Storage Temperature Range -30℃to 70℃
CoolingLoading controlled cooling fan
Dimensions 452(L)*208(W)*166(H)mm / 17.80(L)*8.18(W)*6.53(H) Inch
Weight 9.8 kg / 22 Lbs.
Note: The specifications are subject to change without notice.
*1. This test condition is normal DC input (13.5V) and Temperature 25℃
4

2-3. Mechanical Drawings
5
REMOTE
PORT
CHASSIS
GROUND
SA-1000K 340.00 [13.39]
196.00 [7.72]
SK700 71.50[2.83]
SK1000 88.00[3.46]
SK1500 88.00[3.46]
182.00[7.17]
191.00[7.52]
SA-1000K 154.00 [6.06]
S3
S2
PWR.
SAV.
I
O
S1
LOAD
LEVEL
INPUT
LEVEL
S4
STATUS
FREQ.
1000W
Pure Sine Wave Power Inverter
POS(+) NEG(-)
DC INPUT
REVERSE POLARITY
WILL DAMAGE UNIT
PURE SINE WAVE INVERTER
AC OUTPUT
ONON
REMOTE
OFF
I
0

245.00 [9.65]
SA-3000K 398.00 [15.67]
Pure Sine Wave Power Inverter
165.25 [6.51]
209.00 [8.23]
AC OUTPUT
PURE SINE WAVE INVERTER
S4 FREQ.
S2
S1
S3 PWR.
SAV.
O I
0REMO.
LOAD
LEVEL
STATUS
INPUT
LEVEL
OFF
ON
I
177.00 [6.97]
2000W
3000W
6

3. Introduction
This power inverter series is one of the most advanced line of mobile AC power
systems. To get the most effective power inverter, it must be installed and used
properly.
Please read the instructions of this manual before you install and operate
this model.
3-1. Front Panel Operations：
3-1-1. Front view：
3-1-2. ON / OFF/ REMOTE (Main) switch：
a. Before installing the inverter, you need to ensure the main switch
must be “OFF”.
b. Before using the remote unit, you need to ensure the main switch
must be “REMOTE”.
7
PURE SINE WAVE INVERTER
AC OUTPUT
OFF
REMOTE
I
0
ON
S1
PWR.
SAV.
O I
INPUT
LEVEL
FREQ.
STATUS
S4
LOAD
LEVEL
S2
S3 SA-1000K
0
S4
S3
S1
S2
O
SA-3000K
FREQ.
PWR.
SAV.
LOAD
LEVEL
STATUS
INPUT
LEVEL
I
AC OUTPUT
PURE SINE WAVE INVERTER
REMO.
I
ON
OFF

3-1-3. Input Level：Display Input Voltages
LED Status DC 12V DC 24V
RED Slow Blink 10.3~10.6 20.5~21.2
RED10.6~11.021.2~21.8
ORANGE 11.0~12.1 21.8~24.1
GREEN 12.1~14.2 24.1~28.6
ORANGE Blink 14.2~15.0 28.6~30.0
OVER RED Blink 15.0 30.0
3-1-4. Load Level：Display AC Loads (Watts)
LED status DARK GREEN ORANGE RED RED BLINK
SA-1000K0~ 80W 80 ~ 330W 330 ~ 750W 750 ~ 960W Over 960W
SA-3000K0~ 240W 240 ~ 990W 990 ~ 2250W 2250 ~ 2880W Over 2880W
3-1-5. AC Frequency：Selected by “S4” Dip Switch
Frequency S4
50 HZ OFF
60 HZ ON
8

3-1-6. Status：Display Power & Fault Status
Green LED LED Signal Status
Solid Power OK
Slow Blink Power Saving
Red LED LED Signal Status
Fast Blink OVP
Slow Blink UVP
Intermittent Blink OTP
Solid OLP
3-1-7. Power Saving Mode: Power Saving Mode is adjustable and
set by the Dip Switches, S1, S2 and S3 on the front panel.
Example: With the watt setting at 15W, a 15W↑load will make the
inverter operate normally, a 15W↓load will enter into the Power
saving mode.
SA-1000K SA-3000K S1 S2 S3
DISABLEDISABLEOFFOFFOFF
20W40W ON OFFOFF
40W80WOFF ON OFF
55W125W ON ON OFF
75W170WOFFOFF ON
95W210W ON OFF ON
115W245WOFF ON ON
135W280W ON ON ON
9

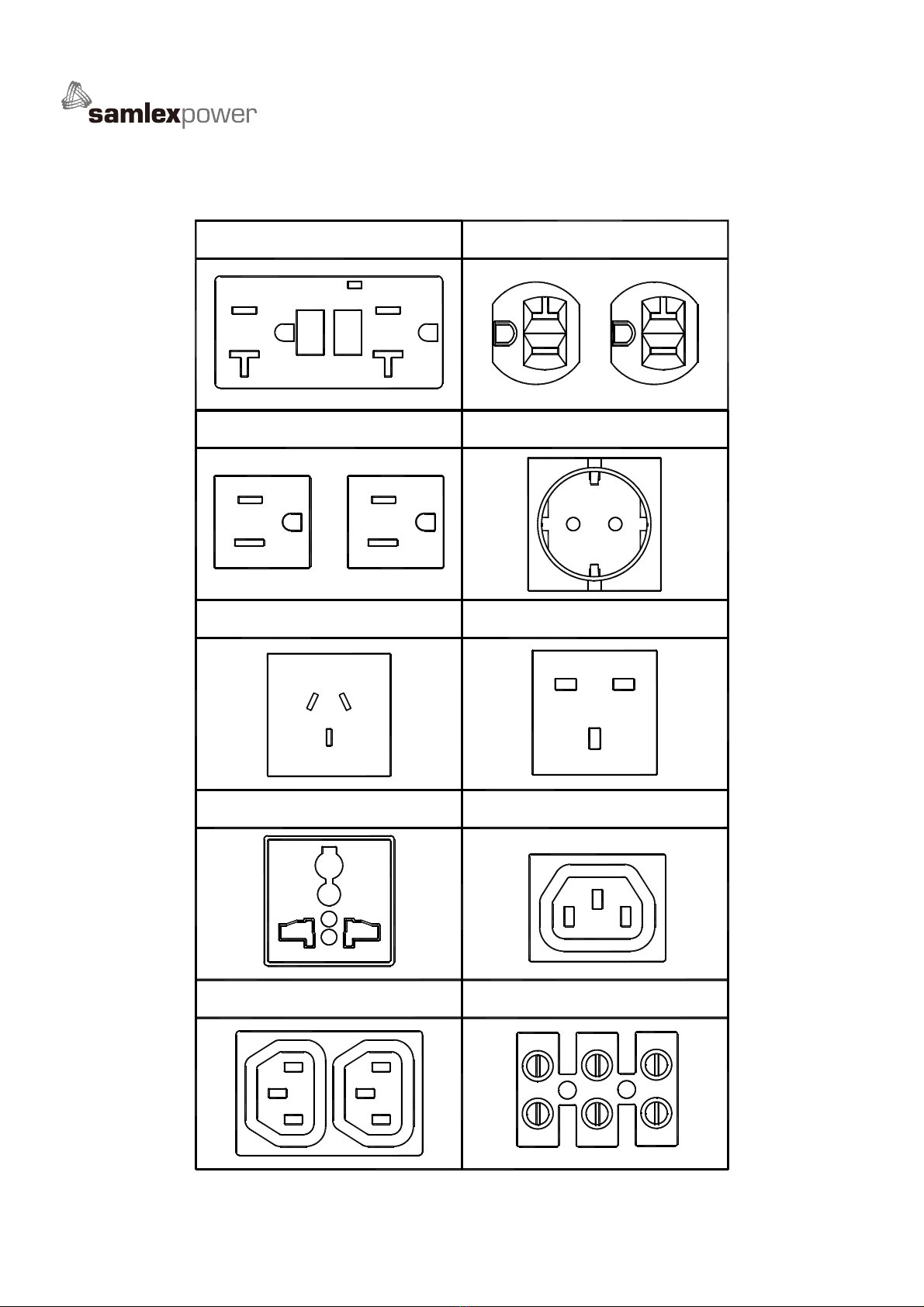

3-1-8. AC outlets (available):
Australia / New Zealand
IEC-2
Universal
HARD WIRE
United Kingdom
IEC-1
North America (GFCI)
NEMA 5-15R
NEMA 5-20R
Continental European
10

3-2. Rear Panel Operations
SA-1000K
SA-3000K
REMOTE
PORT
CHASSIS
GROUND
NEG(-)
POS(+)
WARNING:
DC INPUT
REVERSE POLARITY
WILL DAMAGE UNIT
SHOCK HAZARD.
DO NOT OPEN. NO
USER SERVICEABLE
PARTS INSIDE.
POS(+) NEG(-)
DC INPUT
REVERSE POLARITY
WILL DAMAGE UNIT
REMOTE
PORT
CHASSIS
GROUND
3-2-1. Remote Port:
The SA Series Inverter is compatible with any of the remote controllers,
S-R8, S-R6-12, S-R6-24 .
Before using the remote unit, you need to ensure the main switch is in
the “REMOTE” position and the input voltage of the power inverter is
the same as it of the remote unit.
3-2-2. Fan Ventilation:
Be sure to keep it a distance (at least 1 inch) form surrounding things.
3-2-3. DC Input Terminal：
11

Connect DC input terminal to 12V / 24V battery or the other power sources.
【＋】represents positive, and【－】represents negative. Reverse polarity
connection will blow the internal fuse and may damage the inverter permanently.
Model DC Input Voltage
Minimum Maximum
12 V 10.5 15.0
24 V 21.0 30.0
3-2-4. Use wire # 8 AWG to connect Chassis ground with vehicle chassis.
WARNING!
Operating the inverter without a proper ground
Connection may cause an electrical hazard.
3-3. ProtectionsFeatures:
Model
DC Input (VDC) Over Temperature Protection
Over Voltage Under
Voltage
Alarm
Under Voltage INTERIOR HEAT SINK
Shut-
down RestartShut- down Restart Shut- down RestartShut- down Restart
12 V 15.3V 14.3V 11.0V 10.2V 12.7V
70℃45℃90℃60℃
24 V 30.6V 28.8V 22.0V 20.3V 25.2V
12

3-4. Installation
The power inverter should be installed in an environment that meets the
following requirements：
3-4-1. Dry – Do not allow water to drip on or enter into the inverter.
3-4-2. Cool – Ambient air temperature should be between 0℃and 40℃, the
cooler the better.
3-4-3. Safe – Do not install the inverter in a battery compartment or other
areas where flammable fumes may exist, such as fuel storage areas or
engine compartments.
3-4-4. Ventilated –Keep the inverter a distance (as least 1 inch) away from
surrounding things. Ensure the ventilation shafts on the rear and the
bottom of the unit are not obstructed.
3-4-5. Dust – Do not install the Inverter in a dusty environments
The dust can be inhaled into the unit when the cooling fan is working.
3-4-6. Close to batteries – Avoid excessive cable lengths. Do not install the
Inverter in the same compartment as batteries.
Use the recommended wire lengths and sizes (see section 3-5).
Do not mount the Inverter where it will be exposed to the gases
produced by the battery. These gases are very corrosive, and
prolonged exposure will damage the Inverter.
WARNING!
Shock Hazard. Before proceeding further, carefully
check that the Inverter is NOT connected to any
batteries, and that all wiring is disconnected from any
electrical sources. Do not connect the output terminals
of the Inverter to an incoming AC source.
13

3-5. DC Wiring Connections
Follow this procedure to connect the battery cables to the DC input terminals
of the Inverter. The cables should be as short as possible (less than 10 feet
/ 3 meters ideally) and large enough to handle the required current in
accordance with the electrical codes or regulations applicable to the
installation. Cables that are not an adequate gauge (too narrow) or too long
will deteriorate inverter performance such as poor surge capability and
frequent low-input voltage warnings and shutdowns.
These low input voltage warnings are due to DC voltage drop across the
cables from the inverter to the batteries. The longer and narrower the cables,
the greater the voltage drop.
Increasing DC cable size helps improve the situation. SAMLEX AMERICA
INC. recommends the following cables for optimum inverter performance.
Model No Wire AWG Inline Fuse
SA-1000K-112 # 2 150 A
SA-1000K-124 # 4 80 A
SA-3000K-112 # 4/0 400 A
SA-3000K-124 # 2/0 200 A
14

3-5-1. Connect the cables to the power input terminals on the rear panel of
the inverter. The red terminal is represents positive (+) and black
terminal represents negative (-). Insert the cables into the terminals
and tighten the screw to clamp the wires securely.
WARNING!
Ensure all the DC connections are tight (torque
to 9 – 10 ft-lbs, 11.7 – 13 Nm). Loose connections
may cause overheat and fire.
The installation of a fuse must be on a positive cable.
Failure to place a fuse on “+” cables running between
the inverter and battery may cause damage to the
inverter and will void warranty.
WARNING!
Also, use only high quality copper wire and keep cable length short, a
maximum of 3 - 6 feet.
AWG#2 - #6
Battery to inverter cable connection
Do not placeanything between
battery cable lug and terminal surface.
Assemble exactly as shown.
15

16
PORT
CHASSIS
GROUND
REMOTE
NEG(-)POS(+)
DC INPUT
INLINE FUSE
SA-1000K
SA-3000K
INLINE FUSE
REVERSE POLARITY
WILL DAMAGE UNIT
SHOCK HAZARD.
DO NOT OPEN. NO
USER SERVICEABLE
PARTS INSIDE.
WARNING:
DC INPUT POS(+)
CHASSIS
GROUND
NEG(-)
REMOTE
PORT
Battery to inverter cable connection
Do not place anything between
battery cable lug and terminal surface.
Assemble exactly as shown.
BATTERY
BATTERY
M8 NUT
SPRING WASHER
RING TERMINAL
PVC WIRE
WASHER
PLASTIC COVER
(BLACK)
PLASTIC COVER
(RED)

3-6. AC Safety Grounding
The AC output ground wire should go to the grounding point for your loads
(for example, a distribution panel ground bus ).
3-6-1. Neutral Grounding (GFCI’S):
3-6-1-1.120V models: The neutral conductor of the AC output circuit
of the Inverter is automatically connected to the safety
ground during inverter operation. This conforms to National
Electrical Code requirements that separately derived from AC
sources (such as inverters and generators) which have their
neutral conductors tied to ground in the same way as the
neutral conductors from the utility tied to ground at the AC
breaker panel. For models configured with a transfer relay,
while AC utility power is present and the Inverter is in bypass
mode, this connection (the neutral of the Inverter’s AC output
to input safety ground) is not present so that the utility
neutral is only connected to ground at your breaker panel,
as required.
Ground Fault Circuit Interrupters (GFCI)
Installations in Recreational Vehicles (for North American approvals) will
require GFCI protection of all branch circuit connected to the AC output of
the hardwire terminal equipped with Inverter. In addition, electrical codes
require GFCI protection of certain receptacles in residential installations.
While the pure sine wave output of the Inverter is equivalent tothe
waveformprovided by utilities, compliance with UL standards requires us to
test and recommend specific GFCI.
Samlex America Inc. has tested the following GFCI – protected 20A
receptacles and found that they functioned properly when connected to the
output of the Inverter.
17

3-7. Inverter Operation
To operate the power inverter, use the ON / OFF switch on the Front panel to
turn the power on. Then the power inverter is ready to deliver AC power to
your loads. If there is several loads use, turn them on separately after the
inverter is “ON” in order to prevent OVP resulted from the surge power.
3-7-1. Set the power switch to “ON” position and the buzzer will send out
“Beep” sounds at the moment. Then the inverter will make self-
diagnosis, and the LED’s indicators will also appear various colors.
Finally the buzzer will “Beep” again and the Input Level and Status
LED indicators will turn to “Green” color, then the inverter starts to
work successfully.
3-7-2. Set the power switch to the OFF position, then the inverter stops and
all the lights go Off.
3-7-3. Set the power inverter switch to ON position and turn the test load On.
The inverter should supply power to the load. If you plan to
accurately measure the true output r.m.s. voltage of the inverter, a
meter such as FLUKE 45 BECKMAN 4410 or TRIPLETT 4200 must be
used.
18
