Samlexpower Soleil 2000-120 User manual

Owner's
Manual
Please read this
manual before
operating your
Inverter
Grid Tie DC-AC Inverter
Pure Sine Wave
Model: Soleil 2000-120
Soleil 2000-240
110-17 Fawcett Rd
Coquitlam, B.C.
Canada V3K 6V2
T: 604 525 3836
F: 604 525 5221
e-mail: [e-mail]
website: www.samlexamerica.com
093-2009 Soleil 2000 Manual

www.samlexamerica.com Toll free 1-800-561-5885
2
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
To reduce the risk of electrical shock and to ensure safe installation and
operation of Soleil 2000, please carefully read and strictly follow all safety
instructions and cautionary markings.
Warning : This marking indicates very important safety warning
for user to appropriately apply during installation or operation.
Warning : All electrical installation shall be done in accordance
with local and National Electrical Codes ANSI/NFPA 70.
Warning : Connecting this unit to the electrical grid shall only be
performed by qualified personnel and only after formal approval
from the utility company.
Warning : This device contains no user serviceable parts inside.
Please return the unit to authorized Service Center for
maintenance.
Warning : To reduce the risk of fire, do not connect to an AC load
center (circuit breaker panel) having multi-wire branch circuits
connected.
Caution : AC disconnect breaker should be installed for
over-current protection.
Caution : Top & rear heat sink of this unit may exceed 70 °C.
Don’t touch to avoid risk of burning.
Caution : This unit should be mounted on firm background and
avoid exposure to direct sunlight and rain.

www.samlexamerica.com Toll free 1-800-561-5885
3
Caution : This unit is provided with fixed trip limits and shall not
be aggregated above 30kW on a Single Point of Common
Connector.
Caution : The AC output of this unit is not bonded to ground.
Caution : The input and output circuits are isolated from the
enclosure. System grounding, when required by Sections 690.41,
690.42, and 690.43 of the National Electric Code, ANSI / NFPA 70, is
the responsibility of the installer.

www.samlexamerica.com Toll free 1-800-561-5885
4
Table of contents
1. Introduction ……………………………………………………. 5
2. Installation …………………………………………………...... 6
3. Wiring process …………………………………………………10
4. Operating procedure…………………………………………..15
5. System Structure……………………………………………… 21
6. Electrical Specifications……………………………………….20
7. Trouble shooting………………………………………………..24

www.samlexamerica.com Toll free 1-800-561-5885
5
1. Introduction
Product features
Full DSP digital control
PV Module Wp=2.5kW
Power output capacity: 2KW/120Vac
60Hz
Maximum power conversion efficiency
>94% (without Isolation Transformer)
High efficiency maximum power point
tracking function
LCD displays system function and power
generating status
Real time network monitoring and
recording function
Computer can perform system setup of
photovoltaic inverter and recording of
power generating information via
RS-232 interface during maintenance
Quiet and efficient operation
Easy to install with pleasing aesthetic
styling
System introduction
The system is a single stage parallel circuit photovoltaic inverter. As opposed to traditional
photovoltaic inverters, no expensive and bulky batteries are required. Hence, eliminating
large expenses on battery maintenance. It can convert photovoltaic DC energy via solar
panel modules and inverts collected energy into alternate current, which is then fed directly
into the power grid. Such design can benefit from both direct power generating and energy
conservation. The control panel adopts Digital Signal Processor (DSP), with the most
advanced digital control technology, to increase power conversion efficiency and
supplementary functions. Output stage circuit is of single stage with high frequency
switchable IGBT. The circuit design has the advantage of being both simple and high
efficiency. PV inverter system can be monitored remotely via software. It provides users with
convenient power monitoring and recording functions without the need of additional
monitoring systems.

www.samlexamerica.com Toll free 1-800-561-5885
6
2. Installation
Warning : All electrical installation shall be done in accordance
with local and national codes ANSI/NFPA 70.
Warning : Connecting the Soleil 2000 to the electrical grid shall
only be performed by qualified personnel and only after formal
approval from the utility company.
Caution : For proper circuit isolation, use 2.0KW rated isolating
transformer model SYST1201 supplied by Samlex Solar between
the output of the unit and the utility power line connection.
Placement of Soleil 2000
Soleil 2000 can be installed indoor
where sufficient air circulation is available with ambient
temperature less then 50℃.
Outdoor installation should be under controlled environment where no direct sunlight
would reach, as excessive heating would damage internal components and should minimize
exposure to rain despite her high protection class IP 65 ( NEMA 3R).
The unit should be installed in a location normally inaccessible to persons.
Avoid mounting on wall of resonant materials like wooden
or plastic panels as Soleil 2000
may slightly vibrate when working under load.
Please install this unit at eye-height (over 1 meter),
so that all information and status from
LCD display can be read easily. Also please provide sufficient space on both sid
es of the unit
so that Cautions and Ratings would be easily visible.
Mount only on firm background and with correct position as below :

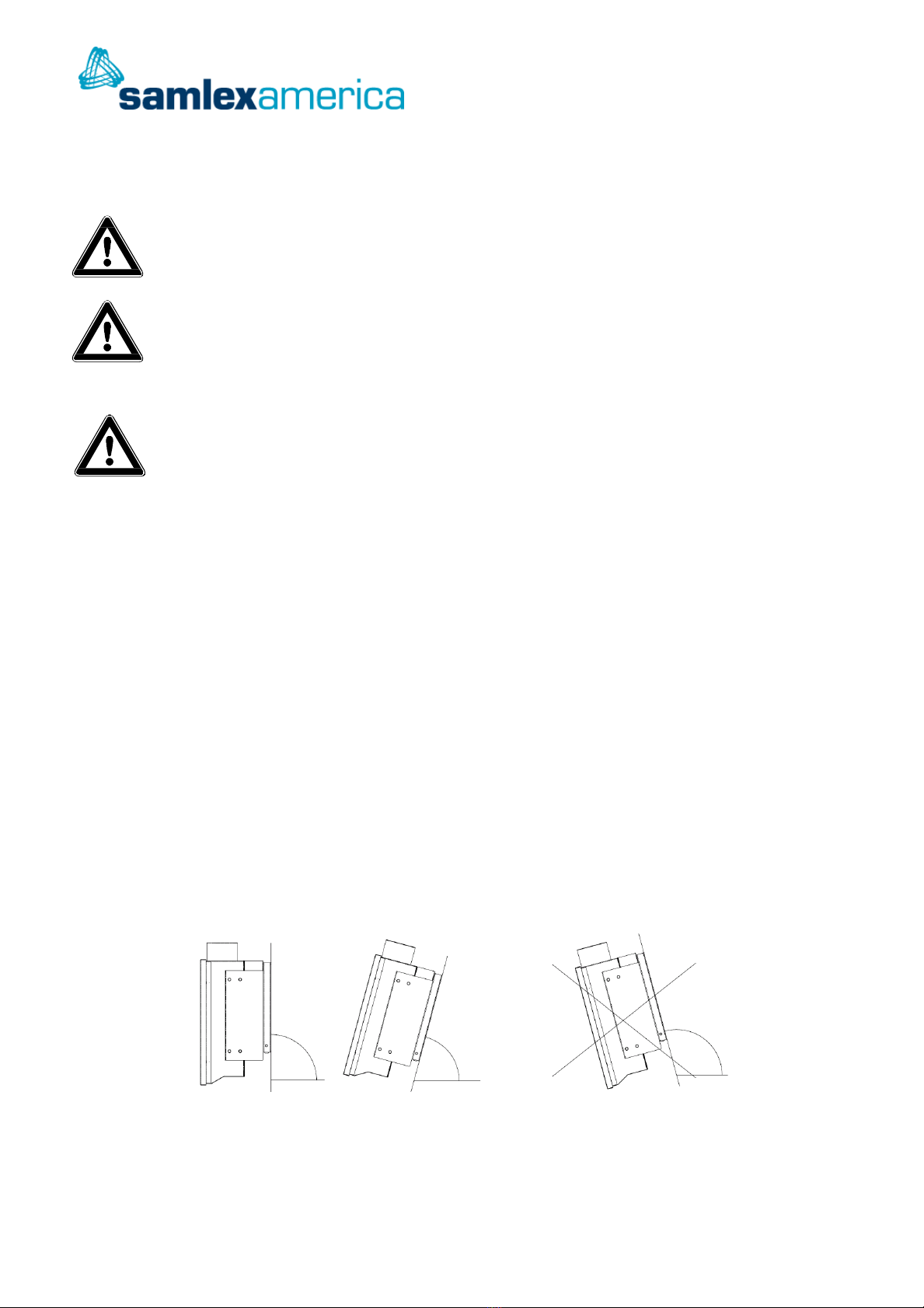

Fig. 2-1 mount straight or tilted to the back nevermount tilted to front
Outdoor Installation shall not proceed on rainy day. High humidity within the unit may

www.samlexamerica.com Toll free 1-800-561-5885
7
eventually damage the electronics that are sensitive to humidity.
Ambient temperature should be between –20°C and +50°C.
Heat sink may reach over 70 oC, so pay special attention to air circulation for sufficient
heat dissipation. For indoor unit, please provide external ventilation.
Mounting of Soleil 2000
Place the mounting plate of Soleil 2000 with the slots on two sides bending inwards
against the designated surface of the wall and mark the holes of the screw.
Drill the holes and hammer in the wall anchors. If you are mounting the unit on wooden
wall, be sure that the wall is thick enough for penetration of the screws 1and1/2 “ depth
into it.
Place the mounting plate against the wall again with the slots bending outwards and
fasten the four screws into their respective holes until the mounting plate is firmly held
against the wall.
Fig. 2-2 Mounting plate
Mount the unit on the mounting plate. Be sure that the six hooks
from the side brackets of
the unit get into their respective fixtures on the slots of the plate and settle down.
To secure the unit, fasten a screw on the hole at the left bottom hook of the unit, as in
Fig 2-3.
Hole for
screw
Hook
fixture
Slots

www.samlexamerica.com Toll free 1-800-561-5885
8

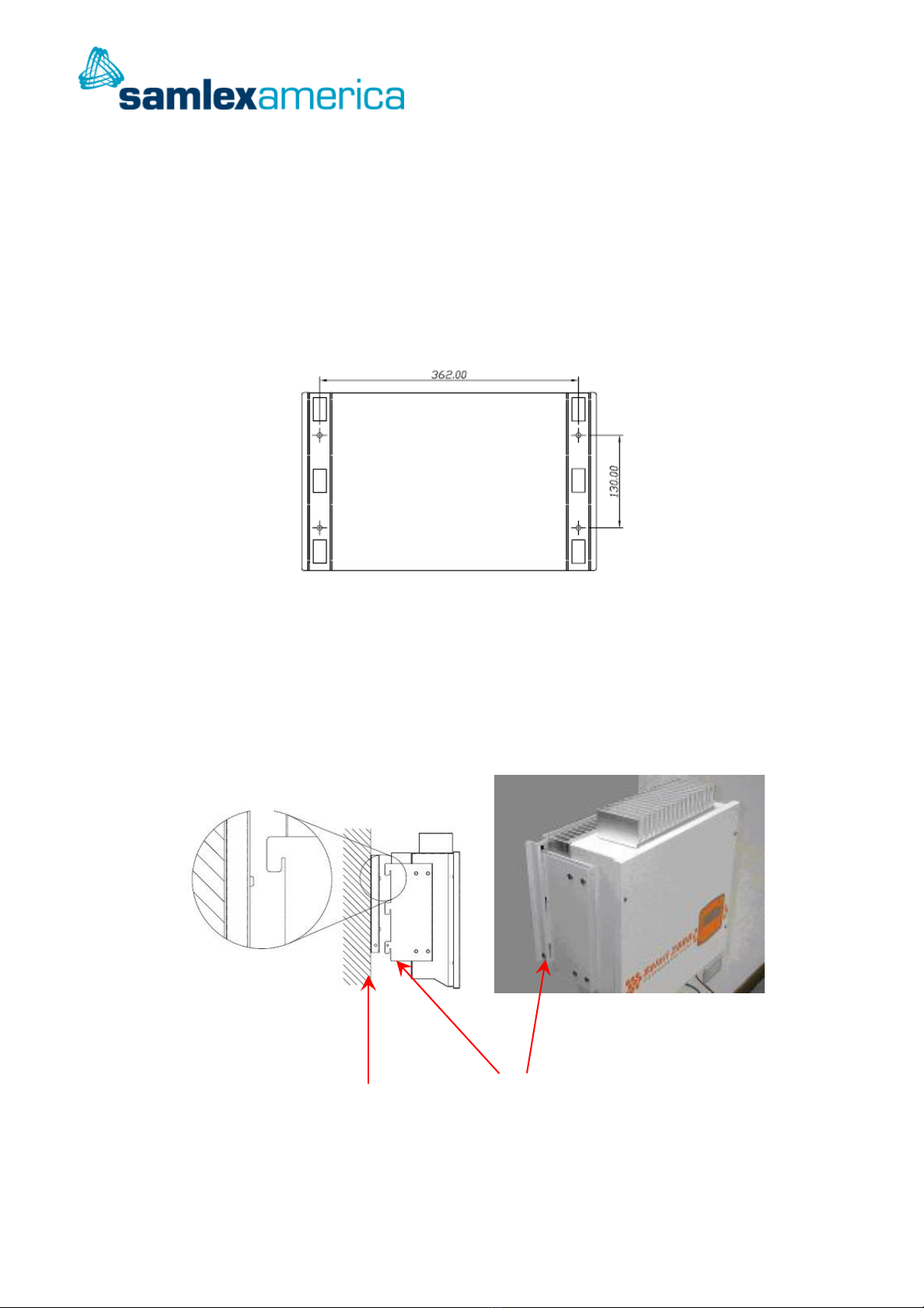

Fig. 2-3: Side view of the unit mounting to the wall
Metal fixing plate
Secure screw

www.samlexamerica.com Toll free 1-800-561-5885
9
Mounting of Soleil 2000
Place the metal fixing plate on the designated surface of the wall and mark the holes of
the screw.
Drill the holes and hammer in the wall anchors.
Place the metal fixing plate again and fasten the four screws into their respective holes
Fig. 2-2 Metal fixing plate
Mount the unit on the fixing plate. Be sure that the six hooks get into their respective
fixtures and settle down.
To secure the unit, fasten a screw on the hole at the left bottom
hook of the unit, as in Fig
2-3.
Metal fixing plate
Secure screw

www.samlexamerica.com Toll free 1-800-561-5885
10
3. Wiring process

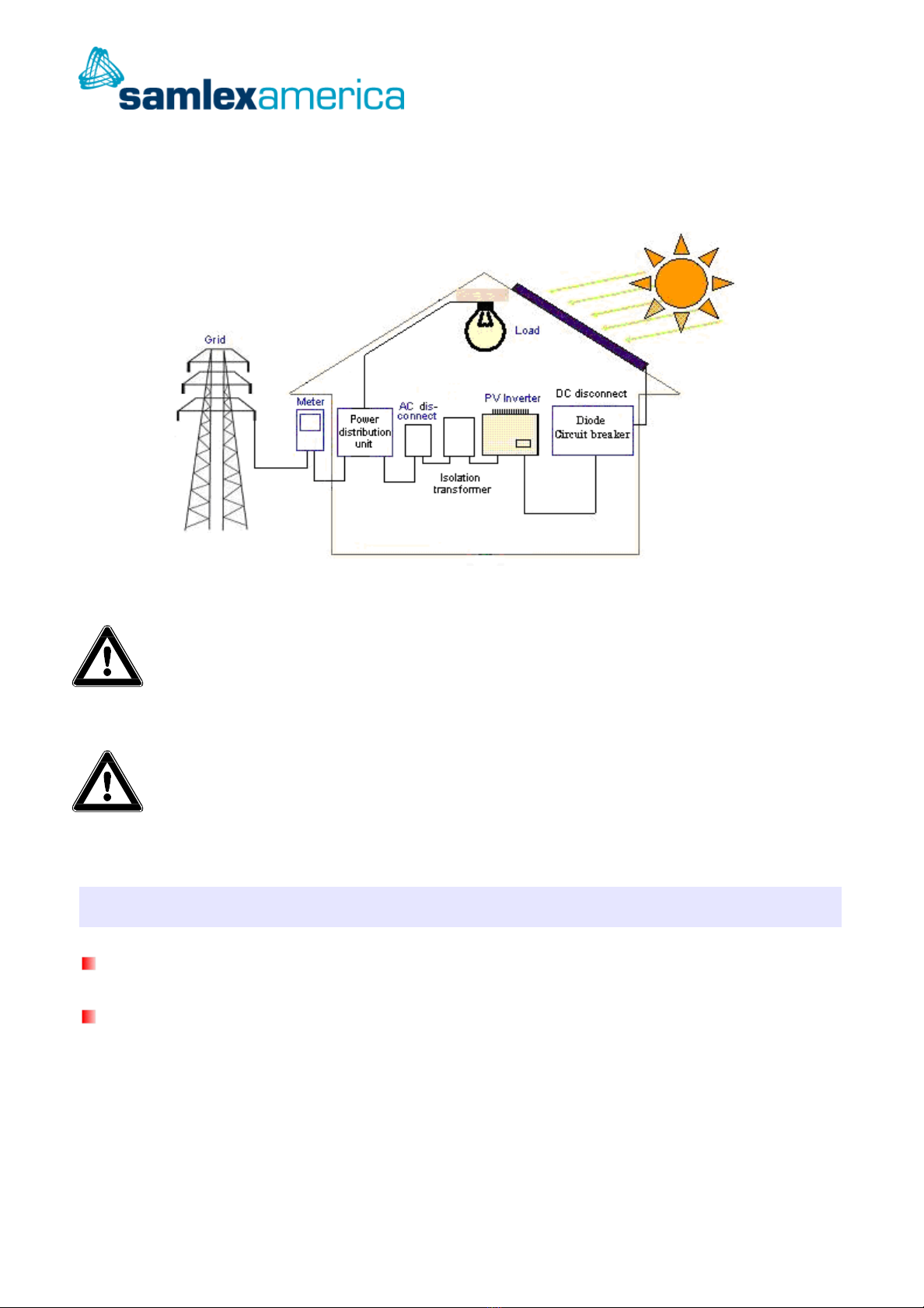

The photovoltaic inverter wiring is as shown above.
Warning :National Electrical Code (NEC) requires that the inverter
be
connected to a dedicated circuit and no other outlets or device may be
connected to this circuit. See NEC Section 690-64(b)
Warning : Follow local electrical codes and the National Electrical
Code (NEC), ANSI/NFPA 70. Use copper conductors only with
minimum 12 AWG, 105℃, 600V wire for all connections with the
Soleil 2000.
Power cable selection
AC wire: Black copper wires of 12 AWG or above should be used for alternate current
output.
Ground wire: For enclosure grounding, green or yellowish green copper wires of
12AWG or above should be used.
DC wire: For input to the unit
from solar panels, the cross section area is dependent on the
length of the wire. Identifiable colored copper wires of 12 AWG or above, for both positive
and negative power supplies should be used.

www.samlexamerica.com Toll free 1-800-561-5885
11
Caution : Longer wire or Voltage drop would require that larger wire
sizes be used.
For a 70 feet (16.4 m) cable, use size of AWG 12
For a 100 feet (33 m) cable, use size of AWG 10
Notes for wiring
Make sure the unit is fixed securely and all power switchboards are switched to off
position to avoid electric shock.
This unit provides a terminal block for connections at DC Input terminal and is to connec
t
through DC knockout to PV string from the DC disconnect (schottky diode + circuit
breaker).
For AC output, connection should be made from the AC output terminal block
through AC
knockout to the Isolation Transformer and there after to AC disconnect and main b
reaker.
Excess power would be fed to the grid via a dual rate flow meter.
The AC equipment-ground wire should be connected from the ground terminal on the AC
output terminal block and together with AC Line & Neutral, go through AC knockout
to the
Isolation Transformer and there after to the Ground terminal of the AC disconnect and
main breaker ( power distribution unit ).
Warning : To reduce the risk of fire, do not connect to an AC load
center (circuit breaker panel) having multi-wire branch circuits
connected.
DC Input
3/4” TSC knockout
AC Output
1/2” TSC knockout
Communication
1/2” TSC knockout

www.samlexamerica.com Toll free 1-800-561-5885
12

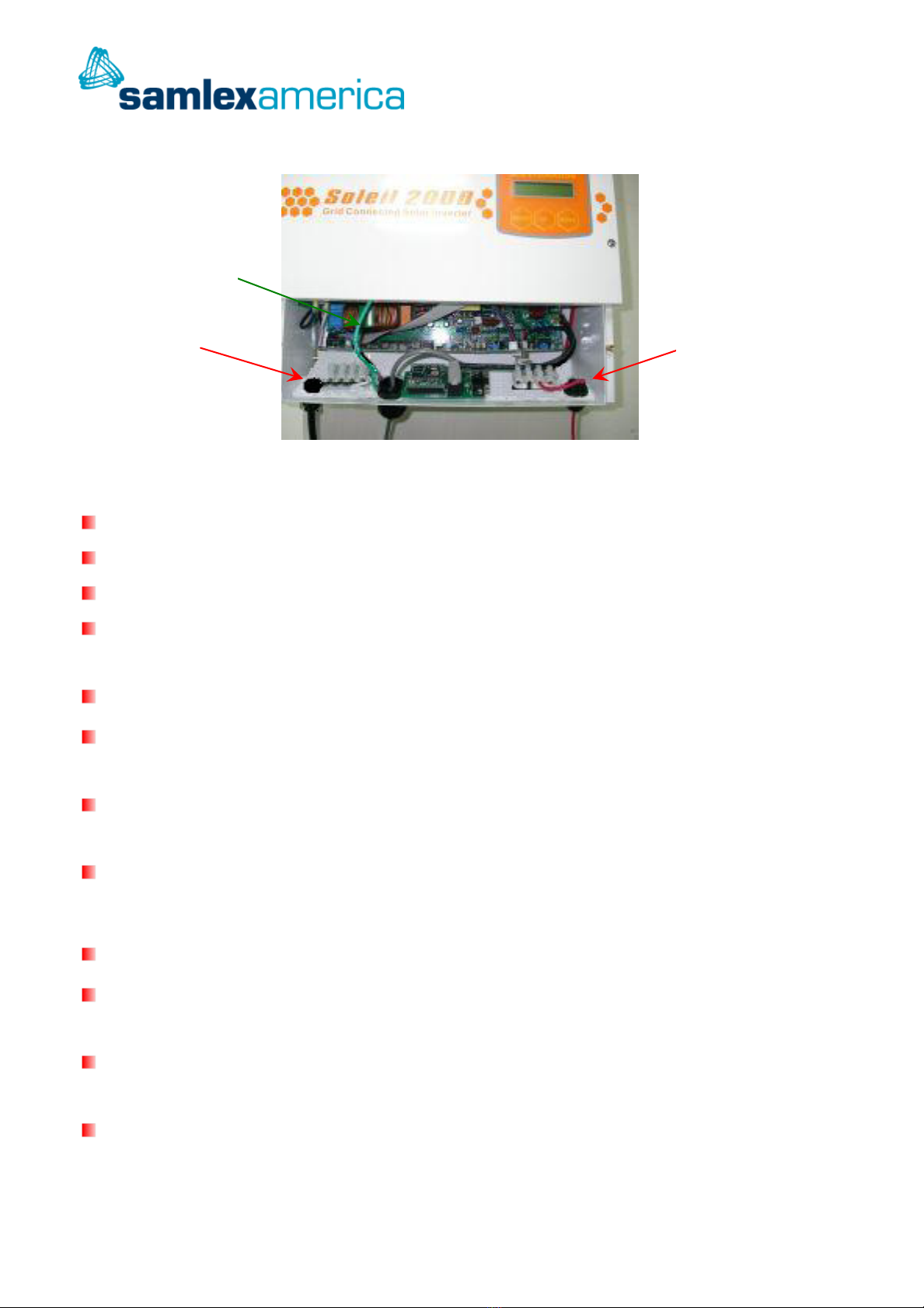

Connecting AC Wiring
Make sure AC Main Breaker is at OFF position.
Install a 1/2 inch conduit fitting to the AC knockout at the left side of the Soleil 2000.
Install two 1/2 inch conduit fittings respectively to the two knockouts at the bottom of
isolation transformer located just left side of the Soleil 2000.
Install a 1/2 inch conduit between the AC knockout of the unit and the INV knockout
that
sits right of the Isolating Transformer. Also between the transformer and AC disconnect
AC disconnect breaker should be installed for over-current protection.
Pull the AC wires through the conduit from the Isolating Transformer to the interior of
Soleil 2000.
Connect the AC Ground wire to the terminal labeled Ground with marking on the
AC terminal block that sits right besides the AC conduit fitting.
Connect the AC Line wire to the terminal labeled Line on the terminal block in the unit.
Connect the AC Neutral wire to the terminal labeled Neutral on the same terminal block.
Connect the other ends of AC Line and Neutral wires to the Isolating Transformer,
Connect the other end of Ground wire to the Ground terminal of Isolating Transformer.

Connect the AC & Ground wires through conduit between Isolating Transformer and AC
disconnect breaker.
All the wires should be connected correctly and tightened to a torque of 18 in-lb.

www.samlexamerica.com Toll free 1-800-561-5885
13
Connecting DC Wiring
Make sure that AC main breaker and DC disconnect breaker are at OFF position.
Install a 3/4 inch conduit fitting to the DC knockout at the right side of the Soleil 2000.
Install a 3/4
inch conduit between the DC knockout and the DC disconnect breaker panel.
Pull the DC wires through the conduit from the interior of DC disconnect panel to the
interior of Soleil 2000.
Connect the positive DC wire to the terminal labeled PV+ on the terminal block in the unit.
Connect the negative DC wire to the terminal labeled PV - on the terminal block in the
unit.
Connect the other ends of the positive and negative wires in the DC disconnect panel to
their respective terminals.
All the wires should be connected correctly and tightened to a torque of 18 in-lb
Connecting Communication Cable
Soleil 2000 provides optional RS-232 or TCP/IP communication ports for maintenance.
The communication cable can be installed at the same time while installing the inve
rter or
some time later. Details see in Monitoring and setup section.
1/2 inch conduit may be required for communication wiring per local electrical code
requirement.
Run the communication cable from the location of PC to the interior of Soleil 2000
through the Communication knockout on the middle of Soleil 2000.
DC Input
AC Output
Ground

www.samlexamerica.com Toll free 1-800-561-5885
14
Connect the cable to the appropriate port of the communication PWB in the unit.
Connect the other end of the cable to the appropriate port of the PC.
Make sure the conduit fitting or cable grand on the knockout is sealed and safe from rain
Replacing the cover
After AC, DC and Communication wires are all connected, make sure the Isolation sheet
with cautionary markings covers over the power circuitry below and no pressure will be
exerted on any connections when the cover is fixed.
Position the cover on the Soleil 2000 carefully and align the four holes on the cover to the
threaded holes of the brass threaded spacers on the enclosure.
Carefully insert the four screws previously removed to take the cover off through the
nylon washers and the aligned holes and fasten them till they are finger-tight.
After verifying that the front cover is in correct position and the seal well in place, fasten
all screws till firmly tight.
Warning : Never install the Soleil 2000 during rainy day. Moisture
trapped inside the enclosure during those very damp conditions would
damage the sensitive electronic components.

www.samlexamerica.com Toll free 1-800-561-5885
15
4. Operation
Warning : Connection between the Soleil 2000, the PV string and the
utility grid must be done in the order described bellow. Operation
ignoring the order will cause hazardous accident.
Start operation
Verify all breakers are at OFF position.
Use an electricians’ multi-meter to test and make sure that the input voltage at DC
disconnect is within the correct range (200-450VDC).
Check both the voltage and frequency of main power grid is within the normal range.
Connect the Soleil 2000 to the utility by switching on AC Main breaker and AC
disconnect breaker.
Connect the Soleil 2000 to PV strings by switching on DC disconnect breaker.
After switching on the system, the Soleil 2000 will start boot up sequence. It will take a
few minutes to complete the self-
test cycle, as well as confirmation of power grid voltage
and frequency.
After confirming the AC voltage is within the correct working range, sunbeams can start
generating electrical power for user’s household electrical appliance and excess power
will be fed to utility grid automatically.

www.samlexamerica.com Toll free 1-800-561-5885
16
Monitoring and setup

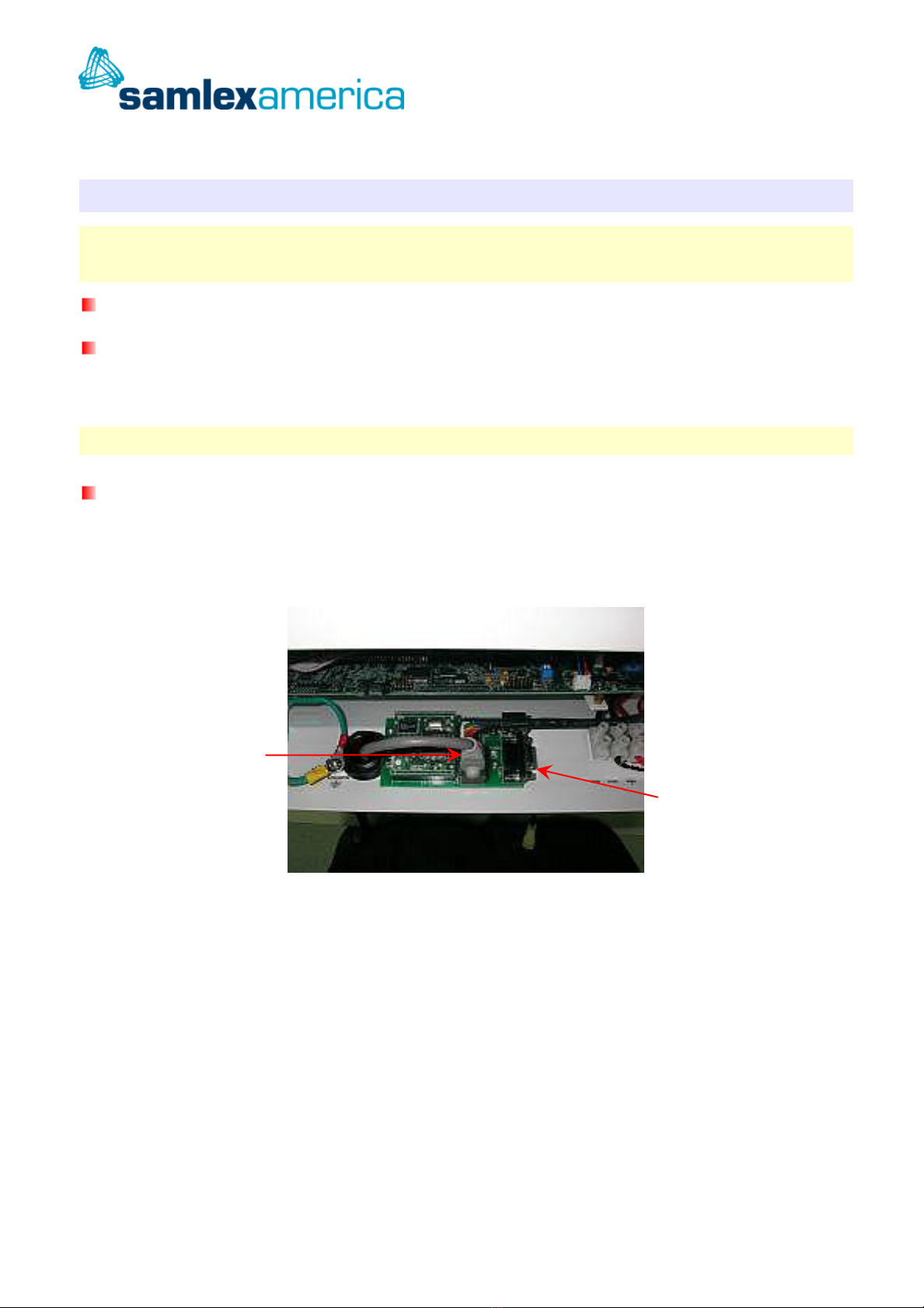

RS-232Use standard DB9 cable to connect serial port on the computer to that on the
machine.
After complete setting of COM Port following Monitoring Software, it is ready to start
monitoring and setting up the photovoltaic inverter.
For monitoring and setting up the photovoltaic inverter, please refer to the “Monitoring
software manual”.
TCP/IP ( Optional )
Set up according to Monitoring software manual attached with the network card.
RS232 Port
RJ-45 Port

Control Panel
Switch ON photovoltaic inverter
Switches the photovoltaic inverter ON.
Switch ON photovoltaic inverter
When solar panel input voltage reaches the required range for starting,
press this button for a few seconds until a buzzing sound is audible.
Release the button. LCD panel will show the starting screen. After power
grid detection runs for 5 minutes and remains in “normal” condition,
photovoltaic energy will start to feed-in electric current.
“UP” shifting button
Recursive “UP” movements show: Accumulate power Input voltage /
power Output voltage / power
“Down” shifting button
Recursive “DOWN” movements show: Accumulate power Output
voltage / power Input voltage / power
17

Pic -1
Pic – 2
Boot up screen
1. Switch on the power grid circuit breaker, the screen shows
“Ver. 10”(Pic-1)
2. DSP initial boot up sequence completed as shown on
(Pic-2), notified by half a second “beep”
sound. The system
is ready and enters idle mode.
Pic - 3
Pic - 4
Pic - 5
Pic - 6
System initial screen
1. Under initial
mode, the system starts detecting the voltage
and frequency of the solar module and power grid. after 2
seconds,
2. The screen shows “Counter 300 sec.”, and count
down. If
the input voltage (190<Vpv<450V), out
put voltage
(106<Vac<132V) and frequency (59.3<Fac<60.5Hz) ar
e all
within operating range, the system will initiate a 5-
minute
countdown and prepare to start. (Pic-3)
3. If the voltage of solar
module voltage is too low
(Vpv<190V), or AC voltage too low (Vac<106V),
the screen
shows “Start waiting . . .” to indicate wrong voltage (Pic-4).
4. If the frequency is out of range, the screen shows
“AC
FREQ error” to indicate wrong frequency. (Pic-5).
5. If the voltage of solar module is too high (Vpv>450V), or AC
voltage is too high (Vac>132V), the screen shows “
Over
voltage” to indicate wrong voltage (Pic-6).
6. If the voltage
of power grid and solar module are abnormal,
the system will remain at monitoring voltage initial
mode as
shown on both (Pic-4) and (Pic-
5). In the mean time all
buttons are disabled and not functional.
Status reports from LCD
16

www.samlexamerica.com Toll free 1-800-561-5885
19
Pic-7
Pic - 8
Pic - 9
MPPT Mode
1.
Under the initial mode, after pressing “POWER” button for
more than 3 seconds, or, after DSP takes 5 minutes to
detect and confirm that the
voltages of power grid and solar
module are in operating range, the unit will beep for 1.5
seconds and switch on the system. The system would be in
“ MPPT MODE” then and the screen display as Pic-7.
2. During the starting sequence, the system requires some
time for voltage tracking and the phase to lock to
parallel
network
. It will spend 10 seconds to enter MPPT mode.
After entering MPPT mode, the unit starts power producing.
The screen display Data monitoring as : Total Power 
Pv
Power Ac Power, every 2 seconds in turn. ( Pic-8, Pic-
9,
Pic-10 )
Pic – 10
Data Monitoring
1. The displays data on the screen
can also be changed
by pressing “UP” or “DOWN” buttons to shift the rows
of displays.
Accumulate:Total=0000002kWHtoday=0000001kWH
Input status : Vpv =319V Ppv =1423W
Output status : Vac=120V Pac=1416W
2. Press “UP” button to shift displays upwards
3. Press “DOWN” button to shift displays downwards.
LCD Sleep Mode
1. During normal operation, if none of the buttons is
pressed within 5 minutes, the LCD display would
automatically enter her sleep mode. A single black spot
would be seen on the screen shifting from left side to
right side one space per second. (Pic-Sleep)
2.
3. Pressing any button will wake up the screen display.
Pic- Sleep

20
Pic - 11
Pic - 12
Pic - 13
Pic – 14
Protection mode fault display
1. Under conditions as voltage
too high, current overflow or
inappropriate frequency, the unit will
switch off PWM
immediately and relay jump off to enter fault mode
as
shown on (Pic-11) to (Pic-16).
A. When Input/ output current overflow, screen displays
Fault Over current (Pic-11)
When over load, screen displays
Fault Over load (Pic-12)
B. When output frequency abnormal, screen displays
Waiting … AC FREQ error (Pic-13)
When Power grid voltage too high / low, screen displays
Waiting … Utility error (Pic-14)
When input voltage abnormal, screen displays
Waiting … MPPT on (Pic-15)
C. When sun set, the unit would shut down and screen
displays as Pic-16
2. When “island effect”
is determined, Power Supply will
shutdown. After power grid is restored, a 5-
minute
countdown starts. The system will jump to initial
mode for
starting once the countdown is complete.
Pic-15
Pic-16
