Samlexpower SA-2000K-112 User manual

SA-2000K Series
Pure Sine Wave Inverter
User’s Manual
www.samlexpower.com

www.samlexpower.com
Table of Contents
1. Important Safety Information.……………………………………………… 1
1-1 General Safety Precautions…………………………………………… 1
1-2 Battery Precautions………………………..………………………….. 1
2. Features………………………………………………………………………...2
2-1 Application………………………………………………………………. 2
2-2 Electrical Performance………………………………………………… 3
2-3 Mechanical Drawings………………………………………………….. 4
3. Introduction……………………………………………………………………5
3-1 Front Panel operation….……………………………………………... 5~8
3-2 Rear Panel operation.………………………………………………… 9~10
3-3 Protection Features…………………………………………………… 10
3-4 Installation………………………………………………………………. 11
3-5 Making DC Wiring Connections ……………………………………... 12~14
3-6 AC Safety Grounding………………………………………………….. 15
3-7 Inverter Operation……………………………………………………… 16
4. Troubleshooting guide………………………………………………………17
5. Maintenance…………………………………………………………………… 18
6. Warranty……………………………………………………………………….. 18

www.samlexpower.com
1. Important Safety Instructions
WARNING!
Before using the Inverter, read and save the safety
instructions.
1
1-1. General Safety Precautions
1-1-1. Do not expose the Inverter to rain, snow, spray, bilge or dust.
To reduce risk of hazard, do not cover or obstruct the ventilation
openings. Do not install the Inverter in a zero-clearance compartment.
Overheating may result.
1-1-2. To avoid a risk of fire and electronic shock, make sure that existing
wiring is in good electrical condition and not undersized.
Do not operate the Inverter with damaged or substandard wiring.
1-1-3. There are some components in the inverter that can cause arcs and
sparks.
To prevent from fire or explosion, do not put batteries, flammable
materials, or anything that is not ignition–protected around the inverter.
1-2. Precautions When Working with Batteries
1-2-1. If battery acid contacts skin or clothing, you should wash it out with
soap and water immediately. If battery acid contacts your eyes, you
should wash it out with cold running water for at least 20 minutes and
get medical attention immediately.
1-2-2. Never smoke or create a spark or flame in the vicinity of the battery or
the engine.
1-2-3. Do not drop a metal tool on the battery. The resulting spark or
short-circuit on the battery of other electrical part may cause an
explosion.
1-2-4. Remove personal metal items such as rings, bracelets, necklaces,
and watches when operating with a lead-acid batteries.
Doing so may cause short circuit and very high temperature, which can
melt metal items and even burn you.
1

www.samlexpower.com
2. Features
Pure sine wave output (THD < 3%)
Output frequency：50 / 60Hz switch selectable
Input & output fully isolated
Power Saving Mode to conserve energy
High efficiency 89~94%
Can drive highly reactive & capacitive loads at start up
Tri-Color indicators show input voltage & output load level
Loading controlled cooling fan
Advanced microprocessor
Protection：Input low voltage Overload Short circuit
Low battery alarm Input over voltage Over temperature
2-1. Application
2-1-1. Power tools – circular saws, drills, grinders, sanders, buffers, weed
and hedge trimmers, air compressors, etc.
2-1-2. Office equipment – computers, printers, monitors, fax machines,
scanner, etc.
2-1-3. Household appliances – vacuum cleaners, fans, fluorescent and
incandescent lights, shavers, sewing machines.
2-1-4. Kitchen appliances – coffee makers, blenders, ice markers, toasters,
etc.
2-1-5. Industrial equipment – metal halide lamp, high – pressure sodium lamp,
etc.
2-1-6. Home entertainment electronics – television, VCRs, video games,
stereos, musical instruments, satellite equipment, etc.
2

2-2. Electrical Performance
SpecificationModel No.
Item SA-2000K-112 SA-2000K-124
Continuous Output Power 2000W
Maximum Output Power 2200W
Surge Rating (Max) 4000W
Input voltage 12V 24V
OutputVoltage 100 / 110 / 120V +/- 5%
Frequency
(Switch Selectable) 50 / 60Hz +/-0.05%
OutputWaveform Pure Sine Wave (THD < 3% )
Efficiency (full load) Max. *1 89.0% 92.0%
No Load Current Draw (Max) 2.8A 1.5A
Power Save Mode Current Draw (Max) 0.60A 0.30A
Input Voltage Regulation 10.5-15
VDC
21.0-30
VDC
InputLevel Indicator
Red / Orange / Green LED
Load Level Indicator
Failure Indicator Red LED
Protection Overload, Short Circuit, Reverse Polarity(Fuse),
Over / Under Input Voltage, Over Temperature.
Remote Control Unit S-R6 / S-R8 Optional
Safety Certification Meets UL458 EN60950-1
EMC FCC Class A
EN55022: 1997
EN55024: 1997
EN61000-3-2: 1998
EN61000-3-3: 1995
e-mark
e13
22846
Operating Temperature Range 0 - 40℃
Storage Temperature Range -30℃to 70℃
CoolingLoading controlled cooling fan ( 65℃ON , 45℃
OFF)
Dimensions422(L)*208(W)*166(H)mm / 16.6(L)*8.18(W)*6.53(H)
Inch
Weight 9 kg / 19.8 Lbs.
Note: The specifications are subject to change without notice.
*1. This test condition is at normal DC input (13.5V) and Temperature 25℃.
www.samlexpower.com
3

www.samlexpower.com
2-3. Mechanical Drawings
245.00 [9.65]
SA-2000K 368.00 [14.49]
Pure Sine Wave Power Inverter
165.25 [6.51]
209.00 [8.23]
AC OUTPUT
PURE SINE WAVE INVERTER
S4 FREQ.
S2
S1
S3 PWR.
SAV.
O I
0REMO.
LOAD
LEVEL
STATUS
INPUT
LEVEL
OFF
ON
I
177.00 [6.97]
2000W
3000W
4

www.samlexpower.com
3. Introduction
This power inverter series is one of the most advanced line of mobile AC power
systems. To get the most effective power inverter, it must be installed and used
properly.
Please read the instructions of this manual before you install and operate
this model.
3-1. Front Panel Operations

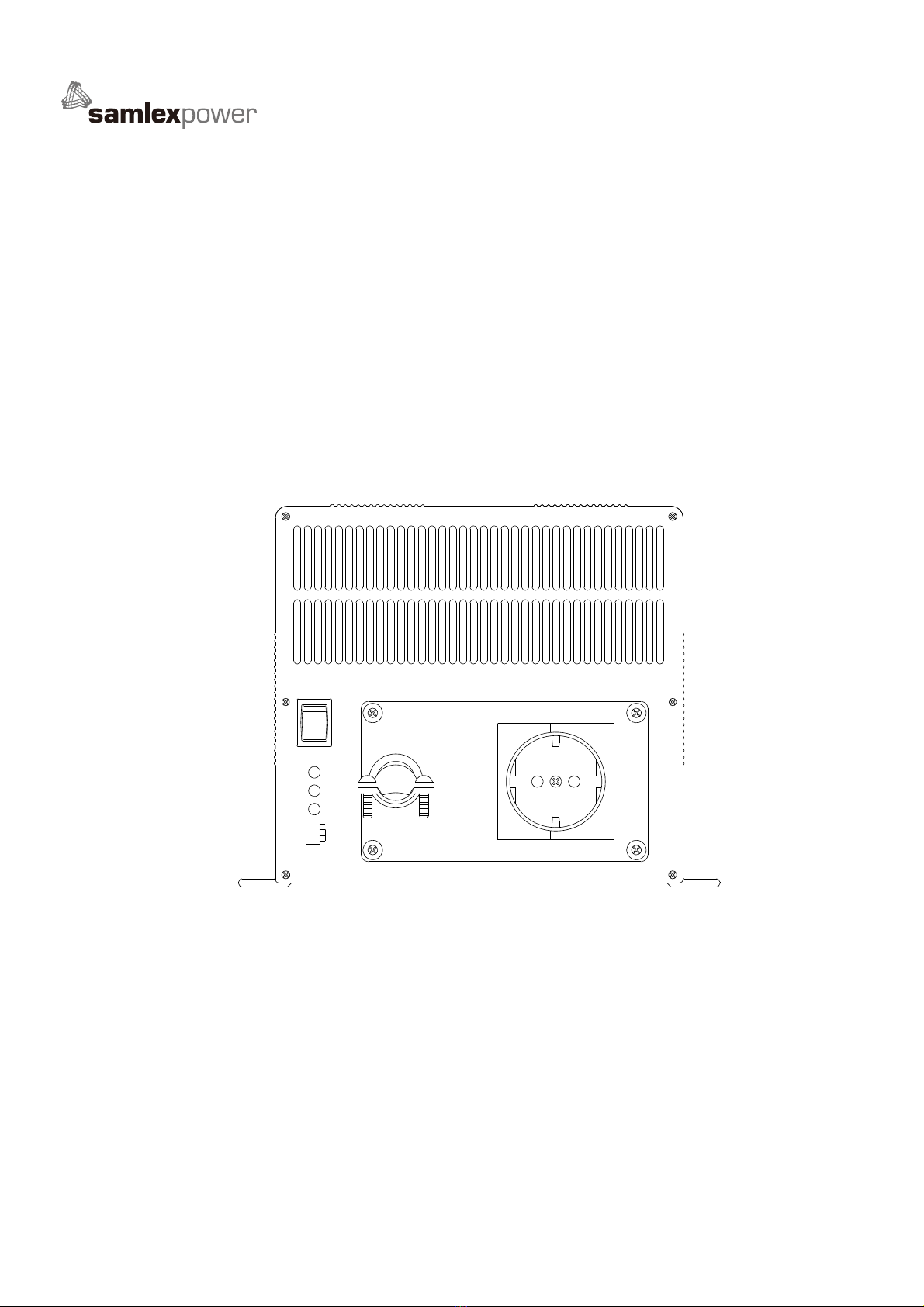

3-1-1. Front view
3-1-2. ON / OFF/ REMOTE (Main) switch
a. Before installing the inverter, you need to ensure the main switch
must be “OFF”.
b. Before using the remote unit, you need to ensure the main switch
must be “REMOTE”.
5
SA-2000K
0
S4
S3
S1
S2
O
FREQ.
PWR.
SAV.
LOAD
LEVEL
STATUS
INPUT
LEVEL
I
AC OUTPUT
PURE SINE WAVE INVERTER
REMO.
I
ON
OFF

www.samlexpower.com
3-1-3. Input Level：Displays Input Voltages
LED Status DC 12V DC 24V
RED Slow Blink 10.3~10.6 20.5~21.2
RED10.6~11.021.2~21.8
ORANGE 11.0~12.1 21.8~24.1
GREEN 12.1~14.2 24.1~28.6
ORANGE Blink 14.2~15.0 28.6~30.0
OVER RED Blink 15.0 30.0
3-1-4. Load Level：Displays AC Loads (Watts)
LED status DARK GREEN ORANGE RED RED BLINK
SA-2000K0~ 160W 160 ~ 660W 660 ~ 1500W 1500 ~ 1920W Over 1920W
3-1-5. AC Frequency：Selected by “S4” Dip Switch
Frequency S4
50 HZ OFF
60 HZ ON
3-1-6. Status：Displays Power & Fault Status
Green LED LED Signal Status
Solid Power OK
Slow Blink Power Saving
Red LED LED Signal Status
Fast Blink Over Voltage
Protection (OVP)
Slow Blink Under Voltage
Protection (UVP)
Intermittent Blink Over Temperature
Protection (OTP)
Solid Over Load
Protection (OLP)
6

www.samlexpower.com
3-1-7. Power Saving Mode: Power Saving Mode is adjustable and
set by the Dip Switches, S1, S2 and S3 on the front panel.
Example: With the watt setting at 15W, a 15W↑load will make the
inverter operate normally, a 15W↓load will enter into the Power
saving mode.
SA-2000K S1 S2 S3
DISABLEOFFOFFOFF
40W ON OFFOFF
80WOFF ON OFF
125W ON ON OFF
170WOFFOFF ON
210W ON OFF ON
245WOFF ON ON
280W ON ON ON
7

www.samlexpower.com

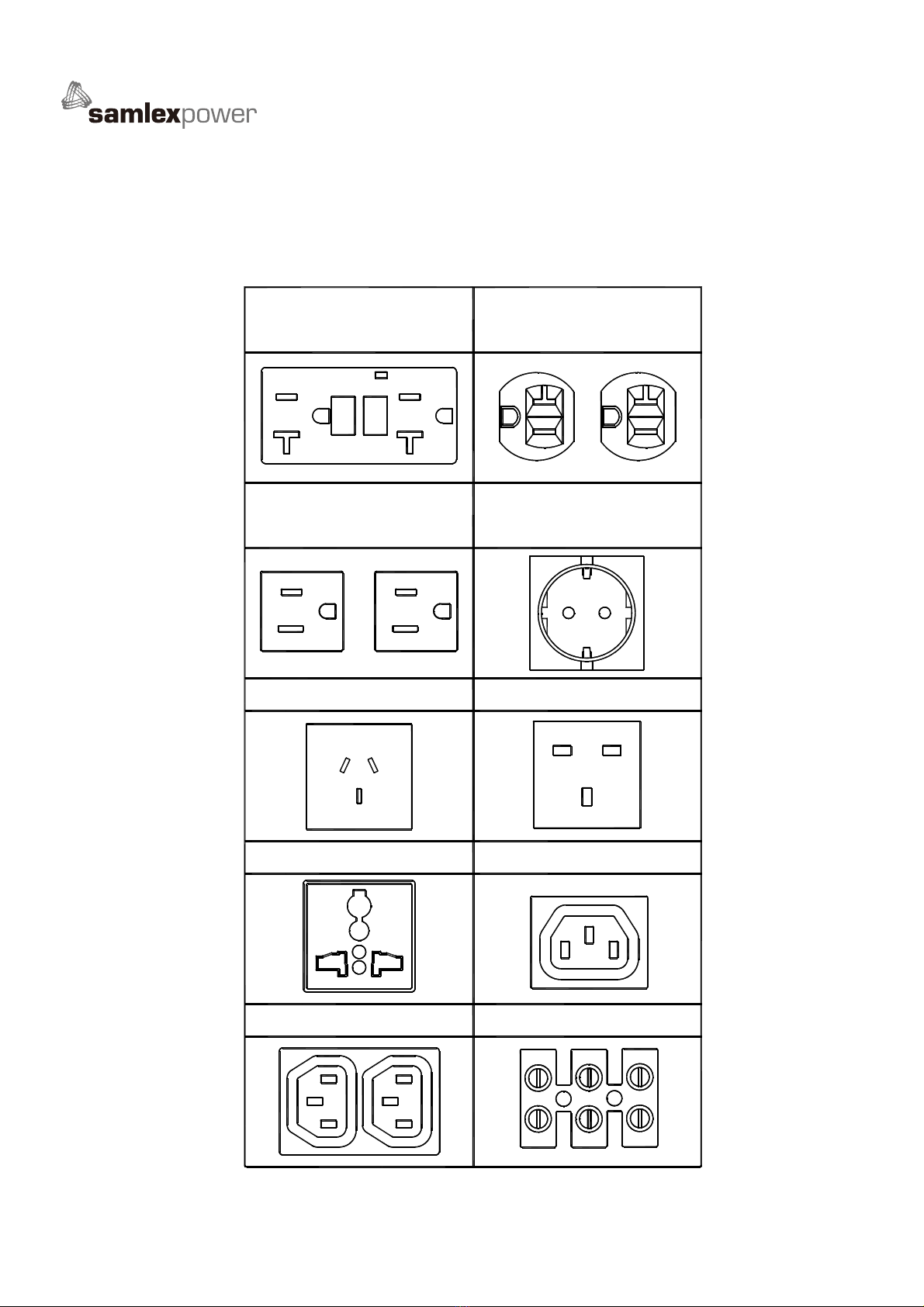

3-1-8. AC outlets
North American Ground Fault Circuit Interrupter (GFCI) with Duplex
NEMA5-20 receptacles is provided as a standard supply. Other types
have to be ordered specifically.
Australia / New Zealand
IEC-2
Universal
HARD WIRE
United Kingdom
IEC-1
North American Ground fault
Circuit Interrupter (GFCI) with
duplex NEMA5-20R receptacles
North American
NEMA5-20R
Continental European
North American
NEMA5-15R
8

www.samlexpower.com
3-2. Rear Panel Operations
3-2-1. Remote Port
The SA Series Inverter is compatible with any of the following optional
Remote controls:
•S-R8 – is common for 12V, 24 V input inverters
•S-R6-12 – is meant for the 12V input inverters
•S-R6-24 – is meant for the 24V input inverters
Before using the remote unit, you need to ensure the main switch is in
the “REMOTE” position and the input voltage of the power inverter is
the same as it of the remote unit.
3-2-2. Fan Ventilation
Ensure there is a clearance of at least 1 inch from the fan openings.
3-2-3. DC Input Terminal
9
SA-2000K
REMOTE
PORT
CHASSIS
GROUND
NEG(-)
POS(+)
WARNING:
DC INPUT
REVERSE POLARITY
WILL DAMAGE UNIT
SHOCK HAZARD.
DO NOT OPEN. NO
USER SERVICEABLE
PARTS INSIDE.

www.samlexpower.com
Connect DC input terminal to 12V / 24V battery or the other power
sources.
【＋】represents positive, and【－】represents negative. Reverse
polarity connection will blow the internal fuse and may damage the
inverter permanently.
Model DC Input Voltage
Minimum Maximum
12 V 10.5 15.0
24 V 21.0 30.0
3-2-4. Use wire # 8 AWG to connect Chassis ground with vehicle chassis.
Operating the inverter without a proper ground
Connection may cause an electrical hazard.
WARNING!
3-3. ProtectionsFeatures
Model
DC Input (VDC) Over Temperature Protection
Over Voltage Under
Voltage
Alarm
Under
Voltage INTERIOR HEAT SINK
Shut-
down Restart Shut- down Restart Shut- down Restart Shut- down Restart
12 V 15.3V 14.3V 11.0V 10.2V 12.7V
70℃45℃90℃60℃
24 V 30.6V 28.8V 22.0V 20.3V 25.2V
10

www.samlexpower.com
3.4. Installation
The power inverter should be installed in an environment that meets the
following requirements
3-4-1. Dry – Do not allow water to drip on or enter into the inverter.
3-4-2. Cool – Ambient air temperature should be between 0℃and 40℃, the
cooler the better.
3-4-3. Safe – Do not install the inverter in a battery compartment or other
areas where flammable fumes may exist, such as fuel storage areas or
engine compartments.
3-4-4. Ventilated –Keep the inverter a distance (as least 1 inch) away from
surrounding things. Ensure the ventilation shafts on the rear and the
bottom of the unit are not obstructed.
3-4-5. Dust – Do not install the Inverter in a dusty environments
The dust can be inhaled into the unit when the cooling fan is working.
3-4-6. Close to batteries – Avoid excessive cable lengths. Do not install the
Inverter in the same compartment as batteries.
Use the recommended wire lengths and sizes (see section 3-5).
Do not mount the Inverter where it will be exposed to the gases
produced by the battery. These gases are very corrosive, and
prolonged exposure will damage the Inverter.
WARNING!
Shock Hazard. Before proceeding further, carefully
check that the Inverter is NOT connected to any
batteries, and that all wiring is disconnected from any
electrical sources. Do not connect the output terminals
of the Inverter to an incoming AC source.
11

www.samlexpower.com

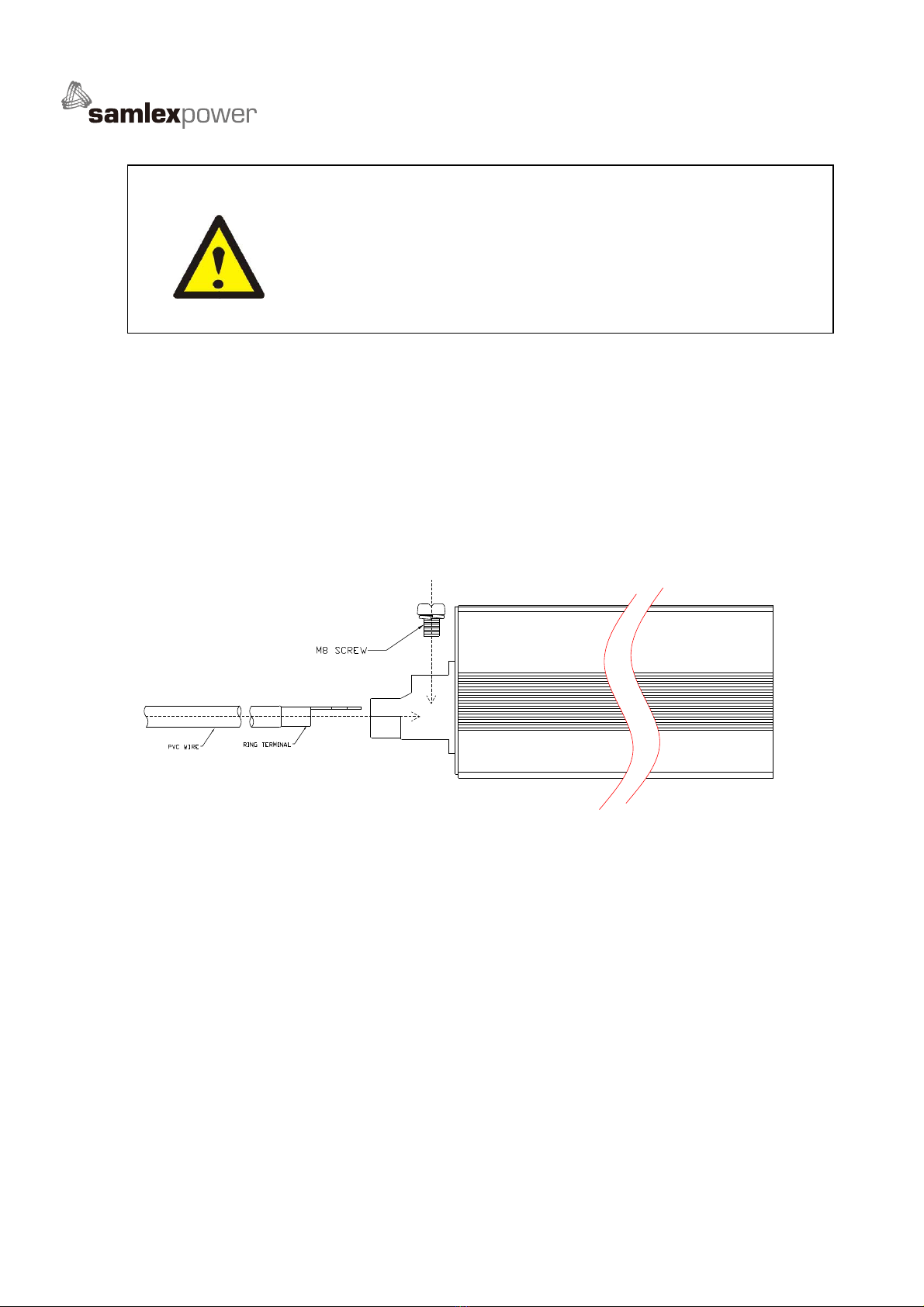

3-5. DC Wiring Connections
Follow this procedure to connect the battery cables to the DC input terminals
of the Inverter. The cables should be as short as possible (less than 10 feet /
3 meters ideally) and large enough to handle the required current in
accordance with the electrical codes or regulations applicable to the
installation. Cables that are not an adequate gauge (too narrow) or too long
will deteriorate inverter performance such as poor surge capability and
frequent low-input voltage warnings and shutdowns.
These low input voltage warnings are due to DC voltage drop across the
cables from the inverter to the batteries. The longer and narrower the cables,
the greater the voltage drop.
Increasing DC cable size helps improve the situation. SAMLEX AMERICA
INC. recommends the following cables for optimum inverter performance.
Model No Wire AWG Inline Fuse
SA-2000K-112 # 2/0 250 A
SA-2000K-124 # 1/0 125 A
3-5-1. Connect the cables to the power input terminals on the rear panel of
the inverter. The red terminal is represents positive (+) and black
terminal represents negative (-). Insert the cables into the terminals
and tighten the screw to clamp the wires securely.
Ensure all the DC connections are tight (torque to
9 – 10 ft-lbs, 11.7 – 13 Nm). Loose connections may
cause overheat and fire.
WARNING!
12

www.samlexpower.com
WARNING!
The installation of a fuse must be on a positive cable.
Failure to place a fuse on “+” cables running between
the inverter and battery may cause damage to the
inverter and will void warranty.
Also, use only high quality copper wire and keep cable length short, a
maximum of 3 - 6 feet.
AWG#2 - #6
Battery to inverter cable connection
Do not placeanything between
battery cable lug and terminal surface.
Assemble exactly as shown.
13

www.samlexpower.com
14
SA-2000K
INLINE FUSE
REVERSE POLARITY
WILL DAMAGE UNIT
SHOCK HAZARD.
DO NOT OPEN. NO
USER SERVICEABLE
PARTS INSIDE.
WARNING:
DC INPUT POS(+)
CHASSIS
GROUND
NEG(-)
REMOTE
PORT
Battery to inverter cable connection
Do not place anything between
battery cable lug and terminal surface.
Assemble exactly as shown.
BATTERY
M8 NUT
SPRING WASHER
RING TERMINAL
PVC WIRE
WASHER
PLASTIC COVER
(BLACK)
PLASTIC COVER
(RED)

www.samlexpower.com
3-6. AC Safety Grounding
The AC output ground wire should go to the grounding point for your loads
(for example, a distribution panel ground bus).
3-6-1. Neutral Grounding (GFCI’S):
3-6-1-1.120V models: The neutral conductor of the AC output circuit
of the Inverter is automatically connected to the safety ground during
inverter operation. This conforms to National Electrical Code
requirements that separately derived from AC sources (such as
inverters and generators) which have their neutral conductors tied to
ground in the same way as the neutral conductors from the utility tied
to ground at the AC breaker panel. For models configured with a
transfer relay, while AC utility power is present and the Inverter is in
bypass mode, this connection (the neutral of the Inverter’s AC output
to input safety ground) is not present so that the utility neutral is only
connected to ground at your breaker panel, as required.
Ground Fault Circuit Interrupters (GFCI)
Installations in Recreational Vehicles (for North American approvals) will
require GFCI protection of all branch circuit connected to the AC output of
the hardwire terminal equipped with Inverter. In addition, electrical codes
require GFCI protection of certain receptacles in residential installations.
While the pure sine wave output of the Inverter is equivalent to the waveform
provided by utilities, compliance with UL standards requires us to test and
recommend specific GFCI.
Samlex America Inc. has tested the following GFCI – protected 20A
receptacles and found that they functioned properly when connected to the
output of the Inverter.
15

www.samlexpower.com
3-7. Inverter Operation
To operate the power inverter, use the ON / OFF switch on the Front panel to
turn the power on. Then the power inverter is ready to deliver AC power to
your loads. If several loads are to be used, turn them on separately after the
inverter is “ON” in order to prevent activation of Over Load Protection “OLP”
due to combined starting surge power.
3-7-1. Set the power switch to “ON” position and the buzzer will send out
“Beep” sounds at the moment. Then the inverter will make self-
diagnosis, and the LED’s indicators will change various colors. Finally
the buzzer will “Beep” again and the Input Level and Status LED
indicators will turn to “Green” color, then the inverter starts to work
successfully.
3-7-2. Set the power switch to the OFF position, then the inverter stops and
all the lights go Off.
3-7-3. Set the power inverter switch to ON position and turn the test load On.
The inverter should supply power to the load. If you plan to accurately
measure the true output r.m.s. voltage of the inverter, a meter such as
FLUKE 45 BECKMAN 4410 or TRIPLETT 4200 must be used.
16

www.samlexpower.com
4. Troubleshooting
WARNING!
Do not open or disassemble the Inverter.
Attempting to service the unit yourself may cause risk of
electrical shock or fire.
Problems and
Symptoms Possible Cause Remedies
“No AC Power Output”
STATUS of illumination of
the red LED
a. Blinking fast Over Voltage
Protection (OVP) on
the input side has
activated
•Check input voltage.
•Reduce input voltage.
b. Blinking slowly Under Voltage
Protection (UVP) on
the input side has
activated
•Recharge battery.
•Check connections and the
cable.
c. Blinking intermittently Over Temperature
Protection (OTP) has
activated
•Improve ventilation.
•Make sure ventilation
openings in the inverter are
not obstructed.
•Lower ambient
temperature.
d. Solid ON Over Load Protection
(OLP) has activated
•Check AC wiring for short
circuit.
•
Reduce the load.
17

www.samlexpower.com
5. Maintenance
To keep your inverter operating properly, there is very little maintenance required.
You should clean the exterior periodically with a damp cloth to prevent
accumulation of dust and dirt. At the same time, tighten the screws on the DC
input terminals.
6. Warranty
We guarantee this product against defects in materials and workmanship for a
period of 24 months from the date of purchase and will repair or replace any
defective power inverters if you directly returned them to us with postage paid.
Please note that Samlex America Inc. is only responsible for ensuring our
products are operational before delivering. This warranty will be considered void if
the unit has been misused, altered, or accidentally damaged. Samlex America Inc.
is not liable for anything that occurs as a result of the user’s fault.
18
