Samsung AX40T3020UW/NA User manual

AX40T3020UW/NA
Air Purifier
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.

ENGLISH-2
Contents
PREPARATION
Safety precautions ..........................................................................................................3
Check before use............................................................................................................9
Check the name of the components.......................................................................................11
BASIC OPERATION
Air purification operation..................................................................................................13
Sleep mode ...............................................................................................................13
2-in-1 filter replacement alarm function ...................................................................................14
Button lock function ......................................................................................................14
OTHERS
Cleaning and maintenance................................................................................................15
Troubleshooting ..........................................................................................................20
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these
items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office,
for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product
and its electronic accessories should not be mixed with other commercial wastes for disposal.
For more information on safe disposal and recycling, visit our website www.samsung.com/in/support or
contact our Helpline numbers - 1800 40 SAMSUNG (1800 40 7267864, 1800 5 SAMSUNG (1800 5 7267864)).

ENGLISH-3
01 PREPARATION
Safety precautions
These safety precautions are for owner’s safety and preventions of
property damage. Therefore, please read this manual thoroughly before
using your air purifier.
WARNING Hazards or unsafe practices that may result in severe
personal injury or death.
CAUTION Hazards or unsafe practices that may result in minor
personal injury or property damage.
Follow directions.
Do NOT attempt.
Unplug the appliance.
Do NOT disassemble.
Make sure the machine is grounded to prevent
electric shock.
FOR INSTALLATION WARNING
Plug the power cord into a wall socket with the power
specications of the product or higher and use the socket for this
appliance only. Also, do not extend the power cord on your own.
 Sharing a wall socket with other appliances using a multi outlet
power strip or extending the power cord may result in electric
shock or fire.
 Do not use an electric transformer. It may result in electric shock
or fire.
 If the voltage/frequency/rated current condition is different, it
may cause electric shock or fire.
Do not install this appliance near a heater, inammable material.
Do not install this appliance in a humid, oily or dusty location, in
a location exposed to direct sunlight and water (rain drops). Do
not install this appliance in a location where gas may leak.
PREPARATION

ENGLISH-4
Safety precautions
 Failure to do so may result in electric shock or fire.
Please be careful when moving this product!
Please be sure to turn o the power and plug the power plug out
prior to moving this product.
Suddenly moving the product or a harmful impact on the
product is likely to produce noise and fault.
FOR INSTALLATION CAUTION
The appliance should be installed in a place where the power
cord of the product can be easily pulled out.
 Failure to do so may result in electric shock or fire due to electric
leakage.
Install your appliance on a level and hard oor that can support
its weight.
 Failure to do so may result in abnormal vibrations, noise, or
problems with the product.
There should at least 5 cm (15 cm or more is recommended) of
space around the appliance.
 If space for air intake is not enough, humidification capacity may
decrease.
 If the appliance is too near wall side, the wall paper may get
damaged.
When installing the product, make sure that no heavy objects are
on the power cord (or cable).
 Failure to do so may result in electric shock or fire.
FOR POWER SUPPLY WARNING
Unplug the product, and then remove foreign substances
(dust, moisture, etc.) of the power plug terminal or power plug
connection part with a dry cloth on a regular basis.
 Otherwise, electric shock or fire may occur.

ENGLISH-5
01 PREPARATION
When the product, power plug or power cord is damaged,
contact your nearest service center.
Plug the power plug into the wall socket rmly. Do not use a
damaged power plug, damaged power cord or loose wall socket.
 Failure to do so may result in electric shock or fire.
When unplugging the product, do not pull the power cord. Grip
the power plug, and then pull the power plug.
 Failure to do so may result in electric shock or fire.
Do not pull or excessively bend the power cord. Do not twist
or tie the power cord. Do not hook the power line over a metal
object, place a heavy object on the power cord, insert the power
line between objects, or push the power cord into the space
behind the appliance.
 This may result in electric shock or fire.
FOR POWER SUPPLY CAUTION
When the air purier will not be used for a long period of time
or during a thunder or lightning storm, disconnect the power
supply.
 Failure to do so may result in electric shock or fire.
It is dangerous when the power cable gets damaged, therefore
contact a service center or qualied experts for the repair.
FOR OPERATION WARNING
If the appliance is ooded, turn o the appliance and contact a
service center.
If the appliance generates a strange noise, a burning smell or
smoke, disconnect the power supply immediately and contact a
service center.
 Failure to do so may result in electric shock or fire.
When gases (city gas, profane gas, etc.) leak, do not touch the
power cord. Immediately ventilate the area and contact a service
center or a qualied technician.

ENGLISH-6
Safety precautions
 Do not use a ventilating fan.
 If there is a spark, explosion or fire may occur.
Do not unplug the appliance during operation.
 When plugging the appliance in again, flame may occur and it
may result in electric shock or fire.
When a repair is needed, contact the service center.
 Failure to do so may result in a product malfunction, water
leakage, electric shock or fire.
Do not touch the power plug or auxiliary power switch with wet
hands.
 This may result in electric shock.
Do not apply a force to or pull the product using excessive force.
 This may result in fire, injury, or a problem with the product.
After unpacking the air purier, keep all packaging materials out
of the reach of children.
 If a child places a bag over his or her head, he or she may
suffocate.
Do not insert your ngers or a foreign substances into the air
outlet while product is operating.
 Take special care that children do not injure themselves by
inserting their fingers into the product.
Do not place an object near the appliance that makes it possible
for children to climb onto the machine.
 Children could fall and injure themselves or the product may fall
over and injure the children.
Do not put other foreign materials such as metal into the product.
 This may result in electric shock or injury.
If water has entered the power supply module, unplug the power
cable and dry the product completely before use.
 Failure to do so may result in electric shock or fire.
Do not place heavy objects on the product.

ENGLISH-7
01 PREPARATION
 Failure to do so may result in a product malfunction or noise.
Do not attempt to repair, disassemble, or modify the product
yourself.
 Do not use a fuse (such as copper, steel wire, etc.) other than a
standard fuse.
 Failure to do so may result in electric shock, fire, a product
malfunction or injury.
If a foreign substance such as water has entered the product,
disconnect the power supply and contact the service center.
 Failure to do so may result in electric shock or fire.
FOR OPERATION CAUTION
Keep a distance of about 2m from other electric appliances such
as a TV, video or audio device etc.
 Failure to do so may result in reduced video quality or noise.
Leave a space greater than 5cm (15cm or more is recommended)
between the product and the wall.
 This product extracts air at the back to purify the air, therefore,
installing the product in the center of a room may be most
efficient. However, when installing the product against a wall,
allow a distance of at least 5cm (15cm or more is recommended)
between the product and the wall.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.

ENGLISH-8
Safety precautions
Do not spray volatile material such as insecticide onto the
product.
 As well as being harmful to humans, this may also result in
electric shock, fire or a product malfunction.
Do not tilt or turn the product upside down while the product is
connected to the wall outlet.
 Failure to do so may result in a malfunction or fire.
Do not put the product into water.
 This may result in a product malfunction.
Do not place the product on the edge of a desk or table.
Do not stand on top of the product or place objects (such as
laundry, lighted candles, lighted cigarettes, dishes, chemicals,
metal objects, etc.) on the product.
 This may result in electric shock, fire, a product malfunction or
injury.
Do not operate the product with wet hands.
 This may result in electric shock.
FOR CLEANING WARNING
Do not clean the product by spraying water directly onto it.
Do not use benzene, thinner, acetone or alcohol to clean the
product.
 This may result in discoloration, deformation, damage, electric
shock or fire.
Disconnect the power supply and stop the fan operation before
cleaning the product.
 Potential risk of electric shock or fire.
FOR CLEANING CAUTION
Unplug the power plug before cleaning the product.

ENGLISH-9
01 PREPARATION
Check before use
Installation status
Ensure that the following installation requirements have been satised.
▶The product should be installed on an even, level floor.
▶There should be no objects blocking the air intake and outlet.
▶The installation site should be dry and there should be no inflammable substances around it.
▶The product should be installed at least 5 cm (15 cm is recommended) from the wall.
▶Before using the product for the first time and when replacing the 2-in-1 filter, make sure to remove the plastic packaging
of the filter.
Power plug and power outlet
▶Be sure to use a dedicated 220 -240V electrical outlet. (When the power is applied, the product enters the standby state.)
▶Unplug the power plug if it will not be used for a long period of time.
General information about the product
Be sure to install the lters before using the product and replace the lters when they start emitting a strange odor.
▶This product is highly efficient for deodorizing household odors such as ammonia, as well as formaldehyde (the main
cause of sick building syndrome), VOCs etc. However, deodorization function of the air purifier is effective when air is
penetrates through the filter. Therefore when there’s excessive odor in your room, ventilate the room first and use the air
purifier afterwards to eliminate remaining odors for more effective deodorization.
▶If you operate the air purifier without the filters, you cannot expect any air purification effect.
▶If the filters are contaminated, the air purification performance will be degraded. If the filters are seriously dirty or emit a
bad odor or the airflow from the product decreases significantly, replace the filters.
Avoid operating the air purication system when cooking food that generates a strong odor such as sh.
▶Otherwise, the lifetime of the deodorization filter may be significantly decreased and the deodorization filter may become
contaminated by the odor.
▶When the 2-in-1 filter, is contaminated by surrounding odors and the odors can be smelt when the air purification filter
operates, please replace the filter as it has reached its end of life.
Please close the windows and doors when operating the product.
▶Otherwise, the air purification performance is degraded.
▶The main noxious gas that cannot be removed: Carbon monoxide (CO)
▶Concentration level of carbon dioxide may increase if you operate the product for a long time with windows closed.
Therefore, ventilate the room regularly between use. When filter is saturated with just a weak odor, ventilating the room
will help get rid of saturated odor.

ENGLISH-10
Check before use
Using the lters
▶Before you use the product for the rst time, remove the plastic packaging from the 2-in-1 lter.
▶If you operate the air purifier without the filters, you cannot expect any air purification effect.
▶If the filter clean/replacement indicator ( sec ) blinks, replace the 2-in-1 filter.
(The 2-in-1 filter removes fine, invisible particles, gas and odor particles from the air. Postponing the filter clean/
replacement on the basis of a visual evaluation is not a desirable plan. The filter clean/replacement cycle is the maximum
usage period of the filter.The actual clean/replacement cycle may vary depending on the operating environment.)
▶If a strange odor is coming from the product, the airflow from the product becomes weak or the recommended clean/
replacement cycle is reached, make sure to replace the 2-in-1 filter.
▶Cleaning the Pre filter frequently improves the performance of the air purifier and helps keep the indoor air clean.
▶For the installation order and how to install the filters, refer to the Inserting the filters section in the Cleaning and
Maintenance chapter.
▶Before replacing the filters, make sure to turn off the power.
Removing the back cover of the product
Hold the left and right edges of the back cover, pull it forward
slightly (①) and then lift it up (②) to separate it. Dust sensor
Gas sensor ①
②
Mounting the back cover of the product
Insert the hooks of the back cover into the
grooves at the bottom of the main body (①)
and press the edges of the back cover so that it
fits into 8 holes (②) of the main body.
 If the hooks of the back cover is not
properly locked into the grooves, back
cover can not be assembled properly. ①
②
Back
cover
Specications
Model AX40T3020UW/NA
Dimensions
(Width × Height × Depth) 361 mm x 481 mm x 233 mm
Standard capacity 39 m2
 The design and specifications of the product are subject to change without notice for product improvement purposes.

ENGLISH-11
01 PREPARATION
Check the name of the components
Air Purier
Air outlet
Output of purified air
Buttons and indicators
Air intake
Draws air into the
intake
Clear part
(Optional)
Front view
Back
cover
Dust sensor
Detects dust.
Gas sensor
Detects odors.
Rear view
Dust Collecting Filter
Deodorization
Filter Pre filter
Back cover
2-in-1 filter (Deodorization Filter+Dust Collecting Filter)
The mounting sequence of the lters and the back cover

ENGLISH-12
Check the name of the components
Buttons on the control panel
Control panel buttons
sec
Cleanness indicator
Shows the current cleanness of the air. Button lock indicator
Filter clean/replacement
indicator Auto mode indicator
Strong mode indicator
Weak mode indicator
Sleep mode indicator
Displayer function indicator
Control panel buttons
Start/Stop button To turn the air purifier on or off.
Mode button To select Auto, Strong,Weak or Sleep mode.
sec
Filter reset button (Touch more than 3 seconds) To reset the filter cleaning or replacement alarm
Lock button To set or release the button lock.
• Press the [ ] button on the control panel to start the operation. The indicators show the current operating mode
with the status.
• If you press a button, the corresponding indicator turns on with a ringing sound, indicating that the selected
function is selected.
• If your turn on the power after closing it, the product will work as the last status before the power is turned off.
NOTE
Cleanness indicator
• Shows the current cleanness of the air through the dust and gas sensors.
• The cleanness indicator operation
(Polluted) Red Yellow Green Blue (Clean)
• Status of the cleanness indicator may change often or may not change for long time depending on the
surrounding environment. There is no problem with the product.
NOTE

ENGLISH-13
02 BASIC OPERATION
Air purication operation
sec
1 2
1 Press the button to start the air purier operation.
▶The air purifier turns on with a ringing sound.
▶If the power [ ] is turned off and then on again, the product operates base on the last settings.
▶The cleanness indicator and the selected function indicator are selected.
2 Press the button to select an operating mode.
▶Whenever this button is pressed, the mode changes in following order; Weak Sleep Auto Strong.
▶The cleanliness indicator displays as the original status and the function indicator displays as the selected operation mode.
▶When the unit is running in Auto mode, the air is automatically kept clean by the air purifier regardless of the surrounding
dust and odors.
▶If Sleep mode is selected, only the Sleep mode indicator is turned on (dimly).
Sleep mode
This mode allows users to sleep comfortably in a pleasant, peaceful environment.
sec
When the air purier is working, press the [ ] button to set Sleep mode and light is on.
▶Whenever this button is pressed, the mode changes in following order; Weak Sleep Auto Strong.
▶The cleanness indicator is turned off and only the Sleep mode indicator is turned on dimly.
BASIC OPERATION

ENGLISH-14
2-in-1 lter replacement alarm function
sec
If the lter clean/replacement indicator blinks while using the air purier, replace the 2-in-1
lter and hold the [ sec ] button for 3 seconds or longer to reset the alarm.
• Once the filter clean/replacement indicator blinks, it remains on until you press and hold the [ sec ]
button for 3 seconds (until hearing a ringing sound) to reset the alarm.
• If you replace the filter due to a strange odor before the filter clean/replacement indicator blink, press and hold
the [ sec ] button for 3 seconds (until hearing a ringing sound) to reset the alarm.
NOTE
Button lock function
This function prevents the button being pressed by mistake or by children.
sec
The [ ] button locks the buttons.
▶The [ ] button locks the buttons with a ringing sound when it is pressed for 3 seconds or longer.
▶When the button lock function is selected, none of the buttons work.
▶To unlock the buttons, press and hold the [ ] button for 3 seconds or longer again. The buttons are unlocked with a
ringing sound.

ENGLISH-15
03 OTHERS
Cleaning and maintenance
Caution
• When cleaning, please be sure to turn off the air purifier and plug the power plug from the power socket on
the wall.
Cleaning the exterior
▶Dip a towel in warm water and wring it out before using it to clean the product.
• Do not wipe the control panel with an alkali detergent.
• Do not clean the surface of the air purifier with sulfuric acid, hydrochloric acid
or organic solvent (thinner, kerosene, acetone, etc.), or attach a sticker to the
unit. This may damage the surface of the product.
NOTE
Storing the product
▶If the product is not going to be used for an extended period of time, put it into a box and store it in a dry, indoor site.
OTHERS

ENGLISH-16
Cleaning and maintenance
Cleaning the sensor
Carefully clean the lens and the gas sensor with a
cotton swab.
Dust sensor
lens
Gas
sensor
Insert the hooks of the back cover into the grooves at the bottom of the main body (①) and press the edges of the back
cover so that it fits into 8 holes (②) of the main body.
Back cover
②
①
When the air purifier is not operating, hold the left
and right edges of the back cover, pull it forward
slightly (①) and then lift it up (②) to separate it.
①
②
Dust sensor
Gas sensor
CAUTION
• Do not clean the sensors using volatile substances (alcohol, acetone, etc.). Use only water.
• If the dust sensor lens or the gas sensor is contaminated by a foreign substance (dust), the cleanness indicator of
the air purifier may be stuck in the polluted state. In this case, clean the sensors.
• Clean the sensors at least once every 6 months. However, cleaning period should be different depending on the
operating environment and the operating time.Therefore cleaning should be more often in places with lots of
dusts.
• Cleanness indicator on the control panel may not change from polluted state when the air purifier is operating
in place with heavy dusts or smells that may be beyond its capability.
(In this case, open the window to ventilate, or use the air purifier with appropriate capacity.)
• Do not use any spray type product near the air purifier.
• Turn off the power when cleaning the sensors. If you clean the sensors while the power is on, misdetection may
occur from the sensor and the cleanness indicator may not work properly.

ENGLISH-17
03 OTHERS

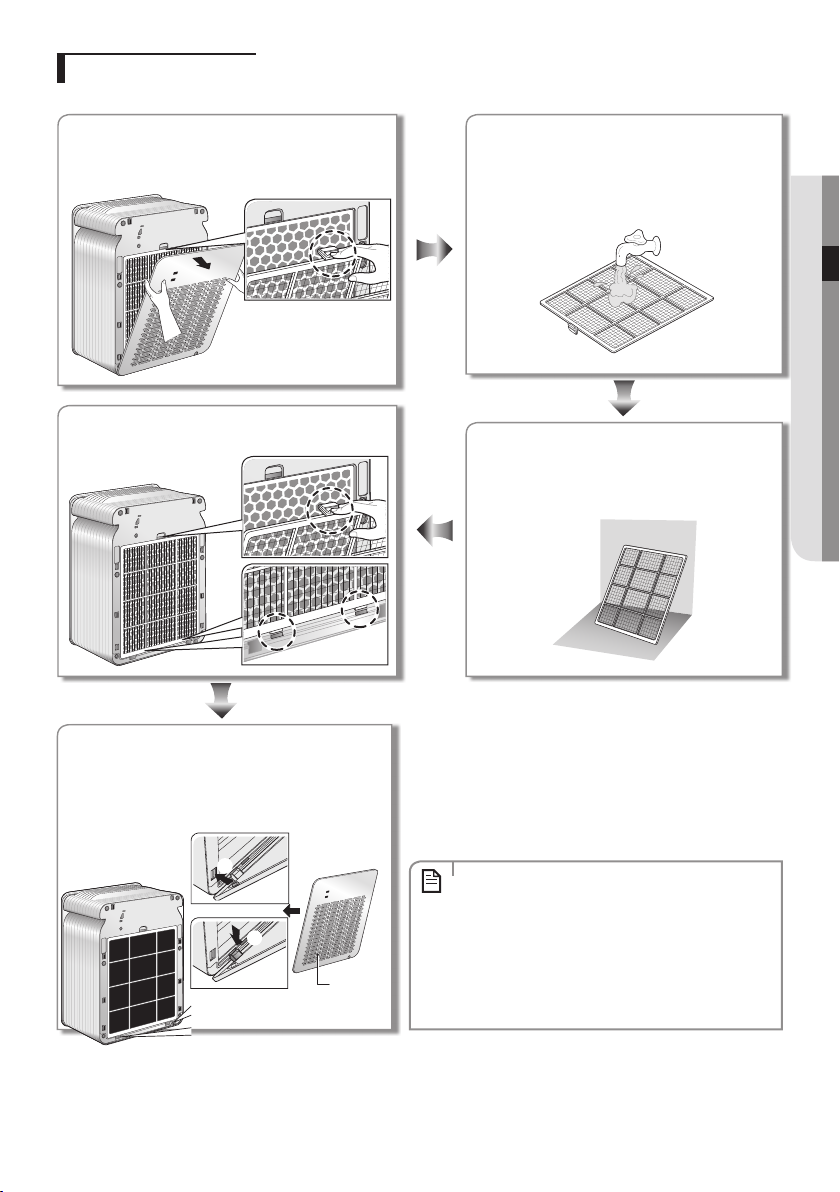

Cleaning the Pre lter
▶If the filter clean/replacement indicator is turned on while the air purifier is operating, clean the Pre filter.
Clean the Pre filter under running water.
• If the filter is very dirty, clean the filter with a
warm neutral detergent solution.
Dry the filter completely in the shade.
• When you dry the Pre filter, do not dry it under
direct sunlight.
Insert the hooks of the back cover into the grooves
at the bottom of the main body (①) and press the
edges of the back cover so that it fits into 8 holes
(②) of the main body.
Pull the back cover forward by holding the left and
right edges of the cover. Remove the Pre filter by
pressing down the top clip of the filter with your finger.
Fit the Pre filter into the bottom holes and
then insert the top clip.
• Clean the Pre filter at least once every two weeks.
However, since the cleaning cycle is determined
by the operating environment and the operating
period, clean the filter more frequently when the air
purifier is operating in a dusty environment.
• When the filter is heavily contaminated with dust,
it is advisable to clean the dust first with a vacuum
cleaner followed by water.
NOTE
Back
cover
②
①

ENGLISH-18
Cleaning and maintenance

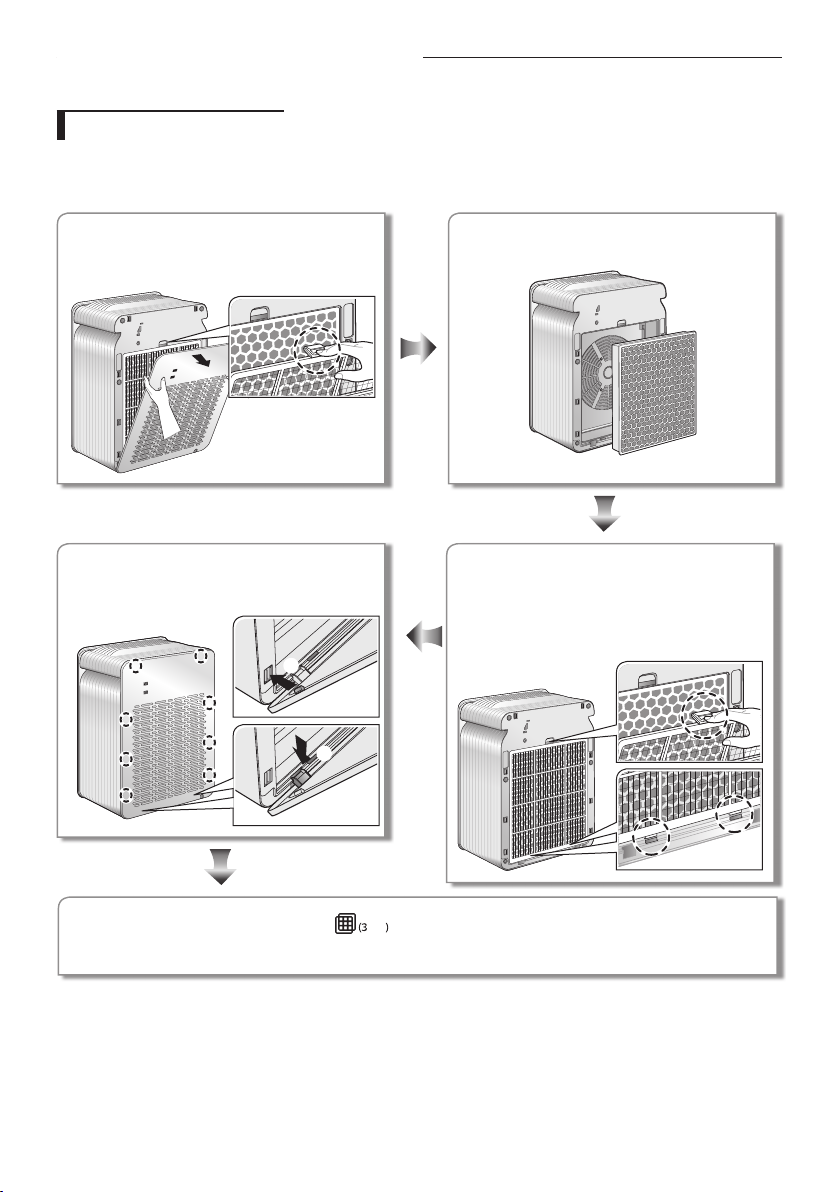

Replacing the 2-in-1 lter
If the filter replacement indicator blinks, do not reuse it after washing it and replace the 2-in-1 filter immediately.
If there is a strange odor coming from the 2-in-1 filter or the air flow from the air outlet becomes too weak, purchase new
2-in-1 filter and replace the old one.
Turn on the product and press and hold the [ sec ] button for 3 seconds.
• Once indicator stops blinking and a ringing sound is heard, the unit will return to normal operation.
Take out the 2-in-1 filter.Turn off the air purifier, remove the back cover and
then separate the Pre filter by pressing down the
top clip with your finger.
Insert the new 2-in-1 filter into the main unit and
then insert the Pre filter.
• Be sure to wear gloves before replacing the 2-in-1
filter. Otherwise, the filter may get your hands dirty
with impurities.
Insert the hooks of the back cover into the grooves
at the bottom of the main body (①) and press
the edges of the back cover so that it fits into 8
holes(②).
①
②

ENGLISH-19
03 OTHERS

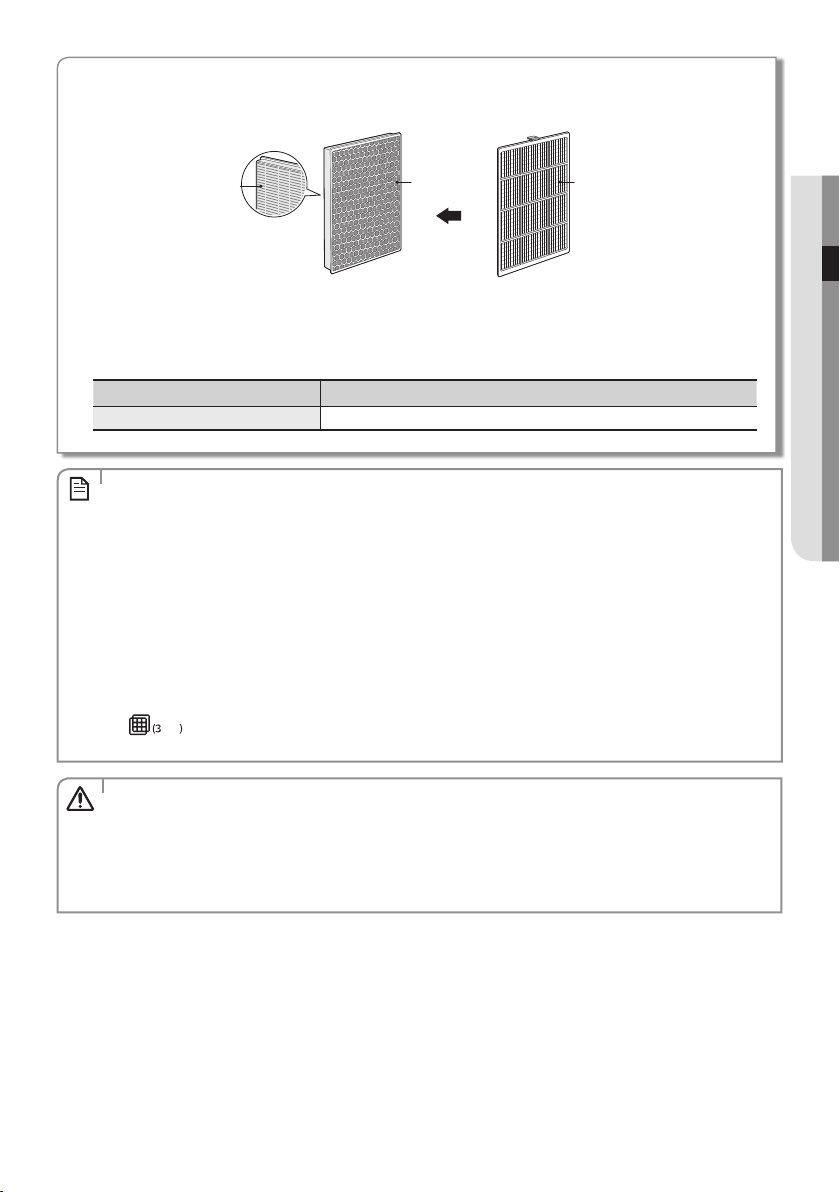

[Inserting the lters]
Insert the 2-in-1 filter into the filter frame and insert the Pre filter.
• The Dust collecting filter effectively removes fine particles as well as cigarette smoke particles from the air.
• The Dust collecting filter has been treated with an anti-allergen and effectively removes allergens from the air.
• The deodorization filter effectively removes daily odors such as bathroom and food odors.
Model name AX40T3020UW/NA
Thickness 50 mm
Dust collecting filter Deodorization
filter
Pre filter
2-in-1 filter (Deodorization Filter+Dust Collecting Filter)
• You can purchase a new filter from a nearby Samsung Electronics service center or electronics mall.
- Replacement interval of the Integrated filter is between minimum 6 months to maximum 1 year based
on 24 hours of operation per day. (You can use the filter longer if the daily operation hours are shorter.)
Replacement interval varies due to level of air pollution. If there’s heavy dust in the area it will result in
heavier accumulation in the filter which will shorten the interval. Filter replacement indicator will be
turned on and notified you when it’s time to replace the filter. However, if the filter is too dirty, or if it
smells, or if you feel the fan speed has gotten gradually weaker, you can replace it even though the filter
replacement indicator has not turned on.
• When you replace the 2-in-1 filter, remove the plastic packaging before installing the filter.
• The filter replacement frequency differs depending on the operating mode because the air flow rate is
subject to the operating mode.
• If you replace the filter even though the filter clean/replacement indicator did not blink, press and hold the
[ sec ] button for 3 seconds (until hearing a ringing sound) to reset the alarm.
NOTE
CAUTION
• Do not wet the 2-in-1 filter. Keep the filters away from moisture while the air purifier is in use.
• Do not use the air purifier in an area where cooking is done for a long period of time (especially while cooking)
as this will reduce the lifespan and replacement time of the filter. Open the windows to ventilate the room while
cooking. Once cooking is done, close the windows and use the air purifier to remove remaining odors.
• Replacement period of the filter may differ depending on the operating environment.

ENGLISH-20
Troubleshooting
Before reporting on a problem with your product, please check the troubleshooting table below.
Problem Checkpoint Solution
The air purifier does not
work.
• Has the power been cut? • After checking the power connection, operate
the product again.
• Is the power plug unplugged? • Insert the power plug into the wall outlet
correctly and operate the product again.
• Is there a problem with the wall outlet or
the power strip?
• Try using another wall power outlet or power
strip.
The filter clean/
replacement indicator is
blinking continuously.
• Did you reset the alarm by pressing and
holding the [
sec
] button for
3seconds after cleaning or replacing a
filter?
• After cleaning or replacing a filter, you need to
reset the alarm by pressing the filter reset button.
There is a strange odor.
• Is the Pre filter contaminated? • Clean the Pre filter.
• Is there a strange odor coming from the
2-in-1 filter?
• Purchase a new 2-in-1 filter and replace the old
filter with the new one.
• User needs to undertake filter replacement cost
produced during the period of free maintenance.
There is a strange
sound coming from the
product.
• Check if the product is horizontally
leveled.
• Make sure the product is horizontally
leveled.
• Check if there’s any foreign substance
in inside of the product. • Please contact the Samsung service center
• Do you hear strange grinding, or
jamming sound? • Please contact the Samsung service center.
The cleanness indicator
is permanently turned
on red.
• Is there dust or some smelly substance that
you cannot locate in the room?
• Does the color of the indicator change
when the unit is moved to a clean room?
• Do you clean the dust and gas sensors
regularly?
• Clean the dust and gas sensors.
• If the indicator stays red even after cleaning
the dust and gas sensors and moving the unit
to a clean room, it may be because of a sensor
or wiring error. In this case, please contact the
service center.
Although the cleanness
indicator is kept red, the
airflow speed does not
change.
• Isn't Auto mode selected?
• Set the mode to Auto mode.
When the mode is set to Strong, Weak or Sleep
mode, the airflow speed does not change.
The indicator is odd. • Is the Auto mode indicator ( ) blinking? • This indicates that the unit is out of order. Please
contact the service center.
