Samsung Ac nn4dch series User manual

Air conditioner

User manual

AC***NN4DCH

•Thank you for purchasing this Samsung air conditioner.

•Before operating this unit, please read this user manual carefully and retain it for future reference.

2English

Safety Information 3

At a Glance 10

Indoor Unit Overview 10

Operation Features 11

Operating temperature and humidity

Cleaning and Maintenance 12

Cleaning and Maintaining 12

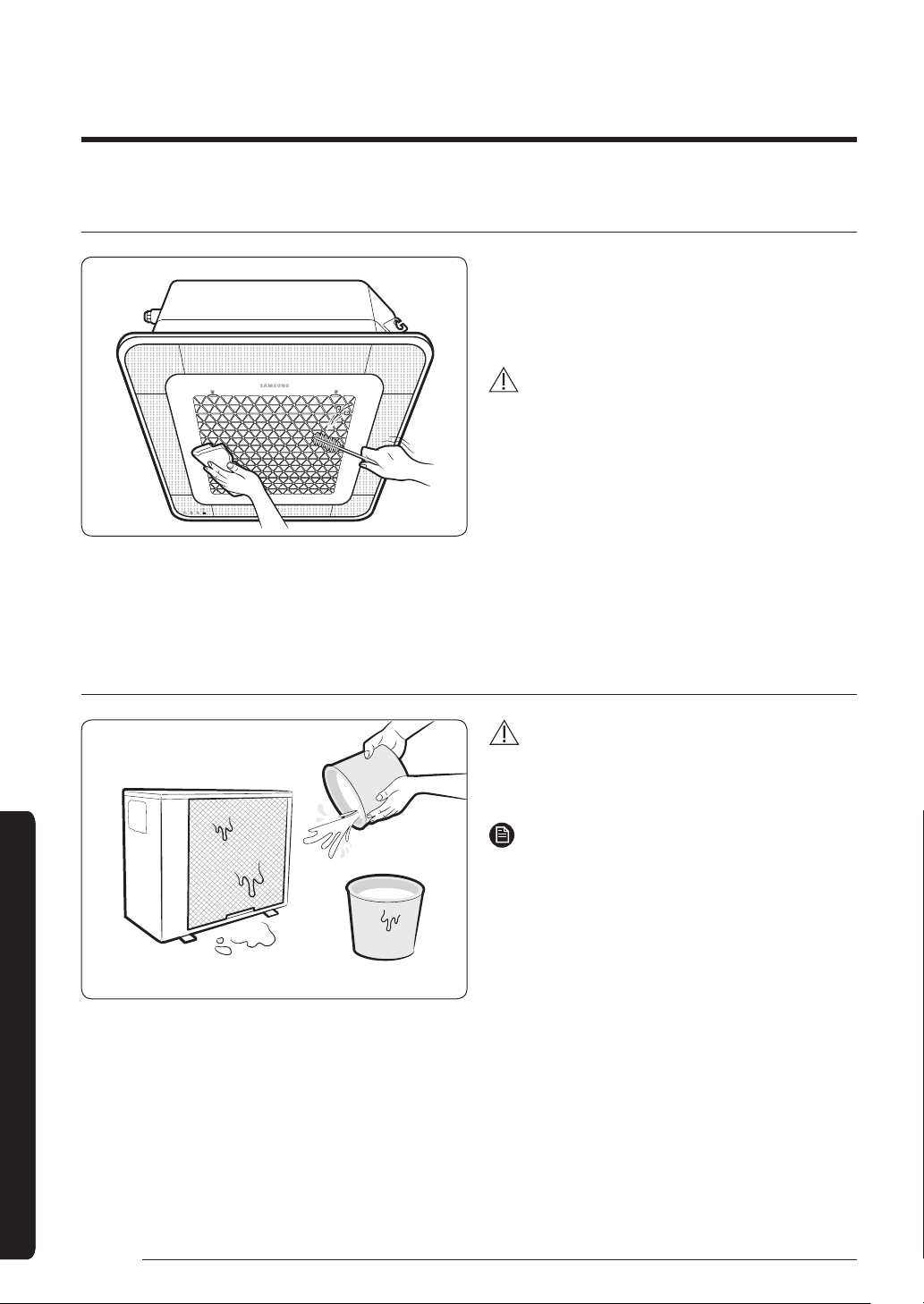

Cleaning the indoor unit exterior • Cleaning the outdoor unit heat exchanger •

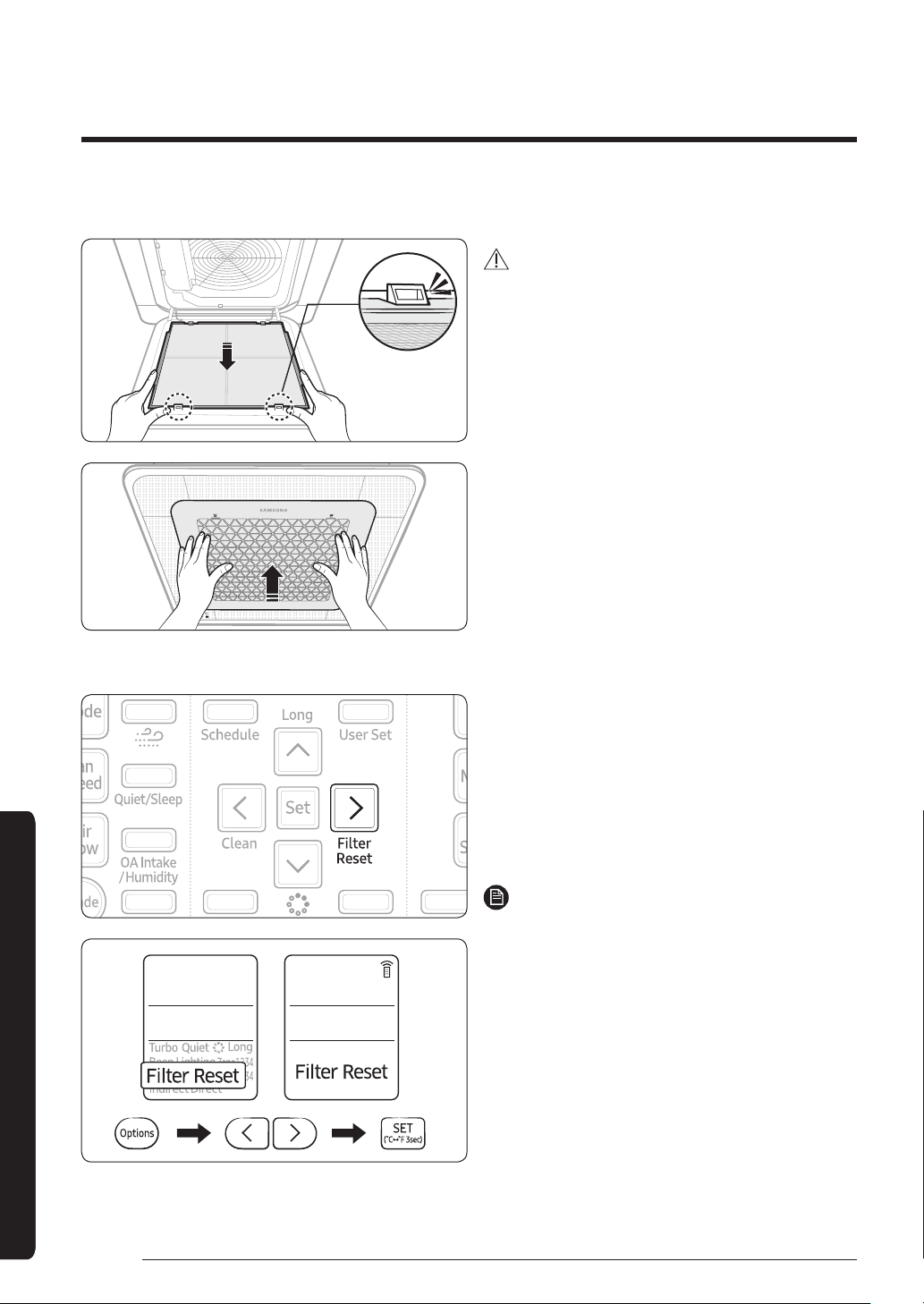

Cleaning the air filter • Periodical maintenance • Troubleshooting

Contents

ENERGY STAR qualied model only

- Proper sizing and installation of equipment is critical to achieve optimal performance. Split system

air conditioners and heat pumps (excluding ductless systems) must be matched with appropriate coil

components to meet ENERGY STAR criteria. Ask your contractor for details or visit www.energystar.gov.

Qualied model list (Indoor/Outdoor):

AC030NN4DCH/AC030JXSCCH,AC036NN4DCH/AC036JXSCCH

Safety Information

English

WARNING

• Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Before using your new air conditioner, please read this manual thoroughly

to ensure that you know how to safely and efficiently operate the extensive

features and functions of your new appliance.

Because the following operating instructions cover various models, the

characteristics of your air conditioner may differ slightly from those described in

this manual. If you have any questions, call your nearest contact centre or find

help and information online at www.samsung.com.

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property

damage.

Follow directions.

Do NOT attempt.

Make sure the machine is grounded to prevent electric shock.

Cut-off the power supply.

Do NOT disassemble.

FOR INSTALLATION

WARNING

Use the power line with the power specifications of the product or higher

and use the power line for this appliance only. In addition, do not use an

extension line.

• Extending the power line may result in electric shock or fire.

• Do not use an electric transformer. This may result in electric shock or fire.

• If the voltage/frequency/rated current condition is different, it may cause fire.

Safety Information

4English

The installation of this appliance must be performed by a qualified

technician or service company.

• Failing to do so may result in electric shock, fire, explosion, problems with

the product, or injury.

Install a switch and circuit breaker dedicated to the air conditioner.

• Failing to do so may result in electric shock or fire.

Fix the outdoor unit firmly so that the electric part of the outdoor unit is

not exposed.

• Failing to do so may result in electric shock or fire.

Do not install this appliance near a heater, inflammable material. Do

not install this appliance in a humid, oily or dusty location, in a location

exposed to direct sunlight and water (rain drops). Do not install this

appliance in a location where gas may leak.

• This may result in electric shock or fire.

Never install the outdoor unit in a location such as on a high external wall

where it could fall.

• If the outdoor unit falls, it may result in injury, death or property damage.

This appliance must be properly grounded. Do not ground the appliance to

a gas pipe, plastic water pipe, or telephone line.

• Failure to do so may result in electric shock, fire, an explosion, or other

problems with the product.

• Never plug the power cord into a socket that is not grounded correctly

and make sure that it is in accordance with local and national codes.

Safety Information

English

CAUTION

Install your appliance on a level and hard floor that can support its weight.

• Failing to do so may result in abnormal vibrations, noise, or problems with

the product.

Install the drain hose properly so that water is drained correctly.

• Failing to do so may result in water overflowing and property damage.

Avoid adding drain to waste pipes as odours may arise in the future.

When installing the outdoor unit, make sure to connect the drain hose so

that draining is performed correctly.

• The water generated during the heating operation in the outdoor unit

may overflow and result in property damage.

In particular, in winter, if a block of ice falls, it may result in injury, death

or property damage.

FOR POWER SUPPLY

WARNING

When the circuit breaker is damaged, contact your nearest service centre.

Do not pull or excessively bend the power line. Do not twist or tie the

power line. Do not hook the power line over a metal object, place a heavy

object on the power line, insert the power line between objects, or push

the power line into the space behind the appliance.

• This may result in electric shock or fire.

CAUTION

When not using the air conditioner for a long period of time or during a

thunder/lightning storm, cut the power at the circuit breaker.

• Failing to do so may result in electric shock or fire.

Safety Information

6English

FOR USING

WARNING

If the appliance is flooded, please contact your nearest service centre.

• Failing to do so may result in electric shock or fire.

If the appliance generates a strange noise, a burning smell or smoke,

unplug the power plug immediately and contact your nearest service

centre.

• Failing to do so may result in electric shock or fire.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate

immediately without touching the power line. Do not touch the appliance

or power line.

• Do not use a ventilating fan.

• A spark may result in an explosion or fire.

To reinstall the air conditioner, please contact your nearest service centre.

• Failing to do so may result in problems with the product, water leakage,

electric shock, or fire.

• A delivery service for the product is not provided. If you reinstall the

product in another location, additional construction expenses and an

installation fee will be charged.

• Especially, when you wish to install the product in an unusual location

such as in an industrial area or near the seaside where it is exposed to salt

in the air, please contact your nearest service centre.

Do not touch the circuit breakerwith wet hands.

• This may result in electric shock.

Do not turn the air conditioner off with the circuit breakerwhile it is

operating.

• Turning the air conditioner off and then on again with the circuit breaker

may cause a spark and result in electric shock or fire.

Safety Information

English

After unpacking the air conditioner, keep all packaging materials well

out of the reach of children, as packaging materials can be dangerous to

children.

• If a child places a bag over its head, it may result in suffocation.

Do not touch the front panel with your hands or fingers during the heating

operation.

• This may result in electric shock or burns.

Do not insert your fingers or foreign substances into the outlet when the

air conditioner is operating or the front panel is closing.

• Take special care that children do not injure themselves by inserting their

fingers into the product.

Do not insert your fingers or foreign substances into the air inlet/outlet of

the air conditioner.

• Take special care that children do not injure themselves by inserting their

fingers into the product.

Do not strike or pull the air conditionerwith excessive force.

• This may result in fire, injury, or problems with the product.

Do not place an object near the outdoor unit that allows children to climb

onto the machine.

• This may result in children seriously injuring themselves.

Do not use this air conditioner for long periods of time in badly ventilated

locations or near infirm people.

• Since this may be dangerous due to a lack of oxygen, open a window at

least once an hour.

If any foreign substance such as water has entered the appliance, cut the

power by unplugging the power plug and turning the circuit breaker off

and then contact your nearest service centre.

• Failing to do so may result in electric shock or fire.

Do not attempt to repair, disassemble, or modify the appliance yourself.

• Do not use any fuse (such as copper, steel wire, etc.)other than the

standard fuse.

• Failing to do so may result in electric shock, fire, problems with the

product, or injury.

Safety Information

8English

CAUTION

Do not place objects or devices under the indoor unit.

• Water dripping from the indoor unit may result in fire or property damage.

Check that the installation frame of the outdoor unit is not broken at least

once a year.

• Failing to do so may result in injury, death or property damage.

Max current is measured according to IEC standard for safety and current

is measured according to ISO standard for energy efficiency.

Do not stand on top of the appliance or place objects (such as laundry,

lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.)

on the appliance.

• This may result in electric shock, fire, problems with the product, or injury.

Do not operate the appliance with wet hands.

• This may result in electric shock.

Do not spray volatile material such as insecticide onto the surface of the

appliance.

• As well as being harmful to humans, it may also result in electric shock,

fire or problems with the product.

Do not drink the water from the air conditioner.

• The water may be harmful to humans.

Do not apply a strong impact to the remote controller and do not

disassemble the remote controller.

Do not touch the pipes connected with the product.

• This may result in burns or injury.

Do not use this air conditioner to preserve precision equipment, food,

animals, plants or cosmetics, or for any other unusual purposes.

• This may result in property damage.

Avoid directly exposing humans, animals or plants to the air flow from the

air conditioner for long periods of time.

• This may result in harm to humans, animals or plants.

Safety Information

English

This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety. Children should

be supervised to ensure that they do not playwith the appliance.

FOR CLEANING

WARNING

Do not clean the appliance by spraying water directly onto it. Do not use

benzene, thinner, alcohol or acetone to clean the appliance.

• This may result in discoloration, deformation, damage, electric shock or

fire.

Before cleaning or performing maintenance, unplug the air conditioner

from the wall socket and wait until the fan stops.

• Failing to do so may result in electric shock or fire.

CAUTION

Take care when cleaning the surface of the heat exchanger of the outdoor

unit since it has sharp edges.

• To avoid cutting your fingers, wear thick cotton gloves when cleaning it.

• This should be done by a qualified technician please contact your installer

or service centre.

Do not clean the inside of the air conditioner byyourself.

• For cleaning inside the appliance, contact your nearest service centre.

• When cleaning the internal filter, refer to the descriptions in the ‘Cleaning

and Maintaining’ section.

• Failure to do may result in damage, electric shock or fire.

At a Glance

10 English

The indoor unit and its display may look slightly different from the illustration shown below,

depending on the model and the panel type.

Indoor Unit Overview

At a Glance

01 Display

02 Air flow blade/Air outlet (inside) /

Wind-Free panel

(You can use the Wind-Free Cooling function

when the Cool, Dry, or Fan mode is running.)

(Refer to the remote control manual for

product operation)

03 Air intake

04 Air filter (under the grille)

Indication Function

On/Off operation indicator

Removing frost indicator

Timer indicator

Filter cleaning indicator

Remote control sensor

At a Glance

English

Operation Features

Operating temperature and humidity

When using the air conditioner follow the operating temperature and humidity ranges.

Mode Outdoor temperature Indoor temperature Indoor humidity

AC***JXADCH AC***JXSCCH

Cool mode -18°C to 46°C

(0°F to 115°F)

-20°C to 46°C

(-4°F to 115°F)

18°C to 32°C

(64°F to 90°F) 80% or less

Heat mode -20°C to 24°C

(-4°F to 75°F)

-25°C to 24°C

(-13°F to 75°F) 30°C (86°F) or less -

Dry mode -18°C to 46°C

(0°F to 115°F)

-20°C to 46°C

(-4°F to 115°F)

18°C to 32°C

(64°F to 90°F) 80% or less

CAUTION

• If you use the air conditioner at a relative humidity above 80%, it may cause a formation of

condensation and a leakage of water on the floor.

• The rated heating capacity is based on an outdoor temperature of 7°C (45°F). If the outdoor

temperature goes down below 0°C (32°F), heating efficiencies may decrease depending on the

temperature conditions.

• If the indoor unit is out of the operating temperature and humidity range, the safery device may

operate and the air conditioner may stops.

Cleaning and Maintenance

12 English

Cleaning and Maintenance

Before cleaning the indoor unit, be sure to turn off the auxiliary power switch.

Cleaning and Maintaining

Cleaning the indoor unit exterior

Wipe the surface of the unit with a slightly wet

or dry cloth when needed. Wipe off dirt of odd-

shaped areas by using a soft brush.

CAUTION

• Do not use alkaline detergent, sulphuric

acid, hydrochloric acid, or organic solvents

(such as thinner, kerosene, and acetone) to

clean the surfaces.

• Do not attach any stickers on the surfaces

because this may cause damage.

• When you clean the heat exchanger on the

indoor unit, you need to disassemble the

indoor unit. Therefore, you must contact the

local service center for help.

Cleaning the outdoor unit heat exchanger

Spraywater to clean the dust.

CAUTION

• The heat exchanger of the outdoor unit has

sharp edges. Take care when cleaning its

surface.

NOTE

• If it is difficult to clean the heat exchanger

of the outdoor unit, contact the local service

center.

Cleaning and Maintenance

English

Cleaning and Maintenance

Cleaning the air filter

CAUTION

• Be sure to hold the grille with a hand to prevent dropping from the opening of the front grille.

1 Detaching the air filter

Push down the hooks at each side of the front

grille to open the grille.

NOTE

• The hooks are located on both sides of the

front grill with the Samsung logo.

Pull out the air filter from the indoor unit.

2 Cleaning the air filter

Clean the air filterwith a vacuum cleaner or soft

brush. If dust is too heavy, then rinse it with

running water and dry it in a ventilated area.

CAUTION

Do not scrub the air filter with a brush or other

cleaning utensil. This may damage the filter.

NOTE

• If the air filter dries in a humid area, it may

produce offensive odours. Clean it again and

dry it in a well-ventilated area.

• The cleaning period may differ depending on

the usage and environmental conditions, so

clean the air filter every week if the indoor

unit is in the dusty area.

Cleaning and Maintenance

14 English

Cleaning and Maintaining

Cleaning and Maintenance

3 Reassembling the air filter

CAUTION

• If the indoor unit is used without the air filter,

the indoor unit may be damaged due to dust.

4 Resetting the air filter

After cleaning and reassembling the air filter,

be sure to reset the filter-cleaning reminder as

follows:

• Indoor unit with the wired remote control:

Press the Filter Reset button.

• Indoor unit with the wireless remote control:

Press the Options button → < or > → (Filter

Reset) Blinking → press the SET button.

NOTE

• The filter reset indicator blinks when the air

filter should be cleaned.

• If the angle of the air flow blade is changed

by opening the front grille for installation

or maintenance of the indoor unit, be sure

to turn off and then on the auxiliary switch

before operating the indoor unit again. If

not, the angle of the air flow blade may be

changed and the blades may not be closed

after turning off the indoor unit.

Cleaning and Maintenance

English

Cleaning and Maintenance

Periodical maintenance

Unit Maintenance item Interval Requires qualified

technicians

Indoor

unit

Clean the air filter. At least once a month

Clean the condensate drain pan. Once a year Required

Clean up the heat exchange. Once a year Required

Clean the condensate drain pipe. Once every 4 months Required

Replace the remote control batteries. At least once a year

Outdoor

unit

Clean the heat exchanger on the

outside of the unit. Once every 4 months Required

Clean the heat exchanger on the

inside of the unit. Once a year Required

Clean the electric components with

jets of air. Once a year Required

Verify that all the electric

components are firmly tightened. Once a year Required

Clean the fan. Once a year Required

Verify that the fan assemblies are

firmly tightened. Once a year Required

Clean the condensate drain pan. Once a year Required

Cleaning and Maintenance

16 English

Cleaning and Maintaining

Cleaning and Maintenance

Troubleshooting

Refer to the following chart if the air conditioner operates abnormally. This may save time and

unnecessary expense.

Problem Solution

The air conditioner

does not operate

immediately after it

has been restarted.

• Because of the protective mechanism, the appliance does not start

operating immediately to keep the unit from overloading. The air

conditioner will start in 3 minutes.

The air conditioner

does not operate

at all.

• Check if the power plug is properly connected.

• Check whether the auxiliary power switch (MCCB, ELB) is turned on.

• If the auxiliary power switch (MCCB, ELB) is turned off, the air

conditioner does not work although you press the (Power) button.

• When you clean the air conditioner or do not use it for an extended

period of time, turn off the auxiliary power switch (MCCB, ELB).

• After the air conditioner is not used for an extended period of time, be

sure to turn on the auxiliary power switch (MCCB, ELB) 6 hours before

starting operation.

NOTE

• The auxiliary power switch (MCCB, ELB) is sold separately.

• Make sure that auxiliary power switch (MCCB, ELB) is installed in

the distribution box inside the building.

• If the air conditioner is turned off by the Timed off function, turn on the

air conditioner again by pressing the (Power) button.

The temperature

does not change.

• Check whether the Fan mode is running. In the Fan mode, the air

conditioner controls the set temperature automatically, and you cannot

change the set temperature.

Warm air does not

come out of the air

conditioner.

• Check whether the outdoor unit is designed for cooling only. In this case,

warm air does not come out although you select the Heat mode.

• Check whether the remote control is designed only for cooling only. Use

a remote control that supports both cooling and heating.

The fan speed does

not change.

• Check whether the Auto or Dry mode is running. In these modes, the

air conditioner controls the fan speed automatically, and you cannot

change the fan speed.

The wireless

remote control

does not operate.

• Check whether the batteries are discharged. Replace the batteries with

new ones.

• Make sure that nothing is blocking the remote control sensor.

• Check whether any strong lighting sources are near the air conditioner.

Strong light which comes from fluorescent bulbs or neon signs may

interfere with the remote control.

Cleaning and Maintenance

English

Cleaning and Maintenance

Problem Solution

The wired remote

control does not

operate.

• Check whether the indicator is displayed at the bottom right of the

remote control display. In this case, turn off both the air conditioner and

the auxiliary power switch, and then contact a service centre.

The air conditioner

is not turned on or

off immediately

with the wired

remote control.

• Check whether the wired remote control is set for group control. In this

case, the air conditioners connected to the wired remote control are

turned on or off sequentially. This operation takes up to 32 seconds.

The Timed on/off

function does not

operate.

• Check whether you pressed the (SET) button on the remote control

after setting the on/off time. Set the on/off time.

The indoor unit

display blinks

continuously.

• Turn on the air conditioner again by pressing the (Power) button.

• Turn off and then turn on the auxiliary power switch, and then turn on

the conditioner.

• If the indoor unit display is still blinking, contact a service centre.

I want to get cooler

air.

• Operate the air conditioner with a electric fan to save energy and

enhance the cooling efficiency.

The air is not cool or

warm enough.

• In the Cool mode, cool air does not come out if the set temperature is

higher than the current temperature.

– Remote control: Press the Temperature button repeatedly until the

set temperature [minimum: 18°C (64°F)] is set to lower than the

current temperature.

• In the Heat mode, warm air does not come out if the set temperature is

lower than the current temperature.

– Remote control: Press the Temperature button repeatedly until the

set temperature [maximum: 30°C (86

°F

)] is set to higher than the

current temperature.

• Both cooling and heating do not operate in the Fan mode. Select the

Cool, Heat, Auto, or Dry mode.

• Check whether the air filter is blocked with dirt. A dusty filter may

decrease the cooling and heating efficiencies. Clean the air filter

frequently.

• If a cover is on the outdoor unit or any obstacle is present near the

outdoor unit, remove them.

• Install the outdoor unit in a well-ventilated place. Avoiding places

exposed to direct sunlight or close to a heating appliance.

• Place a sunscreen over the outdoor unit to protect it from direct

sunlight.

• If the indoor unit is installed in a place exposed to direct sunlight, pull

the curtains on the windows.

Cleaning and Maintenance

18 English

Cleaning and Maintaining

Cleaning and Maintenance

Problem Solution

The air is not cool or

warm enough.

• Close the windows and doors to maximize the cooling and heating

efficiencies.

• If the Cool mode is stopped and then started immediately, cool air comes

out after about 3 minutes to protect the compressor of the outdoor unit.

• When the Heat mode is started, warm air does not come out

immediately to prevent cool air from coming out at the beginning.

• If the refrigerant pipe is too long, the cooling and heating efficiencies

may be decreased. Avoid exceeding the maximum pipe length.

The air conditioner

makes strange

noises.

• In certain conditions [especially, when the outdoor temperature is lower

than 20°C (64

°F

)], a hissing, rumbling, or splashing sound may be heard

while the refrigerant is circulating through the air conditioner. This is a

normal operation.

• When you press the (Power) button on the remote control, noise

may be heard from the drain pump inside the air conditioner. This noise

is a normal sound.

Unpleasant odours

permeate the room.

• If the air conditioner is running in a smoky area or if there is a smell

entering from outside, ventilate the room properly.

• If both indoor temperature and indoor humidity are high, operate the air

conditioner in the Clean or Fan mode for1 to 2 hours.

• If the air conditioner has not been operated for an extended period

of time, clean the indoor unit and then operate the air conditioner in

the Fan mode for 3 to 4 hours to dry the inside of the indoor unit for

removal of unpleasant odours.

• If the air filter blocked with dirt, clean the air filter.

Steam is produced

on the indoor unit.

• In winter, if the indoor humidity is high, steam may be produced around

the air outlet while the defrost function is running. This is a normal

operation.

The outdoor unit

fan continues to

operate when the

air conditioner is

turned off.

• When the air conditioner is turned off, the outdoor unit fan may

continue to operate to reduce noise of the refrigerant gas. This is a

normal operation.

Water drops

from the piping

connections of the

outdoor unit.

• Condensation may develop due to the difference in temperature. This is

a normal condition.

Steam is produced

on the outdoor unit.

• In winter, when the air conditioner runs in the Heat mode, the frost on

the heat exchanger melts and steam may be produced. This is a normal

operation, neither product malfunction nor a fire.
