Samsung AF MV1MAEENTC Series Guide

Air conditioner
User & installation manual
AF✴✴MV1MAEENTC / AF✴✴MV1MAEEXTC
•Thank you for purchasing this Samsung air conditioner.
•Before operating this unit, please read this user manual carefully and retain it for future
reference.
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 1 2017-06-02 오후 3:34:31

2English
Contents
Safety Information 4
At a Glance 12

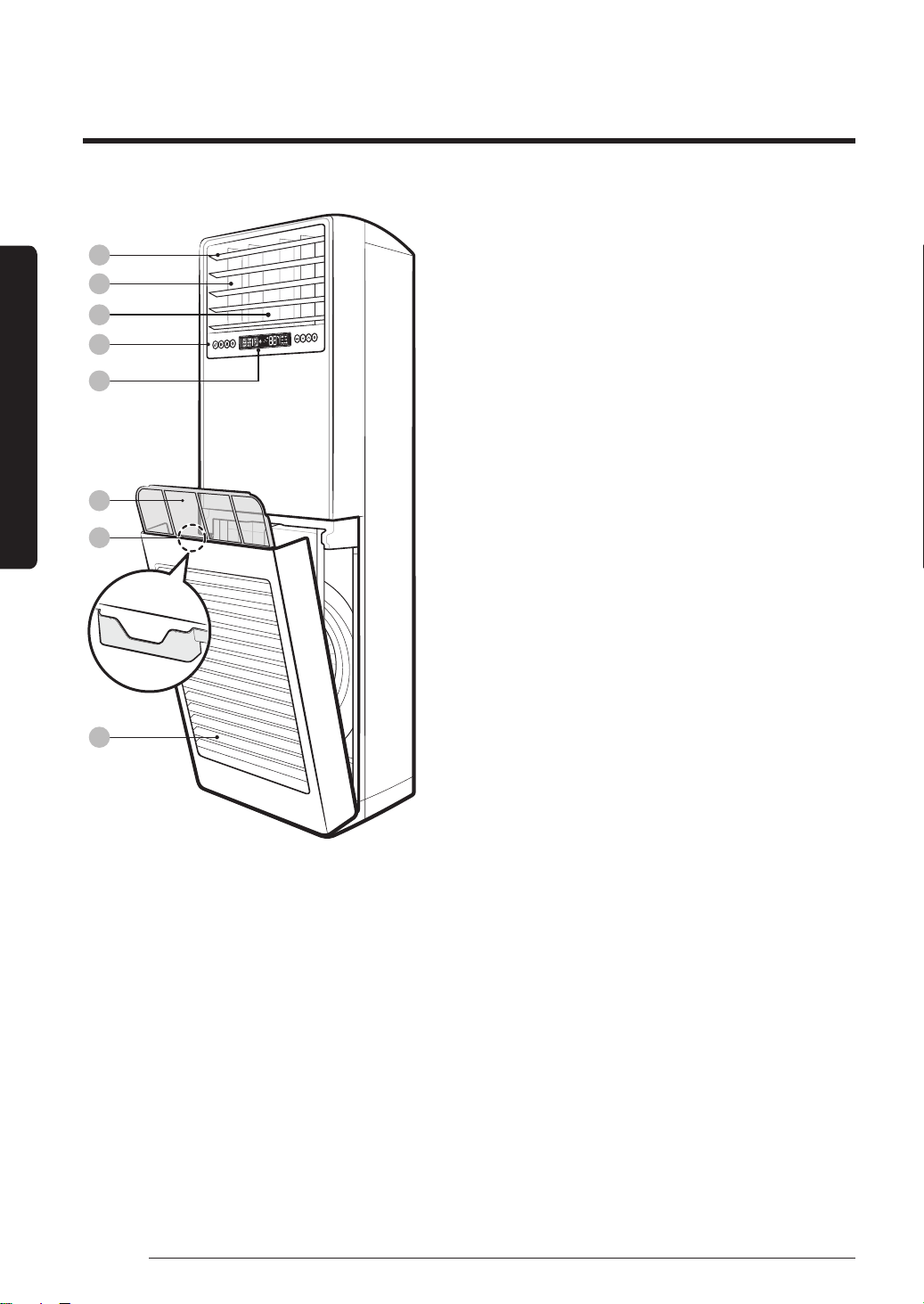

Indoor Unit Overview 12
Control Panel Overview 13
Indoor unit display
Locking the control panel
Using the air conditioner with the control panel 14

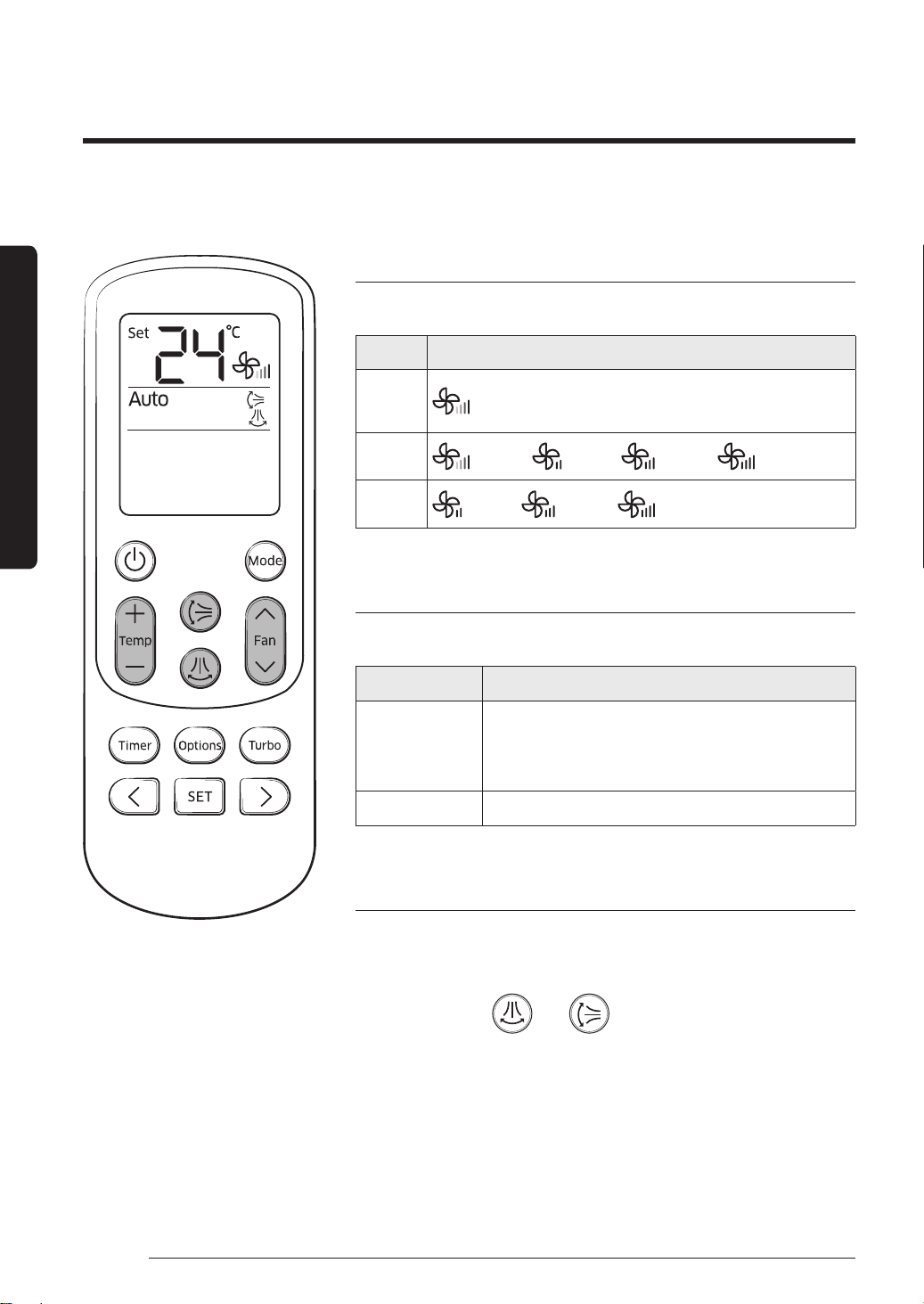

Remote Control Overview 15
Replacing batteries
Storing the remote control

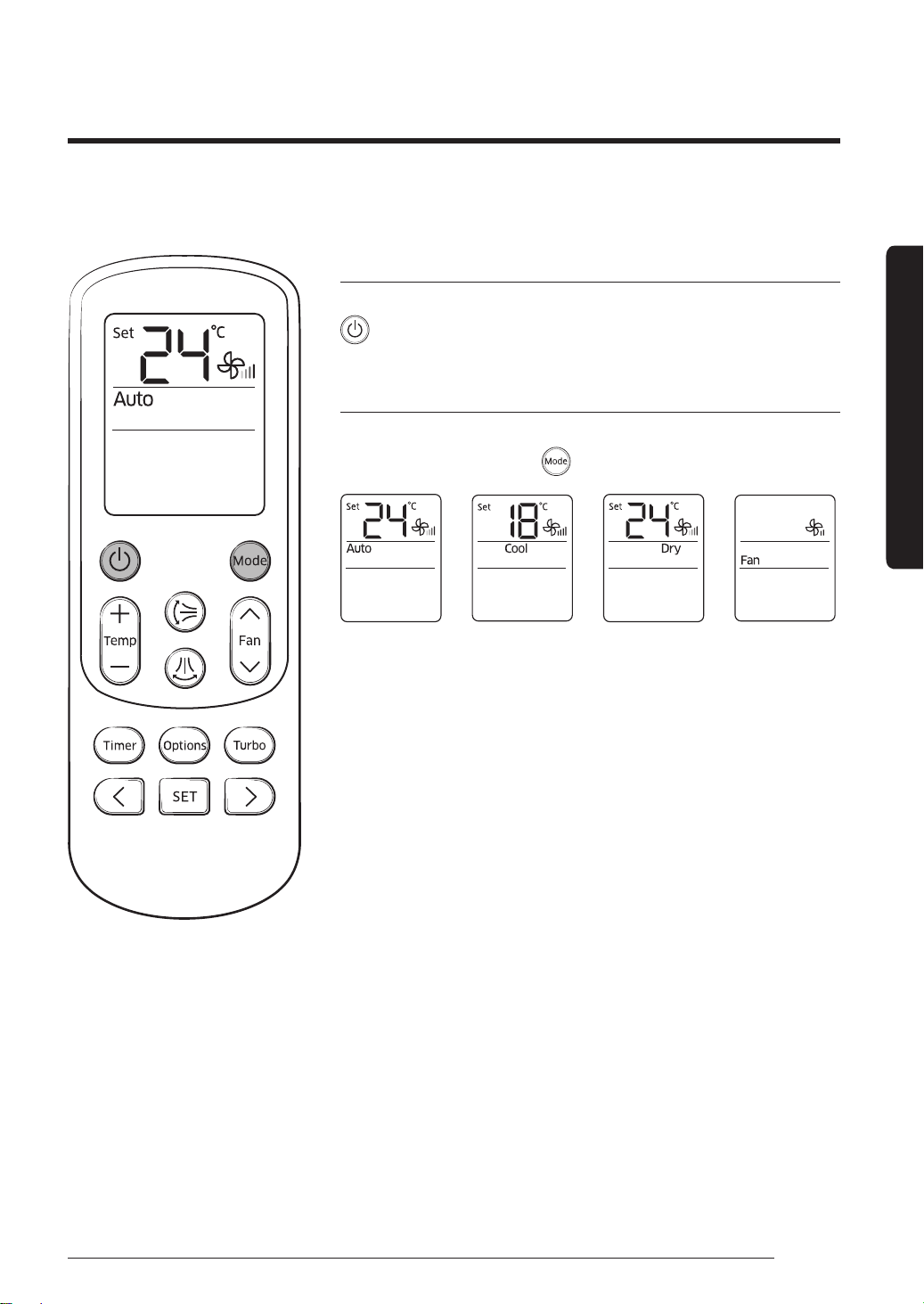

Remote Control Operation 17
Turning on or off the air conditioner
Operation modes
Controlling fan speed
Controlling temperature
Controlling air flow direction
Basic Operation 19

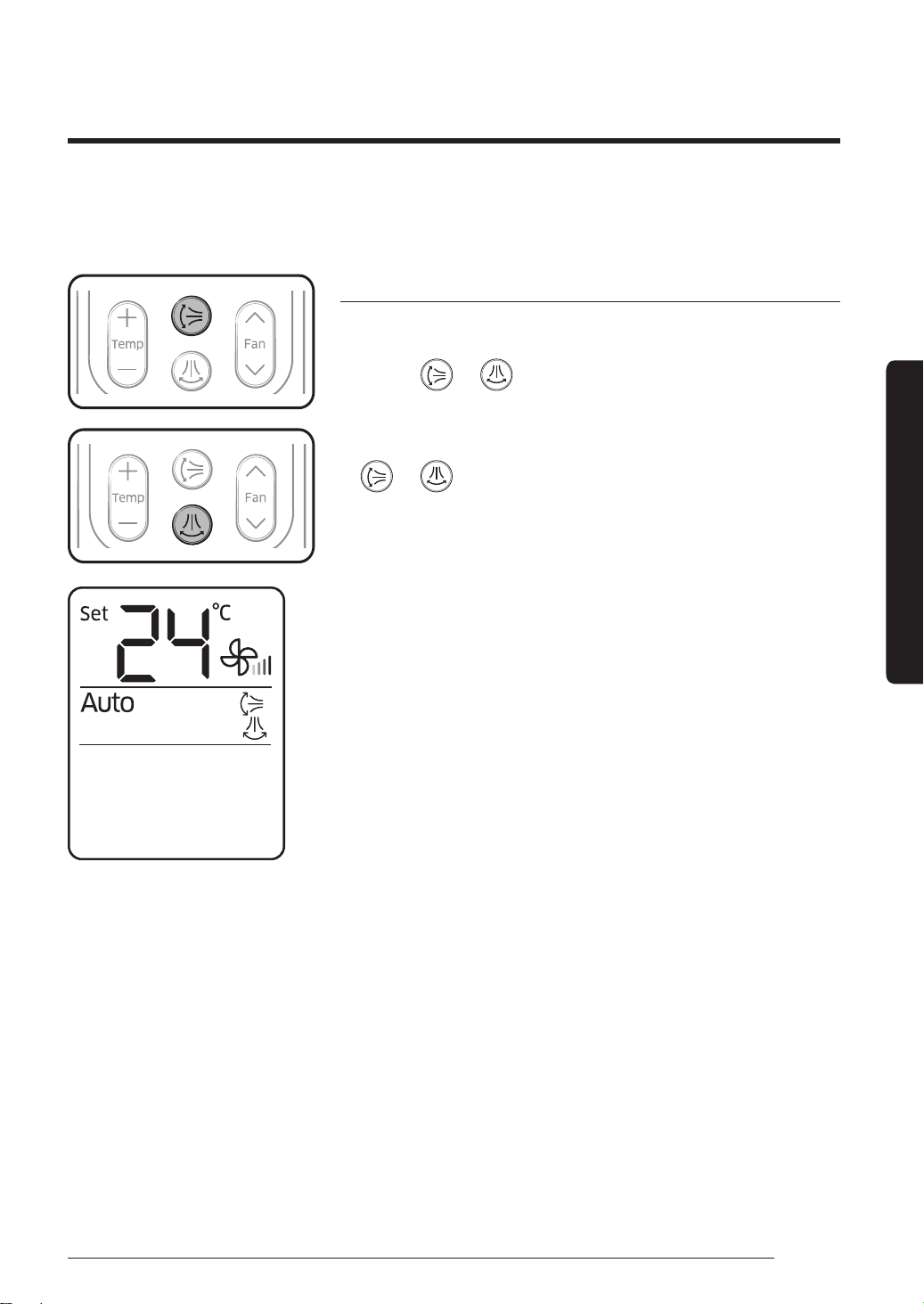

Selecting air flow direction
Quick Smart Features 20
Timed on/Timed off function
Turbo function
Long reach function
Cleaning and Maintenance 22
Cleaning at a Glance 22
Troubleshooting 25
Safety Information 28
General information
Installing the unit
Power supply line, fuse or circuit breaker
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 2 2017-06-02 오후 3:34:31

3English
Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Installation Procedure 31
Step 1 Choosing the installation location
Step 2 Unpacking
Step 3 Checking and preparing accessories
Step 4 Drilling a hole through a wall
Step 5 Taping the pipes, cables, and drain hose
Step 6 Connecting the refrigerant pipes
Step 7 Optional: Cutting and flaring the pipes
Step 8 Connecting the power and communication cables
Step 9 Optional: Extending the power cable
Step 10 Checking the earthing
Step 11 Performing gas leakage test
Step 12 Evacuating the air
Step 13 Charging the refrigerant
Step 14 Fixing and insulating the connection part for refrigerant pipes
Step 15 Installing and connecting the drain hose
Step 16 Performing drainage test
Step 17 Checking the earthing
Step 18 Performing the final check and trial operation
Appendix 49
Troubleshooting
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 3 2017-06-02 오후 3:34:31

4English
Safety Information (Using the Air Conditioner)
Safety Information
Safety Information (Using the Air Conditioner)
Before using your new air conditioner, please read this manual thoroughly
to ensure that you know how to safely and efficiently operate the
extensive features and functions of your new appliance.
Because the following operating instructions cover various models, the
characteristics of your air conditioner may differ slightly from those
described in this manual. If you have any questions, call your nearest
contact center or find help and information online at www.samsung.com.
These warning signs are here to prevent injury to you and others. Please
follow them carefully.
Important safety symbols and precautions:
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
Follow directions.
Do NOT attempt.
Make sure the machine is grounded to prevent electric shock.
Unplug the power plug from the wall socket.
Do NOT disassemble.
Safety Information
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 4 2017-06-02 오후 3:34:31

5English
Safety Information
Safety Information
FOR INSTALLATION
WARNING
Use the power line with the power specifications of the product or
higher and use the power line for this appliance only. In addition, do
not use an extension line.
• Extending the power line may result in electric shock or fire.
• Do not use an electric transformer. It may result in electric shock or
fire.
• If the voltage/frequency/rated current condition is different, it may
cause fire.
The installation of this appliance must be performed by a qualified
technician or service company.
• Failing to do so may result in electric shock, fire, explosion, problems
with the product, or injury.
Install a switch and circuit breaker dedicated to the air conditioner.
• Failing to do so may result in electric shock or fire.
Fix the outdoor unit firmly so that the electric part of the outdoor
unit is not exposed.
• Failing to do so may result in electric shock or fire.
Do not install this appliance near a heater, inflammable material. Do
not install this appliance in a humid, oily or dusty location, in a location
exposed to direct sunlight and water (rain drops). Do not install this
appliance in a location where gas may leak.
• This may result in electric shock or fire.
Never install the outdoor unit in a location such as on a high external
wall where it could fall.
• If the outdoor unit falls, it may result in injury, death or property
damage.
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 5 2017-06-02 오후 3:34:31

6English
Safety Information (Using the Air Conditioner)
Safety Information
This appliance must be properly grounded. Do not ground the
appliance to a gas pipe, plastic water pipe, or telephone line.
• Failure to do so may result in electric shock, fire, an explosion, or
other problems with the product.
• Never plug the power cord into a socket that is not grounded
correctly and make sure that it is in accordance with local and
national codes.
CAUTION
Install your appliance on a level and hard floor that can support its
weight.
• Failing to do so may result in abnormal vibrations, noise, or problems
with the product.
Install the draining hose properly so that water is drained correctly.
• Failing to do so may result in water overflowing and property
damage.
When installing the outdoor unit, make sure to connect the draining
hose so that draining is performed correctly.
• The water generated during the heating operation by the outdoor
unit may overflow and result in property damage. In particular, in
winter, if a block of ice falls, it may result in injury, death or property
damage.
Do not install the product in a place where thermo-hygrostat is needed
(such as server room, machinery room, computer room, etc.)
• Those places do not provide guaranteed operation condition of the
product therefore performance can be poor in these places.
Do not install the product in a place where hair spray is frequently
used (such as hair salon) since it decreases the hydrophilicity of the
product's heat exchanger and cause dew formation on the surface of
the product.
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 6 2017-06-02 오후 3:34:32

7English
Safety Information
FOR POWER SUPPLY
WARNING
When the circuit breaker is damaged, contact your nearest service
centre.
Do not pull or excessively bend the power line. Do not twist or tie the
power line. Do not hook the power line over a metal object, place a
heavy object on the power line, insert the power line between objects,
or push the power line into the space behind the appliance.
• This may result in electric shock or fire.
CAUTION
When not using the air conditioner for a long period of time or during
a thunder/lightning storm, cut the power at the circuit breaker.
• Failing to do so may result in electric shock or fire.
FOR USING
WARNING
If the appliance is flooded, please contact your nearest service centre.
• Failing to do so may result in electric shock or fire.
If the appliance generates a strange noise, a burning smell or smoke,
unplug the power plug immediately and contact your nearest service
centre.
• Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate
immediately without touching the power line. Do not touch the
appliance or power line.
• Do not use a ventilating fan.
• A spark may result in an explosion or fire.
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 7 2017-06-02 오후 3:34:32

8English
Safety Information (Using the Air Conditioner)
Safety Information
To reinstall the air conditioner, please contact your nearest service
centre.
• Failing to do so may result in problems with the product, water
leakage, electric shock, or fire.
• A delivery service for the product is not provided. If you reinstall the
product in another location, additional construction expenses and an
installation fee will be charged.
• Especially, when you wish to install the product in an unusual
location such as in an industrial area or near the seaside where it
is exposed to the salt in the air, please contact your nearest service
centre.
Do not touch the circuit breaker with wet hands.
• This may result in electric shock.
Do not strike or pull the air conditioner with excessive force.
• This may result in fire, injury, or problems with the product.
Do not place an object near the outdoor unit that allows children to
climb onto the machine.
• This may result in children seriously injuring themselves.
Do not turn the air conditioner off with the circuit breaker while it is
operating.
• Turning the air conditioner off and then on again with the circuit
breaker may cause a spark and result in electric shock or fire.
After unpacking the air conditioner, keep all packaging materials well
out of the reach of children, as packaging materials can be dangerous
to children.
• If a child places a bag over its head, it may result in suffocation.
Do not insert your fingers or foreign substances into the outlet when
the air conditioner is operating or the air flow blade is closing.
• Take special care that children do not injure themselves by inserting
their fingers into the product.
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 8 2017-06-02 오후 3:34:32

9English
Safety Information
Do not insert your fingers or foreign substances into the air inlet/outlet
of the air conditioner.
• Take special care that children do not injure themselves by inserting
their fingers into the product.
Do not use this air conditioner for long periods of time in badly
ventilated locations or near infirm people.
• Since this may be dangerous due to a lack of oxygen, open a window
at least once an hour.
If any foreign substance such as water has entered the appliance,
cut the power by unplugging the power plug and turning the circuit
breaker off and then contact your nearest service centre.
• Failing to do so may result in electric shock or fire.
Do not attempt to repair, disassemble, or modify the appliance
yourself.
• Do not use any fuse (such as copper, steel wire, etc.) other than the
standard fuse.
• Failing to do so may result in electric shock, fire, problems with the
product, or injury.
CAUTION
Do not place objects or devices under the indoor unit.
• Water dripping from the indoor unit may result in fire or property
damage.
Check that the installation frame of the outdoor unit is not broken at
least once a year.
• Failing to do so may result in injury, death or property damage.
Max current is measured according to IEC standard for safety and
current is measured according to ISO standard for energy efficiency.
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 9 2017-06-02 오후 3:34:32

10 English
Safety Information (Using the Air Conditioner)
Safety Information
Do not stand on top of the appliance or place objects (such as laundry,
lighted candles, lighted cigarettes, dishes, chemicals, metal objects,
etc.) on the appliance.
• This may result in electric shock, fire, problems with the product, or
injury.
Do not operate the appliance with wet hands.
• This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of
the appliance.
• As well as being harmful to humans, it may also result in electric
shock, fire or problems with the product.
Do not drink the water from the air conditioner.
• The water may be harmful to humans.
Do not apply a strong impact to the remote control and do not
disassemble the remote control.
Do not touch the pipes connected with the product.
• This may result in burns or injury.
Do not use this air conditioner to preserve precision equipment, food,
animals, plants or cosmetics, or for any other unusual purposes.
• This may result in property damage.
Avoid directly exposing humans, animals or plants from the air flow
from the air conditioner for long periods of time.
• This may result in harm to humans, animals or plants.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not
play with the appliance.
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 10 2017-06-02 오후 3:34:32

11English
Safety Information
FOR CLEANING
WARNING
Do not clean the appliance by spraying water directly onto it. Do not
use benzene, thinner, alcohol or acetone to clean the appliance.
• This may result in discoloration, deformation, damage, electric shock
or fire.
Before cleaning or performing maintenance, unplug the air conditioner
from the wall socket and wait until the fan stops.
• Failing to do so may result in electric shock or fire.
CAUTION
Take care when cleaning the surface of the heat exchanger of the
outdoor unit since it has sharp edges.
• To avoid cutting your fingers, wear thick cotton gloves when cleaning
it.
Do not clean the inside of the air conditioner by yourself.
• For cleaning inside the appliance, contact your nearest service centre.
• When cleaning the internal filter, refer to the descriptions in the
‘Cleaning and maintaining the air conditioner’ section.
• Failure to do may result in damage, electric shock or fire.
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 11 2017-06-02 오후 3:34:32

12 English
At a Glance

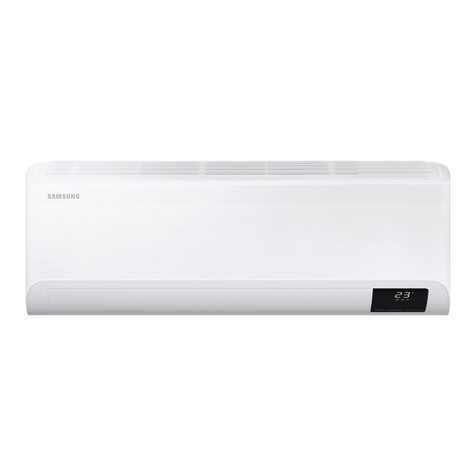

Indoor Unit Overview
01 Air flow blade (up and down)
02 Air flow blade (left and right)
03 Air outlet
04 Control panel
05 Indoor unit display
06 Air filter
07 Remote control holder
08 Air intake
The actual product may differ slightly from the image depicted below.
At a Glance
01
02
04
03
06
07
08
05
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 12 2017-06-02 오후 3:34:33

13English
At a Glance
At a Glance
01 02 03 04 05 06 07 08
01 Turbo button
02 Vertical air swing button
03 Horizontal air swing button
04 Fan speed button
05 Indoor unit display
06 Mode button
07 Temperature buttons
08 Power button
Indoor unit display
01 03 04 07 0805 0602 02
01 Remote control sensor
02 Function indicators
NOTE
• The Single user, Heater, and Purity
functions are not supported by this model.
03 Outdoor unit indicator
04 Lock indicator
05 Vertical air swing indicator /
Horizontal air swing indicator /
Long function indicator
06 Fan speed indicator
07 Set temperature indicator
08 Operation mode indicators
NOTE
• The Heat mode is not supported by this
model.
NOTE
• If you set a dedicated mode available only in the upper level controller (DMS), it may limit
available operation modes that can be selected in the indoor unit display.
– DMS cooling mode: Auto, Cooling, Dry, and Fan
Locking the control panel
Press and hold the and buttons for 3 seconds at the same time. The (Lock)
indicator appears on the indoor unit display.
NOTE
• When the control panel is locked, you can control the air conditioner only with the remote control.
• To unlock the control panel, press and hold the and buttons again for 3 seconds at
the same time.
Control Panel Overview
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 13 2017-06-02 오후 3:34:33

14 English
At a Glance
Using the air conditioner with the control panel
You can control the air conditioner without the remote controller.
1. Press the Power button on the indoor unit control panel.
– The air conditioner will turn on with ringing sound.
NOTE
• To turn off the air conditioner, press the Power button again.
2. Press the Temp ﹀ and ︿ button to adjust the temperature.
– You can increase/decrease the temperature by 1 °C.
3. Press the Fan Speed button to adjust the fan speed.
– Each time you press the Fan Speed button, the fan speed will
change in order of Medium( ), High( ), Turbo( ) and
Auto( ).
4. Press the Mode button to select the operation mode.
– You can select operation mode you want by pressing the Mode
button.
– Each time you press the Mode button, the mode will change in
order of Auto, Cool, Dry, Fan.
5. Press the Turbo button to select Turbo mode.
6. Press the Vertical air swing button to adjust vertical air flow
direction.
7. Press the Horizontal air swing button to adjust vertical air flow
direction.
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 14 2017-06-02 오후 3:34:34

15English
At a Glance
Remote Control Overview
01
05
06
07
08
15
16
17
19
20
02
03
04
10
11
13
14
12
18
09
01 Set temperature indicator
02 Timed on/off indicator
03 Operation mode indicator
NOTE
• The Heat mode is not supported by
this model.
04 Unsupported functions
NOTE
• The Single user, Heater and Purity
functions are not supported by this
model.
05 Low battery indicator
06 Signal transmission indicator
07 Fan speed indicator
08 Vertical air swing indicator / Horizontal
air swing indicator
09 Options indicator
10 Power button
11 Temperature button
12 Options button
13 Timer button
14 Direction button / Selection button
15 Vertical air swing button
16 Mode button
17 Fan speed button
18 Horizontal air swing button
19 Turbo button
20 SET button
NOTE
• The descriptions in this manual are
primarily made based on the remote
control buttons.
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 15 2017-06-02 오후 3:34:34

16 English
Using the air conditioner with the control panel
At a Glance
Replacing batteries
When the icon appears in the remote control
display, replace the batteries with new ones. Two
1.5V AAA type batteries are required.
Two 1.5V AAA type batteries
Correct disposal of batteries in this product
(Applicable in countries with separate collection systems)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed
of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb
indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If
batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and
recycle them through your local, free battery return system.
Storing the remote control
If the remote control will not be used for an
extended period of time, store it in the remote
control holder with the batteries removed.
CAUTION
• Make sure that water does not come into the
remote control.
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 16 2017-06-02 오후 3:34:34

17English
At a Glance
Remote Control Operation
Turning on or off the air conditioner
You can turn on or off the air conditioner by pressing the
(Power) button.
Operation modes
You can change the current mode between Auto, Cool, Dry
and Fan by pressing the (Mode) button.
►►►
You can use the air conditioner easily by selecting a mode or function and then by controlling
the temperature, fan speed, and air flow direction.
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 17 2017-06-02 오후 3:34:35

18 English
Remote Control Operation
At a Glance
Controlling fan speed
You can select the following fan speeds in each mode:
Mode Available fan speeds
Auto
Dry (Auto)
Cool (Auto), (Med), (High), (Turbo)
Fan (Med), (High), (Turbo)
Controlling temperature
You can control the temperature in each mode as follows:
Mode Temperature control
Auto
Cool
Dry
Adjust by 1°C between 18°C and 30°C.
Fan You cannot control the temperature.
Controlling air flow direction
Keep the air flow in a constant direction by stopping the
movements of the vertical and horizontal air flow blades.
In operation ►or
Basic Operation
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 18 2017-06-02 오후 3:34:35

19English
Basic Operation
Selecting air flow direction
This function allows you to shift the air flow direction up and
down or left and right.
Press the or button to move the air flow direction
up and down or left and right while the air conditioner is
turned on.
• When the blade reaches the desired position, press the
or button one more time to set the air flow
direction. The up/down and left/right tilting of the blade
will stop.
Remote controller display
Basic Operation
Basic Operation
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 19 2017-06-02 오후 3:34:36

20 English
Quick Smart Features
There is a variety of useful functionality provided by the Samsung air conditioner.
Quick Smart Features
Quick Smart Features
Timed on/Timed off function
Use the Timed on/off function to turn the air conditioner on
or off after the time that you set.
► ► Select On or Off. ►
(Set the on/off time.) ►
NOTE
•You can set a time between 0.5 and 24 hours.
•To cancel the Timed on/off function, set the time interval
to 0.0 on the remote control, or press the
(Power)
button on the control panel.
•After starting the Timed on function, you cannot change
the fan speed.
•Once you start the Timed on/off function, the (Timer)
indicator is displayed on the indoor unit display.
•After starting the Timed on function, you can change the
mode and the set temperature. You cannot change the set
temperature while the Fan mode is running.
•You cannot set the same time for both of the Timed on
and Timed off functions.
Combining Timed on and Timed off
When
the air
conditioner
is off
Example) Timed on: 3 hours, Timed off: 5
hours
The air conditioner turns on after 3 hours
from the moment you start Timed on/
off, remains on for 2 hours, then turns off
automatically.
When
the air
conditioner
is on
Example) Timed on: 3 hours, Timed off: 1 hour
The air conditioner turns off after 1 hour from
the moment you start Timed on/off, then turns
on after 2 hours from the moment it is turned
off.
Remote controller display
(When the air conditioner
is off)
Remote controller display
(When the air conditioner
is on)
PAC_B2B 미라지 필리핀향_IBIM_EN_DB68-07271A-00_170504.indd 20 2017-06-02 오후 3:34:36
