Samsung AJ***JNADCH Series Guide

Features of your new air conditioner
2-step cooling
2-step cooling function will quickly cool the room to reach the desired temperature and then it
will adjust the fan speed and air flow direction automatically to help you stay comfortable and
refreshing.
Fast cooling/heating
If you want the strong and cool/warm air, just select Fast function! It will get you the strongest air!
Comfort cooling/heating
If you want the comfortable and refreshing air, Comfort function will spread the cool/warm air
indirectly to you, so that you can stay comfortable.
Easy Filter
There is no grille to remove before separating the lter from the air conditioner! Therefore, lter can
be cleaned easily, more frequently! Frequent lter cleaning will prevent dust from entering into the
product or accumulating on the lter.
Easy Installation
It’s so easy to install! You can easily hang the product on the wall and connect the pipes and wires
by opening the cover on the bottom of the product. Now you won’t have to tilt the product to
connect the pipe and the wires!
function
function will allow you to have deep, good night’s sleep by adjusting the
temperature, fan speed and air ow direction.
English-2

Contents
Preparation
Safety precautions ..........................................................................................................4
Checking before use ......................................................................................................10
Basic function
Checking the name of the parts ...........................................................................................11
Checking the remote controller ...........................................................................................12
Basic function ............................................................................................................. 14
Adjusting the air ow direction............................................................................................ 16
Timer
Setting the On/O timer ..................................................................................................17
mode .........................................................................................................19
Options
2-Step cooling function ...................................................................................................20
Using the Fast function....................................................................................................20
Using the Comfort function ............................................................................................... 21
Using the Quiet function ..................................................................................................22
Settings
Using the Auto clean function .............................................................................................23
Setting the Beep sound ................................................................................................... 23
Others
Cleaning the air conditioner...............................................................................................24
Maintaining the air conditioner............................................................................................27
Troubleshooting ..........................................................................................................28
English-3

Safety precautions
Before using your new air conditioner, please read this manual thoroughly to ensure
that you know how to safely and eciently operate the extensive features and
functions of your new appliance.
Because the following operating instructions cover various models, the
characteristics of your air conditioner may dier slightly from those described in this
manual. If you have any questions, call your nearest contact center or nd help and
information online at www.samsung.com.
Important safety symbols and precautions:
WARNING
Hazards or unsafe practices that may result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor
personal injury or property damage.
Follow directions. Cut-o the power supply.
Do NOT attempt. Do NOT disassemble.
Make sure the machine is grounded to prevent electric shock.
FOR INSTALLATION
WARNING
Use the power line with the power specications of the product or higher
and use the power line for this appliance only. In addition, do not use an
extension line.
XExtending the power line may result in electric shock or fire.
XDo not use an electric transformer. It may result in electric shock or fire.
XIf the voltage/frequency/rated current condition is different, it may cause
fire.
The installation of this appliance must be performed by a qualied
technician or service company.
XFailing to do so may result in electric shock, fire, explosion, problems with the
product, or injury and may also void warranty on the installed product.
Install a Isolation Switch next to the Air Conditioner (but not on the panels
of the Air Conditioner)and circuit breaker dedicated to the air conditioner.
XFailing to do so may result in electric shock or fire.
Fix the outdoor unit rmly so that the electric part of the outdoor unit is not
exposed.
XFailing to do so may result in electric shock, fire, explosion, problems with the
product.
English-4

Do not install this appliance near a heater, inammable material. Do
not install this appliance in a humid, oily or dusty location, in a location
exposed to direct sunlight and water (rain drops). Do not install this
appliance in a location where gas may leak.
XThis may result in electric shock or fire.
Never install the outdoor unit in a location such as on a high external wall
where it could fall.
XIf the outdoor unit falls, it may result in injury, death or property damage.
This appliance must be properly grounded. Do not ground the appliance to a
gas pipe, plastic water pipe, or telephone line.
XFailure to do so may result in electric shock, fire, and explosion.
XMake sure to use a socket-outlet with ground.
FOR INSTALLATION
CAUTION
Install your appliance on a level and hard oor that can support its weight.
XFailing to do so may result in abnormal vibrations, noise, or problems with the
product.
Install the draining hose properly so that water is drained correctly.
XFailing to do so may result in water overflowing and property damage. Avoid
adding drain to waste pipes as odours may arise in the future.
When installing the outdoor unit, make sure to connect the draining hose
so that draining is performed correctly.
XThe water generated during the heating operation by the outdoor unit may
overflow and result in property damage.
In particular, in winter, if a block of ice falls, it may result in injury, death or
property damage.
FOR POWER SUPPLY
WARNING
When the circuit breaker is damaged, contact your nearest service center.
Do not pull or excessively bend the power line. Do not twist or tie the
power line. Do not hook the power line over a metal object, place a heavy
object on the power line, insert the power line between objects, or push
the power line into the space behind the appliance.
XThis may result in electric shock or fire.
English-5
PREPARATION01

Safety precautions
FOR POWER SUPPLY
CAUTION
When not using the air conditioner for a long period of time or during a
thunder/lightning storm, cut the power at the circuit breaker.
XFailing to do so may result in electric shock or fire.
FOR USING
WARNING
If the appliance is ooded, please contact your nearest service center.
XFailing to do so may result in electric shock or fire.
If the appliance generates a strange noise, a burning smell or smoke, cut-
o the power supply immediately and contact the nearest service center.
XFailing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate
immediately without touching the power line. Do not touch the appliance
or power line.
XDo not use a ventilating fan.
XA spark may result in an explosion or fire.
To reinstall the air conditioner, please contact your nearest service center.
XFailing to do so may result in problems with the product, water leakage,
electric shock, or fire.
XA delivery service for the product is not provided. If you reinstall the product in
another location, additional construction expenses and an installation fee will
be charged.
XEspecially, when you wish to install the product in an unusual location such as
in an industrial area or near the seaside where it is exposed to the salt in the air,
please contact your nearest service center.
Do not touch the circuit breaker with wet hands.
XThis may result in electric shock.
Do not turn the air conditioner o with the circuit breaker while it is
operating.
XTurning the air conditioner off and then on again with the circuit breaker may
cause a spark and result in electric shock or fire.
After unpacking the air conditioner, keep all packaging materials well
out of the reach of children, as packaging materials can be dangerous to
children.
XIf a child places a bag over its head, it may result in suffocation.
English-6

Do not insert your ngers or foreign substances into the outlet when the air
conditioner is operating.
XTake special care that children do not injure themselves by inserting their
fingers into the product.
Do not touch the air ow blade with your hands or ngers during the
heating operation.
XThis may result in electric shock or burns.
Do not insert your ngers or foreign substances into the air inlet/outlet of
the air conditioner.
XTake special care that children do not injure themselves by inserting their
fingers into the product.
Do not strike or pull the air conditioner with excessive force.
XThis may result in fire, injury, or problems with the product.
FOR USING
WARNING
Do not place an object near the outdoor unit that allows children to climb
onto the machine.
XThis may result in children seriously injuring themselves.
Do not use this air conditioner for long periods of time in badly ventilated
locations or near inrm people.
XSince this may be dangerous due to a lack of oxygen, Open a window at least
once an hour.
If any foreign substance such as water has entered the appliance, cut-o
the power supply and contact the nearest service center.
XFailing to do so may result in electric shock or fire.
Do not attempt to repair, disassemble, or modify the appliance yourself.
XDo not use any fuse (such as cooper, steel wire, etc.)other than the standard
fuse.
XFailing to do so may result in electric shock, fire, problems with the product, or
injury.
English-7
PREPARATION01

Safety precautions
FOR USING
CAUTION
Do not place objects or devices under the indoor unit.
XWater dripping from the indoor unit may result in fire or property damage.
(example electrical appliances)
Check that the installation frame of the outdoor unit is not broken at least
once a year.
XFailing to do so may result in injury, death or property damage.
Max current is measured according to IEC standard for safety and current is
measured according to ISO standard for energy eciency.
Do not stand on top of the appliance or place objects (such as laundry,
lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on
the appliance.
XThis may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
XThis may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the
appliance.
XAs well as being harmful to humans, it may also result in electric shock, fire or
problems with the product.
Do not drink the water from the air conditioner.
XThe water may be harmful to humans.
Do not apply a strong impact to the remote controller and do not
disassemble the remote controller.
Do not touch the pipes connected with the product.
XThis may result in burns or injury.
Do not use this air conditioner to preserve precision equipment, food,
animals, plants or cosmetics, or for any other unusual purposes.
XThis may result in property damage.
Avoid directly exposing humans, animals or plants from the air ow from
the air conditioner for long periods of time.
XThis may result in harm to humans, animals or plants.
English-8

This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
FOR CLEANING
WARNING
Do not clean the appliance by spraying water directly onto it. Do not use
benzene, thinner or alcohol to clean the appliance.
XThis may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, cut-o the power supply and
wait until the fan stops.
XFailing to do so may result in electric shock or fire.
FOR CLEANING
CAUTION
Take care when cleaning the surface of the heat exchanger of the outdoor
unit since it has sharp edges.
XThis should be done by a qualified technician please contact your installer or
service center.
Do not clean the inside of the air conditioner by yourself.
XFor cleaning inside the appliance, contact your nearest service center.
XWhen cleaning the internal filter, refer to the descriptions in the ‘Cleaning the
air conditioner’section.
XFailure to do may result in damage, electric shock or fire.
State of California Proposition 65 Warning (US only)
t This product contains chemicals known to the State of California to cause cancer
and reproductive toxicity.
WARNING
English-9
PREPARATION01

Checking before use
Operation ranges
The table below indicates the temperature and humidity ranges the air
conditioner can be operated within. Refer to the table for ecient use.
Maintaining your air conditioner
Internal protections via the unit control system
XThis internal protection operates if an internal fault occurs in the air conditioner.
t *GUIFIFBUQVNQJTPQFSBUJOHJO)FBUNPEFEFGSPTUDZDMFJTBDUVBUFEUPIFMQSFNPWFGSPTUGSPNBOPVUEPPSVOJUUIBU
may have deposited at low temperatures.
The internal fan is switched o automatically and restarted only after the defrost cycle is completed.
Type Description
Against cold air The internal fan will be o to prevent cold air when the heat pump is heating.
Defrost cycle
The internal fan will be o to defrost ice when the heat pump is heating.
Vertical air ow blade will be closed during defrost cycle and it will open again during
heating operation after defrost cycle.
Protect compressor The air conditioner does not start operating immediately to help protect the compressor
of the outdoor unit after it has been started.
XIf the air conditioner operates in cooling mode for long period of time in high humidity area, condensate may form.
XIf the outdoor temperature goes down to 23˚F(-5°C), heating capacity may decrease as much as 60 %~70 % of
specied capacity according to the using conditions.
Mode Indoor temperature Outdoor temperature Indoor humidity
Cooling 61 °F~90 °F
(16 °C~32 °C)
23 °F~115 °F
(-5 °C~46 °C) 80% or less
Heating 81 °F or less
(27 °C or less)
5 °F~76 °F
(-15 °C~24 °C) -
Dry 65 °F~90 °F
(18 °C~32 °C)
23 °F~115 °F
(-5 °C~46 °C) -
English-10

Main parts
Your air conditioner may slightly look dierent from illustration shown below depending on your model.
Checking the name of the parts
Display
Air lter
Air ow blade
(up and down) Air ow blade
(left and right)
Room
temperature
sensor
Air intake
Power button/
Remote controller receiver
Single user indicator(Has no this function.)
Timer/Auto clean indicator
Power indicator
English-11
BASIC FUNCTION02

Checking the remote controller

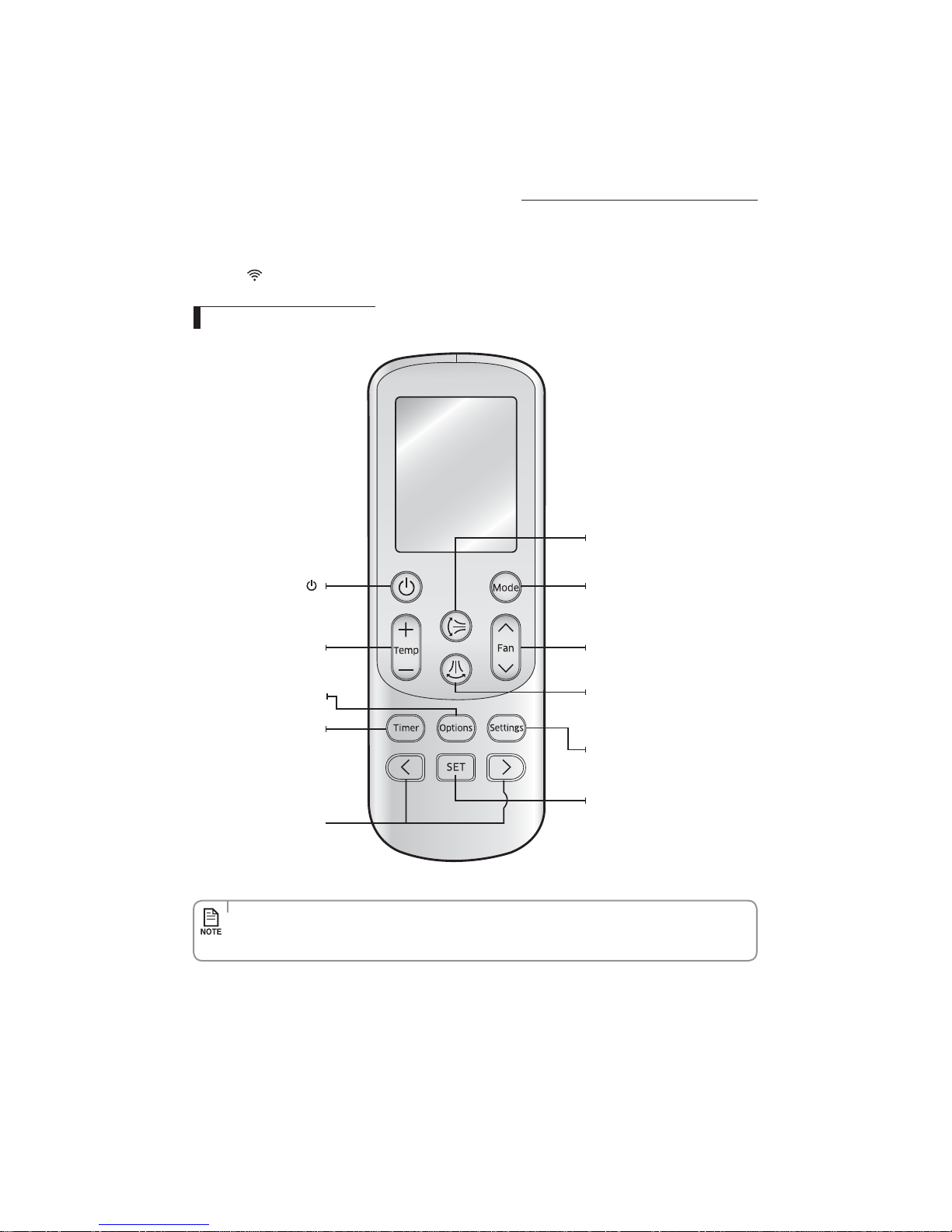

Remote controller buttons
t 1PJOUUIFSFNPUFDPOUSPMMFSUPXBSETUIFSFNPUFDPOUSPMMFSSFDFJWFSPGUIFJOEPPSVOJU
t 8IFOZPVQSPQFSMZQSFTTUIFCVUUPOPOUIFSFNPUFDPOUSPMMFSZPVXJMMIFBSCFFQTPVOEGSPNUIFJOEPPSVOJUBOEBUSBOTNJU
indicator( ) appears on the remote controller display.
Power
Turn on/o the air
conditioner.
Temp + –
Increase/Decrease the
temperature by 1 ˚F.
Options
Select options during operation.
Timer
Select Timer option.
Directional < >
Move through the Timer,
Options or Settings menu to
make a selection.
Vertical air swing
Activate/Deactivate vertical air ow
blade movement automatically.
Horizontal air swing
Has no this function.
Settings
Select settings.
SET
Set/Cancel the selected option or
setting.
Mode
Set one of the 5 operating modes.
Fan
h
h
Adjust the fan speed.
t*ODBTFZPVXJTIUPDBODFMUIFPQUJPOTPSTFUUJOHTUIBUZPVIBWFKVTUTFUQSFTTUIFOptions or Settings button again,
then the most recently selected item will blink and you may simply cancel it by pressing the SET button while
selected item is blinking.
English-12

t &OTVSFSFNPUFDPOUSPMMFSJTOPUFYQPTFEUPXBUFS
t EhMJHIU$PPMGVODUJPOJTEJTQMBZFEPOUIFSFNPUFDPOUSPMMFSEJTQMBZCVUOPUTVQQPSUFEJOUIJTNPEFM

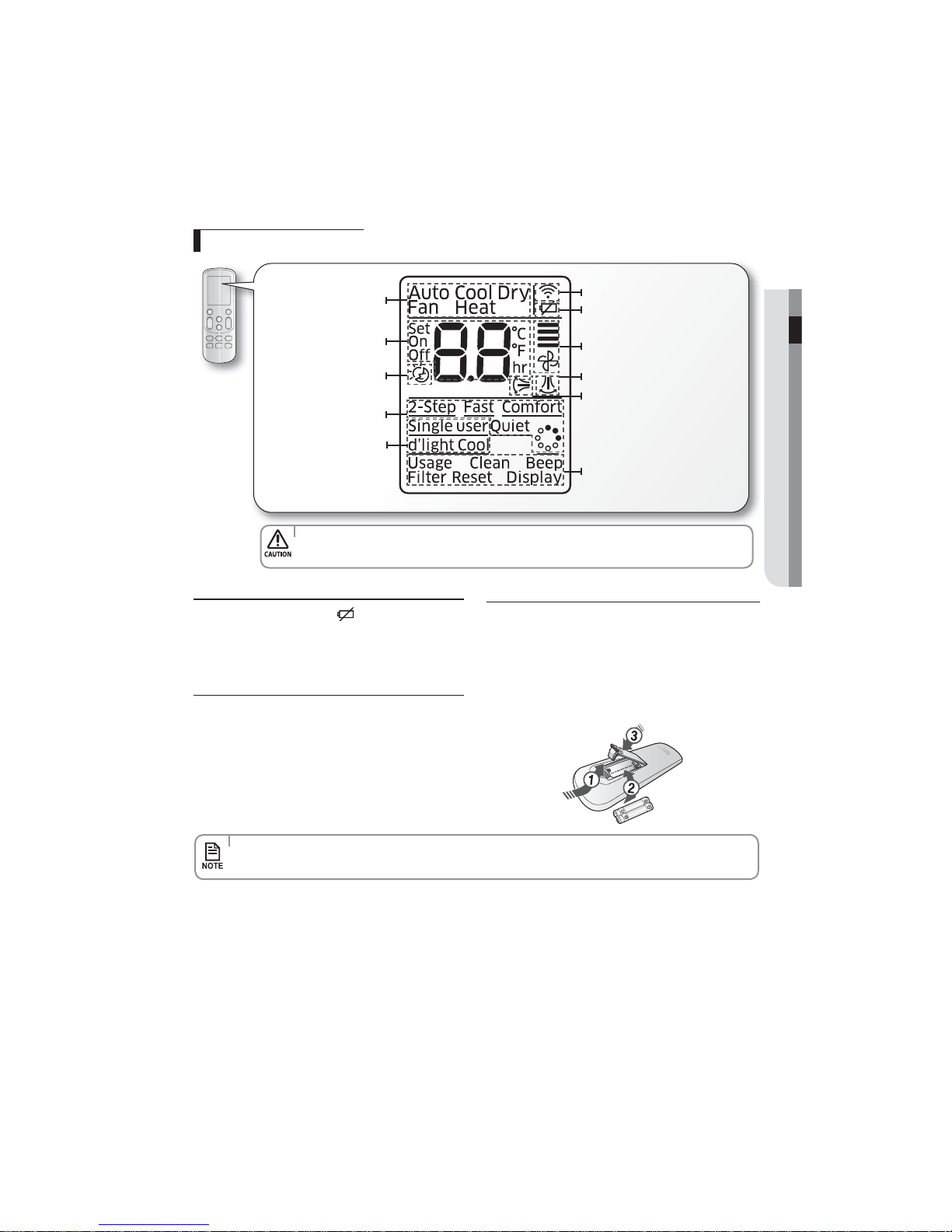

Remote controller display
Low Battery warning
8IFOUIFCBUUFSZJTFYIBVTUFE ) will be displayed in the
SFNPUFDPOUSPMMFSEJTQMBZ8IFOUIFJDPOBQQFBSTDIBOHF
the batteries. The remote controller requires two 1.5 V AAA
type batteries.
Storing the remote controller
8IFOZPVEPOPUVTFUIFSFNPUFDPOUSPMMFSGPSMPOHUJNF
remove the batteries from the remote controller and store it.
Inserting the batteries
1. Push the lever as arrow indicates on the rear side of the
remote controller and pull up.
2. Insert two AAA batteries.
Check and match the“+”and “-”signs accordingly. Make sure
you have inserted the batteries in correct position.
3. Close the cover by place it back to its original position.
You should hear click sound when the cover is locked properly.
t 8JSFMFTTSFNPUFTJHOBMNBZFYQFSJFODFTPNFJOUFSGFSFODFGSPNUIFDMPTFQSPYJNJUZPGJOWFSUFSøVPSFTDFOUMBNQT
t *GPUIFSFMFDUSJDBMQSPEVDUTPQFSBUFCZUIFSFNPUFDPOUSPMMFSDBMMZPVSOFBSFTUDPOUBDUDFOUFS
Operation mode
indicator
Set temperature/Time (for
Timer option) indicator
good'sleep indicator
Options indicator
This function is not
available in this model.
Transmit indicator
Low battery indicator
This function is not
available in this model.
Fan speed indicator
Vertical air swing indicator
Settings indicator
English-13
BASIC FUNCTION02

Basic function
Basic operation is an operation mode that can be selected by pressing the Mode button.
Auto(2-Step Cooling or Heat)
In Auto mode, the air conditioner will automatically set the temperature and fan speed depending on the room
temperature detected by the room temperature sensor.
t 2-Step Cooling mode sets the air conditioner to operate in Fast + Cool mode when set temperature is lower than indoor
temperature, and then the air conditioner will automatically operate in Dry mode when indoor temperature reaches set
temperature.
Cool
In Cool mode, the air conditioner will cool your room. You can adjust the temperature and the fan speed to feel cooler in hot
season.
t If current outside temperature is much higher than the selected indoor temperature, it may take time to bring the inner
temperature to the desired coolness.
t Quiet mode makes the unit quieter during the operation of the indoor unit in the Cool mode.
Dry
The air conditioner in Dry mode acts like a dehumidier by removing moisture from the indoor air.
Dry mode makes the air feel refreshing in a humid climate.
To activate the Dry mode, set temperature on the remote controller should be lower than indoor room temperature.
Fan
Fan mode can be selected to circulate your room. Fan mode will be helpful to refresh the stale air in your room.
Heat
The air conditioner heats as well as cools. Warm your room with this versatile appliance in the cold of winter.
t Fan may not operate for about 3~5 minutes at the beginning to prevent any cold blasts while the air conditioner is
warming up.
t Quiet mode makes the noise quieter during the operation of the indoor unit in the Heat mode.
t Since the air conditioner heats the room by taking heat energy from outdoor air, the heating capacity may decrease when
outdoor temperature is extremely low.
Use an additional heating appliance in combination with the air conditioner if you feel the air conditioner heats
insuciently.
English-14

Press the button to turn on the air conditioner.
Press the button to set the operating mode.
t &BDIUJNFZPVQSFTTUIFMode button, the mode will change in order of Auto, Cool, Dry, Fan and Heat.
8IFOUIF"VUPNPEFJTTFMFDUFEBJSDPOEJUJPOFSXJMMPQFSBUFJO4UFQ$PPMJOHGPSDPPMJOHDPOEJUJPOPSJO"VUP)FBUGPS
heating condition.
Press the button to set the desired fan speed.
Auto
(Auto)
Cool
(Auto), (Low), (Med), (High), (Turbo)
Dry
(Auto)
Fan
(Low), (Med), (High), (Turbo)
Heat
(Auto), (Low), (Med), (High), (Turbo)
Press the button to adjust the temperature.
Auto(2-Step Cooling or Heat) You can adjust the desired temperature by 1 °F within the range of 61°F~86°F(16°C~30°C).
Cool You can adjust the desired temperature by 1 °F within the range of 61°F~86°F(16°C~30°C).
Dry You can adjust the desired temperature by 1 °F within the range of 65°F~86°F(18°C~30°C).
Fan Temperature adjustment is not possible.
Heat You can adjust the desired temperature by 1 °F within the range of 61°F~86°F(16°C~30°C).
t %SZNPEFDBOOPUQSPWJEFIFBUJOHPOMZDPPMJOHPQFSBUJPO
English-15
BASIC FUNCTION02

Adjusting the air ow direction
This function will allow you to adjust the air ow direction vertically.
Press the button to make air ow blades vertically.
Vertical air ow
Remote controller display
f To keep the air ow direction in a constant direction, press the button again.
The air ow blade(s) will stop the movement.
XIf you adjust the vertical air ow blade manually, it may not close completely when
you turn o the air conditioner.
t "EKVTUJOHUIFBJSøPXEJSFDUJPOJTOPUBWBJMBCMFJOHPPEhTMFFQNPEFXIJMF
it is in cool mode.
t )PXFWFSZPVDBOBEKVTUUIFBJSøPXEJSFDUJPOJOHPPEhTMFFQNPEFXIJMF
it is in heat mode.
Horizontal air ow
Make sure the blade pin levers that stick out of the air ow blades are not broken.
Move the blade pin lever left or right to keep the air ow direction in a constant
position you prefer.
t #FFYUSFNFMZDBSFGVMXJUIZPVSöOHFSTXIJMFBEKVTUJOHUIF)PSJ[POUBM
air ow direction.
There is a potential risk of personal injury when the unit is
mishandled.
Blade pin lever
English-16

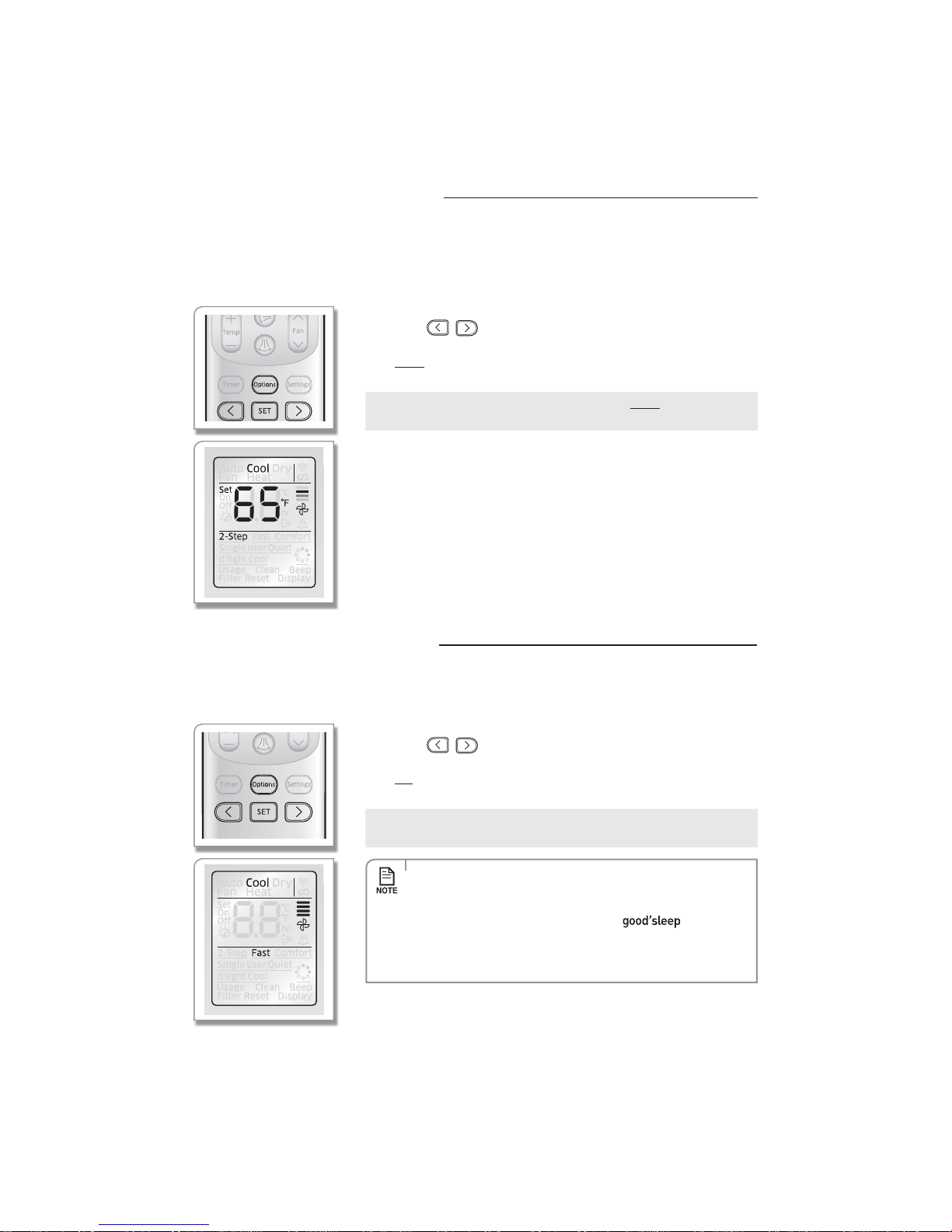

Setting the On/O timer
Setting the On timer
When the air conditioner is o;
Remote controller display
1. Press the Timer button.
2. Press the button until (On) indicator starts to blink.
3. Press the SET button to set the On timer.
- (On) indicator will keep blinking and you can set the time.
4. Press the button to set the time.
- You can set the time in half hour unit from 30 minutes (0.5 on the display) ~
3hours and hour unit from 3~24 hours.
- Time can be set from minimum 30 minutes to maximum 24 hours.
5. Press the SET button to complete the On timer setting.
- (On) indicator and the set time of the timer will be displayed on the remote
controller display and theTimer indicator (
) will be displayed on the indoor
unit display.
- On timer setting will be cancelled if you don't press the SET button within
10seconds after setting the time. Therefore, check for the (On) indicator on the
remote controller display and the Timer indicator (
) on the indoor unit display.
Cancel
f Press the button to make the set time to display as ,
and press the SET button.
f Press the Power ( ) button.
Additional options available in On time
You can select from Auto/Cool/Dry/Fan /Heat.
You can set the temperature after selecting the operation mode.
Temperature adjustment is available when Auto/Cool/Dry /Heat mode is selected.
t After 10 seconds from the completion of the On timer setting, only (On) indicator will remain displayed on
the remote controller display.
t If you press the Power button on the indoor unit after setting the On timer from the remote controller,
Timer indicator on the indoor unit display will disappear and the On timer will be cancelled. Even though the
On timer is cancelled, (On) indicator on the remote controller will remain displayed.
t When the On timer is set while the air conditioner is o, Timer indicator (
) will be displayed and remain on
until the On timer turns on.
t 5IJT5JNFSGVODUJPOPOMZPQFSBUFTPODF'PSNVMUJQMFTDIFEVMFTJOTUBMM
optional wired remote controller.
English-17
TIMER03

Setting the O timer
When the air conditioner is on;
Remote controller display
1. Press the Timer button.
2. Press the button until (O) indicator starts to blink.
3. Press the SET button to set the O timer.
- (O) indicator will keep blinking and you can set the time.
4. Press the button to set the time.
- You can set the time in half hour unit from 30 minutes (0.5 on the display) ~
3hours and hour unit from 3~24 hours.
- Time can be set from minimum 30 minutes to maximum 24 hours.
5. Press the SET button to complete the O timer setting.
- (O) indicator and the set time of the timer will be displayed on the remote
controller display and theTimer indicator (
) will be displayed on the indoor
unit display.
-Otimer setting will be cancelled if you don't press the SET button within
10seconds after setting the time. Therefore, check for the (O) indicator on the
remote controller display and the Timer indicator (
) on the indoor unit display.
Cancel
f Press the button to make the set time to display as ,
and press the SET button.
f Press the Power ( ) button.
t O timer may not work depending on the On/O status of the indoor
unit and the On/O status of the indicator on the remote controller
display.
t 0OMZUIFMBUFTUTFUUJOHUJNFSXJMMCFBQQMJFECFUXFFOUIF0O5JNFS0ò
Timer and O timer functions.
t "GUFSTFUUJOHUIFUJNFSUIFTFUUJNFXJMMCFEJTQMBZFEGPSTFDPOET
before it disappears.
Combining On Timer and O Timer
When the air conditioner is o When the air conditioner is on
When set time on On timer is shorter than O timer
Ex) On timer : 3 hours, O timer : 5 hours
- The air conditioner will turn on after 3 hours from the
moment you have set the timer and the air conditioner will
remain on for 2 hours and then turn o automatically.
When set time on On timer is longer than O timer
Ex) On timer : 3 hours, O timer : 1 hour
- The air conditioner will turn o after 1 hour from the
moment you have set the timer and turn on after 2 hours
from the moment it was turned o.
t Set time for the On timer and the O timer should be dierent from each other.
Setting the On/O timer
English-18

mode
For a comfortable sleep, the air conditioner will operate in 3 stages in order of Fall asleep ZSound sleep ZWake up stage.
When the air conditioner is operating in Cool/Heat mode;
Remote controller display
1. Press the Timer button.
2. Press the button until ( ) indicator starts to blink.
3. Press the SET button to set the mode.
-( ) indicator will keep blinking and you can set the time.
4. Press the button to set the time.
- You can set the time in half hour unit from 30 minutes (0.5 on the display) ~
3hours and hour unit from 3~12 hours.
- Time can be set from minimum 30 minutes to maximum 12 hours.
- Default time setting for the mode is 8 hours.
5. Press the SET button to complete the mode setting.
-( ) indicator and the set time of the mode will be displayed on
the remote controller display.
- Timer indicator (
) will be displayed on the indoor unit display.
- mode setting will be cancelled if you don't press the SET button within
10 seconds after setting the time. Therefore, check for the ( ) indicator on the
remote controller display and the Timer indicator ( ) on the indoor unit display.
Cancel f Press the button to make the set time to display as ,
and press the SET button.
Additional options available in mode
You can adjust the set temperature by 1 °F within the range of 61°F~86°F(16°C~30°C).
8IFOUIF mode is on.
In Cool mode : Air ow direction will be adjusted automatically.
In Heat mode : Adjusting air ow direction is available.
Temperature and fan speed change in mode
tFall asleep: Eases you into sleep by dropping the temperature.
tSound sleep: Relaxes your body and raises your temperature slightly.
tWake up: Allows you to wake up from comfortable intermittent air and it makes you feel refreshed.
t Fan speed and the air ow direction will be adjusted automatically in mode.
t Recommended set temperature is between
77˚F~81˚F (25˚C~27˚C) for cooling and 70˚F~73˚F (21˚C~23˚C)
for heating.
t If the set temperature is too low, you may feel cold during sleep or catch a cold.
t Optimal operation hour of mode is 8 hours. Therefore, if the time is set too short or long, you
may not feel as comfortable as you would expect.
t If the mode is set over 5 hours, Wake up stage will begin when 1 hour is remaining in the
operation time and the air conditioner will stop automatically.
t When the On timer and the function is set simultaneously, the air conditioner will only apply
the function that was set later.
English-19
TIMER03

2-Step cooling function
2-Step Cooling function will set the air conditioner to cool the room quickly to reach the set temperature when the indoor
temperature is higher than the set temperature, and then the air conditioner will automatically operate in Dry mode when
indoor temperature reaches set temperature.
When the air conditioner is operating in Cool mode;
Remote controller display
1. Press the Options button.
2. Press the button until (2-Step) indicator starts to blink.
3. Press the SET button to set the 2-Step Cooling function.
- (2-Step) will blink rst, then remain on the display as (2-Step) and 2-Step
Cooling function will begin.
Cancel f Press the Options button again to make the (2-Step) indicator blink
and press the SET button.
Using the Fast function
You can set the Fast function to provide fast and powerful cooling/heating.
When the air conditioner is operating in Cool/Heat mode;
Remote controller display
1. Press the Options button.
2. Press the button until (Fast) indicator starts to blink.
3. Press the SET button to set the Fast function.
- (Fast) will blink rst, then remain on the display as (Fast) and Fast function will
begin.
Cancel f Press the Options button again to make the (Fast) indicator blink and
press the SET button.
t Fast function is only available in Cool/Heat mode.
t Vertical/Horizontal air swing can be adjusted.
t Set temperature and fan speed cannot be adjusted.
t If the Fast function is selected while Quiet/ function is on,
corresponding function will be cancelled.
t When you select Fast function in Heat mode, you may not be able to
increase fan speed.
English-20
