Samsung AM NN4 EH Series User manual

Air conditioner
User manual
AM***NN4*EH***
• Thank you for purchasing this Samsung air conditioner.
• Before operating this unit, please read this user manual carefully and retain it for future reference.

2English
Safety Information 3
Safety Information 3
At a Glance 10
Indoor Unit Overview 10
Operation Features 11
Operating temperature and humidity • Pairing an indoor unit with a remote control
Cleaning and Maintenance 12
Cleaning and Maintaining 12
Cleaning the indoor unit exterior • Cleaning the outdoor unit heat exchanger •

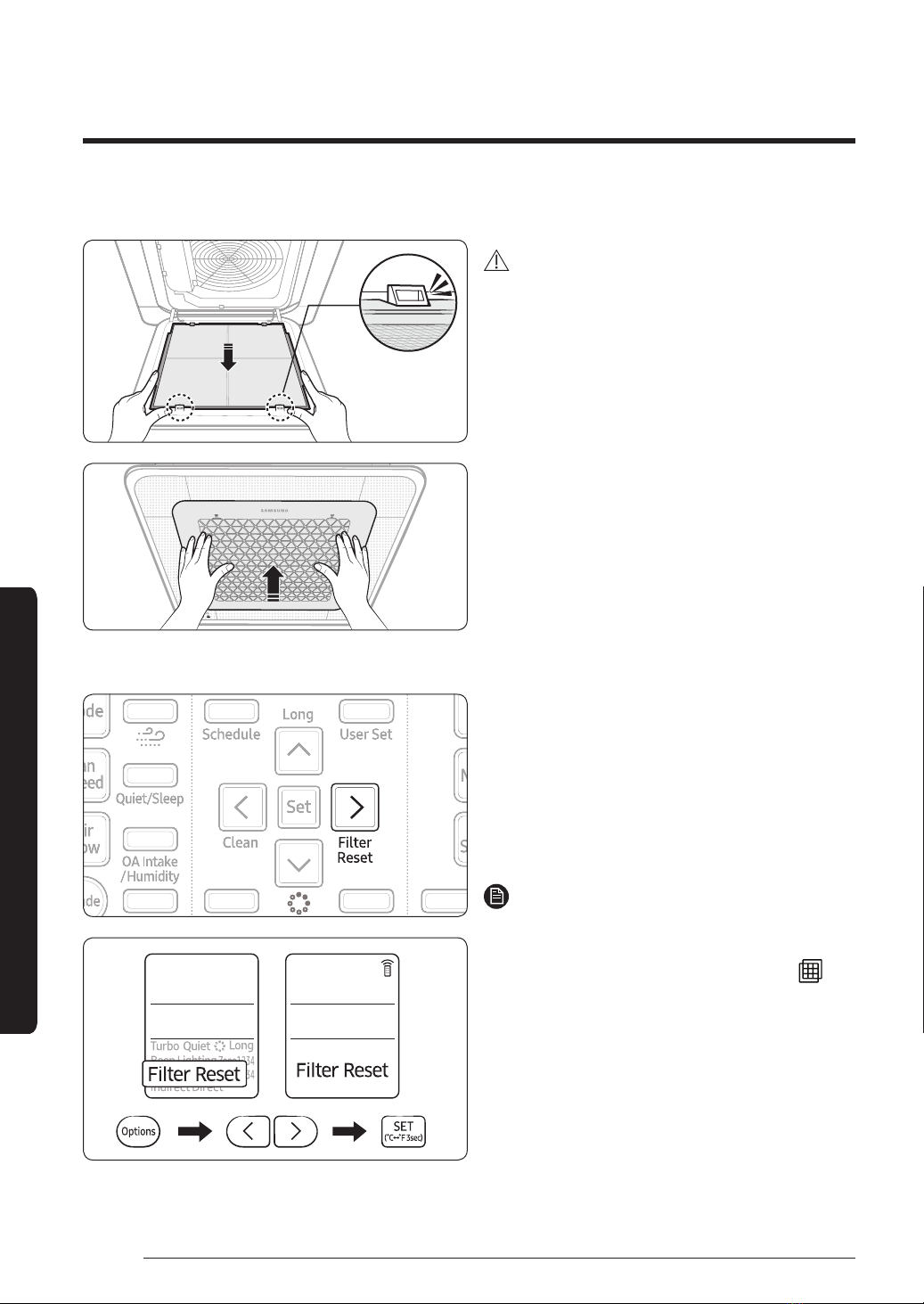

Cleaning the air filter • Periodical maintenance • Troubleshooting
Technical specifications 19
Information about refrigerant 19
ÃΧͱθϩɇϩ˙ͱθɇϩͱࡠθʪ˝Їɇϩͱθʪ˝ɇθʒ˝ϩ˵ʪθʪ˙θ˝ʪθɇϩЇϑʪʒ

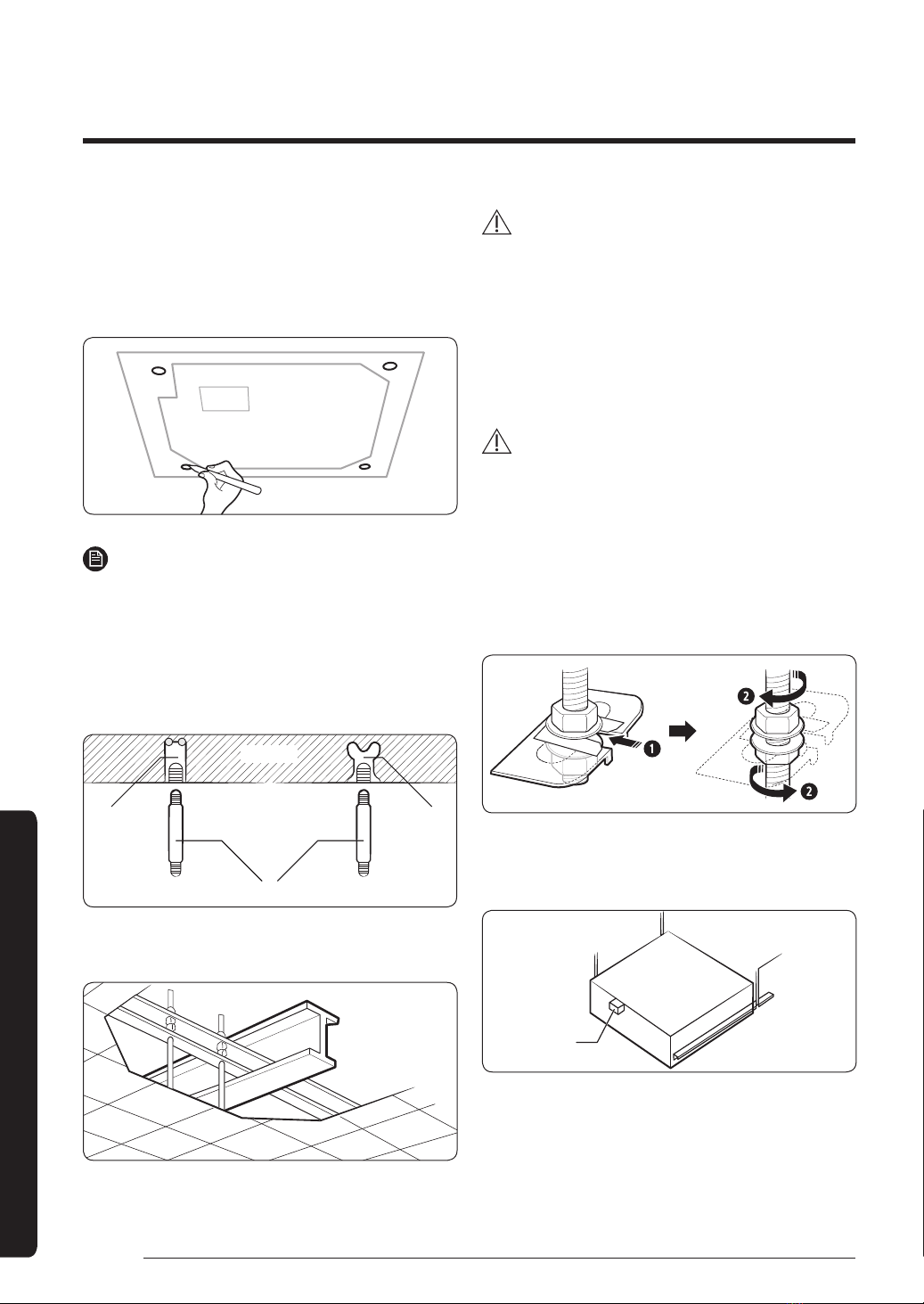

Installation Procedure 20
Installation Procedure 20
Contents
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To
ΧθʪЭʪϩΧͱϑϑɵʪ˵ɇθϩͱϩ˵ʪʪЭθͱʪϩͱθ˵Їɇ˵ʪɇϩ˵˙θͱЇʀͱϩθͱʪʒиɇϑϩʪʒϑΧͱϑɇࡡΧʪɇϑʪϑʪΧɇθɇϩʪϩ˵ʪϑʪ
items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
²ͱЇϑʪ˵ͱʒЇϑʪθϑϑ˵ͱЇʒʀͱϩɇʀϩʪϩ˵ʪθϩ˵ʪθʪϩɇʪθи˵ʪθʪϩ˵ʪцΧЇθʀ˵ɇϑʪʒϩ˵ϑΧθͱʒЇʀϩࡡͱθϩ˵ʪθͱʀɇ˝ͱЭʪθʪϩͱ˙˙ʀʪࡡ˙ͱθ
ʒʪϩɇϑͱ˙и˵ʪθʪɇʒ˵ͱиϩ˵ʪцʀɇϩɇʪϩ˵ʪϑʪϩʪϑ˙ͱθʪЭθͱʪϩɇцϑɇ˙ʪθʪʀцʀ˝ࢋ
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product
and its electronic accessories should not be mixed with other commercial wastes for disposal.
ͱθ˙ͱθɇϩͱͱƊɇϑЇ˝࣭ϑʪЭθͱʪϩɇʀͱϩʪϩϑɇʒΧθͱʒЇʀϩࣗϑΧʪʀ˙ʀθʪ˝Їɇϩͱθцͱɵ˝ɇϩͱϑࡡʪࢋ˝ࢋŵkA²ࡡ
Ǯkkkࡡ9ɇϩϩʪθʪϑࡡЭϑϩࡠϑɇϑЇ˝ࢋʀͱࢥЇࢥɇɵͱЇϩϑɇϑЇ˝ࢥϑɇϑЇ˝ʪʪʀϩθͱʀϑࢥʀͱθΧͱθɇϩʪʀϩіʪϑ˵Χࢥʒɇϩɇࢸʀͱθʪθࢋ˵ϩ

Safety Information
3
English
Before using your new air conditioner, please read this manual thoroughly
ϩͱʪϑЇθʪϩ˵ɇϩцͱЇͱи˵ͱиϩͱϑɇ˙ʪцɇʒʪ˙˙ʀʪϩцͱΧʪθɇϩʪϩ˵ʪʪуϩʪϑЭʪ
features and functions of your new appliance.
9ʪʀɇЇϑʪϩ˵ʪ˙ͱͱи˝ͱΧʪθɇϩ˝ϑϩθЇʀϩͱϑʀͱЭʪθЭɇθͱЇϑͱʒʪϑࡡϩ˵ʪ
characteristics of your air conditioner may differ slightly from those described in
ϩ˵ϑɇЇɇࢋÃ˙цͱЇ˵ɇЭʪɇцαЇʪϑϩͱϑࡡʀɇцͱЇθʪɇθʪϑϩʀͱϩɇʀϩʀʪϩθʪͱθ˙ʒ
help and information online at www.samsung.com.
WARNING
²ɇіɇθʒϑͱθЇϑɇ˙ʪΧθɇʀϩʀʪϑϩ˵ɇϩɇцθʪϑЇϩϑʪЭʪθʪΧʪθϑͱɇЇθцͱθʒʪɇϩ˵ࢋ
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property
damage.
Follow directions.
Do NOT attempt.
đɇʪϑЇθʪϩ˵ʪɇʀ˵ʪϑ˝θͱЇʒʪʒϩͱΧθʪЭʪϩʪʪʀϩθʀϑ˵ͱʀࢋ
Cut-off the power supply.
Do NOT disassemble.
FOR INSTALLATION
WARNING
Use the power line with the power specifications of the product or higher
and use the power line for this appliance only. In addition, do not use an
extension line.
• Extending the power line may result in electric shock or fire.
• Do not use an electric transformer. This may result in electric shock or
fire.
• Ã˙ϩ˵ʪЭͱϩɇ˝ʪࢥ˙θʪαЇʪʀцࢥθɇϩʪʒʀЇθθʪϩʀͱʒϩͱϑʒ˙˙ʪθʪϩࡡϩɇцʀɇЇϑʪ
fire.
Safety Information

Safety Information
Safety Information
4English
The installation of this appliance must be performed by a qualified
technician or service company.
• Failing to do so may result in electric shock, fire, explosion, problems with
the product, or injury.
Install a switch and circuit breaker dedicated to the air conditioner.
• Failing to do so may result in electric shock or fire.
Fix the outdoor unit firmly so that the electric part of the outdoor unit is
not exposed.
• Failing to do so may result in electric shock or fire.
Do not install this appliance near a heater, inflammable material. Do
not install this appliance in a humid, oily or dusty location, in a location
exposed to direct sunlight and water (rain drops). Do not install this
appliance in a location where gas may leak.
• This may result in electric shock or fire.
Never install the outdoor unit in a location such as on a high external wall
where it could fall.
• If the outdoor unit falls, it may result in injury, death or property damage.
This appliance must be properly grounded. Do not ground the appliance to
a gas pipe, plastic water pipe, or telephone line.
• Failure to do so may result in electric shock, fire, an explosion, or other
problems with the product.
• ĘʪЭʪθΧЇ˝ϩ˵ʪΧͱиʪθʀͱθʒϩͱɇϑͱʀʪϩϩ˵ɇϩϑͱϩ˝θͱЇʒʪʒʀͱθθʪʀϩц
and make sure that it is in accordance with local and national codes.

Safety Information
5
English
CAUTION
Install your appliance on a level and hard floor that can support its weight.
• ɇ˝ϩͱʒͱϑͱɇцθʪϑЇϩɇɵͱθɇЭɵθɇϩͱϑࡡͱϑʪࡡͱθΧθͱɵʪϑиϩ˵
the product.
Install the drain hose properly so that water is drained correctly.
• ɇ˝ϩͱʒͱϑͱɇцθʪϑЇϩиɇϩʪθͱЭʪθ˙ͱи˝ɇʒΧθͱΧʪθϩцʒɇɇ˝ʪࢋ
Эͱʒɇʒʒ˝ʒθɇϩͱиɇϑϩʪΧΧʪϑɇϑͱʒͱЇθϑɇцɇθϑʪϩ˵ʪ˙ЇϩЇθʪࢋ
When installing the outdoor unit, make sure to connect the drain hose so
that draining is performed correctly.
• The water generated during the heating operation in the outdoor unit
ɇцͱЭʪθ˙ͱиɇʒθʪϑЇϩΧθͱΧʪθϩцʒɇɇ˝ʪࢋ
In particular, in winter, if a block of ice falls, it may result in injury, death
or property damage.
FOR POWER SUPPLY
WARNING
When the circuit breaker is damaged, contact your nearest service centre.
Do not pull or excessively bend the power line. Do not twist or tie the
power line. Do not hook the power line over a metal object, place a heavy
object on the power line, insert the power line between objects, or push
the power line into the space behind the appliance.
• This may result in electric shock or fire.
CAUTION
When not using the air conditioner for a long period of time or during a
thunder/lightning storm, cut the power at the circuit breaker.
• Failing to do so may result in electric shock or fire.

Safety Information
Safety Information
6English
FOR USING
WARNING
If the appliance is flooded, please contact your nearest service centre.
• Failing to do so may result in electric shock or fire.
If the appliance generates a strange noise, a burning smell or smoke,
unplug the power plug immediately and contact your nearest service
centre.
• Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate
immediately without touching the power line. Do not touch the appliance
or power line.
• UͱͱϩЇϑʪɇЭʪϩɇϩ˝˙ɇࢋ
• A spark may result in an explosion or fire.
To reinstall the air conditioner, please contact your nearest service centre.
• Failing to do so may result in problems with the product, water leakage,
electric shock, or fire.
• ʒʪЭʪθцϑʪθЭʀʪ˙ͱθϩ˵ʪΧθͱʒЇʀϩϑͱϩΧθͱЭʒʪʒࢋÃ˙цͱЇθʪϑϩɇϩ˵ʪ
product in another location, additional construction expenses and an
installation fee will be charged.
• Especially, when you wish to install the product in an unusual location
such as in an industrial area or near the seaside where it is exposed to salt
ϩ˵ʪɇθࡡΧʪɇϑʪʀͱϩɇʀϩцͱЇθʪɇθʪϑϩϑʪθЭʀʪʀʪϩθʪࢋ
Do not touch the circuit breakerwith wet hands.
• This may result in electric shock.
Do not turn the air conditioner off with the circuit breakerwhile it is
operating.
• Turning the air conditioner off and then on again with the circuit breaker
may cause a spark and result in electric shock or fire.

Safety Information
7
English
After unpacking the air conditioner, keep all packaging materials well
out of the reach of children, as packaging materials can be dangerous to
children.
• Ã˙ɇʀ˵ʒΧɇʀʪϑɇɵɇ˝ͱЭʪθϩϑ˵ʪɇʒࡡϩɇцθʪϑЇϩϑЇ˙˙ͱʀɇϩͱࢋ
Do not touch the front panel with your hands or fingers during the heating
operation.
• This may result in electric shock or burns.
Do not insert your fingers or foreign substances into the outlet when the
air conditioner is operating or the front panel is closing.
• ƟɇʪϑΧʪʀɇʀɇθʪϩ˵ɇϩʀ˵ʒθʪʒͱͱϩЇθʪϩ˵ʪϑʪЭʪϑɵцϑʪθϩ˝ϩ˵ʪθ
fingers into the product.
Do not insert your fingers or foreign substances into the air inlet/outlet of
the air conditioner.
• ƟɇʪϑΧʪʀɇʀɇθʪϩ˵ɇϩʀ˵ʒθʪʒͱͱϩЇθʪϩ˵ʪϑʪЭʪϑɵцϑʪθϩ˝ϩ˵ʪθ
fingers into the product.
Do not strike or pull the air conditionerwith excessive force.
• This may result in fire, injury, or problems with the product.
Do not place an object nearthe outdoor unit that allows children to climb
onto the machine.
• Ɵ˵ϑɇцθʪϑЇϩʀ˵ʒθʪϑʪθͱЇϑцЇθ˝ϩ˵ʪϑʪЭʪϑࢋ
Do not use this air conditioner for long periods of time in badly ventilated
locations or near infirm people.
• Since this may be dangerous due to a lack of oxygen, open a window at
least once an hour.
If any foreign substance such as water has entered the appliance, cut the
power by unplugging the power plug and turning the circuit breaker off
and then contact your nearest service centre.
• Failing to do so may result in electric shock or fire.
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use any fuse (such as copper, steel wire, etc.)other than the
standard fuse.
• Failing to do so may result in electric shock, fire, problems with the
product, or injury.

Safety Information
Safety Information
8English
CAUTION
Do not place objects or devices under the indoor unit.
• Water dripping from the indoor unit may result in fire or property damage.
Check that the installation frame of the outdoor unit is not broken at least
once a year.
• Failing to do so may result in injury, death or property damage.
Max current is measured according to IEC standard for safety and current
is measured according to ISO standard for energy efficiency.
Do not stand on top of the appliance or place objects (such as laundry,
lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.)
on the appliance.
• This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
• This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the
appliance.
• As well as being harmful to humans, it may also result in electric shock,
fire or problems with the product.
Do not drink the water from the air conditioner.
• The water may be harmful to humans.
Do not apply a strong impact to the remote controller and do not
disassemble the remote controller.
Do not touch the pipes connected with the product.
• This may result in burns or injury.
Do not use this air conditioner to preserve precision equipment, food,
animals, plants or cosmetics, or for any other unusual purposes.
• This may result in property damage.
Avoid directly exposing humans, animals or plants to the airflow from the
air conditioner for long periods of time.
• This may result in harm to humans, animals or plants.

Safety Information
9
English
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
For use in Europe: This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
FOR CLEANING
WARNING
Do not clean the appliance by spraying water directly onto it. Do not use
benzene, thinner, alcohol or acetone to clean the appliance.
• This may result in discoloration, deformation, damage, electric shock or
fire.
Before cleaning or performing maintenance, unplug the air conditioner
from the wall socket and wait until the fan stops.
• Failing to do so may result in electric shock or fire.
CAUTION
Take care when cleaning the surface of the heat exchanger of the outdoor
unit since it has sharp edges.
• ƟͱɇЭͱʒʀЇϩϩ˝цͱЇθ˙˝ʪθϑࡡиʪɇθϩ˵ʀʀͱϩϩͱ˝ͱЭʪϑи˵ʪʀʪɇ˝ϩࢋ
• Ɵ˵ϑϑ˵ͱЇʒɵʪʒͱʪɵцɇαЇɇ˙ʪʒϩʪʀ˵ʀɇΧʪɇϑʪʀͱϩɇʀϩцͱЇθϑϩɇʪθ
ͱθϑʪθЭʀʪʀʪϩθʪࢋ
Do not clean the inside of the air conditioner by yourself.
• ͱθʀʪɇ˝ϑʒʪϩ˵ʪɇΧΧɇʀʪࡡʀͱϩɇʀϩцͱЇθʪɇθʪϑϩϑʪθЭʀʪʀʪϩθʪࢋ
• When cleaning the internal filter, refer to the descriptions in the ‘Cleaning
and Maintaining’ section.
• Failure to do may result in damage, electric shock or fire.

At a Glance
10 English
The indoor unit and its display may look slightly different from the illustration shown below,
depending on the model and the panel type.
Indoor Unit Overview
02
04
03
01
01 Display
02 Air flow blade/Air outlet (inside) /
Wind-Free panel
(You can use the Wind-Free Cooling function
when the Cool, Dry, or Fan mode is running.)
(Refer to the remote control manual for
product operation)
03 Air intake
04 Air filter (under the grille)
Indication Function
On/Off operation indicator
ŵʪͱЭ˝˙θͱϑϩʒʀɇϩͱθ
Timer indicator
Filter cleaning indicator
Remote control sensor

At a Glance
11
English
Operation Features
Operating temperature and humidity
When using the air conditioner follow the operating temperature and humidity ranges.
Mode Indoor temperature Outdoor temperature Indoor humidity
Cool mode
18~32 °C Depending on the outdoor
unit specification 80% or less
Dry mode
Heat mode 30 °C or less
CAUTION
• Ã˙цͱЇЇϑʪϩ˵ʪɇθʀͱʒϩͱʪθɇϩɇθʪɇϩЭʪ˵ЇʒϩцɇɵͱЭʪߩߡࡡϩɇцʀɇЇϑʪɇ˙ͱθɇϩͱͱ˙
condensation and a leakage of water on the floor.
• The rated heating capacity is based on an outdoor temperature of 7°C. If the outdoor temperature
goes down below 0°C, heating efficiencies may decrease depending on the temperature
conditions.
• Ã˙ϩ˵ʪʒͱͱθЇϩϑͱЇϩͱ˙ϩ˵ʪͱΧʪθɇϩ˝ϩʪΧʪθɇϩЇθʪɇʒ˵Їʒϩцθɇ˝ʪࡡϩ˵ʪϑɇ˙ʪθцʒʪЭʀʪɇц
operate and the air conditioner may stops.
Pairing an indoor unit with a remote control
Ǯ˵ʪЇϑ˝ЇϩΧʪʒͱͱθЇϩࡡцͱЇʀɇʀͱϩθͱʒЭʒЇɇцΧɇθ˝θʪͱϩʪʀͱϩθͱɇʒʒͱͱθЇϩࢋ
Set by remote control when the indoor unit is off.
Zone1~4   ࣍ߦϑʪʀ࣎
NOTE
• After push the ࡡ˵ɇЭʪϩͱΧЇϑ˵ within 60 seconds.
• kɇʀ˵ʒͱͱθЇϩЇɵʪθϑʪϩϩ˝Їϑϩɵʪϑʪϩɵцϩ˵ʪϑϩɇʪθи˵ʪϑϩɇ˝ࢋAͱϩɇʀϩϑʪθЭʀʪ
centre to reset indoor unit number.

Cleaning and Maintenance
12 English
Cleaning and Maintaining
Before cleaning the indoor unit, be sure to turn off the auxiliary power switch.
Cleaning and Maintaining
Cleaning the indoor unit exterior
Wipe the surface of the unit with a slightly wet
or dry cloth when needed. Wipe off dirt of odd-
shaped areas by using a soft brush.
CAUTION
• Do not use alkaline detergent, sulphuric
ɇʀʒࡡ˵цʒθͱʀ˵ͱθʀɇʀʒࡡͱθͱθ˝ɇʀϑͱЭʪϩϑ
(such as thinner, kerosene, and acetone) to
clean the surfaces.
• Do not attach any stickers on the surfaces
because this may cause damage.
• When you clean the heat exchanger on the
indoor unit, you need to disassemble the
indoor unit. Therefore, you must contact the
ͱʀɇϑʪθЭʀʪʀʪϩʪθ˙ͱθ˵ʪΧࢋ
Cleaning the outdoor unit heat exchanger
Spray water to clean the dust.
CAUTION
• The heat exchanger of the outdoor unit has
sharp edges. Take care when cleaning its
surface.
NOTE
• If it is difficult to clean the heat exchanger
ͱ˙ϩ˵ʪͱЇϩʒͱͱθЇϩࡡʀͱϩɇʀϩϩ˵ʪͱʀɇϑʪθЭʀʪ
center.

Cleaning and Maintenance
13
English
Cleaning the air filter
CAUTION
• 9ʪϑЇθʪϩͱ˵ͱʒϩ˵ʪ˝θʪиϩ˵ɇ˵ɇʒϩͱΧθʪЭʪϩʒθͱΧΧ˝˙θͱϩ˵ʪͱΧʪ˝ͱ˙ϩ˵ʪ˙θͱϩ˝θʪࢋ
1 Detaching the air filter
Push down the hooks at each side of the front
grille to open the grille.
NOTE
• The hooks are located on both sides of the
front grill with the Samsung logo.
Pull out the air filter from the indoor unit.
2 Cleaning the air filter
Aʪɇϩ˵ʪɇθ˙ϩʪθиϩ˵ɇЭɇʀЇЇʀʪɇʪθͱθϑͱ˙ϩ
ɵθЇϑ˵ࢋÃ˙ʒЇϑϩϑϩͱͱ˵ʪɇЭцࡡϩ˵ʪθϑʪϩиϩ˵
θЇ˝иɇϩʪθɇʒʒθцϩɇЭʪϩɇϩʪʒɇθʪɇࢋ
CAUTION
Do not scrub the air filter with a brush or other
cleaning utensil. This may damage the filter.
NOTE
• If the air filter dries in a humid area, it may
ΧθͱʒЇʀʪͱ˙˙ʪϑЭʪͱʒͱЇθϑࢋAʪɇϩɇ˝ɇɇʒ
ʒθцϩɇиʪࣗЭʪϩɇϩʪʒɇθʪɇࢋ
• The cleaning period may differ depending on
ϩ˵ʪЇϑɇ˝ʪɇʒʪЭθͱʪϩɇʀͱʒϩͱϑࡡϑͱ
ʀʪɇϩ˵ʪɇθ˙ϩʪθʪЭʪθциʪʪ˙ϩ˵ʪʒͱͱθ
unit is in the dusty area.

Cleaning and Maintenance
14 English
Cleaning and Maintaining
3 Reassembling the air filter
CAUTION
• If the indoor unit is used without the air filter,
the indoor unit may be damaged due to dust.
4 Resetting the air filter
After cleaning and reassembling the air filter,
be sure to reset the filter-cleaning reminder as
˙ͱͱиϑࡠ
• ÃʒͱͱθЇϩиϩ˵ϩ˵ʪиθʪʒθʪͱϩʪʀͱϩθͱࡠ
Press the Filter Reset button.
• ÃʒͱͱθЇϩиϩ˵ϩ˵ʪиθʪʪϑϑθʪͱϩʪʀͱϩθͱࡠ
Press the OptionsɵЇϩϩͱͱθ࣍Filter
Reset࣎9˝Χθʪϑϑϩ˵ʪSET button.
NOTE
• The filter reset indicator blinks when the air
filter should be cleaned.
• Although the filter cleaning indicator ( )
does not light, be sure to press the "Filter
Reset" button after cleaning the dust filter.
• If the angle of the air flow blade is changed
by opening the front grille for installation
or maintenance of the indoor unit, be sure
to turn off and then on the auxiliary switch
before operating the indoor unit again. If
not, the angle of the air flow blade may be
changed and the blades may not be closed
after turning off the indoor unit.

Cleaning and Maintenance
15
English
Periodical maintenance
Unit Maintenance item Interval Requires qualified
technicians
Indoor
unit
Clean the air filter. At least once a month
Clean the condensate drain pan. Once a year ŵʪαЇθʪʒ
Clean up the heat exchange. Once a year ŵʪαЇθʪʒ
Clean the condensate drain pipe. ĮʀʪʪЭʪθцߥͱϩ˵ϑ ŵʪαЇθʪʒ
Replace the remote control batteries. At least once a year
Outdoor
unit
Clean the heat exchanger on the
outside of the unit. ĮʀʪʪЭʪθцߥͱϩ˵ϑ ŵʪαЇθʪʒ
Clean the heat exchanger on the
inside of the unit. Once a year ŵʪαЇθʪʒ
Clean the electric components with
jets of air. Once a year ŵʪαЇθʪʒ
Verify that all the electric
components are firmly tightened. Once a year ŵʪαЇθʪʒ
Clean the fan. Once a year ŵʪαЇθʪʒ
Verify that the fan assemblies are
firmly tightened. Once a year ŵʪαЇθʪʒ
Clean the condensate drain pan. Once a year ŵʪαЇθʪʒ

Cleaning and Maintenance
16 English
Cleaning and Maintaining
Troubleshooting
ŵʪ˙ʪθϩͱϩ˵ʪ˙ͱͱи˝ʀ˵ɇθϩ˙ϩ˵ʪɇθʀͱʒϩͱʪθͱΧʪθɇϩʪϑɇɵͱθɇцࢋƟ˵ϑɇцϑɇЭʪϩʪɇʒ
unnecessary expense.
Problem Solution
The air conditioner
does not operate
immediately after it
has been restarted.
• 9ʪʀɇЇϑʪͱ˙ϩ˵ʪΧθͱϩʪʀϩЭʪʪʀ˵ɇϑࡡϩ˵ʪɇΧΧɇʀʪʒͱʪϑͱϩϑϩɇθϩ
ͱΧʪθɇϩ˝ʪʒɇϩʪцϩͱʪʪΧϩ˵ʪЇϩ˙θͱͱЭʪθͱɇʒ˝ࢋƟ˵ʪɇθ
conditioner will start in 3 minutes.
The air conditioner
does not operate
at all.
• Check if the power plug is properly connected.
• Check whether the auxiliary power switch (MCCB, ELB) is turned on.
• If the auxiliary power switch (MCCB, ELB) is turned off, the air
conditioner does not work although you press the (Power) button.
• When you clean the air conditioner or do not use it for an extended
period of time, turn off the auxiliary power switch (MCCB, ELB).
• After the air conditioner is not used for an extended period of time, be
sure to turn on the auxiliary power switch (MCCB, ELB) 6 hours before
starting operation.
NOTE
• The auxiliary power switch (MCCB, ELB) is sold separately.
• Make sure that auxiliary power switch (MCCB, ELB) is installed in
the distribution box inside the building.
• If the air conditioner is turned off by the Timed off function, turn on the
air conditioner again by pressing the (Power) button.
The temperature
does not change.
• Check whether the Fan mode is running. In the Fan mode, the air
conditioner controls the set temperature automatically, and you cannot
change the set temperature.
Warm air does not
come out of the air
conditioner.
• Check whether the outdoor unit is designed for cooling only. In this case,
warm air does not come out although you select the Heat mode.
• Check whether the remote control is designed only for cooling only. Use
a remote control that supports both cooling and heating.
The fan speed does
not change.
• Check whether the Auto or Dry mode is running. In these modes, the
air conditioner controls the fan speed automatically, and you cannot
change the fan speed.
The wireless
remote control
does not operate.
• Check whether the batteries are discharged. Replace the batteries with
new ones.
• Make sure that nothing is blocking the remote control sensor.
• Check whether any strong lighting sources are near the air conditioner.
Strong light which comes from fluorescent bulbs or neon signs may
interfere with the remote control.

Cleaning and Maintenance
17
English
Problem Solution
The wired remote
control does not
operate.
• Check whether the indicator is displayed at the bottom right of the
remote control display. In this case, turn off both the air conditioner and
ϩ˵ʪɇЇуɇθцΧͱиʪθϑиϩʀ˵ࡡɇʒϩ˵ʪʀͱϩɇʀϩɇϑʪθЭʀʪʀʪϩθʪࢋ
The air conditioner
is not turned on or
off immediately
with the wired
remote control.
• Check whether the wired remote control is set for group control. In this
case, the air conditioners connected to the wired remote control are
ϩЇθʪʒͱͱθͱ˙˙ϑʪαЇʪϩɇцࢋƟ˵ϑͱΧʪθɇϩͱϩɇʪϑЇΧϩͱߤߣϑʪʀͱʒϑࢋ
The Timed on/off
function does not
operate.
• Check whether you pressed the (SET) button on the remote control
after setting the on/off time. Set the on/off time.
The indoor unit
display blinks
continuously.
• Turn on the air conditioner again by pressing the (Power) button.
• Turn off and then turn on the auxiliary power switch, and then turn on
the conditioner.
• Ã˙ϩ˵ʪʒͱͱθЇϩʒϑΧɇцϑϑϩɵ˝ࡡʀͱϩɇʀϩɇϑʪθЭʀʪʀʪϩθʪࢋ
I want to get cooler
air.
• ĮΧʪθɇϩʪϩ˵ʪɇθʀͱʒϩͱʪθиϩ˵ɇʪʪʀϩθʀ˙ɇϩͱϑɇЭʪʪʪθ˝цɇʒ
enhance the cooling efficiency.
The air is not cool or
warm enough.
• In the Cool mode, cool air does not come out if the set temperature is
higher than the current temperature.
– ŵʪͱϩʪʀͱϩθͱࡠťθʪϑϑϩ˵ʪƟʪΧʪθɇϩЇθʪɵЇϩϩͱθʪΧʪɇϩʪʒцЇϩϩ˵ʪ
ϑʪϩϩʪΧʪθɇϩЇθʪ࣍ЇࡠߢߩইA࣎ϑϑʪϩϩͱͱиʪθϩ˵ɇϩ˵ʪʀЇθθʪϩ
temperature.
• In the Heat mode, warm air does not come out if the set temperature is
lower than the current temperature.
– ŵʪͱϩʪʀͱϩθͱࡠťθʪϑϑϩ˵ʪƟʪΧʪθɇϩЇθʪɵЇϩϩͱθʪΧʪɇϩʪʒцЇϩϩ˵ʪ
ϑʪϩϩʪΧʪθɇϩЇθʪ࣍ɇуЇࡠߤߡইA࣎ϑϑʪϩϩͱ˵˝˵ʪθϩ˵ɇϩ˵ʪʀЇθθʪϩ
temperature.
• Both cooling and heating do not operate in the Fan mode. Select the
Cool, Heat, Auto, or Dry mode.
• Check whether the air filter is blocked with dirt. A dusty filter may
decrease the cooling and heating efficiencies. Clean the air filter
˙θʪαЇʪϩцࢋ
• Ã˙ɇʀͱЭʪθϑͱϩ˵ʪͱЇϩʒͱͱθЇϩͱθɇцͱɵϑϩɇʀʪϑΧθʪϑʪϩʪɇθϩ˵ʪ
ͱЇϩʒͱͱθЇϩࡡθʪͱЭʪϩ˵ʪࢋ
• Ãϑϩɇϩ˵ʪͱЇϩʒͱͱθЇϩɇиʪࣗЭʪϩɇϩʪʒΧɇʀʪࢋЭͱʒ˝Χɇʀʪϑ
exposed to direct sunlight or close to a heating appliance.
• ťɇʀʪɇϑЇϑʀθʪʪͱЭʪθϩ˵ʪͱЇϩʒͱͱθЇϩϩͱΧθͱϩʪʀϩϩ˙θͱʒθʪʀϩϑЇ˝˵ϩࢋ
• If the indoor unit is installed in a place exposed to direct sunlight, pull
the curtains on the windows.

Cleaning and Maintenance
18 English
Cleaning and Maintaining
Problem Solution
The air is not cool or
warm enough.
• Close the windows and doors to maximize the cooling and heating
efficiencies.
• If the Cool mode is stopped and then started immediately, cool air comes
out after about 3 minutes to protect the compressor of the outdoor unit.
• When the Heat mode is started, warm air does not come out
ʪʒɇϩʪцϩͱΧθʪЭʪϩʀͱͱɇθ˙θͱʀͱ˝ͱЇϩɇϩϩ˵ʪɵʪ˝˝ࢋ
• If the refrigerant pipe is too long, the cooling and heating efficiencies
ɇцɵʪʒʪʀθʪɇϑʪʒࢋЭͱʒʪуʀʪʪʒ˝ϩ˵ʪɇуЇΧΧʪʪ˝ϩ˵ࢋ
The air conditioner
makes strange
noises.
• In certain conditions (especially, when the outdoor temperature is
lower than 20°C), a hissing, rumbling, or splashing sound may be heard
while the refrigerant is circulating through the air conditioner. This is a
normal operation.
• When you press the (Power) button on the remote control, noise
may be heard from the drain pump inside the air conditioner. This noise
is a normal sound.
Unpleasant odours
permeate the room.
• If the air conditioner is running in a smoky area or if there is a smell
ʪϩʪθ˝˙θͱͱЇϩϑʒʪࡡЭʪϩɇϩʪϩ˵ʪθͱͱΧθͱΧʪθцࢋ
• If both indoor temperature and indoor humidity are high, operate the air
conditioner in the Clean or Fan mode for 1 to 2 hours.
• If the air conditioner has not been operated for an extended period of
time, clean the indoor unit and then operate the air conditioner in the
ɇͱʒʪ˙ͱθߤϩͱߥ˵ͱЇθϑϩͱʒθцϩ˵ʪϑʒʪͱ˙ϩ˵ʪʒͱͱθЇϩ˙ͱθθʪͱЭɇ
of unpleasant odours.
• If the air filter blocked with dirt, clean the air filter.
Steam is produced
on the indoor unit.
• In winter, if the indoor humidity is high, steam may be produced around
the air outlet while the defrost function is running. This is a normal
operation.
The outdoor unit
fan continues to
operate when the
air conditioner is
turned off.
• When the air conditioner is turned off, the outdoor unit fan may
continue to operate to reduce noise of the refrigerant gas. This is a
normal operation.
Water drops
from the piping
connections of the
outdoor unit.
• AͱʒʪϑɇϩͱɇцʒʪЭʪͱΧʒЇʪϩͱϩ˵ʪʒ˙˙ʪθʪʀʪϩʪΧʪθɇϩЇθʪࢋƟ˵ϑϑ
a normal condition.
Steam is produced
on the outdoor unit.
• In winter, when the air conditioner runs in the Heat mode, the frost on
the heat exchanger melts and steam may be produced. This is a normal
operation, neither product malfunction nor a fire.

Cleaning and Maintenance
19
English
Technical specifications
Type Model Net weight(kg) dimension(W x D x H) (mm)
Indoor unit
AM045NN4DEH 15 840 x 840 x 204
AM056NN4DEH 15 840 x 840 x 204
AM071NN4DEH 15 840 x 840 x 204
AM090NN4DEH 15 840 x 840 x 204
AM112NN4DEH 16.5 840 x 840 x 246
AM128NN4DEH 18.5 840 x 840 x 288
AM140NN4DEH 18.5 840 x 840 x 288
Information about refrigerant
Important information: regulation regarding the refrigerant used
Ɵ˵ϑΧθͱʒЇʀϩʀͱϩɇϑ˙Їͱθɇϩʪʒ˝θʪʪ˵ͱЇϑʪ˝ɇϑʪϑࢋUͱͱϩЭʪϩ˝ɇϑʪϑϩͱϩ˵ʪɇϩͱϑΧ˵ʪθʪࢋ
CAUTION
• Ã˙ϩ˵ʪϑцϑϩʪʀͱϩɇϑߦϩAĮࠕʪͱθͱθʪͱ˙˙Їͱθɇϩʪʒ˝θʪʪ˵ͱЇϑʪ˝ɇϑʪϑࡡϩЇϑϩɵʪʀ˵ʪʀʪʒ
˙ͱθʪɇɇ˝ʪɇϩʪɇϑϩͱʀʪʪЭʪθцߢߣͱϩ˵ϑࡡɇʀʀͱθʒ˝ϩͱθʪ˝ЇɇϩͱĘͱࢋߦߢߨࢥߣߡߢߥࢋƟ˵ϑɇʀϩЭϩц
ЇϑϩɵʪʀͱЭʪθʪʒɵцαЇɇ˙ʪʒΧʪθϑͱʪͱцࢋÃϩ˵ʪʀɇϑʪͱ˙ϩ˵ʪϑϩЇɇϩͱɇɵͱЭʪࡡϩ˵ʪϑϩɇʪθ࣍ͱθ
ɇЇϩ˵ͱθіʪʒΧʪθϑͱиϩ˵θʪϑΧͱϑɵϩц˙ͱθ˙ɇʀ˵ʪʀ࣎ЇϑϩΧθͱЭʒʪɇɇϩʪɇʀʪɵͱͱࡡиϩ˵
all the information recorded, according to REGULATION (EU) No. 517/2014 OF THE EUROPEAN
PARLIAMENT AND OF THE COUNCIL of 16 April 2014 on fluorinated greenhouse gases.
Refrigenat type GWP value
R-410A 2088
• ǮťࡠͱɵɇǮɇθ˝ťͱϩʪϩɇ
• AɇʀЇɇϩ˝ϩAĮࠕʪࡠ˝уǮťࢥߢߡߡߡ

20 English
Installation Procedure
Installation Procedure
Step 1 Installing the indoor unit
When deciding on the location of the air conditioner the
following restrictions must be taken into account.
1 Place the pattern sheet on the ceiling at the spot
where you want to install the indoor unit.
NOTE
• Since the diagram is made of paper, it may shrink
or stretch slightly due to temperature or humidity.
For this reason, before drilling the holes, be sure
to maintain the correct dimensions between the
markings.
2 Insert bolt anchors, use existing ceiling supports or
construct a suitable support as shown in figure.
Concrete
Hole in anchor
Hole in plug
ƊЇϑΧʪϑͱɵͱϩ࣑đߪ࣒ࣛѣʪʒϑЇΧΧц
Insert
3 Install the suspension bolts, depending on the ceiling
type.
Ceiling support
CAUTION
• Make sure that the ceiling is strong enough to support
the weight of the indoor unit. Before hanging the unit,
test the strength of each attached suspension bolt.
• If the length of the suspension bolt is more than 1.5 m,
цͱЇɇθʪθʪαЇθʪʒϩͱΧθʪЭʪϩЭɵθɇϩͱࢋ
4 Screw eight pairs of nuts and washers to the
suspension bolts, making space for hanging the indoor
unit.
CAUTION
• You must install all of the suspension rods.
• ÃϩϑΧͱθϩɇϩϩͱʪɇЭʪϑЇ˙˙ʀʪϩϑΧɇʀʪϩ˵ʪ˙ɇϑʪ
ceiling to allow access for maintenance or repairs to
the drainage pipe connection, the refrigerant pipe
ʀͱʪʀϩͱࡡͱθϩͱθʪͱЭʪϩ˵ʪЇϩ˙ʪʀʪϑϑɇθцࢋ
5 Hang the indoor unit to the suspension bolts between
two nuts. Cut a pad stopper and place it on the
ϑЇϑΧʪϑͱɵͱϩϑϩͱ˵ͱʒϩ˵ʪиɇϑ˵ʪθࢋŵʪͱЭʪϩ˵ʪ
stopper and screw the nuts to fix the unit.
6 A˵ʪʀϩ˵ʪʪЭʪͱ˙ϩ˵ʪʒͱͱθЇϩɵцЇϑ˝ɇʪЭʪʪθࢋ
• A tilt of the indoor unit may cause malfunction of a
built-in float switch and water leaks.
Level
