Samsung DH***EAV* Series User manual

ENGLISH
System Air Conditioner
(Cooling and Heating)
INSTALLATION
MANUAL
Duct Type Series
DHEAV
ESPAÑOLFRANÇAISITALIANOPORTUGUÊSDEUTSCHEΛΛHNIKARUSSIAN
DB98-26919A(1)SE F I DP G R
DH@@@EAV_IM_E_26919-1.indd 31 2006-12-27 ｿﾀﾈﾄ 4:11:50

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
WARNING
 The unit should not be installed by the user. Ask the dealer or authorized
company to install the units except room air conditioners for the U.S.A
and Canada area.
 If the unit is installed improperly, water leakage, electric shock or fire may
result.
 Mount with the lowest moving parts at least 2.5 m above the floor or
grade level. (If applicable)
 The manufacturer does not assume responsibility for accidents or injury
caused by an incorrectly installed air conditioner. If you are unsure about
installation, contact an installation specialist.
 When installing the built-in type air conditioner, keep all electrical cables
such as the power cable and the connection cord in pipe, ducts, cable
channels e.t.c to protect them against liquids, outside impacts and so on.
 This appliance is not accessible to the general public. This appliance
should be installed according to the provided installation instruction.
INSTALLING THE UNIT
 If the power cord of this air conditioner is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
 The unit must be plugged into an independent circuit if applicable or
connect the power cable to the auxiliary circuit breaker. An all pole
disconnection from the power supply must be incorporated in the fixed
wiring with a contact opening of >3mm.
 Do not use an extension cord with this product.
 If the unit is equipped with a power supply cord and a plug, the plug
must be accessible after installation.
 The air conditioner must be installed in accordance with national wiring
regulations and safety regulations wherever applicable.
POWER SUPPLY LINE,
FUSE OR CIRCUIT
BREAKER
• Risk of electric shock can cause injury or death.
• Disconnect all remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar qualified
person in order to avoid a hazard.
DH@@@EAV_IM_E_26919-1.indd 2 2006-12-27 ｿﾀﾈﾄ 4:11:16

E-3
ENGLISH
 Preparation for installation ............................................................................................................. 4
 Deciding on where to install the indoor unit .......................................................................... 5
 Indoor unit installation .................................................................................................................... 8
 Purging the unit .................................................................................................................................. 9
 Connecting the refrigerant pipe ................................................................................................... 10
 Cutting / Flaring the pipes .............................................................................................................. 11
 Performing leak test & insulation ................................................................................................. 12
 Drain hose installation ..................................................................................................................... 14
 Adjusting air flow ............................................................................................................................... 16

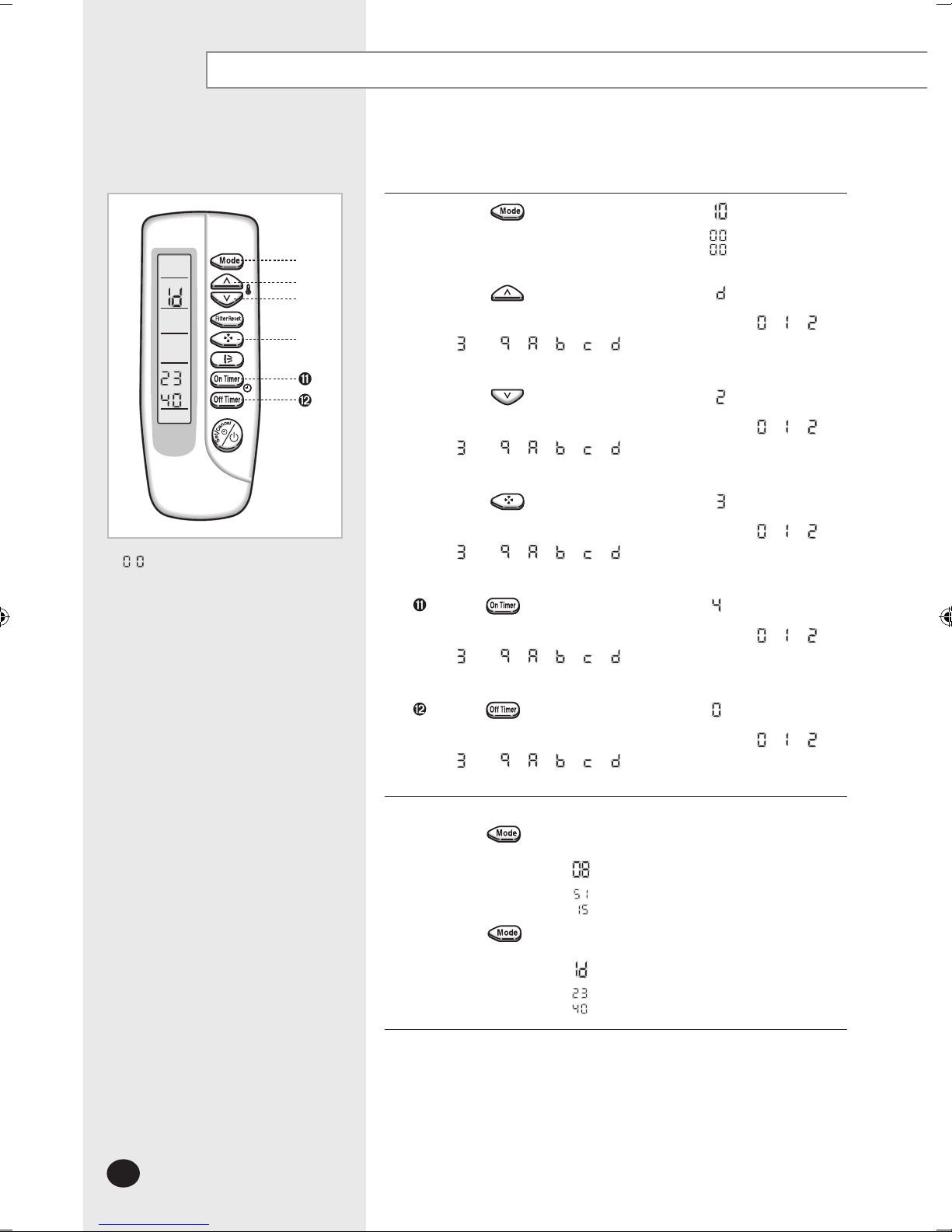

 Setting up the mode option .......................................................................................................... 17
 Assigning address to indoor unit ................................................................................................. 20
 Additional functions ......................................................................................................................... 21
 Drain pump installation (Optional) ............................................................................................. 23
 Troubleshooting ................................................................................................................................. 25
 Parts list .................................................................................................................................................. 28
Contents
DH@@@EAV_IM_E_26919-1.indd 3 2006-12-27 ｿﾀﾈﾄ 4:11:16

E-4
Preparation for installation
When deciding on the location of the air conditioner with the owner,
the following restrictions must be taken into account.
General
Do NOT install the air conditioner in a location where it will come into
contact with the following elements:
 Combustible gases
 Saline air
 Machine oil
 Sulphide gas
 Special environmental conditions
If you must install the unit in such conditions, first consult your dealer.
Accessories
 The following accessories are supplied with the indoor unit.
The type and quantity may differ depending on the specifications.
Wired remote control accessories
User’s
manual
Installation
manual
Pattern sheet Insulation drain
Insulation
cover pipe
Insulation pipe Insulation
drain pipe
Nut
Rubber Cable-tie Drain socket
Wired remote
control
Cable-tie Cable clamp M4x16
tapped screw
Indoor unit power
drawing cable
Communication
cable of the wired
remote control
Wire joint User’s
manual
Installation
manual
DH@@@EAV_IM_E_26919-1.indd 4 2006-12-27 ｿﾀﾈﾄ 4:11:17

E-5
ENGLISH
Deciding on where to install the indoor unit
Indoor unit
 There must be no obstacles near the air inlet and outlet.
 Install the indoor unit on a ceiling that can support its weight.
 Maintain sufficient clearance around the indoor unit.
 Make sure that the water dripping from the drain hose runs away correctly
and safely.
 The indoor unit must be installed in this way, that they are out of public
access. (Not touchable by the users)
 After connecting a chamber, insulate the connection part between the
indoor unit and the chamber with t10 or thicker insulation.
Otherwise, there can be air leak or dew from the connection part.
Space requirements for indoor unit
5mm
You must have 5mm or more space between the ceiling and the bottom of indoor
unit. Otherwise, the noise from the vibration of indoor unit may bother the user.
When the ceiling is under construction, the hole for check-up must be made to
take service, clean and repair the unit.
1398mm x 400mm or more
(A space for repair and service)
DH@@@EAV_IM_E_26919-1.indd 5 2006-12-27 ｿﾀﾈﾄ 4:11:18

E-6
Deciding on where to install the indoor unit (Continued)

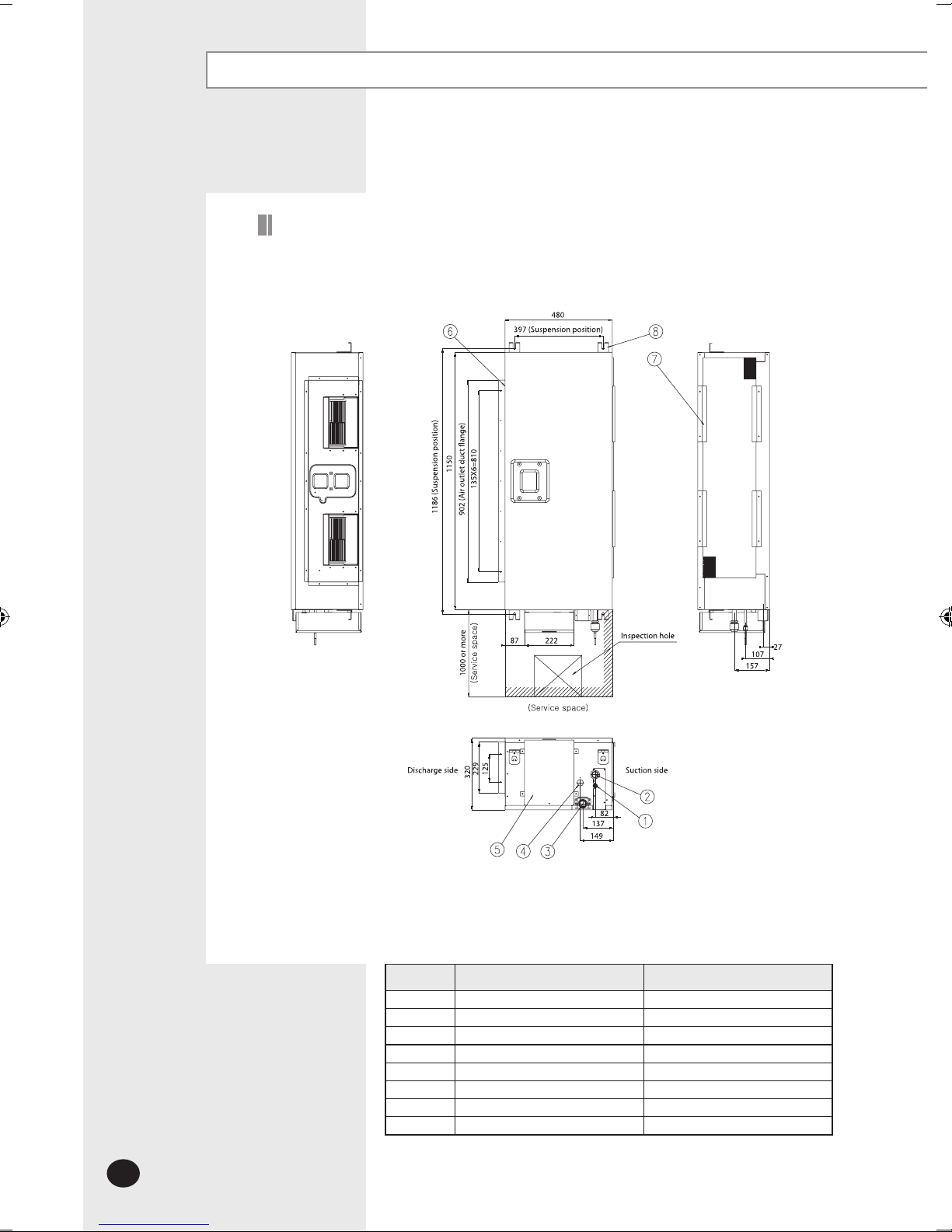

Drawing of the indoor unit
Unit : mm
No. Name Description
1 Liquid pipe connection ø9.52
2 Gas pipe connection ø15.88
3 Drain pipe connection OD32 ID26
4 Drain pipe connection Using drain pump (Optional)
5 Power supply connection
6 Air discharge flange
7 Air filter
8 Hook M8~M10
105
DH@@@EAV_IM_E_26919-1.indd 6 2006-12-27 ｿﾀﾈﾄ 4:11:19

E-7
ENGLISH
Deciding on where to install the indoor unit (Continued)
No. Name Description
1 Liquid pipe connection ø9.52
2 Gas pipe connection ø19.05
3 Drain pipe connection OD32 ID26
4 Drain pipe connection Using drain pump (Optional)
5 Power supply connection
6 Air discharge flange
7 Air filter
8 Hook M8~M10
Unit : mm
140
DH@@@EAV_IM_E_26919-1.indd 7 2006-12-27 ｿﾀﾈﾄ 4:11:21

E-8
Indoor unit installation
1
Place the pattern sheet on the ceiling at the spot where you want to install
the indoor unit.
Note Since the diagram is made of paper, it may shrink or stretch
slightly due to temperature or humidity. For this reason,
before drilling the holes maintain the correct dimensions
between the markings.
2
Insert bolt anchors. Use existing ceiling supports or construct a suitable
support as shown in figure.
3
Install the suspension bolts depending on the ceiling type.
CAUTION  Ensure that the ceiling is strong enough to support
the weight of the indoor unit. Before hanging the
unit, test the strength of each attached suspension
bolt.
 If the length of suspension bolt is more than 1.5m,
it is required to prevent vibration.
4
Screw eight nuts to the suspension bolts making space for hanging the
indoor unit.
CAUTION You must install the suspension bolts more than four
when installing the indoor unit.
5
Hang the indoor unit to the suspension bolts between two nuts.
Note You must install the suspension bolts more than four when
installing the indoor unit.
6
Screw the nuts to suspend the unit.
7
Adjust level of the unit by using measurement plate for all 4 sides.
Note For proper drainage of condensate, give a 3mm slant to the
left or right side of the unit which will be connected with the
drain hose, as shown in the figure. Make a tilt when you wish
to install the drain pump, too.
It is recommended to install the refnet joint before installing the indoor unit.
Concrete
Suspension bolt(M8)-field supply
Hole in anchor
hole in plug
Ceiling support
When the drain hose is installed to the right.
Drain hose port
3mm
Insert
DH@@@EAV_IM_E_26919-1.indd 8 2006-12-27 ｿﾀﾈﾄ 4:11:22

E-9
ENGLISH

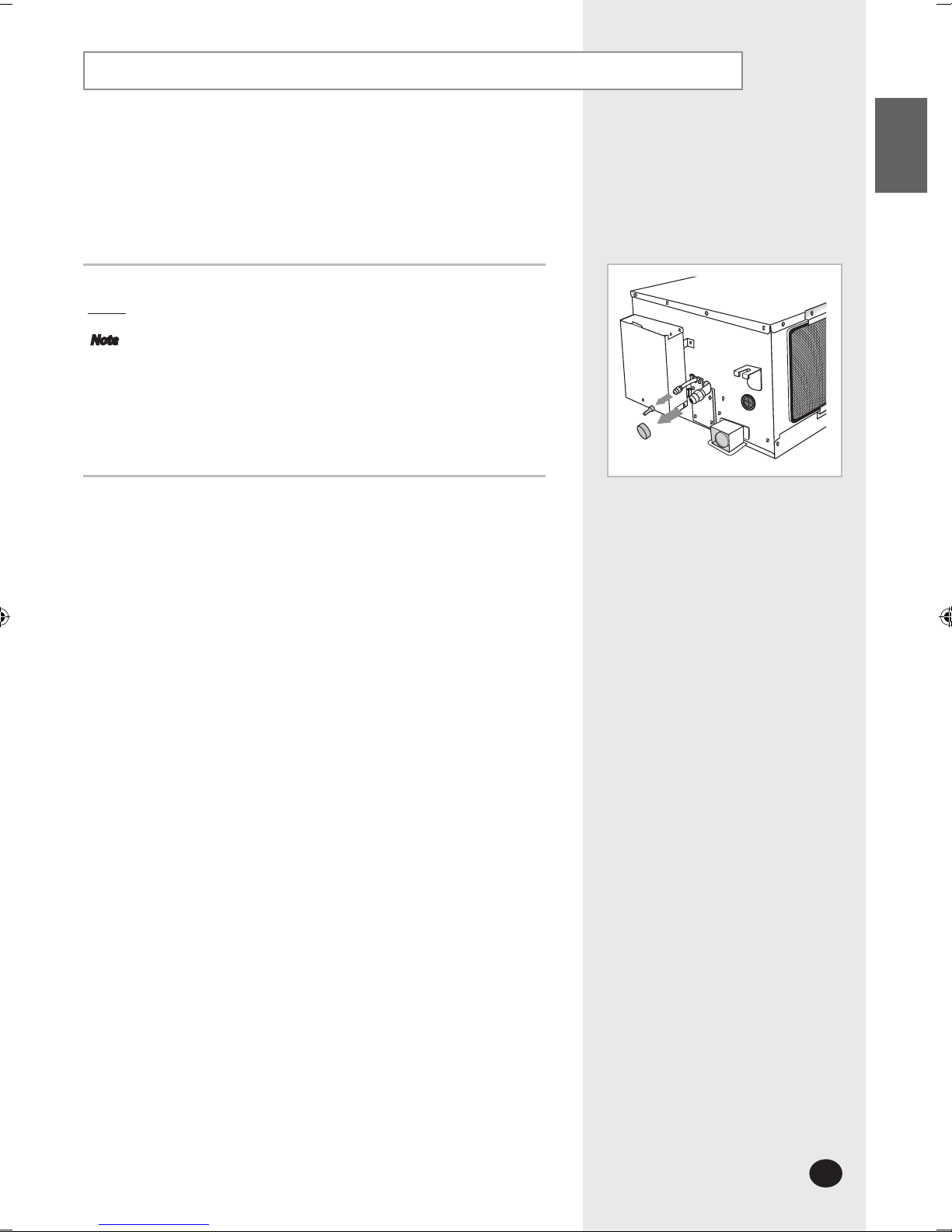

On delivery, the indoor unit is loaded with refrigerant gas.
All this gas must therefore be purged before connecting the assembly
piping. To purge the inert gas, proceed as follows.
Unscrew the pinch pipe at the end of each refrigerant pipe.
Result: All inert gas escapes from the indoor unit.
Note To prevent dirt or foreign objects from getting into the pipes
during installation, do NOT remove the pinch pipe completely until
you are ready to connect the piping.
Purging the unit
 The designs and shape are subject to
change according to the model.
DH@@@EAV_IM_E_26919-1.indd 9 2006-12-27 ｿﾀﾈﾄ 4:11:22

E-10

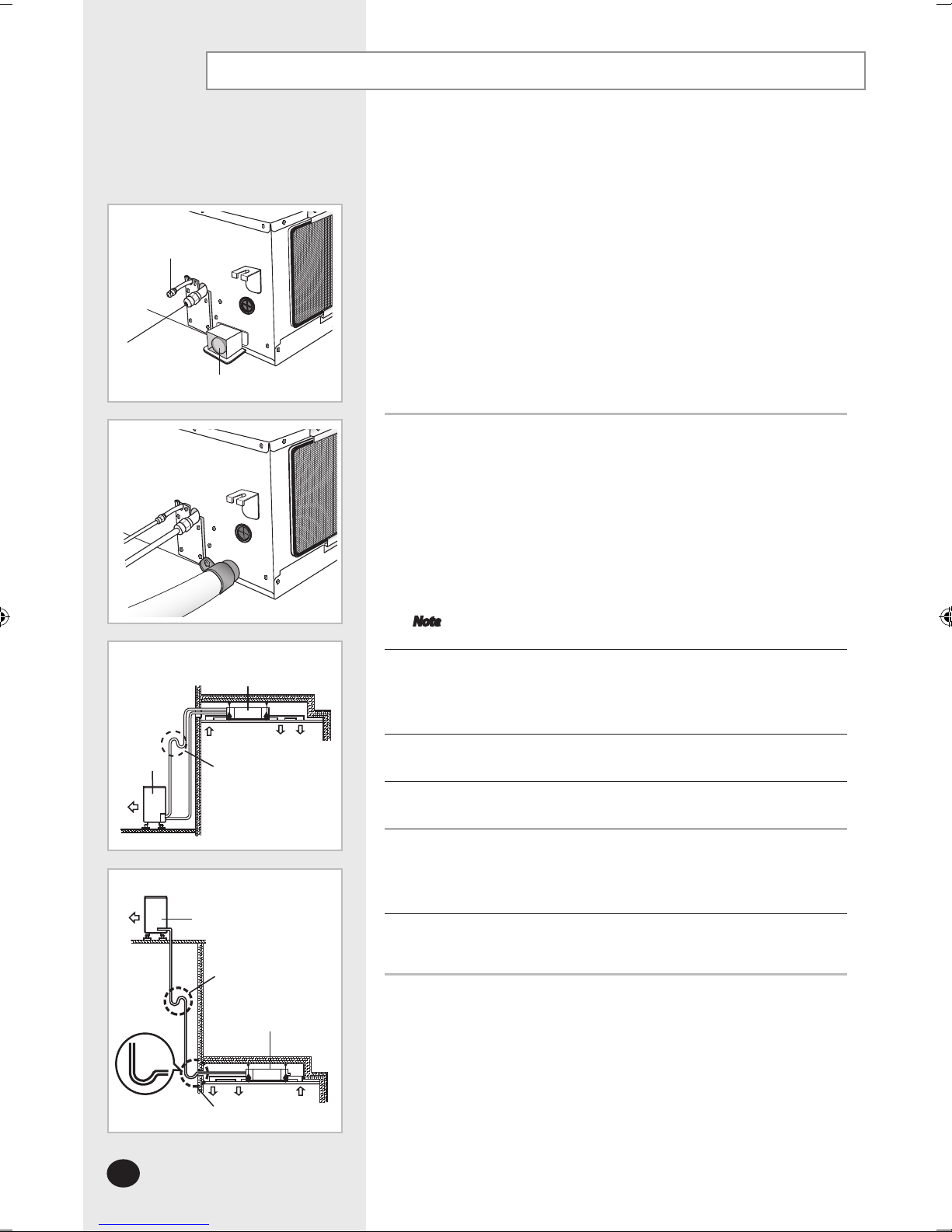

Connecting the refrigerant pipe
There are two refrigerant pipes of different diameters:
 A smaller one for the liquid refrigerant
 A larger one for the gas refrigerant

The thickness of tube should not be less than 1.0mm.
 The inside of copper tube must be clean & has no dust.
The connection procedure for the refrigerant pipes varies according to the
exit position of the pipes from the indoor unit, as seen when facing the indoor
in the “A” side.

Liquid refrigerant port

Gas refrigerant port

Drain hose connection port

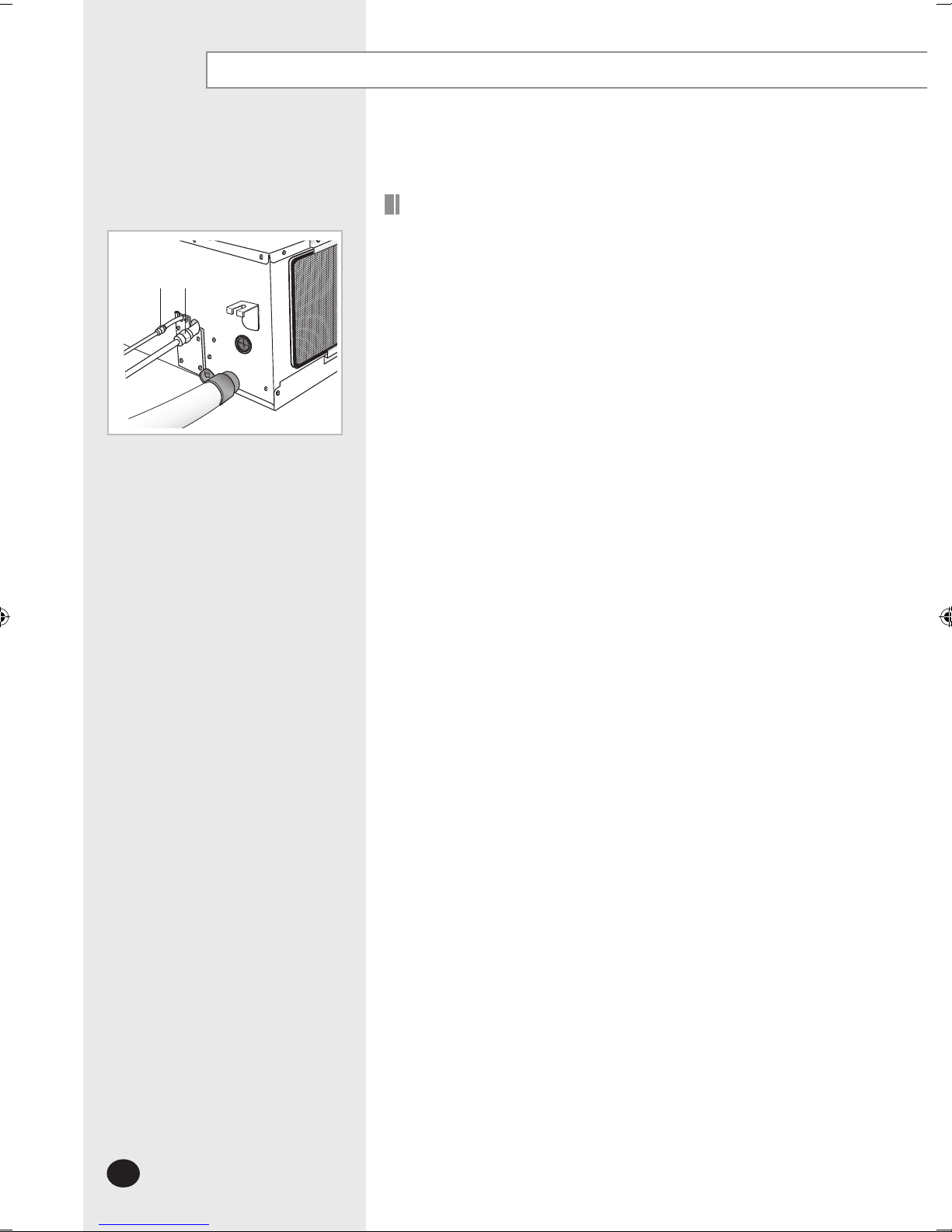

1
Remove the pinch pipe on the pipes and connect the assembly pipes
to each pipe, tightening the nuts, first manually and then with a torque
wrench, a spanner applying the following torque.
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4”)
9.52 mm (3/8”)
12.70 mm (1/2”)
15.88 mm (5/8”)
19.05 mm (3/4”)
22.23 mm (7/8”)
140~170
250~280
380~420
440~480
990~1210
990~1210
Note If the pipes must be shortened refer to page 11.
2
Must use insulator which is thick enough to cover the refrigerant tube to
protect the condensate water on the outside of pipe falling onto the floor
and the efficiency of the unit will be better.
3
Cut off any excess foam insulation.
4
Be sure that there must be no crack or wave on the bended area.
5
It would be necessary to double the insulation thickness(10mm or more)
to prevent condensation even on the insulator when if the installed area is
warm and humid.
6
Shape an oil trap as shown in figure the oil trap must be fomed every level
difference of 10m.
Drain hose connection port
Gas refrigerant port
Liquid refrigerant
port
A
a. When the indoor unit is above the outdoor unit
Indoor unit
Oil trap
(Must be installed
every 10m)
Outdoor unit
b. When the outdoor unit is above the indoor unit
Outdoor unit
Oil trap
(Must be installed
every 10m)
Oil trap
(suction tube)
indoor unit
Radius
5cm
DH@@@EAV_IM_E_26919-1.indd 10 2006-12-27 ｿﾀﾈﾄ 4:11:23

E-11
ENGLISH
Cutting/Flaring the pipes
1
Make sure that you have the required tools available (pipe cutter, reamer,
flaring tool and pipe holder).
2If you wish to shorten the pipes, cut it with a pipe cutter, taking care to ensure
that the cut edge remains at a 90° angle with the side of the pipe. Refer to the
illustrations below for examples of edges cut correctly and incorrectly.
3
To prevent any gas from leaking out, remove all burrs at the cut edge of the
pipe, using a reamer.
4
Slide a flare nut on to the pipe and modify the flare.
Outer diameter (D) Depth (A)
6.35 mm (1/4”)
9.52 mm (3/8”)
12.70 mm (1/2”)
15.88 mm (5/8”)
19.05 mm (3/4”)
22.23 mm (7/8”)
1.3mm
1.8mm
2.0mm
2.2mm
2.2mm
2.2mm
5
Check that the flaring is correct, referring to the illustrations below for
examples of incorrect flaring.
6
Align the pipes and tighten the flare nuts first manually and then with
a torque wrench, applying the following torque.
Outer diameter Torque (kgf•cm)
6.35 mm (1/4”)
9.52 mm (3/8”)
12.70 mm (1/2”)
15.88 mm (5/8”)
19.05 mm (3/4”)
22.23 mm (7/8”)
140~170
250~280
380~420
440~480
990~1210
990~1210
CAUTION
In case of welding the pipe, you must weld with nitrogen gas blowing.
Inclined Damaged Surface Cracked Uneven Thickness
Oblique Rough Burr
DH@@@EAV_IM_E_26919-1.indd 11 2006-12-27 ｿﾀﾈﾄ 4:11:24

E-12
Performing leak test & insulation
To check for gas leaks on the indoor unit, check the connection part of each
refrigerant pipe by using a leak detector.
Leak test
A B
DH@@@EAV_IM_E_26919-1.indd 12 2006-12-27 ｿﾀﾈﾄ 4:11:24

E-13
ENGLISH
Performing leak test & insulation

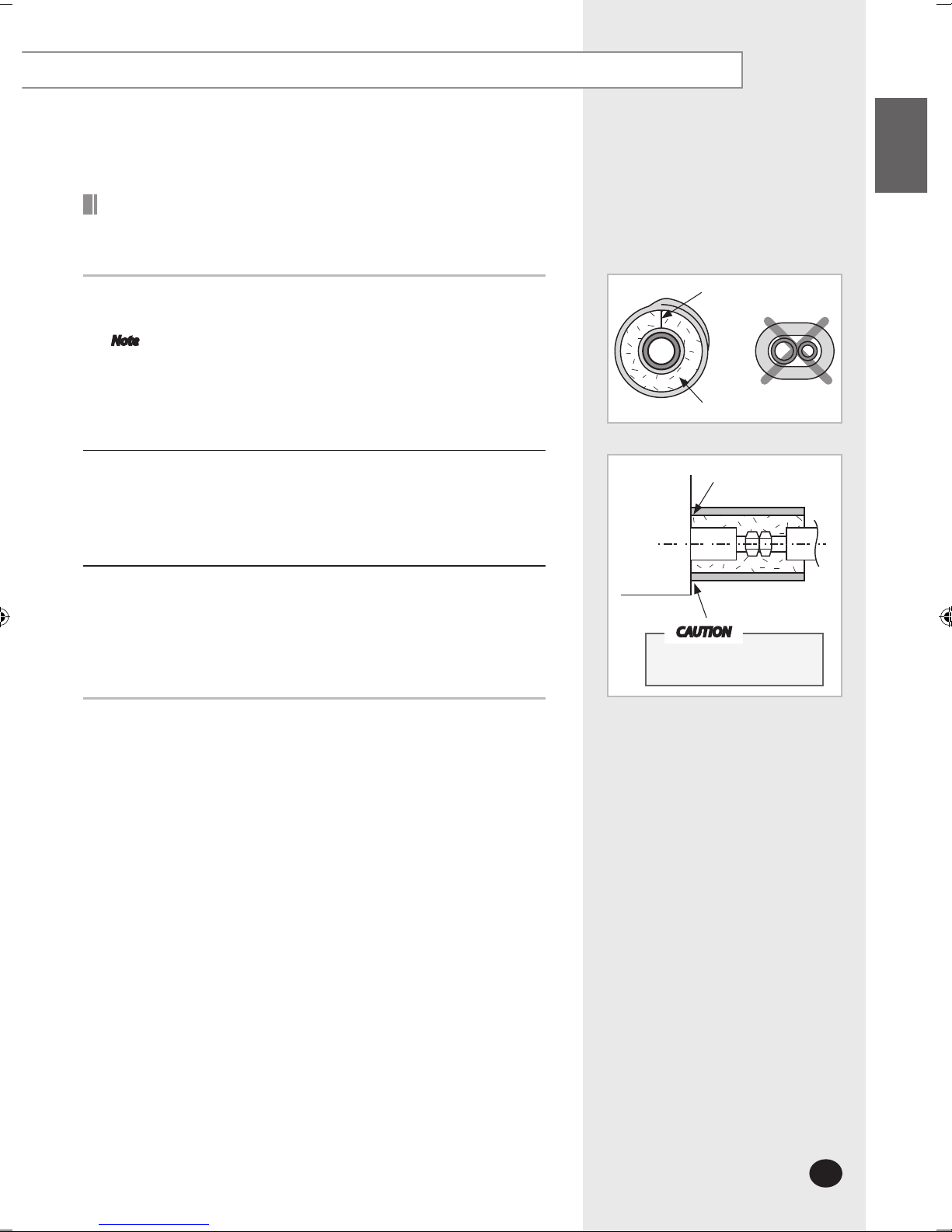

Insulation
Once you have checked that there are no leaks in the system,
you can insulate the piping and hose.
1
To avoid condensation problems, place T13.0 or thicker Acrylonitrile
Butadien Rubber separately around each refrigerant pipe.
Note Always make the seam of pipes face upwards.
2
Wind insulating tape around the pipes.
3
Finish wrapping insulating tape around the rest of the pipes leading to the
outdoor unit.
No gap
NBR(T13.0 or thicker)
Insulation cover pipe
Indoor unit
Be sure to overlap
the insulation

CAUTION
Must fit tightly against body
without any gap.
DH@@@EAV_IM_E_26919-1.indd 13 2006-12-27 ｿﾀﾈﾄ 4:11:25

E-14

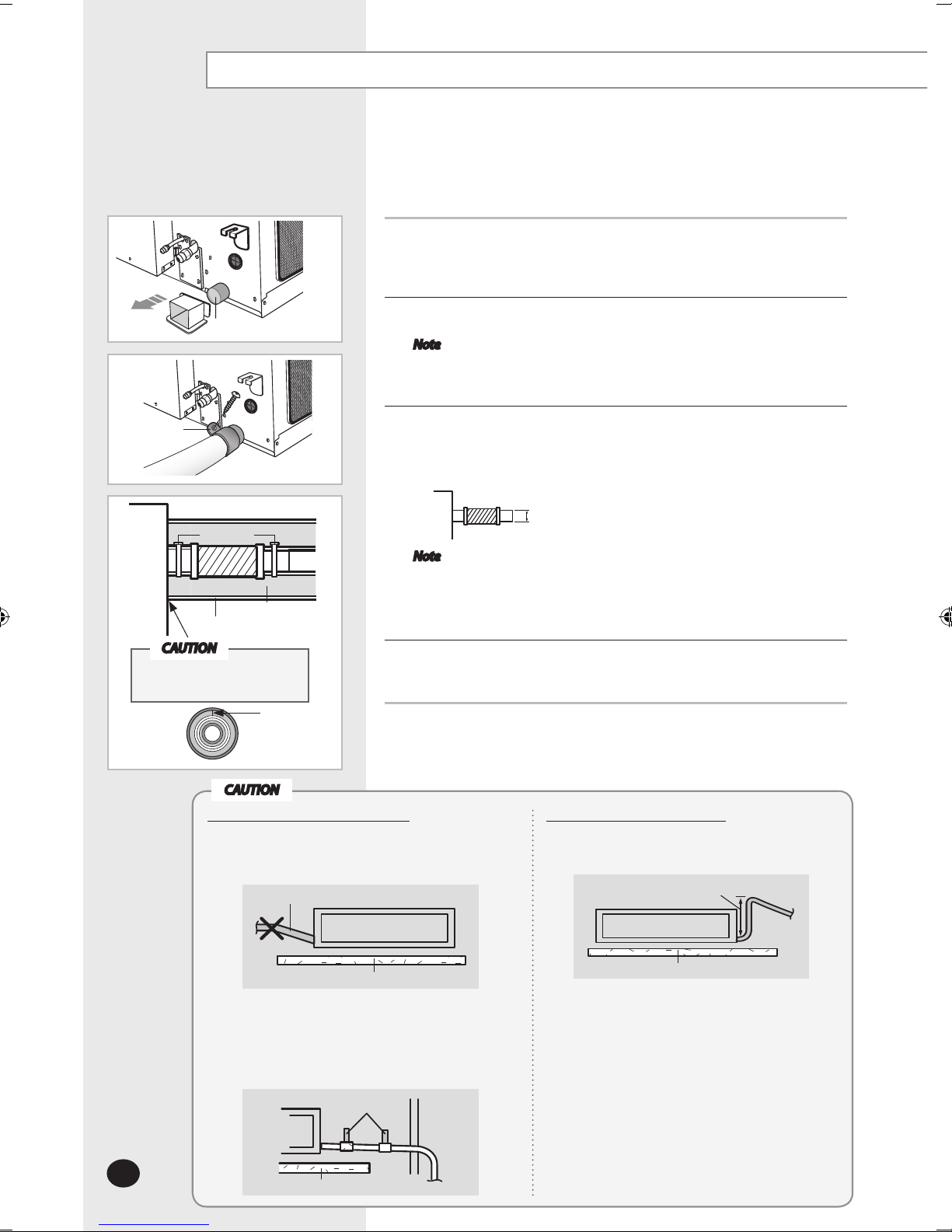

Drain hose installation
Care must be taken when installing the drain hose for the indoor unit to
ensure that any condensate water is correctly drained outside.
The drain hose can be installed to the right of the base pan.
1
Unscrew the 4 tapped screws to remove the cover of the drain hose
connection port.
2
Insert the flexible hose to the drain hose port.
Note Fix the flexible hose to the indoor unit with the supplied cable
clamp securely.
(Use the screwdriver to fix the flexible hose securely.)
3
Install the drain hose so that its length can be as short as possible.
Internal diameter of the drain hose should be the same or slightly bigger
than the external diameter of the drain hose port.
Inner diameter of the drain hose
Note Give a slightly slant to the drain hose for proper drainage of
condensate.
Fix the flexible hose to the PVC with the supplied cable tie
securely.
4
Wrap the drain hose with the insulation drain as shown in figure and secure it.
Drain hose connection port
Cable clamp
Indoor
unit Cable-tie
Insulation drain hose
Insulation cover drain

CAUTION
Must fit tightly against body
without any gap.
No gap
32mm(Inner diameter)
CAUTION
Do not apply force to the piping on the unit side when
connecting the drain hose. The hose should not be allowed
to hang loose from its connection to the unit. Fasten the
hose to a wall, frame or other support as close to the unit as
possible.
Upward gradient
Ceiling
Support pieces
Ceiling
When not installing the drain pump
Do not give the hose upward gradient after the connection
port. This will cause water to flow backwards when the unit
is stopped, resulting in water leaks.
When installing the drain pump
The maximum height of drain pump hose is 75cm or less.
If it is raised higher than 75cm, there can be water leaks.
75cm or less
Ceiling
DH@@@EAV_IM_E_26919-1.indd 14 2006-12-27 ｿﾀﾈﾄ 4:11:26

E-15
ENGLISH
Drain hose installation
Testing the drainage
Prepare a little water about 5 liter.
1
Pour water into the base pan in the indoor unit as shown in figure.
2
Confirm that the water flows out through the drain hose.
DH@@@EAV_IM_E_26919-1.indd 15 2006-12-27 ｿﾀﾈﾄ 4:11:26

E-16
Adjusting air flow
E. S. P(External Static Pressure) setting for phase control motor
With its phase control motor, you can adjust the indoor unit fan speed depending on the installation condition.
If the external static pressure is high so that the duct becomes longer or if the external static pressure is low so that the
duct becomes shorter, adjust the fan speed by referring the following table. Refer to the page 17 to set the option code.
Static Pressure(mmAq) 0 2 4 6 8 10
Model Step Option code for indoor unit
DH105EAV
Hi 015773-
11C15F
015774-
11C070
015774-
11C092
015774-
11C0E4
015774-
11C299
015774-
11C3F2
Mid
Low
DH140EAV
Hi 015774-
13C25A
015774-
13C26D
015774-
13C27E
015774-
13C391
015774-
13C3D2
015774-
13C3F5
Mid
Low
Note  represents E. S. P(External Static Pressure) range of factory setting.
You don’t have to adjust the fan speed separately if the external static pressure of the installation
place is in . When it is out of , input the appropriate option code.
If you input the inappropriate option code, error may occur or the air conditioner is out of order.
The option code must be inputted correctly by the installation specialist or service agent.
Range of static pressure (Factory preset)
External static pressue(mmAq)
Min. Normal Max.
6 8 10
DH@@@EAV_IM_E_26919-1.indd 16 2006-12-27 ｿﾀﾈﾄ 4:11:26

E-17
ENGLISH
Setting up the mode option
Setting is not required if you want to input
. is displayed by default.
Setting option setup method
For example) Option code :
1
Prepare of the option setup mode.
a. Take out the batteries of remote control.
b. Press the button simultaneously and insert the battery again.
c. Make sure the remote control display shows as .
2
Enter the option setup mode and select your option according to the
following procedure.
 The default value is . Otherwise, push the button to .

Every time you press the button, the display panel reads or
repeatedly.
 Press the button to set the display panel to .

Every time you press the button, the display panel reads
 

 ...     
repeatedly.
 Press the button to set the display panel to .

Every time you press the button, the display panel reads
 

 ...     
repeatedly.
 Press the button to set the display panel to .

Every time you press the button, the display panel reads
 

 ...     
repeatedly.
 Press the button to set the display panel to .

Every time you press the button, the display panel reads
 

 ...     
repeatedly.
 Press the button to set the display panel to .

Every time you press the button, the display panel reads
 

 ...     
repeatedly.






DH@@@EAV_IM_E_26919-1.indd 17 2006-12-27 ｿﾀﾈﾄ 4:11:30

E-18
Setting is not required if you want to input
. is displayed by default.




 Press the button, then the default value is .
 Press the button to set the display panel to .

Every time you press the button, the display panel reads
 

 ...     
repeatedly.
 Press the button to set the display panel to .

Every time you press the button, the display panel reads
 

 ...     
repeatedly.
 Press the button to set the display panel to .

Every time you press the button, the display panel reads
 

 ...     
repeatedly.
Press the button to set the display panel to .

Every time you press the button, the display panel reads
 

 ...     
repeatedly.
Press the button to set the display panel to .

Every time you press the button, the display panel reads
 

 ...     
repeatedly.
3
Check you made right selections upon completion of the selection.
a. Press the
button once to check the former part of option code
you inputted.

The display part shows .
b. Press the button once to check the former part of option code
you inputted.

The display part shows .
Setting up the mode option (Contined)
DH@@@EAV_IM_E_26919-1.indd 18 2006-12-27 ｿﾀﾈﾄ 4:11:34

E-19
ENGLISH
4
Press the button.

When you press the button towards the indoor unit,
the sound ‘Ding’ or ‘Diriring’ is heard and the power indicator of the
display flashes at the same time. Then the option code setting is
completed.
(If the sound is not heard, press the button again.)
5
Check the air conditioner operates normally.
a. Remove the battery from the remote control.
b. Insert the battery into the remote control again.
c. Press the towards the indoor unit.
Note If all indicators of the indoor unit are flashing, plug out the
power plug and plug it in again.
Then press the button.
If the air conditioner does not operate normally or all lamps
indicators flash, check that the correct option code is set up.

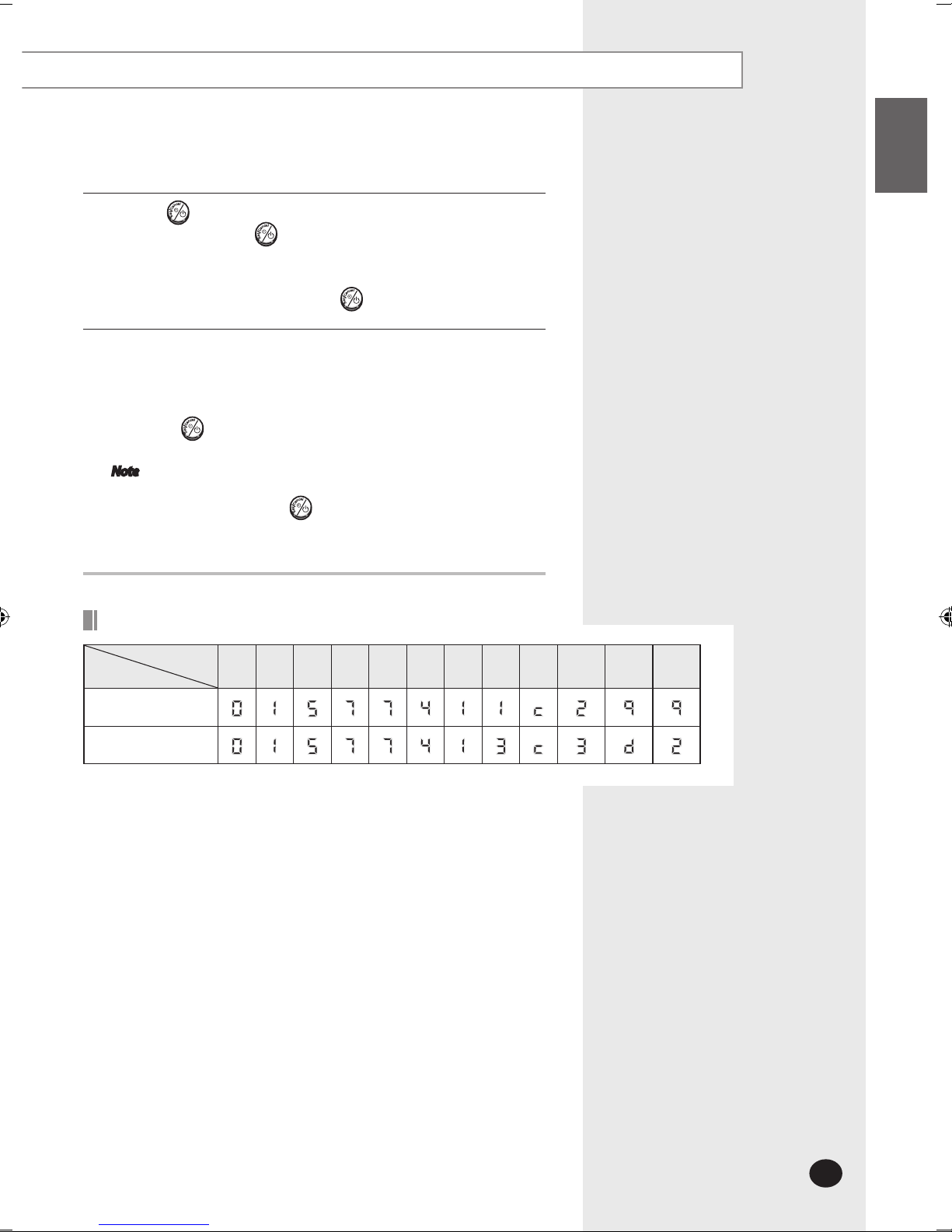

Option items
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
DH105EAV
DH140EAV
Model
Remote
control
Setting up the mode option (Contined)
DH@@@EAV_IM_E_26919-1.indd 19 2006-12-27 ｿﾀﾈﾄ 4:11:36

E-20
Assigning address to indoor unit
1
Before installing the indoor unit, assign an address to the indoor unit
according to the air conditioning system plan.
2
The address of the indoor unit is assigned by adjusting MAIN(SW02) and
RMC(SW04) rotary switches.
3
It is required to set the RMC address if you install the wired remote control
and/or the centralized control.
4If you install optional accessories such as the wired remote control, centralized
control, etc. see an appropriate installation manual.
5If an optional accessory is not installed, you do not have to set the RMC address.
However, adjust K1 and K2 switches of the SW05 DIP switch to "ON" position in
this case.
DH@@@EAV_IM_E_26919-1.indd 20 2006-12-27 ｿﾀﾈﾄ 4:11:37
