Samsung AM030RXMDEH/EU User manual

Refer to the service manual in the GSPN(see the rear cover) for the more information.
AIR CONDITIONER CONTENTS
SYSTEM AIR CONDITIONER
OUTDOOR UNIT
1. Precautions
2. Product Specifications
3. Disassembly and Reassembly
4. Troubleshooting
5. PCB Diagram
6. Wiring Diagram
7. KEY OPTION
8. Auto Commissioning & Management
System & Amount of Refrigerant
Check Function
9. Index for Model Name
AM040KXMDEH/EU
AM050KXMDEH/EU
AM040KXMDEH/TK
AM050KXMDEH/TK
AM040KXMDCH/AZ
AM050KXMDCH/AZ
AM030RXMDEH/EU

2Samsung Electronics
High performance BLDC fan motor
Cross section of a Turbo Inter-cooler
󳫴33% more efficient compare to AC motor
󳫴Wide speed control range, less noise
generation
Turbo Inter-cooler
󳫴Long piping up to 175m with sub-cooling
󳫴Up to 50m levela difference is allowed for
installation
Twin BLDC compressor
󳫴Increased energy efficiency
compare to conventional compressor
󳫴Stable operation with 80%
decreased vibration
Anti-chloride coated outdoor unit
heat exchanger
󳫴Anti-corrosion /erosion G-Fin
provide stable heat exchanging
performanceation
High efficient propeller fan
󳫴Reduced noise on outdoor
unit
󳫴Improved heat exchange
rate
Company A
Company A
Diameter Ø8 Ø7
Heat transfer surface area 19%
Evaporation 14.1%
Condensation 10.3%
Internal heat transfer performance
30.8%
Pressure resistance Same
➜➜
➜
Pressure
loss in heat
exchanger
1. Precautions
1-1. The Feature of Product
1-1-1 Feature
High efficient heat exchanger
High efficient G-Fin & epoxy acrylic coating has increased heat transfer and hydrophilicity on heat exchanger.
Structure of outdoor unit

Precautions
Samsung Electronics 3
20 30 40 0
2
4
8
10
12
0.00
0.08
0.04
0.12
0.24
0.16
Amount of transferred heat (kW/m)
Refrigerant flow (Kg/h)
Increased by 30.8%
Decreased by 14%
Pressure loss (kPa/m)
Ø7 Groove Ø8 High Groove
New Ø7 wide fin
Ø7 wide fin
Heat transfer
amount
15%
New Ø8 wide fin
Ø8 Fin
Heat transfer
amount
10%
1-1-1 Feature (cont.)
Optimized cooling/heating and increased system efficiency! Liquid EEV & Turbo Inter-cooler
• Liquid EEV for increased efficiency of the system
Through Liquid EEV, controlling of valve opening has become more efficient and it achieved optimized system efficssiency and
minimized noise from the refrigerant in the indoor unit.
• Turbo Inter-cooler
High performing shell & tube type heat exchanger has been applied to secure cooling/heating efficiency. It has secured enough
subcooling to acquire reliability on long piping and it also increased cooling/heating efficiency.
Application of wide fin
High efficient heat exchanger has been applied, therefore it delays the onset of frost formation and increased heat transfer efficiency.
Sub-cooled
liquid refrigerant
Low temperature
gas refrigerant
Low temperature
liquid refrigerant
Saturated liquid refrigerant
Cross section of the
Turbo inter-cooler
Cross section of the
conventional inter-cooler
*Increased heat transfer area with Shell & Tube type
온도
Temperature
Turbo Inter-cooler

Precautions
4Samsung Electronics
Raw aluminum material
Anti corrosive layer (Epoxy acrylic)
Hydrophilic layer (Acrylic resin + surfactant)
Company A
No corrosion after 1,000 hours of test
Corrosion is evident after 1,000 hours of test
 󳚥
 󳚥
 󳚥
* Tested by Samsung
Company A
Level
difference
between
indoor units
15m
High level
difference
50m
Long piping
175m
(Equivalent length)
1-1-1 Feature (cont.)
Reinforced corrosion resistance on the heat exchanger
To prevent corrosion of the products which is installed in saline area, corrosion resistance has been reinforced.
Long piping/High level difference technology
Longest piping length is allowed up to 175m (equivalent length) and Maximum 50m of level difference is allowed for more flexible
installation.

Precautions
Samsung Electronics 5
Operation
time
12 hours of silent mode6 hours
7 : 00 13 : 30 19 : 00 7 : 00
End
Highest temperature
※ 3 month worth of data can be saved
when memory module is installed
Black box function of the Main PCS
1-1-1 Feature (cont.)
Memory module
• Achieves world-class efficiency with hyper compressor that applies double compression technology
If outdoor unit malfunction occurs, diagnose and repair of the problem will be much quicker with the last 3 minutes worth of a data
saved before the malfunction. (With the extra memory module, 3 months worth of a data can be saved.)
Silent operation at nighttime
• When outdoor unit needs to operate more silently during nighttime, silent mode can be set from the outdoor unit option mode.
• Silent mode can be adjusted in 3 levels depending on the level of noise.

Precautions
6Samsung Electronics
Refrigerant pump-down
If you need to move/replace the outdoor unit or when there are problems on indoor units or on the pipes, outdoor unit will recover
refrigerant remaining on the pipes.
Conventional
1,270mm
135kg
998mm
76kg
44%
6 hour s
Outdoor
Fan RP M
Night Night
12 hour s
Indoor unit
malfunction
* Based on 5HP model
Refrigerant recoveringsss
1-1-1 Feature (cont.)

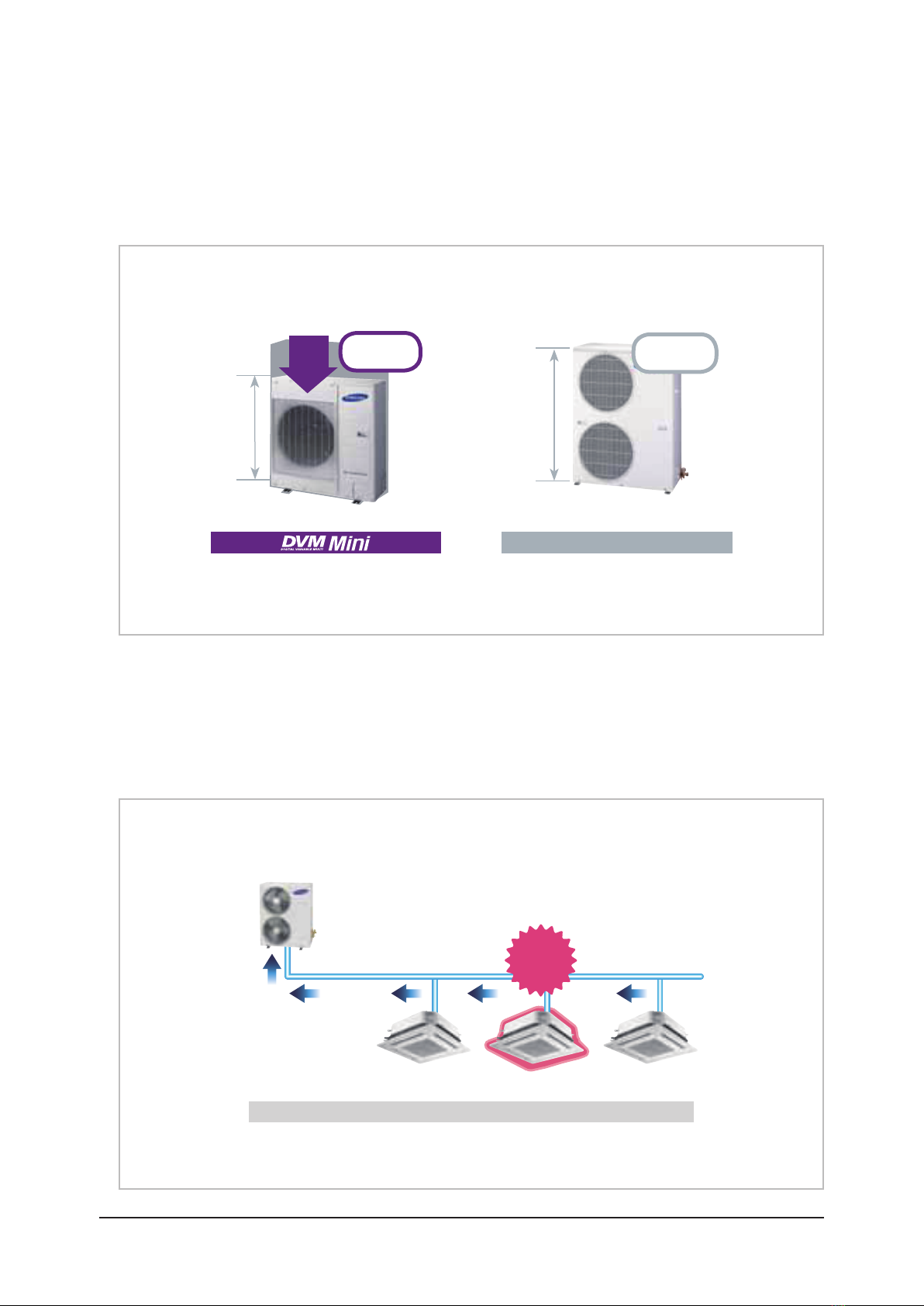

Reduced size and light weight
Compare to conventional models, size and weight of the product has been decreased while it performance is more or so the same.
Weight of the product is now 76kg, which is 44% lighter than conventional model, which makes moving and installing much easier.

Precautions
Samsung Electronics 7
Maximum 9 indoor unit connection
1-1-1 Feature (cont.)
System check through View mode
• Through the window on outdoor unit PCB display, you can check the main system data during operation.
• Shortened maintaining and inspection
• Displaying 15 main data including high pressure of system
- Outdoor temperature
- Discharge temperature of the compressor
- Condensing temperature
• Using the DIP switch on the outdoor unit PCB, you can limit the running current of the system
Maximum 9 indoor unit connection
You may connect up to 9 indoor units on a single outdoor unit. It will allow more powerful and flexible air conditioning system
and you can select refrigerant pipe length, or number of indoor units depending on the needs for office, commercial and residential
places.

Precautions
8Samsung Electronics
Conventional
* For models with 9kW or larger (Flare type connection)
1-1-1 Feature (cont.)
Convenient product installation
Service valve is not exposed to keep the neat appearance and pipe can be connected in 4 different directions which provide flexible
installation and maintenance services.

Samsung Electronics 9
Type
Performance kW 12.1 14.0
HP 45
Model AM040KXMDCH/AZ AM050KXMDCH/AZ
Power Supply(Φ/V/Hz) 1, 208~230V, 60Hz 1, 208~230V, 60Hz
Division Cooling and heating Cooling and heating
Performance
Cooling kW 12.1 14.0
Kcal/h 41,287 47,770
Heating kW 12.1 14.0
Kcal/h 41,287 47,770
Power
Operating
current
Cooling A17.5 19.5
Heating A14.0 16.5
Power
consumption
Cooling kW 3.6 4.0
Heating kW 2.9 3.4
Power
Type -UG5T450FUEJX UG5T450FUEJX
Piston cc/REV 43.0 43.0
Output W - -
Lubricant Type -POE POE
Charging cc 1,700 1,700
Refrigerant Type -R410 R410
Factory Charging kg 2.0 2.5
Fan
Type -Propeller Fan Propeller Fan
Output W125.0 125.0
Airow rate CMM 64 70
Pipe Piping connections Liquid Φ,mm 9.52 9.52
Gas Φ,mm 15.88 15.88
Cable Main Power (Below/about 20m) mm² 4(H07RN) 4(H07RN)
Communication mm² VCTF0.75~1.5(2P) VCTF0.75~1.5(2P)
Product size
Net weight kg 940 x 998 x 330 940 x 998 x 330
Shipping Weight kg 1009 x 1124 x 419 1009 x 1124 x 419
Net dimension(WxHxD) mm 79.0 83.5
Shipping dimension(WxHxD) mm 84.5 89.0
Operating
Temp. Range
Cooling ℃-5.0 ~ 48.0 -5.0 ~ 48.0
Heating ℃-20.0 ~ 24.0 -20.0 ~ 24.0
1. Regular Heating/Cooling Capacity
- Cooling Capacity: Figures obtained under the conditions of indoor 27°C DB/19.5°C WB, outdoor 35°C DB, pipe length 7.5m, level difference 0m
- Heating Capacity: Figures obtained under the conditions of indoor 20°C DB, outdoor 7°C DB, pipe length 7.5m, level difference 0m
2. The regular heating capacity is based on the outdoor temperature of 7°C. When the outdoor temperature drops below 0°C, the heating capacity may drop as well
due to the temperature.
2. Product Specifications

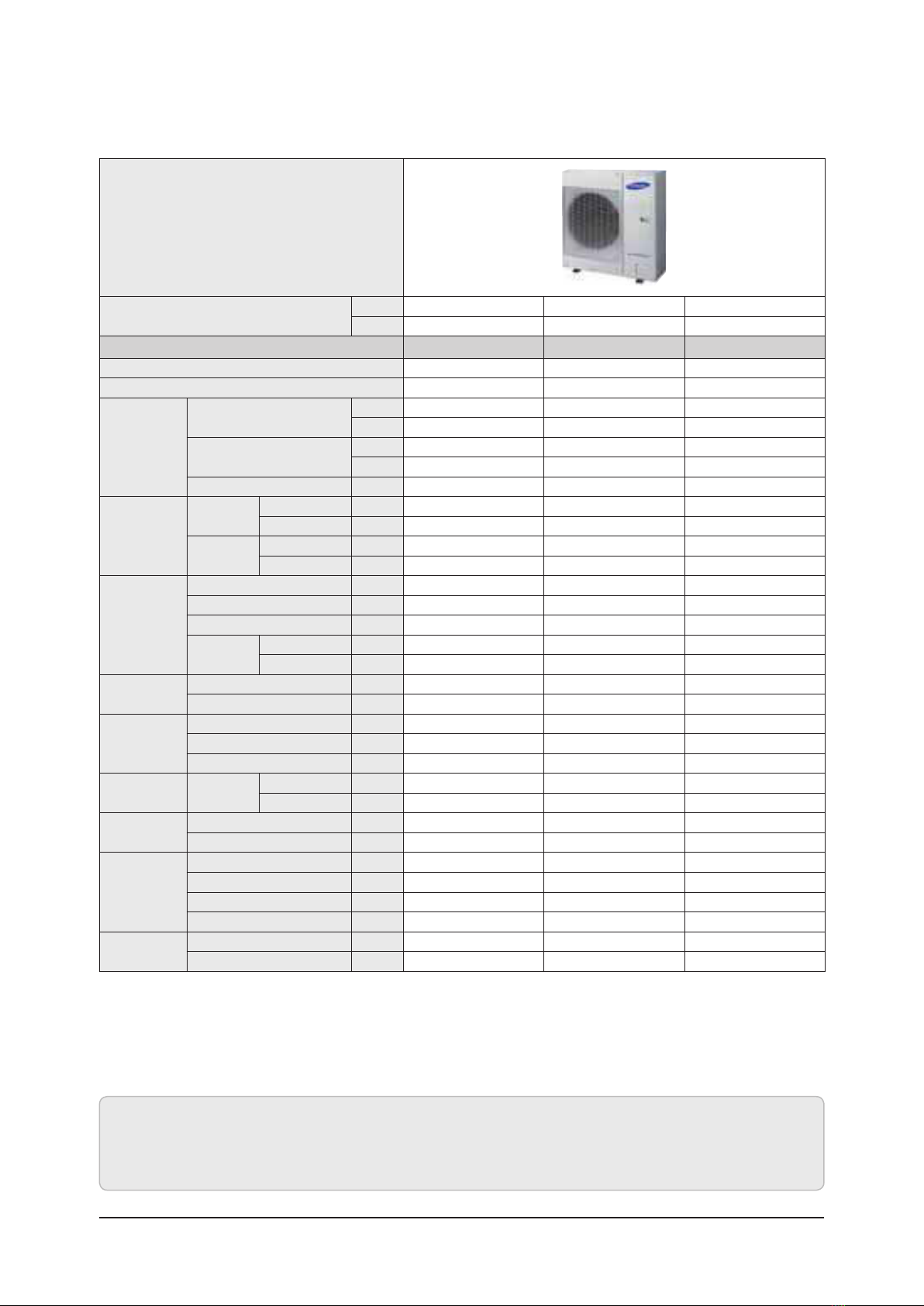

1-2. Product Specifications

10 Samsung Electronics
1. Regular Heating/Cooling Capacity
- Cooling Capacity: Figures obtained under the conditions of indoor 27°C DB/19.5°C WB, outdoor 35°C DB, pipe length 7.5m, level difference 0m
- Heating Capacity: Figures obtained under the conditions of indoor 20°C DB, outdoor 7°C DB, pipe length 7.5m, level difference 0m
2. The regular heating capacity is based on the outdoor temperature of 7°C. When the outdoor temperature drops below 0°C, the heating capacity may drop as well
due to the temperature.
Type
Performance kW 9.0 12.1 14.0
HP 345
Model AM030RXMDEH* AM040KXMDEHSAM050KXMDEHS
Power Supply(Φ/V/Hz) 1,220~240V, 50Hz 1, 220~240V, 50Hz 1, 220~240V, 50Hz
Division Cooling and heating Cooling and heating Cooling and heating
Performance
Cooling kW 9.0 12.1 14.0
Kcal/h 30,709 41,287 47,770
Heating kW 10.0 12.1 14.0
Kcal/h 34,121 41,287 47,770
-10°C Heating kW
Power
Operating
current
Cooling A10.60 17.5 19.5
Heating A10.20 14.0 16.5
Power
consumption
Cooling kW 2.20 3.6 4.0
Heating kW 2.10 2.9 3.4
Comp.
Type -UG5T450FUEJX UG5T450FUEJX UG5T450FUEJX
Piston cc/REV 43.0 43.0 43.0
Output W - - -
Lubricant Type -POE POE POE
Charging cc 1,700 1,700 1,700
Refrigerant Type -R410 R410 R410
Factory Charging kg 2.0 2.0 2.5
Fan
Type -Propeller Fan Propeller Fan Propeller Fan
Output W125.0 125.0 125.0
Airow rate CMM 64 64 70
Pipe Piping
connections
Liquid Φ,mm 9.52 9.52 9.52
Gas Φ,mm 15.88 15.88 15.88
Cable Main Power (Below/about 20m) mm² 4(H07RN) 4(H07RN) 4(H07RN)
Communication mm² VCTF0.75~1.5(2P) VCTF0.75~1.5(2P) VCTF0.75~1.5(2P)
Product size
Net dimension(WxHxD) mm 940 x 998 x 330 940 x 998 x 330 940 x 998 x 330
Shipping dimension(WxHxD) mm 1009 x 1124 x 419 1009 x 1124 x 419 1009 x 1124 x 419
Net weight kg 79.0 79.0 83.5
Shipping Weight kg 84.5 84.5 89.0
Operating
Temp. Range
Cooling ℃-5.0 ~ 48.0 -5.0 ~ 48.0 -5.0 ~ 48.0
Heating ℃-20.0 ~ 24.0 -20.0 ~ 24.0 -20.0 ~ 24.0

Samsung Electronics 11
3. Disassembly and Reassembly
Item Remark
+Screw Driver
Monkey Spanner
–Screw Driver
Nipper
Electric Motion Driver
L-Wrench
■Disassembly and reassembly of DVM MINI : Refer to the product of the same structure.
This chapter, only the product which is not duplicated in the other products listed.
3-1. Necessary Tools

Disassembly and Reassembly
12 Samsung Electronics
No Parts Procedure Remark
1 Cabi Front RH
You must turn off the Power before
disassembly.
1) Remove the 2 mounting screw in the Cabinet
Front RH and separate it. (Use + Screw Driver)
2 Cabi Top 1) Remove the 9 screws on each side of the
Cabinet-Top and separate it. (Use +Screw
Driver)
3 Cabi-Install front part 1) Remove the 1 screw in the Cabinet-Install
Front part and separate it. (Use +Screw Driver)
3-2. AM040/050KXMDEHS, AM040/050KXMDCHS, AM030RXMDEHS

Disassembly and Reassembly
Samsung Electronics 13
No Parts Procedure Remark

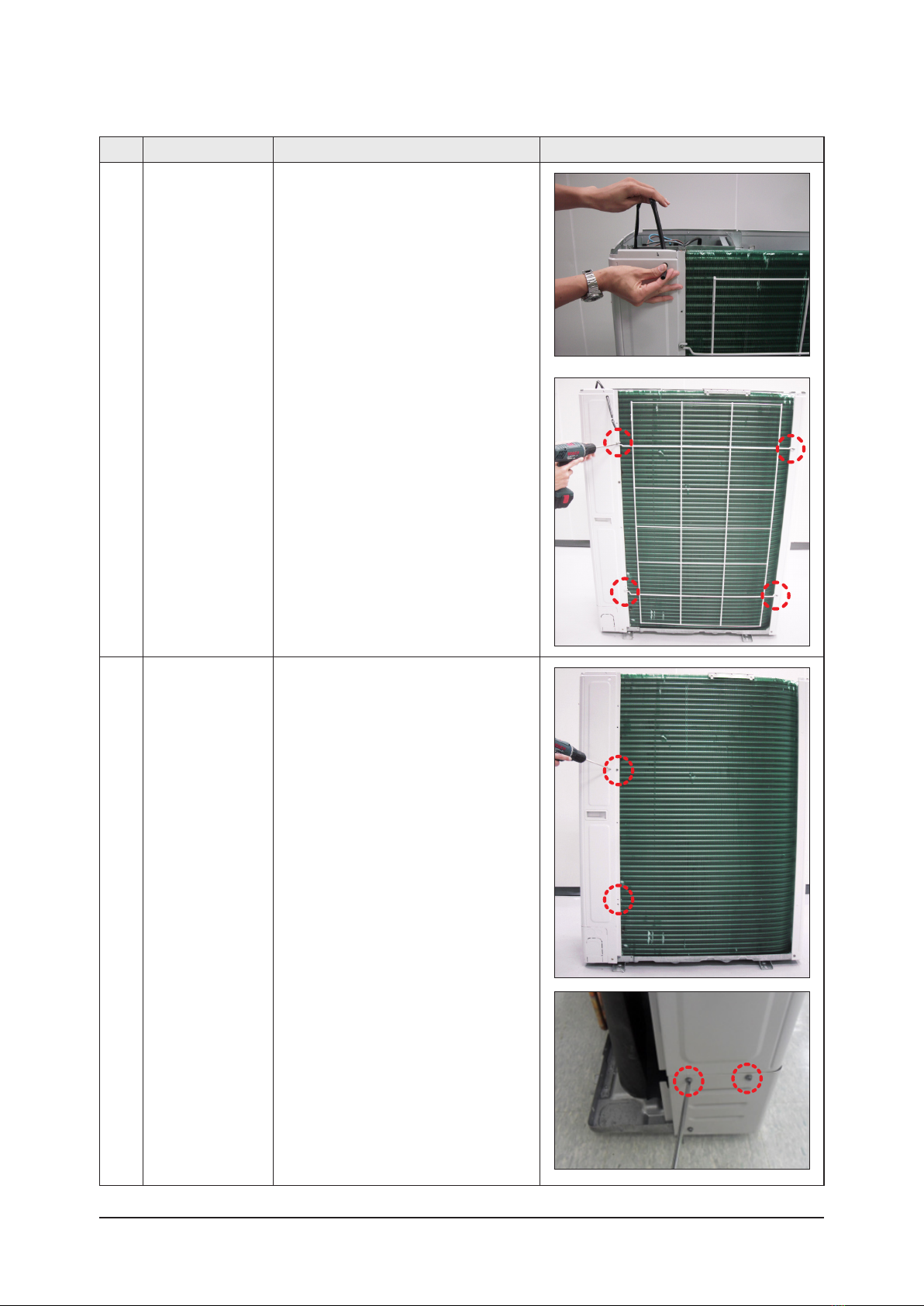

4 Outdoor Unit Guard 1) Pull the sensor from Outdoor Unit Guard.
2) Remove the 4 screws in the Outdoor Unit
Guard and separate it. (Use + Screw Driver)
5 Cabi Back RH 1) Remove the 4 screws on each side of the
Cabinet Back RH and separate it. (Use + Screw
Driver)

Disassembly and Reassembly
14 Samsung Electronics
No Parts Procedure Remark

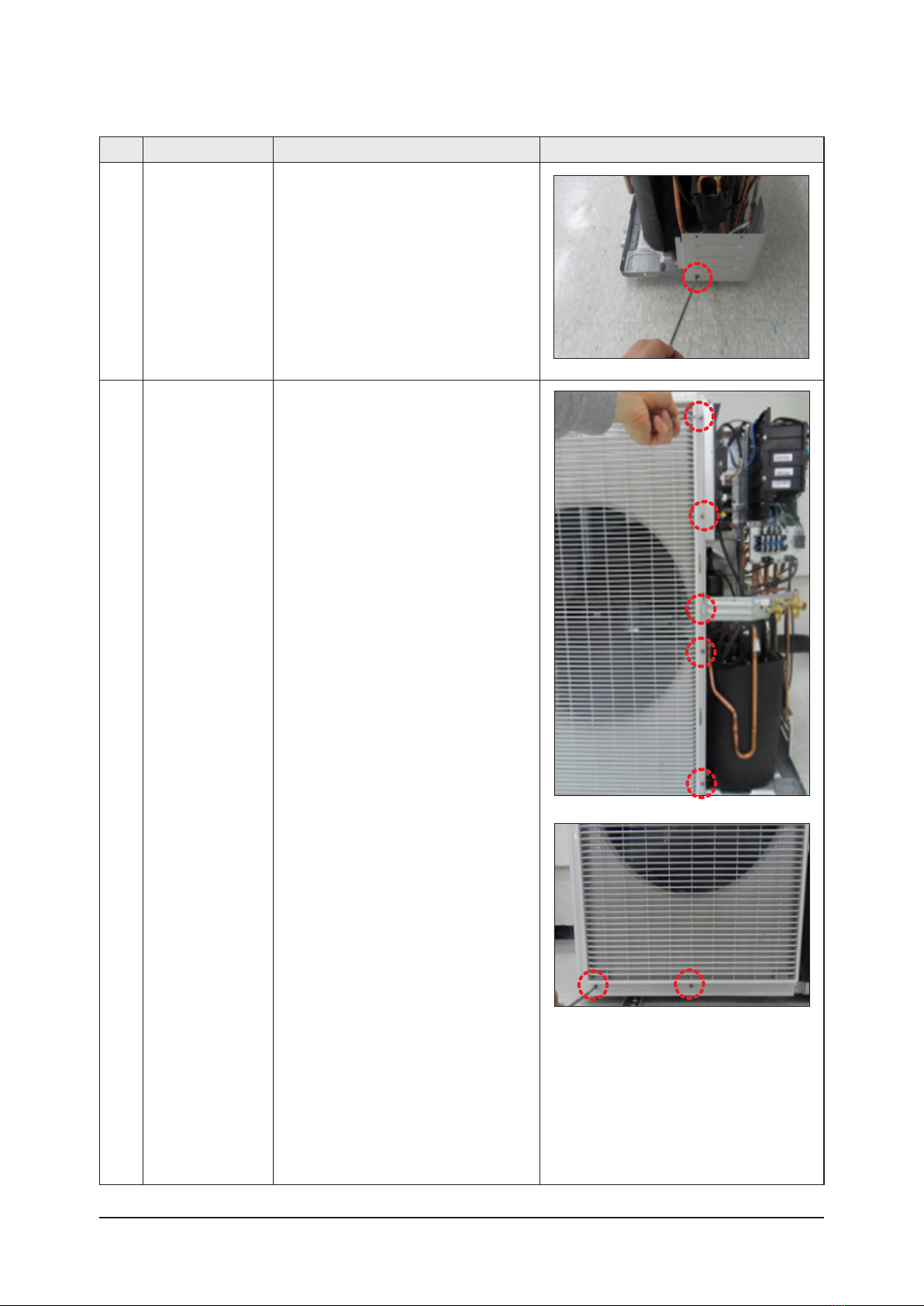

6 Cabi-Install Back 1) Remove the 1 screw in the Cabinet-Install Back
and separate it. (Use +Screw Driver)
7 Cabi Front LF 1) Remove the 10 screws in the Cabinet-Front LF
and separate it. (Use +Screw Driver)

Disassembly and Reassembly
Samsung Electronics 15
No Parts Procedure Remark
8 Fan 1) Turn 2 mounting nuts as shown in the picture
and remove it.
(Use L Wrench or Monkey Spanner or Socket
Wrench)

Disassembly and Reassembly
16 Samsung Electronics
No Parts Procedure Remark
9Motor 1) Separate the Fan Propeller.
2) Remove the 8 Motor mounting screws and
separate it. (Use +Screw Driver)
3) Disconnect the Motor wire from Assy Control
Out.
Motor connection part : Can be
different according to model.
10 Bracket Motor 1) Remove the 2 mounting screws in Bracket
Motor and separate it. (Use + Screw Driver)

Disassembly and Reassembly
Samsung Electronics 17
No Parts Procedure Remark
11 Control Out 1) Disconnect 4 Connectors from Assy Control
Out.
Number of connectors, that can be
disconnected, may different depending on
the model. (From 4~8)
2) Remove the 1 mounting screw in Control Out
and separate it. (Use + Screw Driver.)
3) Separate the Assy Control Out.

Disassembly and Reassembly
18 Samsung Electronics
No Parts Procedure Remark
12 ASS'Y TUBE
VALVE
1) Priority refrigerant remove.
2) Using welding machine with picture 5 places
of
a pipe disjoint.
When remove Compressor, Heat Exchanger,
a pipe, remove perfectly refrigerant of
Compressor inside first, and disjoint a pipe by
welding machine.

Disassembly and Reassembly
Samsung Electronics 19
No Parts Procedure Remark

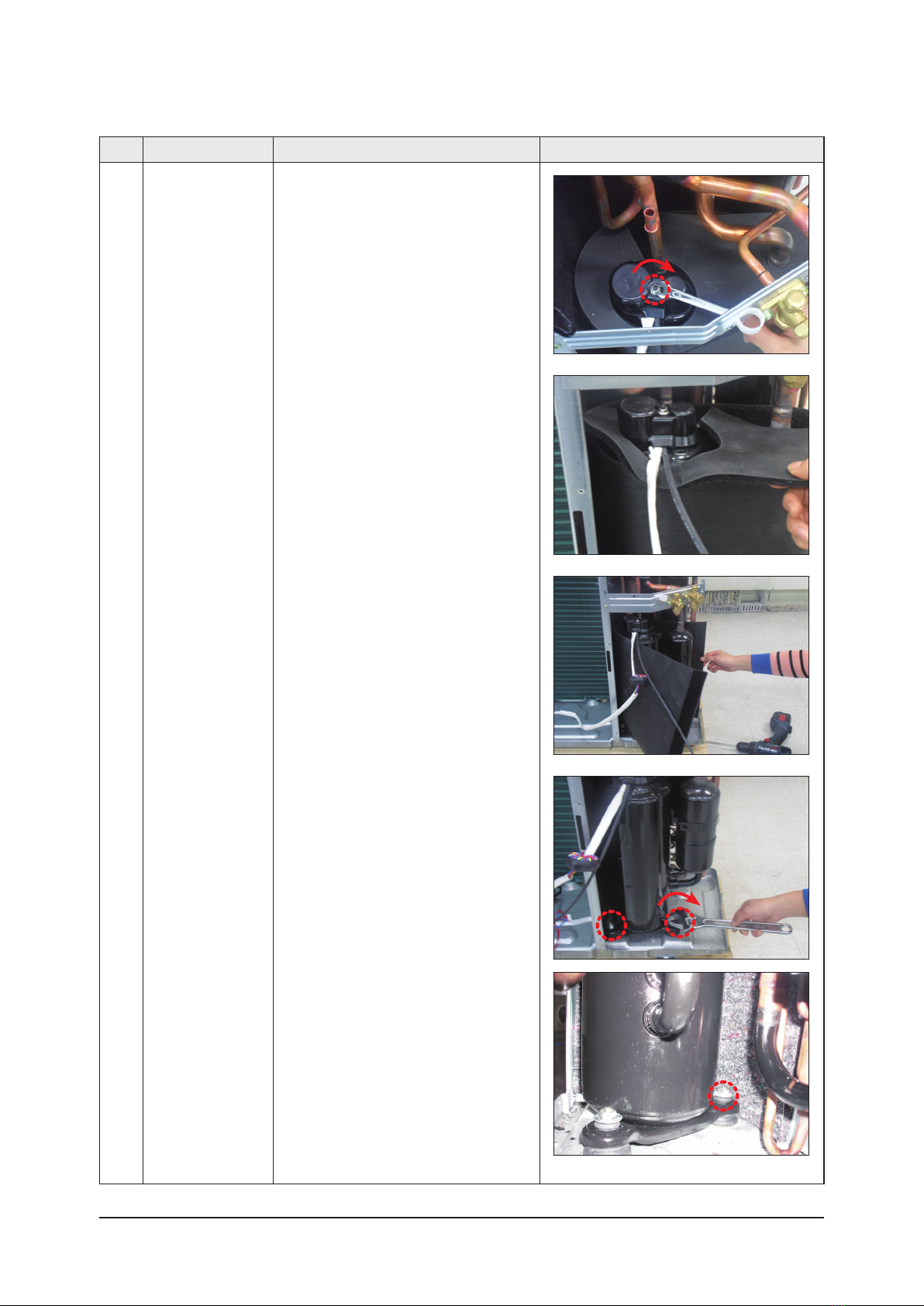

13 Compressor 1) Fixed 1 screw of cover end part remove.
(Use Hexagonal Wrench or Monkey Spanner
or Hexagonal Socket.)
2) Remove the Compressor felt.
3) Like picture, remove the 3 screws fixed on
bottom and separate it. (Use Hexagonal
Wrench or Monkey Spanner or Hexagonal
Socket.)

Disassembly and Reassembly
20 Samsung Electronics
No Parts Procedure Remark
14 Assy Cond Out 1) Remove the 3 screws that is fixing each side of
Assy Cond Out and separate it.
(Use +Screw Driver.)
