Samsung APH-2807ERX User manual

OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
ISTRUZIONI PER L’USO
MANUAL DE INSTRUÇÕES
MANUEL D’UTILISATION
APH240PE / APH240PD
APH-2807ER / DR
PH28ZV
SPLIT-TYPE PACKAGED AIR CONDITIONER(Cool and Heat)
ACONDICIONADOR DE AIRE COMPACTO SISTEMA SPLIT (Refrigeración y Calefacción)
CONDIZIONATORE D’ARIA COMPATTO AD UNITÀSEPARATE (Raffreddamento e Riscaldamento)
AR CONDICIONADO COMPACTO TIPO SPLIT (Refrigeração e Aquecimento)
CLIMATISEUR EMBALLÉDE TYPE SÉPARÉ(Refroidissement et Chauffage)
ESIPFDB68-30756B(2)
ENGLISH
ITALIANO

Contents
◆PREPARING YOUR AIR CONDITIONER
■Getting Started ............................................................................................... 3
■Remote Control - Buttons and Display ........................................................... 4
■Inserting the Remote Control Batteries .......................................................... 5
■Keeping the Remote Control .......................................................................... 5
■Indoor Unit ...................................................................................................... 6
■Outdoor Unit ................................................................................................... 7
■Control panel .................................................................................................. 7
■Setting the Time ............................................................................................. 8
◆OPERATING YOUR AIR CONDITIONER
■Operating Preparation .................................................................................... 9
■Using the Control Panel on the Indoor Unit .................................................... 9
■Using the Remote Control .............................................................................. 9
■Selecting the Auto Operating Mode ............................................................... 10
■Starting to Heat .............................................................................................. 11
■Starting to Cool ............................................................................................... 12
■Selecting the Turbo Operating Mode .............................................................. 13
■Selecting the Mild Operating Mode ................................................................ 13
■Removing Excess Humidity ............................................................................ 14
■Ventilating Your Room ..................................................................................... 15
■Adjusting the Air Flow Direction Horizontally ................................................. 16
■Adjusting the Air Flow Direction Vertically ...................................................... 16
◆PROGRAMMING YOUR AIR CONDITIONER
■Setting the Timer ............................................................................................ 17
■Setting the Quick Timer .................................................................................. 18
■Cancelling the Timer ....................................................................................... 19
■Cancelling the Quick Timer ............................................................................ 19
◆RECOMMENDATIONS FOR USE
■Operating Recommendations ......................................................................... 20
■Safety Precautions .......................................................................................... 20
■Temperature and Humidity Ranges ................................................................ 21
■Cleaning Your Air Conditioner ......................................................................... 21
■Before Calling the After-Sales Service ........................................................... 22
E-2

ENGLISH
Getting Started
You have just purchased a packaged air conditioner and it has been installed by
your installation specialist.
Users of this product are cautioned not to attempt repair of this product at their
own discretion. Instead, they are requested to directly contact a designated
service center or the outlet at which the product was purchased.
Your Owner’s Instructions contain much valuable information on using your
air conditioner. Please take the time to read them as they will help you take full
advantage of the unit’s features.
The booklet is organized as follows:
◆ The following figures are shown on page 4, page 6 and page 7.
- Remote control(buttons and display)
- Indoor unit
- Outdoor unit
They will help you find the buttons and switches
and understand the symbols displayed.
◆ In the main part of the document, you will find a series of step-by-step
procedures for each function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS PUSH HOLD DOWN
E-3

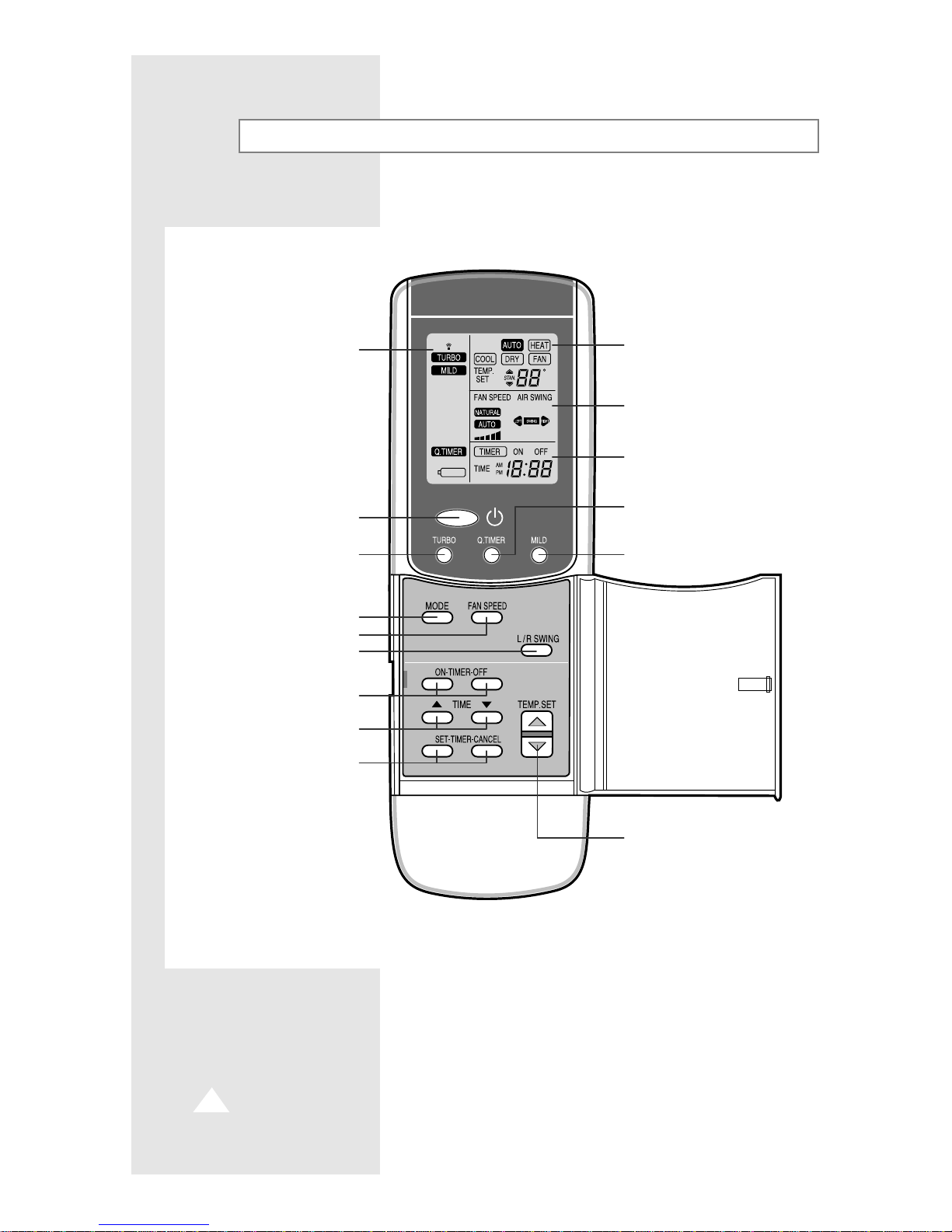

Remote Control - Buttons and Display
C
Operating mode/Temperature display :
- Mode indicators : AUTO, COOL, DRY,
FAN, HEAT
Setting display :
- Fan speed
- Air flow direction
Time/Timer display
- Current time
- Timer settings
Q.Timer adjustment
Mild setting(Automatic stop)
Temperature adjustment
Setting display
- Indicator :TURBO, MILD,
Q.TIMER,
Transmission
Battery discharge.
ON/OFF Button
TURBO setting
Operating mode selection
Fan speed adjustment
Air flow adjustment
Timer adjustment
Time adjustment
Timer setting/cancellation
E-4

ENGLISH
Inserting the Remote Control Batteries
You must insert or replace the remote control batteries when:
◆ You purchase the air conditioner
◆ The remote control does not work correctly
Push the battery cover on the rear of the remote control with your
thumb in the direction of the arrow.
Insert the two batteries, taking care to respect the polarities:
◆+ on the battery with + on the remote control
◆- on the battery with - on the remote control
Close the cover by sliding it back until it clicks into place.
1
2
3
Keeping the Remote Control
Keep the remote control in remote control case of the indoor unit
when it is not being used.
Open the control panel by pushing a part of it.
Put the remote control into the case.
Close the control panel by pushing a part of it in the direction
of the arrow until it clicks into place.
1
2
E-5
Use two LR03(AAA) 1.5V batteries. Do not use old bat-
teries, or different kinds of batteries together. Batteries
may not be usable after 12 months though they have
not been used.
IMPORTANT
When the following indication is displayed, replace the batteries
with a new set of it.
NOTE
Remote
control
case

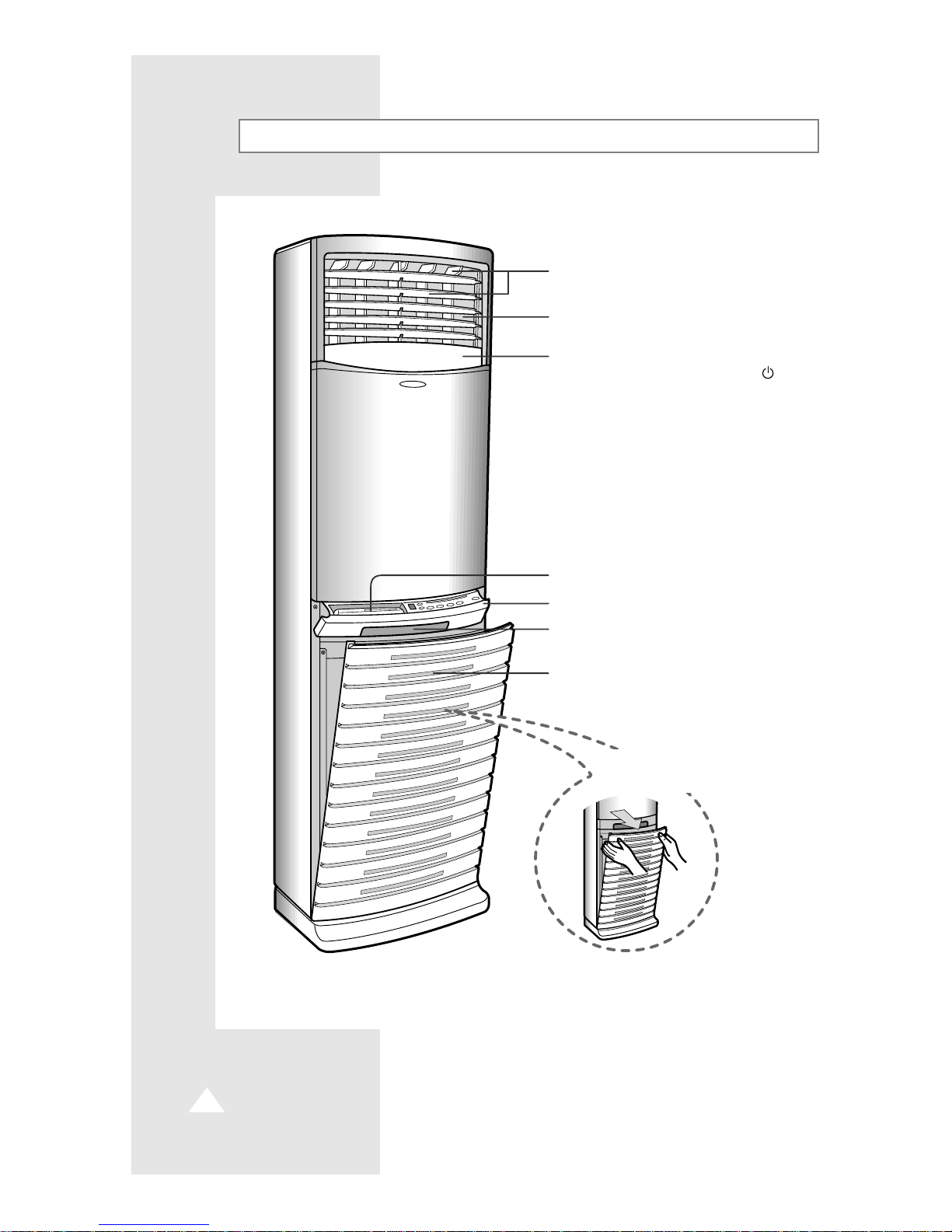

Indoor Unit
E-6
Air Flow(Direction) adjusting Blade
Air Outlet
Auto Shutter
Each time you can press the ON/OFF( )button,
it open or close automatically.
Remote Control Case
Control Panel
Remote Control Sensor
Air Inlet Grille
To disassemble the air inlet grille.
•Hold the upper part of the air inlet grille,
and then pull it lightly forward.

ENGLISH
Outdoor Unit
Control Panel
E-7
Electric Parts Box
Air Outlet
Connection Valve
Temperature display
Open the control panel by pushing a part of it.
Temperature adjustment ON/OFF Button
Operating Light
Mild setting(Automatic stop) Fan Speed adjustment Operating Mode Selection
Fan Light Operating Light Turbo setting

Setting the Time
Be sure to change the time in an area where summertime
is applied.
Press the TIME ▲ or ▼ buttons, and set the current time.Press the TIME ▲ or ▼ buttons, and set the current time.
◆Each time the (▲) button is pressed, the time increases
by one minute.
When the (▲) button is continually pressed,
the time increases by ten minutes.
◆Each time the (▼) button is pressed, the time decreases
by one minute.
When the (▼) button is continually pressed,
the time decreases by ten minutes.
Result: AM or PM are displayed to indicate whether the setting
corresponds to a time before or after midday.
1
2
C
After setting the time, press the (time set) button one more time.
Result: The Time indicator stops flashing and the clock is started.
3
NOTE
NOTE
Your air conditioner contains a clock used to start or stop the unit
automatically at a given time.
You must set the time when you:
◆ Purchase the air conditioner
◆ Replace the batteries
NOTE
Insert the batteries.
Result: The TIME indicator flashes.
To set the time during the operation.
Open the lid on the rear side of the remote control, and press the
(time set) button using a tool with a sharp end point.
Result: The TIME indicator flashes.
E-8

ENGLISH
Operating Preparation
Using the Control Panel on the Indoor Unit
Using the Remote Control
C
You cannot operate the timer function with indoor unit.
NOTE
Remove a protective cover of the outdoor unit.
1
2
Turn the power switch on.
Result: The POWER light on the indoor unit switches on.
E-9
To operate the unit, the power switch is fitted to
the wall must be set to ON
Look around the indoor and outdoor units.
Confirm if any obstacles that may prevent the air flow are present near
the air conditioner.
IMPORTANT
Exemple: Remote control broken or lost.
Open the control panel by pushing a part of it.
Adapt the auto operating, cooling, heating, turbo operating,
mild operating, drying and fan settings to your
specific requirements ;
You can operate with indoor unit when you do not wish to
or cannot operate the air conditioner with the remote control.
You can :
You can :
Adapt the auto operating, cooling, heating turbo operating,
mild operating, drying and fan settings to your specific
requirements ;
See pages 10 to 18 for further details.
All air conditioner features can be controlled from your seat,
by using the remote control.

Selecting the Auto Operating Mode
If necessary, press the ON/OFF( ) button.
Result: ◆The OPER. light on indoor unit switches on.
◆ The operation mode previously set is displayed.
◆ The indoor unit beeps twice.
◆ The air conditioner starts up in the current.
If the AUTO indicator is not displayed at the top of the remote control,
press MODE under the remote control flap one or more times until it
appears.
Result: ◆ The indoor unit beeps each time you press MODE.
◆ The air conditioner starts up in AUTO mode.
In AUTO mode, the optimum fan speed is selected automatically
and cannot be changed.
◆ You can, however, change modes at any time when the
air conditioner is operating.
◆ How to control the standard temperature.
When the unit is in automatic operation mode, the standard
temperature is automatically set.
However, the standard temperature can be adjusted
up to ±2°C by pressing the TEMP.SET ▲ or ▼ buttons
depending upon the user.
• Upward control by +2°C from the standard temperature ( )
• Upward control by +1°C from the standard temperature ( )
• Standard temperature ( )
• Downward control by -1°C from the standard temperature ( )
• Downward control by -2°C from the standard temperature ( )
1
2
C
NOTE
You can start the air conditioner in AUTO mode .
The air conditioner is fitted with a protection feature
which prevents the unit from being damaged when
it is started immediately after being:
◆ Switched on
◆ Stopped
After a rest period of three minutes, it will start up normally.
IMPORTANT
E-10

ENGLISH
Starting to Heat
C
E-11
You must select the HEAT mode if you wish to adjust the:
◆ Heating temperature
◆ Fan speed when Heating
1
Press MODE under the remote control flap one or more times until the
HEAT indicator is displayed.
2
Select the temperature by pressing the TEMP.SET ▲ or ▼ buttons one
or more times until the required temperature is displayed.
Possible temperatures are between 16°C and 30°C inclusive.
3
Select the fan speed by pressing the FAN SPEED button one or more
times until the required setting is displayed:
Low
Medium
High
Auto
4
Control the air flow direction when necessary.
Refer to page 16.
5
Each time you change the temperature by one degree,
the indoor unit beeps.
The air conditioner will only start cooling if the room temperature
is higher than the selected temperature.
The fan will, however, operate.During heating, the operating
light is red.
During defrosting, LED may indicate temperature lower
than real one.
NOTE
Each time you change the fan setting, the indoor unit beeps.
For the first 3 to 5 minutes the fan operates very slowly
until the air has been sufficiently warmed.
Once the correct temperature has been reached,
it will be automatically switched to the selected speed.
NOTE
The air conditioner is fitted with a protection feature which
prevents the unit from being damaged when it is started
immediately after being:
◆ Switched on
◆ Stopped
After a rest period of three minutes, it will start up normally.
IMPORTANT
If necessary, press the ON/OFF( ) button.
Result: ◆The OPER. light on the indoor unit switches on.
◆ The operation mode previously set is displayed.
◆ The indoor unit beeps twice.
◆ The air conditioner starts up in the current mode.

Starting to Cool
C
You must select the COOL mode if you wish to adjust the:
◆ Cooling temperature
◆ Fan speed when cooling
1
Press MODE under the remote control flap one or more times until the
COOL indicator is displayed.
2
Select the temperature by pressing the TEMP.SET ▲or ▼buttons one
or more times until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
3
Select the fan speed by pressing the FAN SPEED button one or more
times until the required setting is displayed:
Low
Medium
High
Natural
Auto
4
Control the air flow direction when necessary.
Refer to page 16.
5
Each time you change the temperature by one degree,
the indoor unit beeps.
The air conditioner will only start cooling if the room temperature
is higher than the selected temperature.
The fan will, however, operate.During cooling, the operating
light is green.
NOTE
Each time you change the fan setting, the indoor unit beeps.
NOTE
NATURAL
AUTO
The air conditioner is fitted with a protection feature which
prevents the unit from being damaged when it is started
immediately after being:
◆ Switched on
◆ Stopped
After a rest period of three minutes, it will start up normally.
IMPORTANT
E-12
If necessary, press the ON/OFF( ) button.
Result: ◆ The OPER. light on the indoor unit switches on.
◆ The operation mode previously set is displayed.
◆ The indoor unit beeps twice.
◆ The air conditioner starts up in the current mode.

ENGLISH
Selecting the Turbo Operating Mode
Selecting the Mild Operating Mode
C
C
E-13
The turbo cooling(heating) operation function provides heavy duty
cooling(heating) for 30 minutes regardless of the set temperature.
Therefore, you can instantly get cool(warm) in this operation mode when
you feel it is very hot(cold) in the room after returning home from outside.
After 30 minutes turbo operation, the unit returns automatically to the
operation mode previously set.
1
Check to see whether the operation mode is positioned at “AUTO”,
“COOL” or “HEAT”; the turbo cooling(heating) operation cannot be
selected when the unit is in the “DRY” or “FAN” operation mode.
2
Press the TURBO button.
3
◆ When the unit is in the turbo operation mode, the set
temperature and air flow quantity are automatically controlled.
Therefore, it is not necessary to make any separate selection.
◆ Press the TURBO button again to cancel the turbo operation.
(Then the unit returns to the operation mode previously set.)
NOTE
The mild cooling(heating) operation function provides automatic control
of the set temperature and air flow quantity to ensure pleasant operation
during, sleeping or when used by elderly people.
The mild operation function stops automatically after operating for three
hours.
1
Check to see whether the operation mode is positioned at “AUTO”,
“COOL” or “HEAT” ; the mild cooling(heating) operation cannot be
selected when the unit is in the “DRY” or “FAN” operation mode.
2
Press the MILD button.
3
◆ When the unit is in the mild operation mode, the set
temperature and air flow quantity are automatically controlled.
Therefore, it is not necessary to make any separate selection.
◆ Press the MILD button again to cancel the mild operation.
(Then the unit returns to the operation mode previously set.)
NOTE
If necessary, press the ON/OFF( ) button.
Result: ◆ The OPER. light on the indoor unit switches on.
◆ The operation mode previously set is displayed.
◆ The indoor unit beeps twice.
◆ The air conditioner starts up in the current mode.
If necessary, press the ON/OFF( ) button.
Result: ◆ The OPER. light on the indoor unit switches on.
◆ The operation mode previcusly set is displayed.
◆ The indoor unit beeps twice.
◆ The air conditioner starts up in the current mode.

Removing Excess Humidity
C
If the atmosphere in your room is very humid or damp, you can remove
excess humidity without lowering the room temperature excessively.
1
Press MODE under the remote control flap one or more times until the
DRY indicator is displayed.
2
Select the temperature by pressing the TEMP.SET ▲or ▼ buttons
one or more times until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
3
The air conditioner is fitted with a protection feature which
prevents the unit from being damaged when it is started
immediately after being:
◆ Switched on
◆ Stopped
After a rest period of three minutes, it will start up normally.
IMPORTANT
Each time you change the temperature by one degree,
the indoor unit beeps.
NOTE
When the unit is in the dry operation mode, the air flow quantity
is automatically set.Therefore, it is not necessary to select
the air flow quantity separately.
NOTE
E-14
If necessary, press the ON/OFF( ) button.
Result: ◆ The OPER. light on the indoor unit switches on.
◆ The operation mode previously set is displayed.
◆ The indoor unit beeps twice.
◆ The air conditioner starts up in the current mode.

If the atmosphere in your room is stale, you can ventilate it using the
Fan feature.
1
Press MODE under the remote control flap one or more times until
the FAN indicator is displayed.
2
Select the fan speed by pressing the FAN SPEED button one or more
times until the required setting is displayed:
Low
Medium
High
Natural
3
When the unit is in the fan operation mode, the temperature
is automatically set.
Therefore, it is not necessary to set the temperature separately.
NOTE
Each time you change the fan setting, the indoor unit beeps.
NOTE
If necessary, press the ON/OFF( ) button.
Result: ◆ The OPER. light on the indoor unit switches on.
◆ The operation mode previously set is displayed.
◆ The indoor unit beeps twice.
◆ The air conditioner starts up in the current mode.
ENGLISH
VentilatingYour Room
C
E-15

Adjusting the Air Flow Direction Horizontally
Adjusting the Air Flow Direction Vertically
Depending on the position of the indoor unit, you can adjust
the position of the air flow blades on the top of the unit,
thus increasing the efficiency of the air conditioner.
Press the L/R SWING button on the remote control.
Result: The blades are moved between right and left.
1
To stop the blades, press the L/R SWING button.
To set to the required position, press the L/R SWING button
when the blades are in the required position,
2
NOTE
◆Effective control of air flow direction.
• Adjust the blades to face upward for cooling.
NOTE
Just as the air flow blades can be adjusted vertically, they can also
be adjusted by the hands.
Set the horizontal blades in the disired direction.
1
E-16

You can turn the air conditioner on or off automatically.
Example: You wish to start cooling your room before you
return from work; you decide to:
◆ Set the air conditioner going at 5:30 p.m.
◆ Switch it off at 11:30 p.m.
Check that the current time is correct before setting
the timer; if not, refer to page 8.
Press the ON/OFF( ) button.
You cannot make any reservation in the “off” state.
1
Press MODE under the remote control flap one or more times until
the COOL indicator is displayed.
2
Press the TIMER ON button.
Result: ◆ The TIMER indicator is displayed.
◆ The ON indicator flashes.
◆ The preset time is displayed.
3
When you are satisfied with the start time, press SET-TIMER.
Result: ◆ The indoor unit beeps.
◆ The TIMER light switches on.
◆ The unit is switched off and will start up automatically
when the start time is reached.
5
Press the TIME ▲or ▼buttons to set the “on time”(“off time”).
Result: AM or PM are displayed to indicate whether the setting
corresponds to a time before or after midday.
4
Press the TIMER OFF button.
6
Indicate the time at which you wish to stop the air conditioner;
to do so, follow steps 4 above.
7
When you are satisfied with the stop time, press SET-TIMER to transmit
the settings to the indoor unit.
Result: The indoor unit beeps.
8
You can hold the button down to scroll rapidly through the figures.
NOTE
You can set:
◆ The start time only
◆ The stop time only
◆ Both the start and stop times
◆ Refer to page 19 for detailed information about the method
of cancelling the timer.
The timer function allows reserved operation using only
the remote control.
NOTE
IMPORTANT
ENGLISH
Setting the Timer
E-17

Setting the Quick Timer
The quick timer function allows reserved operation using only one button.
Therefore, it is very convenient especially for children and elderly people to
make reserved operation using this function. When the reserved operation is
too complex presenting difficulty in use. You can set reservation in the range
of thirty minutes - one hour - two hours - three hours - five hours. When the
set period has elapsed, the operation stops automatically.
If necessary, press the ON/OFF( ) button and select the operating mode.
1
Press the Q.TIMER button.
Result: ◆ The Q.TIMER indicator is displayed.
◆ When the timer operation function starts,
the remaining time is displayed on the remote control.
2
Each time the button is pressed, the following are displayed sequentially:
NOTE
The quick timer function allows reserved operation using only
the remote control.
NOTE
E-18

ENGLISH

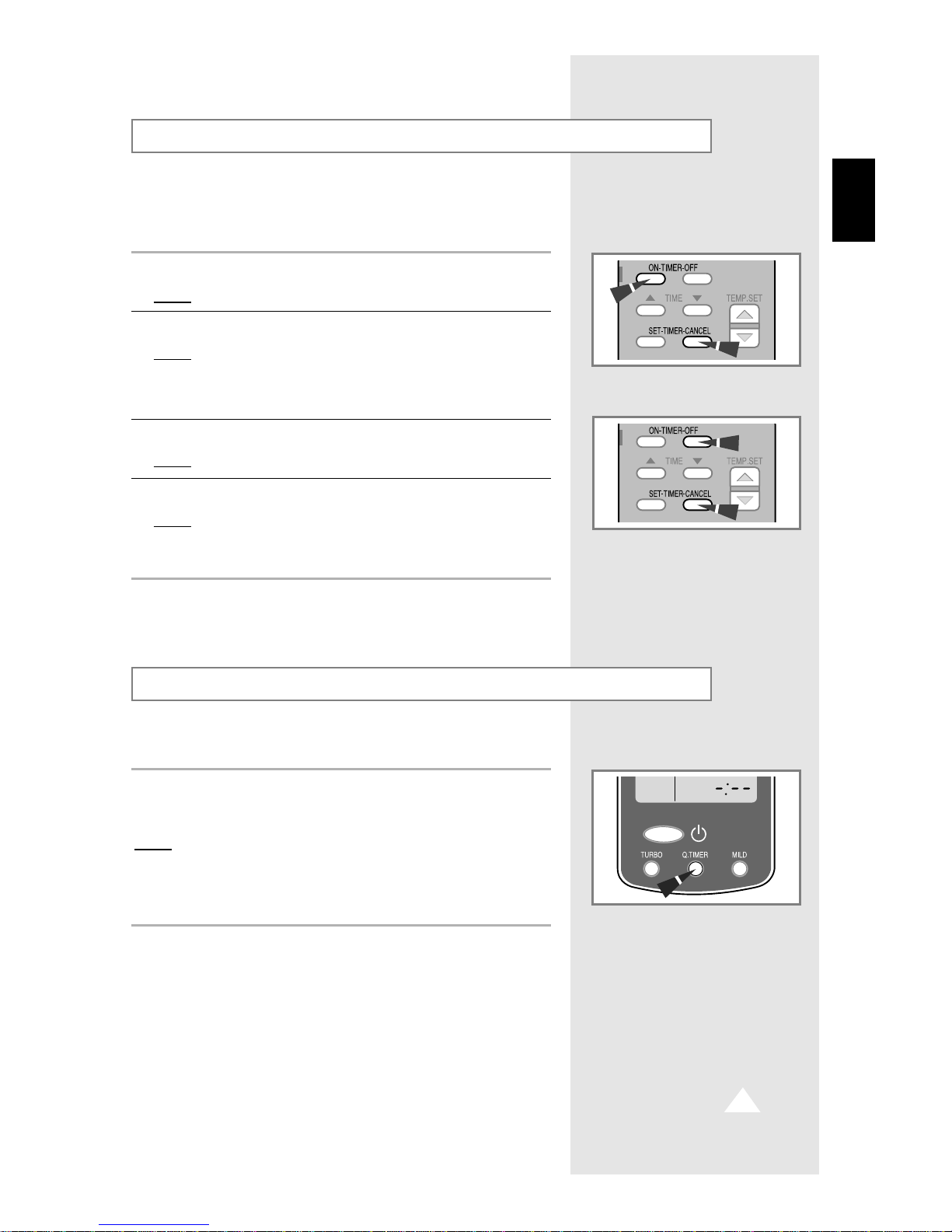

Cancelling the Timer
If you no longer wish to use the timer that you have set,
you can cancel it at any time.
To cancel the start time, press TIMER ON.
Result: The ON indicator flash.
1
Press the TIMER-CANCEL.
Result: ◆ The indoor unit beeps.
◆ The TIMER light switches off if no stop time is currently set.
◆ The unit operates normally.
2
Press the TIMER-CANCEL
Result: ◆ The indoor unit beeps.
◆ The TIMER light switches off.
◆ The unit operates normally.
4
To cancel the stop time, pressTIMER OFF.
Result: The OFF indicator flash.
3
Cancelling the Quick Timer
If you no longer wish to use the Quick timer function,
you can cancel it at any time.
Press the Q.TIMER button.
Set the button so that (- : - -) is displayed. After the elapse of five seconds,
the current time is displayed, and the quick timer is cancelled.
Result: ◆ The indoor unit beeps.
◆ The Q.TIMER indicator is no longer displayed.
◆ The unit operates normally.
E-19

Operating Recommendations
Here are a few recommendations that you should follow when using
your air conditioner.
Topic Recommendation
The heat pump inside the air conditioner absorbs heat from
outside air and brings it indoors. If the temperature
of the outside air drops, the air conditioner will heat less.
If you find that the room is not warm enough,
use an additional heating appliance.
Heating
performances
The air conditioner circulates warm air to heat your room;
as a result, some time will be required after starting
the air conditioner to warm the entire room. If necessary,
set the air conditioner going a short time before you wish
to use the room.
Warm air
circulation
When outside temperatures are low and humidity is high,
frost may form in the outdoor unit when heating with
your air conditioner.
If this happens:
◆ The heating fans are stopped.
◆
The Defrost mode is triggered automatically for about 9 minutes.
◆ The DEICE light on the indoor unit switches on (red).
No intervention is required by you; after about 9 minutes,
the air conditioner starts operation again normally.
Frost
If both indoor and outdoor temperatures are high and you
select the HEAT mode, the outdoor unit’s fan and
compressor may stop at times.
This is normal; simply wait until the air conditioner switches
on again.
High indoor
and outdoor
temperatures
If a power failure occurs while the air conditioner is operation,
it is switched off.When the power returns, you must press
ON/OFF( ) to restart it.
Power failure
Safety Precautions
The following safety precautions should be taken when using your air
conditioner.
Make sure that the indoor unit is correctly ventilated at all times;
do not place clothing or other materials over it.
1
Never spill liquids of any kind into the indoor unit.Should this happen,
turn the power switch off and contact your installation specialist.
2
Always ensure that the power cable is in good condition. Make sure that
it is not walked on or damaged by items placed on or against it.
4
Do not overload wall sockets or extension cables.5
Do not place any obstacles in front of the outdoor unit.6
If the remote control will not be used for a long time, remove the batteries
and keep in remote control case.
7
When you intend to reoperate AIR CONDITIONER, it will be operated
after 3 minutes from its stop.
8
Do not insert anything between the air outlet blades as the inner fan may
be damaged and you may be hurt. Particularly, keep children away from
the indoor unit.
3
E-20
