Samsung APH450PG User manual

OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATION
SPLIT-TYPE PACKAGED AIR CONDITIONER (Cool and Heat)
ACONDICIONDOR DE AIRE COMPACTO SISTEMA SPLIT (Refrigeración y Calefacción)
CLIMATISEUR EMBALLÉDE TYPE SÉPARÉ(Refroidissement et Chauffage)
DB68-00078A(2)ESF
APH450PG
PH45ZV
ENGLISH
FRANÇAIS

Safety Precautions
E-2
The following safety precautions must be taken when using your air conditioner.
Make sure that the indoor unit is correctly ventilated at all times;
do N T place clothing or other materials over it.
1
NEVER spill liquids of any kind into the indoor unit.
Should this happen, turn the power switch off and contact your installation specialist.
2
Do N T insert anything between the air outlet blades as the inner fan may be damaged
and you may be hurt. Particularly, keep children away from the indoor unit.
3
Do N T overload wall sockets or extension cables.
4
If the remote control will not be used for a long time, remove the batteries,
and keep in remote control case.
5
Users of this product are cautioned not to attempt repair of this product at their own
discretion. Instead, they are requested to directly contact a designated service center
or the outlet at which the product was purchased.
6
If the supply cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
7

Contents
◆ PREPARING YO R AIR CONDITIONER
■Safety Precautions ............................................................................................. 2
■View of the Indoor unit & utdoor unit ............................................................... 4
■Remote Control - Buttons .................................................................................. 5
■Control Panel ..................................................................................................... 5
■Getting Started ................................................................................................... 6
■Inserting the Remote Control Batteries ............................................................. 7
■Keeping the Remote control .............................................................................. 7
■Setting the Time ................................................................................................. 8
◆ OPERATING YO R AIR CONDITIONER
■perating Preparation ........................................................................................ 9
■Using the Control Panel on the Indoor unit ........................................................ 9
■Using the Remote Control .................................................................................. 9
■Selecting the Automatic perating Mode ........................................................... 10
■Cooling Your Room ............................................................................................ 11
■Heating You Room ............................................................................................. 12
■Changing the Room Temperature Quickly ......................................................... 13
■Airing Your Room ............................................................................................... 14
■Adjusting the Air Flow Direction Horizontally ...................................................... 15
■Adjusting the Air Flow Direction Vertically .......................................................... 15
◆ PROGRAMMING YO R AIR CONDITIONER
■Setting the ff Timer .......................................................................................... 16
■Cancelling the ff Timer ..................................................................................... 16
◆ RECOMMENDATIONS FOR SE
■perating Recommendations ............................................................................. 17
■Temperature and Humidity Ranges .................................................................... 18
■Cleaning Your Air Conditioner ............................................................................ 18
■Solving Common Problems ................................................................................ 19
E-3
ENGLISH

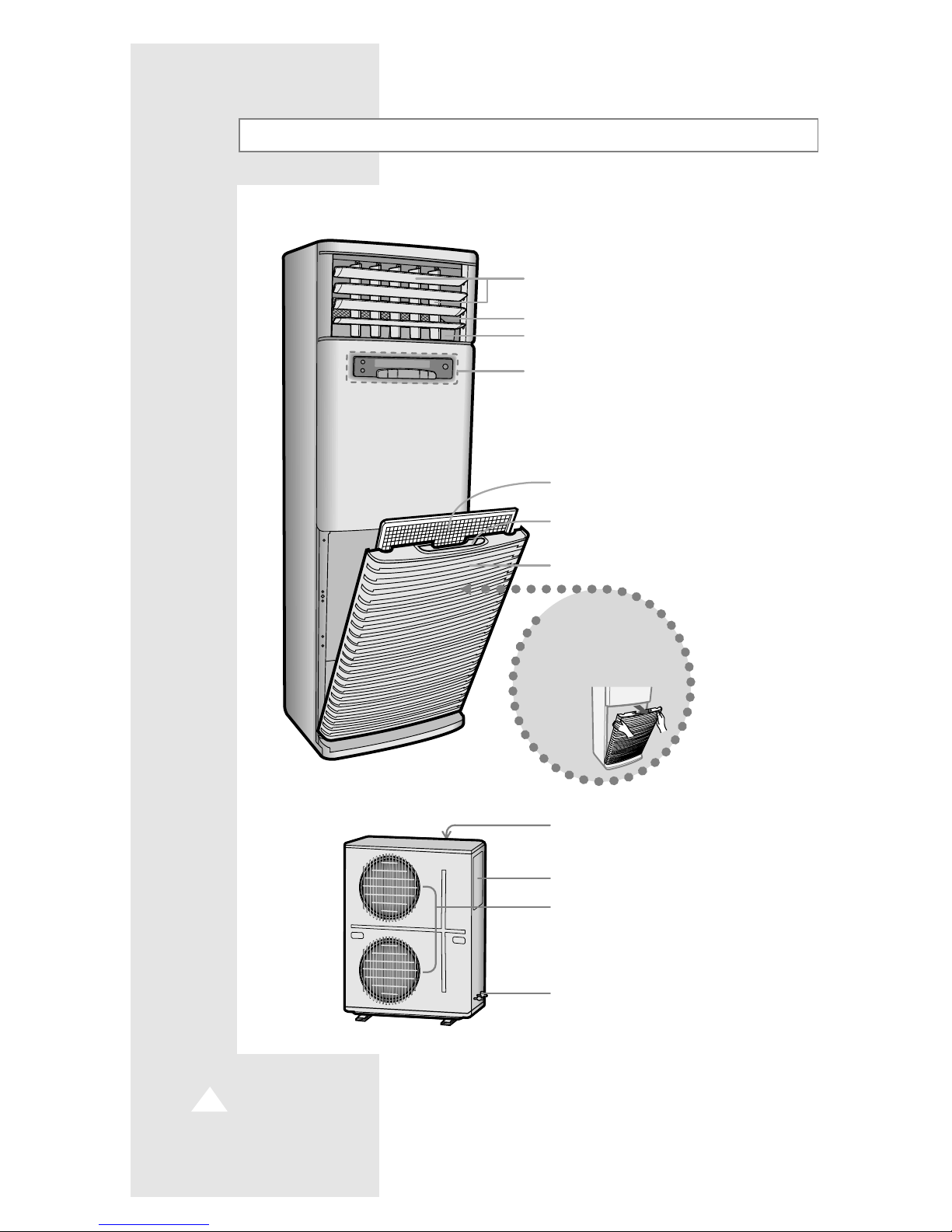

View of the Indoor unit and Outdoor unit
AIR FL W (DIRECTI N) ADJUSTING BLADE
AIR UTLET
ELECTRIC HEATER ( ption)
(The electric heater is located inside)
C NTR L PANEL
AIR FILTER
REM TE C NTR L CASE
AIR INLET GRILLE
To disassemble
the air inlet grille
●Hold the upper part of the
air inlet grille, and then
pull it lightly forward.
AIR INLET
ELECTRIC PARTS B X
AIR UTLET
C NNECTI N VALVE
E-4

Remote Control - Buttons
Control Panel
perating mode selection
- C L
- HEAT
- TURB
- FAN
Air flow swing button
Temperature adjustment
buttons
Fan speed adjustment
buttons
Fan Speed
adjustment
Fan Speed
display Time/Temperature display perating Light Remote control
Sensor n/ ff( ) Button
Time/Temperature
Selection Time or Temperature adjustment perating Mode Selection
Timer
adjustment
Auxiliary Heater
Switch (option)
Power Light
n/ ff ( ) button
E-5
ENGLISH

E-6
Getting Started
You have just purchased a packaged air conditioner and it has been installed
by your installation specialist.
Your Owner's Instructions contain much valuable information on using your air conditioner.
Please take the time to read them as they will help you take full advantage of the unit's features.
The booklet is organized as follows:
◆The following figures are shown on page 4 and page 5
- Remote control (buttons )
- Indoor unit
- Outdoor unit
They will help you find the buttons and understand the symbols displayed.
◆In the main part of the document, you will find a series of step-by-step
procedures for each function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS PUSH HOLD DOWN

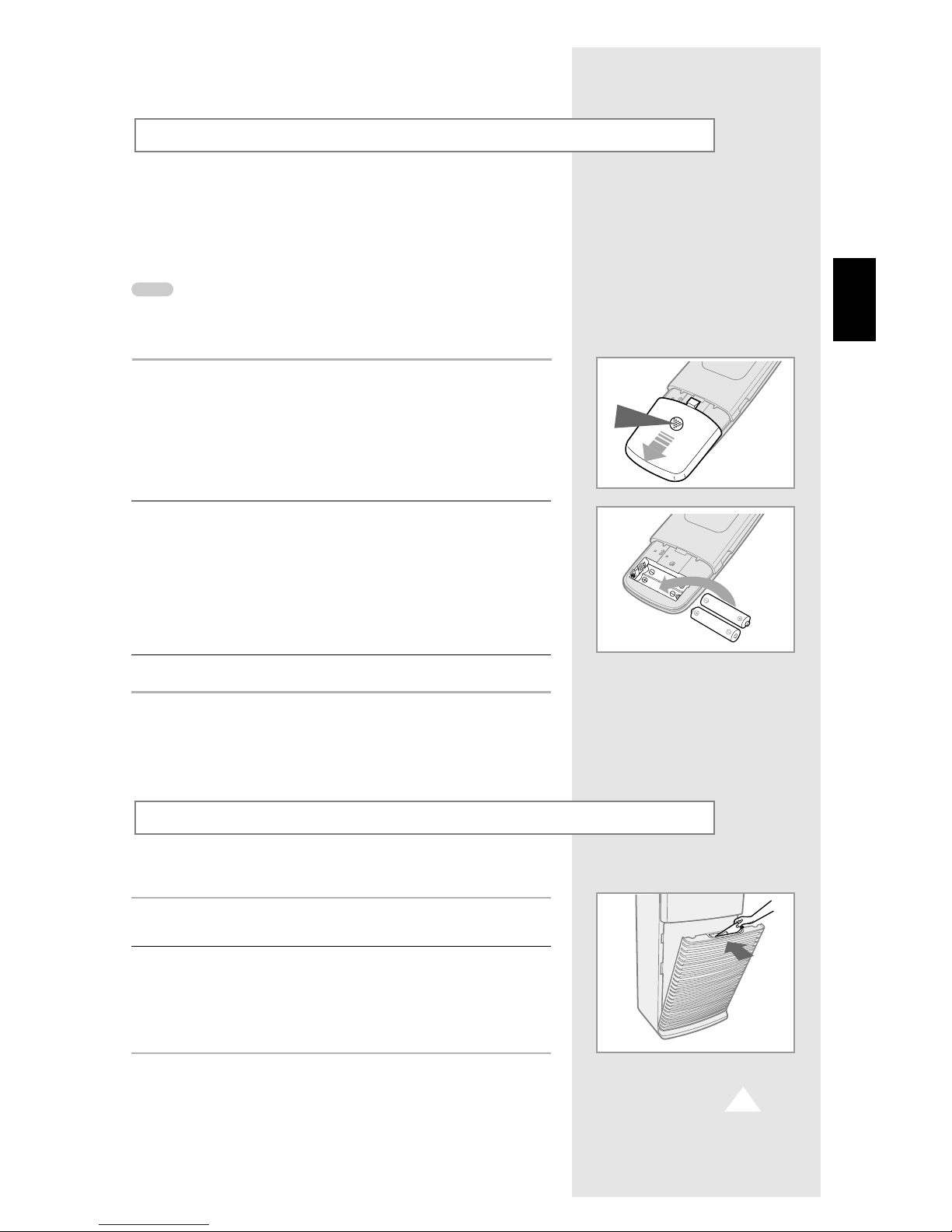

Inserting the Remote Control Batteries
Keeping the Remote Control
TEST
ACL
TEST
ACL
Use two LR03(AAA) 1.5V batteries. Do not use old batteries,
or different kinds of batteries together.
Batteries may be completely discharged after 12 months,
even if they have not actually been used.
Note
Insert the two batteries, taking care to respect the polarities:
◆+ on the battery with + on the remote control
◆- on the battery with - on the remote control
1
2
Close the cover by sliding it back until it clicks into place.
3
Push the battery cover on the rear of the remote control with your
thumb in the direction of the arrow and remove it.
Put the remote control into the case.
1
2
Hold the upper part of the air inlet grille, and then pull it lightly forward.
E-7
You must insert or replace the remote control batteries when:
◆ You purchase the air conditioner
◆ The remote control does not work correctly
Keep the remote control in remote control case of the indoor unit
when it is not being used.
ENGLISH

Setting the Time
Press the TIME/TEMP. SELECT button.
Result: The TIME indicator flashes.
To set the current time, press the TIME/TEMP. ▲or ▼buttons.
To...
Increase the time in one-minute intervals
Increase the time in ten-minute intervals
Decrease the time in one-minute intervals
Decrease the time in ten-minute intervals
Result: ◆ AM or PM are displayed to indicate whether the setting
corresponds to a time before or after midday.
◆ The clock is started after three seconds.
then...
Press the (▲) button.
Hold down the (▲) button.
Press the (▼) button.
Hold down the (▼) button.
1
2
Be sure to reset the time when you change clocks from standard
todaylight saving time and vice versa.
You can set the time when you purchas the air conditioner.
E-8
Note

E-9

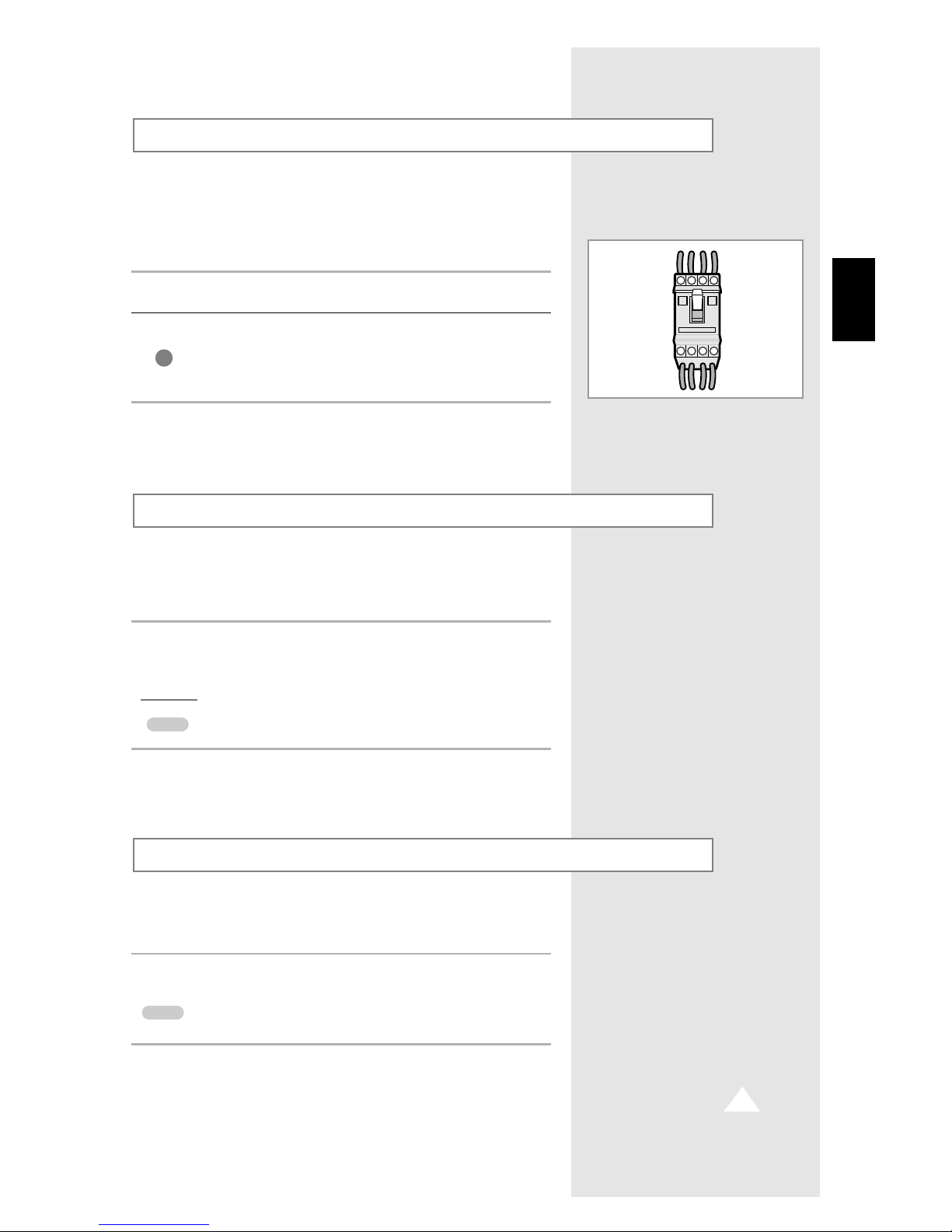

Operating Preparation
ON
Look around the indoor and outdoor units.
Confirm if any obstacles that may prevent the air flow are present
near the air conditioner.
1
Turn the power switch on.
2
You must operate the timer function with indoor unit.
To operate the unit, the power switch is fitted to the
wall must be set to N.
IMPORTANTE
Remove a protective cover of the outdoor unit.
sing the Control Panel on the Indoor unit
You can operate with indoor unit when you do not wish to or cannot
operate the air conditioner with the remote control.
Remote control broken or lost.
Exemple :
You can : Adapt the auto operating, cooling, heating, fan and timer setting
to your specific requirements ;
See pages 10 to 16 for further details.
You must operate the turbo function with remote control.
sing the Remote Control
All air conditioner features except timer function and auto operating
can be controlled from your seat, by using the remote control.
You can : Adapt the cooling, heating, fan, turbo operating
and fan settings to your specific requirements.
Note
Note
ENGLISH

Selecting the Automatic Operating Mode
E-10
You can start the air conditioner in AUTO mode by pressing
the MODE button on the control panel.
1
If the AUT indicator is not displayed, press the M DE button one or
more times until it appears.
Result: ◆ The indoor unit beeps each time you press M DE.
◆ The air conditioner starts up in AUT mode.
◆ The standard temperature is set automatically.
2
To control the air flow direction when necessary, refer to page 15.
3
In AUT mode, the optimum fan speed is selected automatically
and cannot be changed.
◆ You can change modes at any time.
If necessary, press the N/ FF( ) button.
Result: ◆ The power indicator on the control panel comes on.
◆ The indoor unit beeps twice.
◆ The operation mode previously set is displayed.
◆ The air conditioner starts up in the mode selected
when the unit was last used.
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
◆ Switched on
◆ Stopped
lt will start up normally after a three-minute rest period.
Note
IMPORTANTE

E-11
Cooling Your Room
You must select the COOL mode if you wish to adjust the:
◆Cooling temperature
◆Fan speed when cooling
1
If the C L indicator is not displayed, press the M DE button one
or more times until it appears.
Result: ◆ The indoor unit beeps each time you press M DE.
◆ The air conditioner starts up in Cool mode.
To operate the unit by remote control, press the C L button.
2
If the “SET TEMP” and “TEMP” indicators are not displayed,
press the TIME/TEMP. SELECT button to appear it.
3
To adjust the temperature, press the TIME/TEMP. ▲or ▼buttons
one or more times until the required temperature is displayed.
Possible temperature are between 18°C and 30°C inclusive.
Result: ◆ Each time you press the TIME/TEMP. ▲ or ▼
- The temperature is adjusted by 1°C
- The indoor unit beeps.
◆ The air conditioner will only start cooling if the room temperature
is higher than the selected temperature.
◆ During cooling, the operating indicator( ) on the control
panel comes on.
4
Select the fan speed by pressing the FAN SPEED button one or more
times until the required setting is displayed:
To select the fan speed by remote control, press L W, MID or HIGH buttons.
Low
Medium
High
5
To control the air flow direction when necessary, refer to page 15.
6
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
◆ Switched on
◆ Stopped
It will start up normally after a three-minute rest period.
You can chage modes at any time.
Each time you press FAN SPEED, the indoor unit beeps.
If necessary, press the N/ FF( ) button.
Result: ◆ The power indicator on the control panel comes on.
◆ The indoor unit beeps twice.
◆ The operation mode previously set is displayed.
◆ The air conditioner starts up in the mode selected
when the unit was last used.
Note
Note
IMPORTANTE
ENGLISH

You must select the Heat mode if you wish to adjust the:
◆ Heating temperature
◆ Fan speed when heating
◆ Auxiliary Heater (option)
1
If the HEAT indicator is not displayed, press the M DE button
one or more times until it appears.
Result: ◆ The indoor unit beeps each time you press M DE.
◆ The air conditioner starts up in HEAT mode.
To operate the unit by remote control, press the HEAT button.
2
If the “SET TEMP” and “TEMP” indicators are not displayed,
press the TIME/TEMP. SELECT button to appear it.
3
To adjust the temperature, press the TIME/TEMP. ▲ or ▼ buttons
one or more times until the required temperature is displayed.
Possible temperature are between 16°C and 30°C inclusive.
Result: ◆ Each time you press the TIME/TEMP. ▲ or ▼
- The temperature is adjusted by 1°C
- The indoor unit beeps.
◆ The air conditioner starts heating, provided that
the room temperature is lower than the desired temperature;
the fan will, however,operate.
◆ During heating, the operating indicator ( ) on the control
panel comes on.
◆ During defrosting, the defrosting indicator ( ) on the control
panel comes on.
To select fan speed by remote control, press L W, MID or HIGH buttons.
Result: ◆ Each time you press FAN SPEED, the indoor unit beeps.
◆ For the first three to five minutes, the fan operates very slowly
unit the air has been sufficiently warmed.
once the correct temperature has been reached, the fan is
automatically set to the required speed.
4
Select the fan speed by pressing the FAN SPEED button one or more
times until the required setting is displayed:
5
To control the direction of the air flow refer to page 15.
6
If you find that the room is not warm enough, set the Auxiliary Heater
switch to the N position. (option)
See ‘ perating Recommendations’ on page 17 for more information.
Result: ◆ The heater indicator( ) on the control panel comes on.
7
You can change at any time.
If necessary, press the N/ FF( ) button.
Result: ◆ The power indicator on the control panel comes on.
◆ The indoor unit beeps twice.
◆ The operation mode previously set is displayed.
◆ The air conditioner starts up in the mode selected
when the unit was last used.
Heating You Room
E-12
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
◆ Switched on
◆ Stopped
It will start up normally after a three-minute rest period.
Low
Medium
High
Note
IMPORTANTE
Option

.
E-13
Changing the Room Temperature Quickly
The turbo function cooling/heating is used to cool or heat your room
as quickly as possible.
Example : You have just come home and find that the room is very hot.
You wish to cool it down as quickly as possible.
The turbo function operates for 30 minutes with the maximum
settings before returning automatically to the mode and
temperature previously selected.
The turbo function can be controlled by using remote control.
If necessary, press the N/ FF( ) button.
Result: ◆ The power indicator on the control panel comes on.
◆ The indoor unit beeps twice.
◆ The operation mode previously set is displayed.
◆ The air conditioner starts up in the mode selected
when the unit was last used.
Remote control
1
Check to see whether the operation mode is positioned at
‘AUT ’, ‘C L’ or ‘HEAT’; the turbo cooling operation cannot
be selected when the unit is in the "FAN" operation mode.
◆ The tempeature and fan setting are adjusted automatically.
◆ The TURB indicator on the control panel comes on.
◆
The air conditioner cools or heats the room as quickly as possible.
◆ After 30 minutes, the air conditioner is reset automatically
to the previous mode, temperature and fan settings.
2
Press the TURB button on the remote control.
3
If you wish to stop the Turbo function before the end of the 30-minute
period, press the TURB button again.
Result: ◆ The air conditioner is reset automatically to the
previous mode.
4
To control the direction of the air flow, refer to page 15.
5
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
◆ Switched on
◆ Stopped
It will start up normally after a three-minute rest period.
Note
IMPORTANTE
ENGLISH

If the atmosphere in your room is stale, you can air the room using
the Fan feature.
If necessary, press the N/ FF( ) button.
Result: ◆ The power indicator on the control panel comes on.
◆ The indoor unit beeps twice.
◆ The operation mode previously set is displayed.
◆ The air conditioner starts up in the mode selected
when the unit was last used.
1
If the FAN indicator is not displayed, press the M DE button one or
more times until it appears.
Result: ◆ The indoor unit beep each time you press M DE.
◆ The FAN indicator on the control panel comes on.
◆ The air conditioner starts up in Fan mode.
◆ The temperature is set automatically.
To operate the unit by remote control, press the FAN button.
2
Select the fan speed by pressing the FAN SPEED button one or more
times until the required setting is displayed:
To select the fan speed by remote control, press L W, MID or HIGH buttons.
3
To control the direction of the air flow, refer to page 15.
4
Each time you change the fan setting, the indoor unit beeps.
You can change modes at any time.
Airing Your Room
E-14
Low
Medium
High
Note
Note

E-15

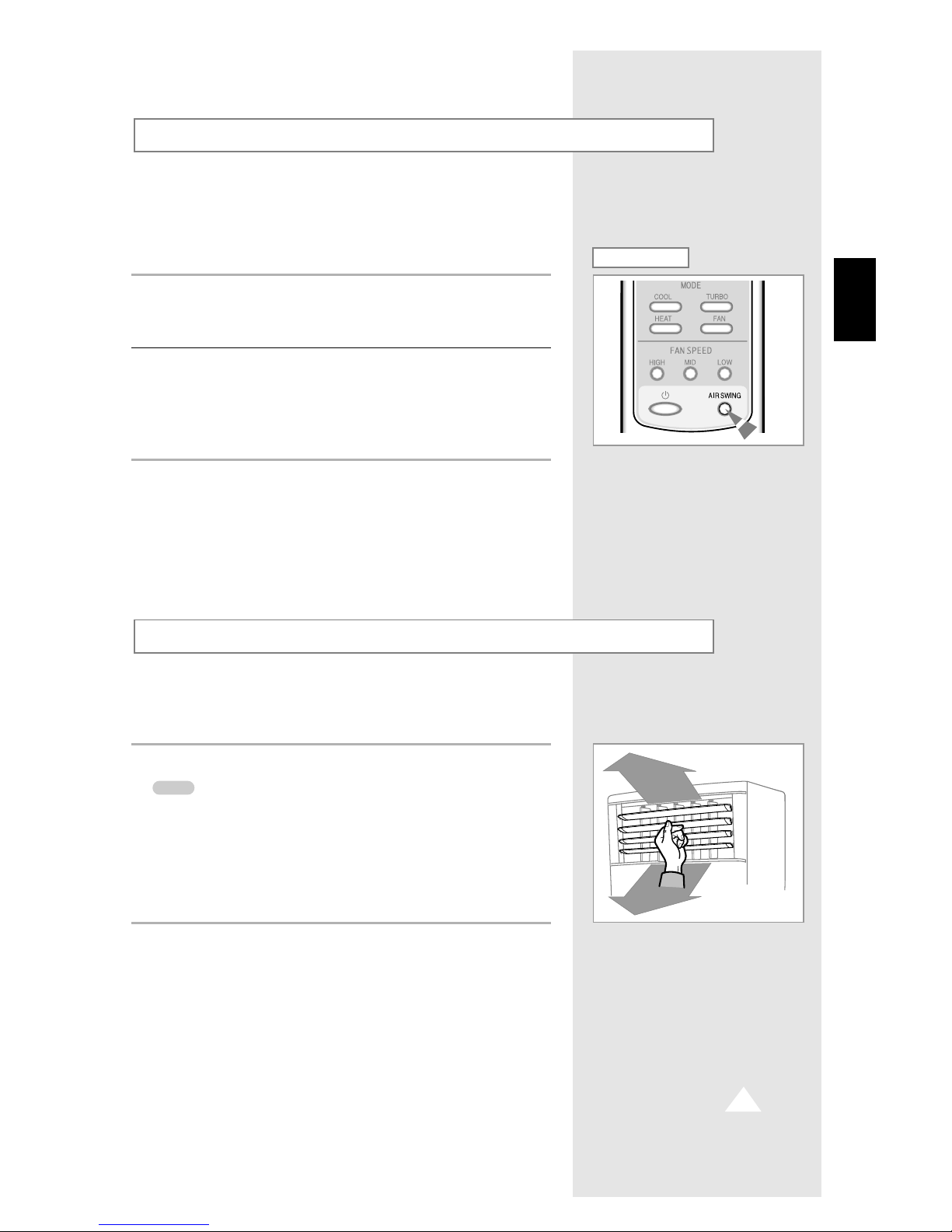

Depending on the position of the indoor unit, you can adjust
the position of the air flow blades on the top of the unit,
thus increasing the efficiency of the air conditioner.
You can controll by using remote control.
Press the AIR SWING button on the remote control.
Result: ◆ The blades are moved between right and left.
Remote control
1
To stop the blades, press the AIR SWING button again.
To set to the required position, press the AIR SWING button again
when the blades are in the required position.
2
◆ Effective control of air flow direction.
- Adjust the blades to face upward for cooling.
- Adjust the blades to face downward for heating.
Adjusting the Air Flow Direction Horizontally
Just as the air flow blades can be adjusted vertically,
they can also be adjusted by the hands.
Set the horizontal blades in the disired direction.
1
Adjusting the Air Flow Direction Vertically
Note
ENGLISH

Setting the Off Timer
The Off Timer enables you to set the air conditioner to switch off
automatically after a given period of time, by pressing one single button.
The unit can be switched off automatically after one hour, two hours,
three hours, four hours or five hours.
You can controll by using remote control.
If necessary, press the N/ FF( ) button and select the operating
mode.
1
Press the TIMER button one or more times until the room temperature or
the current time is displayed.
1
Press the TIMER button.
2
Result: ◆ The TIMER indicator is displayed.
◆ When the timer operation function starts, the remaining
time is displayed.
Cancelling the Off Timer
If you no longer wish to use the off timer function, you can cancel
it at any time.
Result: ◆ The off timer is cancelled.
◆ The air conditioner operates normally.
E-16
Each time the button is pressed, the following are displayed sequentially:
Note

E-17
Operating Recommendations
Here are a few recommendations that you should follow when using
your air conditioner.
Topic Recommendation
The heat pump inside the air conditioner absorbs heat from
outside air and brings it indoors. If the temperature of the outside
air drops, the air conditioner will heat less.
If you find that the room is not warm enough, set the Auxiliary
Heater switch to the ‘ N’ position (option) or use an additional
heating appliance.
Heating
performances
The air conditioner circulates warm air to heat your room;
as a result, some time will be required after starting
the air conditioner to warm the entire room. If necessary,
set the air conditioner going a short time before you wish
to use the room.
Warm air
circulation
When outside temperatures are low and humidity is high,
frost may form in the outdoor unit when heating with
your air conditioner.
If this happens:
◆ The heating fans are stopped.
◆ The Defrost mode is triggered automatically for about 9 minutes.
◆ The DEFR ST indicator( ) on the indoor unit switches on.
No intervention is required by you; after about 9 minutes,
the air conditioner starts operation again normally.
Frost
If both indoor and outdoor temperatures are high and you
select the HEAT mode, the outdoor unit’s fan and
compressor may stop at times.
This is normal; simply wait until the air conditioner switches
on again.
High indoor
and outdoor
temperatures
If a power failure occurs while the air conditioner is operating,
it is switched off. When the power returns, you must press
N/ FF( ) to restart it.
Power failure
ally:
ENGLISH

Temperature and Humidity Ranges

The following table indicates the temperature and humidity ranges,
within which the air conditioner can be used.
Cleaning Your Air Conditioner
To get the best possible use out of your air conditioner, you must clean
it regularly to remove the dust that accumulates on the air filter.
Before cleaning your air conditioner, ensure that you have
switched off the breaker used for the unit.
Pull the air inlet grille lightly and pull out the air filter in an upward direction
to release them.
1
Remove all dust on air filters with a vacuum cleaner or brush.
In case of serious dust accumulation, put the dust filter in warm detergent
water and shake it vertically.
2
Dry the air filter.
3
When you have finished, insert the bottom part of the filters into
their slot and push down until they click into place.
4
Clean the front panel with the damp cloth and mild detergent
(do not use benzene, solvents or other chemicals).
5
Mode utdoor Temperature Indoor Temperature Indoor Humidity
Heating
Cooling
0°C to 21°C approx.
21°C to 43°C approx.
28°Cor less
21°C to 32°C approx.
-
80% or less
If the unit is used for long
periods at a high humidity
level, water may condense
on and drip from the
surface of the unit.
If you have not used the air conditioner for a long period of time:
◆Check that the air filter is clean and remove any dust.
◆Set the fan going for three to four hours to dry the inside
of the air conditioner thoroughly.
◆Turn the switch off after stopping the operation.
◆Cover the outdoor unit with a protective cover.
E-18
Note
IMPORTANTE

E-19
◆ Check that the off timer has been programmed correctly;
see page 16.
Solving Common Problems
Before contacting the after-sales service, perform the following simple
checks. They may save you the time and expense of an unnecessary call.
Problem Explanation / Solution
◆ Check that the power switch is turned N.
◆ Check that the power light on the control panel
is on; if necessary, press N/ FF( ).
◆ Check whether the timer operation function stops.
The air conditioner
does not operate at all
◆ Check that there are no obstacles between you
and the indoor unit.
◆ Check the remote control batteries.
◆ Check that you are close enough to the indoor
unit (7 meters or less).
The air conditioner does
not operate with the
remote control
◆ Check that the correct operating mode has been
selected AUT , C L or HEAT.
◆ The room temperature may be too low or too high.
◆ Dust may be blocking the air filter guard;
refer to page 18 for cleaning instructions.
◆ Check that there is no obstacle in front of
the outdoor unit.
The air conditioner
does not cool or heat
◆ Check that required temperature has been set
correctly.
◆ Increase the fan speed.
◆ If the air flow is directed downwards,
use the remote control to turn it upwards.
When heating, the required
room temperature is never
reached and the air
conditioner frequently stops.
◆ Check that the operating mode is set to HEAT,
C L or FAN; in the AUT mode, the fan
speed changes automatically.
The fan speed does not
change when you
press the FAN SPEED
button
◆ Check that the air conditioner has been switched on.The air flow direction
does not change when
you press AIR SWING
The off timer is not
correctly triggered.
◆ Air the room. Smells are permeated
in the room during air
conditioning
ENGLISH

ELECTRONICS
Printed in Korea
THIS AIR CONDITIONER IS MANUFACTURED BY:
ESTE ACONDICIONADOR DE AIRE ES FABRICADO POR:
CE CLIMATISEUR EST FABRIQUÉ PAR:
