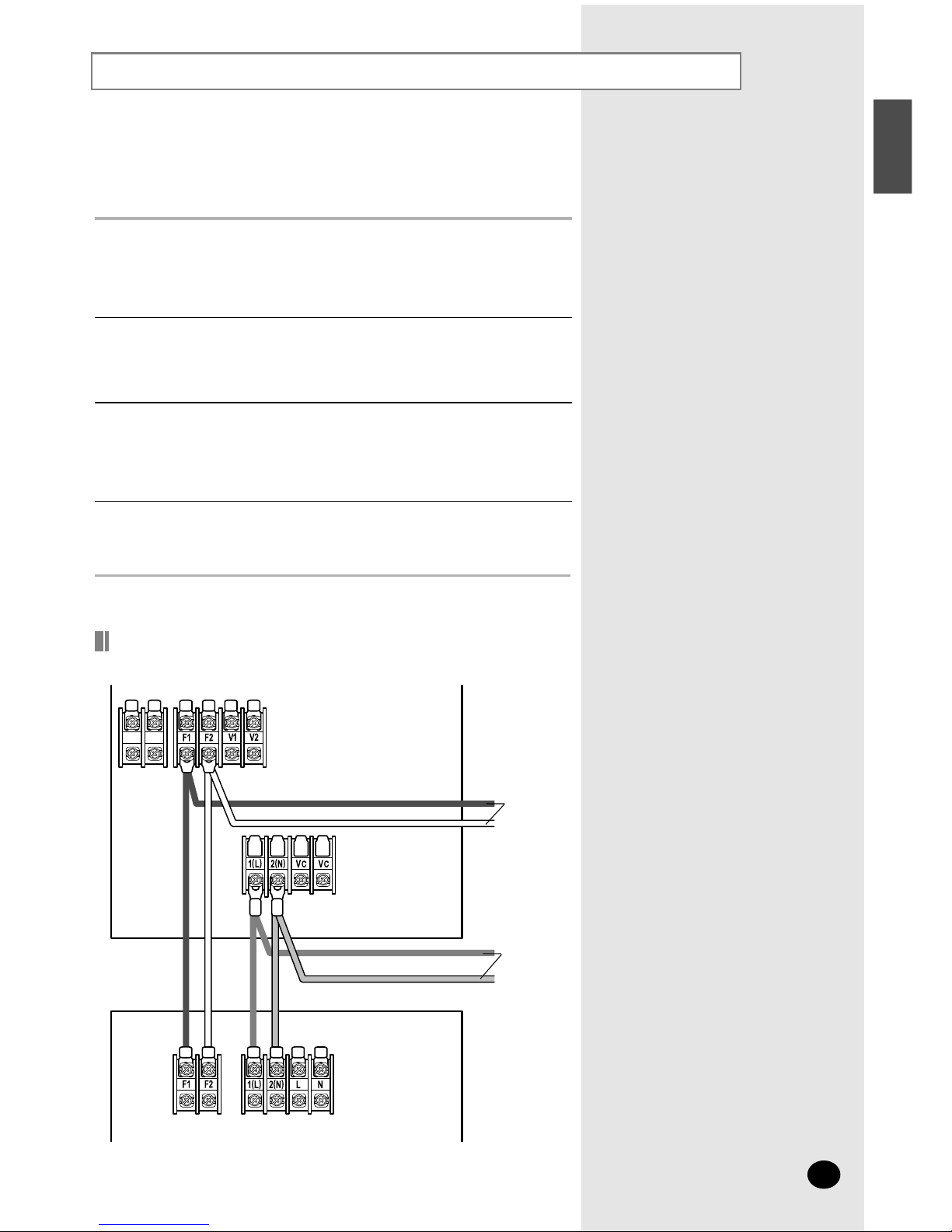

■ Connecting the connection cord . . . . . . . . . . . . . . . . . . . . . . . . . . 15
■ Assigning address to indoor unit . . . . . . . . . . . . . . . . . . . . . . . . . 16
■ Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
CC
CCEE EEII IILL LLII IINN NNGG GG// //FF FFLL
LLOO OOOO OORR RRTT TTYY YYPP PPEE EEII IINN
NNSS SSTT TTAA AALL LLLL LLAA AATT TTII IIOO OONN NN
Chapter

■Preparation for installation . . . . . . . . . . . . . . . . . 4
■Deciding on where to install the indoor unit . . . 5
■Ceiling installation . . . . . . . . . . . . . . . . . . . . . . . 8
■Floor installation . . . . . . . . . . . . . . . . . . . . . . . . 9
■Purging the unit . . . . . . . . . . . . . . . . . . . . . . . . 10
■Connecting the refrigerant pipe . . . . . . . . . . . . 11
■Cutting / Flaring the pipes . . . . . . . . . . . . . . . . 12
■Performing leak test & insulation . . . . . . . . . . . 13
■Drain hose installation . . . . . . . . . . . . . . . . . . . 14
■Connecting the connection cord . . . . . . . . . . . 15
■Assigning address to indoor unit . . . . . . . . . . . 16
■Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 18
CC
CCEE EEII IILL LLII IINN NNGG GG// //FF FFLL LLOO OOOO OORR RRTT TTYY YYPP PPEE EEII IINN NNSS SSTT TTAA AALL LLLL LLAA AATT TTII IIOO OONN NN
Chapter
E-3
ENGLISH

Preparation for installation
When deciding on the location of the air conditioner with the owner,
the following restrictions must be taken into account.
General
Do NOT install the air conditioner in a location where it will come into
contact with the following elements:
◆Combustible gases
◆Saline air
◆Machine oil
◆Sulphide gas
◆Special environmental conditions
If you must install the unit in such conditions, first consult your dealer.
E-4
Accessories
◆The following accessories are supplied with the indoor unit.
◆The type and quantities may differ depending on a specification.
M4 X 12 Tapped
Screw
Wireless Remote
Controller BatteryRemote Controller Holder
Pattern sheet
Plate Hanger
Installation ManualOwner’s Instructions
Cable-Tie
OWNER'SINSTRUCTIONS
MANUALDEINSTRUCCIONES
ISTRUZIONIPERL'USO
MANUALDEINSTRUÇÕES
MANUELD'UTILISATION
GEBRAUCHSANWEISUNG
Splut-typeRoomAirConditioner
AireacondicionadodomésticosistemaSplit
Condizionatored'ariaperambientiadunitàSeparate
AparelhodearcondicionadotipoSplit
Climatiseurdetypeséparé
Geteilteraumklimaanlage
OWNER'SINSTRUCTIONS
MANUALDEINSTRUCCIONES
ISTRUZIONIPERL'USO
MANUALDEINSTRUÇÕES
MANUELD'UTILISATION
GEBRAUCHSANWEISUNG
Splut-typeRoomAirConditioner
AireacondicionadodomésticosistemaSplit
Condizionatored'ariaperambientiadunitàSeparate
AparelhodearcondicionadotipoSplit
Climatiseurdetypeséparé
Geteilteraumklimaanlage

Deciding on where to install the indoor unit
Indoor Unit
◆Select a convenient location that permits the air to reach every corner of the
area to be cooled.
◆Pre-plan for easy and short routing of the refrigerant tubing and wiring to the
outdoor unit.
◆There should be no flammable gas, alkaline, substances present in the air.
◆Avoid location where obstacles preventing good air circulation are present.
◆Noise prevention should be considered in determining the unit's location.
◆The structure, where the unit is to be installed should be strong enough to
support the weight of the unit.
◆Do not install the unit where it will be exposed to direct sunlight.
E-5
ENGLISH

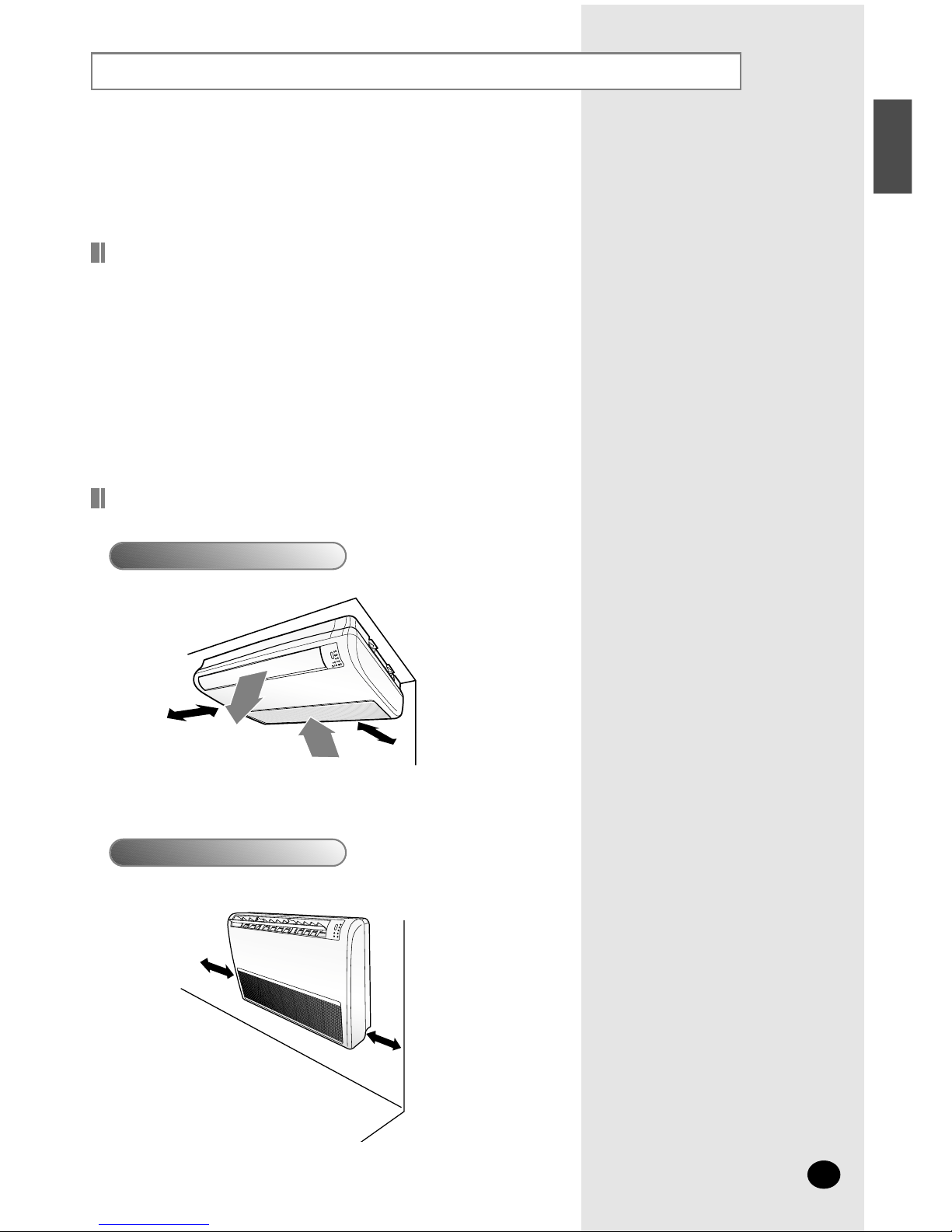

Space Requirements for Indoor Unit
Ceiling installation
Floor installation
300mm
300mm
300mm
50mm

Deciding on where to install the indoor unit (cont.)
E-6
45
50
240
200
650
197
922
1000
Drawing of the indoor unit
Unit : mm
Back side

E-7
ENGLISH
50
44
Pipe outlet (bottom side)
Drain hose outlet
Wiring hole
Air intake hole (Ø50)

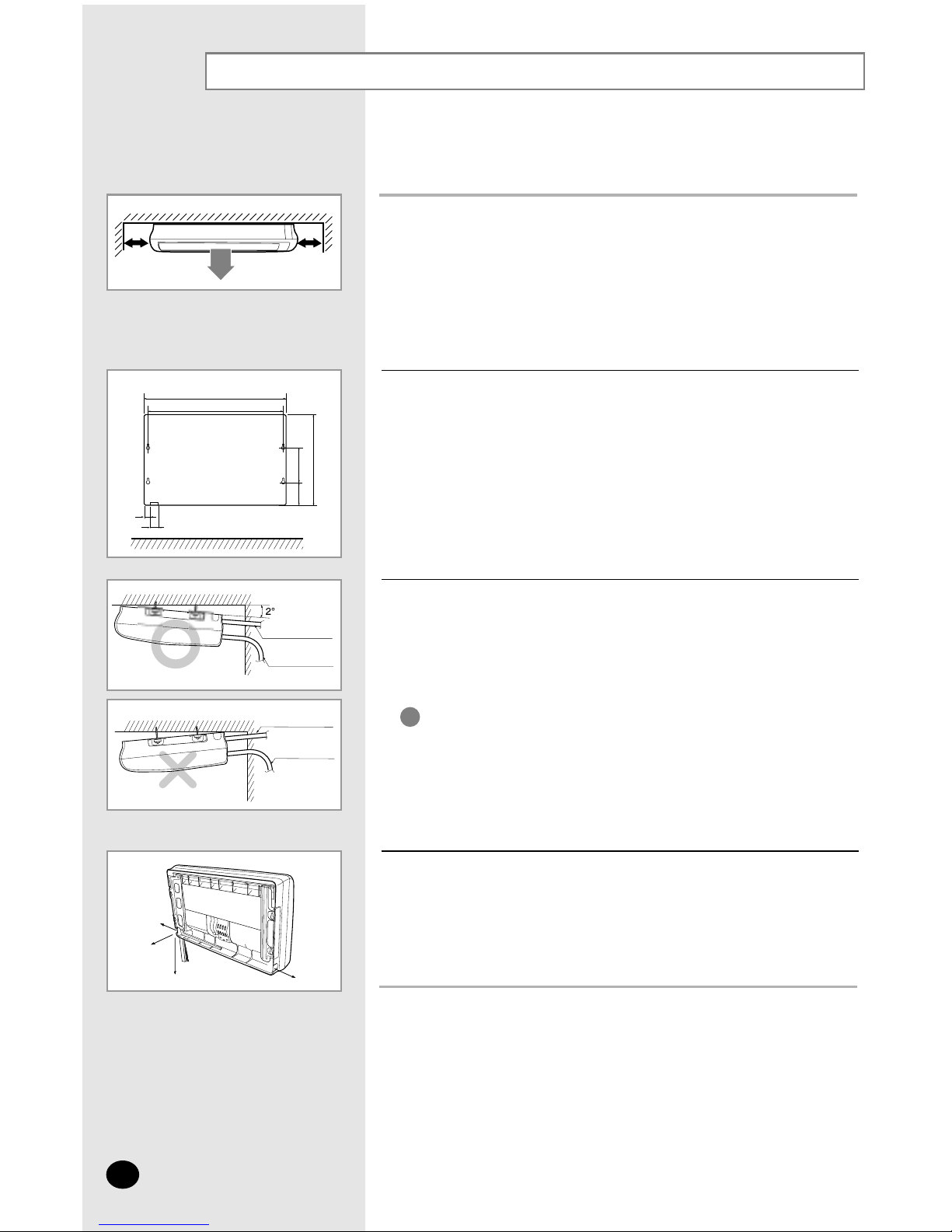

Ceiling installation
1000
922
45
50
197 240
650
1Select pipe directions.
When the directions are selected, drill 3-1/8'' (100mm, for pipe and cables)
and 1-3/4'' (40mm, for drain hose) diameter holes on the wall so that it
slants slightly downwards toward the outdoor for smooth water flow.
2Drill holes for anchor bolts according to the distance and mount them.
3Install the unit onto the ceiling. Be sure to arrange the drain hose so that it
is leveled lower than the drain hose connecting port of the indoor unit.
4If installing on dropped ceiling, install threaded rod onto anchor
bolt (expansion bolt) to long enough to suspend the unit right below the
dropped ceiling and the install the unit suspending on the threaded rod.
Ensure that the ceiling is strong enough to support the
weight of the indoor unit. Before hanging the unit, test
the strength of each attached suspension bolt.
IMPORTANT
◆Use the pattern sheet to select pipe directions.
NN
NNoo oott ttee ee
◆Use the pattern sheet.
NN
NNoo oott ttee ee
◆For proper drainage of condensate, give a 2°slant to the
side of the unit which will be connected with the drain
hose as shown in the figure.
NN
NNoo oott ttee ee
300mm or more
Connection pipe
Back side
Connection pipe
Drain hose
Drain hose
300mm or more
Unit : mm
E-8

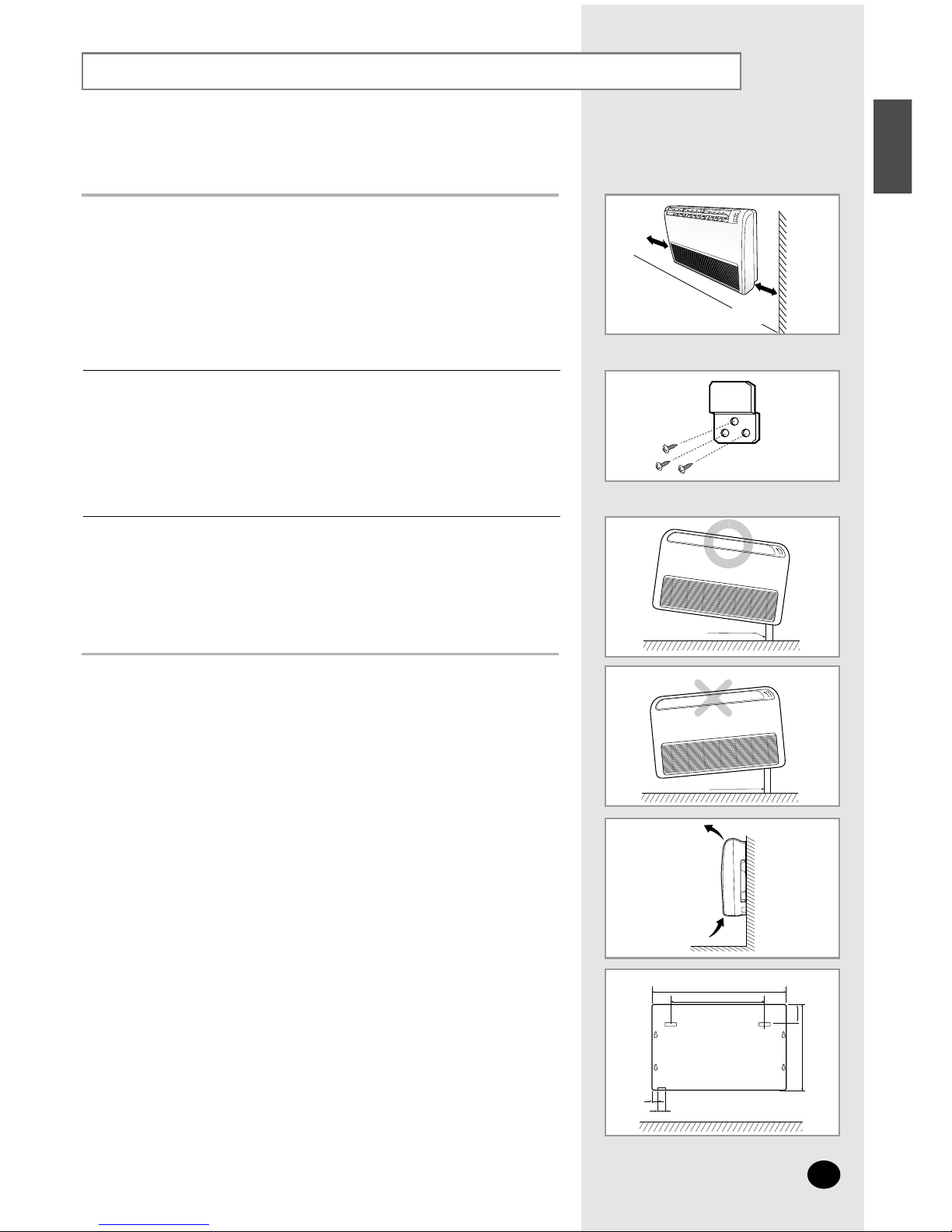

Floor installation
1Select pipe directions.
When the directions are selected, drill 3-1/8'' (100mm, for pipe and cables)
and 1-3/4'' (40mm, for drain hose) diameter holes on the wall so that it
slants slightly downwards toward the outdoor for smooth water flow.
2Install the hanging plate according to the distance and mount it.
3Install the unit and be sure to arrange the drain hose so that it is leveled
lower than the drain hose connecting port of the indoor unit.
1000
793
45
50
650 101
◆Use the pattern sheet to select pipe directions.
NN
NNoo oott ttee ee
Drain hose
Drain hose
300mm
or more
300mm
or more
Back side
Unit : mm
E-9
ENGLISH

E-10
Purging the unit
On delivery, the indoor unit is loaded with an inert nitrogen gas.
All this gas must therefore be purged before connecting the assembly
piping. To purge the inert gas, proceed as follows.
Unscrew the caps at the end of each pipe.
Result: All inert gas escapes from the indoor unit.
◆To prevent dirt or foreign objects from getting into the pipes
during installation, do NOT remove the caps completely until
you are ready to connect the piping.
NN
NNoo oott ttee ee

Connecting the refrigerant pipe
E-11
ENGLISH
There are two refrigerant pipes of differing diameters:
◆
A smaller one for the liquid refrigerant
◆
A larger one for the gas refrigerant
◆
The inside of copper pipe must be clean & has no dust.
Remove the nuts on the pipes and connect the assembly pipes to each
pipe, tightening the nuts, first manually and then with a wrench, a spanner
applying the following torque.
1
Must use insulator which is thick enough to cover the refrigerant pipe to
protect the condensate water on the outside of pipe falling onto the floor
and the efficiency of the unit will be better.
2
Cut off any excess foam insulation.
3
Be sure that there must be no crack or wave on the bended area.
4
It would be necessary to double the insulation thickness(10mm or more)
to prevent condensation even on the insulator when if the installed area is
warm and humid.
5
◆
If the pipes must be shortened refer to page 12.
NN
NNoo oott ttee ee
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4") 144~176
9.52 mm (3/8") 333~407
12.70 mm (1/2") 504~616
15.88 mm (5/8") 630~770
19.05 mm (3/4") 990~1210
22.23 mm (7/8") 990~1210
Refrigerant oil
Torque wrench
Flare nut
Union
Spanner

E-12
Cutting / Flaring the pipes
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4") 144~176
9.52 mm (3/8") 333~407
12.70 mm (1/2") 504~616
15.88 mm (5/8") 630~770
19.05 mm (3/4") 990~1210
22.23 mm (7/8") 990~1210
Make sure that you have the required tools available (pipe cutter, reamer,
flaring tool and pipe holder).
1
If you wish to shorten the pipes, cut it with a pipe cutter, taking care to
ensure that the cut edge remains at a 90°angle with the side of the pipe.
Refer to the illustrations below for examples of edges cut correctly and
incorrectly.
2
To prevent any gas from leaking out, remove all burrs at the cut edge of the
pipe, using a reamer.
3
Slide a flare nut on to the pipe and modify the flare.
4
Check that the flaring is correct, referring to the illustrations below for
examples of incorrect flaring.
5
Align the pipes and tighten the flare nuts first manually and then with
a wrench, applying the following torque.
6
Outer Diameter (D) Depth (A)
6.35 mm (1/4") 1.3mm
9.52 mm (3/8") 1.8mm
12.70 mm (1/2") 2.0mm
15.88 mm (5/8") 2.2mm
19.05 mm (3/4") 2.2mm
22.23 mm (7/8") 2.2mm
90O
Oblique Rough Burr
Inclined Damaged Surface Cracked Uneven Thickness
◆ CC
CCAA AAUU UUTT TTII IIOO OONN NN
In case of welding the pipe, you must weld with nitrogen
gas blowing.

E-13
ENGLISH

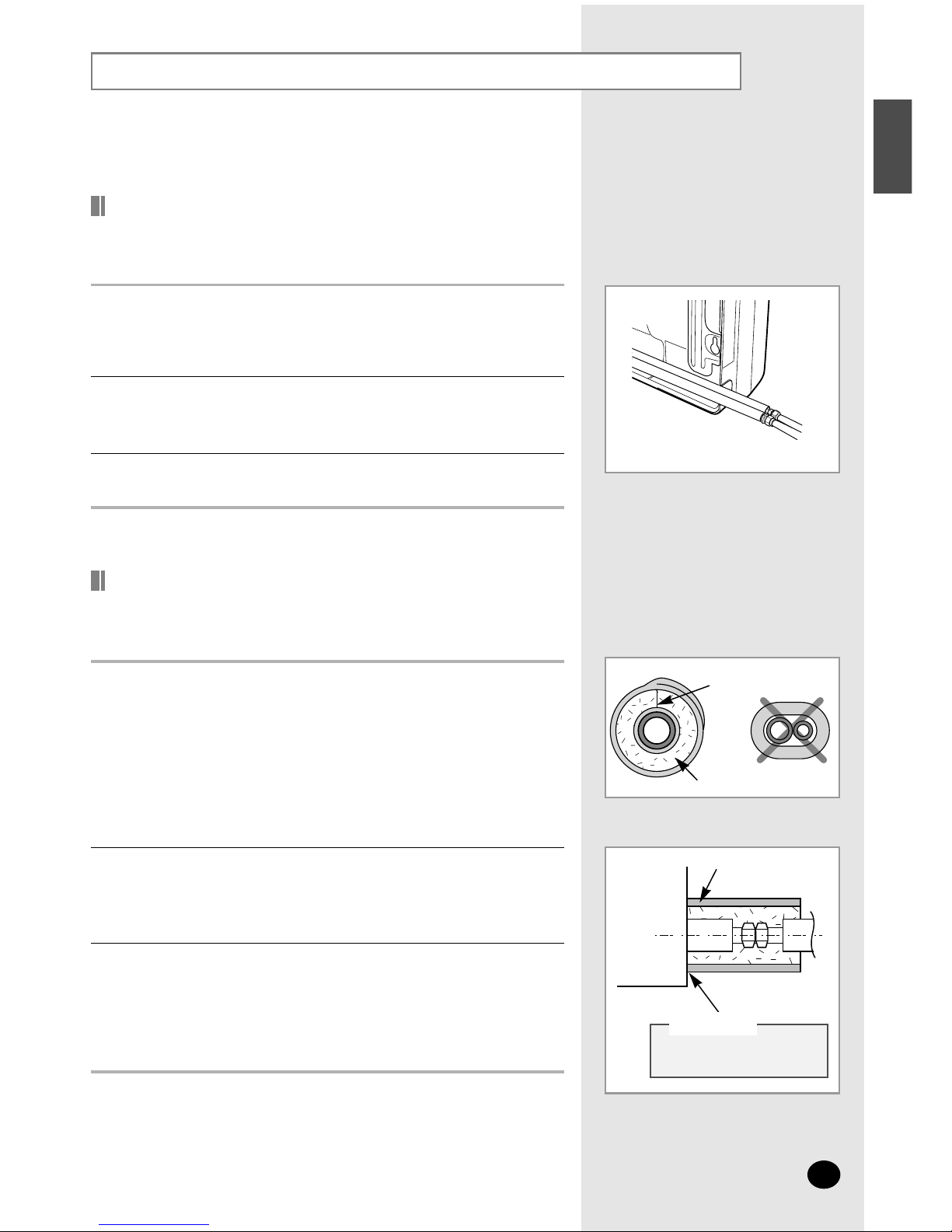

Performing leak test & insulation
Before completing the installation (insulation of the hose and pipe),
you must check that there are no gas leaks.
Once you have checked that there are no leaks in the system,
you can insulate the piping and hose.
To avoid condensation problems, place T13.0 or thicker Acrylonitrile
Butadien Rubber separately around each refrigerant pipe.
1
After closing both high and low stop valve of the outdoor unit, inject
nitrogen gas into refrigerant pipe to reach 28kgf/cm2.
1
Purge nitrogen gas after finishing leak test.
3
By using soap bubbles, check leak on flare nut connection of pipes.
2
Wind insulating tape around the pipes.
2
Finish wrapping insulating tape around the rest of the pipes leading to the
outdoor unit.
3
◆
Always make the seam of pipes face upwards.
NN
NNoo oott ttee ee
Leak Test
Insulation
Insulation
Be sure to overlap
the insulation
Indoor Unit
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Must fit tightly against
body without any gap.
No gap
NBR(T13.0 or thicker)

E-14

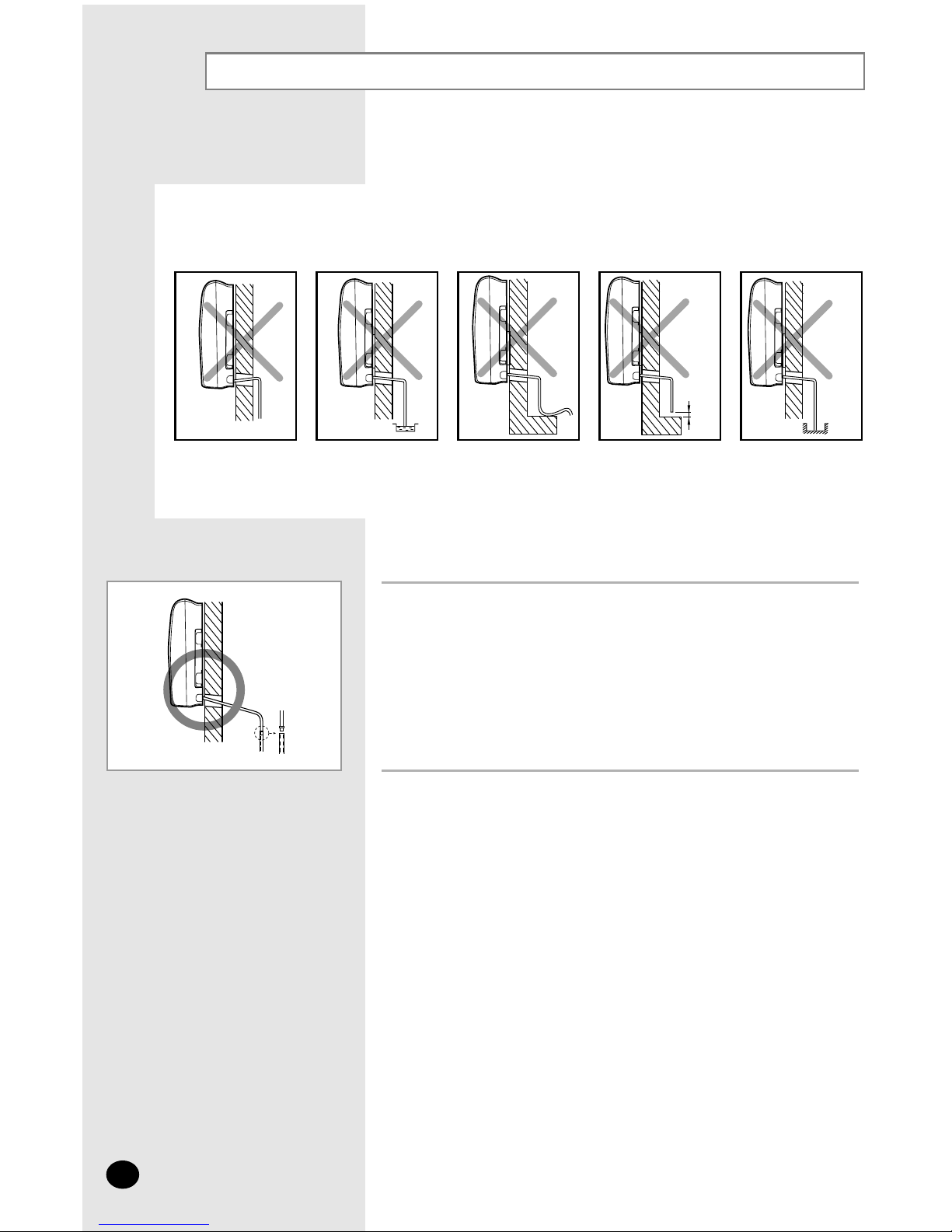

Drain hose installation
Care must be taken when installing the drain hose for the indoor unit to ensure that any
condensation water is correctly drained outside. When passing the drain hose through the
hole drilled in the wall, check that none of the following situations occur.
If draining pipe is not too long.
It may be extended the draining pipe by connecting as following figure.
The hose must NOT
slope upwards. The end of the drain hose must NOT be
placed in water.
Do NOT bend the
hose in different
directions.
Keep a clearance of
at least 5 cm between
the end of the hose
and the ground.
Do NOT place the
end of the drain hose
in a hollow.
5 cm
less Ditch

Connecting the connection cord
Wiring Diagram
The indoor unit is powered from the outdoor unit via the connection cord.
Remove the screw on the electrical component box and remove the cover
plate.
1
Route the connection cord through the side of the indoor unit and connect
the cable to terminals; refer to the figure below.
2
Route the other end of the cable to the outdoor unit through the ceiling &
the hole on the wall.
3
Reassemble the electrical component box cover, carefully tightening the
screw.
4
E-15
ENGLISH
Indoor Unit
Outdoor Unit
Communication Power
Next Indoor unit
(Communication)
Next Indoor
unit(Power)

Assigning address to indoor unit
Before installing the indoor unit, assign an address to the indoor unit
according to the air conditioning system plan.
1
The address of the indoor unit is assigned by adjusting MAIN(SW01) and
RMC(SW02) rotary switches.
2
The MAIN address is for communication between the indoor unit and the outdoor
unit. Therefore, you must set it to operate the air conditioner properly.
3
It is required to set the RMC address if you install the wired remote controller
and/or the centralized controller.
4
If you install optional accessories such as the wired remote controller, centralized
controller, etc. see an appropriate installation manual.
5
If an optional accessory is not installed, you do not have to set the RMC
address. However, adjust K1 and K2 switches of the SW03 DIP switch to
"ON" position in this case.
6
Set the MAIN address by adjusting the rotary switch(SW01) from 0 to F. Each
indoor unit connected to the same outdoor unit must have different address.
i. e. If an indoor unit does not have an optional accessory
and its MAIN address is "0"
7
K9
SW05 SW04
RMC
SW02 SW01
MAIN
K10 K11 K12 K5 K6 K7K8
SW03
K1 K2 K3K4
K9
SW05 SW04
RMC
SW02 SW01
MAIN
K10 K11 K12 K5 K6 K7K8
SW03
K1 K2 K3K4
E-16

Installation of more than 2 indoor units
◆All indoor units must have different MAIN addresses, but their RMC
addresses should be same.
◆In case of installing the wired remote controller, all indoor units and the wired
remote controller must have the same RMC address.
◆Adjust K1 switch on the SW03 of the indoor unit connected to the wired
remote controller to "OFF" position.
MAIN(SW01) address
RMC(SW02) address
0
0
Switch Indoor unit Indoor unit 1
1
0
Indoor unit 2
E-17
ENGLISH
Example: Setting up option switches when installing 2 indoor units
Communication cable
Wired remote controller
INDOOR UNIT 2
K9
SW05 SW04
RMC
SW02 SW01
MAIN
K10 K11 K12 K5 K6 K7 K8
SW03
K1 K2 K3 K4
K9
SW05 SW04
RMC
SW02 SW01
MAIN
K10 K11 K12 K5 K6 K7 K8
SW03
K1 K2 K3 K4
Power cable
INDOOR UNIT 1
INDOOR UNIT 1 INDOOR UNIT 2

Troubleshooting
E-18

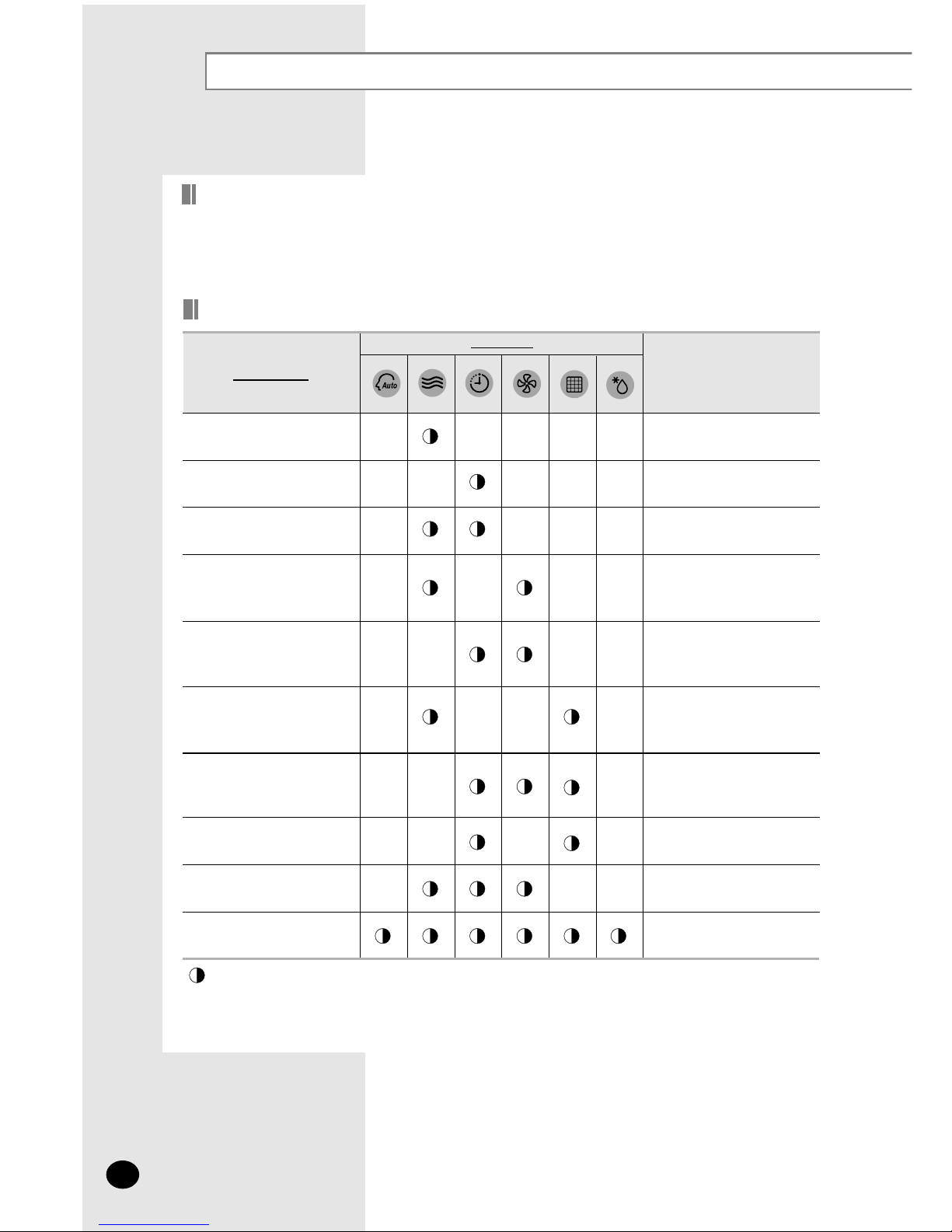

Detection of errors
◆If an error occurs during the operation, an LED flickers and the operation is stopped except the LED.
◆If you re-operate the air conditioner, it operates normally at first, then detect an error again.
LED Display
Power Reset
Displayed on appropriate
indoor unit which is operating
Displayed on appropriate
indoor unit which is operating
Displayed on appropriate
indoor unit which is operating
Displayed on outdoor unit
Error of indoor unit:
Displayed on the indoor unit
regardless of operation
Error of outdoor unit:
Displayed on the indoor unit
which is operating
Error of peripherals option
set-up
EEPROM error
EEPROM option error
Error of the indoor unit sensor
Error of the indoor unit pipe
sensor
Error of the outdoor unit pipe
sensor
Freeze prevention control
(Errors occur during 6th
detection)
Communication error
(Transmitter, wired remote
control)
Communication error between
indoor units
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
XX
XXX
X
X
LED lamp
Error mode Remark
X
X
X
XXX
XXX
Flickering X Off
◆If you turn off the air conditioner when the LED is flickering, the LED is also turned off.
◆If you re-operate the air conditioner, it operates normally at first, then detects an error again.
LED Display on the indoor unit

E-19
ENGLISH

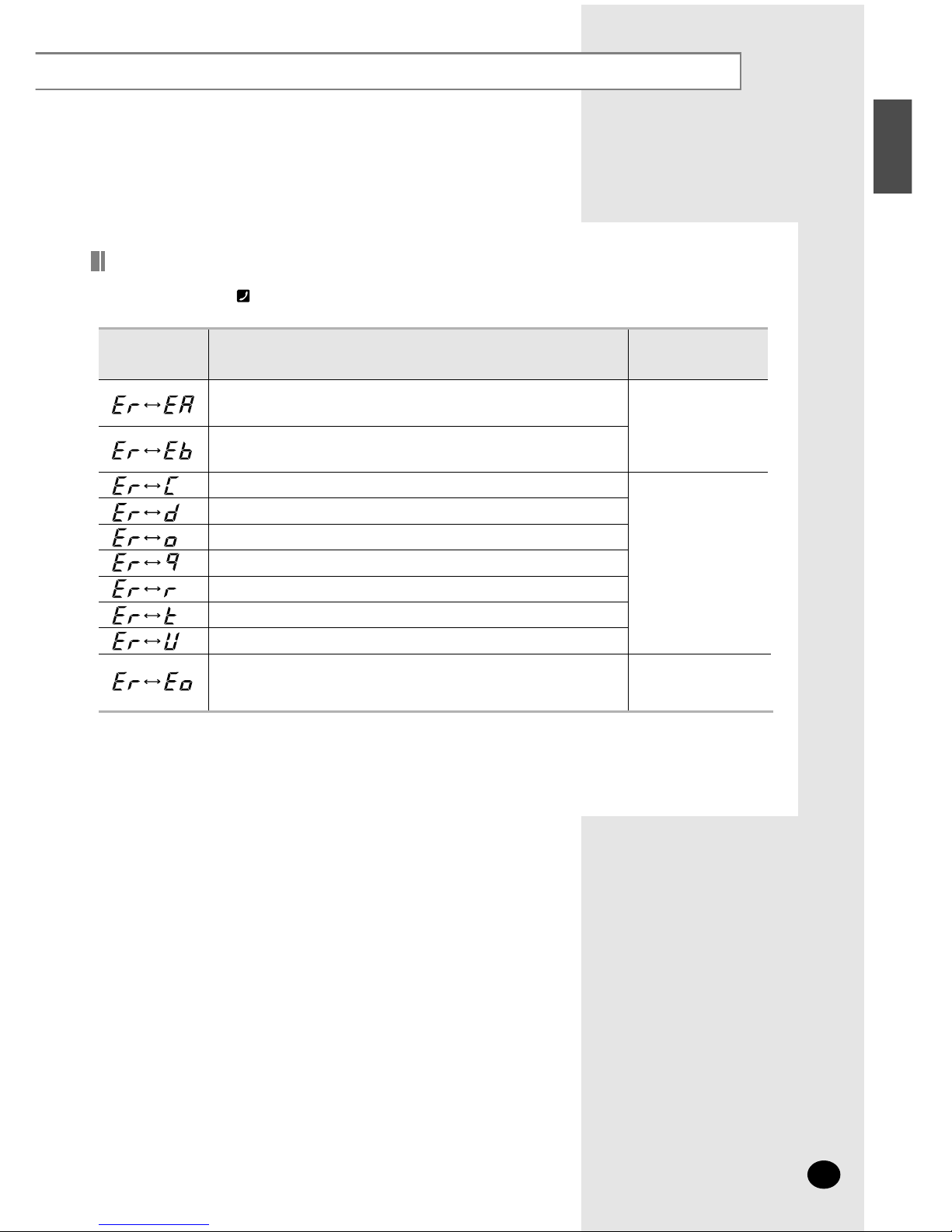

Explanation
Display
Error of communication between the outdoor unit and the wired
remote controller
Error of communication between the indoor unit and the wired
remote controller
Open error of electronic expansion valve
Close error of electronic expansion valve
Error of float switch
OPEN/SHORT error of room sensor in indoor unit
OPEN/SHORT error of eva in sensor in indoor unit
EEPROM error
EEPROM option error
Error of outdoor unit
Communication
errors
Displays related to
indoor unit
(x : 0~F)
For the details, refer to
the installation manual
of the outdoor unit.
Remark
The order of priority : EA→Eb →Cx →dx →ox →qx →rx →tx →Ux →Eo
- In case that the same error displays from multi-indoor units, the one having the faster address
has the priority.
x
x
x
x
x
x
x
Wired remote controller
◆If an error occurs, is displayed on the wired remote controller.
◆If you would like to see an error code, press the Test button.

■Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
OO
OOPP PPTT TTII IIOO OONN NNAA AALL LLAA AACC CCCC CCEE EESS SSSS SSOO OORR RRII IIEE EESS SS
Chapter
E-20
