Samsung AR12FC3TAUR Guide

AURAR24FC2T
AR18FC3EAPW
AR18FC2EAPW
AR12FC5EFBH
APDAR18FC5T
AR12FC5EGBHAR12FC5EGBH
AR12FC3TAUR
AR12FC5TAPD
AR18FC2TAUR
AR18FC3TDPD
AR18FC3TAUR AR18FC3EGBH
AR12FC3EAPW
AR18FC5TAPD
AR12FC5EFBH
AR18FC2EAPW
AR18FC3EAPW
(include Warranty Card)
AR24FC2TAUR
DB68-03529A(1)

good’ sleep

3
Safety precautions
Before using your new air conditioner, please read this manual thoroughly to ensure
that you know how to safely and eciently operate the extensive features and
functions of your new appliance.
Because the following operating instructions cover various models, the
characteristics of your air conditioner may dier slightly from those described in this
manual. If you have any questions, call your nearest contact center or nd help and
information online at www.samsung.com .
Important safety symbols and precautions:
WARNING
Hazards or unsafe practices that may result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor
personal injury or property damage.
Follow directions. Unplug the power plug
from the wall socket.
Do NOT attempt. Do NOT disassemble.
Make sure the machine is grounded to prevent electric shock.
FOR INSTALLATION
WARNING
Plug the power cord into a wall socket with the power specications of the
product or higher and use the socket for this appliance only. In addition, do
not use an extension cord.
Sharing a wall socket with other appliances using a power strip or
extending the power cord may result in electric shock or fire.
Do not use an electric transformer. It may result in electric shock or fire.
If the voltage/frequency/rated current condition is different, it may cause
fire.
The installation of this appliance must be performed by a qualied
technician or service company.
Failing to do so may result in electric shock, fire, explosion, problems
with the product, or injury.
Install a switch and circuit breaker dedicated to the air conditioner.
Failing to do so may result in electric shock or fire.
Fix the outdoor unit rmly so that the electric part of the outdoor unit is not
exposed.
Failing to do so may result in electric shock or fire.
Junfrau EU_AR09FSSK&Y@_IB_DB68-03363A_EN.indd 3 2012-9-26 16:00:39

4
Safety precautions
Do not install this appliance near a heater, inammable material. Do
not install this appliance in a humid, oily or dusty location, in a location
exposed to direct sunlight and water (rain drops). Do not install this
appliance in a location where gas may leak.
This may result in electric shock or fire.
Never install the outdoor unit in a location such as on a high external wall
where it could fall.
If the outdoor unit falls, it may result in injury, death or property damage.
If using a multi system, AJ***outdoor unit can only be connected to
European products among AR09FSSY*/AR12FSSY*/AR18FSSY* series.
This appliance must be properly grounded. Do not ground the appliance to a
gas pipe, plastic water pipe, or telephone line.
Failure to do so may result in electric shock, fire, an explosion, or other
problems with the product.
Never plug the power cord into a socket that is not grounded correctly
and make sure that it is in accordance with local and national codes.
FOR INSTALLATION
CAUTION
This appliance should be positioned in such a way that it is accessible to the
power plug.
Failing to do so may result in electric shock or fire due to electric leakage.
Install your appliance on a level and hard oor that can support its weight.
Failing to do so may result in abnormal vibrations, noise, or problems
with the product.
Install the draining hose properly so that water is drained correctly.
Failing to do so may result in water overflowing and property damage.
When installing the outdoor unit, make sure to connect the draining hose
so that draining is performed correctly.
The water generated during the heating operation by the outdoor unit
may overflow and result in property damage.
In particular, in winter, if a block of ice falls, it may result in injury, death or
property damage.
Junfrau EU_AR09FSSK&Y@_IB_DB68-03363A_EN.indd 4 2012-9-26 16:00:40

5
FOR POWER SUPPLY
WARNING
Remove all foreign substances such as dust or water from the power plug
terminals and contact points using a dry cloth on a regular basis.
Unplug the power plug and clean it with a dry cloth.
Failing to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the
cord runs towards the oor.
If you plug the power plug into the socket in the opposite direction, the
electric wires within the cable may be damaged and this may result in
electric shock or fire.
When the appliance or power plug or power cord is damaged, contact your
nearest service center.
Plug the power plug into the wall socket rmly. Do not use a damaged
power plug, damaged power cord or loose wall socket.
This may result in electric shock or fire.
Do not pull the power cord, when unplugging the power plug.
Unplug the power plug by holding the plug.
Failing to do so may result in electric shock or fire.
Do not pull or excessively bend the power cord. Do not twist or tie the
power cord. Do not hook the power cord over a metal object, place a heavy
object on the power cord, insert the power cord between objects, or push
the power cord into the space behind the appliance.
This may result in electric shock or fire.
FOR POWER SUPPLY
CAUTION
When not using the air conditioner for a long period of time or during a
thunder/lightning storm, cut the power at the circuit breaker.
Failing to do so may result in electric shock or fire.
FOR USING
WARNING
If the appliance is ooded, please contact your nearest service center.
Failing to do so may result in electric shock or fire.
If the appliance generates a strange noise, a burning smell or smoke,
unplug the power plug immediately and contact your nearest service
center.
Failing to do so may result in electric shock or fire.
Junfrau EU_AR09FSSK&Y@_IB_DB68-03363A_EN.indd 5 2012-9-26 16:00:40

6
Safety precautions
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate
immediately without touching the power plug. Do not touch the appliance
or power cord.
Do not use a ventilating fan.
A spark may result in an explosion or fire.
To reinstall the air conditioner, please contact your nearest service center.
Failing to do so may result in problems with the product, water leakage,
electric shock, or fire.
A delivery service for the product is not provided. If you reinstall the
product in another location, additional construction expenses and an
installation fee will be charged.
Especially, when you wish to install the product in an unusual location
such as in an industrial area or near the seaside where it is exposed to
the salt in the air, please contact your nearest service center.
Do not touch the power plug or the circuit breaker with wet hands.
This may result in electric shock.
Do not unplug the power plug or turn the air conditioner o with the circuit
breaker while it is operating.
Plugging the power plug into the wall outlet or turning the air
conditioner on from the circuit breaker may cause a spark and result in
electric shock or fire.
After unpacking the air conditioner, keep all packaging materials well
out of the reach of children, as packaging materials can be dangerous to
children.
If a child places a bag over its head, it may result in suffocation.
Do not insert your ngers or foreign substances into the outlet when the air
conditioner is operating.
Take special care that children do not injure themselves by inserting their
fingers into the product.
Do not touch the air ow blade with your hands or ngers during the
heating operation.
This may result in electric shock or burns.
Junfrau EU_AR09FSSK&Y@_IB_DB68-03363A_EN.indd 6 2012-9-26 16:00:40

7
Do not insert your ngers or foreign substances into the air inlet/outlet of the air
conditioner.
Take special care that children do not injure themselves by inserting their
fingers into the product.
Do not strike or pull the air conditioner with excessive force.
This may result in fire, injury, or problems with the product.
FOR USING
WARNING
Do not place an object near the outdoor unit that allows children to climb
onto the machine.
This may result in children seriously injuring themselves.
Do not use this air conditioner for long periods of time in badly ventilated
locations or near inrm people.
Since this may be dangerous due to a lack of oxygen, Open a window at
least once an hour.
If any foreign substance such as water has entered the appliance, cut the
power by unplugging the power plug and turning the circuit breaker o
and then contact your nearest service center.
Failing to do so may result in electric shock or fire.
Do not attempt to repair, disassemble, or modify the appliance yourself.
Do not use any fuse (such as cooper, steel wire, etc.)other than the
standard fuse.
Failing to do so may result in electric shock, fire, problems with the
product, or injury.
FOR USING
CAUTION
Do not place objects or devices under the indoor unit.
Water dripping from the indoor unit may result in fire or property
damage.
Check that the installation frame of the outdoor unit is not broken at least
once a year.
Failing to do so may result in injury, death or property damage.
Max current is measured according to IEC standard for safety and current is
measured according to ISO standard for energy eciency.
Junfrau EU_AR09FSSK&Y@_IB_DB68-03363A_EN.indd 7 2012-9-26 16:00:41

8
Safety precautions
Do not stand on top of the appliance or place objects (such as laundry,
lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on
the appliance.
This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the
appliance.
As well as being harmful to humans, it may also result in electric shock,
fire or problems with the product.
Do not drink the water from the air conditioner.
The water may be harmful to humans.
Do not apply a strong impact to the remote controller and do not
disassemble the remote controller.
Do not touch the pipes connected with the product.
This may result in burns or injury.
Do not use this air conditioner to preserve precision equipment, food,
animals, plants or cosmetics, or for any other unusual purposes.
This may result in property damage.
Avoid directly exposing humans, animals or plants from the air ow from
the air conditioner for long periods of time.
This may result in harm to humans, animals or plants.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Junfrau EU_AR09FSSK&Y@_IB_DB68-03363A_EN.indd 8 2012-9-26 16:00:41

9
FOR CLEANING
WARNING
Do not clean the appliance by spraying water directly onto it. Do not use
benzene, thinner or alcohol to clean the appliance.
This may result in discoloration, deformation, damage, electric shock or
fire.
Before cleaning or performing maintenance, unplug the air conditioner
from the wall socket and wait until the fan stops.
Failing to do so may result in electric shock or fire.
FOR CLEANING
CAUTION
Take care when cleaning the surface of the heat exchanger of the outdoor
unit since it has sharp edges.
To avoid cutting your fingers, wear thick cotton gloves when cleaning it.
Do not clean the inside of the air conditioner by yourself.
For cleaning inside the appliance, contact your nearest service center.
When cleaning the internal filter, refer to the descriptions in the‘Cleaning
the air conditioner’section.
Failure to do may result in damage, electric shock or fire.
Junfrau EU_AR09FSSK&Y@_IB_DB68-03363A_EN.indd 9 2012-9-26 16:00:41

The table below indicates the temperature and humidity ranges the air
conditioner can be operated within. Refer to the table for ecient use.
10

AR18FC3EAPW
AR18FC2EAPW
AR12FC5EFBH
AR12FC3EAPW
AR12FC3TAUR
AR12FC5TAPD
AR18FC2TAUR
AR18FC3TDPD
AR18FC3TAUR
AR18FC5TAPD
AR24FC2TAUR
AR18FC3EGBH
AR18FC5EFBH
AR12FC3TAUR
AR12FC5TAPD
AR18FC2TAUR
AR18FC3TDPD
AR18FC3TAUR
AR18FC5TAPD
AR24FC2TAUR
AR12FC5EFBH
AR18FC3EGBH
AR18FC5EFBH AR18FC3EAPW
AR18FC2EAPW
AR12FC3EAPW
good’ sleep

and d'light Cool are
d'light
Cool
good'
sleep Display

13

Press the button to turn on the air conditioner.
Press the button to set the operating mode.
•Each time you press the Mode button, the mode will change in order of Auto, Cool, Dry
Press the button to set the desired fan speed.
Press the button to adjust the temperature.

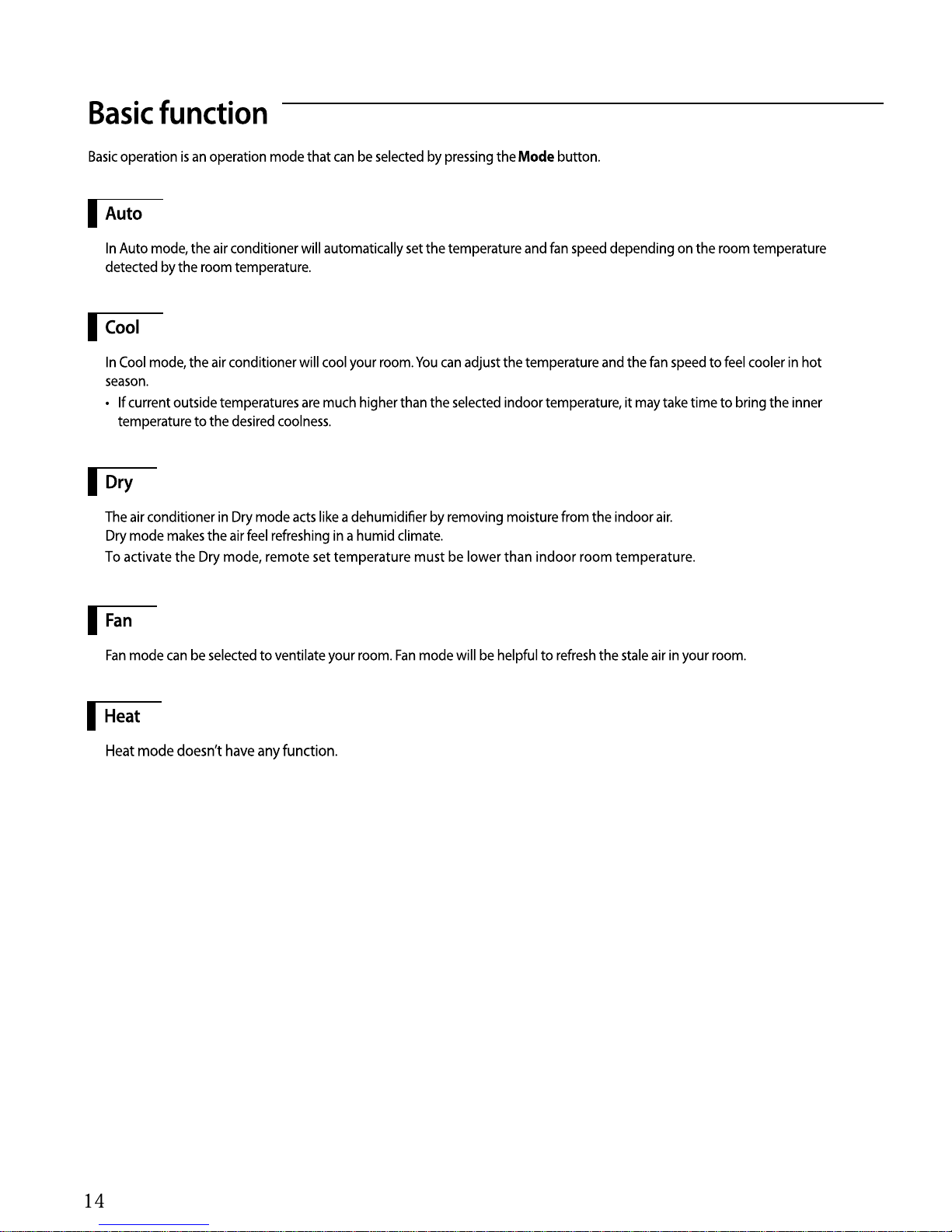

Auto (Auto)
Cool (Auto), (Low), (Med), (High)
Dry (Auto)
Fan (Low), (Med), (High)
Heat
Auto You can adjust the desired temperature by 1°C within the range of 16°C~30°C.
Cool You can adjust the desired temperature by 1°C within the range of 16°C~30°C.
Dry You can adjust the desired temperature by 1°C within the range of 18°C~30°C.
Fan Temperature adjustment is not possible.
Heat
, Fan and Heat.
Heat Mode doesn't have any function.
16
Heat Mode doesn't have any function.

16

17

16
15
