Samsung AS07A5MA User manual

ENGLISH
INSTALLATION MANUAL
MANUAL DE INSTALACIÓN
MANUEL D’INSTALLATION
ESPAÑOL
FRANÇAIS
E S F DB98-15774A(1)
Split Type Air Conditioner (Cool)
Acondicionador de aire del tipo partido (Refrigeración)
Climatiseur type Split (Refroidissement)
AS07A5(6)MA
AS09A5(6)MAF
AS12AA(B)MCF
Indoor Unit
US07A5(6)MA
US09A5(6)MAF
US12AA(B)MCF
Outdoor Unit

E-2
PREPARING THE INSTALLATION
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
◆The unit should not be installed by the user. Ask the dealer or authorized
company to install the units except room air conditioners for the U.S.A and
Canada area.
◆If the unit is installed improperly, water leakage, electric shock or fire may
result.
◆The air conditioner must be installed in accordance with national wiring
regulations and safety regulations wherever applicable.
◆Mount with the lowest moving parts at least 8.2ft(2.5m) above the floor or
grade level. (If applicable)
◆The manufacturer does not assume responsibility for accidents or injury
caused by an incorrectly installed air conditioner. If you are unsure about
installation, contact an installation specialist.
◆When installing the built-in type air conditioner, keep all electrical cables
such as the power cable and the connection cord in pipe, ducts, cable
channels e.t.c to protect them against liquids, outside impacts and so on.
WARNING
I NSTALLING THE UNIT
◆If the power cord of this air conditioner is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
◆The unit must be plugged into an independent circuit if applicable or
connect the power cable to the auxiliary circuit breaker. An all pole
disconnection from the power supply must be incorporated in the fixed
wiring with a contact opening of >3mm.
◆Do not use an extension cord with this product.
◆If the unit is equipped with a power supply cord and a plug, the plug must
be accessible after installation.
◆This appliance must be installed accordance with the national wiring
regulations.
POWER SUPPLY LINE,
FUSE OR CIRCUIT
BREAKER
Risk of electric shock. • Can cause injury or death. • Disconnect all remote electric
power supplies before servicing, installing or cleaning. • This must be done by the
manufacturer or its service agent or a similar qualified person in order to avoid a
hazard.

E-3
ENGLISH
PREPARING THE INSTALLATION
Contents
◆P
REPARING THE I NSTALLATION
■ Deciding on Where to Install the Air Conditioner . . . . . . . . 4
■ Air Conditioner and Accessories . . . . . . . . . . . . . . . . . . . . 6
◆I NSTALLING THE
I NDOOR U NIT
■ Fixing the Installation Plate . . . . . . . . . . . . . . . . . . . . . . . . 7
■ Purging the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
■ Connecting the Assembly Cable . . . . . . . . . . . . . . . . . . . . 8
■ Installing and Connecting the Indoor Unit Drain Hose . . . 10
■ Installing and Connecting the Indoor Unit Assembly Piping
. . 11
■ Cutting/Extending the Piping . . . . . . . . . . . . . . . . . . . . . . 12
◆I
NSTALLING THE O UTDOOR U NIT
■ Connecting the Cables to the Outdoor Unit . . . . . . . . . . . 13
■ Auxillary Circuit Breaker . . . . . . . . . . . . . . . . . . . . . . . . . . 14
■ Electrical Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
■ Checking Correct Ground . . . . . . . . . . . . . . . . . . . . . . . . 15
■ Fixing the Unit in Position . . . . . . . . . . . . . . . . . . . . . . . . . 16
◆C OMPLETING THE I NSTALLATION
■ Connecting Up and Purging the Circuit . . . . . . . . . . . . . . 17
■ Performing Leak Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
■ Placing the Indoor Unit in Position . . . . . . . . . . . . . . . . . . 19
■ Checking and Testing Operations . . . . . . . . . . . . . . . . . . 20
■ Explaining Operations to the Owner . . . . . . . . . . . . . . . . 21

E-4
PREPARING THE INSTALLATION
Deciding on Where to Install the Air Conditioner
When deciding on the location of the air conditioner with the owner, the following restrictions
must be taken into account.
General
Do NOT install the air conditioner in a location where it will come into contact with the following elements:
◆Combustible gases
◆Saline air
◆Machine oil
◆Sulphide gas
◆Special environmental conditions
If you must install the unit in such conditions, first consult your dealer.
Indoor Unit
◆There must be no obstacles near the air inlet and outlet.
◆Install the indoor unit on a surface that can support its weight.
◆Choose a position that enables the piping and cables to be easily connected to the outdoor unit and
the recommended length of 16.5ft(5m) to be respected (‘L’ ft/m maximum).
◆Leave enough clearance beneath the indoor unit to enable the filters to be removed without
hindrance.
◆Maintain sufficient clearance around the indoor unit, as indicated in the diagram on the page
opposite.
◆Make sure that the water dripping from the drain hose runs away correctly and safely.
Outdoor Unit
◆The outdoor unit must NEVER be placed on its side or upside down, as the compressor lubrication
oil will run into the cooling circuit and seriously damage the unit.
◆Choose a location that is dry and sunny, but not exposed to direct sunlight or strong winds.
◆Do not block any passageways or thoroughfares.
◆Choose a location where the noise of the air conditioner when running and the discharged air do not
disturb any neighbours.
◆Choose a position that enables the piping and cables to be easily connected to the indoor unit and
the recommended length of 16.5ft(5m) to be respected (‘L’ ft/m maximum).
◆Install the outdoor unit on a flat, stable surface that can support its weight and does not generate any
unnecessary noise and vibration.
◆Position the outdoor unit so that the air flow is directed towards the outside, as indicated by the
arrows on the top of the unit.
◆Maintain sufficient clearance around the outdoor unit, as indicated in the diagram on the page
opposite.
◆If the outdoor unit is installed at a height, ensure that its base is firmly fixed in position; the maximum
height is ‘H’ft/m. (‘H’: indicated in the diagram on the page opposite.)
◆Make sure that the water dripping from the drain hose runs away correctly and safely.
◆You have just purchased a split type air conditioner and it has been installed by your
installation specialist.
◆This device must be installed according to the national electrical rules.
CC
CCAA AAUU UUTT TTII IIOO OONN NN

E-5
ENGLISH
PREPARING THE INSTALLATION
Respect the clearances and maximum lengths indicated in the diagram below when installing the unit.
5inch
(125mm)
or more
24inch
(600mm)
minimum
14inch(350mm)
minimum
4inch
(100mm)
minimum
24inch
(600mm)
minimum
4inch(100mm)
minimum
49.3ft(15m) maximum
23ft(7m) maximum
1inch(30mm) or more
5inch (125mm)
or more
Wrap the refrigerant pipes and the drain
hose up in the absorbent pad and the
vinyl tape; refer to page 19.
➢The indoor unit must be installed at a height of 8.2ft(2.5m) at least from the floor of the room.
❊ The designs of the unit and the connection valve are subject to change according to the model.

E-6
PREPARING THE INSTALLATION
Air Conditioner and Accessories
The following accessories are supplied with the air conditioner.
➢The quantities are indicated in parentheses.
Accessories in the Indoor Unit Case
Accessories in the Outdoor Unit Case
➢The assembly cable is depending on the option. [If they are not supplied, Using the
standard cable.(approved according to IEC standard.)]
Installation Plate (1) Remote Control (1) Batteries for
Remote Control (2)
Remote control
holder(1)
Screws (2) Installation Manual
&Service Manual(1)
OWNER'S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
ISTRUZIONI PER L'USO
MANUAL DE INSTRUÇÕES
MANUEL D'UTILISATION
GEBRAUCHSANWEISUNG
Splut-typeRoomAirConditioner
Aireacondicionado doméstico sistema Split
Condizionatored'aria per ambienti ad unità Separate
Aparelhode ar condicionado tipo Split
Climatiseurdetype séparé
Geteilteraumklimaanlage
Owner’s Instruction
Booklet (1)
OWNER'S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
ISTRUZIONI PER L'USO
MANUAL DE INSTRUÇÕES
MANUEL D'UTILISATION
GEBRAUCHSANWEISUNG
Splut-typeRoom Air Conditioner
Aireacondicionado doméstico sistema Split
Condizionatored'aria per ambienti ad unità Separate
Aparelhode ar condicionado tipo Split
Climatiseurde type séparé
Geteilteraumklimaanlage
Rubber Leg (4) Flare Nuts, inch(6.35mm)
outer pipe diameter (2)
Flare Nuts, inch(9.52mm)
outer pipe diameter (2)
(✴✴07/09✴✴)
Flare Nuts, inch(12.70mm)
outer pipe diameter (2)
(✴✴12✴✴)
Terminal Block Cover
(1)
1
4
3
8
1
2

E-7
ENGLISH
INSTALLING THE INDOOR UNIT
Fixing the Installation Plate
Before fixing the installation plate to a wall or window frame, you must
determine the position of the inch(65mm) hole through which the cable,
piping and hose pass to connect the indoor unit up to the outdoor unit. When
facing the air conditioner in position on the wall, the piping and cable can be
connected from the:
1Determine the position of the pipe and drain hose hole using the right figure and drill
the hole with an inner diameter of inch(65mm) so that it slants slightly downwards.
2If you are fixing the indoor unit to a... Then follow Steps...
Wall 3.
Window frame 4to 6.
3Fix the installation plate to the wall in a manner appropriate to the weight of the indoor
unit.
➢If you are mounting the plate on a concrete wall with anchor bolts, the anchor bolts
must not project by more than inch(20mm).
4Determine the positions of the wooden uprights to be attached to the window frame.
5Attach the wooden uprights to the window frame in a manner appropriate to the weight
of the indoor unit.
6Using tapped screws, attach the installation plate to the wooden uprights, as illustrated
in the last figure opposite.
2
9
16
3
4
2
9
16
◆Right
◆Left
◆Rear (right or left)
(30)1
3
16
(65)0
Pipe Hole
2
9
16
10(252)
11(275)
5(140)
1
2
3(90)
5
8
2(60)
3
8
1(30)
3
16
(410~730)
16 ~
1
8
28
3
4
Installation plate
Unit : inch(mm)
Unit : inch(mm)
Unit : inch(mm)

E-8
INSTALLING THE INDOOR UNIT

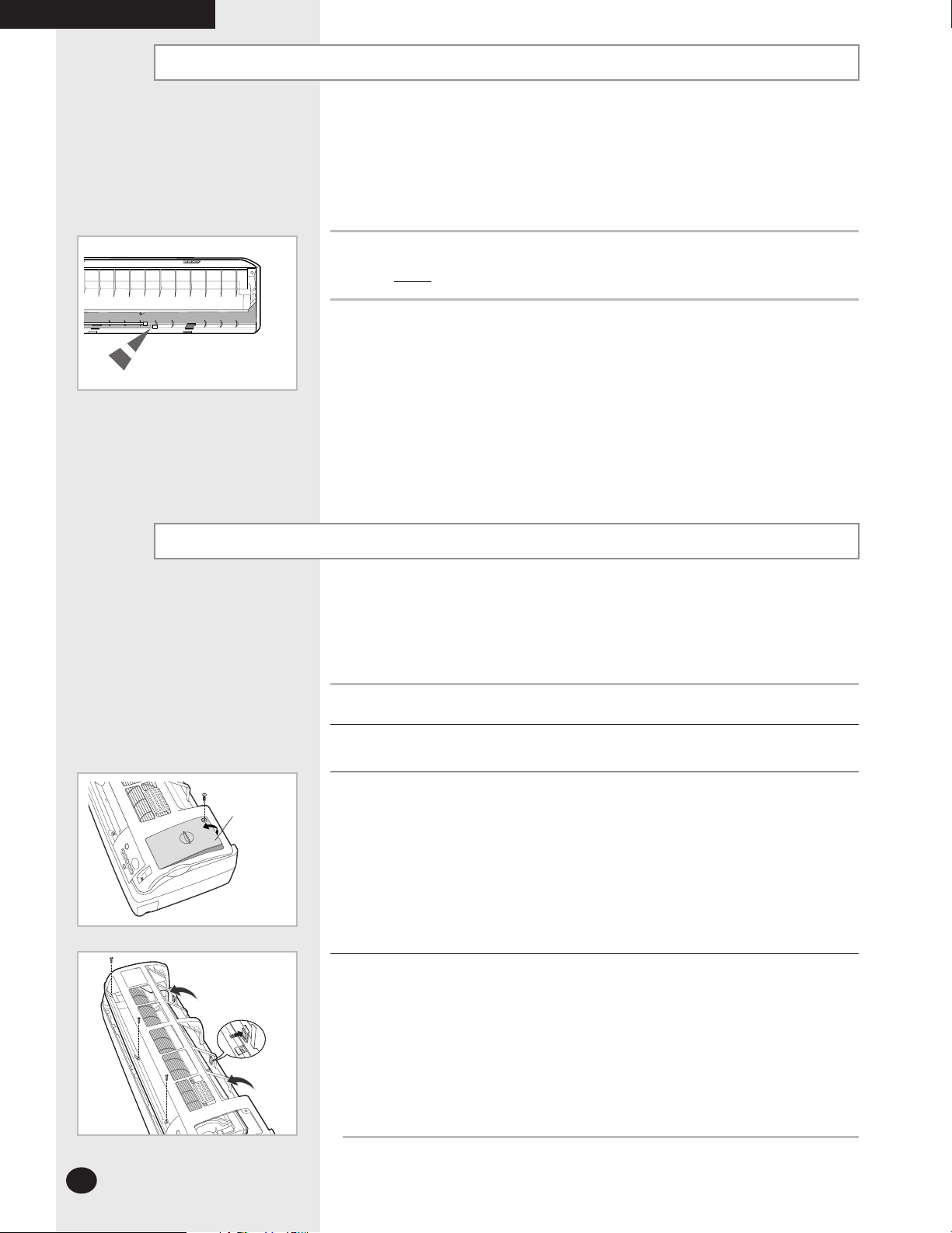

Purging the Unit
Connecting the Assembly Cable
On delivery, the indoor unit is loaded with an inert gas. All this gas must therefore
be purged before connecting the assembly piping. To purge the inert gas, proceed
as follows.
Unscrew the caps at the end of each pipe.
Result:All inert gas escapes from the indoor unit.
➢To prevent dirt or foreign objects from getting into the pipes during
installation, do NOT remove the caps completely until you are ready to
connect the piping.
The outdoor unit is powered from the indoor unit via the assembly cable. If the outdoor unit
is more than 16.5ft(5m) away from the indoor unit, the cable must first be extended to a
maximum of ‘L’ ft/m.
1Extend the assembly cable if necessary.
2Open the front grille by pulling on the tabs on the lower right and left sides of the indoor unit.
3Remove the screw securing the connector cover, then open the connector cover.
4Remove three screws securing the front panel, then detach the front panel from the
indoor unit.
Connector
cover
❊ The designs and shape are subject to
change according to the model.

E-9
ENGLISH
INSTALLING THE INDOOR UNIT
Connecting the Assembly Cable (cont.)
5Detach the control box from the indoor unit.
9Reinstall the control box, then tighten the C screw.
➢The C screw is provided with this manual.
11 Replace the front panel, carefully tightening the screws.
12 Reinstall the front grille.
13 For further details on how to plug the other end of the assembly cable into
the outdoor unit, refer to page 13.
6Install the conduit kit. (The conduit kit is optional)
7Pass the assembly cable through the rear of the indoor unit and connect the assembly
cable to terminals as shown in the figure.
➢Each wire is labelled with the corresponding terminal number.
8Pass the other end of the cable through the inch(65mm) hole in the wall.
10 Install the D terminal block cover, tightening the E screws.
➢
The D terminal block cover and E screws are provided with this manual.
2
9
16
1
(A) L2L1
E L2
1
E
E
1
L1
L2L1
Indoor
unit
Ground
terminal
Outdoor
unit
C
E
D
Control Box
Terminal
block
cover
A
B
Control Box
❊ The conduit kit is optional(A and B).

E-10
INSTALLING THE INDOOR UNIT

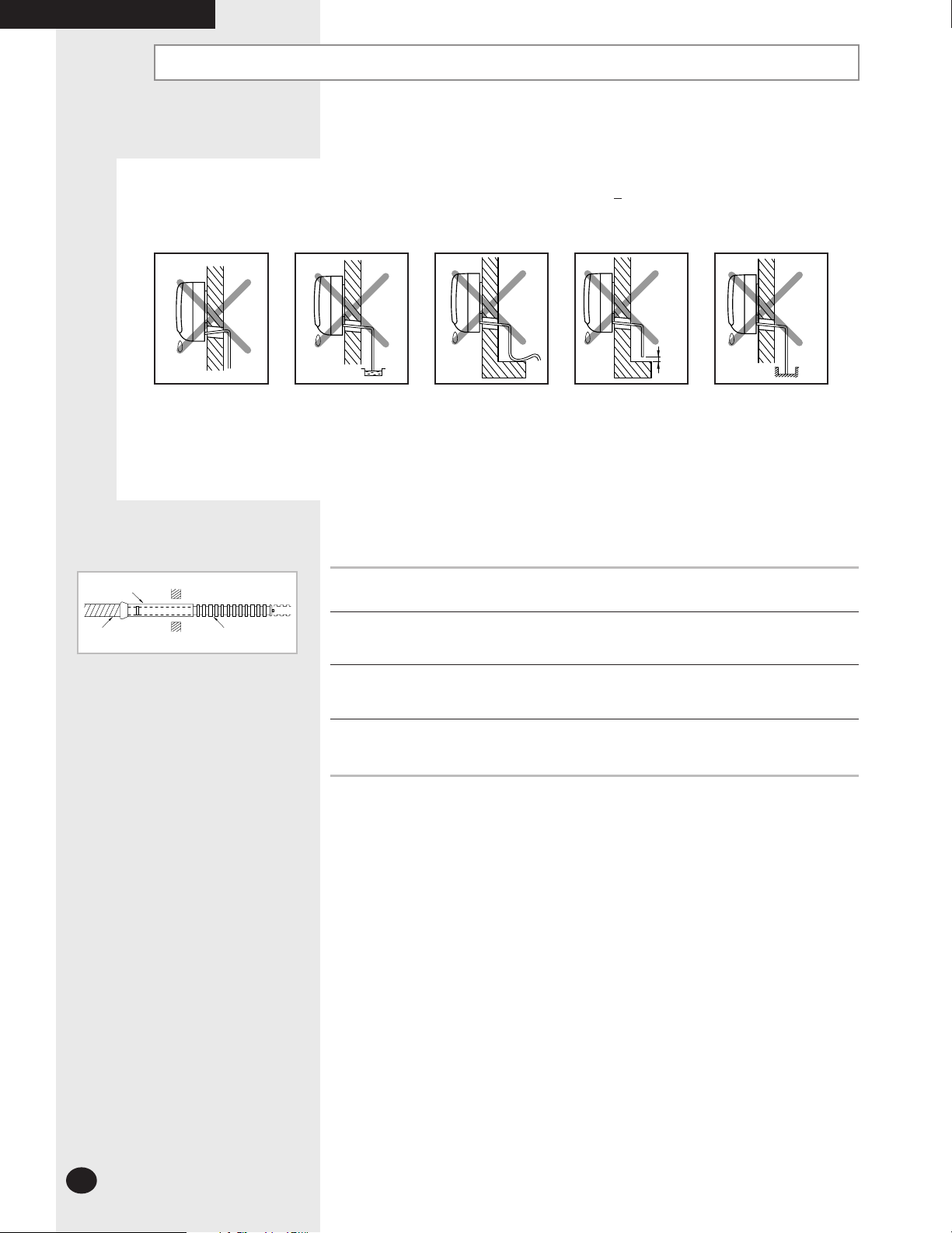

Installing and Connecting the Indoor Unit Drain Hose
To install the drain hose, proceed as follows.
1If necessary, connect the 6.7ft(2m) extension to the drain hose.
2If you are using the extension, insulate the inside part of the extension drain hose with a
shield.
3Pass the drain hose under the refrigerant piping, taking care to keep the drain hose tight.
4Pass the drain hose through the hole in the wall, making sure that it is sloping downwards,
as shown in the illustrations above.
➢The hose will be fixed permanently into position once the
whole installation has been tested for gas leaks; refer to
page 19 for further details.
Care must be taken when installing the drain hose for the indoor unit to ensure that any condensation water
is correctly drained outside. When passing the drain hose through the inch(65mm) hole drilled in the wall,
check that none of the following situations occur.
The hose must
NOT slope
upwards.
The end of the drain
hose must NOT be
placed in water.
Do NOT bend the
hose in different
directions.
Keep a clearance of at
least 2inch(50mm)
between the end of the
hose and the ground.
Do NOT place the
end of the drain hose
in a hollow.
2 inch
(50mm)
less
Ditch
Shield
Drain hose Extension drain hose
2
9
16

E-11
ENGLISH
INSTALLING THE INDOOR UNIT

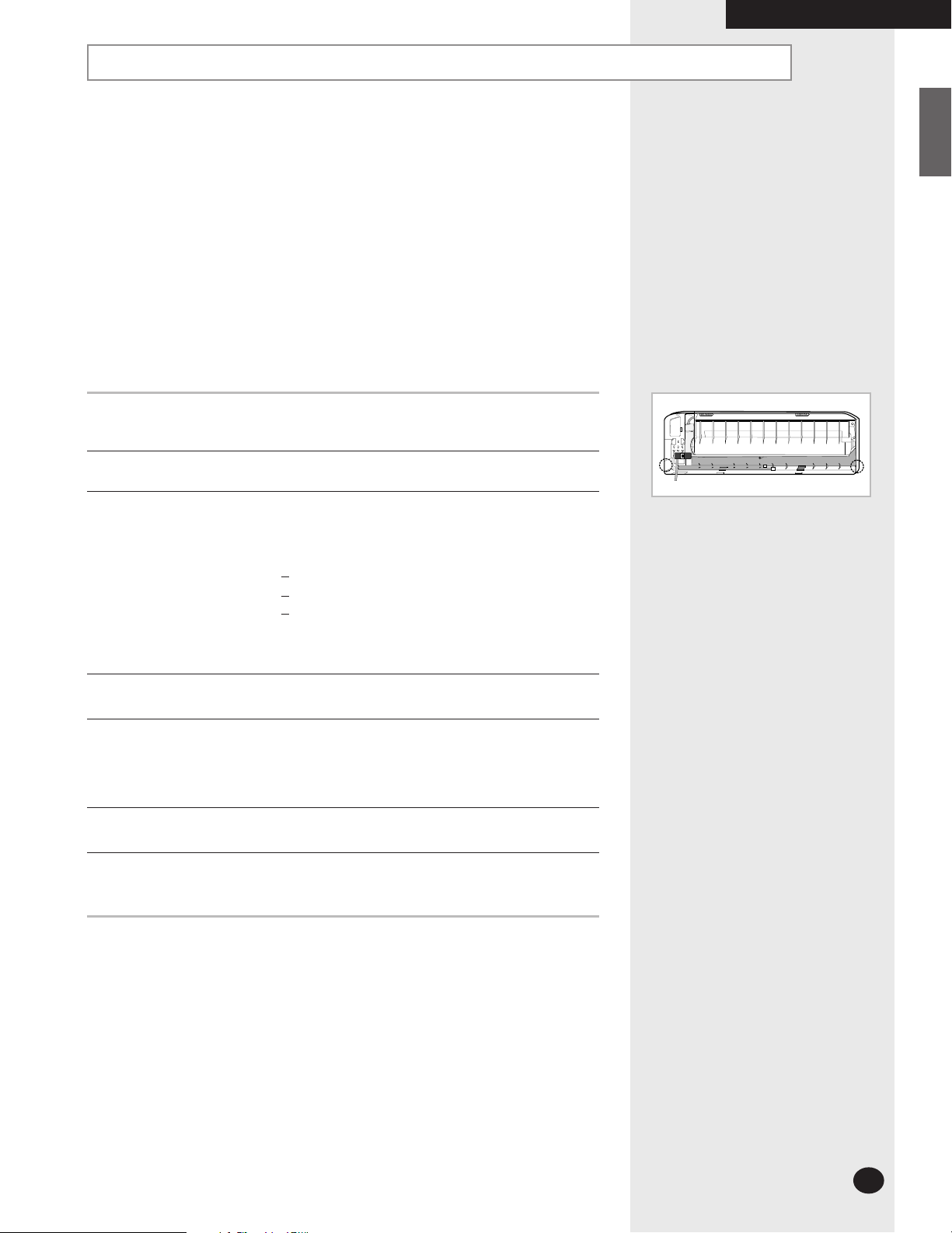

Installing and Connecting the Indoor Unit Assembly Piping
There are two refrigerant pipes of different diameters:
◆A smaller one for the liquid refrigerant
◆A larger one for the gas refrigerant
A short length of piping is already fitted to the air conditioner. You must extend
this piping using assembly piping (optionally supplied).
The connection procedure for the refrigerant piping varies according to the exit
position of the piping from the indoor unit, as seen when facing the air
conditioner in position on the wall:
◆Right (A)
◆Left (B)
◆Rear
1With a knife, cut out the appropriate knock-out piece on the rear of the indoor unit
(unless you are connecting directly from the rear).
2Smooth the cut edges.
3Remove the protection caps on the pipes and connect the assembly piping to each
pipe, tightening the nuts, first manually and then with a torque wrench, applying
the following torque.
Pipe Outer Diameter Torque
Liquid refrigerant inch(6.35 mm) 10.1~12.3ft•lb(140~170kgf•cm)
Gas refrigerant inch(9.52 mm) 18.1~20.3ft•lb(250~280kgf•cm)
Gas refrigerant inch(12.70 mm) 27.5~30.4ft•lb(380~420kgf•cm)
➢ If the piping must be shortened or extended, refer to page 12.
4Cut off any excess foam insulation.
5If necessary, bend the pipe round, along the bottom of the indoor unit and out through
the appropriate hole, taking care to ensure that:
◆The piping does not jut out from the rear of the indoor unit
◆The bending radius is 4inch(100mm) or more
7For further details on how to connect up to the outdoor unit and purge the circuit,
refer to page 17.
➢The piping will be insulated and fixed permanently into position
once the whole installation has been tested for gas leaks; refer to
page 19 for further details.
6Pass the piping through the hole in the wall.
A
B
1
4
3
8
1
2

E-12
INSTALLING THE INDOOR UNIT
Cutting/Extending the Piping
16.5ft(5m) of piping is supplied with the air conditioner(Optional).
This length can if necessary be:
◆Extended to a maximum of ‘L’ ft/m
◆Shortened as required
☛If more than 16.5ft(5m) of piping is required:
◆The assembly cable must also be extended
◆Refrigerant must be added to the circuit by an approved
installer; otherwise, the indoor unit may freeze
1Make sure that you have the required tools available
(pipe cutter, reamer, flaring tool and pipe holder).
2If you wish to shorten the piping, cut it using a pipe cutter, taking care to ensure that
the cut edge remains at a 90° angle with the side of the pipe, and referring to the
illustrations below for examples of edges cut correctly and incorrectly.
Oblique Rough Burr
3To prevent any gas from leaking out, remove all burrs at the cut end of the
pipe, using a reamer.
4Slide a flare nut on to the pipe and modify the flare.
Pipe Outer Diameter (D) Depth (A)
Liquid refrigerant
inch( 6.35 mm) inch(
1.3 mm)
Gas refrigerant
inch( 9.52 mm) inch(
1.8 mm)
Gas refrigerant
inch( 12.70 mm) inch(
2.0 mm)
5Check that the flaring is correct, referring to the illustrations below for
examples of incorrect flaring.
Inclined Damaged Surface Cracked Uneven Thickness
6Align the pipes to be connected and tighten the flare nuts first manually
and then with a torque wrench, applying the following torque.
7For further details on how to connect up to the outdoor unit and purge the
circuit, refer to page 17.
90O
Ox x x
xxxx
1
4
1
16
1
16
1
16
3
8
1
2
Pipe Outer Diameter Torque
Liquid refrigerant inch(6.35 mm) 10.1~12.3ft•lb(140~170kgf•cm)
Gas refrigerant inch(9.52 mm) 18.1~20.3ft•lb(250~280kgf•cm)
Gas refrigerant inch(12.70 mm) 27.5~30.4ft•lb(380~420kgf•cm)
1
4
3
8
1
2

E-13
ENGLISH
INSTALLING THE OUTDOOR UNIT
Connecting the Cables to the Outdoor Unit
One electric cable must be connected to the outdoor unit:
◆The assembly cable connecting the indoor unit to the outdoor unit
1Remove the terminal board cover on the side of the outdoor unit.
2Connect the assembly cable to terminals as shown in the figure.
➢Each wire is labelled with the corresponding terminal number.
➢Each wire from the terminal number of the indoor unit.
Shall be comected with the same terminal number of its outdoor unit.
3Connect the earth wires to the earth terminals.
➢Refer to the page 15 for further details on how to check that earthing
is correct.
4Replace the terminal board cover, carefully tightening the screw.
✴✴07/09✴✴
AS12AA(B)MCF
L1 L2 1 23
(A) 1L1 L2
1
E L2
1
E
L1
L2
L1
E
E
L2
L1
Indoor
unit
Outdoor
unit
Ground
terminal
Circuit Breaker(Main Power)

E-14
INSTALLING THE OUTDOOR UNIT
Auxiliary Circuit Breaker
◆Auxiliary circuit breaker should be installed near outdoor unit so that each
access is possible. Main/outdoor power supply cable are connected to
upper/lower terminal of auxiliary circuit breaker.
◆It is necessary that the conduit kit for power supply to the outdoor
unit be installed between auxiliary power switch and the outdoor unit.
(the conduit kit is optional)
Outdoor unit Distribution
board
Auxiliary
power
swich
❊ The designs and shape are subject to
change according to the model.
Electrical Work
➢When using the special NFB, use the NFB to bear the capacity of the air conditioner.
➢Otherwise, the shot circuit in the NFB may occur.
➢The power cable and the assembly cable are not supplied with the air conditioner.
MODEL AS09A5(6)MAF
Power supply
Power cable
Assembly cable
Operating current(C)
Starting Current
Power consumption (C)
115V/60Hz
Single phase
AS07A5(6)MA
115V/60Hz
Single phase
3G AWG 14
4G AWG 16
43A32A
6.4 8.1
950W680W
AS12AA(B)MCF
208-230V/60Hz
Single phase
31A
5.4
1230W
1The supply voltage must be the same as the rated voltage of the
air conditioner.
2Prepare the power souce for exclusive use with the air conditioner.
3Use 15 amperes time delay fuse or circuit breaker.

E-15
ENGLISH
INSTALLING THE OUTDOOR UNIT

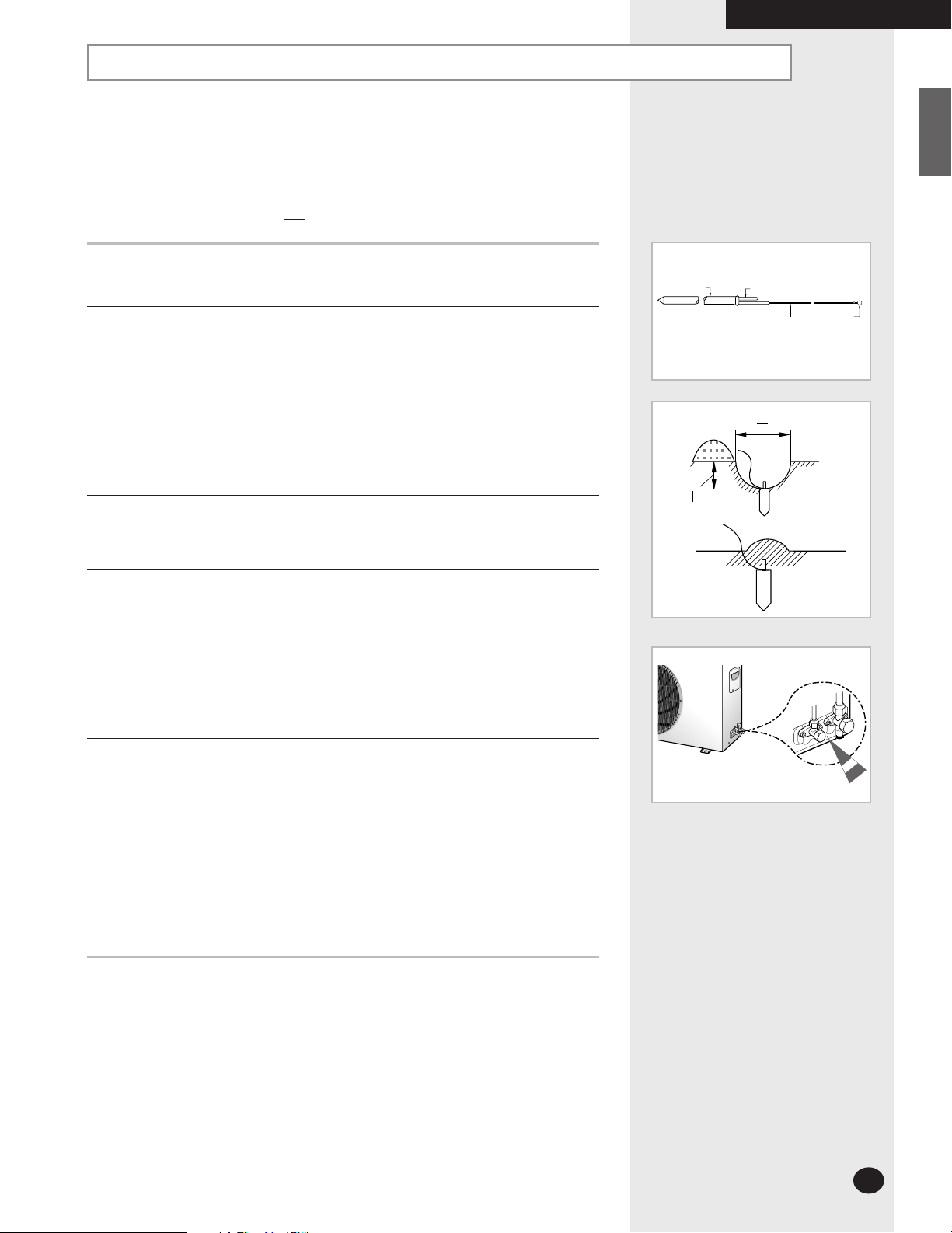

Checking Correct Ground
If the power distribution circuit does not have the ground or the ground does
not comply with specifications, the ground electrode must be installed. The
corresponding accessories are not supplied with the air conditioner.
1Select the ground electrode that complies with the specifications given in the
illustration opposite.
2Determine a suitable location for the ground electrode:
◆In damp hard soil rather than loose sandy or gravel soil that has a higher ground
resistance
◆Away from underground structures or facilities, such as gas pipes, water pipes,
telephone lines and underground cables
◆At least 6.7ft(2m) away from a lightening conductor ground electrode and its cable
➢The ground wire for the telephone line cannot be used to ground the
air conditioner.
3Dig a hole of the size indicated in the illustration opposite, drive the ground electrode
into position and cover the top of the electrode with the excavated soil.
4Install a green/yellow insulated ground wire [
Ø inch(1.6 mm), section 2 mm
2
or greater]:
◆If the ground wire is too short, connect an extension lead, soldering the
connection and wrapping it with insulating tape (do not bury the soldered
connection)
◆Secure the ground wire in position with staples
➢If the ground electrode is installed in an area of heavy traffic, its wire
must be connected securely.
5Carefully check the installation, by measuring the ground resistance with the ground
resistance tester. If the resistance is above the required level, drive the ground
electrode deeper into the ground or increase the number of ground electrodes.
6Connect the ground wire to the ground screw on the air conditioner.
1
16
Carbon
plastic Steel core
PVC-insulated green/
yellow wire,
2mm2x 3.5 m
To
ground
screw
11 (30)
3
4
19 (50)
3
4
❊ The designs and shape are subject
to change according to the model.
Unit : inch(cm)

E-16
INSTALLING THE OUTDOOR UNIT
Fixing the Unit in Position
The outdoor unit must be installed on a rigid and stable base to avoid any increase in the noise
level and vibration, particularly if the outdoor unit is to be installed close to a neighbour. If it is to be
installed in a location exposed to strong winds or at a height, the unit must be fixed to an
appropriate support (wall or ground).
1Position the outdoor unit so that the air flow is directed towards the outside, as indicated
by the arrows on the top of the unit.
2Attach the outdoor unit to the appropriate support using anchor bolts.
3If the outdoor unit is exposed to strong winds, install shield plates around the outdoor unit,
so that the fan can operate correctly.
❇Certainly fix up its rubber leg, in order to prevent its vibration and noise.
X
Rubber leg
Y
Model
✴✴ 07/09 ✴✴
✴✴
12 ✴✴
X
(493.7)
(506)
Y
10(254)
(252)
Unit : inch(mm)
19
3
8
9
7
8
19
7
8

E-17
ENGLISH
COMPLETING THE INSTALLATION

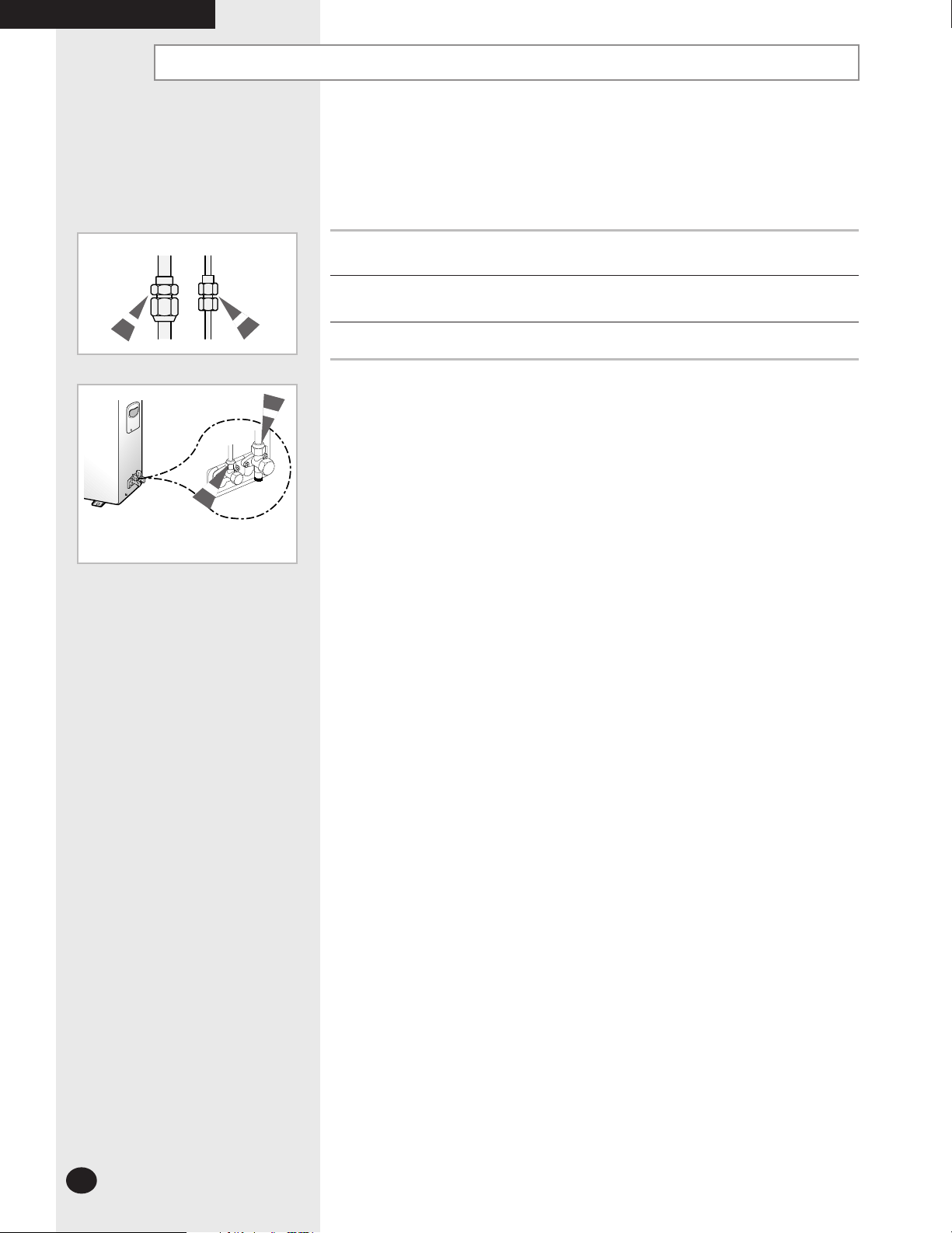

Connecting Up and Purging the Circuit
The outdoor unit is loaded with sufficient R22 refrigerant for 16.5ft (5m) of piping.
The air in the indoor unit and in the pipe must be purged.
If air remains in the refrigeration pipes, it will affect the compressor, reduce to cooling
capacity and could lead to a malfunction.
Refrigerant for air purging is not charged in the outdoor unit. Use Vacuum Pump as
shown at the figure.
1Connect each assembly pipe to the appropriate valve on the outdoor unit and tighten
the flare nut.
2Referring to the illustration opposite, tighten the flare nut first manually and then with a
torque wrench, applying the following torque.
3Connect the charging hose of low pressure side of manifold gauge to the packed valve
having a service port as shown at the figure.
4Open the valve of the low pressure side of manifold gauge counterclockwise.
5Purge the air from the system using vacuum pump for about 10 minutes.
-
Close the valve of the low pressure side of manifold gauge clockwise.
- Make sure that pressure gauge show -0.1MPa(-76cmHg) after about 10minutes.
-
This procedure is very important in order to avoid gas leak.
-
Turn off the vacuum pump
- Remove the hose of the low pressure side of manifold gauge.
6Set valve cork of both liquid side and gas side of packed valve to the open position.
7Mount the valve stem nuts and the service port cap to the valve, and tighten them at
the torque of 183kgf
•c mwith a torque wrench.
8Check for gas leakage.
- At this time, especially check for gas leakage from the 3-way valve’s stem nuts,
and from the service port cap.
Adding Refrigerant
Refrigerant must be added if the piping measures more than 16.5ft (5m) in length.
This operation can only be performed by a qualified refrigeration specialist.
☛If you have used... Then...
✴✴07✴✴
‘A’ of refrigerant (R22) must be added for
each extra 3ft(1m)
More than ft(5m)
of piping
Less than ft(5m) The purge time is normal.
of piping
Refer to the Service Manual for more details on this operation.
A
B
C
D
B
(liquid)
Outdoor unit Indoor unit
Gas pipe side
Liquid pipe side
Stem cap
Valve stem
A
(gas)
Vacuum Pump
❊ The designs and shape are subject to
change according to the model.
Model
✴✴07/09✴✴
✴✴12✴✴
A
0.7oz(20g)
1.0oz(30g)
Pipe Outer Diameter Torque
Liquid refrigerant inch(6.35 mm) 10.1~12.3ft•lb(140~170kgf•cm)
Gas refrigerant inch(9.52 mm) 18.1~20.3ft•lb(250~280kgf•cm)
Gas refrigerant inch(12.70 mm) 27.5~30.4ft•lb(380~420kgf•cm)
1
4
3
8
1
2
16
1
2
16
1
2
☛If you have used... Then...
✴✴09/12✴✴
‘A’ of refrigerant (R22) must be added for
each extra 3ft(1m)
More than ft(7.5m)
of piping
Less than ft(7.5m) The purge time is normal.
of piping
24
3
4
24
3
4

E-18
COMPLETING THE INSTALLATION
Performing Leak Tests
Before completing the installation (insulation of the cables, hose and piping and
fixing of the indoor unit to the installation plate), you must check that there are
no gas leaks.
To check for gas leaks on the... Then, using a leak detector,
check the...
Indoor unit Flare nuts at the end of sections
C and D.
Outdoor unit Valves on sections A and B.
CD
B
A
❊ The designs and shape are subject to
change according to the model.

E-19
ENGLISH
COMPLETING THE INSTALLATION
Placing the Indoor Unit in Position
Once you have checked that there are no leaks in the system, you can insulate the piping,
hose and cables and place the indoor unit on the installation plate.
1To avoid condensation problems, place heat-resistant polyethylene foam separately
around each refrigerant pipe in the lower part of the indoor unit.
2Wrap the refrigerant pipes and the drain hose located at the rear of the indoor unit up
in the absorbent pad.
➢Triply wind the pipes and hose to the end of the indoor unit with the absorbent pad
[make intervals of inch(20mm)].
3Wind insulating tape around the pipes, assembly cable and drain hose.
4Place the resulting bundle carefully in the lower part of the indoor unit, making sure that
it does not jut out from the rear of the indoor unit.
5Hook the indoor unit on to the installation plate and move the unit to the right and left
until you are sure that it is securely in place.
6Finish wrapping vinyl tape around the rest of the piping leading to the outdoor unit.
7Using clamps (optionally supplied), attach the piping to the wall wherever possible.
3
4
Installation plate

E-20
COMPLETING THE INSTALLATION
Checking and Testing Operations
To complete the installation, perform the following checks and tests to ensure
that the air conditioner is operating correctly.
1Review all the following elements in the installation:
◆Installation site strength
◆Piping connection tightness to detect any gas leakages
◆Connection wiring
◆Heat-resistant insulation of the piping
◆Drainage
◆Earthing wire connection
◆Correct operations (follow the steps below)
2Press the (On/Off) button.
Result: ◆ The indicator lights on the indoor unit flash at half-second intervals.
◆ While the indoor unit opens, the indoor unit fan runs to start.
3Press the button.
Result:The outdoor unit operates in cooling mode as
following the room temperature.
4Air flow direction Press the button and check that the air
flow blades work properly.
