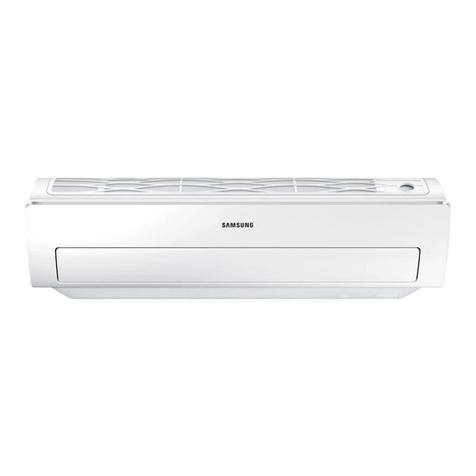

Airconditioner
User manual/Installation manual
AR✴✴HPFS✴✴, AR✴✴JCFS✴✴, AR✴✴JPFS✴✴, AR✴✴KPFN✴✴,
AR✴✴KPFS✴✴, AR✴✴KCFS✴✴, AR✴✴MPFN✴✴
•Thank you for purchasing this Samsung air conditioner.
•Before operating this unit, please read this installation manual carefully and retain it for future
reference.
DB68-06031A-01
DB68-06031A-01_A5.indd 1 4/18/2017 8:59:13 AM

2
English
Contents
Safety Information 4
Safety Information 4
At a Glance 9
Indoor Unit Overview 9
Display
Remote Control Overview 10
Inserting batteries
Remote Control Operation 11
Operation modes • Controlling temperature •
Controlling fan speed • Controlling air flow direction
Power Smart Features 13
Cooling Operation 13
Cool mode • 2-Step cooling function
Dehumidifying Operation 14
Dry mode
Heating Operation 15
Heat mode
Quick Smart Features 16
Auto mode • Fan mode • Fast function • Comfort function • Beep sound function
Energy-Saving Features 19
Energy-Saving Operation 19
Single user function • Timed on/Timed off function • good’sleep function
Cleaning and Maintenance 22
Cleaning at a Glance 22
Troubleshooting 24
Installation 26
Safety Information on Installation 26
Preparation 28
Step 1.1 Choosing the installation location
Step 1.2 Unpacking
Step 1.3 Checking and preparing accessories and tools
Step 1.4 Drilling a hole through the wall
Step 1.5 Taping the pipes, cables, and drain hose
DB68-06031A-01_A5.indd 2 4/18/2017 8:59:14 AM

3
English
Indoor Unit Installation 32
Step 2.1 Disassembling the cover panel
Step 2.2 Disassembling the installation plate
Step 2.3 Connecting the cables (assembly cable)
Step 2.4 Optional: Extending the power cable
Step 2.5 Installing and connecting the drain hose
Step 2.6 Optional: Extending the drain hose
Step 2.7 Optional: Changing the direction of the drain hose
Step 2.8 Installing and connecting the assembly pipes to the refrigerant pipes (assembly pipe)
Step 2.9 Shortening or extending the refrigerant pipes (assembly pipe)
Step 2.10 Fixing the installation plate
Step 2.11 Fixing the indoor unit to the installation plate
Step 2.12 Assembling the cover panel
Outdoor Unit Installation 40
Step 3.1 Fixing the outdoor unit in place
Step 3.2 Connecting the cables and the refrigerant pipes
Step 3.3 Evacuating the air
Step 3.4 Adding refrigerant
Installation Inspection 43
Step 4.1 Performing the gas leak tests
Step 4.2 Running the Smart Install mode
Step 4.3 Performing final check and trial operation
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of theirworking life. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these
items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailerwhere they purchased this product, or their local government office,
for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product
and its electronic accessories should not be mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of
with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate
that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.
DB68-06031A-01_A5.indd 3 4/18/2017 8:59:14 AM

4
English
Safety InformationSafety Information
Safety Information
Before using your new air conditioner, please read this manual thoroughly to ensure that you know how to
safely and efficiently operate the extensive features and functions of your new appliance.
Because the following operating instructions covervarious models, the characteristics of your air conditioner
may differ slightly from those described in this manual. If you have any questions, call your nearest contact
centre or find help and information online at www.samsung.com.
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
Follow directions. Do NOT attempt.
Make sure the machine is grounded to prevent electric shock.
Cut off the power supply. Do NOT disassemble.
FOR INSTALLATION
WARNING
Use a powercord with this product's power specifications or higher and use the power cord forthis
appliance only. In addition, do not use an extension cord.
• Extending the power cord may result in electric shock or fire.
• Do not use an electric transformer. This may result in electric shock or fire.
• If the voltage/frequency/rated current condition is different, it may cause fire.
The installation of this appliance must be performed by a qualified technician or service company.
• Failing to do so may result in electric shock, fire, explosion, problems with the product, or injury and
may also void warranty on the installed product.
Install an Isolation Switch next to the Air Conditioner (but not on the panels of the Air Conditioner) and
circuit breaker dedicated to the air conditioner.
• Failing to do so may result in electric shock or fire.
Fix the outdoorunit firmly so that the electric part of the outdoor unit is not exposed.
• Failing to do so may result in electric shock, fire, explosion, or problems with the product.
Do not install this appliance near a heater, or inflammable material. Do not install this appliance in a
humid, oily or dusty location, in a location exposed to direct sunlight and water (or rain). Do not install
this appliance in a location where gas may leak.
• This may result in electric shock or fire.
Neverinstall the outdoor unit in a location such as on a high external wall where it could fall.
Safety Information
DB68-06031A-01_A5.indd 4 4/18/2017 8:59:15 AM

5
English
Safety InformationSafety Information
• If the outdoor unit falls, it may result in injury, death or property damage.
This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic water pipe,
or telephone line.
• Failing to do so may result in electric shock, fire, and explosion.
• Make sure to use a socket-outlet with ground.
CAUTION
Install your appliance on a level and hard floorthat can support its weight.
• Failing to do so may result in abnormal vibrations, noise, or problems with the product.
Install the drain hose properly so that water drains correctly.
• Failing to do so may result in water overflowing and property damage. Avoid adding drain to waste
pipes as odours may arise in the future.
When installing the outdoor unit, make sure to connect the drain hose so that draining is performed
correctly.
• The water generated during heating by the outdoor unit may overflow and result in property
damage.
In particular, in winter, if a block of ice falls, it may result in injury, death or property damage.
FOR POWER SUPPLY
WARNING
When the circuit breakeris damaged, contact your nearest service centre.
Do not pull or excessively bend the powerline. Do not twist or tie the power line. Do not hook the
powerline over a metal object, place a heavy object on the power line, insert the power line between
objects, or push the power line into the space behind the appliance.
• This may result in electric shock or fire.
CAUTION
When not using the air conditioner fora long period of time or during a thunder/lightning storm, cut
the powerat the circuit breaker.
• Failing to do so may result in electric shock or fire.
FOR USING
WARNING
If the appliance is flooded, please contact your nearest service centre.
• Failing to do so may result in electric shock or fire.
Safety Information
DB68-06031A-01_A5.indd 5 4/18/2017 8:59:16 AM

6
English
Safety InformationSafety Information
If the appliance generates a strange noise, a burning smell or smoke, cut off the power supply
immediately and contact the nearest service centre.
• Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediatelywithout touching
the powerline. Do not touch the appliance or power line.
• Do not use a ventilating fan.
• A spark may result in an explosion or fire.
To reinstall the air conditioner, please contact your nearest service centre.
• Failing to do so may result in problems with the product, water leakage, electric shock, or fire.
• Delivery service for the product is not provided. If you reinstall the product in another location,
additional construction expenses and an installation fee will be charged.
• Especially, when you wish to install the product in an unusual location such as in an industrial area or
near the seaside where it is exposed to salt in the air, please contact your nearest service centre.
Do not touch the circuit breakerwith wet hands.
• This may result in electric shock.
Do not turn the airconditioner off with the circuit breakerwhile it is operating.
• Turning the air conditioner off and then on again with the circuit breaker may cause a spark and
result in electric shock or fire.
After unpacking the air conditioner, keep all packaging materials well out of the reach of children, as
packaging materials can be dangerous to children.
• If a child places a bag over its head, it may result in suffocation.
Do not touch the air flow blade with your hands orfingers during heating.
• This may result in electric shock or burns.
Do not insert your fingers or foreign substances into the airinlet/outlet of the airconditioner.
• Take special care that children do not injure themselves by inserting their fingers into the product.
Do not strike orpull the air conditioner with excessive force.
• This may result in fire, injury, or problems with the product.
Do not place an object nearthe outdoor unit that allows children to climb onto the machine.
• This may result in children seriously injuring themselves.
Do not use this airconditioner for long periods of time in badly ventilated locations ornear infirm
people.
• Since this may be dangerous due to a lack of oxygen, open a window at least once an hour.
If any foreign substance such as waterhas entered the appliance, cut off the power supply and contact
the nearest service centre.
• Failing to do so may result in electric shock or fire.
Do not attempt to repair, disassemble, ormodify the appliance yourself.
DB68-06031A-01_A5.indd 6 4/18/2017 8:59:16 AM

7
English
Safety InformationSafety Information
• Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.
• Failing to do so may result in electric shock, fire, problems with the product, or injury.
CAUTION
Do not place objects ordevices under the indoor unit.
• Water dripping from the indoor unit may result in fire or property damage.
Check that the installation frame of the outdoorunit is not broken at least once a year.
• Failing to do so may result in injury, death or property damage.
• To prevent personal injury, make sure that you change the directions of the horizontal air flow blades
after stopping the movements of the vertical air flow blade.
Max current is measured according to IEC standard for safety and current is measured according to ISO
standard for energy efficiency.
Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted
cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
• This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in electric shock, fire or problems with the
product.
Do not drink the waterfrom the air conditioner.
• The water may be harmful to humans.
Do not apply a strong impact to the remote control and do not disassemble the remote control.
Do not touch the pipes connected with the product.
• This may result in burns or injury.
Do not use this airconditioner to preserve precision equipment, food, animals, plants orcosmetics, or
for any other unusual purposes.
• This may result in property damage.
Avoid directly exposing humans, animals or plants to the air flow from the airconditioner for long
periods of time.
• This may result in harm to humans, animals or plants.
This appliance is not intended foruse by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, without supervision or instruction
concerning use of the appliance by a person responsible fortheir safety. Children should be supervised
to ensure that they do not play with the appliance.
DB68-06031A-01_A5.indd 7 4/18/2017 8:59:17 AM

8
English
Safety InformationSafety Information
FOR CLEANING
WARNING
Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner or alcohol to
clean the appliance.
• This may result in discolouration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, cut off the power supply and wait until the fan stops.
• Failing to do so may result in electric shock or fire.
CAUTION
Take care when cleaning the surface of the heat exchanger of the outdoorunit since it has sharp edges.
• This should be done by a qualified technician. Please contact your installer or service centre.
Do not clean the inside of the air conditioner by yourself.
• For cleaning inside the appliance, contact your nearest service centre.
• When cleaning the filter, refer to the descriptions in the ‘Cleaning at a Glance’ section.
• Failing to do so may result in damage, electric shock or fire.
• Make sure to prevent any injury from sharp edges of the surface when handling the heat exchanger.
DB68-06031A-01_A5.indd 8 4/18/2017 8:59:17 AM

9
English
At a Glance
The actual product may differ slightly from the image depicted below.
Indoor Unit Overview
At a Glance
01 Air intake
02 Air filter
03 Air flow blade (up and down)
04 Air flow blade (left and right)
05 Room temperature sensor
06 Display
07 Power button /
Remote control receiver
Display
01
02
03
01 Operation indicator
02 Timer indicator
good'sleep indicator
Auto clean indicator
03 Single user indicator
06
01
02
03
04
05
07
DB68-06031A-01_A5.indd 9 4/18/2017 8:59:19 AM

10
English
At a Glance
Remote Control Overview
01 Set temperature indicator
02 Timer option indicator
03 Operation mode indicator
04 Options indicator
05 Low battery indicator
06 Transmit indicator
07 Fan speed indicator
08 Vertical air swing indicator
09 Settings indicator
10 Power button
11 Temperature button
12 Options button
13 Timer button
14 Direction button / Selection button
15 Vertical air swing button
16 Mode button
17 Fan speed button
18 Single user button
19 Settings button
20 SET button
01
05
06
07
08
09
15
16
17
19
20
02
03
04
10
11
12
18
13
14
Inserting batteries
two 1.5V AAA type batteries
NOTE
• The descriptions in this manual are primarily
made based on the remote control buttons.
• Although Heat(
AR✴✴JC/KC✴✴ ), Quiet, Virus
doctor( ), d’light Cool, Usage, Filter Reset,
Display is displayed on the remote control
display, it is not available on this model.
DB68-06031A-01_A5.indd 10 4/18/2017 8:59:20 AM

11
English
At a Glance
Operation modes
You can change the current mode between Auto, Cool, Dry, Fan, and
Heat by pressing the button.
Controlling temperature
You can control the temperature in each mode as follows:
Mode Temperature control
Auto/Cool/
Heat Adjust by1 °C between 16 °C and 30 °C.
Dry Adjust by1 °C between 18 °C and 30 °C.
Fan You cannot control the temperature.
NOTE
You can use the Cool, Dry, and Heat modes in the following conditions:
Mode Cool Dry Heat
Indoor
temperature 16 °C to 32 °C 18 °C to 32 °C 27 °C or less
Outdoor
temperature
15 °C to 52 °C 15 °C to 52 °C
-5 °C to 24 °C
15 °C to 43 °C
(AR✴✴RC)
15 °C to 43 °C
(AR✴✴RC)
Indoor humidity
80% or less
relative
humidity
_ _
• If the air conditioner operates in a high humidity environment in the
Cool mode for an extended period of time, condensation may occur.
• If the outdoor temperature drops to -5°C, the heating capacity
may decrease to as much as 60% to 70% of the specified
capacity(AR✴✴HP/JP/KP/MP✴✴).
You can use the air conditioner easily by selecting a mode and then by controlling the temperature, fan speed,
and air direction.
Remote Control Operation
DB68-06031A-01_A5.indd 11 4/18/2017 8:59:21 AM

12
English
At a Glance
Controlling fan speed
You can select the following fan speeds in each mode:
Mode Available fan speeds
Auto/Dry (Auto)
Cool/Heat (Auto), (Low), (Med), (High),
(Turbo)
Fan (Low), (Med), (High), (Turbo)
Controlling air flow direction
Vertical air flow
Keep the vertical air flow in a constant direction by stopping the
movements of the vertical air flow blade.
In operation ►
NOTE
• If you adjust the vertical air flow blade manually, it may not close
completely when you turn off the air conditioner.
• You can control the vertical air flow direction when the good'sleep
function is running while in the Heat mode, but not while in the Cool
mode (AR✴✴HP/JP/KP/MP✴✴).
Horizontal air flow (manual)
Keep the horizontal air flow in a constant direction by changing the
directions of the horizontal air flow blades manually.
DB68-06031A-01_A5.indd 12 4/18/2017 8:59:23 AM

13
English
Power Smart Features
Cool mode
Use the Cool mode to stay cool in hot weather.
► ► Select Cool.
NOTE
• For comfort, keep the temperature difference between the indoor
and outdoor air within 5 °C in the Cool mode.
• After selecting the Cool mode, select a function, temperature, and
fan speed that you want to apply.
–To cool your room quickly, select a low temperature and a strong
fan speed.
–To save energy, select a high temperature and a weak fan speed.
2-Step cooling function
Use the 2-Step cooling function to quickly reach the set temperature.
The air conditioner automatically adjusts the fan speed and air flow
direction. You can select this function only when the Cool mode is
running.
In the Cool mode ► ► ►
Select 2-Step. ►
The smart and powerful cooling functions of the Samsung air conditioner keep an enclosed space cool and
comfortable.
Cooling Operation
Power Smart Features
DB68-06031A-01_A5.indd 13 4/18/2017 8:59:24 AM

14
English
Power Smart Features
Dry mode
Use the Dry mode in rainy or humid weather.
► ► Select Dry.
NOTE
• The lower the set temperature is, the greater the dehumidifying
capacity is. When the current humidity seems to be high, adjust the
set temperature to a low temperature.
• You cannot use the Dry mode for heating. The Dry mode is designed
to produce a cooling side-effect.
The dehumidifying function of the Samsung air conditioner keeps an enclosed space dry and comfortable.
Dehumidifying Operation
DB68-06031A-01_A5.indd 14 4/18/2017 8:59:25 AM

15
English
Power Smart Features
A
B
Heat mode
Use the Heat mode to stay warm.
► ► Select Heat.
NOTE
• This mode is supported by heating models only:
AR✴✴HP/JP/KP/MP✴✴ series.
• While the air conditioner warms up, the fan may not operate for
about 3 to 5 minutes at the beginning to prevent cold blasts.
• If the air conditioner heats insufficiently, use an additional heating
appliance in combination with the air conditioner.
• When the outdoor temperature is low and the humidity is high
in Heat mode, frost may develop on the outdoor heat exchanger.
This may also decrease the heating efficiency. If this occurs, the air
conditioner runs the defrost function for 5 to 12 minutes to remove
frost from the outdoor heat exchanger.
• When the defrost function is running, steam is produced on the
outdoor unit. The air conditioner moves the vertical air flow blade to
the lowest position, as shown in the left figure, to prevent cold air
from coming out from the indoor unit.
A. The position of the vertical air flow blade when the defrost function
is running (The blade looks almost closed.)
B. The position range of the vertical air flow blade when the Heat
mode is running.
• When the defrost function is running, no air comes out from the
indoor unit in order to prevent cold air from coming out. When the
defrost function is finished, warm air comes out after a while.
• The cycle of the defrost function may be shortened depending on
the amount of frost on the outdoor unit.
• The cycle of the defrost function may be shortened depending on
the humidity from rain and snow, too.
• When the defrost function is running, you cannot select other
functions with the remote control. Select them after the defrost
function is finished.
The heating functions of the Samsung air conditioner keep an enclosed space warm and comfortable.
Heating Operation
DB68-06031A-01_A5.indd 15 4/18/2017 8:59:25 AM

16
English
Power Smart Features
Auto mode
Use the Auto mode when you want the air conditioner to automatically
control the operation. The air conditionerwill provide the most
comfortable atmosphere that it can.
► ► Select Auto.
NOTE
• When the indoor temperature seems to be higher or lower than the
set point, the air conditioner automatically produces either cool air
to cool down the indoor temperature orwarm air to warm up the
indoor temperature.
Fan mode
Use the Fan mode to run the air conditioner like a common fan. The air
conditioner provides a natural breeze.
► ► Select Fan.
NOTE
• If the air conditioner will not be used for an extended period of time,
dry the air conditioner by running it in the Fan mode for 3 or 4 hours.
• The outdoor unit is designed not to operate in the Fan mode to
prevent cold air from entering through the unit. This is a normal
operation and not a fault with the air conditioner.
There is a variety of extra functionality provided by the Samsung air conditioner.
Quick Smart Features
DB68-06031A-01_A5.indd 16 4/18/2017 8:59:26 AM

17
English
Power Smart Features
Fast function
Use the Fast function to quickly cool your room. This function is the most
powerful cooling function provided by the air conditioner. You can select
this function in the Cool mode.
In the Cool mode ► ► ►
Select Fast ►
NOTE
• If you select the Fast function while such functions as 2-Step
cooling, Comfort, Single user, or good'sleep are running, these
functions are cancelled.
• You can change the air flow direction.
• You cannot change the set temperature and the fan speed.
Comfort function
Use the Comfort function when you feel the current cooling effect is too
strong. The air conditioner provides a mild cooling. You can select this
function in the Cool mode.
In the Cool mode ► ► ►
Select Comfort. ►
NOTE
• You can change the set temperature and the air flow direction.
• You cannot change the fan speed.
• If you select the Comfort function while such functions as 2-Step
cooling, Fast, Single user, or good'sleep are running, these functions
are cancelled.
• If you feel cooling effect in the Comfort function is weak, cancel the
Comfort function.
DB68-06031A-01_A5.indd 17 4/18/2017 8:59:28 AM

18
English
Power Smart Features
Beep sound function
Use the Beep sound function to turn on or off the beep sound that plays
when you press a button on the remote control.
► ► Select Beep. ►
DB68-06031A-01_A5.indd 18 4/18/2017 8:59:29 AM

19
English
Energy-Saving Features
Single userfunction
Use the Single user function to reduce electricity consumption while
staying cool. You can select this function in the Cool mode.
In the Cool mode ►
NOTE
• When the Single user function starts, the pattern
appears on the remote control for a few seconds, and vertical air
swing begins automatically.
• If you select the Single user while such function as 2-Step cooling,
Fast, Comfort, or good'sleep are running, these modes are
cancelled.
• After selecting the Single user function, you can change the set
temperature (24 °C to 30 °C in the Cool mode), fan speed, and
vertical air flow direction.
• When the Single user function is turned on in the Cool mode while
the set temperature is set to lower than 24 °C, the set temperature
is automatically raised to 24 °C. But if the set temperature is set to
between 25 °C and 30 °C, it remains the same.
• Even after you turn off the Single user function, vertical air swing
continues until you turn it off with the Vertical air swing ( )
button.
• You can also start the Single user function by pressing the Options (
) button.
In the Cool mode ► ► ►
Select Single user. ►
The smart energy-saving functions of the Samsung air conditioner reduce electricity consumption.
Energy-Saving Operation
Energy-Saving Features
DB68-06031A-01_A5.indd 19 4/18/2017 8:59:30 AM
