INSTALLATION MANUAL
MANUAL DE INSTALACIÓN
MANUALE D’INSTALLAZIONE
MANUAL DE INSTALAÇÃO
MANUEL D’INSTALLATION
INSTALLATIONS-HANDBUCH
Split-type Room Air Conditioner (Cool and Heat)
Aire acondicionado doméstico sistema Split (Refrigeración y Calefacción)
Condizionatore d’aria per ambienti ad unitàSeparate (Raffreddamento e Riscaldamento)
Aparelho de ar condicionado tipo Split (Refrigeração e Aquecimento)
Climatiseur de type Séparé(Refroidissement et Chauffage)
Geteilte raumklimaanlage (Kühlen und Wärmen)
ENGLISH
ESPAÑOL
ITALIANO
PORTUGUÉS
FRANÇAIS
DEUTSCH
ESIPFDDB68-00217A(8)
ASH070VE/D
ASH090VE/D
ASH120VE/D
ASH071VE/D
ASH091VE/D
ASH121VE/D
ASH074VE/D
ASH094VE/D
ASH124VE/D
ASH075VE/D
ASH095VE/D
ASH125VE/D
Indoor Unit Outdoor Unit
AXH070VE/D
AXH090VE/D
AXH120VE/D
AXH071VE/D
AXH091VE/D
AXH121VE/D
AXH074VE/D
AXH094VE/D
AXH124VE/D
AXH075VE/D
AXH095VE/D
AXH125VE/D
AQ07A1(A2)VE
AQ09A1(A2)VE/B
AQ12A1(A2)VE/B
SH07YA0
SH09YA0
SH12YA0
SH07YAA(B)
SH09YAA(B)
SH12YAA(B)
SH09ZV
SH12ZV
Indoor Unit Outdoor Unit
UQ07A1(A2)VE
UQ09A1(A2)VE/B
UQ12A1(A2)VE/B
SH07YA0X
SH09YA0X
SH12YA0X
SH07YAA(B)X
SH09YAA(B)X
SH12YAA(B)X
XSH09ZV
XSH12ZV

E-2

E-3
Contents
◆PREPARING THE INSTALLATION
■Deciding on Where to Install the Air Conditioner.......................................... 4
■Air Conditioner and Accessories................................................................... 6
◆INSTALLING THE INDOOR UNIT
■Fixing the Installation Plate........................................................................... 7
■Purging the Unit............................................................................................. 8
■Connecting the Assembly Cable................................................................... 8
■Installing and Connecting the Indoor Unit Drain Hose.................................. 9
■Installing and Connecting the Indoor Unit Assembly Piping ......................... 10
■Cutting/Extending the Piping ........................................................................ 11
◆INSTALLING THE OUTDOOR UNIT
■Connecting the Cables to the Outdoor Unit.................................................. 12
■Checking Correct Earthing............................................................................ 13
■Installing and Connecting the Outdoor Unit Drain Hose............................... 14
■Fixing the Unit in Position ............................................................................ 14
◆COMPLETING THE INSTALLATION
■Connecting Up and Purging the Circuit......................................................... 15
■Performing Leak Tests................................................................................... 16
■Placing the Indoor Unit in Position................................................................ 16
■Checking and Testing Operations ................................................................. 17
■Installing the Remote Control Holder............................................................ 18
■Explaining Operations to the Owner ............................................................. 18
◆TECHNICAL SPECIFICATIONS
ENGLISH

Deciding on Where to Install the Air Conditioner
E-4
When deciding on the location of the air conditioner with the owner, the following restrictions
must be taken into account.
General
Do NOT install the air conditioner in a location where it will come into contact with the following elements:
◆Combustible gases
◆Saline air
◆Machine oil
◆Sulphide gas
◆Special environmental conditions
If you must install the unit in such conditions, first consult your dealer.
Indoor Unit
◆There must be no obstacles near the air inlet and outlet.
◆Install the indoor unit on a surface that can support its weight.
◆Choose a position that enables the piping and cables to be easily connected to the outdoor unit and the
recommended length of 5 metres to be respected.
◆Leave enough clearance beneath the indoor unit to enable the filters to be removed without hindrance.
◆Maintain sufficient clearance around the indoor unit, as indicated in the diagram on the page opposite.
◆Make sure that the water dripping from the drain hose runs away correctly and safely.
Outdoor Unit
◆The outdoor unit must NEVER be placed on its side or upside down, as the compressor lubrication oil will run into the
cooling circuit and seriously damage the unit.
◆Choose a location that is dry and sunny, but not exposed to direct sunlight or strong winds.
◆Do not block any passageways or thoroughfares.
◆Choose a location where the noise of the air conditioner when running and the discharged air do not disturb any
neighbours.
◆Choose a position that enables the piping and cables to be easily connected to the indoor unit and the recommended
length of 5 metres to be respected.
◆Install the outdoor unit on a flat, stable surface that can support its weight and does not generate any unnecessary
noise and vibration.
◆Position the outdoor unit so that the air flow is directed towards the outside, as indicated by the arrows on the top of
the unit.
◆Maintain sufficient clearance around the outdoor unit, as indicated in the diagram on the page opposite.
◆If the outdoor unit is installed at a height, ensure that its base is firmly fixed in position; the maximum height(“H”:
indicated in the diagram on the page opposite.) is 7 metres.
◆Make sure that the water dripping from the drain hose runs away correctly and safely.
◆ You have just purchased a split-type room air conditioner and it has
been installed by your installation specialist.
◆This device must be installed according to the national electrical rules.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
PREPARING THE INSTALLATION

Deciding on Where to Install the Air Conditioner(cont.)
E-5
125 mm
or more
30 mm or more
Respect the clearances and maximum lengths indicated in the diagram below when installing the unit.
125 mm
or more
600 mm
minimum
300 mm
minimum
300 mm
minimum
600 mm
minimum
“L” metres
maximum
“H”metres maximum
ENGLISH
PREPARING THE INSTALLATION
Model
✴✴07✴✴
✴✴09✴✴
✴✴12✴✴
Model
✴✴07✴✴
✴✴09✴✴
✴✴12✴✴
H
7
7
7
L
10
10
15

Air Conditioner and Accessories
E-6
The following accessories are supplied with the air conditioner.
➢The quantities are indicated in parentheses.
Accessories in the Indoor Unit Case
M
O
D
E
T
U
R
B
O
O
F
F
OWNER’SINSTRUCTIONS
MANUALDEINSTRUCCIONES
ISTRUZIONIPERL’USO
MANUALDEINSTRU˝ES
MANUELD’UTILISATION
GEBRAUCHSANWEISUNG
Splut-typeRoomAirConditioner
AireacondicionadodomsticosistemaSplit
Condizionatored’ariaperambientiadunitSeparate
AparelhodearcondicionadotipoSplit
Climatiseurdetypespar
Geteilteraumklimaanlage
INSTALLATIONMANUAL
MANUALDEINSTALACION
MANUALED’INSTALLAZIONE
MANUALDEINSTALAO
MANUELD’INSTALLATION
INSTALLATIONS-HANDBUCH
Splut-typeRoomAirConditioner
AireacondicionadodomsticosistemaSplit
Condizionatored’ariaperambientiadunitSeparate
AparelhodearcondicionadotipoSplit
Climatiseurdetypespar
Geteilteraumklimaanlage
Accessories in the Outdoor Unit Case
➢The five-wire assembly cable is depending on the option. [If they are not supplied, Using
the standard cable.(above 1.0mm2/area or approved according to IEC standard.)]
➢The flare nuts, drain plug, drain cap A/B and rubber leg are only included when the air
conditioner is supplied without the assembly piping illustrated below.
The following connection accessories may be supplied, depending on the option. If they are not
supplied, it is recommended that you collect them together before starting to install the air
conditioner.
➢If these accessories are supplied, they are located in the accessory box.
Installation Plate (1) FH.M4 x 12 Tapped
Screws (2) Remote Control (1)
Remote Control
Holder (1)
Five-wire Assembly
Cable (1)
Drain Cap A (1) Drain Cap B (1) Drain Plug (1)
Flare Nuts, 6.35mm
outer pipe diameter (2) Flare Nuts, 9.52mm outer pipe diameter (2)
(✴✴07✴✴, ✴✴09✴✴)
Flare Nuts, 12.70mm
outer pipe diameter (2)
(✴✴12✴✴)
Batteries for
Remote Control (2) Owner’s Instruction Booklet (1) Installation Manual (1)
PREPARING THE INSTALLATION
M3.8 x 20 Screws
for Wood (10) Putty 100g (1)M4 x 16 Tapped Screws (10) Drain Hose, length 2m (2)
Rubber LEG (4)
Assembly Piping,
Ø6.35mm by 5m
(1)
Assembly Piping,
Ø9.52mm by 5m (1)
(✴✴07✴✴, ✴✴09✴✴)
Assembly Piping,
Ø12.70mm by 5m (1)
(✴✴12✴✴)
PE T3 Foam Tube
Insulation (1) Vinyl Tape, Width 50mm (1) Drain plug (1) Rubber LEG (4)
Pipe Clamps B (3)
Pipe Clamps A (3)
Drain Cap B (1)
Drain Cap A (1)

Fixing the Installation Plate
50
60
225 285
280340
410~730
E-7
Before fixing the installation plate to a wall or window frame, you
must determine the position of the 65 mm hole through which the
cable, piping and hose pass to connect the indoor unit up to the
outdoor unit. When facing the air conditioner in position on the wall,
the piping and cable can be connected from the:
◆Right
◆Left
◆Underside
◆Rear (right or left)
1Determine the position of the pipe and drain hose hole using the right
figure and drill the hole with an inner diameter of 65 mm so that it slants
slightly downwards.
2 If you are fixing the indoor unit to a... Then follow Steps...
Wall 3.
Window frame 4to 6.
3Fix the installation plate to the wall in a manner appropriate to the weight
of the indoor unit.
➢If you are mounting the plate on a concrete wall with anchor
bolts, the anchor bolts must not project by more than 20 mm.
4Determine the positions of the wooden uprights to be attached to the
window frame.
5Attach the wooden uprights to the window frame in a manner appropriate
to the weight of the indoor unit.
6Using tapped screws, attach the installation plate to the wooden uprights,
as illustrated in the last figure opposite.
60mm
Installation plate
Pipe hole
(
Ø 65mm)
(Unit : mm)
(Unit : mm)
ENGLISH
INSTALLING THE INDOOR UNIT

Purging the Unit
E-8
On delivery, the indoor unit is loaded with an inert gas. All this gas
must therefore be purged before connecting the assembly piping.
To purge the inert gas, proceed as follows.
Unscrew the caps at the end of each pipe.
Result: All inert gas escapes from the indoor unit.
➢To prevent dirt or foreign objects from getting into the pipes
during installation, do NOT remove the caps completely
until you are ready to connect the piping.

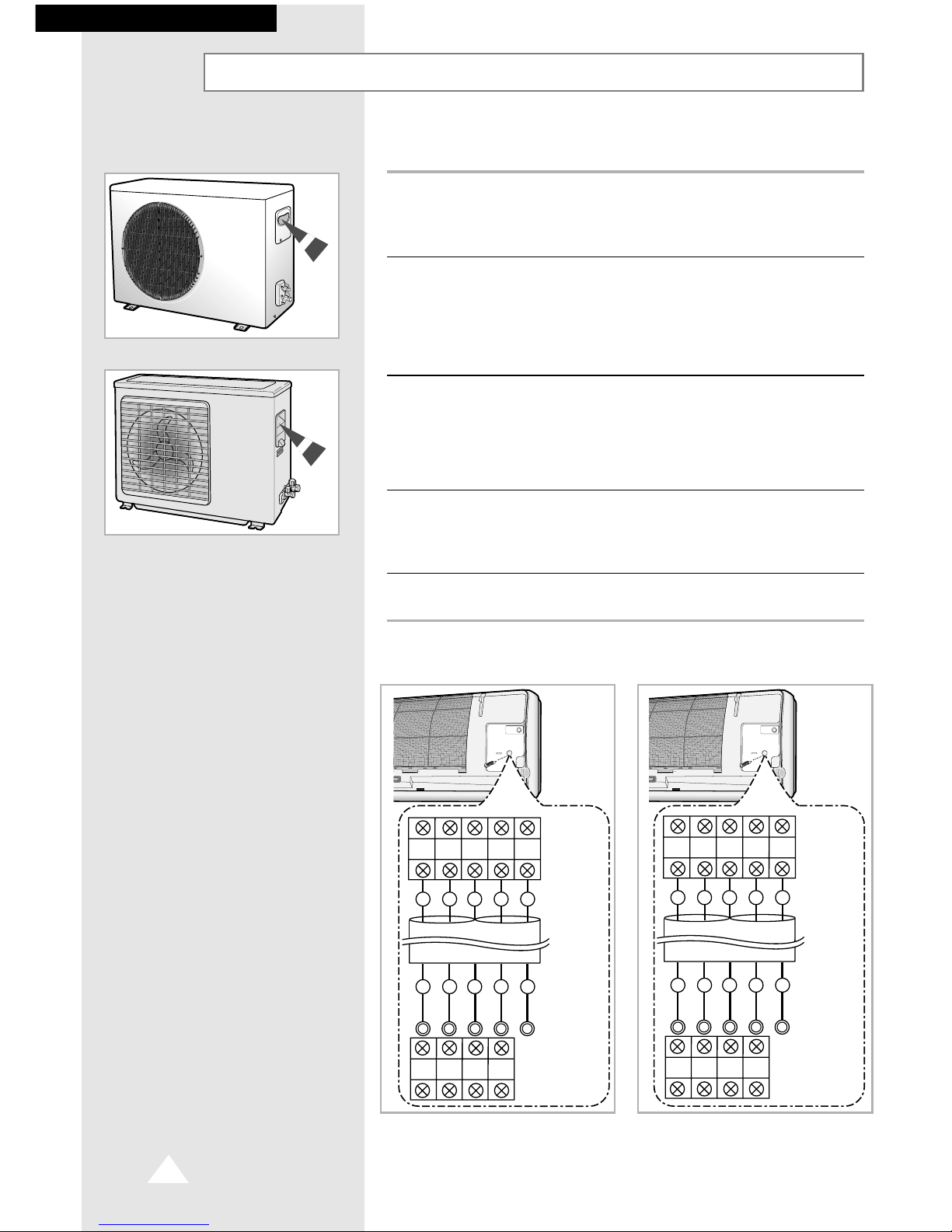

Connecting the Assembly Cable
The outdoor unit is powered from the indoor unit via the assembly
cable. If the outdoor unit is more than five metres away from the
indoor unit, the cable must first be extended to a maximum of
10(15) metres.
1Extend the assembly cable if necessary.
2Open the front grille by pulling on the tabs on the lower right and left sides
of the indoor unit.
3Remove the screw securing the connector cover.
4Pass the assembly cable through the rear of the indoor unit and connect
the assembly cable to terminals.
➢Each wire is labelled with the corresponding terminal number.
5Pass the other end of the cable through the 65 mm hole in the wall.
6Replace the connector cover, carefully tightening the screw.
7Close the front grille.
8For further details on how to plug the other end of the assembly cable into
the outdoor unit, refer to page 12.
N1 1 2 3 E
N1
E321
N1 123E
1(N) 2 3 4 5
54321
BA CDE
INSTALLING THE INDOOR UNIT
Indoor unit
Indoor unit
Outdoor unit
Outdoor unit
◗SH✴✴YAA(B)
◗The Others

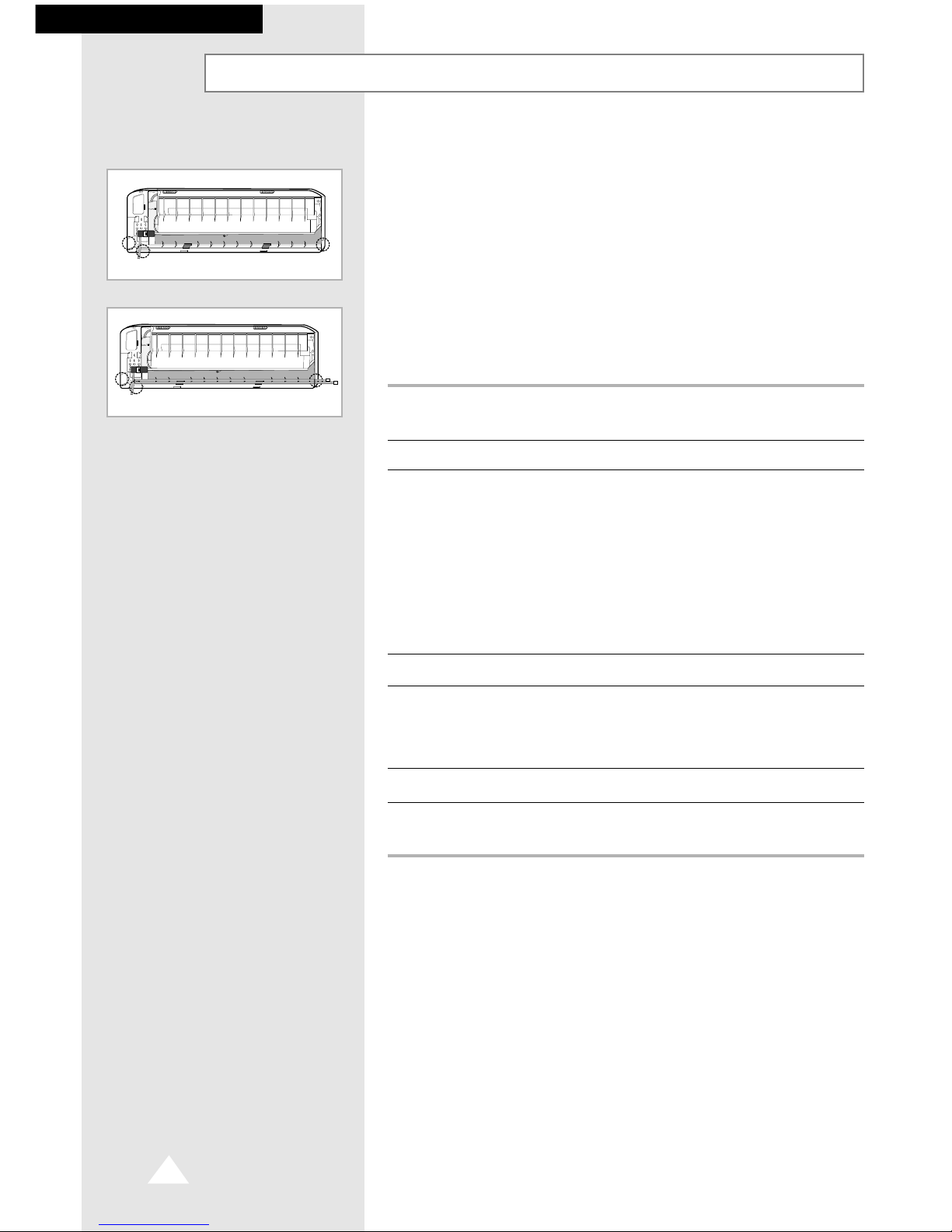

To install the drain hose, proceed as follows.
1If necessary, connect the 2-metre extension to the drain hose.
2If you are using the extension, insulate the inside part of the extension
drain hose with a shield.
3Pass the drain hose under the refrigerant piping, taking care to keep the
drain hose tight.
4Pass the drain hose through the hole in the wall, making sure that it is
sloping downwards, as shown in the illustrations above.
➢The hose will be fixed permanently into position once the
whole installation has been tested for gas leaks; refer to
page 16 for further details.
Installing and Connecting the Indoor Unit Drain Hose
E-9
Care must be taken when installing the drain hose for the indoor unit to ensure that any condensation
water is correctly drained outside. When passing the drain hose through the 65 mm hole drilled in the
wall, check that none of the following situations occur.
The hose must
NOT slope
upwards.
The end of the drain
hose must NOT be
placed in water.
Do NOT bend the
hose in different
directions.
Keep a clearance of
at least 5 cm between
the end of the hose
and the ground.
Do NOT place the
end of the drain hose
in a hollow.
5 cm
less Ditch
Shield
Drain hose Extension drain hose
ENGLISH
INSTALLING THE INDOOR UNIT

There are two refrigerant pipes of different diameters:
◆A smaller one for the liquid refrigerant
◆A larger one for the gas refrigerant
A short length of piping is already fitted to the air conditioner. You
must extend this piping using assembly piping (optionally supplied).
The connection procedure for the refrigerant piping varies according
to the exit position of the piping from the indoor unit, as seen when
facing the air conditioner in position on the wall:
◆Right (A)
◆Left (B)
◆Underside (C)
◆Rear
1With a knife, cut out the appropriate knock-out piece on the rear of the
indoor unit (unless you are connecting directly from the rear).
2Smooth the cut edges.
3Remove the protection caps on the pipes and connect the assembly piping
to each pipe, tightening the nuts, first manually and then with a wrench,
applying the following torque.
Pipe Outer Diameter Torque (kg•cm)
Liquid refrigerant 6.35 mm 160
Gas refrigerant 9.52 mm 300
Gas refrigerant 12.70 mm 500
➢ If the piping must be shortened or extended, refer to page 11.
4Cut off any excess foam insulation.
5If necessary, bend the pipe round, along the bottom of the indoor unit and
out through the appropriate hole, taking care to ensure that:
◆The piping does not jut out from the rear of the indoor unit
◆The bending radius is 100 mm or more
6Pass the piping through the hole in the wall.
7For further details on how to connect up to the outdoor unit and purge the
circuit, refer to page 15.
➢The piping will be insulated and fixed permanently into
position once the whole installation has been tested for
gas leaks; refer to page 16 for further details.
Installing and Connecting the Indoor Unit Assembly Piping
E-10
A
C
B
A
C
B
INSTALLING THE INDOOR UNIT

Five metres of piping is supplied with the air conditioner(Optional).
This length can if necessary be:
◆Extended to a maximum of 10(15) metres
◆Shortened as required
☛If more than five metres of piping is required:
◆The assembly cable must also be extended
◆Refrigerant must be added to the circuit by an
approved installer; otherwise, the indoor unit may
freeze
1Make sure that you have the required tools available (pipe cutter, reamer,
flaring tool and pipe holder).
2If you wish to shorten the piping, cut it using a pipe cutter, taking care to
ensure that the cut edge remains at a 90°angle with the side of the pipe,
and referring to the illustrations below for examples of edges cut correctly
and incorrectly. Oblique Rough Burr
3To prevent any gas from leaking out, remove all burrs at the cut end of the
pipe, using a reamer.
4Slide a flare nut on to the pipe and modify the flare.
Pipe Outer Diameter (D) Depth (A)
Liquid refrigerant 6.35 mm 1.3 mm
Gas refrigerant 9.52 mm 1.8 mm
Gas refrigerant 12.70 mm 2.0 mm
5Check that the flaring is correct, referring to the illustrations below for
examples of incorrect flaring.
Inclined Damaged Surface Cracked Uneven Thickness
6Align the pipes to be connected and tighten the flare nuts first manually
and then with a wrench, applying the following torque.
Pipe Outer Diameter Torque (kg•cm)
Liquid refrigerant 6.35 mm 160
Gas refrigerant 9.52 mm 300
Gas refrigerant 12.70 mm 500
7For further details on how to connect up to the outdoor unit and purge the
circuit, refer to page 15.
Cutting/Extending the Piping
E-11
90O
Ox x x
ENGLISH
INSTALLING THE INDOOR UNIT

Connecting the Cables to the Outdoor Unit
One electric cable must be connected to the outdoor unit:
◆
The assembly cable connecting the indoor unit to the outdoor unit
1Remove the terminal board cover on the side of the outdoor unit.
2Connect the assembly cable to terminals.
➢Each wire is labelled with the corresponding terminal number.
3Connect the earth wires to the earth terminals.
➢Refer to the page opposite for further details on how to check
that earthing is correct.
4Replace the terminal board cover, carefully tightening the screw.
5Connect the power cable with the indoor unit.
E-12
1(N) 2 3 4 5
A B C D
1 5432
A B CDE
Indoor unit
Outdoor unit
Earth
terminal
INSTALLING THE OUTDOOR UNIT
◗SH✴✴YAA(B)
◗SH✴✴YAA(B)
◗The Others
◗The Others
N1 1 2 3 E
N1 1 2 3
N1 E321
123E
N1
Indoor unit
Outdoor unit
Earth
terminal

Checking Correct Earthing
If the power distribution circuit does not have an earth or the earth
does not comply with specifications, an earthing electrode must be
installed. The corresponding accessories are not supplied with the air
conditioner.
1Select an earthing electrode that complies with the specifications given in
the illustration opposite.
2Determine a suitable location for the earthing electrode:
◆In damp hard soil rather than loose sandy or gravel soil that has a
higher earthing resistance
◆Away from underground structures or facilities, such as gas pipes,
water pipes, telephone lines and underground cables
◆At least two metres away from a lightening conductor earthing elec-
trode and its cable
➢The earthing wire for the telephone line cannot be used to
earth the air conditioner.
3Dig a hole of the size indicated in the illustration opposite, drive the earth-
ing electrode into position and cover the top of the electrode with the exca-
vated soil.
4Install a green/yellow insulated earthing wire (
Ø 1.6 mm, section 2 mm
2
or
greater):
◆If the earthing wire is too short, connect an extension lead, soldering
the connection and wrapping it with insulating tape (do not bury the
soldered connection)
◆Secure the earthing wire in position with staples
➢If the earthing electrode is installed in an area of heavy traffic,
its wire must be connected securely.
5Carefully check the installation, by measuring the earthing resistance with
an earthing resistance tester. If the resistance is above the required level,
drive the earthing electrode deeper into the ground or increase the number
of earthing electrodes.
6Connect the earthing wire to the earthing screw on the air conditioner.
E-13
Carbon
plastic Steel core
PVC-insulated green/
yellow wire, 2mm2x 3.5 m
To
earthing
screw
50 cm
30 cm
mENGLISH
INSTALLING THE OUTDOOR UNIT

Installing and Connecting the Outdoor Unit Drain Hose
When using the air conditioner in the heating mode, ice may accu-
mulate. During de-icing, the condensed water must be drained off
safely. Consequently, you must install a drain hose on the outdoor
unit, following the instructions below.
1Insert the drain plug into the hole 1 on the underside of the outdoor unit.
Close hole 3 with Cap Drain A.
Close hole 2 with Cap Drain B.
2Connect the drain hose to the drain plug.
3Ensure that the drained water runs off correctly and safely.
Fixing the Unit in Position
The outdoor unit must be installed on a rigid and stable base to
avoid any increase in the noise level and vibration, particularly if the
outdoor unit is to be installed close to a neighbour.
If it is to be installed in a location exposed to strong winds or at a
height, the unit must be fixed to an appropriate support (wall or
ground).
1Position the outdoor unit so that the air flow is directed towards the out-
side, as indicated by the arrows on the top of the unit.
2Attach the outdoor unit to the appropriate support using anchor bolts.
3If the outdoor unit is exposed to strong winds, install shield plates around
the outdoor unit, so that the fan can operate correctly.
❇Certainly fix up its rubber leg, in order to prevent its vibration and noise.
E-14
“X”mm
“Y”mm
INSTALLING THE OUTDOOR UNIT
Drain hole
Hole 3
Hole 2
Hole 1
Rubber leg
◗SH✴✴YAA(B)
◗The Others
Model
SH
✴✴ YAA(B)
The Others
252
256
506
600
XY

Connecting Up and Purging the Circuit
E-15
ENGLISH
COMPLETING THE INSTALLATION
A
B
C
D
B
(liquid)
Outdoor unit Indoor unit
Gas pipe side
Liquid pipe side
Stem cap
Valve stem
A
(gas)
Vacuum Pump
The outdoor unit is loaded with sufficient R22 refrigerant for 5 metres
of piping. The air in the indoor unit and in the pipe must be purged.
If air remains in the refrigeration pipes, it will affect the compressor,
reduce to cooling/heating capacity and could lead to a malfuction.
Refrigerant for air purging is not charged in the outdoor unit. Use Vacuum
Pump as shown at the figure.
☛If you have used... Then...
More than 5 metres “A”g of refrigerant R22
of piping must be added for each
extra metre.
Less than 5 metres The purge time is normal.
of piping
1Connect each assembly pipe to the appropriate valve on the outdoor unit
and tighten the flare nut.
2Referring to the illustration opposite, tighten the flare nut first manually
and then with a wrench, applying the following torque.
Pipe Outer Diameter Torque (kg.cm)
Liquid refrigerant
16.35 mm(1/4”) 160
Gas refrigerant 19.52 mm(3/8”) 300
Gas refrigerant 12.70 mm(1/2”) 500
3Connect the charging hose of low pressure side of manifold gauge to the
packed valve having a service port as shown at the figure.
4Open the valve of the low pressure side of manifold gauge counter-
clockwise.
5Purge the air from the system using vacuum pump for about 10 minutes.
- Close the valve of the low pressure side of manifold gauge clockwise.
- Make sure that pressure gauge show -0.1MPa(-76cmHg) after about
- 10minutes.
- This procedure is very important in order to avoid gas leak.
- Turn off the vacuum pump
- Remove the hose of the low pressure side of manifold gauge.
6Set valve cork of both liquid side and gas side of packed valve to the open
position.
7Mount the valve stem nuts and the service port cap to the valve, and
tighten them at the torque of 18N
•m with a torque wrench.
8Check for gas leakage.
- At this time, especially check for gas leakage from the 3-way valve’s
stem nuts, and from the service port cap.
Adding Refrigerant
Refrigerant must be added if the piping measures more than 5 metres in length.
This operation can only be performed by a qualified refrigeration specialist.
Refer to the Service Manual for more details on this operation.
Model
SH
✴✴ YAA(B)
The Others
30
20
A

Performing Leak Tests
Before completing the installation (insulation of the cables, hose and
piping and fixing of the indoor unit to the installation plate), you must
check that there are no gas leaks.
To check for gas leaks on the... Then, using a leak detector,
check the...
Indoor unit Flare nuts at the end of sections
C and D.
Outdoor unit Valves on sections A and B.
Placing the Indoor Unit in Position
Once you have checked that there are no leaks in the system, you can insulate
the piping, hose and cables and place the indoor unit on the installation plate.
1To avoid condensation problems, place heat-resistant polyethylene foam sep-
arately around each refrigerant pipe in the lower part of the indoor unit.
2Wind insulating tape around the pipes, assembly cable and drain hose.
3Place the resulting bundle carefully in the lower part of the indoor unit, mak-
ing sure that it does not jut out from the rear of the indoor unit.
4Hook the indoor unit on to the installation plate and move the unit to the
right and left until you are sure that it is securely in place.
5Finish wrapping insulating tape around the rest of the piping leading to the
outdoor unit.
6Using clamps (optionally supplied), attach the piping to the wall wherever
possible.
E-16
CD
B
A
COMPLETING THE INSTALLATION
Installation plate

Checking and Testing Operations
E-17
ENGLISH
COMPLETING THE INSTALLATION
To complete the installation, perform the following checks and tests
to ensure that the air conditioner is operating correctly.
1Review all the following elements in the installation:
◆Installation site strength
◆Piping connection tightness to detect any gas leakages
◆Connection wiring
◆Heat-resistant insulation of the piping
◆Drainage
◆Earthing wire connection
◆Correct operations (follow the steps below)

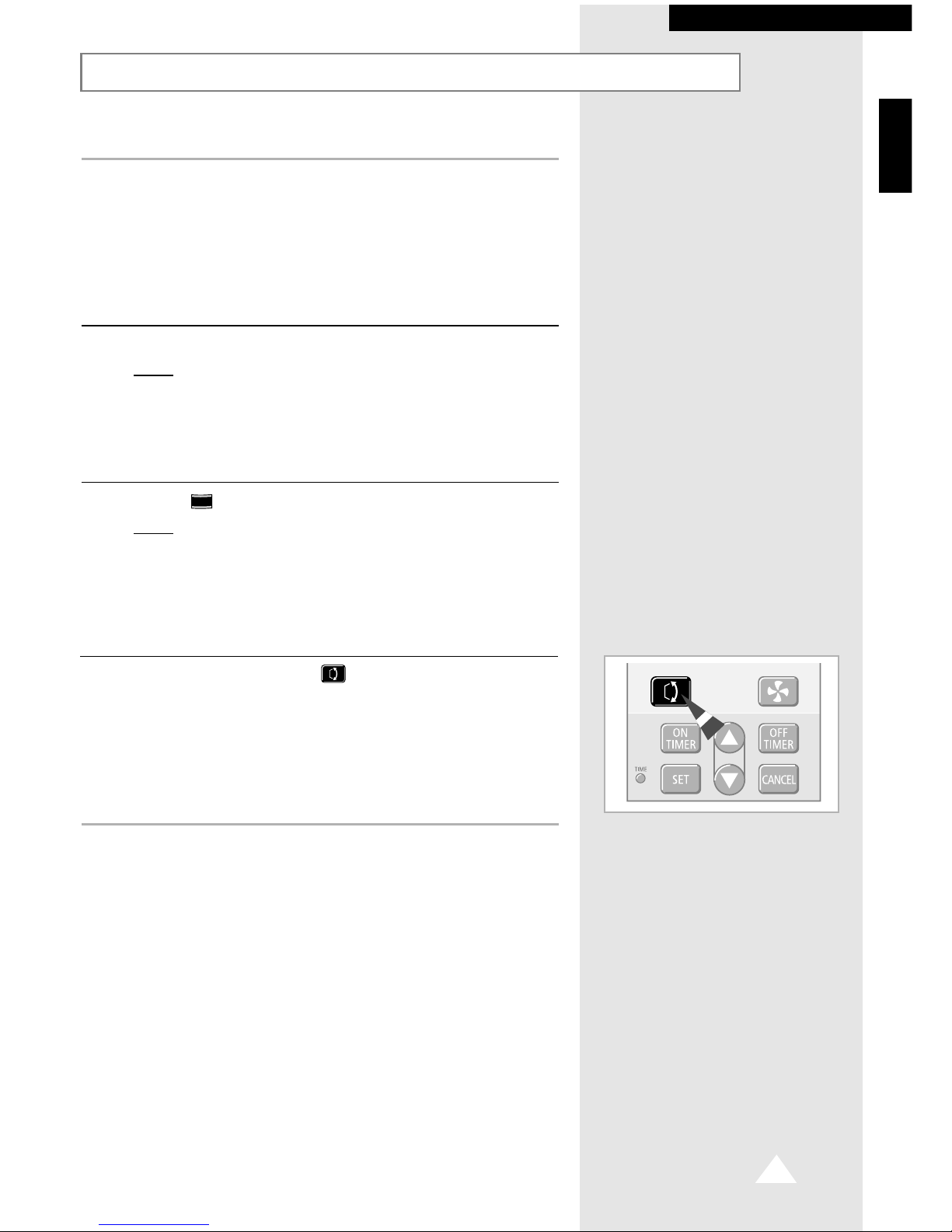

2Press the On/Off button.
Result: ◆ The indicator lights on the indoor unit flash at
half-second intervals.
◆ While the indoor unit opens, the indoor unit fan runs
to start.
3Press the button.
Result: The outdoor unit operates in cooling or heating mode as
following the room temperature.
4Air flow direction Press the button one or more times to set the
blades to the 30°or 90°positions.
T
U
R
B
O

Installing the Remote Control Holder
The remote control is supplied with a plastic holder that can be fitted
to the wall to hold the remote control when it is not being used.
Choose a position where:
◆The signal from the remote control will not be blocked (by
a curtain for example)
◆The remote control is not exposed to direct sunlight or heat
◆
The remote control is at least one metre away from a television
or stereo system to avoid generating any parasites
To attach the holder to the wall, proceed as follows.
1With a pencil, mark the positions of the two holes on the wall where the
holder is to be installed.
2Drill the two holes and insert plugs as required for the type of wall on
which the holder is being installed.
3Screw the holder into position.
Result: The owner can now slide the remote control in and out
of the holder as required.
Explaining Operations to the Owner
Before leaving the premises on which you have installed the air conditioner,
you should explain the following operations to the owner, making
reference to the appropriate pages in the owner’s instruction booklet.
1How to start and stop the air conditioner.
2How to select the operating mode and adjust the temperature and fan set-
tings.
3How to adjust the air flow direction.
4How to set the timers.
5How to remove and clean the filters.
Once the owner is happy with the basic operations, hand over the owner’s instruc-
tion booklet and this installation manual for storage in a handy and safe place.
E-18
OWNER’SINSTRUCTIONS
MANUALDEINSTRUCCIONES
ISTRUZIONIPERL’USO
MANUALDEINSTRU˝ES
MANUELD’UTILISATION
GEBRAUCHSANWEISUNG
Splut-typeRoomAirConditioner
AireacondicionadodomsticosistemaSplit
Condizionatored’ariaperambientiadunitSeparate
AparelhodearcondicionadotipoSplit
Climatiseurdetypespar
Geteilteraumklimaanlage
INSTALLATIONMANUAL
MANUALDEINSTALACION
MANUALED’INSTALLAZIONE
MANUALDEINSTALAO
MANUELD’INSTALLATION
INSTALLATIONS-HANDBUCH
Splut-typeRoomAirConditioner
AireacondicionadodomsticosistemaSplit
Condizionatored’ariaperambientiadunitSeparate
AparelhodearcondicionadotipoSplit
Climatiseurdetypespar
Geteilteraumklimaanlage
COMPLETING THE INSTALLATION

Technical Specifications
E-19
ENGLISH
TECHNICAL SPECIFICATIONS
ASH070VE / 090VE / 120VE
ASH071VE / 091VE / 121VE
ASH074VE / 094VE / 124VE
ASH075VE / 095VE / 125VE
AQ07A1(A2)VE / 09A1(A2)VE / 12A1(A2)VE
SH07YA0 / SH09YA0 / SH12YA0
SH09ZV / 12ZV
SH07YAA(B) / SH09YAA(B) / SH12YAA(B)
Model Indoor unit
ASH070VD / 090VD / 120VD
ASH071VD / 091VD / 121VD
ASH074VD / 094VD / 124VD
ASH075VD / 095VD / 125VD
AQ09A1(A2)VB / 12A1(A2)VB
220-240V~, 50Hz
200-220V~, 50Hz
220V~, 60Hz
Power Supply

ELECTRONICS
THIS AIR CONDITIONER IS MANUFACTURED BY:
ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR:
QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA:
ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR:
CE CLIMATISEUR EST FABRIQUE PAR:
DIESE KLIMAANLAGE IST FABRIZIERT VON:
Printed in Korea
