Samsung MCM-D201N User manual

AHU KIT
MCM-D201N
Air Conditioner
installation manual
imagine the possibilities
Thank you for purchasing this Samsung product.

2
Contents
Safety Information ....................................................................................................... 3
Name of each part and product dimension ............................................................................... 5
Parts ..................................................................................................................... 6
Checking before using an AHU KIT ....................................................................................... 7
Installing an AHU KIT ..................................................................................................... 8
Setting an address and installation option of AHU KIT ................................................................... 19
Trouble shooting ....................................................................................................... 29
Installation check and test operation .................................................................................... 37

3
ENGLISH
Safety Information
When installing the product, the following safety precautions must be taken for the safety of an installer and user.
Use R-410A refrigerant.
f When using R-410A, the inow of moisture or foreign substances may greatly aect the capacity and reliability of the
product. Safety precautions must be taken when installing the refrigerant pipe.
f When charging mixed refrigerant, you should use liquid refrigerant (If you charge gaseous refrigerant, it may aect
the capacity and reliability of the product as a result of change in formation of the refrigerant.)
FOR INSTALLATION WARNING
Disconnect all the power supplies before installation, service, and cleaning.
The installation must be done by the manufacturer or a qualied person.
f Installation by an unqualied person may result in a water leakage, electric shock or re.
Install the unit correctly according to the installation manual.
f An incorrect installation may result in a water leakage, electric shock or re.
Manufacturer of AHU KIT is not responsible for accidents due to incorrect installation by an unqualied person. Also,
you should use only supplied or designated parts and tools for installation.
f If you don’t use the designated parts and tools, product fall, water leakage, electric shock, or re may occur.
When adding refrigerant, use the R-410A refrigerant only.
f Using other types of refrigerant may result in product malfunction, explosion etc.
Do not use the pipe for R-22 refrigerant or are parts.
When there is refrigerant leakage during installation, you must ventilate the area.
f Toxic gas may be generated when refrigerant gas contacts with re.
If the power cable or cord is damaged, it should be replaced by manufacturer or qualied person. The electric work
must be done by a certied person according to code and standard about electric installation, regulation for indoor
wiring and installation manual. In addition, the electric work must be in compliance with rated electric specication.
f Voltage drop, shortage of supply voltage, incorrect power supply work and use of uncertied cables may result in electric
shock or re.
Arrange the cables between the AHU-KIT and outdoor unit so that the cover of electric part does not rise and then x
the cover of the electric box to the product rmly.
f If the cover is attached incompletely, a heat generation, electric shock or re of the terminal may occur.
The Power supply to the kit should be through dedicated MCCB/ELB or ELCB.
f If dedicated MCCB/ELB or ELCB is not provided, electric shock or re may occur because of overcurrent or leakage current.
Install the supplied cables rmly. Fix them securely so that external force is not applied to the terminal.
f If the connection or xing is incomplete, heat generation, spark and re may occur.
Make sure that the power for AHU-KIT is under maximum, and over minimum voltage.
f Failure to do so may result in product malfunction due to electrical component damage and functional degradation of a
part.
Use rated copper wire for the power cable.
Make sure electric wiring is correctly connected.
f Failure to do so may result in re with overheating.
Make sure there is no leakage of refrigerant gas after nishing installation.
f When leakage of refrigerant gas contacts with re, toxic gas may be generated.

4
Safety Information
FOR INSTALLATION CAUTION
Proper earthing should be done as per the rating.
f Do not connect the ground wire to the gas pipe, water pipe, lightning rod or a ground wire of a telephone.
f If the grounding is incomplete, electric shock may occur.
Follow the instructions in this manual to make sure that the condensed water dripping from the drain hose runs out
properly and insulate the drain pipe so that dew condensation is not generated.
f If the drain work is incomplete, property damage may occur due to water leakage.
Install the power cable and communication cable of the AHU-KIT at least 1m away from other electric appliances and
2m away from lightning conductor.
f However, even 1m away from an electric appliance, noise may be heard depending on radio wave condition.
Do not install the AHU-KIT in following places.
f The place where much mineral oil, arsenic acid or steam exist.
The resin parts may be burned, which can result in falling part or water leakage.
f The place where corrosive gas such as sulfurous acid gas from an exhaust pipe or air outlet can be generated.
The copper pipe or connection part may corrode, which may result in refrigerant leakage.
f The place where there is a machine that generates electromagnetic waves.
The control system may have a problem which can result in abnormal operation.
f The place where inammable gas can leak, carbon ber or inammable dust oats, or volatile ammables are
handled.
If the gas leaks and stays around the main valve of the product, re may occur.
f The place where indoor unit corrosion may occur such as seashore or spa.
f The place where external environment such as sunlight, rain, temperature, humidity, dust can directly aect the
product.
❋ The manufacturer is not responsible for the damage occurred by not keeping standard of the installation. (The cost
of the service will be charged.)

5
ENGLISH
Name of each part and product dimension
Name of each part and product dimension
ASS'Y Control(Control part)
Place for AHU KIT PBA insertion
Wire saddle
Terminal block(20P)
(Unit : mm)
350
385
(53)
168 182 238 275
ASS’Y EEV(Electronic Expansion Valve): Accessory (Ordered separately)
For detailed information of EEV installation, refer to the installation manual of ASS’Y EEV (MXD-A64K100E) which you
need to purchase additionally.
EEV coil(7m)
EEV
Filter
185 mm
254 mm
79 mm
(Unit : mm)
IN/OUT Pipe Diameter :
 12.7mm
MXD-A64K100E

6
Parts
Accessories (supplied)
Name Pipe inlet/outlet
sensor(7m)
Inlet sensor holder
(OD Ø6.8mm)
Outlet sensor holder
(OD Ø7.8mm) Sensor xing spring
Quantity 1 1 1 2
Shape
Name Aluminum tape Rubber tape Insulator Cable tie
Quantity 4 2 2 8
Shape
110 ㎜
85 ㎜
110 ㎜
85 ㎜
170 ㎜
100 ㎜
Additional accessory (not included)
* Wired remote controller
(MWR-WE10✴N)
1
❋ You need to purchase the wired remote controller additionally.
❋ Room temperature sensor is not provided. It should be provided additionally on the eld.

7
ENGLISH
Checking before using an AHU KIT
Structure diagram of an AHU-KIT
Gas pipe
Return air Exhaust
air
Outdoor
air
Outdoor unit
Communication cable: F1,F2
EEV Control
Communication cable:
F3,F4
Wired remote controller
IN sensor
OUT sensor
Supply air
* Room Temperature
Sensor(mA or PT1000)
Liquid valve
ASS'Y EEV(Electronic Expansion Valve)
* Room temperature sensor is not provided. It should be provided additionally on the eld.

8
Installing an AHU KIT
Installing ASS'Y Control
1. Check the installation location of ASS'Y Control.
f You can choose either AHU attachment type or AHU separation type depending on the installation environment.
2. Check the length of connection cable of ASS'Y Control.
f The length of provided connection cable is 7m.
3. Make sure the location has waterproof and re prevention structure.
f Make sure that the ASS'Y Control is not exposed to sunlight by covering with a case which has waterproof and re
prevention structure.
Terminal Block
Main PBA
Functions of ASS'Y Control
f When using the ASS’Y Control alone, you can use EEV of 10~40 HP Capacity.
f ASS'Y Control adjusts rate of ow for EEV refrigerant and performs control functions through communication with an
indoor unit or wired remote controller.
f The contact signal for AHU fan operation is sent from ASS'Y Control.When AHU is in Cool/Heat/Fan mode, terminal block
No.1 and No.2 will output contact signal to turn the fan on. At this time, the output is contact signal and not be used for
power supply of motor. (Refer to p.12~13)
f The terminal block No.3 and No.4 will receive the signal for fan operation status and the signal is the input signal which
AHU KIT control part receives. At this time, the input signal sholud be input as only OPEN/SHORT signal not the signal that
has separate voltage level. (Refer to p.10)
- When the fan operates normally: The terminal block No.3 and No.4 are SHORT status.
- When the fan does not operate: The terminal block No.3 and No.4 are OPEN status.
- Set SEG 21 of installation option 05 series to‘1(Use)’to use fan feedback for system protection. (Refer to p. 26)
f The terminal block Vd/Vd is output defrost signal. (There exist some time delay.)
- When installing a defrost bypass valve, set SEG22 of 05 series installation option as“1”.
f Connect 220~240V to the terminal block 1(L)/2(N).
f The terminal block of communication cable (F1, F2) is connected with communication of Outdoor Unit. When installing
additional AHU KIT, the communication (F1, F2) should be connected with the communication (F1,F2) of AHU KIT which
is additionally installed. (Refer to p.12~13)
f The communication cable(F3, F4) is the communication group of wired remote controller. (Refer to p.12~13)
f When installing 10 HP of ASS'Y Control, you shouldn't perform additional control of ASS'Y Control.

9
ENGLISH
f For HP setting, refer to SEG20 of 05 series in installation option section. (Refer to p.26)
f Connect room temperature sensor and discharge temperature sensor(optional) as mA or PT1000 type.
- When using the mA type sensor, connect to the terminal block +/-(mA).
- When using the PT1000 sensor, connect to the terminal block A/B/C .
- Set the types of room temperature sensor and discharge temperature sensor in SEG24 of 05 series installation option.
The types of the sensors must be same.
No. CONNECTOR FUNCTION NOTE
1 CN83/84/85 EEV EEV 1/2/3
2 CN86 EEV EEV 4
3 REM01 REMOCON RECEIVER OPTION INPUT
4 CN82 EXTERNAL CHECK
1/3 PIN : COMP CHECK OUT
6/8 PIN : ERROR CHECK OUT
5 CN43 SENSOR 1/2 PIN : EVA IN
3/4 PIN : EVA OUT
6 CN21 DOWNLOAD S/W UPGRADE
7 CN201 EEPROM PBA
8 CN311 2WIRE SUB PBA

10
Installing an AHU KIT

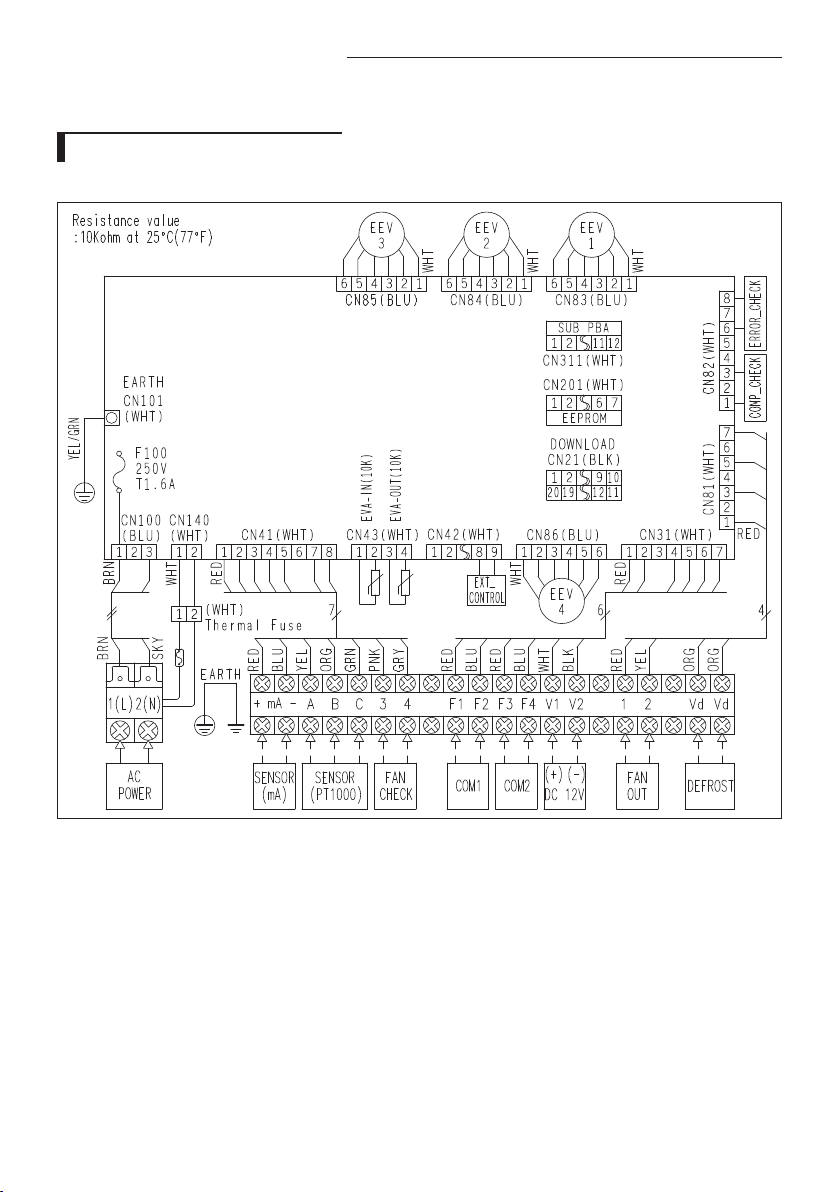

Wiring diagram for ASS’Y Control
❋ AHU KIT sensor displays about 10KΩ of resistance value at room temperature.
