Samsung AVMPC060EA0MID User manual

OWNER’S
INSTRUCTIONS
System Air Conditioner
AVMPH060EA0
AVMPH070EA0
AVMPH082EA0
Heat pump
AVMPC060EA0
AVMPC070EA0
AVMPC082EA0
Cooling only
EDB98-07286A(1)

Safety Precautions
◆If the power supply cord of this air conditioner is damaged,
it must be replaced by the manufacturer or its authorized
service personnel only in order to avoid a safety hazard.
WARNING
◆Do not attempt to install this air conditioner by yourself.
◆This unit contains no user-serviceable parts. Always consult authorized
service personnel for repairs.
◆When moving, consult authorized service personnel for disconnection
and installation of the unit.
◆Do not become over-exposed to cold air by staying in the direct path of
the airflow of the air conditioner for extended periods of time.
◆Do not insert fingers or objects into the outlet port or intake grilles.
◆Do not start and stop air conditioner operation by disconnecting the
power supply cord and so on.
◆Take care not to damage the power supply cord.
◆In the event of a malfunction (burning smell, etc.), immediately stop
operation, turn off the electrical breaker, and consult authorized
service personnel.
DANGER
◆Provide occasional ventilation during use.
◆Do not direct air flow at fireplaces or heating apparatus.
◆Do not climb on, or place objects on, the air conditioner.
◆Do not hang objects from the indoor unit.
◆Do not set flower vases or water containers on top of air conditioners.
◆Do not expose the air conditioner directly to water.
◆Do not operate the air conditioner with wet hands.
◆Do not pull power supply cord.
◆Turn off power source when not using the unit for extended periods.
◆Check the condition of the installation stand for damage.
◆Do not place animals or plants in the direct path of the air flow.
◆Do not drink the water drained from the air conditioner.
◆Do not use in applications involving the storage of foods, plants or
animals, precision equipment, or art works.
◆Do not apply any heavy pressure to radiator fins.
◆Operate only with air filters installed.
◆Do not block or cover the intake grille and outlet port.
◆Ensure that any electronic equipment is at least one metre away from
either the indoor or outdoor units.
◆Avoid installing the air conditioner near a fireplace or other heating
apparatus.
◆When installing the indoor and outdoor unit, take precautions to prevent
access to infants.
◆Do not use inflammable gases near the air conditioner.
◆Max input power & current is measured according to IEO standard and
input power & current is measured according to ISO standard.
CAUTION
E-2

Contents
◆ P REPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . 6
■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
■ Using the Control Panel on the Indoor Unit . . . . . . . . . . . . . . . . 8
◆ R
ECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . 9
■ Cleaning YourAir Conditioner . . . . . . . . . . . . . . . . . . . . . . . . 10
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . 12
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 13
◆ T ECHNICAL SPECIFICATIONS
E-3

View of the Unit
The figures are shown in this instruction may differ from yours depending on the model.
Air flow blade(up/down orientation)
Air flow blade(right/left orientation)
Air outlet
Air inlet
Remote Control
Sensor Temperature adjustment
buttons
Air Cleaning
button
Fan Speed
adjustment button Mode Selection button
On/Off
button
Automatic shutter
Air filter
Remote control holder
Indoor Unit
E-4
Control Panel
You can operate the air conditioner with the control panel when you can’t or
don’t want to operate the air conditioner with the remote control. Refer to page 8.
To open the grille
◆ Hold the upper part of the grille, then pull it
slightly forward.
◆ Don’t open the grille when it is operating. It may
cause a malfunction or an electrical hazard.

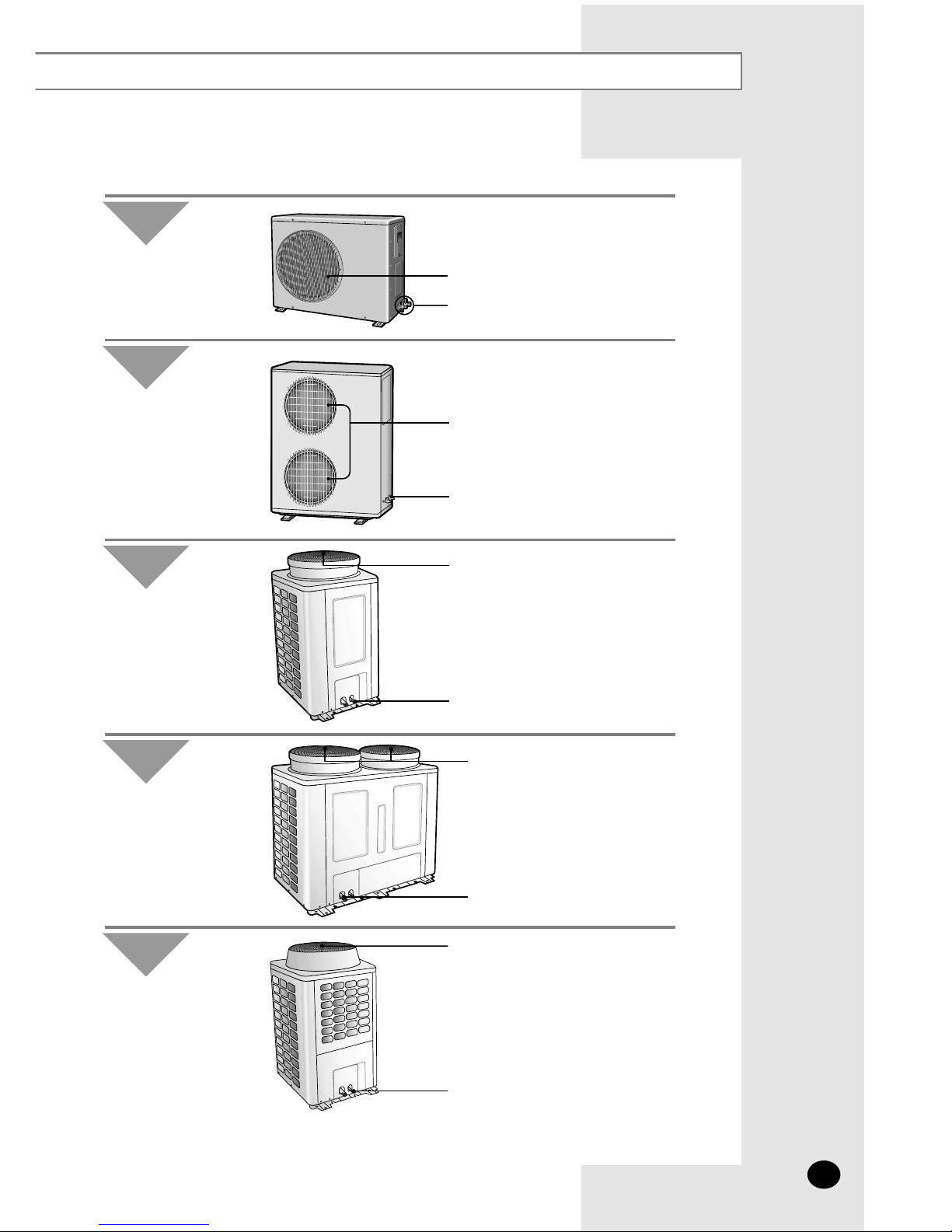

Air outlet
Connection valve
TYPE A
Outdoor Unit
Air outlet
Connection valve
TYPE B
Outdoor Unit
Air outlet
Connection valve
TYPE C
Outdoor Unit
Air outlet
Connection valve
TYPE D
Outdoor Unit
Air outlet
Connection valve
TYPE E
Outdoor Unit
E-5
If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall. So clean the heat exchanger with water
when it becomes dirty. However, be careful when you wash the surface of the heat exchanger because it is very sharp.
NN
NNoo oott ttee ee

Wireless Remote Controller-Buttons and Display
Operating mode Mode selection button
Filter Reset button
Swing buttons
On Timer button
Off Timer button
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
Temperature adjustment
buttons
Temperature setting
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Clean mode
Air cleaning button
Battery discharge indicator
E-6
The wireless remote controller is an optional accessory.
To use the wireless remote controller, refer to an appropriate manual.
- After cleaning the air filter, press the filter reset button.
- The heating mode( ) is not selected in the Cooling Only models.
NN
NNoo oott ttee ee

E-7

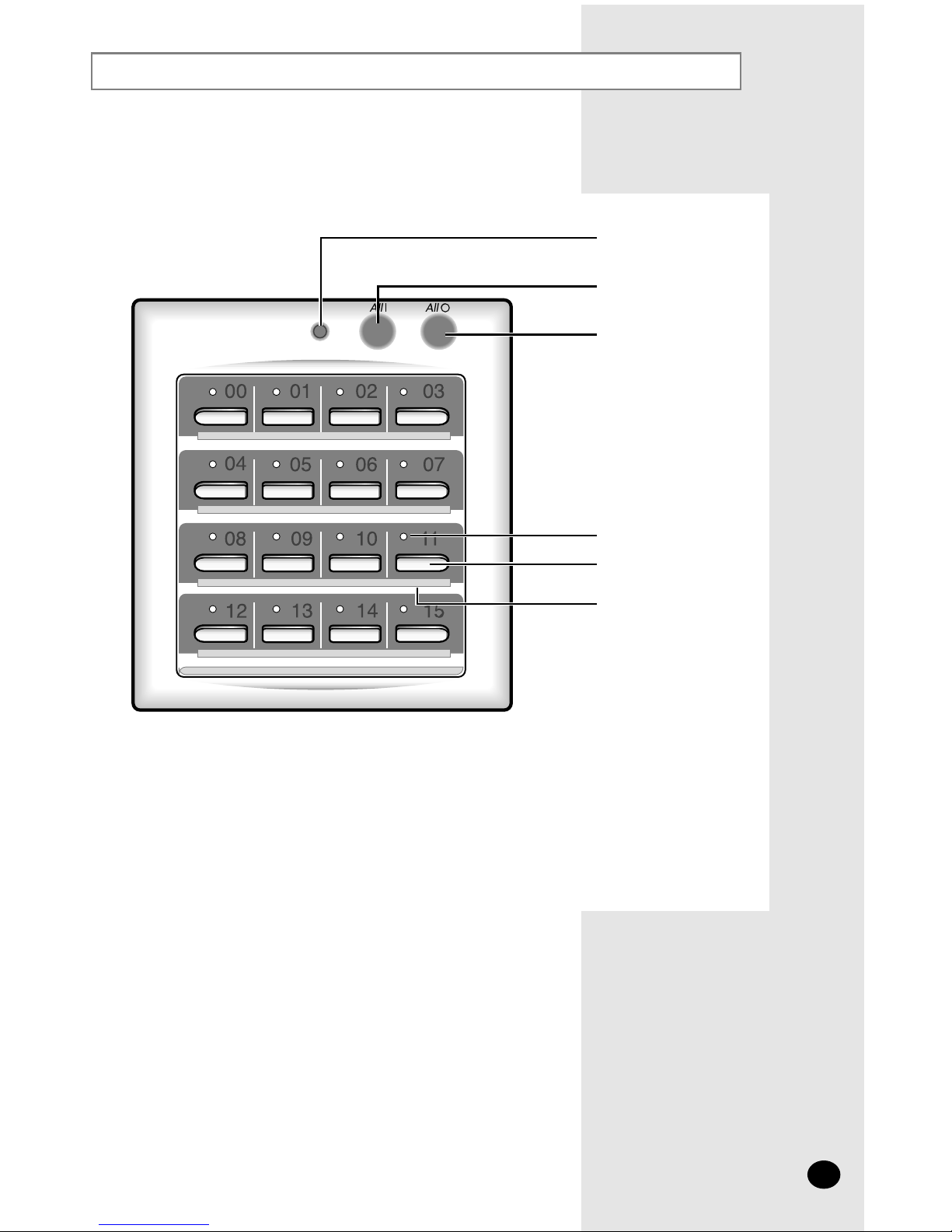

Centralized Controller
The centralized controller is an optional accessory and it is installed on the wall.
To use the centralized controller, refer to an appropriate manual.
Operating lamp
All On button
All Off button
On/Off indicators
On/Off buttons
Index
Operating lamp comes on when at least one air conditioner connected to the
centralized controller is operating.
NN
NNoo oott ttee ee

Using the Control Panel on the Indoor Unit
You can operate the air conditioner with the control panel when you can't or don't want to operate the
air conditioner with the remote control.
E-8
1If you want to operate the air conditioner, press the (On/Off) button.
2To adjust the mode you want, press the button.
Result: ◆You can select each (Auto), (Cool), (Dry), (Fan),
(Heat) mode.
◆The , , , , indicator is displayed in turn each time
you press the button.
Result: ◆If you finish setting the temperature, the current temperature
indicates on the control panel.
3To adjust your desired temperature, press the buttons once
or more times.
4To adjust the Fan speed, press the button.
5To adjust the air clean mode, press the button.
You can select this mode at anytime while the air conditioner is operating.
Result: ◆The air conditioner starts up in the mode which was last selected
and used.
◆The indoor unit beeps
◆If you want to stop, press the (On/Off) button once again.
◆The mode is selected only in the Heat Pump models.
Caution

Operating Recommendations
E-9
Here are a few recommendations that you should follow when operating
your air conditioner.
Topic Recommendation
The heat pump function of the air conditioner absorbs heat
from outside air and brings it indoors. As the temperature of the
outside
air drops, the heating performance of air conditioner will
decrease. If you find that the room is not warm enough, using
an additional heating appliance is recommended.
Heating
performances
When outside temperature is low but humidity is high,
frost may form on the outdoor unit at HEAT mode.
If this happens:
◆ The heating operation stops.
◆ The defrost mode will be triggered automatically for about ten
minutes and the (defrost) indicator lights up.
No intervention is required ; after about ten minutes, the air
conditioner operates again normally.
Frost
If both indoor and outdoor temperatures are high and the air
conditioner is running at HEAT mode, the outdoor unit’s fan
and compressor may stop at times.
This is normal ; simply wait until the air conditioner switches
on again.
High indoor
and outdoor
temperatures
If a power failure occurs while the air conditioner is operating,
the unit will be switched off. When the power returns, the air
conditioner starts up again automatically.
Power failure

Cleaning Your Air Conditioner
E-10
To get the best possible use out of your air conditioner, you must clean it
regularly to remove the dust that accumulates on the air filter.
While you are cleaning the air conditioner, the (filter) indicator lights
up on the control panel.
Open the front grille, then pull out the air filter.1
Before cleaning your air conditioner, ensure that you have switched
off the breaker for the unit.
IMPORTANT
Remove all dust on the air filter with a vacuum cleaner or brush.2
When you have finished, insert the air filter into the original position and
close the front grille.
3
Clean the unit with a damp cloth and mild detergent (do NOT use benzene,
solvents or other chemicals).
4
◆
If you have not used the air conditioner for a long period of time,
set the fan going for three to four hours to dry the inside of the
air conditioner thoroughly.
◆ After cleaning the air conditioner, press the Filter Reset button.
NN
NNoo oott ttee ee

Electric Dust
Collector
E-11
You have to clean the electric dust collector once a month and the
cleaning cycle depends on the time during which the air conditioner
is used.
Open the front grille, then pull out the electric dust collector.1
Dissolve an alkaline detergent in tepid water, then put the Electric dust
collector in the water for 30 minutes.
2
Dry the electric dust collector in the shade, then insert the collector into
the original position, close the front grille.
4
Clean the electric dust collector with running water.3
To Clean the Electric Dust Collector
◆ Do not handle the detergent with bare hands.
◆ Do not place the filter in the water for a long time.
It may damage the filter
NN
NNoo oott ttee ee

Temperature and Humidity Ranges
E-12
The following table indicates the temperature and humidity ranges,
within which the air conditioner can be used.
If the air conditioner is used at... Then...
The automatic protection feature may be
triggered and the air conditioner stopped.
High temperature
A water leakage or some other
malfunction may happen if the heat
exchanger freezes.
Low temperature
Water may condense on and drip from
the surface of the indoor unit if it is used
for a long periods.
High humidity levels
❇ If the heating operation is used at below 0°C(outdoor temperature) then,
it does not heat at its full capacity.
If the cooling operation is used at over 33°C(indoor temperature) then,
it does not cool at its full capacity.
Mode Indoor Temperature Outdoor Temperature Indoor Humidity
Heating
Cooling
Drying
27°C or less
21°C to 32°C approx.
18
°C to 32°C approx.
-20°C to 24°C approx.
- 5°C to 43°C approx.
-5°C to 43°C approx.
-
80% or less
-

Solving Common Problems
E-13
Before contacting the after-sales service, perform the following simple checks.
They may save your time and expense of an unnecessary call.
Explanation/Solution
◆Check that the breaker used for the air conditioner is switched on.
Problem
The air conditioner does not
operate at all
◆Check that there are no obstacles between you and the remote
control sensor.
◆Check the wireless remote controller batteries
◆Check that you are close enough to the remote control sensor.
(seven metres/yards or less).
◆Check that you are pointing the remote controller at the remote
control sensor on the indoor unit.
◆Replace the remote controller batteries if necessary.
◆If there is a strong light around the air conditioner, a
three-wavelength light, a neon sign, etc., for example,
the air conditioner may not be operated with a remote controller.
If this happens, use the remote controller close by the remote
control sensor.
◆Check that the correct operating mode has been selected.
◆The room temperature may be too low or too high.
◆Dust may be blocking the air filter guard; refer to page 10 or 11
for cleaning instructions.
◆Check that there is no obstacle in front of the outdoor unit.
The air conditioner does not
operate with the remote
controller
No beep is heard when you
press the (On/Off)button
on the remote controller
The air conditioner does
not cool or heat
◆Check that the required temperature has been set correctly.
◆Increase the fan speed.
When heating, the required
room temperature is never
reached and the air
conditioner frequently stops

Technical Specifications
E-14
Power Supply
Model
1Ø, 220-240V~, 50Hz
AVMPH060EA0
AVMPH070EA0
AVMPH082EA0
AVMPC060EA0
AVMPC070EA0
AVMPC082EA0

Memo
E-15

ELECTRONICS
THIS AIR CONDITIONER IS MANUFACTURED BY:
Printed in Korea
