Samsung AW126JE/B User manual

ENGLISH
OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATION
MANUAL DE INSTRUÇÕES
ISTRUZIONI PER L’USO
AW127JE/B
AW126JE/B
AW147JB
AW146JB
AW12A6(A7)JD
AW12A6(A7)JA
WC12ZR
Window-type Room Air Conditioner ( Cool )
Acondicionador de aire doméstico sistema de tipo ventana ( Refrigeración )
Climatiseur de type Fenêtre ( Refroidissement )
O ar Condicionado de Window-Type ( Refrigeração )
Condizionatore d’aria per ambienti da finestra ( Raffreddamento )
E S F P I
DB68-30875B(3)

The following safety precautions must be taken when installing
and using your air conditioner.
Safety Precautions
1The air conditioner must be plugged into its own specific power source, which must be
installed in compliance with national wiring, earthing and safety regulations.
Depending on national regulations and your specific installation, you may need to install:
◆ A circuit breaker
For further information on electrical requirements, contact a professional electrician.
This air conditioner must be connected by a licenced electrician.
This device must be installed according to the national electrical rules.
2Make sure that the unit is correctly ventilated at all times;
do NOT place clothing or other materials over it.
3NEVER spill liquid of any kind into the unit.
Should this happen, unplug the unit and contact your installation specialist.
4Do NOT insert anything between the air outlet blades, as the inner fan may be damaged
and you may be hurt. Keep children away from the unit.
5ALWAYS ensure that the power cable is in good condition.
Make sure that it is not walked on or damaged by items placed on or against it.
If the power cord is damaged in any way, it must be replaced by an approved
power cord available from the manufacturer or its service agent.
6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:
◆ An approved service center
◆ The outlet at which the air conditioner was purchased
7Do NOT place any obstacles in front of the unit.
8If the remote control will not be used for a long time, remove the batteries.
9Before throwing out the device, it is necessary to pull back the battery cells and get rid
of them safely.
10 The appliance is not intended for use by young children or infirm person without supervision;
young children should be supervised to ensure that they do not play with the appliance.
The manufacturer do not take the responsibility of the accident happened
because the air conditioner is not fixed firmly or installed securely, during
installing or using the product. In case you have difficulty in installation,
you must ask for an installation specialist help. The accident will be hap-
pened in case of installing improperly.
CC
CA AU UT TI IO ON N
E-2

◆PREPARING YOUR AIR CONDITIONER
■Safety Precautions ......................................................................................... 2
■Air Conditioning Unit - Main Parts, Buttons and Display ................................ 4
■Remote Control Buttons ................................................................................. 5
■Getting Started ............................................................................................... 6
■Inserting the Remote Control Batteries .......................................................... 7
◆OPERATING YOUR AIR CONDITIONER
■Cooling Your Room ......................................................................................... 8
■Airing Your Room ............................................................................................ 9
■Adjusting the Air Flow Direction Horizontally ................................................. 10
■Adjusting the Air Flow Direction Vertically ...................................................... 10
◆PROGRAMMING YOUR AIR CONDITIONER
■Switching the Unit Off Automatically (Off Timer) ............................................ 11
■Cancelling the Off Timer ................................................................................. 11
◆RECOMMENDATIONS FOR USE
■Operating Recommendation ........................................................................... 12
■Temperature and Humidity Ranges ................................................................ 12
■Cleaning Your Air Conditioner ......................................................................... 13
■Solving Common Problems ............................................................................ 14

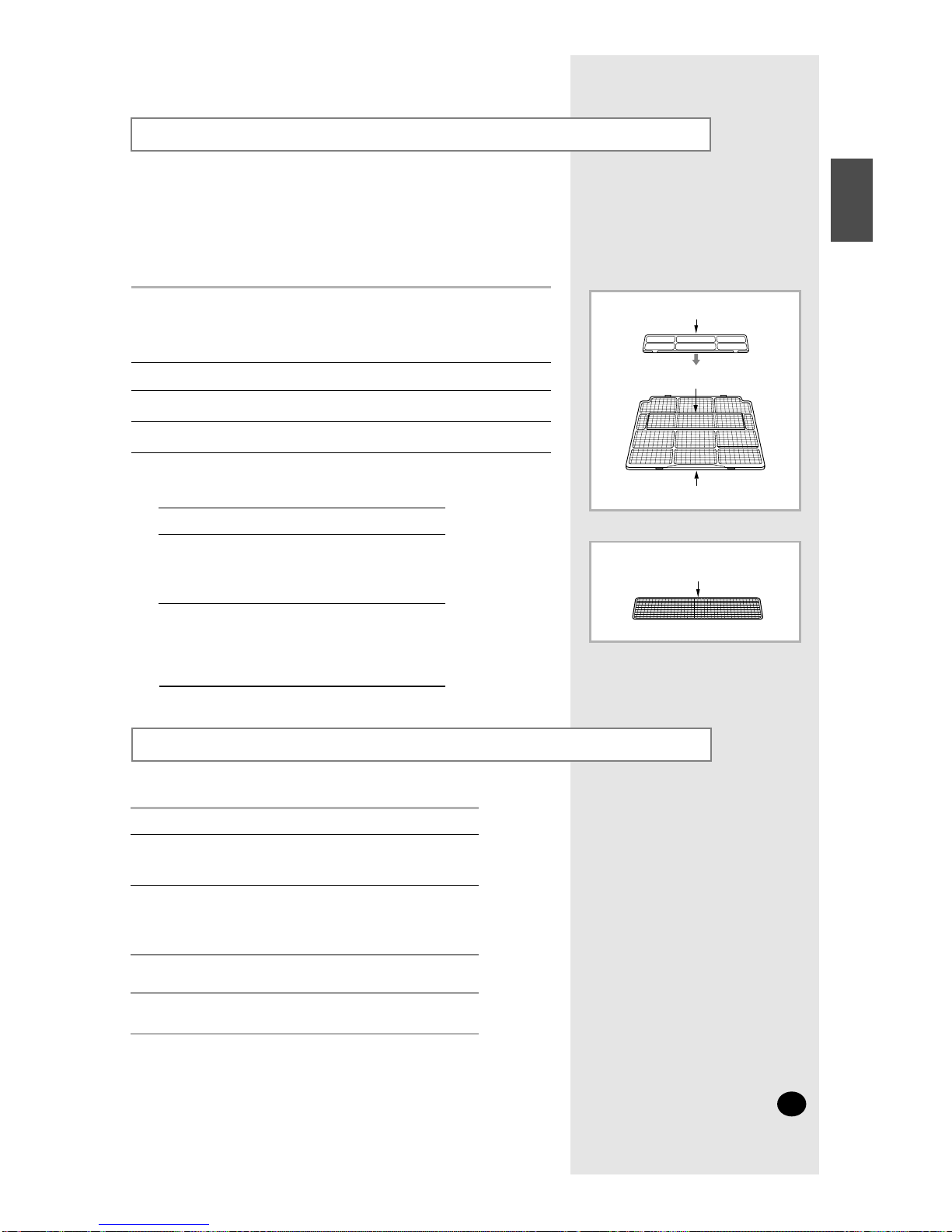

■Installing a Filter ............................................................................................. 15
■Technical Specifications ................................................................................. 15

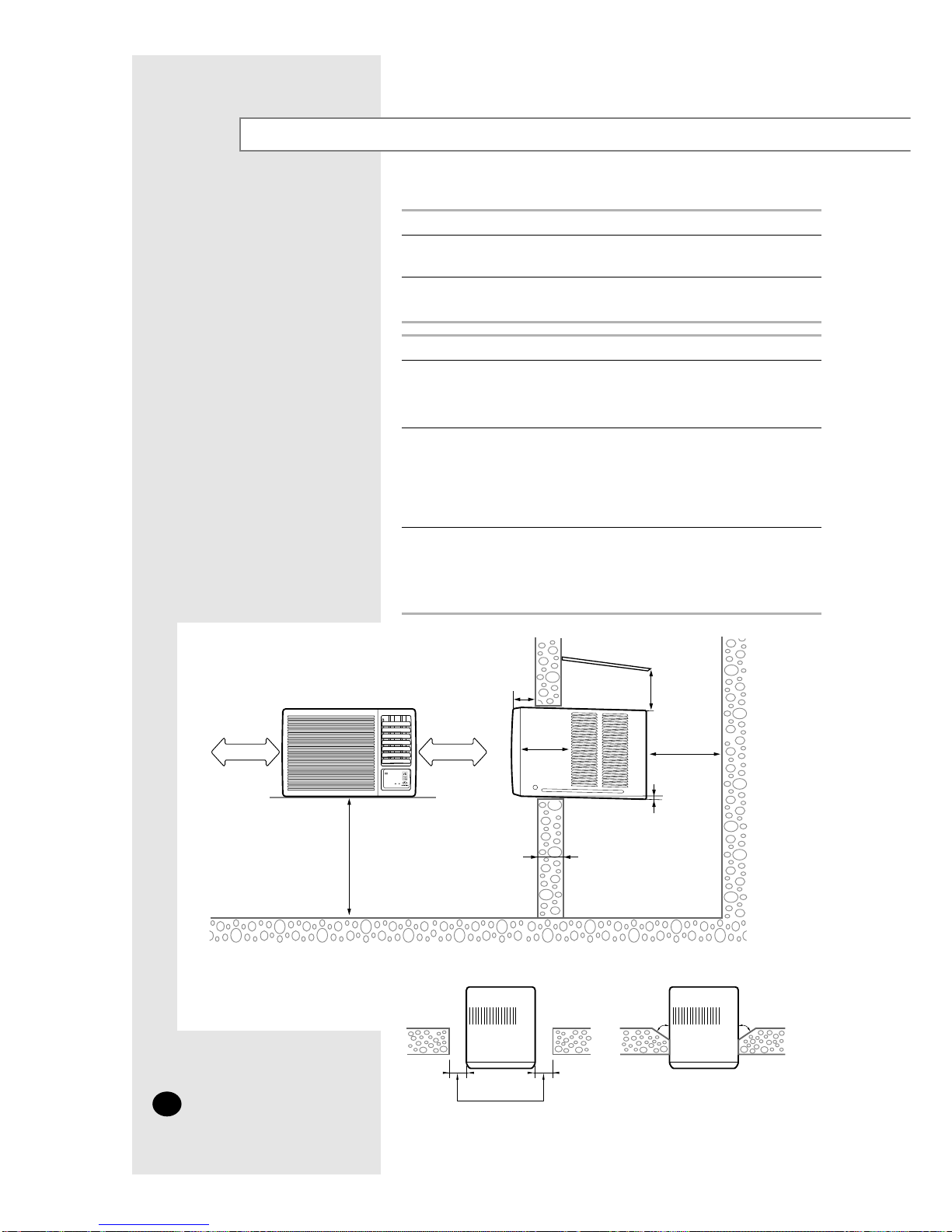

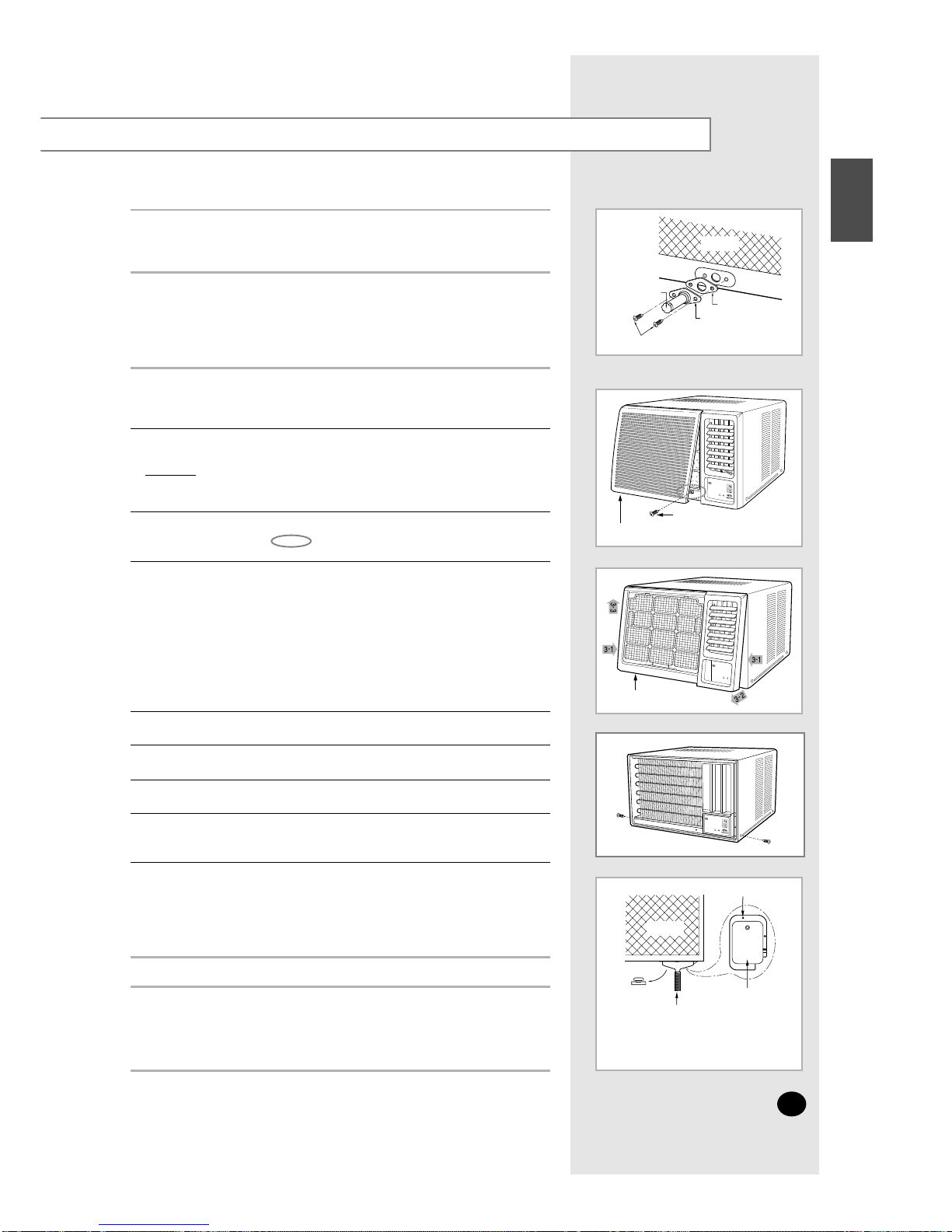

◆METHOD OF INSTALLATION ..................................................................................... 16
Contents
E-3
ENGLISH

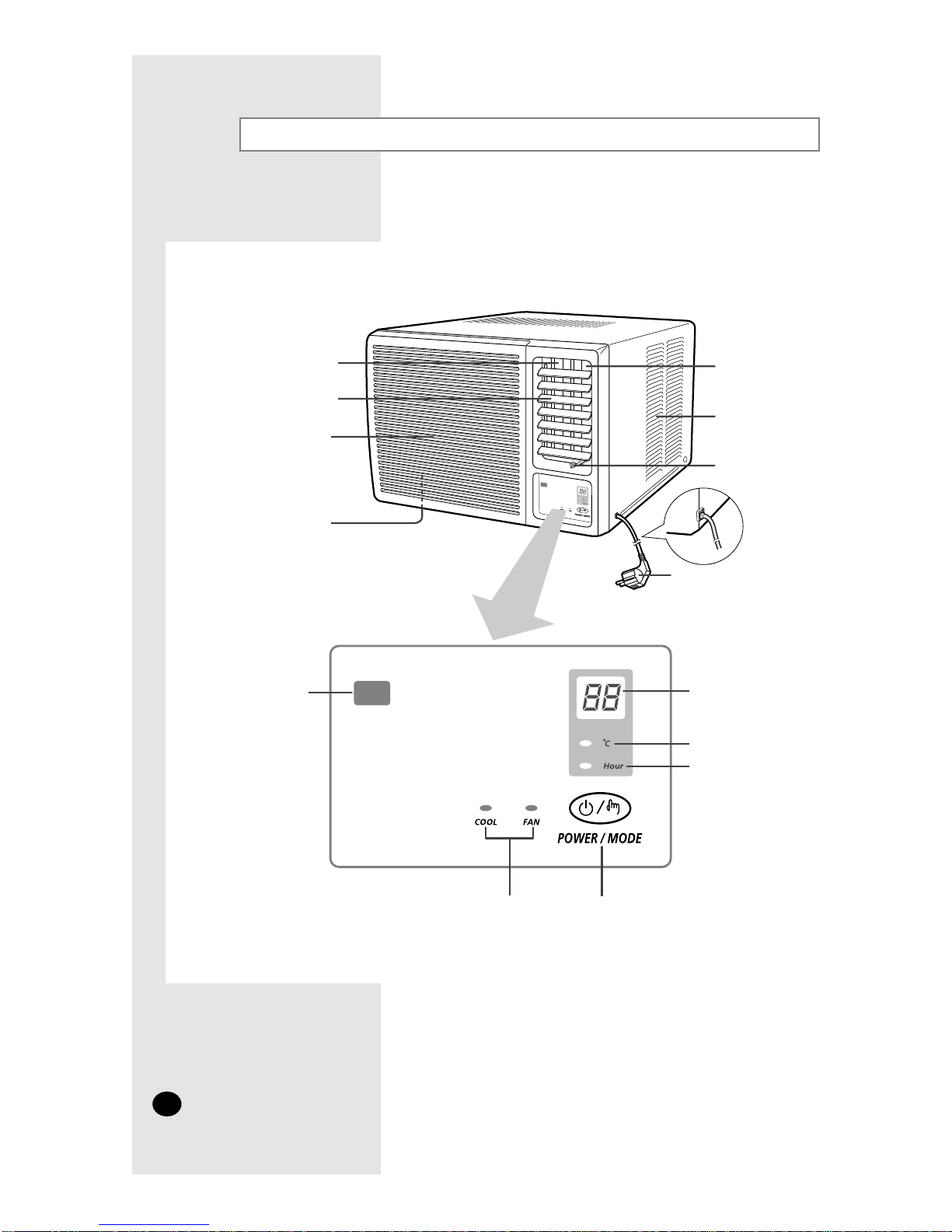

Air Conditioning Unit - Main Parts, Buttons and Display
Inner air flow blades
(right/left orientation)
Outer air flow blades
(up/down orientation)
Air inlet (inside)
Ventilation lever
Air outlet
Air inlet (Outside)
Temperature indicator
Temperature/timer setting
Timer indicator
Remote control sensor
ON/OFF & Operating mode
selection button
Operating mode indicators
(COOL, FAN)
E-4
❄The design and shape are subject to
change according to the model.
Air filter
(The air filter is located inside)
Power plug
◆ The type of power plug
may differ, depending
on the local power supply.
◆ The power plug may be
not supplied depending
on the model.

Remote Control - Buttons
Timer setting buttons
Operating mode selection
buttons (FAN, COOL)
Air flow blade swing button
Fan speed adjustment
buttons
ON/OFF Button
Temperature adjustment
buttons
E-5
ENGLISH

PRESS PUSH IMPORTANT NOTE
Getting Started
You have just purchased a window-type room air conditioner and it has been installed by your
installation specialist.
Your Owner’s Instructions contain much valuable information on using your air conditioner.
Please take the time to read them as they will help you take full advantage of the unit’s features.
The booklet is organized as follows.
◆The following figures are shown on pages 4 and 5:
-Air conditioning unit (main parts, buttons and display)
-Remote control (buttons)
They will help you find the buttons and understand the symbols displayed.
◆In the main part of the document, you will find a series of step-by-step procedures for each
function available.
The illustrations in the step-by-step procedures use four different symbols:
☛
➢
Moreover, applicable, wherever the illustrations show the positions of the buttons on both the
remote control and the unit itself.
For the... The illustrations have a...
Remote control Dark background.
Example:
Unit itself White background.
Example:
E-6

Inserting the Remote Control Batteries
You must insert or replace the remote control batteries when:
◆You purchase the air conditioner
◆The remote control does not work correctly
☛Use two LR03 (R03) 1.5 V batteries. Do not use old
batteries or different kinds of batteries together.
Batteries may be completely discharged after 12 months,
even if they have not actually been used.
1Push the battery cover on the rear of the remote control with your thumb in
the direction of the arrow and remove it.
2Insert the two batteries, taking care to respect the polarities:
◆+ on the battery with + on the remote control
◆– on the battery with – on the remote control
3Close the cover by sliding it back until it clicks into place.
Result:
You can control all the functions on your air conditioning unit
directly from your seat, using the remote control.
E-7
ENGLISH

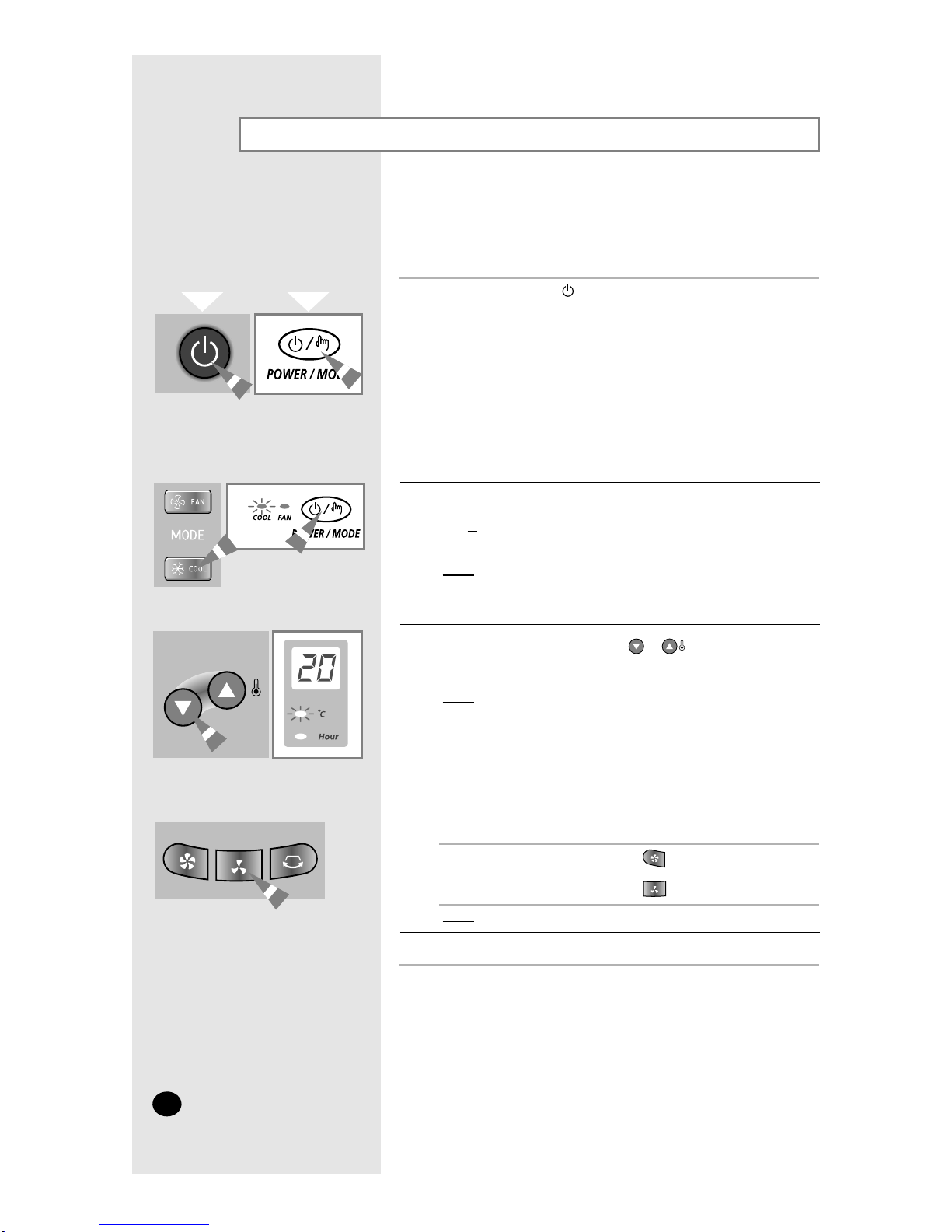

You must select the Cool mode if you wish to lower the temperature
in your room. You can also set the fan speed.
1If necessary, press the (On/Off) button.
Result:◆The operating mode indicator (COOL or FAN) on the
unit comes on.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The unit beeps twice.
☛The air conditioner is fitted with a protection mechanism to prevent
the unit from being damaged when it is started immediately after
being:
◆Plugged in
◆Stopped
It will start up normally after a three-minute rest period.
2If the COOL indicator is not lit up on the unit:
◆Press the COOL button on the remote control
or
◆Press the POWER/MODE button on the unit one or more times until
the COOL indicator lights up
Result:◆The unit beeps each time you press POWER/MODE.
◆The air conditioner starts up in Cool mode.
➢You can change modes at any time.
3To adjust the temperature, press the or buttons on the remote
control one or more times until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
Result:◆Each time you press the temperature buttons:
– The temperature is adjusted by 1°C and
displayed on the control panel
– The unit beeps
◆The air conditioner starts cooling if the room temperature
is higher than the selected temperature.
4To set the fan speed to... Then...
High Press the button on the remote control.
Low Press the button on the remote control.
Result: Each time you press a button, the unit beeps.
5To control the direction of the air flow, refer to page 10.
CoolingYour Room
Remote Control Control Panel
E-8

AiringYour Room
If the atmosphere in your room is stale, you can air it using the Fan
feature and if necessary, evacuate the stale air outside.
1If you wish to evacuate stale air outside, push the ventilation lever on the
front of the unit to the right and the open position ( ).
Result: The air inside the room circulates and stale air is evacuated
outside.
Otherwise, push the ventilation lever to the left and the closed position ( ).
Result: The air simply circulates inside the room.
2If necessary, press the (On/Off) button.
Result:◆The operating mode indicator (COOL or FAN) on the
unit comes on.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The unit beeps twice.
3If the FAN indicator is not lit up on the unit:
◆Press the FAN button on the remote control
or
◆Press the POWER/MODE button on the unit one or more times until
the FAN indicator lights up
Result: ◆The unit beeps each time you press POWER/MODE.
◆The air conditioner starts up in Fan mode.
➢◆You can change modes at any time.
◆When the air conditioner is in Fan mode, the
temperature is not displayed; moreover, you do not
need to set the temperature.
4To set the fan speed to... Then...
High Press the button on the remote control.
Low Press the button on the remote control.
Result: Each time you press a button, the unit beeps.
5To control the direction of the air flow, refer to page 10.
Remote Control Control Panel
E-9
ENGLISH

Again depending on the position of the unit in your room, you can
adjust the orientation of the outer air flow blades on the right-hand
side of the unit.
RECOMMENDATION When... Adjust the blades to face...
Cooling Upwards.
Adjust the air flow blades to the desired position, by pushing them upwards or
downwards.
➢If you orient the air flow blades downwards and the unit operates in Cool mode
for a long period of time, dew may:
◆Form on the surface of the blades
◆Drip from the blades
Adjusting the Air Flow Direction Horizontally
Adjusting the Air Flow Direction Vertically
Depending on the position of the unit in your room, you can adjust
the orientation of the inner air flow blades on the right-hand side of
the unit, thus increasing the efficiency of the air conditioner.
1Press the button on the remote control.
Result: The inner blades swing automatically left and right.
2To stop the blades moving left and right, press the button again.
➢To stop the blades in a specific position and orient the air flow in the
corresponding direction, simply press the button when the
blades are in the desired position.
Remote Control
E-10

You can set the timer to switch the air conditioner off automatically
at a given time.
Example: You wish to switch the unit off two hours after you
have gone to bed.
1If necessary, press the (On/Off) button.
2Select the required mode by pressing the appropriate button:
◆COOL or FAN on the remote control
◆POWER/MODE button on the unit (press it one or more times until
the appropriate operating mode indicator lights up)
3Set the operating time by pressing:
◆TIMER
▲
or
▼
on the remote control one or more times.
Example: To switch the unit off two hours after you have gone to bed, set
the operating time to 2 hours.
Possible operating times are between 1 and 24 hours inclusive.
Result:◆The Hour indicator flashes for about ten seconds.
◆The operating time is displayed and decreased
automatically to indicate the remaining time.
◆The air conditioner switches off automatically when
the operating time reaches zero.
➢You can change your setting at any time.
If you no longer wish to use the Off Timer that you have set, you can
cancel it at any time.
To cancel the timer, press:
◆TIMER
▲
or
▼
on the remote control one or more times until “--” is displayed.
Result:◆The unit beeps each time you press a button.
◆The Hour indicator on the unit switches off.
◆The air conditioner operates normally.
Switching the Unit Off Automatically (Off Timer)
Cancelling the Off Timer
Remote Control Control Panel
Remote Control Control Panel
E-11
ENGLISH

Here is a recommendation that you should follow when using your air conditioner.
Topic Recommendation
Power failure If a power failure occurs when the air conditioner is
operating, the unit is switched off.When the power
returns, you must press (On/Off) to restart it.
Operating Recommendation
The following table indicates the temperature and humidity ranges within which the air conditioner
can be used.
Mode Indoor Temperature Outdoor Temperature Indoor Humidity
Cooling 21°C to 32°C approx. 21°C to 43°C approx. 80% or less
If the air conditioner is used at... Then...
Higher temperatures The automatic protection feature may be triggered and the air
conditioner stopped.
Lower temperatures A water leakage or some other malfunction may happen if the
heat exchanger freezes.
Higher humidity levels Water may condense on and drip from the surface of the unit if it is
used for long periods.
Temperature and Humidity Ranges
E-12

CleaningYour Air Conditioner
To get the best possible use out of your air conditioner,
you must clean it regularly by two weeks to remove the dust on the air filter.
Before cleaning your air conditioner, ensure that it is
switched off and unplugged from the wall socket.
Open the front grille by pulling on the tabs of the unit.
The removal of the front grille makes it easier to clean the air
conditioner. After opening the front grille, lift it up as much as
possible, then pull down to release it.
1
Grasp the handle on the air filter and lift it slightly and then out to the front.
2
Remove all dust on the air filter with a vacuum cleaner or brush.
3
When you have finished, slide the air filter back into position.
4
Clean the outer surfaces with a damp cloth and mild detergent
(do NOT use benzene, solvents or other chemicals).
Wipe them dry with a clean, soft cloth.
5
☛
➢
➢
Front grille
Front grille
Grille groove
Body guide
If you... Then...
Will not be using the ◆ Set the fan going for a few hours
air conditioner for a to dry the inside of the air conditioner
long period of time thoroughly.
◆ Switch the air conditioner off and
unplug it from the wall socket.
◆ Clean the filter and outer surfaces.
Have not used the air Set the fan going for a few hours to
conditioner for a long dry the inside of the air conditioner
period of time thoroughly.
E-13
ENGLISH

Solving Common Problems
Before contacting the after-sales service, perform the following simple checks. They may save you
the time and expense of an unnecessary call.
Problem Explanation/Solution
The air conditioner does not ◆Check that the circuit breaker used for the air conditioner has not been
operate at all triggered.
◆Check that the power cable is plugged into a wall socket and the socket
is switched on, if necessary.
◆Check that the operating mode indicator (COOL or FAN) on the
unit is lit up; if necessary press (On/Off) on the remote control or unit.
The air conditioner does not ◆Check that there are no obstacles between you and the unit.
operate with the remote control ◆Replace the remote control batteries if necessary.
◆Check that you are close enough to the unit (seven metres/yards or less).
No beep is heard when you press ◆Check that you are pointing the remote control at the remote control
(On/Off) on the remote control sensor on the unit.
◆Replace the remote control batteries if necessary.
The air conditioner does not ◆Check that the correct operating mode has been selected COOL.
cool ◆The room temperature may be too low.
◆Dust may be blocking the air filter; refer to page 13 for cleaning
instructions.
◆Check that there is no obstacle blocking the air flow into or out of the unit.
The air flow direction does not ◆Check that the air conditioner has been switched on; if necessary, press
change when you press the (On/Off) on the remote control or unit.
button
The timer is not correctly triggered ◆Check that the timer has been programmed correctly; refer to page 11.
Odours are permeated in the ◆Air the room.
room during air conditioning
E-14

Technical Specifications
Installing a Filter
The air conditioner can be fitted with an Electrostatic filter to remove
minute dust particles. The service life of the filter is approximately three
months depending on the time during which the air conditioner is used.
Remove the vinyl packing from the filter.
Do not remove the packing from an electrostatic filter until you
wish to use the filter, as it will lose its properties.
1
Open the front grille by pulling on the tabs of the unit.
2
Grasp the handle on the air filter and lift it slightly and then out to the front.
3
Remove the filter guard into the air filter.
4
Insert the Electrostatic filter in the filter holder and then re-assemble
it in the original condition.
5
➢
Model
✦Air purifying system
supplied
not supplied
Electrostatic filter
AW127JE/B
AW147JB
AW12A7JD
AW12A7JA
AW126JE/B
AW146JB
AW12A6JD
AW12A6JA
WC12ZR
Air filter
Filter guard
Filter holder
Electrostatic filter
E-15
ENGLISH
Design and specifications are subject to change without notice.
Power SupplyModel
220-240V~, 50Hz
AW127JE
AW126JE
WC12ZR
220V~, 60Hz
AW127JB
AW126JB
AW147JB
AW146JB
200-220V~, 50Hz
AW12A6JD
AW12A7JD
115V~, 60Hz
AW12A6JA
AW12A7JA

Method of Installation
Before installation, be sure to check the installation area
for the air conditioner, and installation method of the drain hose.
Checkpoints prior to installation
Check the cabinet and front grille of the unit for any harmful defects
such as scratches.
1
Be sure to check the power supply.
- Refer to the specifications on the label attached to the unit.
2
Installation Conditions
As the unit is heavy, the wall or window of the installation area should
have sufficient strength and durability for operation of the air conditioner,
and for prevention of any vibration or noise.
If it is weak, reinforcement work should be performed separately.
1
It is advisable to install the air conditioner in the north or west side to
prevent the effect of direct sunlight.
When installing it in the south or east side due to unavoidable
circumstances, it is advisable to install the sunshade to prevent the
direct sunlight.
In this case, take care not to cause any hindrance to the flow of outside air.
2
When installing the air conditioner, be sure to obtain sufficient space on
the rear side of the unit for smooth flow of air.
When operating the air conditioner in closed areas such as inner building
with cooling operation, and result in trouble with the unit.
See the illustration below.
3
500mm 500mm
85mm
min.
300mm
500mm Fance, wall
or other
obstacle
150mm min.
220mm
Approx.3˚
Awning
750mm
➢ ◆ If the wall is greater than 150mm thick,
cut the wall back on a 45˚ angle if possible.
100mm or more
45˚45˚
E-16

E-17
ENGLISH
Rubber cap
Screws(2EA)
Screw
Front grille
Gasket
Rear
Drain Tube
Screw
Drain Pan
Rubber cap
Drain Hose
Bottom-Side View with
Drain Pan and Hose in Place
Front panel
Rear
Installation of the Drain Tube
Fix the drain tube as shown in the figure.
Installation of the Drain Pan
The procedure for installing the drain pan should be determined by the
condition of the installing area.
◆ In the case of an area where the drain pan can not be directly
installed on the rear side of the unit after installing the air conditioner.
Example: High storage
◆ In the case of an area where the drain pan can be directly installed
on the rear side of the unit after installing the air conditioner.
Remove two screws on the lower, right and left sides of the unit.
4
Remove the screw located at the lower section of the front grille.
It is secured in the section depending on the model.
2
Open the front grille ; refer to page 13.
1
Remove the chassis from the cabinet.
5
Remove the rubber cap inserted into the basepan.
6
Fix the drain pan as shown in the figure, and then connect the drain hose.
(You can use any commercially-available drain hose.)
7
Install the cabinet at the specified area after installing the drain pan,
and then re-assemble it in the original condition.
8
Follow steps 6 and 7 only
1
Remove the front panel.
3-1 Press both sides of the cabinet in the direction of the arrow
as shown in the figure.
3-2 Pull the lower part of the front panel slightly forward.
(below three inches / 7cm)
3-3 Lift the front panel upward.
3
Applying excessive force to remove the front panel may cause
damage to the tab ; be sure not to use excessive force.
☛
Secure the front panel to the case by replacing the screw removed in
step 2. If a screw not removed in step 2, secure the panel with a
supplied screw.
➢

ELECTRONICS
THIS AIR CONDITIONER IS MANUFACTURED BY:
ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR:
CE CLIMATISEUR EST FABRIQUE PAR:
ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR:
QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA:
Printed in Korea
