Samsung AZ09A7KB User manual

Window-type Room Air Conditioner ( Cool and Heat )
Climatiseur de type Fenêtre ( Refroidissement et Chauffage )
AZ09F7KE
AZ09A7KE
AZ09F8KE
AZ09A8KE
ENGLISH
FRANÇAIS
OWNER’S INSTRUCTIONS
MANUEL D’UTILISATION
EFADB98-05458A(1)

The following safety precautions must be taken when installing
and using your air conditioner.
Safety Precautions
1The air conditioner must be plugged into its own specific power source, which must be
installed in compliance with national wiring, earthing and safety regulations.
Depending on national regulations and your specific installation, you may need to install:
◆ A circuit breaker
For further information on electrical requirements, contact a professional electrician.
This device must be installed according to the national electrical rules.
2Make sure that the unit is correctly ventilated at all times;
do NOT place clothing or other materials over it.
4Do NOT insert anything between the air outlet blades, as it may damage the inner fan
and you may be hurt. Keep children away from the unit.
5ALWAYS ensure that the power cable is in good condition.
If the power cord is damaged in any way, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:
◆ An authorized service center
◆ The dealer from whom you purchased the air conditioner.
7Do NOT place any brocking objects in front of the unit.
3NEVER spill liquids of any kind into the unit.
Should this happen, unplug the unit and contact your installation specialist.
8If the remote control will not be used for a long time, remove the batteries.
9Before throwing out the device, it is necessary to pull back the battery cells
and get rid of them safely.
E-2

Contents
◆PREPARING YOUR AIR CONDITIONER
■Safety Precautions ......................................................................................... 2
■Air Conditioning Unit - Main Parts, Buttons and Display ............................... 4
■Remote Control Buttons ................................................................................. 5
■Getting Started ............................................................................................... 6
■Inserting the Remote Control Batteries .......................................................... 7
◆OPERATING YOUR AIR CONDITIONER
■Cooling Your Room ........................................................................................ 8
■Heating Your Room ........................................................................................ 9
■Airing Your Room ........................................................................................... 10
■Adjusting the Air Flow Direction Horizontally .................................................. 11
■Adjusting the Air Flow Direction Vertically ...................................................... 11
◆PROGRAMMING YOUR AIR CONDITIONER
■Switching the Unit Off Automatically (Off Timer) ............................................ 12
■Canceling the Off Timer .................................................................................. 12
◆RECOMMENDATIONS FOR USE
■Operating Recommendation ........................................................................... 13
■Temperature and Humidity Ranges ................................................................ 14
■Cleaning Your Air Conditioner ........................................................................ 15
■Solving Common Problems ............................................................................ 17
■Technical Specifications ................................................................................. 17
◆METHOD OF INSTALLATION .................................................................................... 18
E-3
ENGLISH

Air Conditioning Unit - Main Parts, Buttons and Display
MODE
FAN SPEED
HIGH
TEMP.
SWING
LOW FAN
COOL
POWER
CHr.
RESTART
FANSPEED
C
Hr.
Inner air flow blades
(right/left orientation)
Outer air flow blades
(up/down orientation)
Air inlet (inside)
Air filter
(The air filter is
located inside)
Ventilation lever
Air outlet
Air inlet (Outside)
Power plug
(The type of the power
plug may differ
according to the type of
local power supply.)
Temperature indicator
Fan speed indicators
Operating mode selection
button
Temperature
adjustment button
Deice indicator
Operating mode indicators
(HEAT, COOL, FAN)
Timer indicator
Temperature/Timer setting Remote control sensor
ON/OFF button
Restart Indicator
■When the power plug is connected,
the indicator comes on.
■If a power failure occurs when the air
conditioner is operating, the unit is switched off.
Then the power returns, the air conditioner
starts up again automatically and the restart
indicator blinkes. The indicator lights up
after 2 minutes.
(Only AZ09F8KE / AZ09A8KE)
Air flow blade swing button
Fan speed button
❄The design and shape are subject to
change according to the model.
E-4

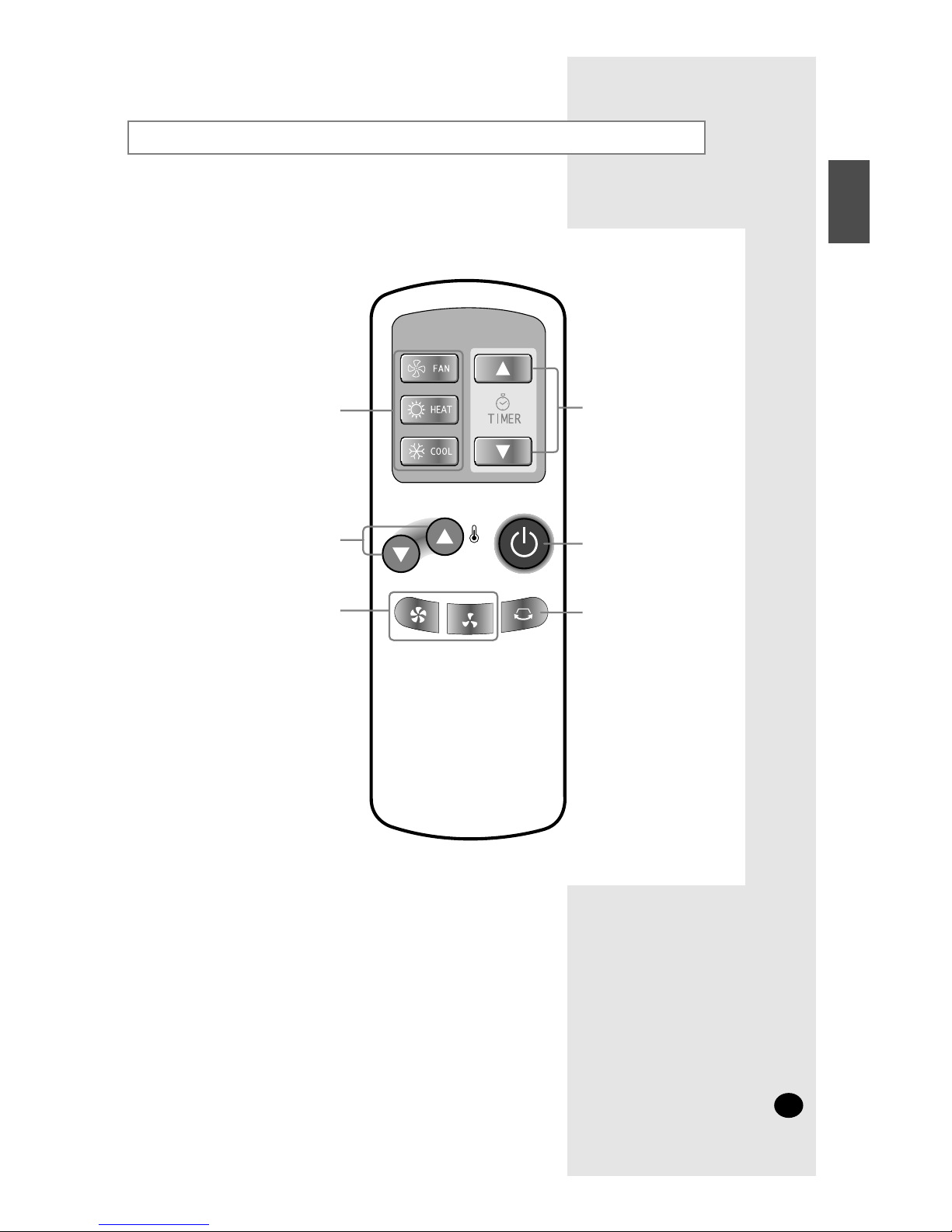

Remote Control - Buttons
Timer setting buttons
Operating mode selection buttons
(FAN, HEAT, COOL)
Air flow blade swing button
Fan speed adjustment buttons
ON/OFF Button
Temperature adjustment buttons
E-5
ENGLISH

Getting Started
You have just purchased a window-type room air conditioner and it has been installed by your
installation specialist.
Your Owner’s Instructions contain valuable information on using your air conditioner.
Please take the time to read them as they will help you take full advantage of the unit’s functions.
The booklet is organized as follows.
◆The following figures are shown on pages 4 and 5:
-Air conditioning unit (main parts, buttons and display)
-Remote control (buttons)
They will help you find the buttons and understand the symbols displayed.
◆In the main part of the document, you will find a series of step-by-step procedures for each
function available.
The illustrations in the step-by-step procedures use four different symbols:
Moreover, applicable, wherever the illustrations show the positions of the buttons on both the
remote control and the unit itself.
For the... The illustrations have a...
Remote control Gray background.
Example:
Unit itself White background.
Example:
POWER
PRESS PUSH IMPORTANT NOTE
☛
➢
E-6

Inserting the Remote Control Batteries
You must insert or replace the remote control batteries when:
◆You purchase the air conditioner
◆The remote control does not work correctly
☛Use two LR03 (R03) 1.5 V batteries. Do not use old
batteries or different kinds of batteries together.
Batteries may be completely discharged after 12 months,
even if they have not actually been used.
1 Push the battery cover on the rear of the remote control with your thumb in
the direction of the arrow and remove it.
2 Insert the two batteries, taking care to respect the polarities:
◆+ on the battery with + on the remote control
◆– on the battery with – on the remote control
3 Close the cover by sliding it back until it clicks into place.
Result:
You can control all the functions on your air conditioning unit
directly from your seat, using the remote control.
E-7
ENGLISH

POWER
You must select the Cool mode if you wish to lower the temperature
in your room. You can also set the fan speed.
1If necessary, press the (On/Off) button.
Result: ◆The operating mode indicator (COOL, HEAT or FAN)
on the unit comes on.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The unit beeps twice.
☛The air conditioner is fitted with a protection mechanism to prevent
the unit from being damaged when it is started immediately after
being:
◆Plugged in
◆Stopped
It will start up automatically after a three-minute rest period.
2 If the COOL indicator is not lit up on the unit:
◆Press the button on the remote control
or
◆Press the MODE button on the unit one or more times until the COOL
indicator lights up
Result:◆The unit beeps each time you press MODE.
◆The air conditioner starts up in Cool mode.
➢You can change modes at any time.
3 To adjust the temperature, press the or buttons on the remote
control one or more times until the required temperature is displayed.
To adjust the temperature, press the TEMPERATURE button on the unit
one or more times until the required temperature is displayed.
◆ 24°C --> 25°C --> .... --> 29°C --> 30°C --> 18°C --> 19°C --> ....
Possible temperatures are between 18°C and 30°C inclusive.
Result:◆Each time you press the temperature buttons:
– The temperature is adjusted by 1°C and
displayed on the control panel
– The unit beeps
◆The air conditioner starts cooling if the room temperature
is higher than the selected temperature.
4
To set the fan speed to... Then...
High Press the button on the remote control.
Low Press the button on the remote control.
Result: Each time you press a button, the unit beeps.
5 To control the direction of the air flow, refer to page 11.
Cooling Your Room
Remote Control Control Panel
MODE
FAN
COOL
POWER
RESTART
TEMP.
CHr.
FAN SPEED
HIGH
LOW
E-8

Heating Your Room
You must select the Heat mode if you wish to heat your room to a
specific temperature. You can also set the fan speed.
1If necessary, press the (On/Off) button.
Result: ◆The operating mode indicator (COOL, HEAT or FAN)
on the unit comes on.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The unit beeps twice.
☛The air conditioner is fitted with a protection mechanism to prevent
the unit from being damaged when it is started immediately after
being:
◆Plugged in
◆Stopped
It will start up automatically after a three-minute rest period.
2 If the HEAT indicator is not lit up on the unit:
◆Press the button on the remote control
or
◆Press the MODE button on the unit one or more times until the HEAT
indicator lights up
Result:◆The unit beeps each time you press MODE.
◆The air conditioner starts up in Heat mode.
➢You can change modes at any time.
3 To adjust the temperature, press the or buttons on the remote
control one or more times until the required temperature is displayed.
To adjust the temperature, press the TEMPERATURE button on the unit
one or more times until the required temperature is displayed.
◆ 24°C --> 25°C --> .... --> 29°C --> 30°C --> 16°C --> 17°C --> ....
Possible temperatures are between 16°C and 30°C inclusive.
Result:◆Each time you press the temperature buttons:
– The temperature is adjusted by 1°C and
displayed on the control panel
– The unit beeps
◆The air conditioner starts heating if the room temperature
is lower than the selected temperature.
4
To set the fan speed to... Then...
High Press the button on the remote control.
Low Press the button on the remote control.
Result:◆ Each time you press a button, the unit beeps.
◆For the first three to five minutes, the fan operates very
slowly until the air has been sufficiently warmed.
Once the correct temperature has been reached, the
fan is automatically set to the required speed.
5 To control the direction of the air flow, refer to page 11.
POWER
Remote Control Control Panel
MODE
FAN
COOL
POWER
RESTART
TEMP.
CHr.
FAN SPEED
HIGH
LOW
E-9
ENGLISH

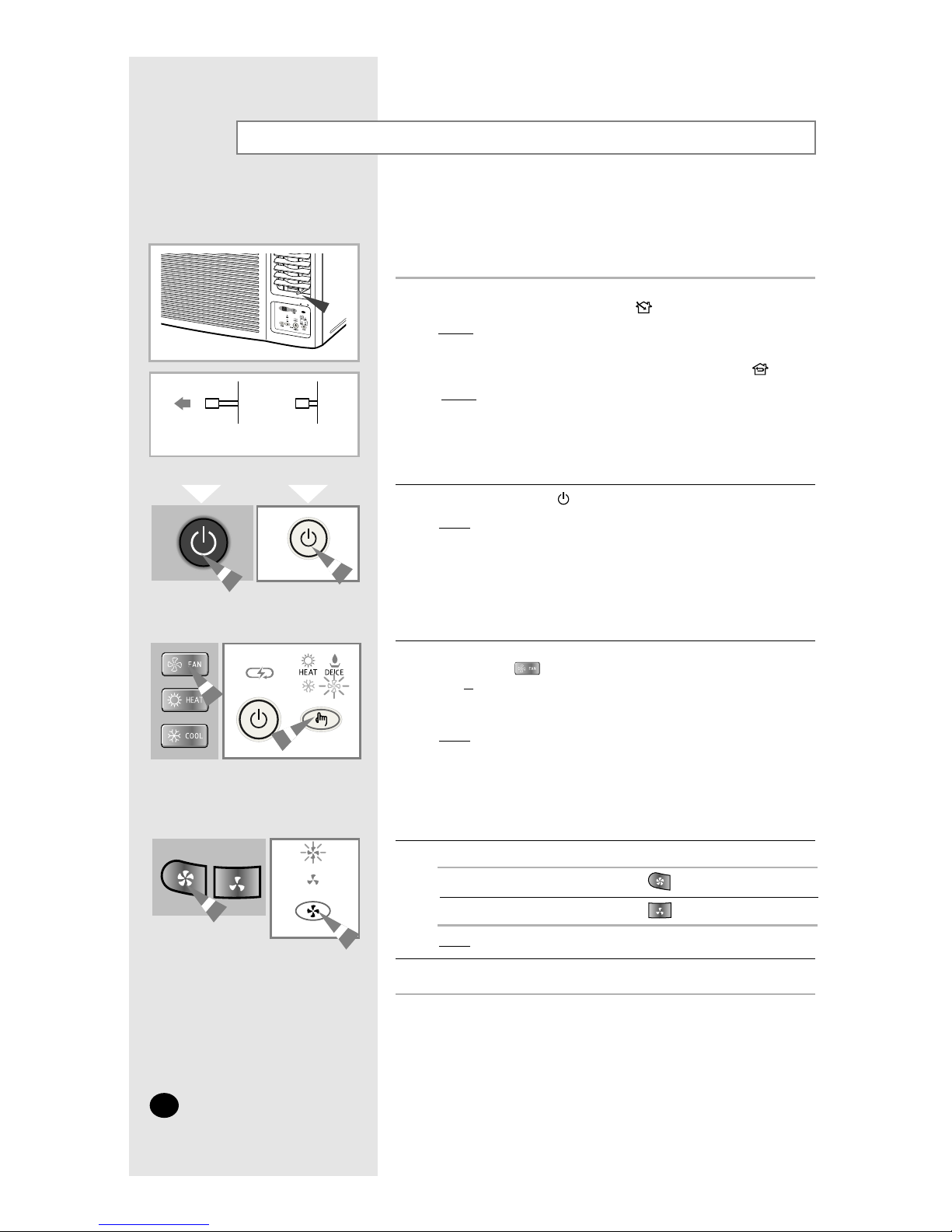

Airing Your Room
If the atmosphere in your room is stale, you can air it using the Fan
feature and if necessary, evacuate the stale air outside.
1 If you wish to evacuate stale air outside, pull the ventilation lever on the
front of the unit and the open position ( ).
Result: The air inside the room circulates and stale air is evacuated
outside.
Otherwise, push the ventilation lever and the closed position ( ).
Result: The air simply circulates inside the room.
2 If necessary, press the (On/Off) button.
Result: ◆The operating mode indicator (COOL, HEAT, or FAN)
on the unit comes on.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The unit beeps twice.
3 If the FAN indicator is not lit up on the unit:
◆Press the button on the remote control
or
◆Press the MODE button on the unit one or more times until the FAN
indicator lights up
Result: ◆The unit beeps each time you press MODE.
◆The air conditioner starts up in Fan mode.
➢◆You can change modes at any time.
◆When the air conditioner is in Fan mode, the
temperature is not displayed; in this case, you do not
need to set the temperature.
4
To set the fan speed to... Then...
High Press the button on the remote control.
Low Press the button on the remote control.
Result: Each time you press a button, the unit beeps.
5 To control the direction of the air flow, refer to page 11.
POWER
Remote Control Control Panel
MODE
COOL
POWER
RESTART
FAN
FAN SPEED
HIGH
LOW
Open
Position Closed Position
FANSPEED
C
Hr.
E-10

E-11
ENGLISH
Adjusting the Air Flow Direction Horizontally
Adjusting the Air Flow Direction Vertically
SWING
FAN
COOL
Remote Control Control Panel
Again depending on the position of the unit in your room, you can
adjust the orientation of the outer air flow blades on the right-hand
side of the unit.
RECOMMENDATION When... Adjust the blades to face...
Cooling Upwards.
Heating Downwards.
Adjust the air flow blades to the desired position, by pushing them upwards or
downwards.
➢If you orient the air flow blades downwards and the unit operates in Cool mode
for a long period of time, dew may:
◆Form on the surface of the blades
◆Drip from the blades
Depending on the position of the unit in your room, you can adjust the
orientation of the inner air flow blades on the right-hand side of the
unit, thus increasing the efficiency of the air conditioner.
1Press the (or on the unit) button on the remote control.
Result: The inner blades swing automatically left and right.
➢The blades may stop swinging momentarily when the Deice function is
activated(see page 14 for further details on this function). They will start
swinging again automatically as soon as the Deice function stops.
2 To stop the blades moving left and right, press the
(or on the unit)
button on the remote control
.
➢To stop the blades in a specific position and orient the air flow in the
corresponding direction, simply press the (or on the unit)
button on the remote control
when the blades are in the desired position.

Switching the Unit Off Automatically (Off Timer)
Canceling the Off Timer
CHr.
POWER
MODE
FAN
COOL
POWER
RESTART
CHr.
You can set the timer to switch the air conditioner off automatically
at a given time.
Example: You wish to switch the unit off two hours after you
have gone to bed.
1If necessary, press the (On/Off) button.
2 Select the required mode by pressing the appropriate button:
◆, or on the remote control
◆MODE button on the unit (press it one or more times until the
appropriate operating mode indicator lights up)
3 Set the operating time by pressing:
◆TIMER
▲
or
▼
on the remote control one or more times.
Example: To switch the unit off two hours after you have gone to bed, set
the operating time to 2 hours.
Possible operating times are between 1 and 24 hours inclusive.
Result:◆The Hr indicator flashes for about ten seconds.
◆The operating time is displayed and decreased
automatically to indicate the remaining time.
◆The air conditioner switches off automatically when
the operating time reaches zero.
➢You can change your setting at any time.
If you no longer wish to use the Off Timer that you have set, you can
cancel it at any time.
To cancel the timer, press:
◆TIMER
▲
or
▼
on the remote control one or more times until “- -”is displayed.
Result:◆The unit beeps each time you press a button.
◆The Hr indicator on the unit switches off.
◆The air conditioner operates automatically.
Remote Control Control Panel
Remote Control Control Panel
E-12

Operating Recommendation
E-13
ENGLISH
Recommendation
The heat pump inside the air conditioner absorbs
heat from outside air and brings it indoors. If the
temperature of the outside air drops, the air
conditioner will heat less. If you find that the room is
not warm enough, use an additional heating
appliance.
The air conditioner circulates warm air to heat your
room; as a result, some time will be required after
starting the air conditioner to warm the entire room.
If necessary, set the air conditioner going a short
time before you wish to use the room.
If a power failure occurs when the air conditioner is
operating, the unit is switched off.
When the power returns,
AZ09F8KE
AZ09A8KE
AZ09F7KE
AZ09A7KE
the air conditioner starts
up again automatically and
the restart indicator blinkes
for 2 minutes and then
lights up.
you must press (On/Off)
button to restart it.
Topic
Heating performances
Warm air circulation
When outside temperatures are low and humidity is
high, frost may form in the unit’s condensor when
heating with your air conditioner.
If this happens:
◆The unit stops heating
◆The air flow blades stop swinging
◆The Deice mode is triggered automatically for
about five minutes
◆The DEICE indicator on the unit lights up red
No intervention is required from you; after about five
minutes, the air conditioner starts operating again
normally.
Frost
If both the indoor and outdoor temperatures are
high and you select the Heat mode, the fan and
compressor in the unit may stop at times. This is
normal; simply wait until the air conditioner switches
on again.
High indoor and outdoor temperatures
Power failure
Here are a few recommendations that you should follow when using
your air conditioner.

Temperature and Humidity Ranges
E-14
The following table indicates the temperature and humidity ranges within which the air
conditioner can be used.
Cooling 21°C to 32°C approx. 21°C to 43°C approx. 80% or less
Heating 28°C or less 0°C to 21°C approx. -
Mode Indoor Temperature Outdoor Temperature Indoor Humidity
Higher humidity levels Water may condense on and drip from the surface of the unit if
it is used for long periods.
Lower temperatures A water leakage or some other malfunction may happen if the
heat exchanger freezes.
Higher temperatures The automatic protection feature may be triggered and the air
conditioner stopped.
If the air conditioner is used at... Then...

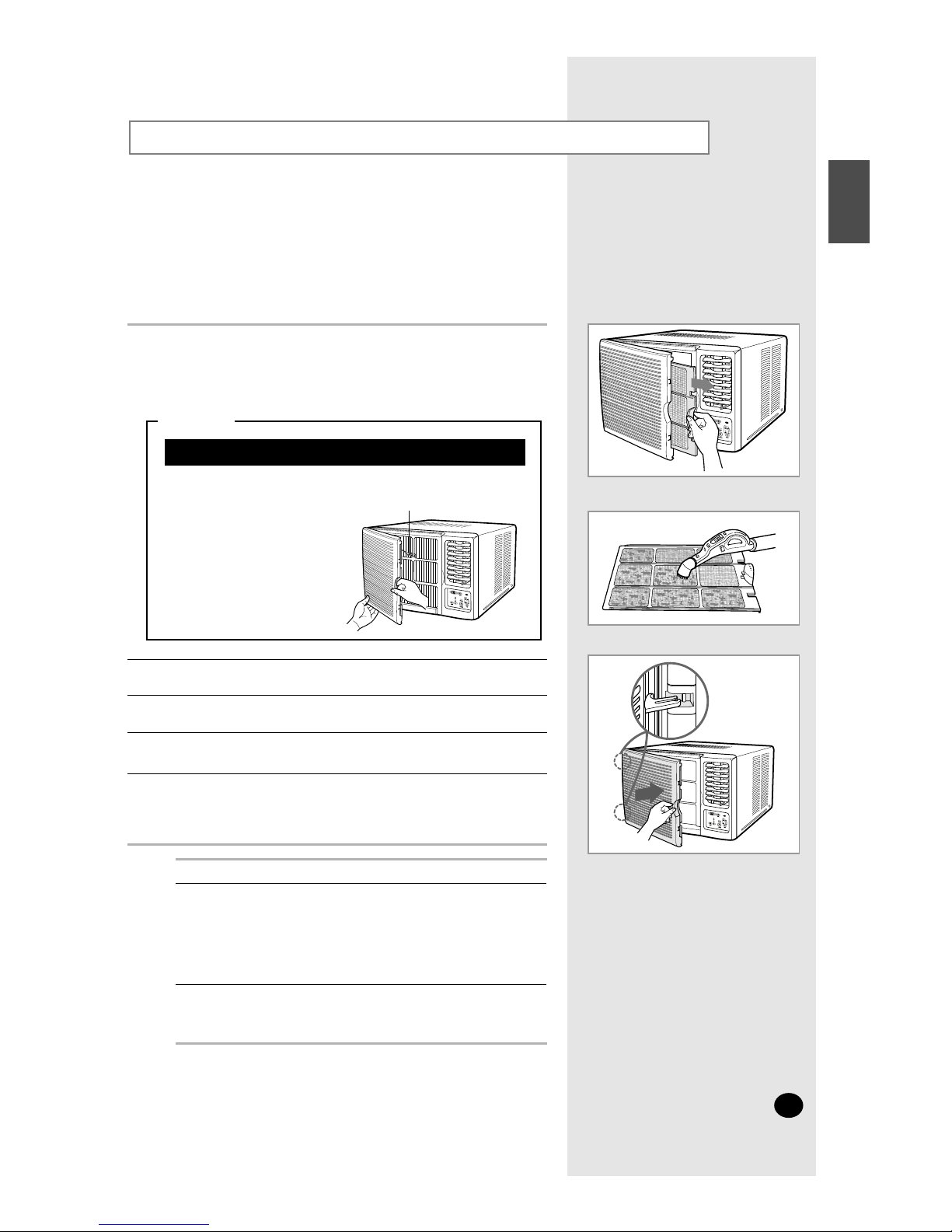

Cleaning Your Air Conditioner (✴✴✴✴F7/F8✴✴ models)
E-15
ENGLISH
If you...
Will not be using the
air conditioner for a
long period of time
Have not used the air
conditioner for a long
period of time
Then...
◆ Set the fan going for a few hours to
dry the inside of the air conditioner
thoroughly.
◆ Switch the air conditioner off and
unplug it from the wall socket.
◆ Clean the filter and outer surfaces.
Set the fan going for a few hours to dry
the inside of the air conditioner
thoroughly.
Hold the air filter handle, slightly pull it to the left side and open the front grille. 1
Pull the air filter to the right side. 2
Remove all dust on the air filter with a vacuum cleaner or brush. 3
When you have finished, insert the air filter back into its original position. 4
Wipe the surface of the unit with a neutral detergent and then wipe it again
with dry cloth.
(Be sure not to use benzene, solvent or other chemical products.)
5
The removal of the front grille makes it easier to clean the air
conditioner. Open the grille as much as possible.
Be sure to clean the air filter periodically to maintain the air conditioner
in the best condition for a long period of time.
When cleaning the air conditioner, turn it off and pull out the
power plug.
FANSPEED
C
Hr.
Removal and Reassembly of the Front Grille
Grasp the lower part of the
front grille and the air filter
handle, then open the grille.
1
Remove the safety clip and
the front grille.
2
When reassembling the front
grille, you should install the
safety clip again.
3
For user's safety, a safety clip has been installed in the front grille.
Safety clip
CC
CCAA AAUU UUTT TTII IIOO OONN NN
➢
➢
FANSPEED
C
Hr.
FANSPEED
C
Hr.
☛

Cleaning Your Air Conditioner (✴✴✴✴A7/A8✴✴ models)
E-16
Open the front grille by pulling on the tabs of the unit. 1
Grasp the handle on the air filter and lift it slightly and then out to the front. 2
Remove all dust on the air filter with a vacuum cleaner or brush. 3
When you have finished, insert the air filter back into its original position. 4
Wipe the surface of the unit with a neutral detergent
and then wipe it again with dry cloth.
(Be sure not to use benzene, solvent or other chemical products.)
5
The removal of the front grille makes it easier to clean the air
conditioner. After opening the front grille, lift it up as much as possible,
then pull down to release it.
➢
Be sure to clean the air filter periodically to maintain the air conditioner
in the best condition for a long period of time.
When cleaning the air conditioner, turn it off and pull out the
power plug.
Set the fan to “FAN”and let it run for
a few hours to dry the inside of the air
conditioner thoroughly.
If you... Then...
Will not be using the
air conditioner for a
long period of time
◆ Set the fan to “FAN”and let it for a few
hours to dry the inside of the air
conditioner thoroughly.
◆ Switch the air conditioner off and
unplug it from the wall socket.
◆ Clean the filter and outer surfaces.
Have not used the air
conditioner for a long
period of time
➢
☛
MODE
FANSPEED
HIGH
TEMP
SWING
LOWFAN
COOL
POWER
C
Hr.
RESTART
Front grille
Grille groove
Body guide
Front grille

Technical Specifications
Solving Common Problems
Before contacting the after-sales service, perform the following simple checks.
They may save you the time and expense of an unnecessary service call.
Problem Explanation/Solution
The air conditioner does not ◆Check that the circuit breaker used for the air conditioner has not
operate at all been triggered.
◆Check that the power cable is plugged into a wall socket and
the socket is switched on, if necessary.
◆Check that the operating mode indicator (COOL, HEAT or FAN)
on the unit is lit up; if necessary press (On/Off) on
the remote control or unit.
The air conditioner does not ◆Check that there are no obstacles between you and the unit.
operate with the remote control ◆Replace the remote control batteries if necessary.
◆ Check that you are close enough to the unit (seven metres/yards or less).
No beep is heard when you press ◆Check that you are pointing the remote control at the remote control
(On/Off) on the remote control sensor on the unit.
◆Replace the remote control batteries if necessary.
The air conditioner does not ◆Check that the correct operating mode has been selected COOL
cool or heat or HEAT.
◆The room temperature may be too low or too high.
◆Dust may be blocking the air filter; refer to page 15 or 16 for
cleaning instructions.
◆Check that there is no obstacle blocking the air flow into or
out of the unit.
When heating, the required room ◆Check that the required temperature has been set correctly.
temperature is never reached and ◆Increase the fan speed.
the air conditioner frequently stops ◆If the air flow is directed downwards, direct it upwards.
The air flow direction does not ◆Check that the air conditioner has been switched on; if necessary,
change when you press the press (On/Off) on the remote control or unit.
(or on the unit)button
The timer is not correctly triggered ◆Check that the timer has been programmed correctly; see page 12.
Odours are permeated in the ◆Air the room.
room during air conditioning
Model Power Supply
AZ09F7KE
AZ09A7KE
AZ09F8KE
AZ09A8KE
Design and specifications are subject to change without notice.
220-240V~, 50Hz
E-17
ENGLISH

Method of Installation
500mm 500mm
75mm
min.
300mm
500mm Fence, wall
or other
obstacle
150mm min.
200mm
Approx.3˚
Awning
750mm
➢
◆ If the wall is greater than 150mm thick,
cut the wall back on a 45˚angle if possible.
100mm or more
45˚45˚
Before installation, be sure to check the installation area or the air
conditioner, and drain hose.
Checkpoints prior to installation
Check the cabinet and front grille of the unit for any harmful defects
such as scratches.
1
Be sure to check the power supply.
- Refer to the specifications on the label attached to the unit.
2
Installation Conditions
As the unit is heavy, the wall or window of the installation area should
have sufficient strength and durability for operation of the air conditioner,
and for prevention of any vibration or noise.
If it is weak, reinforcement work should be performed separately.
1
It is advisable to install the air conditioner in the north or west side to
prevent the effect of direct sunlight.
When installing it in the south or east side due to unavoidable
circumstances, it is advisable to install the sunshade to prevent the
direct sunlight.
In this case, take care not to cause any hindrance to the flow of outside air.
2
When installing the air conditioner, be sure to obtain sufficient space on
the rear side of the unit for smooth flow of air.
When operating the air conditioner in closed areas such as inner building
with cooling operation, and result in trouble with the unit.
See the illustration below.
3
E-18
Outdoor Side
Indoor Side

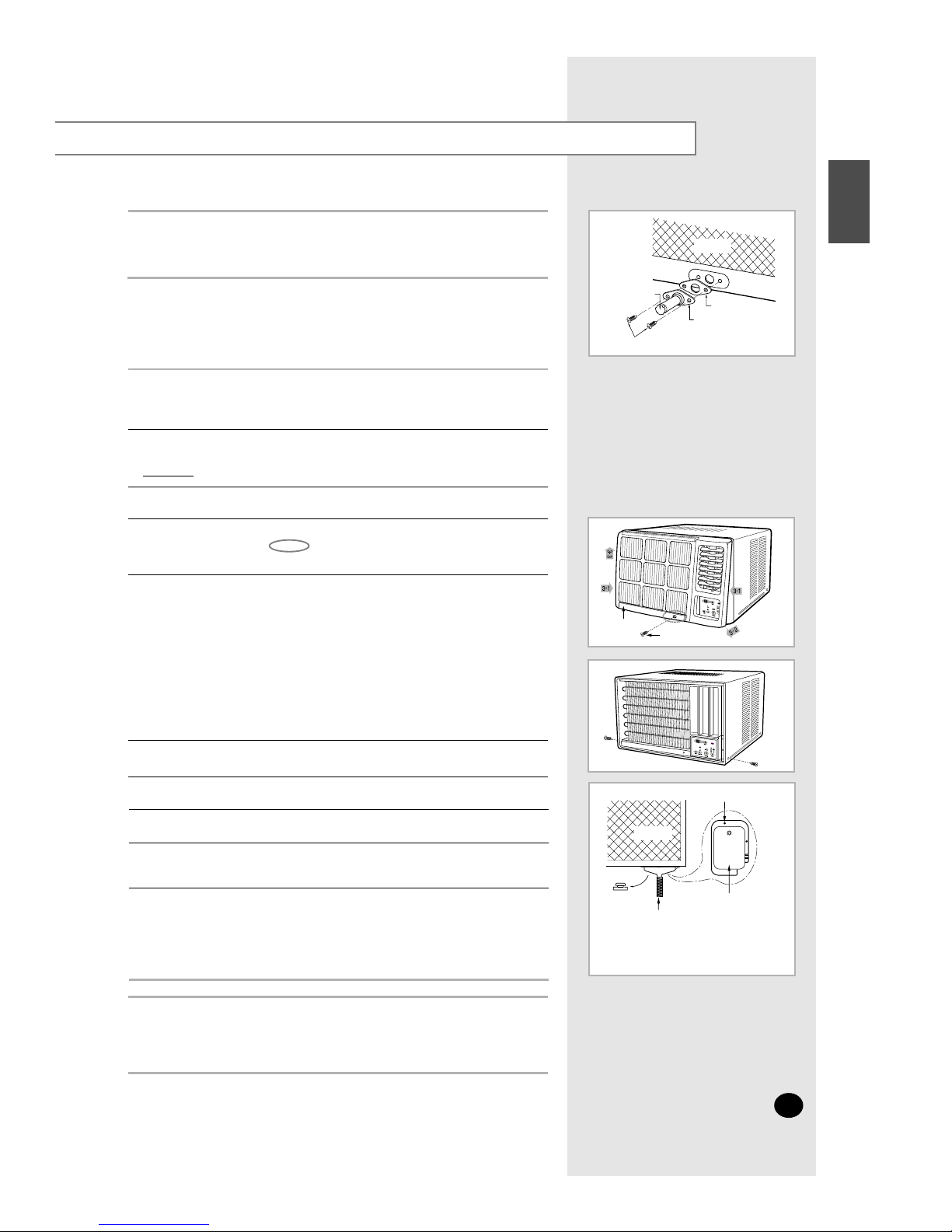

Installation of the Drain Tube
Fix the drain tube as shown in the figure.
Installation of the Drain Pan
The procedure for installing the drain pan should be determined by the
condition of the installing area.
◆ In the case of an area where the drain pan can not be directly
installed on the rear side of the unit after installing the air conditioner.
Example: High storage
◆ In the case of an area where the drain pan can be directly installed
on the rear side of the unit after installing the air conditioner.
Remove two screws on the lower, right and left sides of the unit.
4
Open the front grille; refer to page 15 or 16.
1
Remove the screw located at the lower section of the front grille.
It is secured in the section depending on the model.
2
Remove the chassis from the cabinet.
5
Remove the rubber cap inserted into the basepan.
6
Fix the drain pan as shown in the figure, and then connect the drain hose.
(You can use any commercially-available drain hose.)
7
Install the cabinet at the specified area after installing the drain pan,
and then re-assemble it in the original condition.
8
Follow steps 6 and 7 only
1
Remove the front panel.
3-1 Press both sides of the cabinet in the direction of the arrow
as shown in the figure.
3-2 Pull the lower part of the front panel slightly forward.
(below three inches)
3-3 Lift the front panel upward.
3
Applying excessive force to remove the front panel
may cause damage to the tab ; be sure not to use
excessive force.
Rubber cap
Screws(2EA)
Gasket
Rear
Drain Tube
☛
Rear
Screw
Drain Pan
Rubber cap
Drain Hose
Bottom-Side View with
Drain Pan and Hose in Place
E-19
ENGLISH
FANSPEED
C
Hr.
Front panel Screw

ELECTRONICS
THIS AIR CONDITIONER IS MANUFACTURED BY:
CE CLIMATISEUR EST FABRIQUE PAR:
Printed in Korea
