Samsung AZ18A1WE User manual

ENGLISH
OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATIO
MANUAL DE INSTRUÇÕES
ISTRUZIONI PER L’USO
AZ18A1WE
AZT18A1ME
AZT22A1ME
AZT24A1ME
AWH1809E
AWH2209E
WH18ZA
Window-type Room Air Conditioner ( Cool and Heat )
Acondicionador de aire doméstico sistema de tipo ventana ( Refrigeración y Calefacción )
Climatiseur de type Fenêtre ( Refroidissement et Chauffage )
O ar Condicionado de Window-Type ( Refrigeração e Aquecimento )
Condizionatore d’aria per ambienti da finestra ( Raffreddamento e Riscaldamento )
E S F P I
DB68-01123A(3)

The following safety precautions must be taken when installing
and using your air conditioner.
Safety Precautions
1The air conditioner must be plugged into its own specific power source, which must be
installed in compliance with national wiring, earthing and safety regulations.
Depending on national regulations and your specific installation, you may need to install:
◆ A circuit breaker
For further information on electrical requirements, contact a professional electrician.
This air conditioner must be connected by a licenced electrician.
This device must be installed according to the national electrical rules.
2Make sure that the unit is correctly ventilated at all times;
do NOT place clothing or other materials over it.
3NEVER spill liquid of any kind into the unit.
Should this happen, unplug the unit and contact your installation specialist.
4Do NOT insert anything between the air outlet blades, as the inner fan may be damaged
and you may be hurt. Keep children away from the unit.
5ALWAYS ensure that the power cable is in good condition.
Make sure that it is not walked on or damaged by items placed on or against it.
If the power cord is damaged in any way, it must be replaced by an approved
power cord available from the manufacturer or its service agent.
6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:
◆ An approved service center
◆ The outlet at which the air conditioner was purchased
7Do NOT place any obstacles in front of the unit.
8The appliance is not intended for use by young children or infirm person without supervision;
young children should be supervised to ensure that they do not play with the appliance.
The manufacturer do not take the responsibility of the accident happened
because the air conditioner is not fixed firmly or installed securely, during
installing or using the product. In case you have difficulty in installation,
you must ask for an installation specialist help. The accident will be hap-
pened in case of installing improperly.
CC
CA AU UT TI IO ON N
E-2

◆PREPARING YOUR AIR CONDITIONER
■Safety Precautions ......................................................................................... 2
■Air Conditioning Unit - Main Parts and Control Panel .................................... 4
■Getting Started ............................................................................................... 5
◆OPERATING YOUR AIR CONDITIONER
■Cooling Your Room ......................................................................................... 6
■Heating Your Room ......................................................................................... 7
■Airing Your Room ............................................................................................ 8
■Switching the Air Conditioner Off ................................................................... 8
■Adjusting the Air Flow Direction Horizontally ................................................. 9
■Adjusting the Air Flow Direction Vertically ...................................................... 9
◆RECOMMENDATIONS FOR USE
■Operating Recommendation ........................................................................... 10
■Temperature and Humidity Ranges ................................................................ 10
■Cleaning Your Air Conditioner ......................................................................... 11
■Solving Common Problems ............................................................................ 12
■Technical Specifications ................................................................................. 13
◆INSTALLATION ........................................................................................................ 14
Contents
E-3
ENGLISH

Air Conditioning Unit - Main Parts and Control Panel
Outer air flow blades
(up/down orientation)
Air inlet (Inside)
Air filter
(The air filter is located in inside.)
Ventilation lever
Power plug
◆ The type of power plug
may differ, depending
on the local power supply.
◆ The power plug may be
not supplied depending
on the model.
Air outlet
Air inlet (Outside)
Temperature
control dial
Operating mode
selection dial
Air flow blade
swing switch
Inner air flow blades
(right/left orientation)
❄The design and shape are subject to
change according to the model.
E-4

Getting Started
You have just purchased a window-type room air conditioner and it has been installed
by your installation specialist.
Your Owner’s Instructions contain much valuable information on using your air conditioner.
Please take the time to read them as they will help you take full advantage of the unit’s features.
The booklet is organized as follows.
◆The illustration on page 4 shows the air conditioning unit;
it indicates the location and purpose of the main parts and controls on the unit.
◆ In the main part of the document, you will find a series of step-by-step
procedures for each function available.
The illustrations in the step-by-step procedures use four different symbols:
PRESS PUSH IMPORTANT NOTE
☛
➢
E-5
ENGLISH

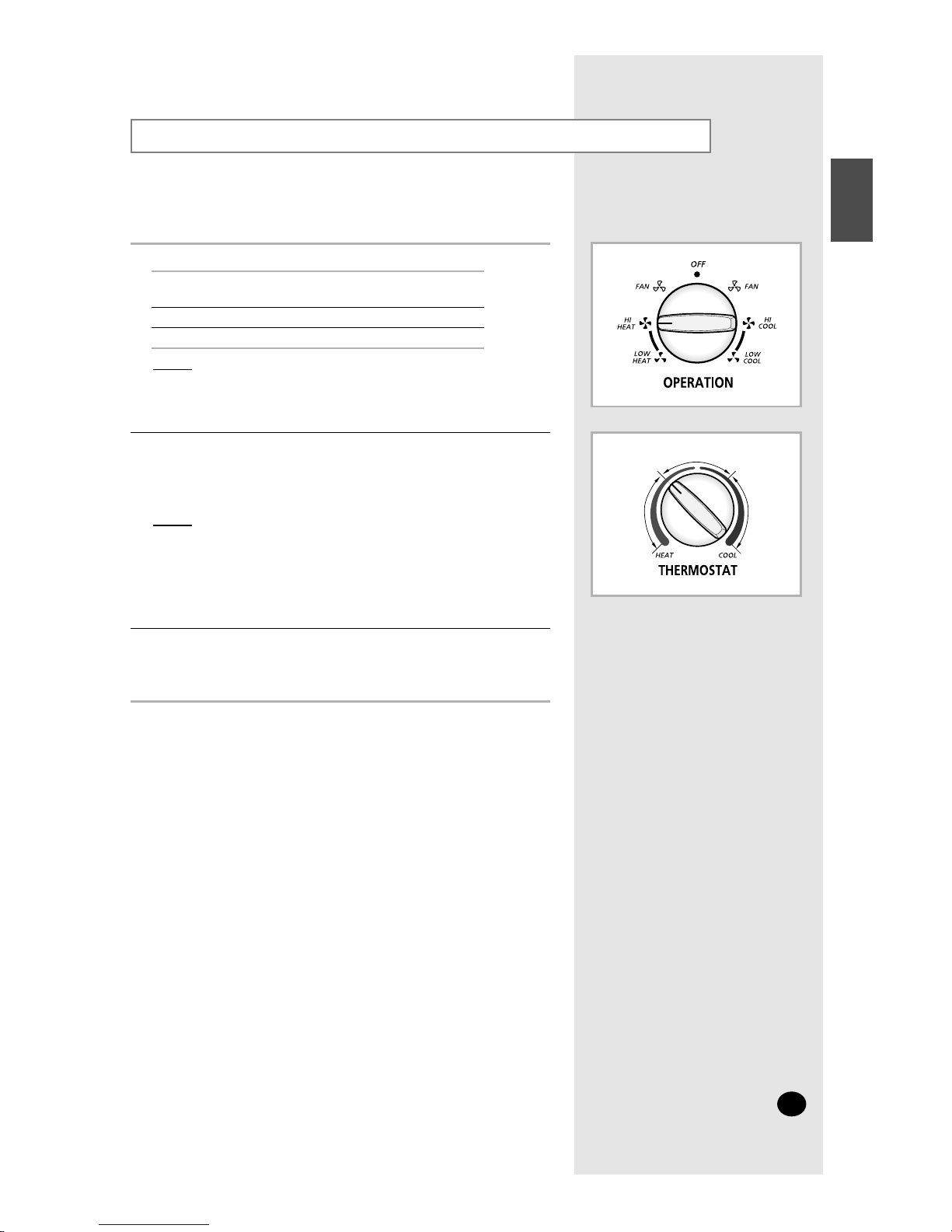

CoolingYour Room
Select the operating mode and fan speed.
Result: ◆ The air conditioner starts up in Cool mode.
◆ The fan starts up at the speed selected.
To adjust the temperature, turn the temperature control dial towards the
right and the blue position.
Possible temperatures: Between 18°C and 25°C inclusive.
Result: The air conditioner starts cooling if the room temperature is
higher than the selected temperature.
You must select the Cool mode if you wish to lower the temperature
in your room. You can also set the fan speed.
1
2
To control the direction of the air flow, refer to page 9.
3
To cool your room with a... Set the operating mode
selection dial to...
High fan speed HI COOL
Low fan speed LOW COOL
You can change modes at any time.
➢
27˚C ~ 23˚C
29˚C ~ 27˚C 23˚C ~ 18˚C
E-6

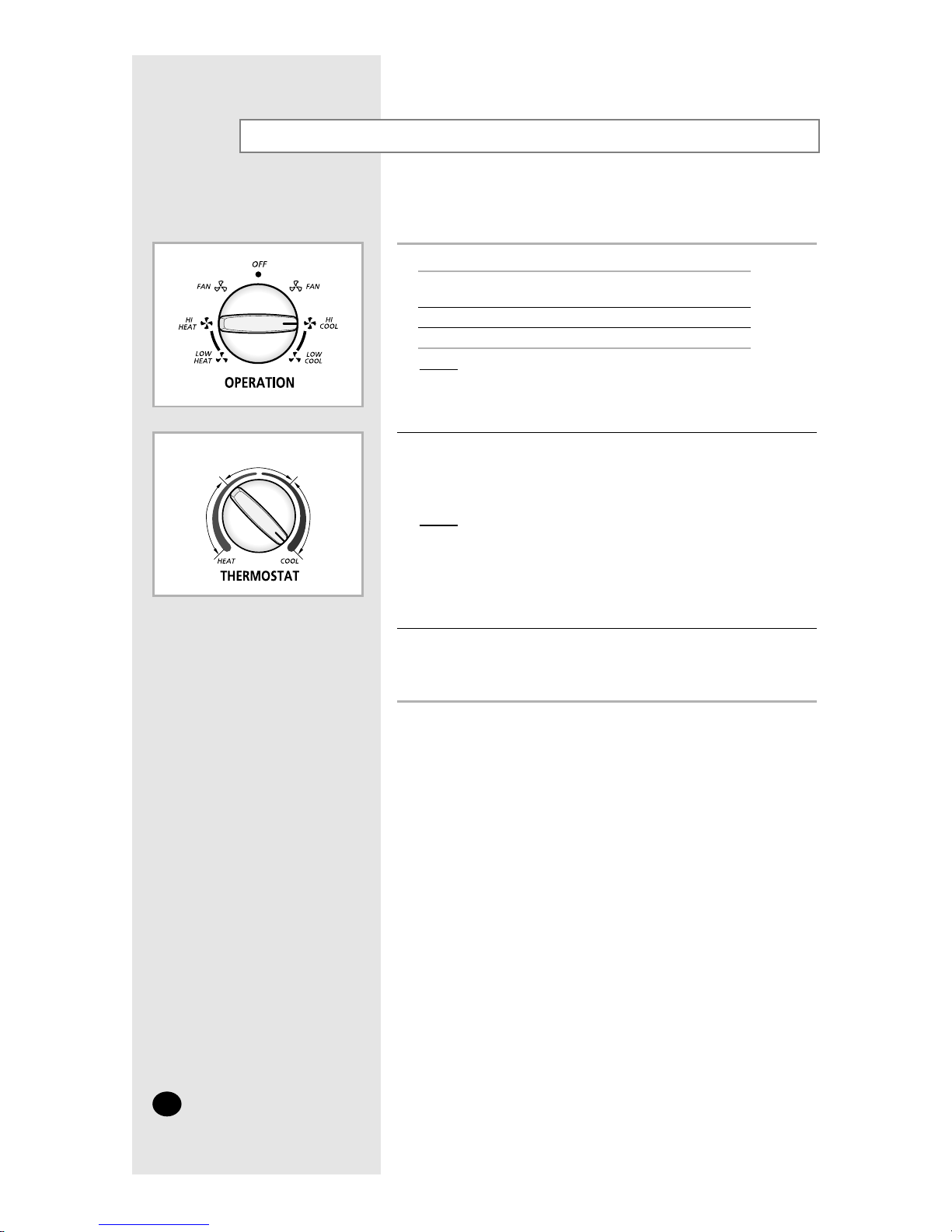

HeatingYour Room
Select the operating mode and fan speed.
Result: ◆ The air conditioner starts up in Heat mode.
◆ The fan starts up at the speed selected.
To adjust the temperature, turn the temperature control dial towards
the left and the red position.
Possible temperatures: Between 25°C and 29°C inclusive.
Result: The air conditioner starts heating if the room temperature is
lower than the selected temperature.
You must select the Heat mode if you wish to heat your room
to a specific temperature. You can also select the fan speed.
1
2
To control the direction of the air flow, refer to page 9.
3
To heat your room with a... Set the operating mode
selection dial to...
High fan speed HI HEAT
Low fan speed LOW HEAT
You can change modes at any time.
➢
27˚C ~ 23˚C
29˚C ~ 27˚C 23˚C ~ 18˚C
E-7
ENGLISH

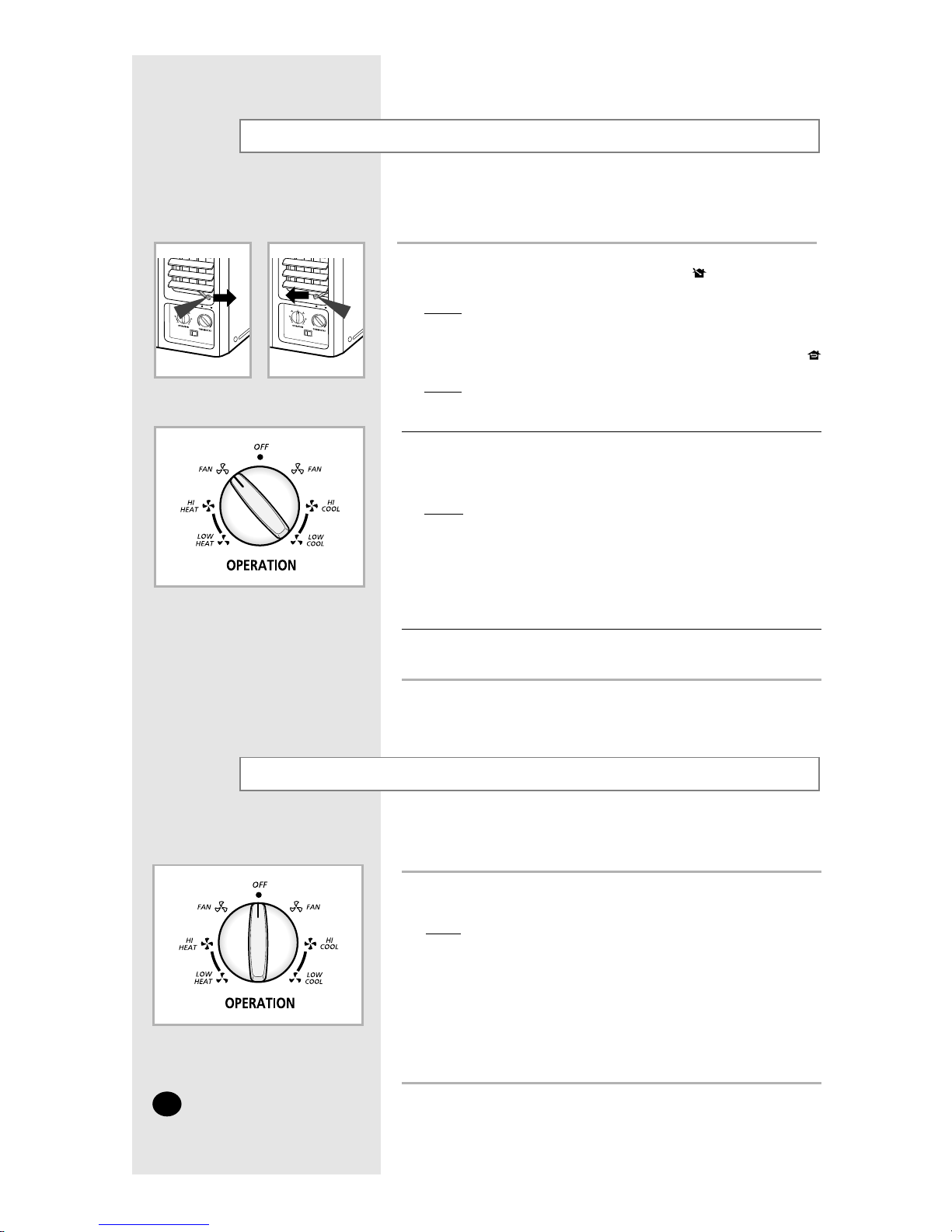

AiringYour Room
If the atmosphere in your room is stale, you can air it using
the Fan feature and if necessary, evacuate the stale air outside.
To control the direction of the air flow, refer to page 9.
3
Switching the Air Conditioner Off
1If you wish to evacuate stale air outside, push the ventilation lever on the
front of the unit to the right and the open position ( ).
Result: The air inside the room circulates and stale air is evacuated
outside.
Otherwise, push the ventilation lever to the left and the closed position ( ).
Result: The air simply circulates inside the room.
2Set the operating mode selection dial to the FAN position.
You can switch the air conditioner off whenever you want.
1To switch the unit off, simply set the operating mode selection dial
to the OFF position.
Result: The air conditioner stops operating.
Result: The air conditioner starts up in Fan mode.
Both fan settings(left and right) have the same function.
➢
E-8

Adjusting the Air Flow Direction Horizontally
Adjusting the Air Flow Direction Vertically
Again depending on the position of the unit in your room, you can
adjust the orientation of the outer air flow blades on the right-hand
side of the unit.
1Adjust the air flow blades to the desired position, by pushing them
upwards or downwards.
Depending on the position of the unit in your room, you can adjust the
orientation of the inner air flow blades on the right-hand side of the
unit, thus increasing the efficiency of the air conditioner.
1Set the air flow blade swing switch to the ON position.
Result: The inner blades swing automatically left and right.
2To stop the blades moving left and right, set the air flow blade swing
switch to the OFF position.
To stop the blades in a specific position and orient the air flow
in the corresponding direction, simply set the switch to the OFF
position when the blades are in the desired position.
➢
If you orient the air flow blades downwards and the unit
operates in Cool mode for long periods of time, dew may:
◆ Form on the surface of the blades
◆ Drip from the blades
➢
RECOMMENDATION When... Adjust the blades to face...
Cooling Upwards.
Heating Downwards.
E-9
ENGLISH

Operating Recommendation
Recommendation
The heat pump inside the air conditioner absorbs heat from outside air
and brings it indoors. If the temperature of the outside air drops, the air
conditioner will heat less.If you find that the room is not warm enough,
use an additional heating appliance.
Topic
Heating performances
The air conditioner circulates warm air to heat your room; as a result,
some time will be required after starting the air conditioner to warm the
entire room. If necessary, set the air conditioner going a short time before
you wish to use the room.
Warm air circulation
When outside temperatures are low and humidity is high, frost may form
in the unit’s condensor when heating with your air conditioner.
If this happens:
◆The unit stops heating
◆The air flow blades stop swinging
◆The Deice mode is triggered automatically for about five minutes
No intervention is required from you; after about five
minutes, the air conditioner starts operating again normally.
Frost
If both the indoor and outdoor temperatures are high and you select the
Heat mode, the fan and compressor in the unit may stop at times.
This is normal; simply wait until the air conditioner switches on again.
High indoor and outdoor
temperatures
If a power failure occurs when the air conditioner is operating, the unit is
switched off. When the power returns, the air conditioner starts up again
automatically
Power failure
Here are a few recommendations that you should follow when using your air conditioner.
If the air conditioner is used at... Then...
Higher temperature The automatic protection feature may be triggered
and the air conditioner stopped.
Lower temperature A water leakage or some other malfunction may happen
if the heat exchanger freezes.
Higher humidity levels Water may condense on and drip from the surface of the unit
if it is used for long periods.
Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges within which the air
conditioner can be used.
E-10
Mode Indoor
Temperature Outdoor Temperature Indoor Humidity
Cooling 21°C to 32°C approx. 21°C to 43°C approx. 80% or less
Heating 28°C or less 0°C to 21°C approx. -

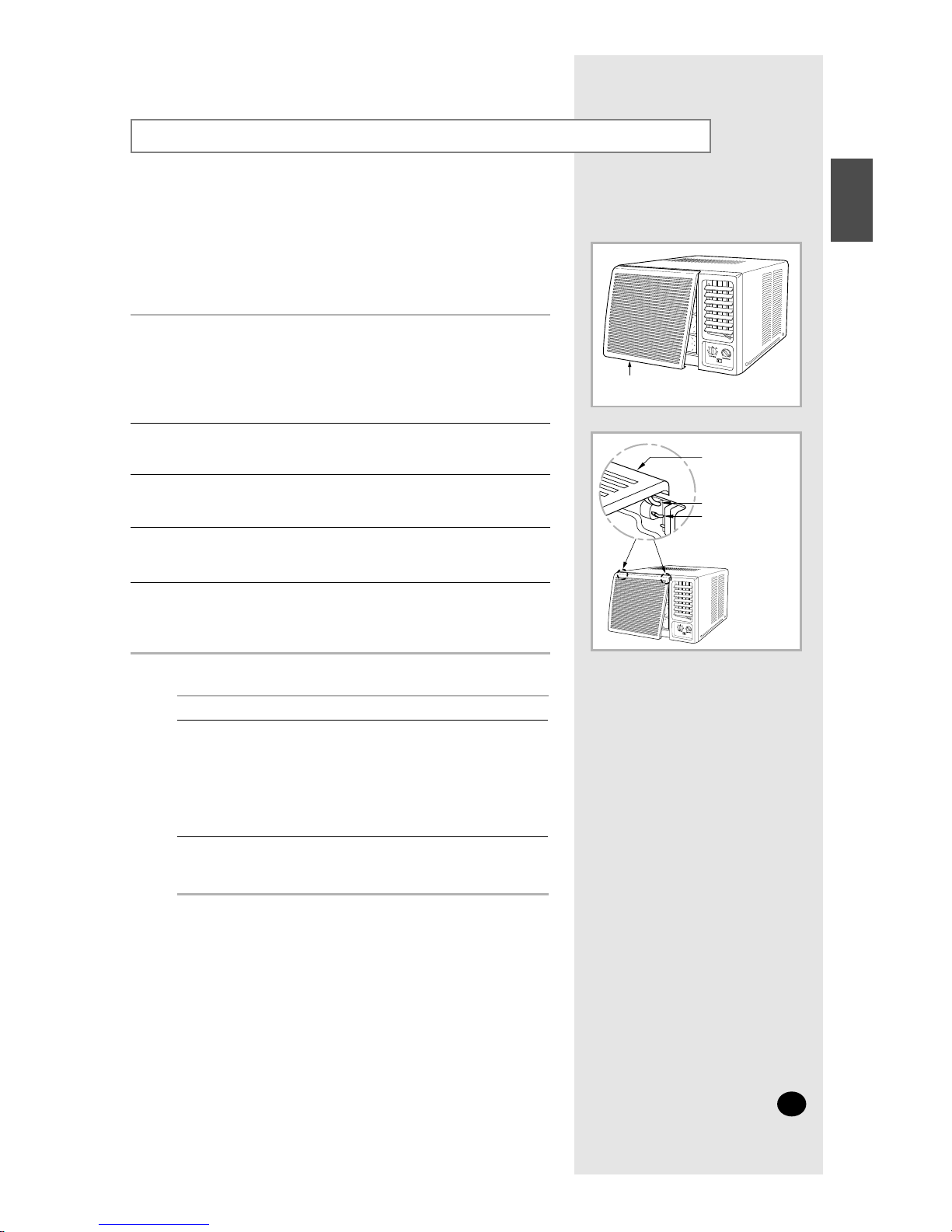

CleaningYour Air Conditioner
Open the front grille by pulling on the tabs of the unit.1
Grasp the handle on the air filter and lift it slightly and then out to the
front.
2
Remove all dust on the air filter with a vacuum cleaner or brush.3
When you have finished, slide the air filter back into position.4
Clean the outer surfaces with a damp cloth and mild detergent
(do NOT use benzene, solvents or other chemicals).
Wipe them dry with a clean, soft cloth.
5
The removal of the front grille makes it easier to clean the air
conditioner. After opening the front grille, lift it up as much as
possible, then pull down to release it.
➢
To get the best possible use out of your air conditioner,
you must clean it regularly by two weeks to remove the dust on the air filter.
Before cleaning your air conditioner, ensure that it is
switched off and unplugged from the wall socket.
☛
Set the fan going for a few hours to dry
the inside of the air conditioner
thoroughly.
If you... Then...
Will not be using the
air conditioner for a
long period of time
◆ Set the fan going for a few hours
to dry the inside of the air
conditioner thoroughly.
◆ Switch the air conditioner off and
unplug it from the wall socket.
◆ Clean the filter and outer
surfaces.
Have not used the air
conditioner for a long
period of time
➢
Front grille
Grille groove
Body guide
Front grille
E-11
ENGLISH

Solving Common Problems
Explanation / Solution
◆ Check that the circuit breaker used for the air conditioner
has not been triggered.
◆Check that the power cable is plugged into a wall socket and the
socket is switched on, if necessary.
◆Check that the correct operating mode has been selected
(cooling, heating or airing).
Problem
The air conditioner does
not operate at all
◆Check that the correct operating mode has been selected COOL
or HEAT.
◆The room temperature may be too low or too high.
◆Dust may be blocking the air filter; refer to page 11 for cleaning
instructions.
◆Check that there is no obstacle blocking the air flow into or out of
the unit.
The air conditioner does
not cool or heat
◆Check that the required temperature has been set correctly.
◆Increase the fan speed.
◆If the air flow is directed downwards, direct it upwards.
When heating, the required
room temperature is never
reached and the air
conditioner frequently stops
◆ Check that the air conditioner has been switched on;
if necessary, turn the operating mode selection dial ; refer to page 9.
The air flow direction does
not change when you set
the air flow blade swing
switch to the ON position.
◆ Air the room.
Odours are permeated in
the room during air
conditioning
Before contacting the after-sales service, perform the following simple checks.
They may save you the time and expense of an unnecessary call.
E-12

Technical Specifications
Design and specifications are subject to change without
notice.
Power Supply
220-240V~, 50Hz
Model
AZ18A1WE
AZT18A1ME
AZT22A1ME
AZT24A1ME
AWH1809E
AWH2209E
WH18ZA
E-13
ENGLISH

Installation
Before installation, be sure to check the installation area
for the air conditioner, and drain hose.
Checkpoints prior to installation
Check the cabinet and front grille of the unit for any harmful defects
such as scratches.
1
Be sure to check the power supply.
- Refer to the specifications on the label attached to the unit.
2
Installation Conditions
As the unit is heavy, the wall or window of the installation area should
have sufficient strength and durability for operation of the air conditioner,
and for prevention of any vibration or noise.
If it is weak, reinforcement work should be performed separately.
1
It is advisable to install the air conditioner in the north or west side to
prevent the effect of direct sunlight.
When installing it in the south or east side due to unavoidable
circumstances, it is advisable to install the sunshade to prevent the
direct sunlight.
In this case, take care not to cause any hindrance to the flow of outside air.
2
When installing the air conditioner, be sure to obtain sufficient space on
the rear side of the unit for smooth flow of air.
When operating the air conditioner in closed areas such as inner building
with cooling operation, and result in trouble with the unit.
See the illustration below.
3
500mm 500mm
85mm
min.
300mm
500mm Fence, wall
or other
obstacle
150mm min.
“A”
Approx.3 ˚
Awning
750mm
➢
◆ If the wall is greater than 150mm thick,
cut the wall back on a 45˚ angle if possible.
45˚45˚
Model “A”
AZ18A1WE
AWH1809E
WH18ZA
AZT18A1ME
AZT22A1ME
AZT24A1ME
AWH2209E
235mm
240mm
100mm or more
E-14

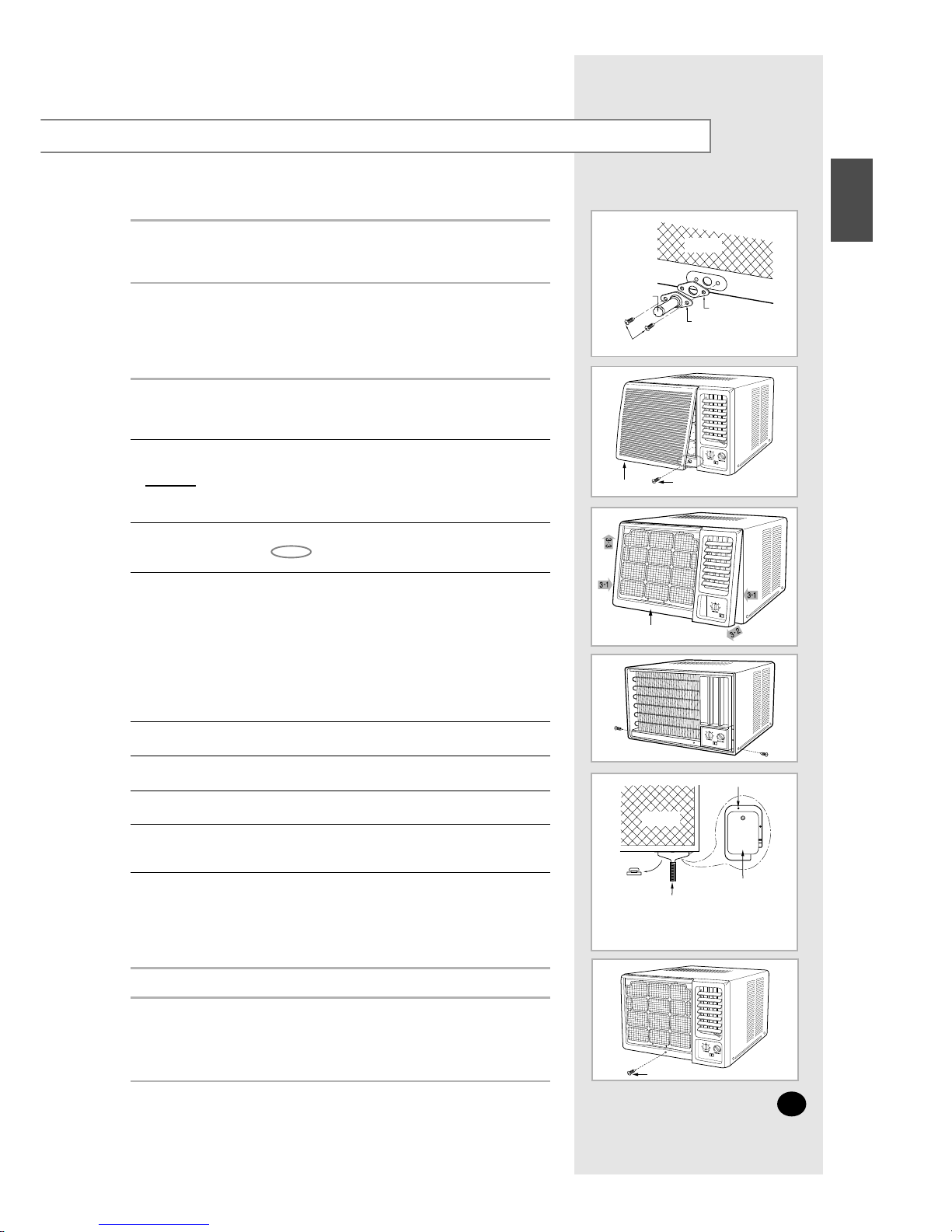

Installation of the Drain Tube
Fix the drain tube as shown in the figure.
Installation of the Drain Pan
The procedure for installing the drain pan should be determined by the
condition of the installing area.
◆ In the case of an area where the drain pan can not be directly
installed on the rear side of the unit after installing the air conditioner.
Example: High storage
◆ In the case of an area where the drain pan can be directly installed
on the rear side of the unit after installing the air conditioner.
Remove two screws on the lower, right and left sides of the unit.
4
Remove the screw located at the lower section of the front grille.
It is secured in the section depending on the model.
2
Open the front grille ; refer to page 11.
1
Remove the chassis from the cabinet.
5
Remove the rubber cap inserted into the basepan.
6
Fix the drain pan as shown in the figure, and then connect the drain hose.
(You can use any commercially-available drain hose.)
7
Install the cabinet at the specified area after installing the drain pan,
and then re-assemble it in the original condition.
8
Follow steps 6 and 7 only
1
Remove the front panel.
3-1 Press both sides of the cabinet in the direction of the arrow
as shown in the figure.
3-2 Pull the lower part of the front panel slightly forward.
(below three inches / 7cm)
3-3 Lift the front panel upward.
3
Applying excessive force to remove the front panel may cause
damage to the tab ; be sure not to use excessive force.
Rubber cap
Screws(2EA)
Gasket
Rear
Drain Tube
☛
Front grille
Screw
Rear
Screw
Drain Pan
Rubber cap
Drain Hose
Bottom-Side View with
Drain Pan and Hose in Place
Front panel
Screw(TH 2S 4 x 10)
E-15
ENGLISH
Secure the front panel to the case by replacing the screw removed in
step 2. If a screw not removed in step 2, secure the panel with a
supplied screw. (TH 2S 4x10)
➢

ELECTRONICS
THIS AIR CONDITIONER IS MANUFACTURED BY:
ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR:
CE CLIMATISEUR EST FABRIQUE PAR:
ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR:
QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA:
Printed in Korea
