USER’S MANUAL
Cassette Type Series
MH✴✴✴FKEA
MH✴✴✴FMEA
Free Joint Multi Air Conditioner
(Cooling and Heating)
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 17

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
◆Users of this product are cautioned not to attempt repair of this product
at their own discretion. Instead, they are requested to directly contact a
designated service center or the outlet at which the product was
purchased.
◆Never spill any kind of liquid into the unit. Should this happen, unplug
or main switch off the unit and contact an authorized service center.
◆Do not insert anything between the air outlet blades because the inner
fan may be damaged and could cause injury. Keep children away from
the unit.
◆Do not place any obstacles in front of the unit.
◆Do not spray liquid of any kind into the indoor unit. Should this happen,
switch off the breaker used for your air conditioner and contact your
installation specialist.
◆Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
◆If the wireless remote control will not be used for a long time, remove
the batteries. (If applicable)
◆When using a wireless remote control, the distance should not be more
than 7 meters from the air conditioner. (If applicable)
WARNING
DURING OPERATION
◆Never store or ship the air conditioner upside down or sideways to
avoid damage to the compressor.
◆The appliance is not intended for use by young children or infirm
persons without supervision: Young children should be supervised to
ensure that they do not play with the appliance.
◆Max current is measured according to IEC standard for safety and
current is measured according to ISO standard for energy efficiency.
OTHERS
◆Before throwing out the device, it is necessary to pull back the battery
cells and get rid of them safely for recycling reasons.
◆When you need to dispose of the unit, consult your dealer. If pipes are
removed incorrectly, refrigerant may blow out and come into contact
with your skin, causing injury. Releasing refrigerant into the atmosphere
also damages the environments.
◆Please recycle or dispose of the packaging material for this product in
an environmentally responsible manner.
D ISPOSING OF THE UNIT
• Risk of electric shock can cause injury or death. • Disconnect all remote
electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
Register your product at www.samsung.com/global/register
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 2

Contents
◆ P REPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . 6
■ Wired Remote Controller-Buttons and Display . . . . . . . . . . . . . 7
■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
■ Function Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
◆ R ECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 10
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . 11
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . 12
■ Bio-Pure Filter Installation (Optional) . . . . . . . . . . . . . . . . . . . . 14
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 15
◆ T ECHNICAL SPECIFICATIONS
E-3
ENGLISH
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the Eu opean Union and othe Eu opean count ies with sepa ate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 3

View of the Unit
The figures are shown in this instruction may differ from yours depending on the model.
Air flow blade
Air inlet
Indoor Unit
E-4
Fan indicator
Filter sign indicator
Timer indicator
On/Off indicator(Green) &
Removing frost
indicator(Red)
Remote control sensor
MH✴✴✴FKEA
Indoor Unit
MH✴✴✴FMEA
Air flow blades(outlet)
Air inlet
Air filter(under the grille)
Timer indicator
Remote control sensor
On/Off button
On/Off indicator
Fan indicator
Removing frost indicator
Filter Sign indicator
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 4

E-5
ENGLISH

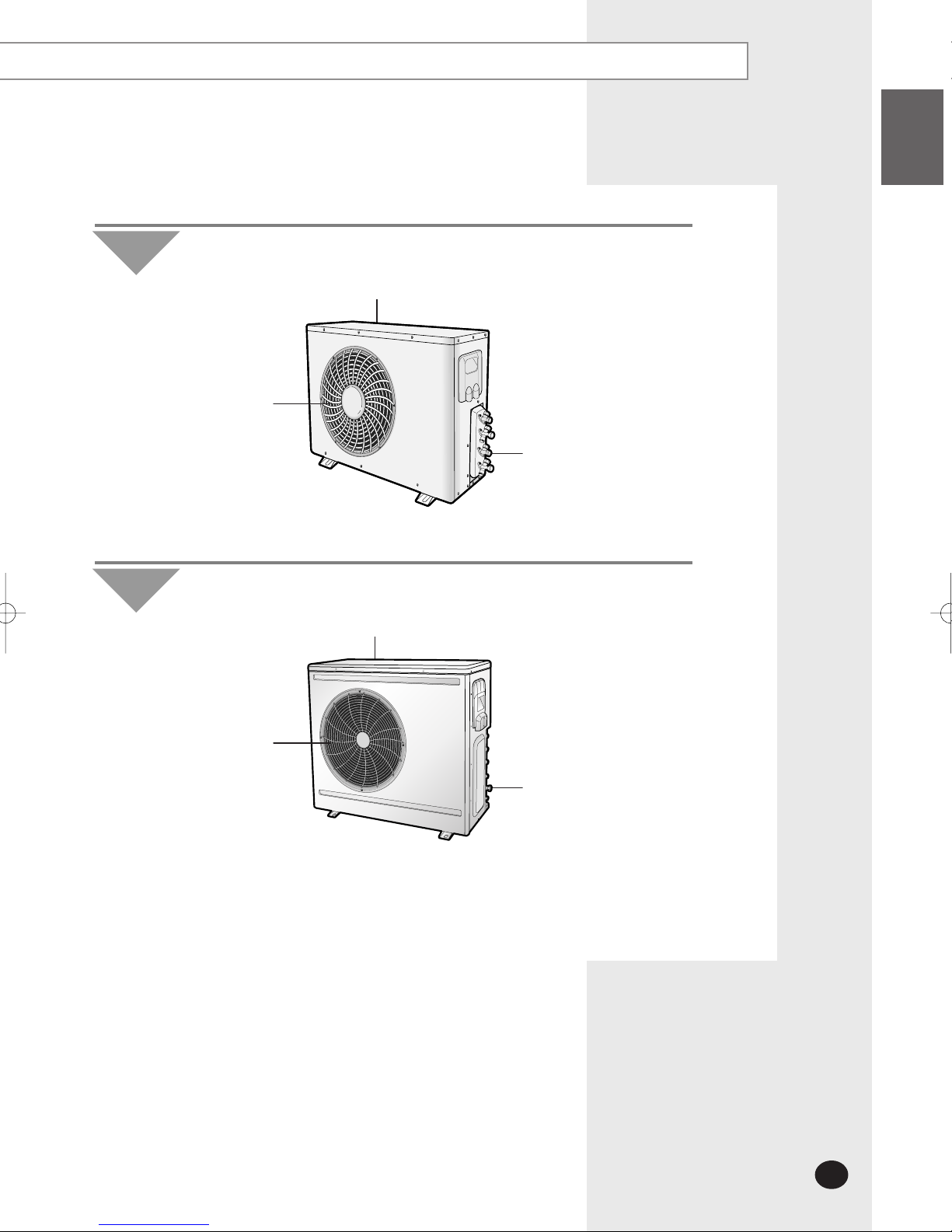

Outdoor Unit MH040FXEA2 MH052FXEA2
Air Inlet (Rear)
Air Outlet
Connection Valve
Outdoor Unit MH068FXEA4 MH080FXEA4
Air Inlet (Rear)
Air Outlet
Connection Valve
If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall. So clean the heat
exchanger with water when it becomes dirty. However, be careful when you wash the surface of
the heat exchanger because it is very sharp.
NN
NNoo oott ttee ee
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 5

E-6

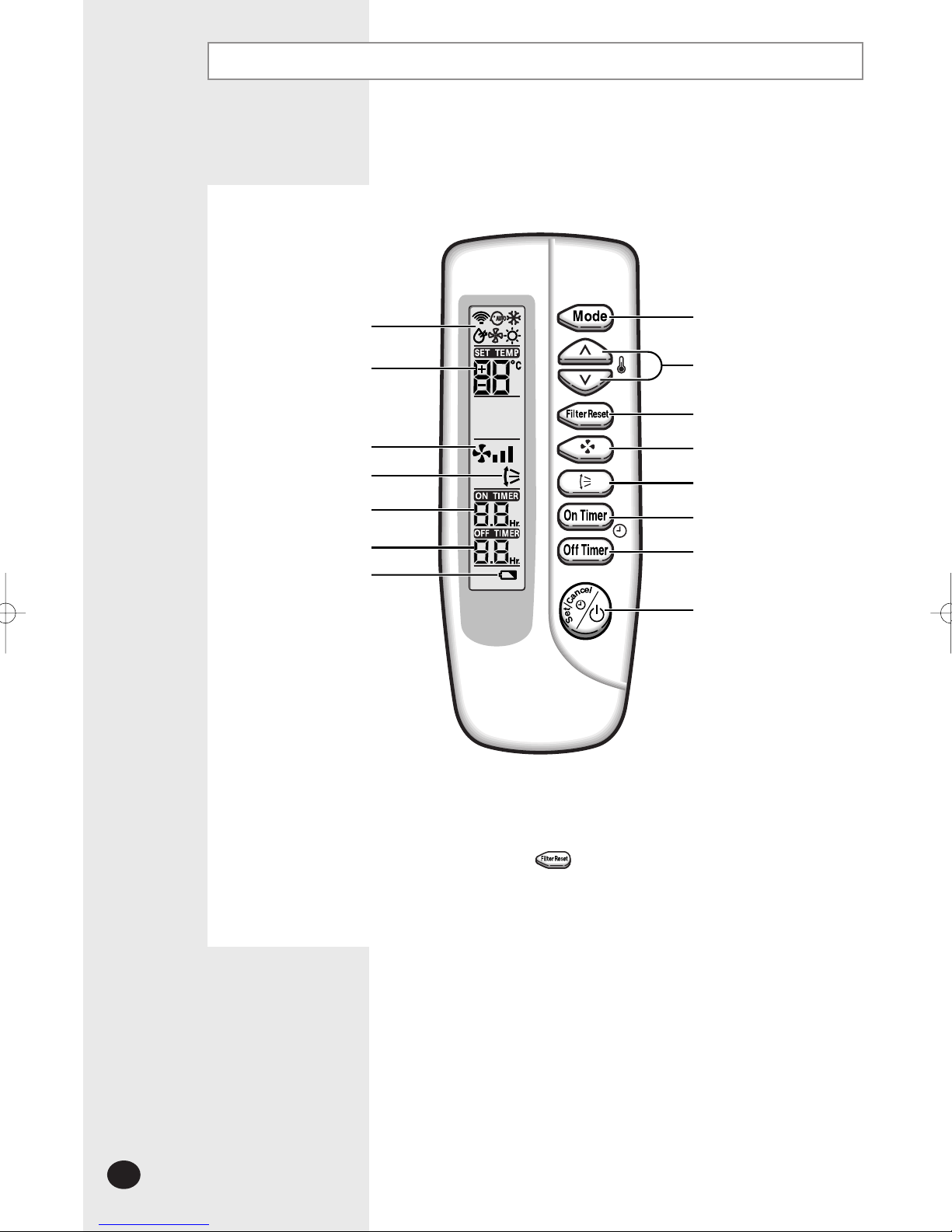

Wireless Remote Controller-Buttons and Display
After cleaning the air filter, press the button.
NN
NNoo oott ttee ee
Operating mode Mode selection button
Filter Reset button
Swing button
On Timer button
Off Timer button
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
Temperature adjustment
buttons
Temperature setting
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Battery discharge indicator
To use the wireless remote controller, refer to an appropriate manual.
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 6

E-7
ENGLISH
◆The button is for your installation specialist. You must NOT press it.
◆After cleaning the air filter, press the button. Then the wired remote
controller will display the FILTER SIGN indicator when the time to clean the air filter;
refer to pages 12~13.
NN
NNoo oott ttee ee
Mode selection button
Communication
error indicator
On Timer setting
Off Timer setting
Test indicator
Timer Set/Cancel button
Test button
Temperature adjustment
buttons
Removing frost indicator
Operating mode
Centralized controller indicator
(In case of installing the Centralized controller)
Filter Reset button
Swing button
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off button
Fan speed
adjustment button
On/Off indicator
On Timer button

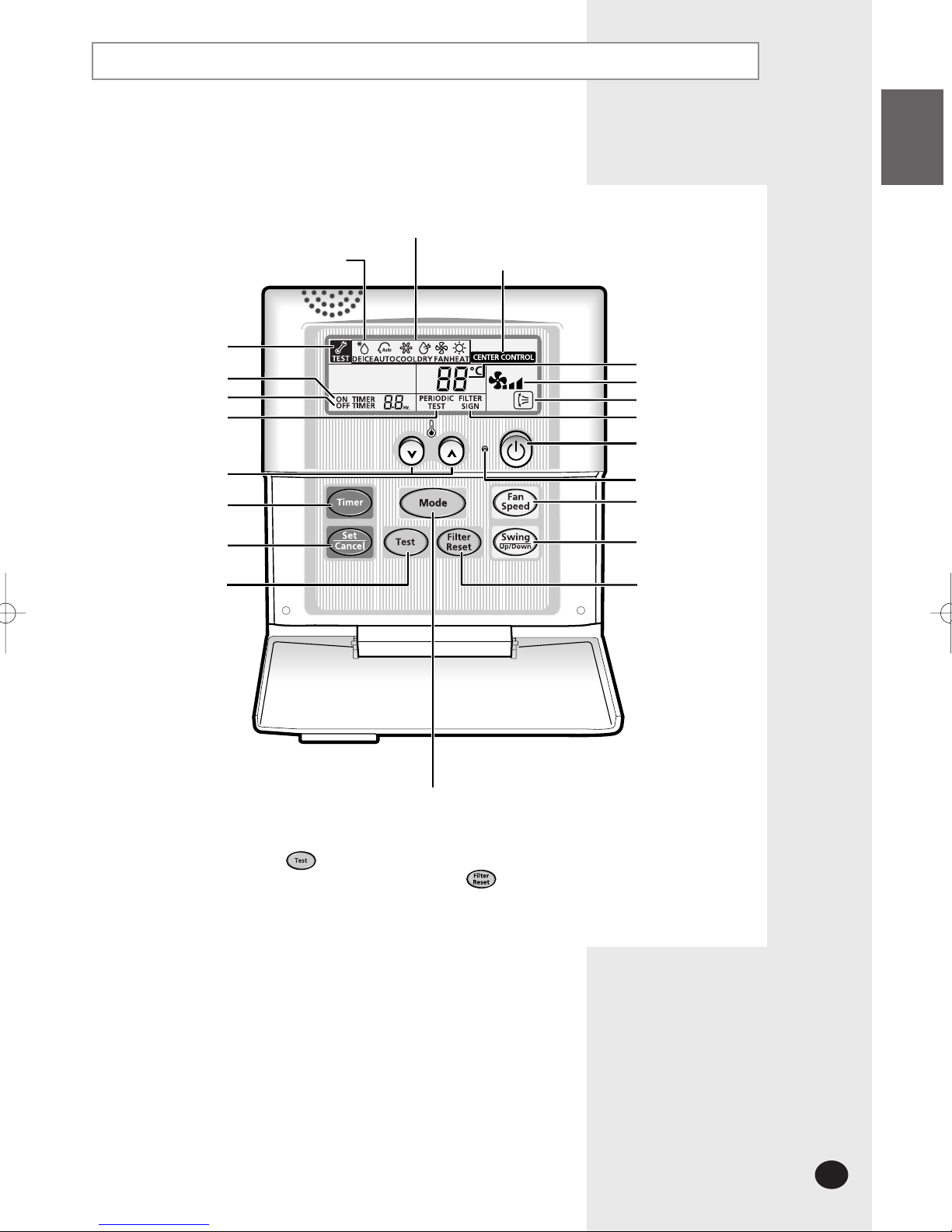

Wired Remote Controller-Buttons and Display
The wired remote controller is an optional accessory and it is installed on the wall.
To use the wired remote controller, refer to an appropriate manual.
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 7

E-8
Centralized Controller
The centralized controller is an optional accessory and it is installed on the wall.
To use the centralized controller, refer to an appropriate manual.
Operating lamp
All On button
All Off button
On/Off indicators
On/Off buttons
Index
The operating lamp comes on even when only one air conditioner
connected to the centralized controller is operating.
NN
NNoo oott ttee ee
Front View
Operating Mode Switch
COOL
AUTO
HEAT
Choose the appropriate operating mode with the Operating Mode Switch
that enables the user to choose between the Cool/Auto/Heat mode.
NN
NNoo oott ttee ee
Side View
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 8

E-9
ENGLISH
Function Controller
The function controller is an optional accessory and it is installed on the wall.
The function controller is an additional controller which is used with the centralized controller.
To use the function controller, refer to an appropriate manual.
Mode selection button
Room number display
Test indicator
Indoor unit
selection button
Test button Filter Reset button
Swing button
Temperature
adjustment buttons
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
On/Off indicator
Centralized controller indicator
Communication
error indicator
Removing frost indicator
Operating mode
◆ button is for your installation specialist. You must NOT press it.
◆After cleaning the air filter, press the button. Then the wired remote controller will
display the FILTER SIGN indicator when the time to clean the air filter.
NN
NNoo oott ttee ee
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 9

E-10
Operating Recommendations
Here are a few recommendations that you should follow when operating
your air conditioner.
Topic Recommendation
The heat pump function of the air conditioner absorbs heat
from outside air and brings it indoors. As the temperature of the
outside air drops, the heating performance of air conditioner will
decrease. If you find that the room is not warm enough, using
an additional heating appliance is recommended.
Heating
performances
When outside temperature is low but humidity is high,
frost may form on the outdoor unit at HEAT mode.
If this happens:
◆ The heating operation stops.
◆ The defrost mode will be triggered automatically for about
10 minutes.
◆ The steam produced on the outdoor unit in the defrost mode is
safe.
No intervention is required ; after about 10 minutes, the air
conditioner operates again normally.
Frost&Defrost
If both indoor and outdoor temperatures are high and the air
conditioner is running at HEAT mode, the outdoor unit’s fan
and compressor may stop at times.
This is normal ; simply wait until the air conditioner switches
on again.
High indoor
and outdoor
temperatures
If a power failure occurs while the air conditioner is operating,
the unit will be switched off. When the power returns, the air
conditioner starts up again automatically.
Power failure
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 10

Temperature and Humidity Ranges
E-11
ENGLISH
The following table indicates the temperature and humidity ranges,
within which the air conditioner can be used.
If the air conditioner is used at... Then...
The automatic protection feature may be
triggered and the air conditioner stopped.
High temperature
A water leakage or some other
malfunction may happen if the heat
exchanger freezes.
Low temperature
Water may condense on and drip from
the surface of the indoor unit if it is used
for a long periods.
High humidity levels
❇ The standardized temperature for heating is 7°C. If the outdoor
temperature drops to 0°C or below, the heating capacity can be
reduced depending on the temperature condition.
If the cooling operation is used at over 32°C(indoor temperature) then,
it does not cool at its full capacity.
Mode Outdoor Temperature Indoor Temperature Indoor Humidity
Heating
Cooling
Drying
-15°C to 24°C approx.
5°C to 43°C approx.
5°C to 43°C approx.
27°C or less
21°C to 32°C approx.
18
°C to 32°C approx.
-
80% or less
-
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 11

Cleaning Your Air Conditioner
For the best use of your air conditioner, you must clean it every
2 weeks regularly to remove the dust that accumulates on the air filter.
Before cleaning your air conditioner, ensure that you have
switched off the electric circuit breaker used for the unit.

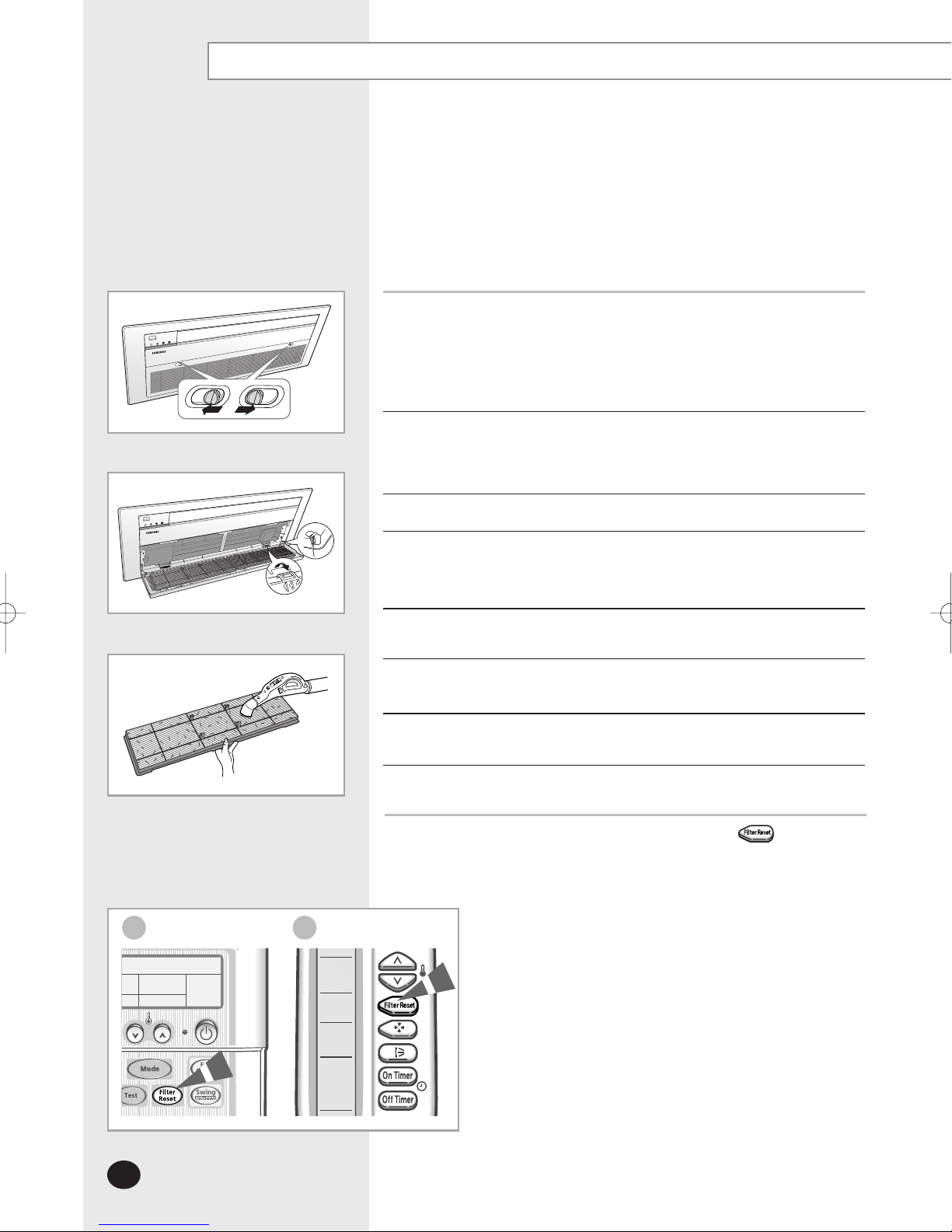

Open the front grille by pushing the tabs on the grille.
1
Remove the front grille.
2-1 Remove the safety clips.
2-2 Open the front grille about 45°and pull it forward.
2
Pull out the air filter.
3
Remove all dust on air filter with a vacuum cleaner or a brush. In case of
serious dust accumulation, put the air filter in warm detergent water and
shake it vertically.
4
Dry the air filter.
5
When you have finished, insert the filter into the front grille.
6
Clean the unit with a vacuum cleaner or a brush once a month.
7
Reinstall the front grille and the safety clips.
8
CC
CCAA AAUU UUTT TTII IIOO OONN NN
You must give attention when disassembling the front grille
and must check the safety clips have been installed.
If you do not check them, the front grille will drop suddenly
and you will be hurt.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
After cleaning the air conditioner, press the button.
NN
NNoo oott ttee ee
Wired Remote Controller Wireless Remote Controller
MH✴✴✴FKEA
E-12
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 12

Open the front grille by pushing the tabs on the grille.
1
Remove the front grille.
2-1 Remove the safety clips.
2-2 Open the front grille about 45°and pull it forward.
2
Pull out the air filter.
3
Remove all dust on air filter with a vacuum cleaner or a brush. In case of
serious dust accumulation, put the air filter in warm detergent water and
shake it vertically.
4
Dry the air filter.
5
When you have finished, insert the filter into the front grille.
6
Clean the unit with a vacuum cleaner or a brush once a month.
7
Reinstall the front grille and the safety clips.
8
You must give attention when disassembling the front grille
and must check the safety clips have been installed.
If you do not check them, the front grille will drop suddenly
and you will be hurt.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
◆ After cleaning the air conditioner, press the Filter Reset
button.
◆ Do not operate the air conditioner without the filter.
NN
NNoo oott ttee ee
When you have installed the Bio-Pure filter, do not allow any
liquids to contact the filter. It may lose its properties.
NN
NNoo oott ttee ee
You can use all 4 points of the indoor unit for installing the
front grille and the safety clips depending on your requirement.
NN
NNoo oott ttee ee
Safety Clip
Wired Remote Controller Wireless Remote Controller
MH✴✴✴FMEA
E-13
ENGLISH
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 13

Bio-Pure Filter Installation (Optional)
(Only for MH✴✴✴FKEA)
E-14
Open the front grille by pulling the tabs on the grille.
2
Remove the front grille.
3-1 Remove the safety clips.
3-2 Open the front grille about 45°and pull it forward.
3
Insert Bio-Pure or deodorizing filter.
4
Reinstall the front grille and the safety clips.
5
Do not remove the packing from a bio-pure filter until you wish
to use the filter, as it will lose its properties.
NN
NNoo oott ttee ee
The air conditioner can be fitted with a Bio-Pure or deodorizing filter to remove
minute dust particles or odours. The service life of the filter is approximately
3 months depending on the time during which the air conditioner is used.
Remove the vinyl packing from the filter.
1
Bio-pure filter
Deodorizing filter
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 14

E-15
ENGLISH
Solving Common Problems
Before contacting the after-sales service, perform the following simple checks.
They may save your time and expense of an unnecessary call.
Explanation/Solution
◆Check that the breaker used for the air conditioner is switched on.
Problem
The air conditioner does not
operate at all
◆Check that there are no obstacles between you and the remote
control sensor.
◆Check the wireless remote controller batteries.
◆Check that you are close enough to the remote control sensor.
(7 metres/yards or less).
◆Check that you are pointing the remote controller at the remote
control sensor on the indoor unit.
◆Replace the remote controller batteries if necessary.
◆If there is a strong light around the air conditioner, a
three-wavelength light, a neon sign, etc., for example,
the air conditioner may not be operated with a remote controller.
If this happens, use the remote controller close by the remote
control sensor.
◆Check that the correct operating mode has been selected.
◆The room temperature may be too low or too high.
◆Dust may be blocking the air filter guard; refer to pages 12~13
for cleaning instructions.
◆Check that there is no obstacle in front of the outdoor unit.
The air conditioner does not
operate with the remote
controller
Wi eless Remote Cont olle
Wi eless Remote Cont olle
No beep is heard when you
press (On/Off) on the
remote controller
The air conditioner does
not cool or heat
◆ is displayed on the wired remote controller. In this case,
turn the air conditioner off and contact your dealer.
Wi ed Remote Cont olle
The air conditioner does not
operate with the remote
controller
◆In case of using the wired remote controller for a group, the air
conditioners connected to the remote controller are turned on/off in
order. Thus, it takes some time(up to 32 seconds).
Wi ed Remote Cont olle
When turning on/off the
air conditioner, it is not
turned on/off immediately.
◆Check that the required temperature has been set correctly.
◆Increase the fan speed.
When heating, the required
room temperature is never
reached and the air
conditioner frequently stops
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 15

Web Site
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com/fr
www.samsung.de
www.samsung.com/hu
www.samsung.com/it
www.samsung.lu
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.ru
www.samsung.com/ur
ELECTRONICS
Country
BELGIUM
CZECH REPUBLIC
DENMARK
FINLAND
FRANCE
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
SLOVAKIA
SPAIN
SWEDEN
U.K
RUSSIA
UKRAINE
Customer Care Center
02 201 2418
844 000 844
38 322 887
09 693 79 554
08 25 08 65 65 ( 0,15/min)
01805 - 121213 ( 0,12/min)
06 40 985 985
199 153 153
02 261 03 710
0900 20 200 88 ( 0.10/min)
231 627 22
0 801 801 881
80 8 200 128
0850 123 989
902 10 11 30
08 585 367 87
0870 242 0303
8-800-200-0400
8-800-502-0000
Contact SAMSUNG WORLD WIDE
If you have any comments or questions regarding a Samsung products, contact the SAMSUNG
customer care center.
MH***FKEA IB_E_20235 5/12/06 6:31 PM Page 16
