1 Overview

1.1 General Description

The validator is installed on the bus and has a role of fare collection. It has a RF card

reader/writer which comply the EMV standard and ISO 14443 Type A. The validator has a

5.7”touch screen display for passenger interface.

It is compatible to a peripheral device through a multiple external interface such as Wi-Fi,

Bluetooth and etc.

This document informs and defines each module and specification of validator.

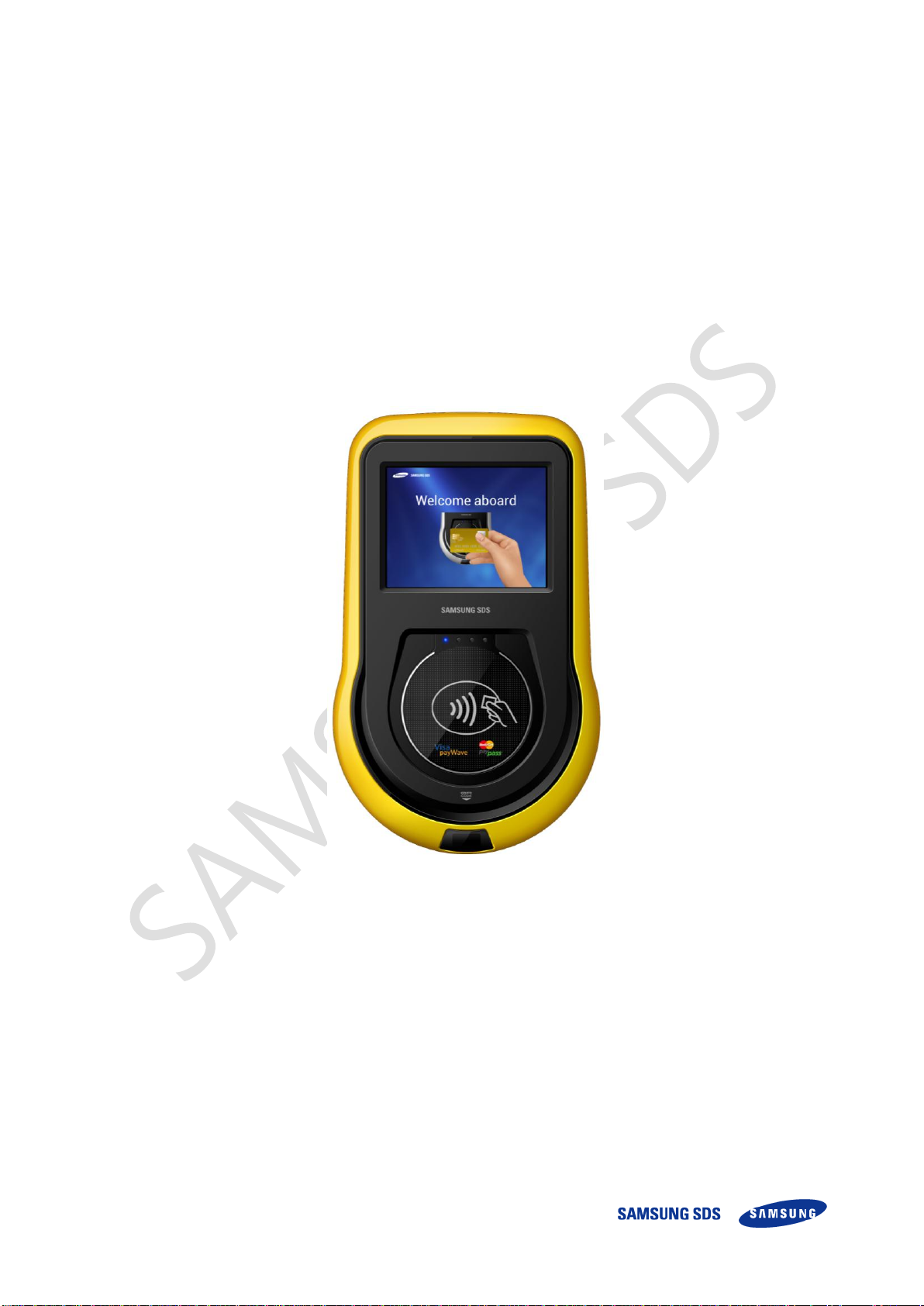

Figure 1 Drawing of validator

System Manual –SAM-OCU-14 –2013.12.05

- 7 -

1.2 Outside Dimension

Figure 2 Outside dimension

System Manual –SAM-OCU-14 –2013.12.05

- 8 -

1.3 System Configuration

1.3.1 Block Diagram

The following figure is the validator block diagram.

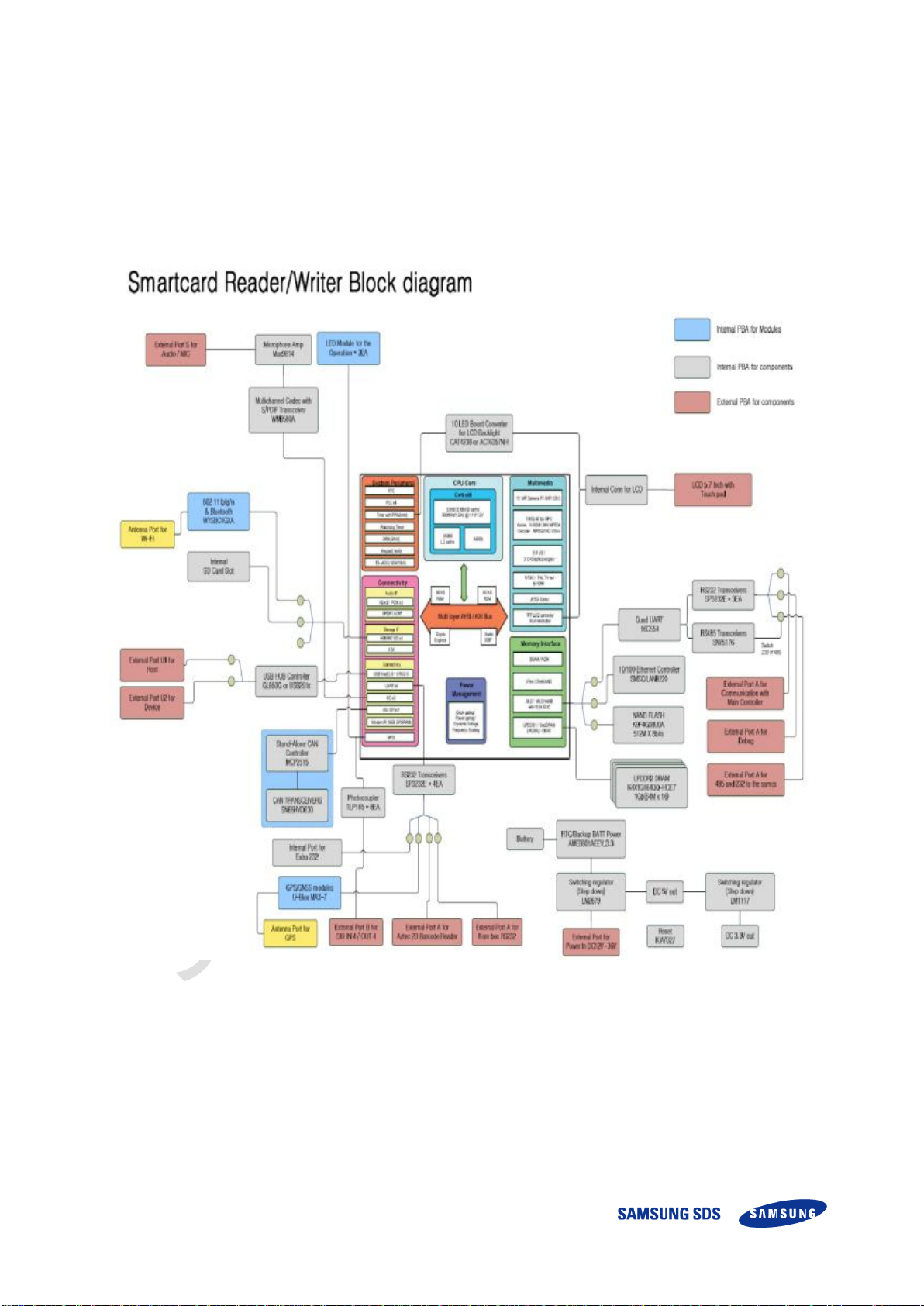

Figure 3 Validator Block Diagram

System Manual –SAM-OCU-14 –2013.12.05

- 9 -

1.4 General Specification

The table below shows the general specifications of the validator.

System

Item

Specification

Enclosure

Dimension(mm)

193.0(W) * 319.0(H) * 61.5(D)

Material

Outside steel of enclosure :

Material: PC-ABS

CPU Module

Processor

Samsung S5PV210, Cortex-A8 1GHz

Memory

RAM: 512MB, NAND Flash: 512MB

ANDROID 4.0

Base Board Module

WiFi/Bluetooth Module

IEEE802.11b/g/n, Bluetooth 3.0+HS

GPS module

GPS RX Sensitivity: -164dBm

GPS Accuracy: 3m

Card Reader/Writer

CPU

STM32F417Zxx, ARM Cortex-M4

Program Memory

1024KBytes Flash Memory

Data Memory

192KBytes SRAM + BACK UP(4KBytes)

SRAM

512KBytes (model : CS18LV40963ECR70)

Display

LED for Display –4EA (Green, Blue, Red, Yellow)

LED for Debug –1EA (Red)

LED for Power –2EA (Red)

Communication

RS232 * 2

RF I/F

PN512

SIC9310

RC-S940

Standard

ISO14443 A/B, FeliCa, Mifare, ISO15693

Input Power

12V, 300mA

SAM

SIM socket 8EA

Barcode Reader

Image Sensor

CMOS Sensor, Max. 752*480, 8-bit grayscale

Target Distance

5~32.5Cm: Depends on code size

Symbologies

1/2 Dimensional

Touch screen display

5.7 inch

Resolution: 640 * 3(RGB) * 480

Touch method: 4-wire resistive

External Interface

USB 2.0 Host * 1

LAN * 1

RS232/485 * 2

CAN interface * 1

Antenna port *2

Speaker

Rated Input Power

1W, 8ohm

Power

Input voltage (V)

24 VDC

Table 1 General specification

System Manual –SAM-OCU-14 –2013.12.05

- 10 -

2 Module Configuration

The configuration of validator is as follows:

CPU Module

Base Board Module

Card Reader/Writer

Barcode Reader

Touch Screen Display

Speaker

2.1 CPU Module

2.1.1 General Description

The CPU Module controls all the sub-modules and processes all the data in the validator.

They have sufficient space for Operating System (OS) and the application data.

CPU Module is assembled with some parts as follows;

- CPU (Samsung S5PV210, Cortex-A8 1GHz)

- RAM (LDDR2 1Gbit *4)

- NAND Flash 512MB

System Manual –SAM-OCU-14 –2013.12.05

- 11 -

2.1.2 Block diagram

Figure 4 Block diagram of CPU Module

System Manual –SAM-OCU-14 –2013.12.05

- 12 -

2.2 Base board module

2.2.1 General Description

Base board module performs major functions of validator device controlling. The Wi-Fi/BT

module, CAN module and etc. are installed on the base board.

2.2.2 Layout of Base board module

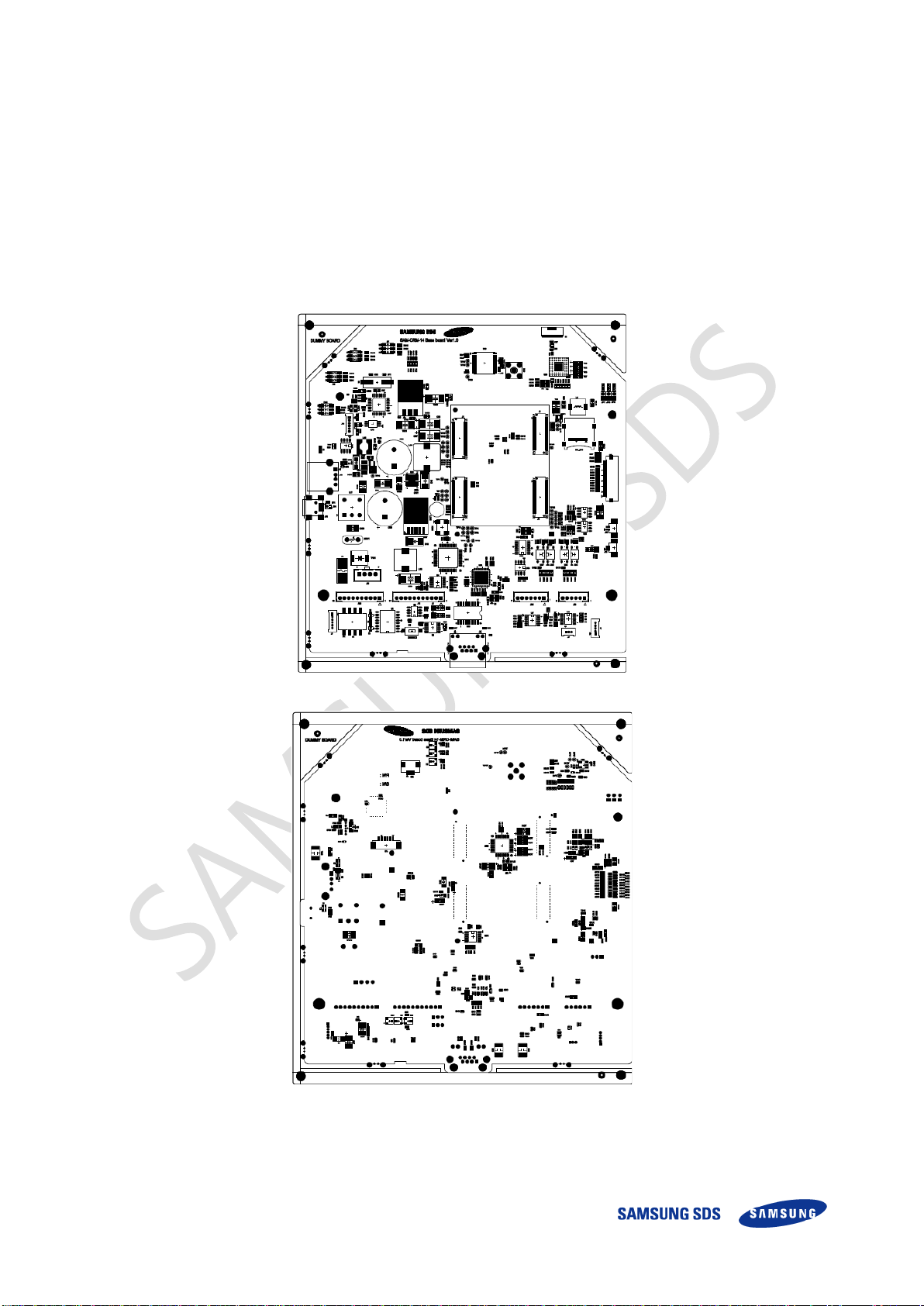

Figure 5 Top Layout of Base board module (Example)

Figure 6 Bottom Layout of Base board module (Example)

System Manual –SAM-OCU-14 –2013.12.05

- 13 -

2.2.3 Wi-Fi/Bluetooth module

The validator has the Wi-Fi/Bluetooth module to communicate with the server (in the

garage) and peripheral devices. The key features are as below;

IEEE802.11b/g/n standard conformity, BT3.0,2.1+EDR

Low standby current (with advanced power save and sleep mode)

Transmit speed : 11/5.5/2/1 Mbps(11b), 54/48/36/24/18/12/9/6 Mbps(11g),

150~6.5 Mbps (11n)

Channel Number : 1 to 13 channel (11bg), 79 channel (BT)

Interface : SDIO

Built-in EEPROM, 2G-PA, Crystal, BPF

Security: WEP (64/128), TKIP, AES, WPA/WPA2, WAPI

Small Outline: 9.0 x 8.8 x 1.35(Max) mm

Package: Metal case package

Utilizes 88W8787 IC

RoHS Conformity

2.2.4 GPS module

The specification of GPS module is as below.

Item

Specification

RX Sensitivity

-164dBm

Cold start autonomous

-147dBm

Hot start autonomous

-161dBm

Tracking mode

-166dBm

Accuracy

TTFF from cold start

42 sec

TTFF from warm start

30 sec

TTFF from hot start

1.8 sec

Table 2 Specification of GPS module

System Manual –SAM-OCU-14 –2013.12.05

- 14 -

2.3 Card Reader/Writer

2.3.1 General Description

Card Reader/Writer is a high-end RF reader and it is the world first device which supports

all three specification as following, (1) Contactless card spec_Mifare, ISO14443 Standard

A/B, (2)Payment spec_Paywave, Paypass, JSMART,American Express and (3) EMVCo

Type Approval Contact less Level 1 , NFC forum spec complaint.

It also has 8(EA) of SIM slot for secure communication, RS-232(2ea) as interface method.

Purpose (Use)

It is multi-purpose smartcard reader mainly use for credit card transaction at auto-gate at

subway station or automatic ticket vending machine

Communication & Operation

It controls credit card transaction by sending command to Host Controller via RS232.

This terminal operates LED and Buzzer of the transaction operating and result.

The operation of LED & Buzzer can be different by each specification (refer to the Paypass,

JSMART, American Express specification for detail information)

RF interface

Conrtactless card spec_Mifare,

ISO14443 Standard A/B

SAM interface

It is designed to capable of communicating SAM (ISO 7816 ) by attaching extended parts

for future use.

2.3.2 Specification

System

Item

Specification

Card Reader/Writer

CPU

STM32F417Zxx, ARM Cortex-M4

Program Memory

1024KBytes Flash Memory

Data Memory

192KBytes SRAM + BACK UP(4KBytes)

SRAM

512KBytes (model : CS18LV40963ECR70)

Display

LED for Display –4EA (Green, Blue, Red, Yellow)

LED for Debug –1EA (Red)

LED for Power –2EA (Red)

System Manual –SAM-OCU-14 –2013.12.05

- 15 -

System

Item

Specification

Communication

RS232 * 2

RF I/F

PN512

SIC9310

RC-S940

Standard

ISO14443 A/B, FeliCa, Mifare, ISO15693

Input Power

12V, 300mA

SAM

SIM socket 8EA

Switch

Case open switch (PCB tamper)

Table 3 Specification of Card reader/writer

System Manual –SAM-OCU-14 –2013.12.05

- 16 -

2.4 Touch Screen Display

2.4.1 General Description

The Touch screen display is a color graphic touch screen (5.7”inch TFT LCD) that allows

passenger to input their selection. The Touch screen display is positioned ergonomically

for passenger to operate easily.

2.4.2 Layout

Figure 7 Layout of LCD display

System Manual –SAM-OCU-14 –2013.12.05

- 17 -

Figure 8 Layout of Touch panel

2.4.3 LCD display specification

Item

Specification

Screen Diagonal

5.7 inch

Active Area

115.2(H) x 86.4(V) (mm)

Pixels HxV

640 x 3(RGB) x 480

Pixel Pitch

0.18 x 0.18 (mm)

Pixel Arrangement

R.G.B Vertical Stripe

Display Mode

TN, Normally White

Nominal Input Voltage

VDD

3.3 typ. (Volt)

Typical Power

Consumption

3.74W (LCD:0.5W/LED BLU:3.24W)

@ All black pattern, Full Load and VLED=12V

Weight

150g(typ.), 165g(max.)

Physical Size

144.0(H) x 104.6(V) x 12.3(D)(typ.) (mm)

Electrical Interface

CMOS 6-bit Parallel RGB

Surface Treatment

Anti-Glare, Hardness 3H

Support Color

262K colors

System Manual –SAM-OCU-14 –2013.12.05

- 18 -

Item

Specification

The most suitable view

angle

12 o’clock

Temperature Range

Operating: -30℃~+85℃

Storage: -30℃~+85℃

RoHS Compliance

Table 4 Specification of LCD Display

2.4.4 Touch panel specification

Item

Specification

Glass THK

1.1mm

Film type

Non-glare

Tail

FPC (Ni+Au)

Method

4-wire resistive touch

Table 5 Specification of Touch panel

System Manual –SAM-OCU-14 –2013.12.05

- 19 -

2.5 Barcode Reader

2.5.1 General Description

The validator has the barcode reader to read the barcode type ticket (1D or 2D).

2.5.2 Layout

Figure 9 Layout of Barcode reader

2.5.3 Specification

Item

Specification

Image Sensor

CMOS Sensor, Max. 752*480, 8-bit grayscale

Target Distance

5~32.5cm: Depends on code size.

Viewing Angle

Wide ±53º, Standard ±40º

Aiming Pattern

Laser Aiming

Ambient Lighting

Total darkness to full sunlight

Directions

360 ºomni-directional

1 Dimensional

Code11, Code32, Code39, Code93, Code128, UPC/JAN/EAN, Codabar,

Interleaved 2 of 5,

STF, RSS14, RSS Limited, RSS Truncated

2 Dimensional

PDF-417, Data Matrix, QR Code (including Chinese QR)

OCR

Application-specific OEM only

Operating Temperature

-10ºC to +50ºC (-14ºF to 122ºF)

Storage Temperature

-20ºC to +60ºC (-4ºF to 140ºF)

Shock

Multiple 4ft/1.2M drop to concrete

Humidity

0 to 95%

Certifications

FCC Class A & CE

Table 6 Specification of Barcode reader

Table of contents

Samsung SAM-CRM-14 User manual

Popular Card Reader manuals by other brands
