Samsung Galaxy Core Prime User manual

SMARTPHONE
User Manual
Please read this manual before operating your device
and keep it for future reference.

i
Legal Notices
Legal Notices
Warning: This product contains chemicals known to the
State of California to cause cancer and reproductive toxicity.
Intellectual Property
All Intellectual Property, as defined below, owned by
or which is otherwise the property of Samsung or its
respective suppliers relating to the SAMSUNG Phone,
including but not limited to, accessories, parts, or
software relating there to (the “Phone System”), is
proprietary to Samsung and protected under federal laws,
state laws, and international treaty provisions. Intellectual
Property includes, but is not limited to, inventions
(patentable or unpatentable), patents, trade secrets,
copyrights, software, computer programs, and related
documentation and other works of authorship. You may
not infringe or otherwise violate the rights secured by the
Intellectual Property. Moreover, you agree that you will
not (and will not attempt to) modify, prepare derivative
works of, reverse engineer, decompile, disassemble,
or otherwise attempt to create source code from the
software. No title to or ownership in the Intellectual
TF_SM-S820WL_Eng_UM_NL2_TN_010715_R7

Property is transferred to you. All applicable rights of the
Intellectual Property shall remain with SAMSUNG and its
suppliers.
Open Source Software
Some software components of this product incorporate
source code covered under GNU General Public
License (GPL), GNU Lesser GeneralPublic License
(LGPL), OpenSSL License, BSD License and other
open source licenses. Toobtain the source code
covered under the opensource licenses, please visit:
http://opensource.samsung.com.
Disclaimer of Warranties; Exclusion of
Liability
EXCEPT AS SET FORTH IN THE EXPRESS
WARRANTY CONTAINED ON THE WARRANTY PAGE
ENCLOSED WITH THE PRODUCT, THE PURCHASER
TAKES THE PRODUCT “AS IS”, AND SAMSUNG
MAKES NO EXPRESS OR IMPLIED WARRANTY
OF ANY KIND WHATSOEVER WITH RESPECT TO
THE PRODUCT, INCLUDING BUT NOT LIMITED TO
THE MERCHANTABILITY OF THE PRODUCT OR
ITS FITNESS FOR ANY PARTICULAR PURPOSE
OR USE; THE DESIGN, CONDITION OR QUALITY
ii
Legal Notices

OF THE PRODUCT; THE PERFORMANCE OF THE
PRODUCT; THE WORKMANSHIP OF THE PRODUCT
OR THE COMPONENTS CONTAINED THEREIN;
OR COMPLIANCE OF THE PRODUCT WITH THE
REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION
OR CONTRACT PERTAINING THERETO. NOTHING
CONTAINED IN THE INSTRUCTION MANUAL SHALL BE
CONSTRUED TO CREATE AN EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH
RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG
SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY
KIND RESULTING FROM THE PURCHASE OR USE OF
THE PRODUCT OR ARISING FROM THE BREACH OF
THE EXPRESS WARRANTY, INCLUDING INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS
OF ANTICIPATED PROFITS OR BENEFITS.
Modification of Software
SAMSUNG IS NOT LIABLE FOR PERFORMANCE
ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR
EDITING OF REGISTRY SETTINGS, OR YOUR
MODIFICATION OF OPERATING SYSTEM SOFTWARE.
iii
Legal Notices

USING CUSTOM OPERATING SYSTEM SOFTWARE
MAY CAUSE YOUR DEVICE AND APPLICATIONS TO
WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT
USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH
AS CUSTOM OS.
SAFE™(Samsung For Enterprise)
SAFE™: “SAFE™” (Samsung for Enterprise) is a mark
for a Samsung device which has been tested against
Samsung’s own internal criteria for interoperability with
certain third party security-related solutions for MDM
and VPN. The testing includes field testing with local
network connection and menu tree testing which tests
functionality of the solutions in conjunction with the
Samsung device. During the testing, the device is tested
with the security solutions to see if the solutions work
with the device as described by the third party security
solution providers. The testing, for example, includes
field testing with local network connection and menu
tree testing which tests functionality of the solutions
in conjunction with the Samsung device. For more
information about Samsung’s SAFE™program, please
refer to www.samsung.com/us/safe.
iv
Legal Notices

Disclaimer of Warranties: EXCEPT AS OTHERWISE
PROVIDED IN THEIR STANDARD END USER LICENSE
AND WARRANTY, TO THE FULL EXTENT PERMITTED
BY LAW SAMSUNG ELECTRONICS CO., LTD.,
SAMSUNG ELECTRONICS AMERICA, INC., AND THEIR
AFFILIATES (COLLECTIVELY REFERRED TO HEREIN
AS THE “SAMSUNG ENTITIES”) EXPRESSLY DISCLAIM
ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY WARRANTY OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE,
INTEROPERABILITY OR NON-INFRINGEMENT,
WITH RESPECT TO INFORMATION TECHNOLOGY
SECURITY PROTECTION, SAFE™DEVICES AND
APPLICATIONS TESTED WITH SAFE™DEVICES. IN NO
EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE,
OR CONSEQUENTIAL DAMAGES OF ANY KIND
WHATSOEVER WITH RESPECT TO INFORMATION
TECHNOLOGY SECURITY PROTECTION, SAFE™
DEVICES OR APPLICATIONS TESTED WITH SAFE™
DEVICES. In addition, information technology security
protection will be affected by features or functionality
associated with, among other things the e-mail platform,
master data management, and virtual private network
solutions selected by the software provider, solution
provider or user. Choice of an e-mail, master data
management, and virtual private network solution
is at the sole discretion of the software provider,
v
Legal Notices

solution provider or user and any associated effect on
information technology security protection is solely the
responsibility of the software provider, solution provider
or user. For complete statement of limited warranty,
please refer to www.samsung.com/us/safe, available on
the web and where Samsung smartphones and mobile
devices are sold. [010115]
Samsung Electronics America (SEA), Inc
Address:
85 Challenger Road
Ridgefield Park,
New Jersey 07660
Phone: 1-800-SAMSUNG (726-7864)
Internet Address: www.samsung.com
©2015 Samsung Electronics America, Inc. Samsung,
Galaxy, Galaxy Note, S Pen, Multiwindow, and SHealth are
registered trademarks of SamsungElectronics Co., Ltd.
vi
Legal Notices

Do you have questions about your Samsung
Mobile Device?
For 24 hour information and assistance, we offer a new
FAQ/ARS System (Automated Response System) at:
www.samsung.com/us/support
The actual available capacity of the internal memory is
less than the specified capacity because the operating
system and default applications occupy part of the
memory. The available capacity may change when you
upgrade the device.
Nuance®, VSuite™, T9®Text Input, and the Nuance logo
are trademarks or registered trademarks of Nuance
Communications, Inc., or its affiliates in the United States
and/or other countries.
ACCESS®and NetFront™are trademarks or registered
trademarks of ACCESS Co., Ltd. in Japan and other
countries.
The Bluetooth®word mark, figure mark (stylized “B
Design”), and combination mark (Bluetooth word mark
and “B Design”) are registered trademarks and are
wholly owned by the Bluetooth SIG.
vii
Legal Notices

microSD™and the microSD logo are Trademarks of the
SD Card Association.
Openwave®is a registered Trademark of Openwave,Inc.
Google, the Google logo, Android, the Android logo,
Google Play, Gmail, Google Mail, Google Maps, Google
Music, Google Hangouts, Picasa, Play Newsstand,
YouTube, and other marks are trademarks of Google Inc.
Wi-Fi is a registered trademark of the WirelessFidelity
Alliance, Inc.
Online Legal Information
The online version of the Health/Safety and Warranty
guide for your device can be found at:
English
www.samsung.com/us/Legal/Phone-HSGuide
Spanish
www.samsung.com/us/Legal/Phone-HSGuide-SP
The online version of the End User Licensing
Agreement for your device can be found online at:
www.samsung.com/us/Legal/SamsungLegal-EULA1.
viii
Legal Notices

Table of Contents
Getting Started .....................................................................1
Front View............................................................................. 2
Back View............................................................................. 4

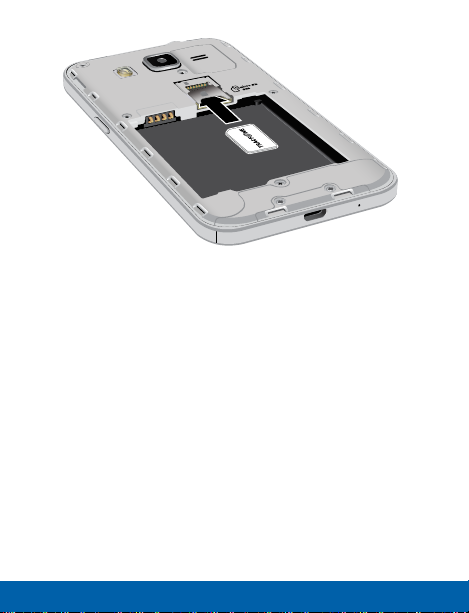

Assemble Your Device ....................................................... 6
Set Up Your Device........................................................... 14
Set Up Accounts ...............................................................16
Know Your Device ...........................................................18
Home Screen .....................................................................19
Status Bar ...........................................................................27
Navigation and Motions ................................................... 31
Notification Panel ..............................................................33
Entering Text.......................................................................36
Calling...................................................................................... 39
Making and Answering Calls ..........................................40
Applications......................................................................... 50
Apps Screen ......................................................................51
Google Applications .........................................................56
Calculator............................................................................61
Calendar .............................................................................63
Camera and Video............................................................ 65
ix Table of Contents

Clock ...................................................................................71
Contacts..............................................................................74
Email.................................................................................... 83
Gallery ................................................................................. 86
Internet ................................................................................90
Memo ..................................................................................94
Messages ...........................................................................96
Music Player.....................................................................103
My Files.............................................................................105
Video .................................................................................110
Voice Recorder................................................................112
Settings..................................................................................114
How to Use Settings.......................................................116
Wi-Fi and Wi-Fi Direct .....................................................117
Bluetooth...........................................................................124
Airplane Mode .................................................................129
Data Usage ......................................................................130
Location Services............................................................132
Printing ..............................................................................135
More Networks ................................................................136
Sound Settings ................................................................139
Display Settings...............................................................143
Lock Screen .....................................................................149
Call Settings .....................................................................152
Application Manager .......................................................158
Accounts...........................................................................164
Backup and Reset ..........................................................167
x Table of Contents

Accessibility .....................................................................169
Language and Input Settings........................................173
Date and Time Settings ..................................................178
Ultra Power Saving Mode ..............................................180
Battery...............................................................................182
Storage..............................................................................183
Security .............................................................................188
About Your Phone ...........................................................193
xi Table of Contents

Getting Started
Learn about your mobile device
hardware, assembly procedures,
and how to get started using your
new device.

Front View
Earpiece Front camera
Headset jack
Status light
Proximity
sensor
Volume
Power/Lock
key
Recent apps Back key
Home
key
2 Front ViewGetting Started

• Back key: Tap to return to the previous screen, or to
close a dialog box, menu, or keyboard.
• Earpiece: Listen to a call.
• Front camera: Take self-portraits and record videos
of yourself.
• Headset jack: Connect an optional headset
(notincluded).
• Home key: Tap to return to the Home screen.
• Proximity sensor: Detects the presence of objects
near the device.
• Power/Lock key: Press and hold to turn the device
on or off. Press to lock or wake up the screen. Press
and hold to turn the device off or restart it, or for
quick access to Airplane Mode, Emergency Mode,
and to Mute, Vibrate, and Sound modes.
• Recent apps: Tap to display recent apps or touch
and hold for home screen options.
• Status light: Displays red when charging or the
battery is low, blue when a notification has arrived
or you are voice recording, and green when fully
charged.
• Volume: Press to adjust the volume of your device’s
sounds and audio.
3 Front ViewGetting Started

Back View
Back camera
Microphone
Flash Speaker
Microphone
USB charger/Accessory port
4 Back ViewGetting Started

• Back camera: Take pictures and record videos.
• Flash: Illuminate subjects in low-light environments
when taking a photo or recording video.
• Microphone: Records audio and detects voice
commands.
• Speaker: Plays music and other sounds.
• USB charger/Accessory port: Connect the Charger/
USB cable (included), and other optional accessories
(not included).
5 Back ViewGetting Started

Assemble Your Device
Prior to use, it is neccessary to install
the SIM card, and battery. You may
also install an optional memory card
(not included).
Remove the Back Cover
1. Remove the back cover using the slot near the top
of your phone.
6 Assemble Your DeviceGetting Started

2. Lift the cover up and away from the phone.
Warning: Do not bend or twist the back cover excessively.
Doing so may damage the cover.
Install a SIM Card
When you subscribe to a cellular network, you are
provided with a SIM card. During activation, your SIM
card will be loaded with your subscription details such
as your PIN, available optional services, and other
features.
Warning: Please be careful when handling the SIM card
to avoid damaging it. Keep all SIM cards out of reach of
small children.
7 Assemble Your DeviceGetting Started

► If your SIM card is not already installed, carefully
slide the SIM card into the SIM card slot.
Make sure that the card’s gold contacts face into
the device and that the angled corner of the card is
positioned as shown.
Caution: If the card is not inserted correctly, the device
will not detect the SIM card. Re-orient the card and place it
back into the slot if the SIM is notdetected.
8 Assemble Your DeviceGetting Started
