Samsung SGH-T439 Series User manual

GSM TELEPHONE
SGH-T439
UMTS TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions

Samsung Electronics Co.,Ltd.
2007. 10. Rev.1.0
ⓒ
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast & Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specificity of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool,
because performance of parts is damaged by the influence of magnetic force.
●Surely use a standard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembling charger.
●Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum
plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is connected
completely to the proper place or a circuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
GSM850
Phase 1
GSM900
Phase 1
EGSM 900
Phase 2 DCS1800 PCS1900
Freq.
Band[MHz]
Uplink/Downlink
824~849
869~894
890~915
935~960
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 128~251 1~124 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~ 19pcl 5pcl ~ 19pcl 0pcl ~ 15pcl 0pcl ~ 15pcl
Sensitivity -102dBm -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8 8
Cell Radius 35Km 35Km 35Km 2Km -
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level GSM850 GSM900
5 33±2 dBm 33±2 dBm
6 31±2 dBm 31±2 dBm
7 29±2 dBm 29±2 dBm
8 27±2 dBm 27±2 dBm
9 25±2 dBm 25±2 dBm
10 23±2 dBm 23±2 dBm
11 21±2 dBm 21±2 dBm
12 19±2 dBm 19±2 dBm
13 17±2 dBm 17±2 dBm
14 15±2 dBm 15±2 dBm
15 13±2 dBm 13±2 dBm
16 11±3 dBm 11±3 dBm
17 9±3dBm 9±3dBm
18 7±3 dBm 7±3 dBm
19 5±3 dBm 5±3 dBm
TX Power
control level DCS1800 PCS1900
0 30±3 dBm 30±3 dBm
1 28±3 dBm 28±3 dBm
2 26±3 dBm 26±3 dBm
3 24±3 dBm 24±3 dBm
4 22±3 dBm 22±3 dBm
5 20±3 dBm 20±3 dBm
6 18±3 dBm 18±3 dBm
7 16±3 dBm 16±3 dBm
8 14±3 dBm 14±3 dBm
9 12±4 dBm 12±4 dBm
10 10±4 dBm 10±4 dBm
11 8±4dBm 8±4dBm
12 6±4 dBm 6±4 dBm
13 4±4 dBm 4±4 dBm
14 2±5 dBm 2±5 dBm
15 0±5 dBm 0±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
-Stylish Mega Folder
-Quad-band / EDGE
-1.3Mega Camera
-128x160,65K PMOLED, 2.0”/ 96x96, 65K PMOLED, 1.0”
-Global Inbox
-IM (Yahoo, AOL, ICQ,MSN), MMS
-SAIC, Speaker Phone
-Stereo BT
-SyncML DS / NAB
-“myFaves” phase1.5
-Consumer Email (Native)

SAMSUNG Proprietary-Contents may change without notice
Operation Instruction and Installation
3-2
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

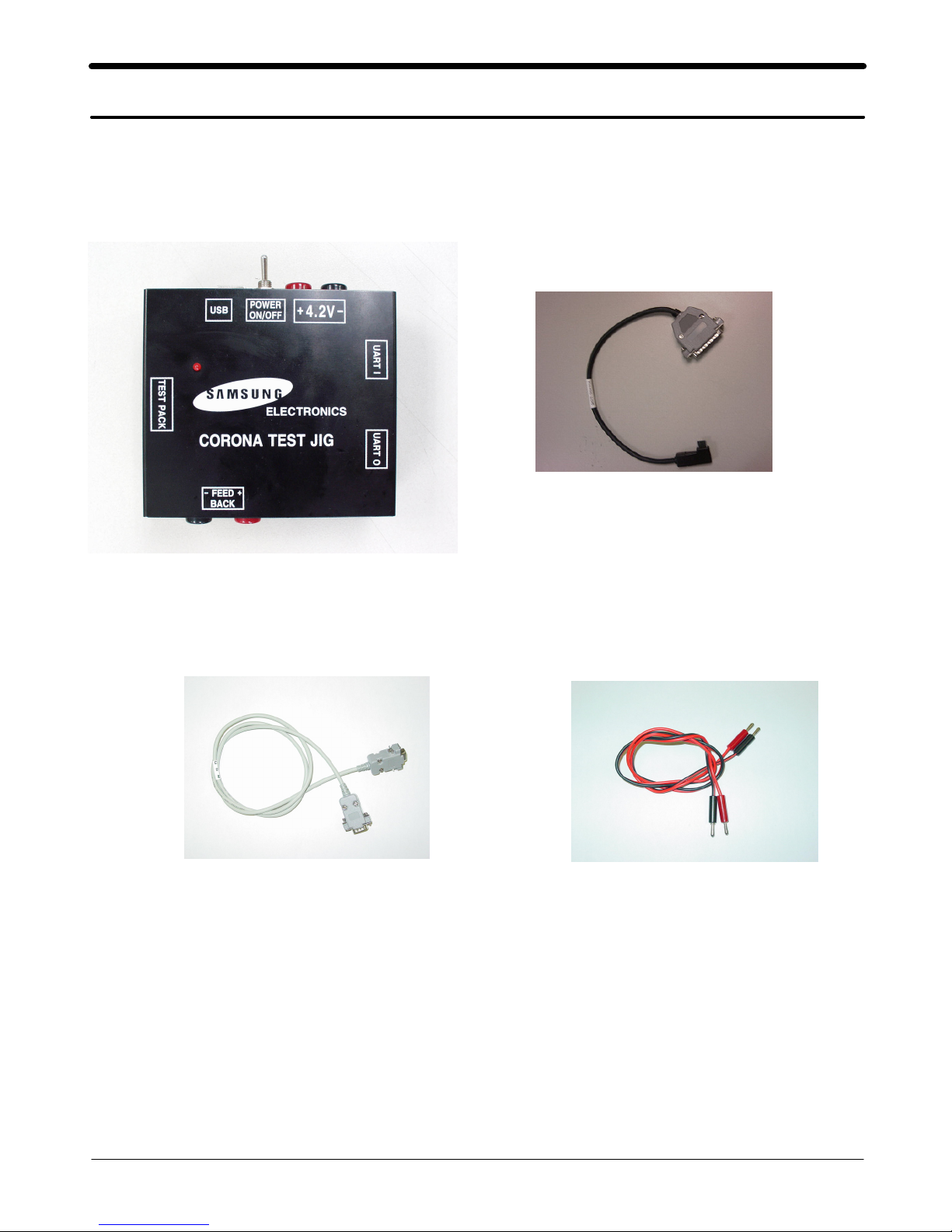

4-1. Software Adjustments
Jig Cable (GH80-00840A)
Power Supply Cable
Serial Cable(CSA LL64151-A)
Test Jig (GH80-03306A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requsite for Downloading
• Downloader Program(T439 PNX5230 FOTA Downloade VER3.exe)
• T439 Mobile Phone
• Data Cable
• Binary file, TFS file
4-2-2. S/W Downloader Program
■Load the binary download program by executing the
“T439 PNX5230 FOTA Downloade VER3.exe”
1. Select the connected serial port and therateofspeed
2. Select the check box, the mode you want to download.
- if the binary file wanted, check only'BIN'
- if the tfs file wanted, check only 'TFS'
- if all the files wanted, check 'BIN+TFS'
- if audio tunning wanted, check 'TFS+AUDIO

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

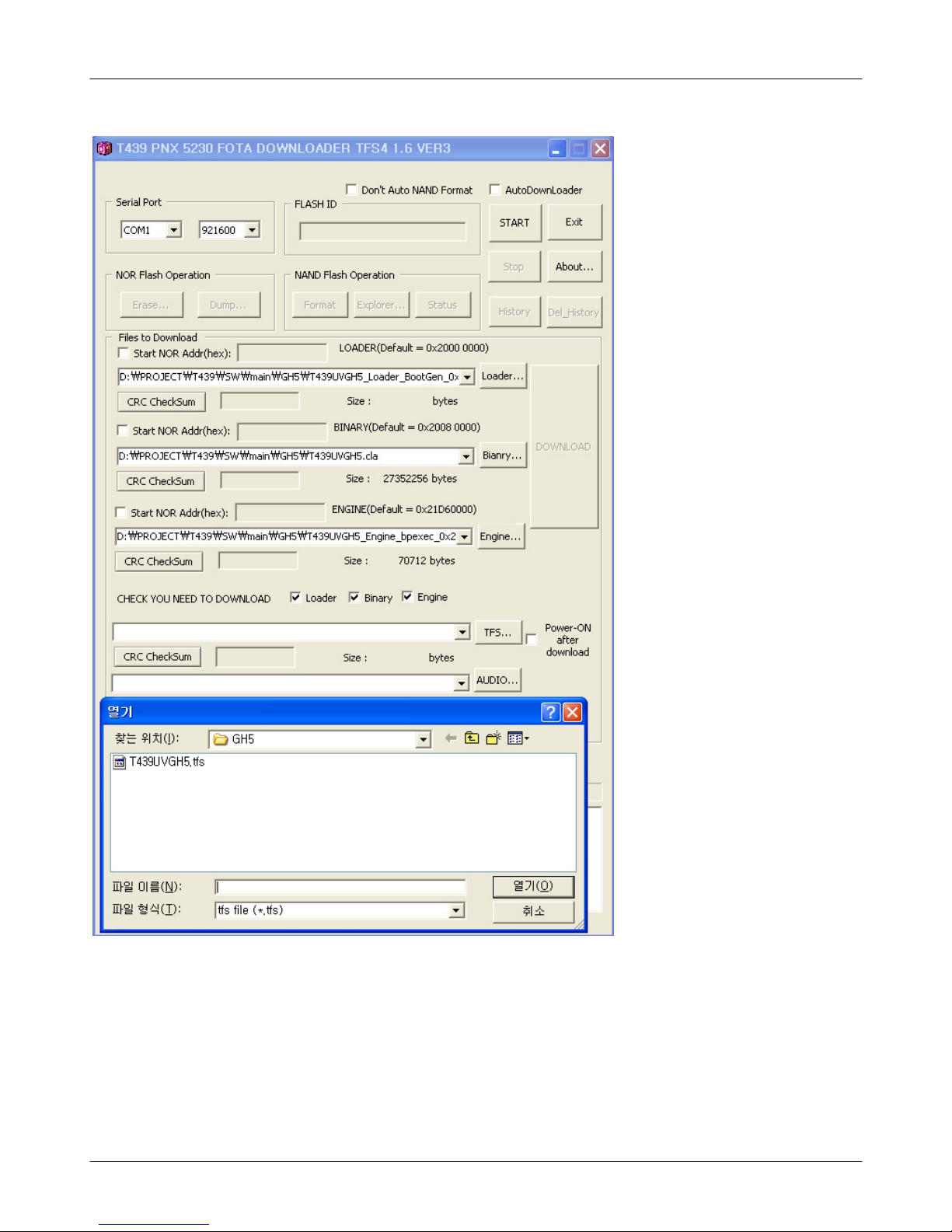

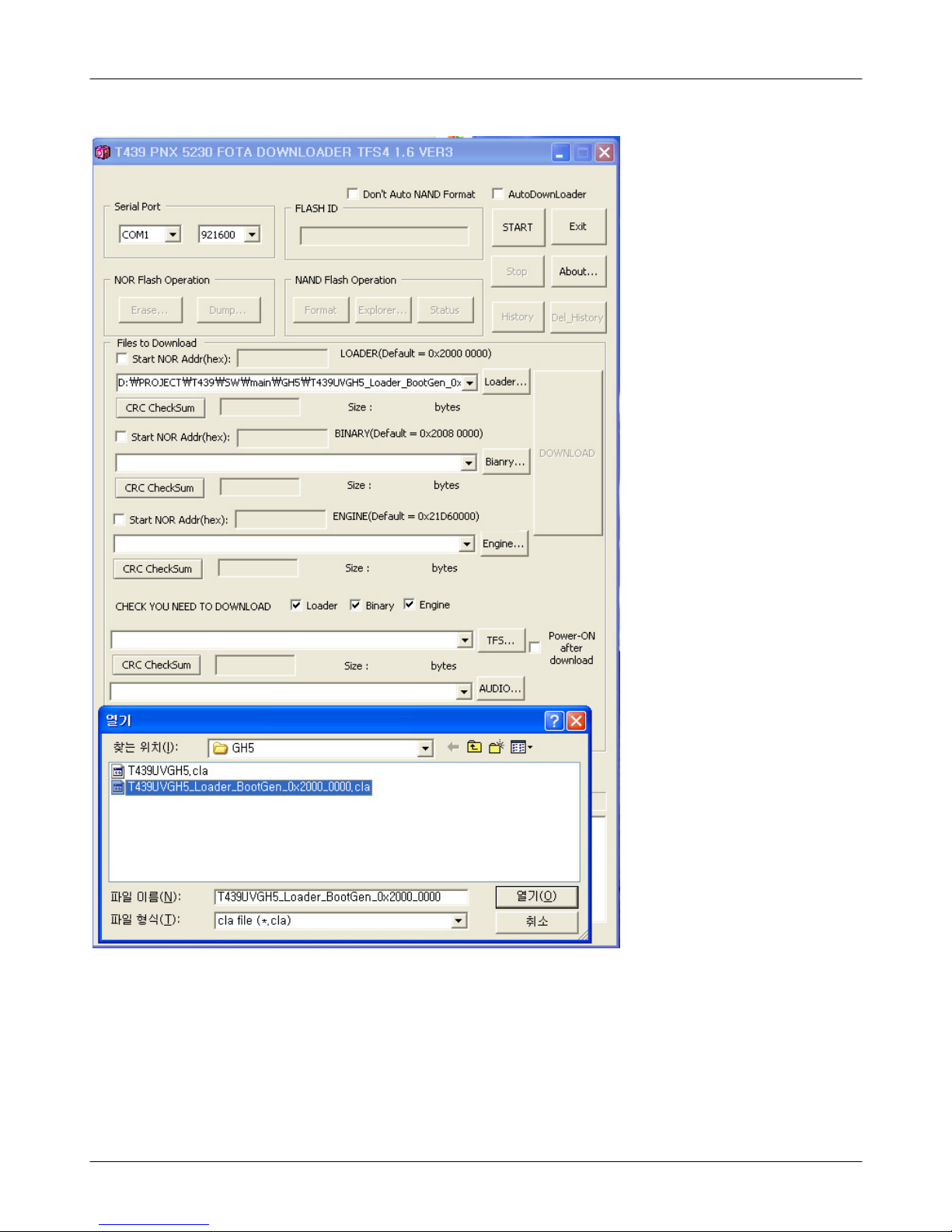

3. Select the file(s) what you want to download

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QFU01
QFR01
QSD01
QMP01
QVO01
QCK01
QRF01
QCR06
QCA01
QMC16
QLC01
QFL01
QSC02
QCR12
QSC01
QMW01
QKP01
QME01
QMI01
QAN05
QSH02
QSH01
QCR12
QAN02
QRE01
QCR06
QBA01
QBA00
QSP01
QMO01
QIF01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN02 INTENNA-SGH T439 GH42-01305A
QAN05 ASSY RUBBER-ANTENNA CONTACT GH98-06857A
QBA00 PMO COVER-BATT GH72-42817A
QBA01 INNER BATTERY PACK-800MAH,BLK, GH43-02842A
QCA01 CAMERA MODULE GH59-04813A
QCK01 PMO KEY-CAMERA GH72-43100A
QCR06 SCREW-MACHINE 6001-001155
QCR06 SCREW-MACHINE 6001-001155
QCR12 SCREW-MACHINE 6001-001530
QCR12 SCREW-MACHINE 6001-001530
QFL01 ASSY CASE-FOLDER LOWER GH98-05506A
QFR01 ASSY CASE-FOLDER FRONT GH98-05507A
QSD01 PMO COVER-SD GH72-42818A
QIF01 PMO COVER-IF GH72-42819A
QFU01 ASSY CASE-FOLDER UPPER GH98-05505A
QKP01 ASSY KEYPAD-MAIN(TMB/BLK) GH98-05639A
QLC01 LCD-LCD MODULE GH07-01190A
QMC16 ASSY ETC-CON TO CON GH59-04815A
QME01 DOME SHEET GH59-04927A
QMI01 MICROPHONE-ASSY GH30-00411A
QMO01 MOTOR DC-SGH T439 GH31-00371A
QMP01 PBA MAIN-SGH T439 GH92-04006A
QMW01 ASSY COVER-MAIN WINDOW GH98-06626A
QRE01 ASSY CASE-FLODER REAR GH98-05508A
QRF01 TAPE-RF GH74-35673A
QSC01 RMO COVER-SCREW LEFT GH73-10630A
QSC02 RMO COVER-SCREW RIGHT GH73-10631A
QSH01 ASSY COVER-SHIELD CAN GH98-06627A
QSH02 ICT SHIELD-CAN RF GH70-02898A
QSP01 SPEAKER 3001-002217
QVO01 PMO KEY-VOLUME GH72-43101A
5-2. Cellular phone Parts List

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
Description SEC CODE
EARPHONE-20P,EARPHONE,BLK,A-TY GH59-04830A
LABEL(P)-SEAL UNIT GH68-04256A
MANUAL USERS-GS_POSTER GH68-15923A
VINYL-BOHO MAIN WINDOW GH74-35587A
TAPE-LED GH74-34316A
LABEL(R)-WATERSOAK(NEW) GH68-14285A
AS-SUB LCD SVC GH81-06669A
AS-PCB LCD SVC GH81-06670A
TAPE-LCD GH74-35610A
UNIT-AWB SIM CARD GH59-00943A
PAA ETC-MANUL(TMB) GH99-25192A
BAG PE 6902-000297
LABEL(R)-MAIN(TMB) GH68-16467A
CUSHION-COVER(TMB) GH69-02793A
BOX-UNIT(TMB) GH69-05850A
CUSHION-CASE(TMB) GH69-05851A
ADAPTOR-ATADS10JBE,BLK,USA GH44-01700A

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
Design LOC Description SEC Code STATUS
ANT100 NPR-ANT CONTACT GH71-06625A SA
ANT101 NPR-ANT CONTACT GH71-06625A SA
ANT500 ANTENNA-CHIP 4202-001355 SA
BAT400 BATTERY-LI(2ND) 4302-001180 SA
BTC600 HEADER-BATTERY 3711-006249 SA
C100 R-CHIP 2007-000171 SA
C101 C-CER,CHIP 2203-000233 SA
C102 C-CER,CHIP 2203-005288 SA
C103 C-CER,CHIP 2203-005288 SA
C104 C-CER,CHIP 2203-005050 SA
C105 C-CER,CHIP 2203-000870 SA
C106 C-CER,CHIP 2203-005050 SA
C107 C-TA,CHIP 2404-001496 SA
C108 C-CER,CHIP 2203-005446 SA
C109 C-CER,CHIP 2203-000330 SA
C111 C-CER,CHIP 2203-000812 SA
C112 C-CER,CHIP 2203-000812 SA
C113 C-CER,CHIP 2203-005281 SA
C114 C-CER,CHIP 2203-000278 SA
C115 C-CER,CHIP 2203-005281 SA
C116 C-CER,CHIP 2203-006712 SA
C117 C-CER,CHIP 2203-006712 SA
C118 C-CER,CHIP 2203-000138 SA
C119 INDUCTOR-SMD 2703-001990 SA
C120 INDUCTOR-SMD 2703-001180 SA
C121 C-CER,CHIP 2203-000233 SA
C122 C-CER,CHIP 2203-000278 SA
C123 C-CER,CHIP 2203-000812 SA
C124 C-CER,CHIP 2203-006048 SA
C125 C-CER,CHIP 2203-000233 SA
C126 C-CER,CHIP 2203-000233 SA
C127 C-CER,CHIP 2203-006048 SA
C128 C-CER,CHIP 2203-005288 SA
C129 C-CER,CHIP 2203-005288 SA
C132 C-CER,CHIP 2203-006260 SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC Code STATUS
C200 C-CER,CHIP 2203-005482 SA
C201 C-CER,CHIP 2203-000812 SA
C202 C-CER,CHIP 2203-005482 SA
C203 C-CER,CHIP 2203-000254 SA
C204 C-CER,CHIP 2203-005482 SA
C205 C-CER,CHIP 2203-005482 SA
C206 C-CER,CHIP 2203-005482 SA
C207 C-CER,CHIP 2203-005482 SA
C208 C-CER,CHIP 2203-005482 SA
C209 C-CER,CHIP 2203-005482 SA
C210 C-CER,CHIP 2203-005682 SA
C211 C-CER,CHIP 2203-006423 SA
C212 C-CER,CHIP 2203-006423 SA
C213 C-CER,CHIP 2203-006562 SA
C214 C-CER,CHIP 2203-005482 SA
C215 C-CER,CHIP 2203-006048 SA
C216 C-CER,CHIP 2203-000425 SA
C217 C-CER,CHIP 2203-000425 SA
C301 C-CER,CHIP 2203-005482 SA
C302 C-CER,CHIP 2203-006562 SA
C303 C-CER,CHIP 2203-006562 SA
C304 C-CER,CHIP 2203-005482 SA
C305 C-CER,CHIP 2203-005482 SA
C306 C-CER,CHIP 2203-005482 SA
C307 C-CER,CHIP 2203-005482 SA
C308 R-CHIP 2007-000171 SA
C309 C-CER,CHIP 2203-000233 SA
C310 C-CER,CHIP 2203-005482 SA
C312 C-CER,CHIP 2203-006260 SA
C313 C-CER,CHIP 2203-006562 SA
C314 C-CER,CHIP 2203-006562 SA
C315 C-CER,CHIP 2203-006260 SA
C318 C-CER,CHIP 2203-005482 SA
C319 C-CER,CHIP 2203-002709 SA
C400 C-CER,CHIP 2203-006257 SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
Design LOC Description SEC Code STATUS
C401 C-CER,CHIP 2203-006257 SA
C402 C-CER,CHIP 2203-006824 SA
C403 C-CER,CHIP 2203-006890 SA
C404 C-CER,CHIP 2203-006257 SA
C405 C-CER,CHIP 2203-006257 SA
C406 C-CER,CHIP 2203-006824 SA
C407 C-CER,CHIP 2203-006562 SA
C409 C-CER,CHIP 2203-006257 SA
C410 C-CER,CHIP 2203-006824 SA
C411 C-CER,CHIP 2203-000233 SA
C412 C-CER,CHIP 2203-006257 SA
C413 C-CER,CHIP 2203-000425 SA
C414 C-CER,CHIP 2203-006562 SA
C415 C-CER,CHIP 2203-006348 SA
C416 C-CER,CHIP 2203-000627 SNA
C417 C-CER,CHIP 2203-006324 SA
C418 C-CER,CHIP 2203-006257 SA
C421 C-CER,CHIP 2203-005482 SA
C423 C-CER,CHIP 2203-006841 SA
C424 C-CER,CHIP 2203-006824 SA
C425 C-CER,CHIP 2203-006361 SA
C426 C-CER,CHIP 2203-006474 SA
C427 C-CER,CHIP 2203-006562 SA
C428 C-CER,CHIP 2203-002443 SA
C500 C-CER,CHIP 2203-006838 SA
C501 C-CER,CHIP 2203-000438 SA
C502 C-CER,CHIP 2203-005482 SA
C503 C-CER,CHIP 2203-005482 SA
C504 C-CER,CHIP 2203-005446 SA
C505 C-CER,CHIP 2203-006838 SA
C506 C-CER,CHIP 2203-005482 SA
C508 C-CER,CHIP 2203-000278 SA
C509 C-CER,CHIP 2203-000233 SA
C510 C-CER,CHIP 2203-006562 SA
C511 C-CER,CHIP 2203-006842 SA
