Samsung Galaxy Mini GT-S5570 User manual

GT-S5570
user manual

Using this manual
2
Using this manual
Thank you for purchasing this Samsung mobile device.
This device will provide you with high quality mobile
communication and entertainment based on Samsung’s
exceptional technology and high standards.
This user manual has been specially designed to guide you
through the functions and features of your device.
Read me rst
Please read all safety precautions and this manual•
carefully before using your device to ensure safe and
proper use.
The descriptions in this manual are based on the default
•
settings of your device.
Images and screenshots used in this user manual may
•
dier in appearance from the actual product.
Content in this user manual may dier from the product,
•
or from software provided by service providers or
carriers, and is subject to change without prior notice.
Refer to www.samsung.com for the latest version of the
user manual.
Available features and additional services may vary by
•
device, software, or service provider.
Formatting and delivery of this user manual is based
•
on Google Android operating systems and may vary
depending on the user’s operating system.
Applications and their functions may vary by country,
•
region, or hardware specications. Samsung is not
liable for performance issues caused by third-party
applications.
Samsung is not liable for performance issues or
•
incompatibilities caused by user editing of registry
settings.
You may upgrade your mobile device’s software by
•
accessing www.samsung.com.

Using this manual 3
Note—notes, usage tips, or additional
information
►Refer to—pages with related information; for
example: ►p.12 (represents“see page 12”)
→
Followed by—the order of options or menus
you must select to perform a step; for example:
In Idle mode, open the application list and select
Settings
→
About phone (represents Settings,
followed by About phone)
[ ] Square brackets—device keys; for example: [ ]
(represents the Power/Lock key)
Sound sources, wallpapers, and images provided in this
•
device are licenced for limited use between Samsung
and their respective owners. Extracting and using
these materials for commercial or other purposes is an
infringement of copyright laws. Samsung is not liable for
such copyright infringement by the user.
Please keep this manual for future reference.
•
Instructional icons
Before you start, familiarise yourself with the icons you will
see in this manual:
Warning—situations that could cause injury to
yourself or others
Caution—situations that could cause damage to
your device or other equipment

Using this manual
4
• and are trademarks of SRS Labs, Inc. CS
Headphone and WOW HD technologies are incorporated
under licence from SRS Labs, Inc.
Bluetooth
• ®is a registered trademark of the Bluetooth
SIG, Inc. worldwide.
Oracle and Java are registered trademarks of Oracle and/
•
or its aliates. Other names may be trademarks of their
respective owners.
Wi-Fi
• ®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are
registered trademarks of the Wi-Fi Alliance.
All other trademarks and copyrights are the property of
•
their respective owners.
Copyright
Copyright © 2011 Samsung Electronics
This user manual is protected under international
copyright laws.
No part of this user manual may be reproduced,
distributed, translated, or transmitted in any form or by any
means, electronic or mechanical, including photocopying,
recording, or storing in any information storage and
retrieval system, without the prior written permission of
Samsung Electronics.
Trademarks
SAMSUNG and the SAMSUNG logo are registered•
trademarks of Samsung Electronics.
The Android logo, Google Search
• ™, Google Maps™,
Google Mail™, YouTube™, Android Market™, and
Google Talk™are trademarks of Google, Inc.

Contents 5
Contents
Assembling ............................................. 9
Unpack .................................................................. 9
Install the SIM or USIM card and battery ...... 9
Charge the battery ........................................... 11
Insert a memory card (optional) ................... 13
Attach a hand strap (optional) ...................... 16
Getting started ..................................... 17
Turn your device on and o ........................... 17
Get to know your device ................................. 17
Use the touch screen ........................................ 20
Lock or unlock the touch screen and keys . . 22
Get to know the idle screen ........................... 22
Access applications .......................................... 24
Customise your device .................................... 26
Enter text ............................................................ 29
Download applications from Android
Market ................................................................. 33
Download les from the web ........................ 34
Synchronise data .............................................. 35

Contents
6
Personal information .......................... 65
Contacts .............................................................. 65
Calendar .............................................................. 69
Memo ................................................................... 70
Voice recorder .................................................... 71
Web ........................................................ 72
Internet ............................................................... 72
Maps .................................................................... 75
Latitude ............................................................... 77
Places ................................................................... 77
Navigation .......................................................... 78
Google Search ................................................... 79
Communication ................................... 37
Calling .................................................................. 37
Messaging .......................................................... 41
Google Mail ........................................................ 43
Mail by Samsung .............................................. 44
Messenger .......................................................... 46
Talk ....................................................................... 47
Social Hub ........................................................... 48
Entertainment ...................................... 49
Camera ................................................................ 49
Gallery ................................................................. 57
Music .................................................................... 59
FM radio .............................................................. 62

Contents 7
Tools ....................................................... 91
Clock .................................................................... 91
Calculator ............................................................ 92
My les ................................................................ 92
Quickoce ......................................................... 93
SIM Toolkit .......................................................... 93
Task manager .................................................... 94
Voice Search ....................................................... 94
Settings .................................................. 95
Access the Settings menu ............................... 95
Wireless and networks .................................... 95
Call settings ........................................................ 96
YouTube .............................................................. 79
News & Weather ................................................ 80
Samsung Apps .................................................. 81
Market ................................................................. 82
Connectivity ......................................... 83
Bluetooth ............................................................ 83
Wi-Fi ..................................................................... 85
Mobile AP ........................................................... 86
USB tethering .................................................... 87
PC connections .................................................. 87
VPN connections ............................................... 88

Contents
8
Troubleshooting ................................ 106
Safety precautions ............................. 112
Index .................................................... 122
Sound .................................................................. 97
Display ................................................................. 98
Location and security ...................................... 99
Applications .................................................... 100
Accounts and sync ......................................... 100
Privacy .............................................................. 101
SD card and phone storage ......................... 101
Search ............................................................... 101
Language and keyboard .............................. 102
Voice input and output ................................ 104
Accessibility ..................................................... 105
Date and time ................................................. 105
About phone ................................................... 105

Assembling 9
Assembling
Unpack
Check your product box for the following items:
Mobile device
•
Battery•
Travel adapter (charger)•
Quick start guide•
Use only Samsung-approved software. Pirated or
illegal software may cause damage or malfunctions
that are not covered by your manufacturer's
warranty.
The items supplied with your device may vary•
depending on the software and accessories
available in your region or oered by your service
provider.
You can obtain additional accessories from your
•
local Samsung dealer.
The supplied accessories perform best for your
•
device.
Accessories other than the supplied ones may not
•
be compatible with your device.
Install the SIM or USIM card and
battery
When you subscribe to a cellular service, you will receive
a Subscriber Identity Module (SIM) card, with subscription
details, such as your personal identication number (PIN)
and optional services. To use UMTS or HSDPA services,
you can purchase a Universal Subscriber Identity Module
(USIM) card.

Assembling
10
Insert the SIM or USIM card.
3
Place the SIM or USIM card into the device with•
the gold-coloured contacts facing down.
If you do not insert a SIM or USIM card, you can
•
only use your device’s non-network services and
some menus.
To install the SIM or USIM card and battery,
If the device is on, press and hold [
1
] and select
Power o to turn it o.

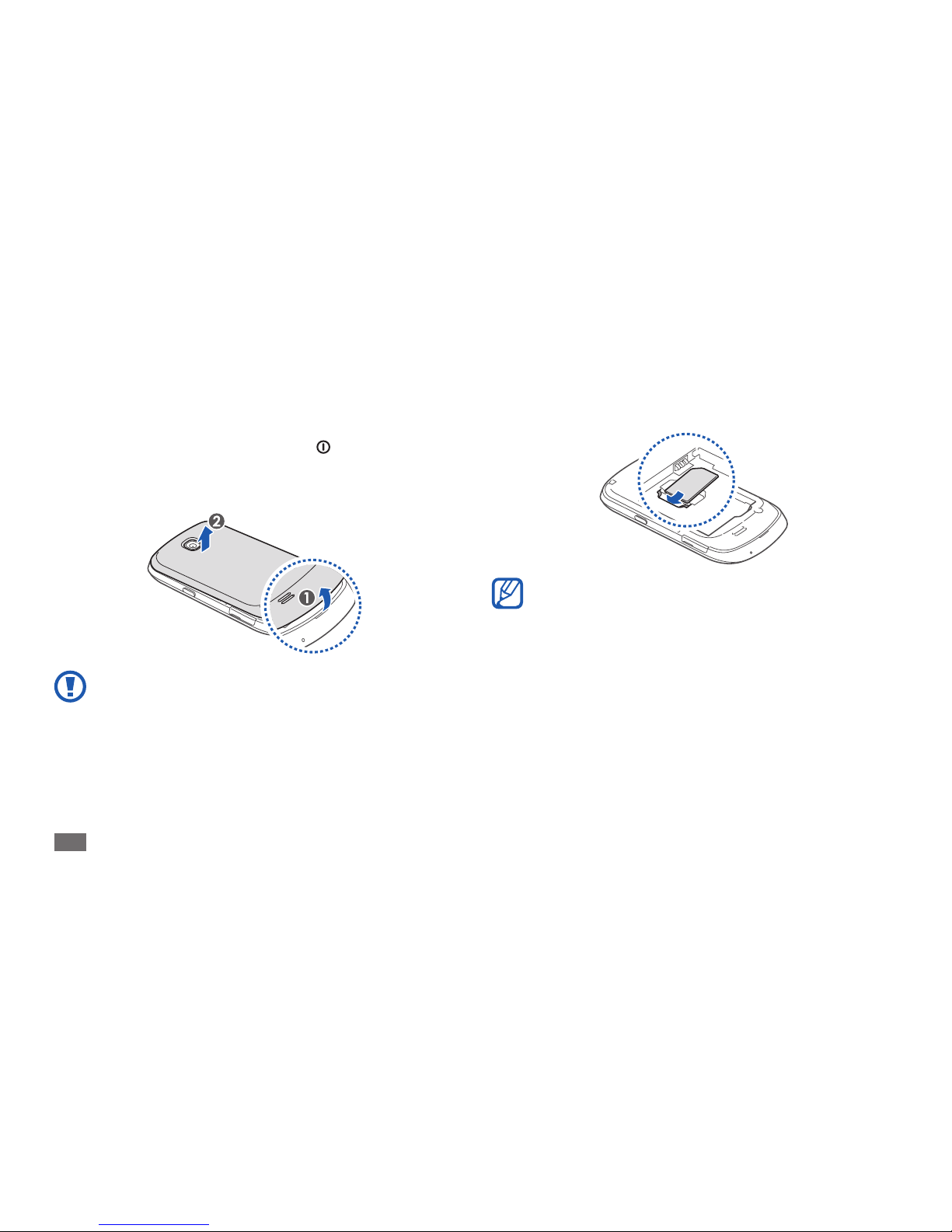

Remove the back cover.
2
Be careful not to damage your ngernails when you
remove the back cover.

Assembling 11
Charge the battery
Before using the device for the rst time, you must charge
the battery.
You can charge the device with the provided travel adapter
or by connecting the device to a PC with a PC data cable.
Use only Samsung-approved chargers and cables.
Unauthorised chargers or cables can cause batteries
to explode or damage your device.
When your battery is low, the device will emit a
warning tone and display a low battery message.
The battery icon will also be empty. If the
battery level becomes too low, the device will
automatically power o. Recharge your battery to
continue using your device.
Insert the battery.
4
Replace the back cover.
5

Assembling
12
Plug the large end of the travel adapter into a power
3
outlet.
You can use the device while it is charging, but it•
may take longer to fully charge the battery.
While the device is charging, the touch screen may
•
not function due to an unstable power supply. If
this happens, unplug the travel adapter from the
device.
While charging, the device may heat up. This
•
is normal and should not aect your device’s
lifespan or performance.
If your device is not charging properly, bring your
•
device and the charger to a Samsung Service
Centre.
Charge with the travel adapter
›
Open the cover to the multifunction jack on the top of
1
the device.
Plug the small end of the travel adapter into the
2
multifunction jack.
Improperly connecting the travel adapter can cause
serious damage to the device. Any damage caused
by misuse is not covered by the warranty.

Assembling 13
Plug one end (micro-USB) of the PC data cable into the
2
multifunction jack.
Plug the other end of the PC data cable into a USB port
3
on a PC.
Depending on the type of PC data cable you are
using, it may take some time before charging
begins.
When the battery is fully charged (the battery icon is
4
no longer moving), unplug the PC data cable from the
device and then from the PC.
Insert a memory card (optional)
To store additional multimedia les, you must insert
a memory card. Your device accepts microSD™or
microSDHC™memory cards with maximum capacities
of 32 GB (depending on memory card manufacturer and
type).
When the battery is fully charged (the battery icon is
4
no longer moving), unplug the travel adapter from the
device and then from the power outlet.
Do not remove the battery before removing the
travel adapter. Doing this may cause damage to the
device.
To save energy, unplug the travel adapter when not
in use. The travel adapter does not have a power
switch, so you must unplug the travel adapter from
the outlet to interrupt the power supply. The travel
adapter should remain close to the socket when
in use.
Charge with the PC data cable
›
Before charging, ensure that your PC is turned on.
Open the cover to the multifunction jack on the top of
1
the device.

Assembling
14
Open the cover to the memory card slot on the side of
1
the device.
Insert a memory card with the gold-coloured contacts
2
facing down.
Push the memory card in the memory card slot until it
3
locks in place.
Close the cover to the memory card slot.
4
Samsung uses approved industry standards for
memory cards, but some brands may not be fully
compatible with your device. Using an incompatible
memory card may damage your device or the
memory card and can corrupt data stored on the
card.
Your device supports only the FAT le structure for•
memory cards. If you insert a card formatted with
a dierent le structure, your device will ask you to
reformat the memory card.
Frequent writing and erasing of data will shorten
•
the lifespan of memory cards.
When you insert a memory card in your device,
•
the le directory of the memory card will appear
in the sdcard folder.

Assembling 15
Format the memory card
›
Formatting your memory card on a PC may cause
incompatibilities with your device. Format the memory
card only on the device.
In Idle mode, select or
→
Settings
→
SD card and
phone storage
→
Unmount SD card
→
OK
→
Format SD
card
→
Format SD card
→
Erase everything.
Before formatting the memory card, remember to
make backup copies of all important data stored on
your device. The manufacturer’s warranty does not
cover loss of data resulting from user actions.
Remove the memory card
›
Before removing a memory card, rst unmount it for safe
removal.
In Idle mode, select
1
or
→
Settings
→
SD card
and phone storage
→
Unmount SD card
→
OK.
Open the cover to the memory card slot on the side of
2
the device.
Push the memory card gently until it disengages from
3
the device.
Pull the memory card out of the memory card slot.
4
Close the cover to the memory card slot.
5
Do not remove a memory card while the device is
transferring or accessing information, as this could
result in loss of data or damage to the memory card
or device.

Assembling
16
Attach a hand strap (optional)
Remove the back cover.
1
Slide a hand strap through the slot and hook it over
2
the small projection.
Replace the back cover.
3

Getting started 17
Getting started
Turn your device on and o
To turn on your device,
Press and hold [
1
].
If you turn on your device for the rst time, follow the
2
on-screen instructions to set up your device.
To turn o your device, press and hold [ ] and select
Power o.
Follow all posted warnings and directions from•
ocial personnel when in areas where the use of
wireless devices is restricted, such as aeroplanes
and hospitals.
To use your device's non-network services only,
•
switch to Flight mode. Press and hold [ ] and
select Flight mode.

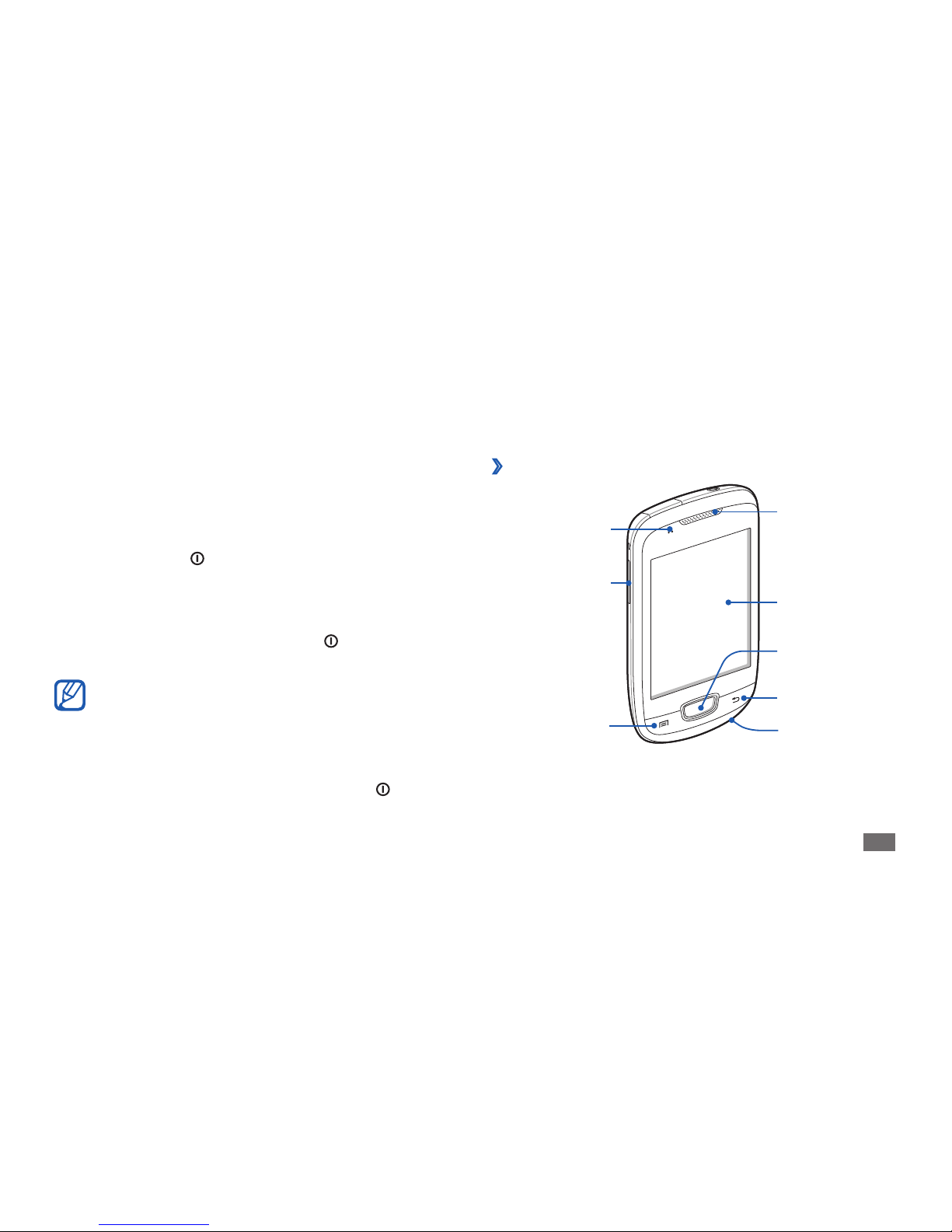

Get to know your device

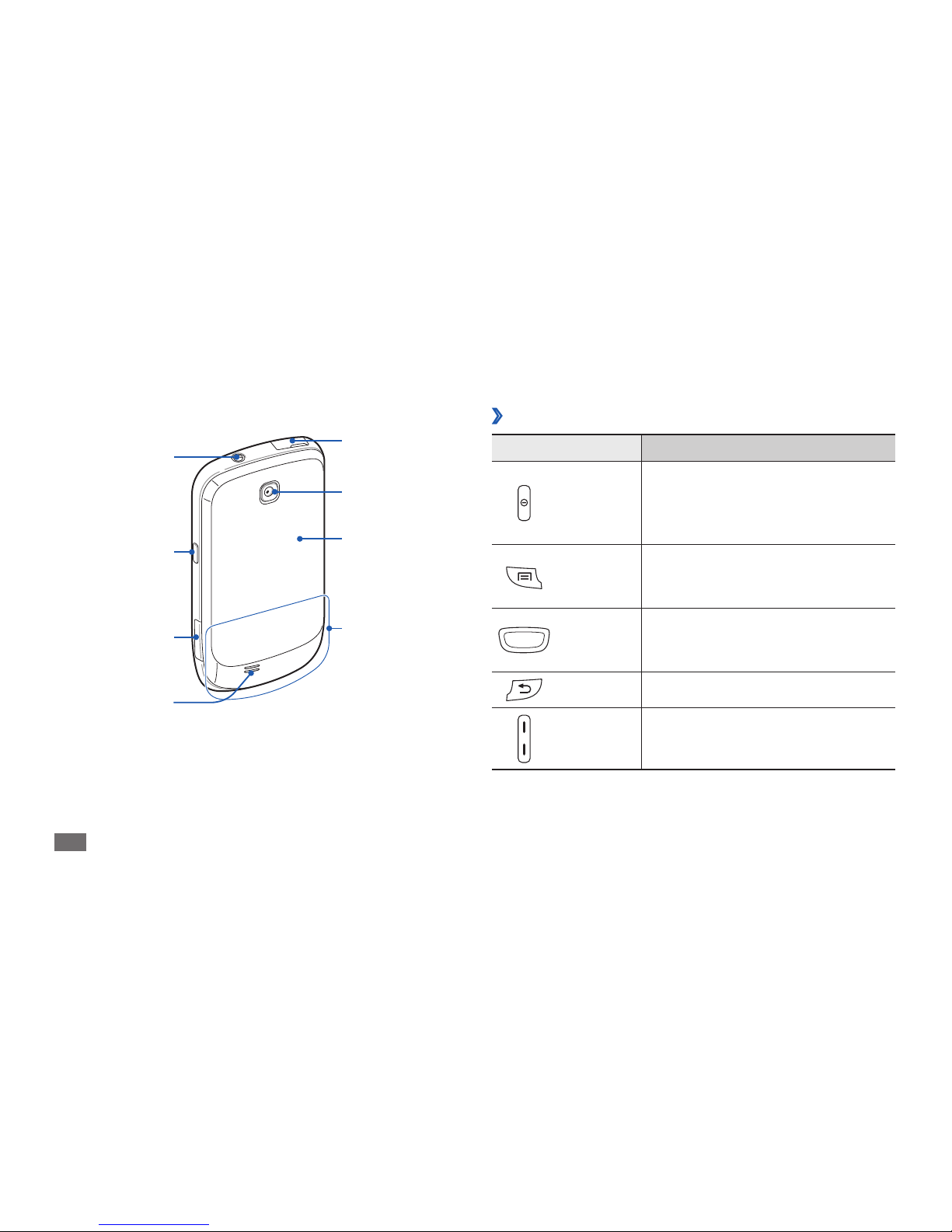

Device layout
›
Touch screen
Back key
Home key
Volume key
Menu key Mouthpiece
Earpiece
Proximity sensor

Getting started
18
Keys
›
Key Function
Power/
Lock
Turn on the device (press and
hold); Access the quick menus
(press and hold); Lock the touch
screen.
Menu
Open a list of options available on
the current screen; Open the quick
search bar (press and hold).
Home
Return to the idle screen; Open
the list of recent applications
(press and hold).
Back Return to the previous screen.
Volume Adjust the device’s volume.
Headset jack
Back cover
Multifunction jack
Power/Lock key
Memory card slot
Camera lens
Internal antenna
Speaker

Getting started 19
Icon Denition
GPS activated
Call in progress
Call on hold
Speakerphone activated
Missed call
Synchronised with the web
Uploading data
Downloading data
Call diverting activated
Connected to PC
USB tethering activated

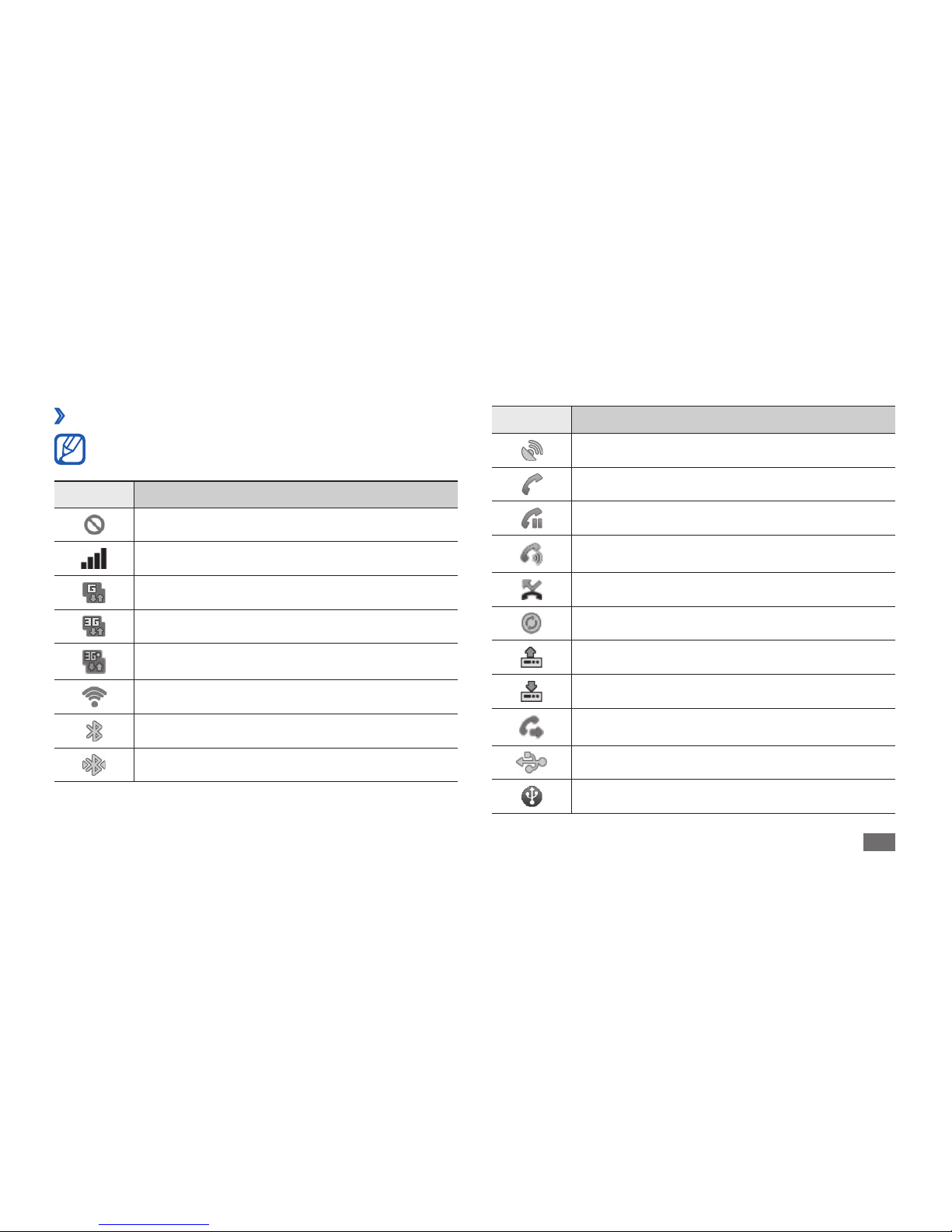

Indicator icons
›
Icons shown on the display may vary depending on
your region or service provider.
Icon Denition
No signal
Signal strength
GPRS network connected
UMTS network connected
HSDPA network connected
WLAN activated
Bluetooth activated
Bluetooth headset connected

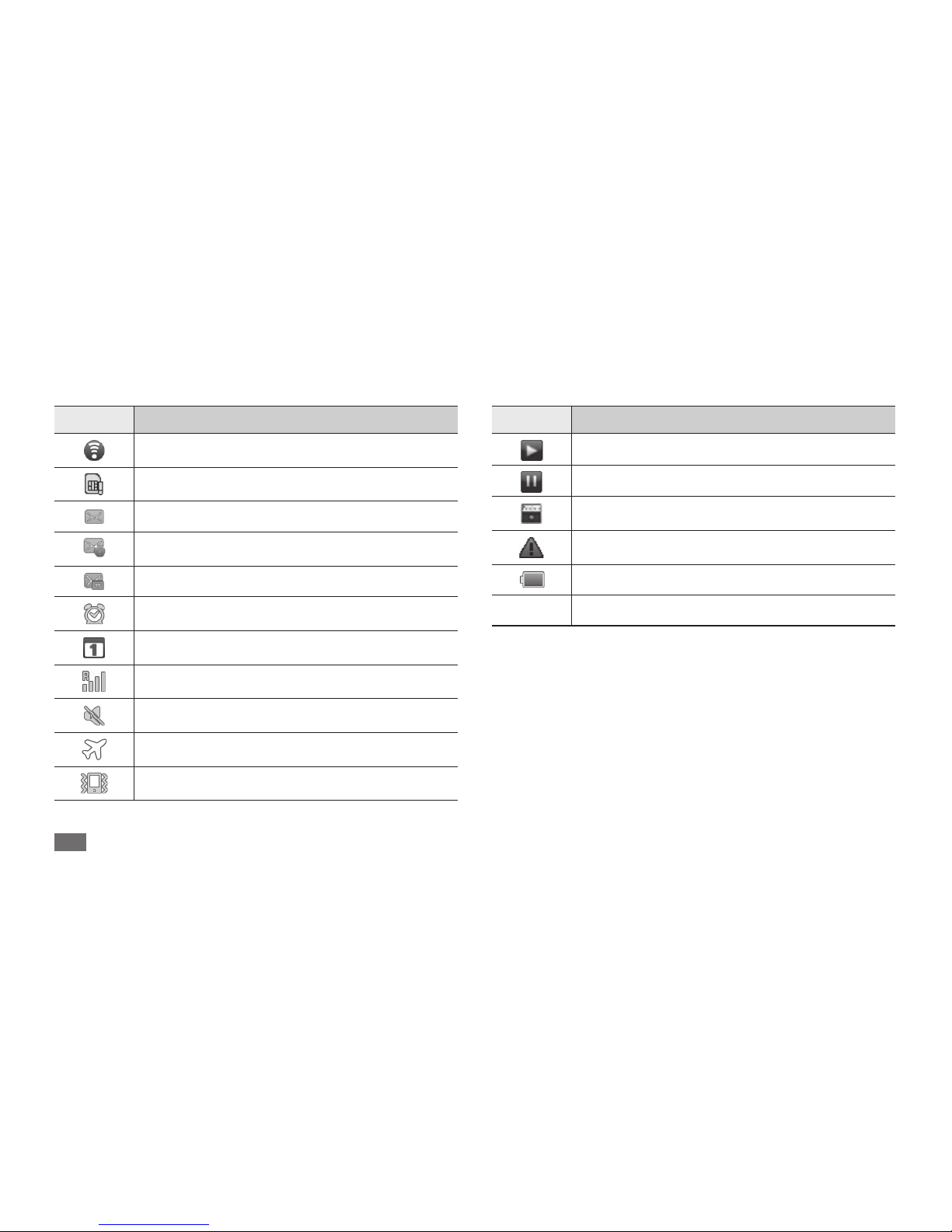

Getting started
20
Icon Denition
Music playback in progress
Music playback paused
FM radio turned on in the background
Error occurred or caution required
Battery power level
10:00
Current time
Use the touch screen
Your device’s touch screen lets you easily select items or
perform functions. Learn basic actions to use the touch
screen.
Icon Denition
Mobile AP activated
No SIM or USIM card
New text or multimedia message
New email message
New voice mail message
Alarm activated
Event notication
Roaming (outside of normal service area)
Silent mode activated
Flight mode activated
Vibration mode activated
